SBD11S-US11S-US

- 1 - TITLEDATE 2013.11.25 Operation manualModelORIGINAL NO. 224307 11S-USDRAWNIKEDA (Transmitter)CHECKED MURAYAMA APPROVED IKEDA ItemOperation 1.Battery preparationA battery is mounted in a case (A new battery is used) 2. ID code numbercheckFinishing of a setup already The receiver end is set up previously (The same ID number as a transmitter is used.) (receiver) 3. Data transmissionIt is transmitted automatically A pressure value is outputted from RS232C of a receiver. *Protocol 9600bps,8bit,non parity,1 stop bit, 4.A method of operationMounting of a battery will start transmission automatically. 5. CautionThe user is cautioned that changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Title ①ID Label ②NC ③Battery mounting ④Screw (Battery lid) REVI.DATETITLEAPP. DRAWN DATE2013.10.08ModelDENSHITSUSHIN CO.,Ltd APPROVED CHECKEDDRAWNORG. 224301 11S-USNO IKEDAMURAYAMA IKEDAOutlineDRA. 158303RE 1 NOVI

40mm Bridgestone Corporation FCC ID: SBD11S-US Serial No. : This device complies with part 15 of the FCC Rules. Operation50mm is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, incl uding interference that may cause undesired operation. REVI.DATETITLEAPP. DRAWN DATE2013.11.25TITLEDENSHITSUSHIN CO.,Ltd APPROVED CHECKED DRAWNORG. 224304 11S-USNO IKEDAMURAYAMA IKEDALabelDRA. 158304RE 1 NOVI

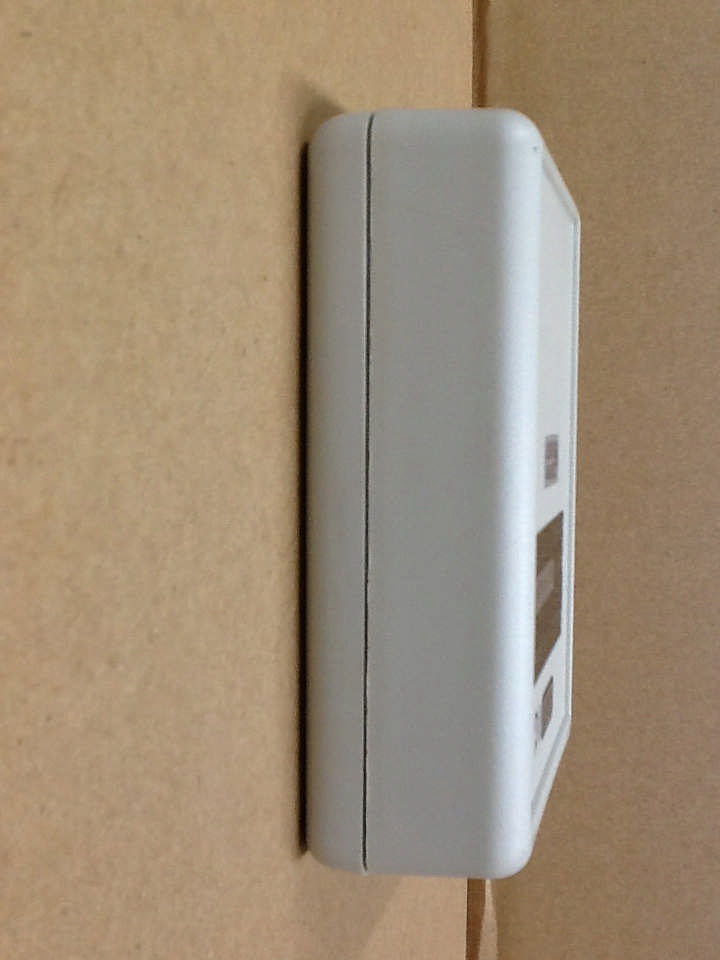

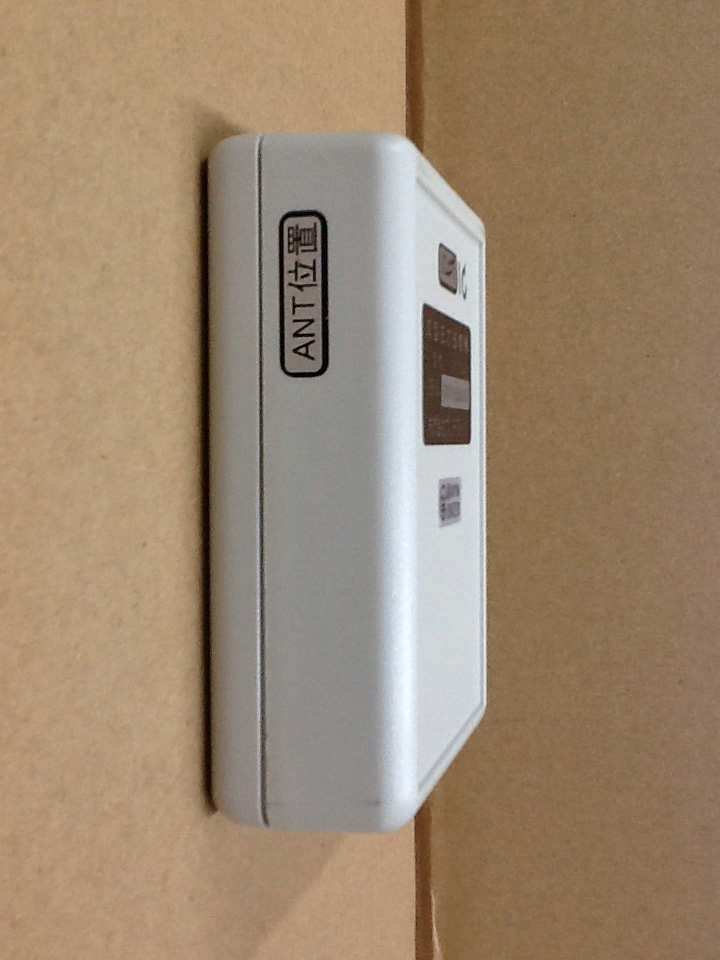

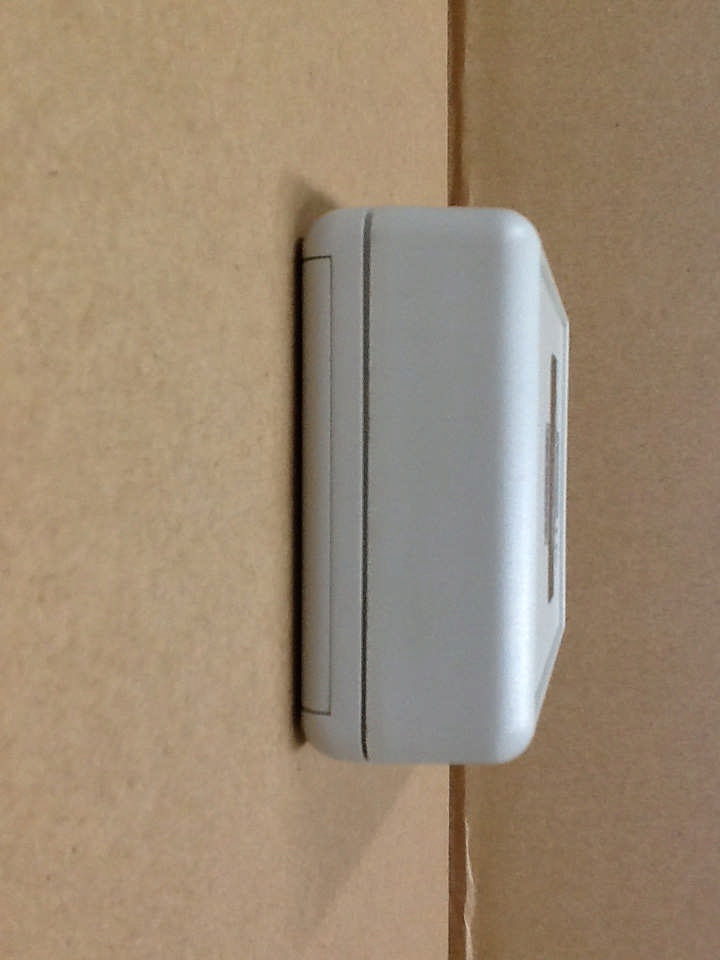

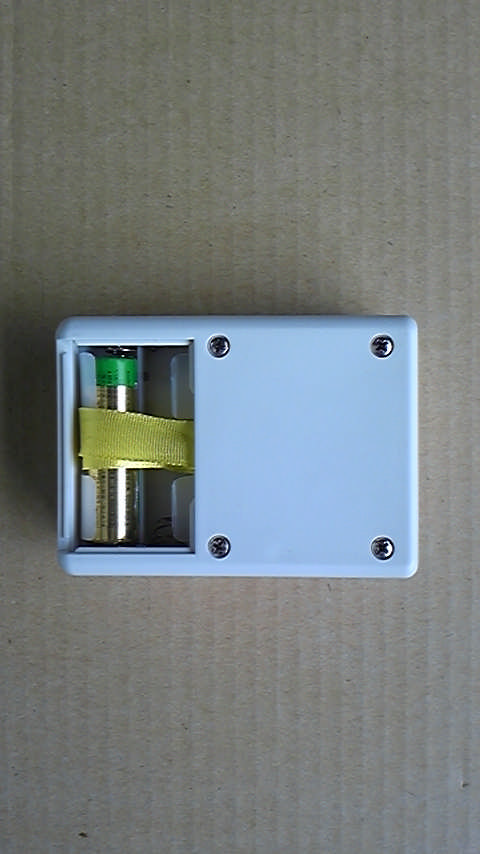

Internal Photos(11S-US)

e-OHTAMA, LTD., Tokyo LaboratoryTest Report Number EOTEL003 2-8-20 Kurigi,Asao-ku Kawasaki-shi, Kanagawa, JapanForm Rev. 1.00 TEL: +81-44-980-2052 Page 2 of 11 Page Cover Page.......................................................................................................................................................1 Table of Contents..............................................................................................................................................2 1.Summary................................................................................................................................................ 3 1.1Terms and definitions .................................................................................................................... 3 1.2Standard(s) and Result.................................................................................................................. 3 1.3Deviations from Standard(s) .......................................................................................................... 3 1.4Antenna Requirements .................................................................................................................. 3 2.Equipment Under Test (EUT) ................................................................................................................. 4 2.1General Descriptions ..................................................................................................................... 4 2.2Detailed Descriptions..................................................................................................................... 4 2.3Labeling Requirements.................................................................................................................. 4 2.4Measurement Condition ................................................................................................................ 5 3.Test Data................................................................................................................................................ 6 3.1Test specification........................................................................................................................... 6 3.220dB Bandwidth ............................................................................................................................ 6 3.3Conditions for intentional radiators to comply with periodic operation ........................................... 7 3.4Field strength of Emissions .......................................................................................................... 8 4.Photographs of Test setup.................................................................................................................... 10 5.Test Instruments................................................................................................................................... 11 5.1Test Instruments........................................................................................................................ 111 5.2Interconnecting Cables ................................................................................................................ 11 e-OHTAMA, LTD., Tokyo LaboratoryTest Report Number EOTEL003 2-8-20 Kurigi,Asao-ku Kawasaki-shi, Kanagawa, JapanForm Rev. 1.00 TEL: +81-44-980-2052 Page 3 of 11 1. Summary 1.1Terms and definitions AV Average DoC Declaration of Conformity EUT Equipment Under Test QP Quasi-peak 1.2Standard(s) and Result Applied Standard(s) Normative Reference(s)Test LimitFCC Part and RSS Section(s) ResultReference Clause No. FCC Part15 Subpart C IC 20dB BandwidthFCC 15.231 (c)Limits15.231(c)Pass3.2 Conditions for intentional radiators to comply with periodic operation FCC 15.231 (e)Limits15.231(e)Pass3.3 Field StrengthFCC 15.209 limits FCC 15.231 limits 15.231 (b)(e)Pass3.4 Table 1Standard and result 1.3Deviations from Standard(s) There was no deviation from the standard. 1.4Antenna Requirements Excerpt from §15.203 of the FCC Rules/Regulations: “An intentional radiator antenna shall be designed to ensure that no antenna other than that furnished by the responsible party can be used with the device. The use of a permanently attached antenna or of an antenna that uses a unique coupling to the intentional radiator shall be considered sufficient to comply with the provisions of this section.” The antennas of the Bridgestone Corporation are permanently attached. There are no provisions for connection to an external antenna Conclusion: The Bridgestone Corporation. FCC ID: SBD11S-US equipment complies with the requirement of §15.203. e-OHTAMA, LTD., Tokyo LaboratoryTest Report Number EOTEL003 2-8-20 Kurigi,Asao-ku Kawasaki-shi, Kanagawa, JapanForm Rev. 1.00 TEL: +81-44-980-2052 Page 4 of 11 2. Equipment Under Test (EUT) 2.1General Descriptions It is the molding pressure information transmitter of the tire to use in a factory. 2.2Detailed Descriptions Product NameTire molding pressure transmitter Model Number11S-US Serial Number － Power Supply DC 3.0V（Battery×2） Dimension66mm(W) ×90mm(H) × 28mm(D) Operating Frequency426.0625MHz Equipment CategorySecurity / Remote Control Transmitter Normal PlacementIndustrial test equipment (in door) Condition of the EUTProduct FCC IDSBD11S-US Table 2Dateiled Description 2.3Labeling Requirements §15.19 The label shall be permanently affixed at a conspicuous location on the device; instruction manual or pamphlet supplied to the user and be readily visible to the purchaser at the time of purchase. However, when the device is so small wherein placement of the label with specified statement is not practical, only the trade name and FCC ID must be displayed on the device per Section 15.19(b)(2). Please see attachment for FCC ID label and label location. Conclusion: The Bridgestone Corporation. FCC ID: SBD11S-US equipment complies with the requirement of §15.19. e-OHTAMA, LTD., Tokyo LaboratoryTest Report Number EOTEL003 2-8-20…

Text truncated - open the document above for the full version.

fundamental factorAnt Cable (Cable+AMP) DutyCycle 426.0625-11.117.13-21.97-6.26 426.0625-11.117.13-21.97-6.26 Unwanted emissions factorAnt Cable (Cable+AMP) DutyCycle 85.08-22.77.70-24.14-6.26 340.6-13.414.98-22.13-6.26 511.4-9.617.90-21.24-6.26 596.8-8.019.19-20.95-6.26 1705.411-14.729.03-37.51-6.26 1785.571-13.730.35-37.74-6.26 2026.052-11.531.43-36.70-6.26 4951.904-5.334.04-33.11-6.26 Factor List (11S-US)
