SBDB812Tire Pressure Monitoring System

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and(2)this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.

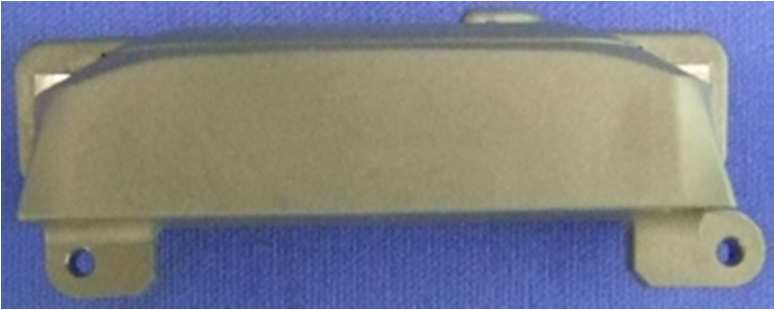

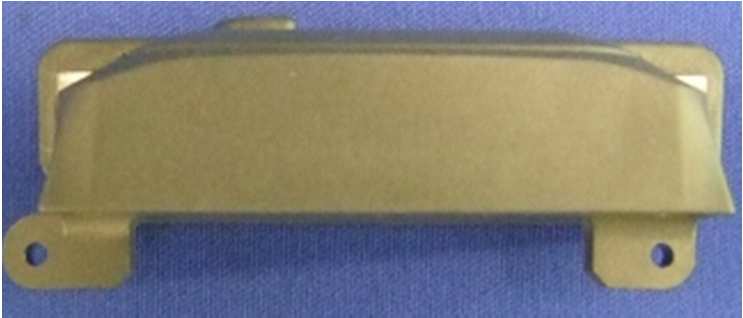

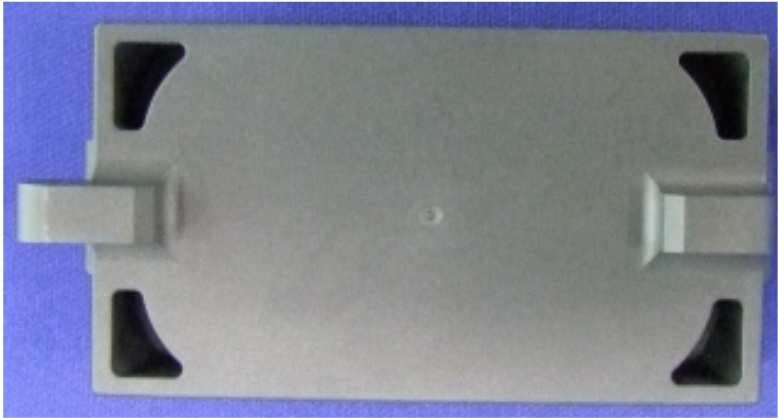

Photograph B812 1/3 Confidential < External > Top view Bottom view Photograph B812 2/3 Confidential < External > Front view Left Side view Back view Right Side view

Photograph B812 3/3 Confidential < Internal > Top view Bottom view

Test report No. : 32IE0013-HO-01-R2 Page : 2 of 18 Issued date : June 4, 2012 Revised date : June 19 2012 FCC ID : SBDB812 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 CONTENTS PAGE SECTION 1: Customer information ·············································································· 3 SECTION 2: Equipment under test (E.U.T.) ···································································· 3 SECTION 3: Test specification, procedures & results························································· 4 SECTION 4: Operation of E.U.T. during testing ······························································· 6 SECTION 5: Radiated emission (Electric Field Strength of Fundamental and Spurious Emission) 7 SECTION 6: Automatically deactivate ··········································································· 9 SECTION 7: -20dB and 99% Occupied Bandwidth ··························································· 9 APPENDIX 1: Data of EMI test ·················································································· 10 Automatically deactivate................................................................................................................... 10 Radiated Emission (Electric Field Strength of Fundamental and Spurious Emission) ..................... 11 -20dB Bandwidth .............................................................................................................................. 12 Duty Cycle ........................................................................................................................................ 13 APPENDIX 2: Test Instruments ·················································································· 14 APPENDIX 3: Photographs of test setup ······································································· 15 Radiated emission ............................................................................................................................. 15 Worst case position ........................................................................................................................... 16 APPENDIX 4: Tested Pulse train ················································································· 17 Test report No. : 32IE0013-HO-01-R2 Page : 3 of 18 Issued date : June 4, 2012 Revised date : June 19 2012 FCC ID : SBDB812 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 SECTION 1: Customer information Company Name : Bridgestone Corporation Address : 3-1-1, Ogawahigashi-cho, Kodaira-shi, Tokyo, 187-8531, Japan Telephone Number : +81-42-342-6326 Facsimile Number : +81-42-345-6244 Contact Person : Toshihiro Miyazaki SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : Tire Pressure Monitoring System Model No. : B812 (SENSOR) Serial No. : Refer to Clause 4.2 Rating : DC 3.0V Receipt Date of Sample : May 14, 2012 Country of Mass-production : Japan Condition of EUT : Engineer prototype (Not for Sale: This sample is equivalent to mass-produced items.) Modification of EUT : No Modification by the test lab 2.2 Product Description General Specification Clock frequency(ies) in the system : 2MHz (microcomputer) Radio Specification Radio Type : Transmitter Frequency of Operation : 433.92MHz Modulation : FSK Power Supply (radio part input) : DC 3.0V Antenna type : Loop Antenna Test report No. : 32IE0013-HO-01-R2 Page : 4 of 18 Issued date : June 4, 2012 Revised date : June 19 2012 FCC ID : SBDB812 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 SECTION 3: Test specification, procedures & results 3.1 Test Specification Test Specification : Test specification: FCC Part 15 Subpart C: 2012, final revised on May 17, 2012 and effective June 18, 2012 Title : FCC 47CFR Part15 Radio Frequency Device Subpart C Intentional Radiators Section 15.231 Periodic operation in the band 40.66 - 40.70MHz and above 70MHz *The revision on May 17, 2012 does not affect the test specification applied to the EUT. 3.2 Procedures and results Item Test Procedure Specification Worst margin Results Remarks Conducted emission FCC: ANSI C63.4:2003 7. AC powerline conducted emission measurements FCC: Section 15.207 N/A N/A *1) - Automatically Deactivate FCC: ANSI C63.4:2003 13. Measurement of intentional radiators FCC: Section 15.231(a)(3) *2) FCC: Section 15.231(e) *3) N/A Complied Radiated Electric Field Strength of Fundamental Emission FCC: ANSI C63.4:2003 13. Measurement of intentional radiators FCC: Section 15.231(e) *4) 6.6dB 433.920MHz Horizontal (PK with Duty factor) Complied Radiated Electric Field Strength of Spurious Emission FCC: ANSI C63.4:2003 13. Measurement of intentional radiators FCC: Section 15.205 Section 15.209 Section 15.231(e) *4) 11.8dB 3037.440MHz Horizontal (PK with Duty factor) Complied Radiated -20dB Bandwidth FCC: ANSI C63.4:2003 13. Measurement of intentional radiators FCC: Section 15.231(c) N/A Complied Radiated Note: UL Japan, Inc.’s EMI Work Procedures No. 13-EM-W0420 and 13-EM-W0422. *1) The test is not applicable since the EUT does not have AC Mains. *2) In Normal mode, limit of 15.231(a)(3) was applied since the EUT is intended to be used for the purpose of security, monitoring the tire pressure. *3) In Alarm mode, limit of 15.231(e) was applied. *4) Limit of 15.231(e) was applied since the limit is more stringent than that of 15.231(b). FCC 15.31 (e) This test was performed with the New Battery (DC 3.0V) and the constant voltage was supplied to the EUT during the tests. Therefore, the EUT complies with the requirement. FCC Part 15.203 Antenna requirement It is impossible for end users to replace the antenna, because the antenna is mounted inside of the EUT. Therefore, the equi…

Text truncated - open the document above for the full version.

Test report No. : 32IE0013-HO-01-R2 Page : 17 of 18 Issued date : June 4, 2012 Revised date : June 19 2012 FCC ID : SBDB812 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 APPENDIX 4: Tested Pulse train 1. Normal Mode Operation in FCC15.231(a)(3) (Limit: total 2sec per hour) Total duration of transmissions at Wake UP: 16.83msec*10 = 168.3msec Total duration of transmissions per time at Periodic transmission: 16.83msec * 5 = 84.15msec Total transmission times per hour: 168.3msec + (84.15msec * 11) = 1093.95msec < 2sec Periodic transmission interval *1) Wake UP (Only start up) *2) Periodic transmission (Except wake UP, 300sec interval) 300sec 16.7msec 1247msec 16.7msec 563.5msec 120msec 120msec *1) *2) Test report No. : 32IE0013-HO-01-R2 Page : 18 of 18 Issued date : June 4, 2012 Revised date : June 19 2012 FCC ID : SBDB812 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 2. Alarm Mode Operation in FCC15.231 (e) Duration of transmission: 563.5msec <1sec Silent period between transmissions: 30sec – 0.5635sec = 29.4365sec >30times the duration of transmission and 10sec. 30sec 10-pulse transmission 16.7msec 563.5msec 120msec

Test report No. : 32IE0013-HO-01-R2 Page : 15 of 18 Issued date : June 4, 2012 Revised date : June 19 2012 FCC ID : SBDB812 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 APPENDIX 3: Photographs of test setup Radiated emission Photo 1 Photo 2 Test report No. : 32IE0013-HO-01-R2 Page : 16 of 18 Issued date : June 4, 2012 Revised date : June 19 2012 FCC ID : SBDB812 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Worst case position (Horizontal: X-axis/Vertical : Y-axis) X-axis Y-axis Z-axis
