SBDK111TPMS Hand Reader

1/6 Tire Pressure Monitoring System Hand-held Reader K111 Users Manual 2/6 Notices This device complies with Part 15 of the FCC Rules and IC RSS-Gen. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules and IC RSS-Gen. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates use and can radiate radio frequency energy and, if not installed and used in accordance with instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. WARNING Changes or modifications not expressly approved by the manufacturer for compliance could void the user’s authority to operate the equipment. 3/6 How to measure To measure tire pressure or inside air temperature, press the reader’s antenna gently against the side wall near the valve of the tire that you want to measure and then press the MEASURE button. Using the hand-held reader, you can measure the following three data items. ITEM VIEW ITEM SELECT Explanation Pressure psi Displays tire pressure in 1psi increments. Compensated pressure psic Compensated pressure . Temperature °F Displays inside air temperature in 2°F increments. ① Set the VIEW ITEM SELECT switch to the item that you want to measure. Example: When measuring tire pressure (psi) VEIW SELCT SW p s i p s ic °F 4/6 ② Press the reader’s antenna gently against the side wall near the valve of the tire that you want to measure. - Be careful not to touch the antenna against metal such as wheels. Otherwise, radio waves from the sensor will be blocked and data transmission will fail. - If you want to measure the inside dual-tire, insert the antenna through a decorative hole in the outside wheel and press the antenna gently against the inside tire’s side wall near the valve. If the sensors are correctly installed on the wheels as described in the Sensor Users Manual, the inside-tire valve is located diagonally opposite from the outside-tire valve. Example: When measuring a single Example: When measuring a dual 5/6 ③ Press the MEASURE button. - Data measurement starts when the MEASURE button is released. - Data measurement takes place only once after the button is released. Pressing and holding the button again will have no influence. ④ Data are sent from the sensor on the tire to the hand-held reader. ⑤ When data transmission is completed, a short beep sounds twice and the received data are displayed on the LCD. If data transmission is not successful, a long beep sounds and the “try” (data reception error) message is displayed on the LCD. Press the MEASURE button again to measure data while ensuring that: - The tip of the antenna is away from the wheel and other metal parts. - The tip of the antenna is placed as close to the valve as possible. - The antenna is placed as perpendicularly as possible relative to the tire’s side wall. ⑥ To view other items, set the VIEW ITEM SELECT switch to the corresponding positions. ⑦ Repeat steps ② and onward to measure the remaining tires or measure the same tire again. MEASURE button “try” message (data reception error) 6/6
How to remove the batteries: ① Using the screwdriver supplied with the hand-held reader, loosen and remove the battery lid retaining screw. ② Pull up the lid on the strap side and remove it. ③ Remove the batteries. ④ Install the battery lid. △ CAUTION Failure to observe the following may lead to a short circuit or charging, causing the battery to start leaking or generate extreme heat, or the battery may even start a fire or explode. ● Do not throw batteries into a fire. Do not heat or disassemble batteries. ● Do not use a combination of new and old batteries, or a combination of batteries of different makes or types. ● Ensure that the polarity of the batteries is not reversed. ● Always use the specified batteries. Otherwise, the hand-held reader may fail. ● Never attempt to disassemble or modify the hand-held reader. ● Do not handle the hand-held reader with wet hands. Keep the product away from water. ● Always use the specified batteries (AAA dry (including rechargeable) battery). ● Be careful not to drop or step on the hand-held reader, or hit it against a hard object. ● Turn off the power before removing the batteries from the hand-held reader. Be careful not to press the MEASURE button while removing the batteries. Otherwise, the hand-held reader may fail. ● Do not leave the hand-held reader in places of severe temperature change or outside the specified storage temperature range. ● Remove the batteries from the hand-held reader if it will not be used for an extended period. Otherwise, the batteries may start leaking, damaging the hand-held reader.

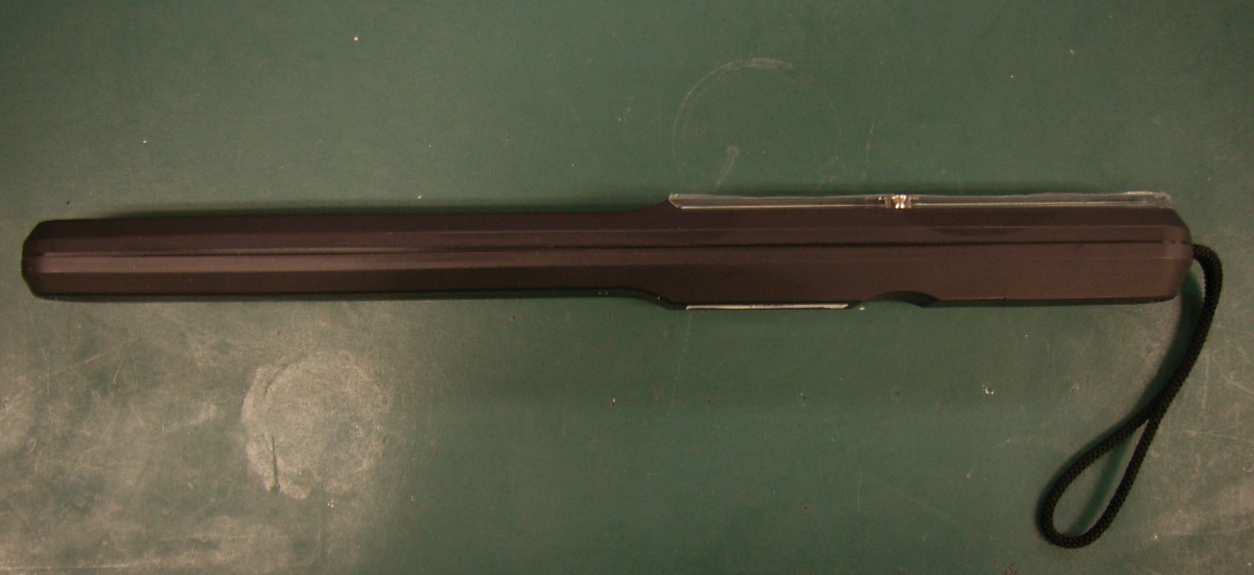

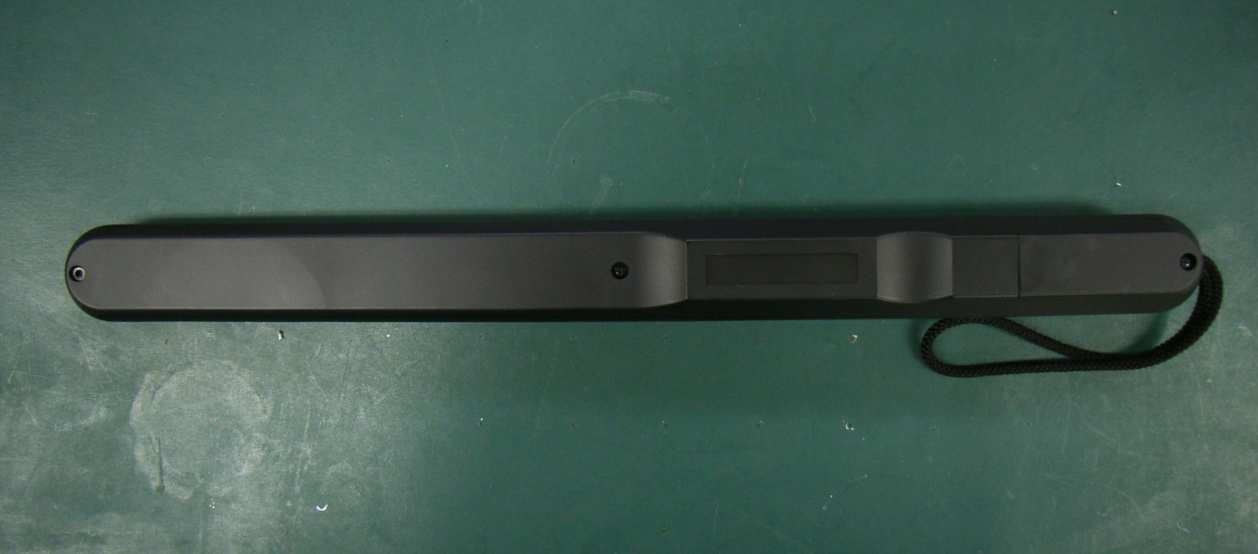

1/1 HAND-READER_K111 External photograph TOP View SIDE View BOTTOM View

1/1 HAND-READER_K111 Internal photograph TOP View BOTTOM View

Test report No. : 27BE0262-HO-A Page : 1 of 15 Issued date : November 29, 2006 FCC ID : SBDK111 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(14.06.06) RADIO TEST REPORT Test Report No. : 27BE0262-HO-A Applicant : BRIDGESTONE Co., Ltd. Type of Equipment : HAND READER Model No. : K111 Test standard : FCC Part 15 Subpart C Section 15.209, Section 15.205: 2006 FCC ID : SBDK111 Test Result : Complied 1. This test report shall not be reproduced in full or partial, without the written approval of UL Apex Co., Ltd. 2. The results in this report apply only to the sample tested. 3. This equipment is in compliance with above regulation. 4. The test results in this report are traceable to the national or international standards. Date of test: ________November 2, 2006 __________ Tested by: _________________________________ Hiroka Umeyama EMC Services Approved by : _________________________________ Naoki Sakamoto Group Leader of EMC Services NVLAP LAB CODE: 200572-0 This laboratory is accredited by the NVLAP LAB CODE 200572-0, U.S.A. The tests reported herein have been performed in accordance with its terms of accreditation. *As for the range of Accreditation in NVLAP, you may refer to the WEB address, http://ulapex.jp/emc/nvlap.htm Test report No. : 27BE0262-HO-A Page : 2 of 15 Issued date : November 29, 2006 FCC ID : SBDK111 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(14.06.06) CONTENTS PAGE SECTION 1: Client information ............................................................................................................ 3 SECTION 2: Equipment under test (E.U.T.)........................................................................................ 3 SECTION 3: Test specification, procedures & results......................................................................... 4 SECTION 4: Operation of E.U.T. during testing .................................................................................7 SECTION 5: Radiated emission (Fundamental and Spurious Emission and –26dB Bandwidth) .... 8 APPENDIX 1: Photographs of test setup .............................................................................................. 9 Radiated Emission (Fundamental and Sprious Emission) .............................................................. 9 Worst Case Position (Z-axis) ............................................................................................................ 10 APPENDIX 2: Data of EMI test........................................................................................................... 11 Radiated Emission below 30MHz (Fundamental and Sprious Emission) .................................... 11 Radiated Emission above 30MHz (Sprious Emission) ................................................................... 12 -26dB Bandwidth............................................................................................................................... 13 99% Occupied Bandwidth ................................................................................................................ 14 APPENDIX 3: Test instruments .......................................................................................................... 15 Test report No. : 27BE0262-HO-A Page : 3 of 15 Issued date : November 29, 2006 FCC ID : SBDK111 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(14.06.06) SECTION 1: Client information Company Name : BRIDGESTONE Co., Ltd. Address : 3-1-1, Ogawahigashi-Cho, Kodaira-Shi, Tokyo, 187-8531 Japan Telephone Number : +81-42-342-6326 Facsimile Number : +81-42-342-6596 Contact Person : Toshihiro Miyazaki SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : HAND READER Model No. : K111 Sample No. : ES0001 Country of Manufacture : Japan Rating : DC2.4V, 0.15A Receipt Date of Sample : October 6, 2006 Condition of EUT : Production model Modification of EUT : No modification by the test lab. 2.2 Product Description Clock frequency : CPU Clock: 8MHz Transmission Frequency Dividing Clock: 8MHz Demodulation Clock: 40.7125MHz Equipment type : Transceiver [Transmitter part] Frequency of Operation : 125kHz Intermediate frequency : 100Hz Type of Modulation : ASK Mode of Operation : Simplex Method of Frequency Generation : Crystal Antenna : Ferrite Bar Antenna [Receiver part] Receiving frequency : 315MHz Intermediate frequency : 10.7MHz Antenna : Loop Antenna * Receiver part was tested in UL Apex Test Report No. 27BE0262-HO-B Test report No. : 27BE0262-HO-A Page : 4 of 15 Issued date : November 29, 2006 FCC ID : SBDK111 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(14.06.06) SECTION 3: Test specification, procedures & results 3.1 Test Specification Test Specification : FCC Part15 Subpart C: 2006 Title : FCC 47CFR Part15 Radio Frequency Device Subpart C Intentional Radiators Section 15.205 Restricted bands of operation: 2006 Section 15.209 Radiated emission limits, general requirements: 2006 FCC 15.31 (e) This test was performed with the New Battery (DC 2.4V) and the constant voltage was supplied to this EUT during the tests. Therefore, this EUT complies with the requirement. FCC Part 15.203 Antenna requirement It is impossible for end users to replace the antenna, because the antenna is mounted inside of the EUT. Therefore, the equipment complies with the antenna requirement of Section 15.203. Test report No. : 27BE0262-HO-A Page : 5 of 15 Issued date : November 29, 2006 FCC ID : SBDK111 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Fac…
