SBDK712Tag Reader

Tire Pressure Monitoring System TAG-READER Tire Pressure Monitoring System for Mining Trucks MODEL K712 series User’s Manual  How to measure Please follow our instructions so that you can measure five data in below table. ITEM VIEW ITEM SELECT Explanation Pressure psi Displays tire pressure in 1psi increments. Temperature °C Displays tire temperature in 1°C increments. Vehicle information - Vehicle type, Number Sensor information - Sensor ID, Position, Error code Time - Current time 1. Select Tire Monitor Application “Tire Monitor”. 2. Select “Operator” and press “NEXT” button. 3. Press “Launch TagRewriter Appli” button. 4. Point TAG-READER to tire side face which you want to measure. And put TAG-READER 2 close to the tire side face. -Please do not touch the TAG-READER on metal such as wheels. Otherwise, radio waves from the sensor will be blocked and data transmission will fail. 5. Press “Measure” button 6. Press Trigger button of TAG-READER. The button is locating left side wall. -Data measurement starts as soon as Trigger button is pressed.. -The measurement is only one time when you pressed trigger button. 7. Data are transferred from sensor in tire to TAG-READER. 8. When data transmission is completed, short beep sound come up. And the received data are displayed on the monitor. -If data transmission is failed, long beep sound come up. 9. Repeat steps 4-8 so that you can continue to measure another tires on a vehicle or measure same tire again. ◆ How to charge the battery for PDA 1. Insert the connector of charger into the charger slot. 2. Please remove the connector when the LED is solid green of PDA. ※ CAUTION  Never attempt to disassemble or modify the TAG-READER.  Do not handle the TAG-READER with wet hands. Keep the product away from water.  Be careful not to drop or step on the TAG-READER, or hit it against a hard object.  Do not leave the TAG-READER in places of severe temperature change or outside the specified storage temperature range. Slot LED Notices for using in USA/Canada This device complies with Part 15 of the FCC Rules and Industry Canada’s licence-exempt RSSs. Operation is subject to the following two conditions:(1)This device may not cause harmful interference, and (2)this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates use and can radiate radio frequency energy and, if not installed and used in accordance with instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. WARNING Changes or modifications not expressly approved by the manufacturer for compliance could void the user’s authority to operate the equipment.

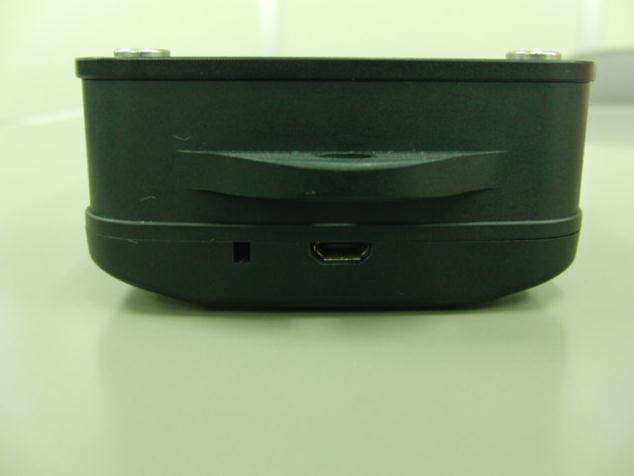

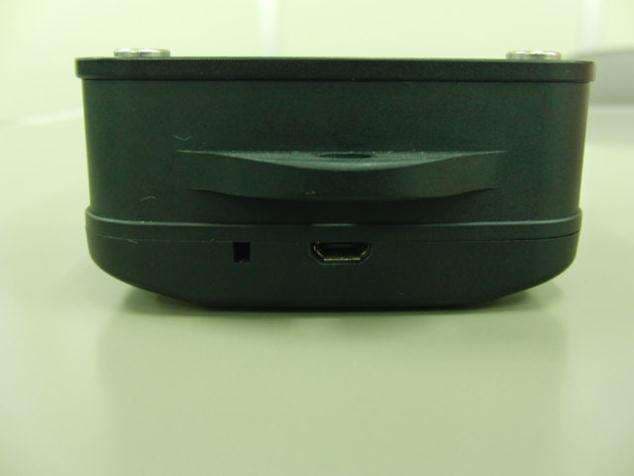

Tag Reader K712 External Photograph Back View Front View Tag Reader K712 External Photograph Bottom View Top View Tag Reader K712 External Photograph Right Side View Left Side View Tag Reader K712 External Photograph ront (with PDA) Back View with PDA

Tag Reader K712 Label Location for FCC/IC BRIDGESTONE CORPORATION MODEL:K712 FCCID:SBDK712 IC:5381A-K712 40 8 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 60 24

Tag Reader K712 Internal Photograph Top side view Back side view Tag Reader K712 Internal Photograph 125kHz Antenna(Ferrite Bar Antenna) Tx 433.92MHz Antenna(whip Antenna) Rx

Test report No. : 10692597S-A Page : 2 of 17 Issued date : March 30, 2015 Revised date : May 21, 2015 FCC ID : SBDK712 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 REVISION HISTORY Original Test Report No.: 10692597S-A Revision Test report No. Date Page revised Contents - (Original) 10692597S-A March 30, 2015 - - 1 10692597S-A May 11, 2015 4-5 Update of information 2 10692597S-A May 13, 2015 8 Addition of description 3 10692597S-A May 21, 2015 8 Addition of description in 4.1 Correction of description in 4.2 Test report No. : 10692597S-A Page : 3 of 17 Issued date : March 30, 2015 FCC ID : SBDK712 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 Contents Page SECTION 1: Customer information ....................................................................................... 4 SECTION 2: Equipment under test (E.U.T.) ......................................................................... 4 SECTION 3: Test specification, procedures & results .......................................................... 6 SECTION 4: Operation of E.U.T. during testing ................................................................... 8 SECTION 5: Radiated emission (Fundamental and Spurious emission) ............................ 9 SECTION 6: -26dB bandwidth & Occupied bandwidth (99%) ......................................... 10 Contents of APPENDIXES ...................................................................................................... 11 APPENDIX 1: Data of radio tests .......................................................................................... 12 APPENDIX 2: Test instruments ............................................................................................ 15 APPENDIX 3: Photographs of test setup .............................................................................. 16 Test report No. : 10692597S-A Page : 4 of 17 Issued date : March 30, 2015 Revised date : May 11, 2015 FCC ID : SBDK712 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 SECTION 1: Customer information Company Name : Bridgestone Corporation Brand name : BRIDGESTONE Address : 3-1-1, Ogawahigashi-Cho, Kodaira-Shi, Tokyo, 187-8531 Japan Telephone Number : +81-42-342-6326 Facsimile Number : +81-42-342-6596 Contact Person : Toshihiro Miyazaki SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : Tag Reader Model Number : K712 Serial Number : Refer to Section 4.2 Rating : DC 5 V Country of Mass-production : Japan Condition of EUT : Production prototype (Not for Sale: This sample is equivalent to mass-produced items.) Receipt Date of Sample : March 5, 2015 Modification of EUT : No modification by the test lab. 2.2 Product description Model: K712 (referred to as the EUT in this report) is a Tag Reader. Feature of EUT: It is used as an attachment of mobile device. The wireless function is used to; - prompt the TPMS sensor to switch ON/OFF - transmit signal of 125 kHz to register the information - receive the information of tire pressure and temperature (433.92 MHz) Clock frequencies: 8 MHz, 13.2256 MHz Test report No. : 10692597S-A Page : 5 of 17 Issued date : March 30, 2015 Revised date : May 11, 2015 FCC ID : SBDK712 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 <Radio part> Radio type : Transmitter Frequency of operation : 125 kHz Modulation : ASK Antenna type : Ferrite bar Antenna connector type : None ITU code : A1D Operating temperature : -20 deg C. to +60 deg C. Radio type : Receiver Receiver type : Super-heterodyne Frequency of operation : 433.92 MHz Type of modulation : FSK Antenna type : Whip Antenna connector type : None Operating Temperature : -20 deg C. to +60 deg C. FCC 15.31 (e) This EUT provides stable voltage (DC 3.3 V) constantly to RF Module regardless of input voltage. Therefore, this EUT complies with the requirement. FCC 15.203 The equipment and its antenna comply with this requirement since the antenna is built in the equipment and it cannot be replaced by end users. Test report No. : 10692597S-A Page : 6 of 17 Issued date : March 30, 2015 FCC ID : SBDK712 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 SECTION 3: Test specification, procedures & results 3.1 Test specification Test specification : FCC Part 15 Subpart C: 2015, final revised on January 21, 2015 Title : FCC 47CFR Part15 Radio Frequency Device Subpart C Intentional Radiators Section 15.207 Conducted limits Section 15.209 Radiated emission limits, general requirements Section 15.215 Additional provisions to the general radiated emission limitations 3.2 Procedures & Results Item Test Procedure SpecificationRemarksDeviationWorst Margin Results Conducted emission ANSI C63.4:2009 FCC 15.207 - N/A *1) - N/A Electric field strength of Fundamental emission ANSI C63.4:2009 FCC 15.209 RadiatedN/A 58.7dB Polarization: Vertical Detection: Average Complied Electric field strength of Spurious emission ANSI C63.4:2009 FCC 15.209 RadiatedN/A 2.8dB Freq.: 213.902MHz Polarization: Horizontal Complied -26dB bandwidth ANSI C63.4:2009 FCC 15.215 (c) RadiatedN/A - - *1) The test is not applicable since the EUT has no AC mains. Note: UL Japan’s Work Procedures No. 13-EM-W0420 and 13-EM-W0422 3.3 Addition to standard Item Test Procedure SpecificationRemarksWorst Margin Results Occupied Bandwidth (99%) ANSI C63.4:2009 RSS-Gen 6.6 - Radiated - - Note: UL Japan’s Work Procedures No. 13-EM-W0420 and 13-EM-W0422 * Other than above, no addition, exclusion nor deviation has been made from the standard. Te…

Text truncated - open the document above for the full version.

Test report No. : 10005707S-A Page : 21 of 23 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 APPENDIX 3: Photographs of test setup Radiated emission Front Rear (9kHz-30MHz) Rear (30-1000MHz) Test Report No 10692597S-A 16 of 17 Test report No. : 10005707S-A Page : 22 of 23 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 Pre-check of the worst case X-axis Y-axis Z-axis END OF REPORT Test Report No 10692597S-A 17 of 17
