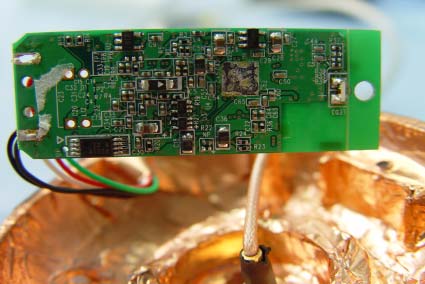

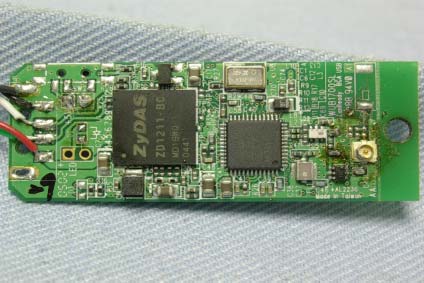

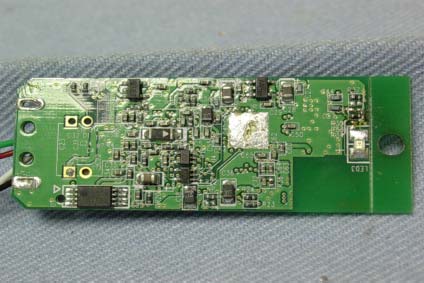

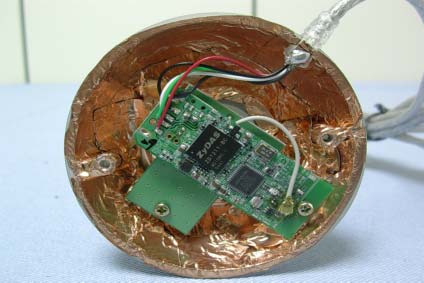

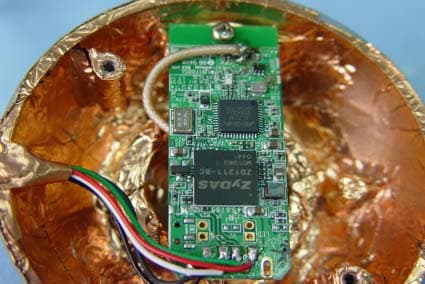

Compliance Certification Services Inc. Report No: 50202001 Date of Issue: May 19, 2005 Page 6 Rev.00 INTERNAL PHOTOGRAPHS OF EUT WUB1700S/SL Compliance Certification Services Inc. Report No: 50202001 Date of Issue: May 19, 2005 Page 7 Rev.00 AWS1705FOL Compliance Certification Services Inc. Report No: 50202001 Date of Issue: May 19, 2005 Page 8 Rev.00 Compliance Certification Services Inc. Report No: 50202001 Date of Issue: May 19, 2005 Page 9 Rev.00 Compliance Certification Services Inc. Report No: 50202001 Date of Issue: May 19, 2005 Page 10 Rev.00 AWS1708P / AWS1708FO / AWS1705FO / AWS1702FO Compliance Certification Services Inc. Report No: 50202001 Date of Issue: May 19, 2005 Page 11 Rev.00

1 LanReady Technologies Inc. 4F., No.337, Sinhu 2nd Rd., Neihu District, Taipei City 114, Taiwan Tel: 886-2-2796-8188 Fax: 886-2-2796-8158 http//:www.lanready.com Model No.: AN0800FO-S 2.4GHz 8dBi Omni Antenna w/SMA Connector AN0800FO-T 2.4Ghz 8dBi Omni Antenna w/TNC Connector AN0800FO is the perfect solution to extend the range and increase the signal strength of our wireless network. Configuration and setup of this antenna is easy and fast. This antenna is great for Wireless Access Points and Router that serve your wireless signal to multiple users in multiple locations. Features „ High gain: 8 dBi „ High performance „ Low profile „ Smart and elegant style „ Versatle Mounting Design „ Light-weight Electrical Specifications Antenna Type 2.4GHz 8 dBi Indoor Omni Antenna Frequency Range 2.4 ~ 2. 5GHz Network Specification IEEE 802.11b , IEEE 802.11g , Wireless 2.4Ghz Network Gain 8 dBi V. S . W. R < 2 Beam Width-H Plane 360 ̊ Beam Width-E Plane 40 ̊ Polarization Vertical (Linear) Input Impedance 50 Ohms Connector Reverse SMA Operation Temperature -20 ̊C - + 70 ̊C Storage Temperature -30 ̊C - +85 ̊C Humidity 95% maximum (non-condensing) Package Content High-Gain Wireless Omni Antenna with Cable and Reverse SMA 1 Set Quick Installation Guide 1 pc 2 LanReady Technologies Inc. 4F., No.337, Sinhu 2nd Rd., Neihu District, Taipei City 114, Taiwan Tel: 886-2-2796-8188 Fax: 886-2-2796-8158 http//:www.lanready.com 3 LanReady Technologies Inc. 4F., No.337, Sinhu 2nd Rd., Neihu District, Taipei City 114, Taiwan Tel: 886-2-2796-8188 Fax: 886-2-2796-8158 http//:www.lanready.com 4 LanReady Technologies Inc. 4F., No.337, Sinhu 2nd Rd., Neihu District, Taipei City 114, Taiwan Tel: 886-2-2796-8188 Fax: 886-2-2796-8158 http//:www.lanready.com 5 LanReady Technologies Inc. 4F., No.337, Sinhu 2nd Rd., Neihu District, Taipei City 114, Taiwan Tel: 886-2-2796-8188 Fax: 886-2-2796-8158 http//:www.lanready.com 6 LanReady Technologies Inc. 4F., No.337, Sinhu 2nd Rd., Neihu District, Taipei City 114, Taiwan Tel: 886-2-2796-8188 Fax: 886-2-2796-8158 http//:www.lanready.com 7 LanReady Technologies Inc. 4F., No.337, Sinhu 2nd Rd., Neihu District, Taipei City 114, Taiwan Tel: 886-2-2796-8188 Fax: 886-2-2796-8158 http//:www.lanready.com 8 LanReady Technologies Inc. 4F., No.337, Sinhu 2nd Rd., Neihu District, Taipei City 114, Taiwan Tel: 886-2-2796-8188 Fax: 886-2-2796-8158 http//:www.lanready.com

APVDCHKDDSGD SPECIFICATION PRODUCT CODE: TT98024 2005.01.26 2005.01.25 2005.01.25 1. General: 1.1 Scope This specification is applied for fixed 1/2 Dipole antenna. (Type 2.4GHz external standard dipole antenna.) 1.2 Operating Temperature -10+75 1.3 Storage Temperature -20+75 1.4 Test conditions Standard test conditions should be from 5 to 35 in temperature , 45 to 85%RH and 860 to 1060 hpa in barometric pressure. Should conducted at 202,655%RH and 860 to 1060 hpa. 2. Appearances, structures and dimensions: 2.1 Appearances Finished on each part should be good, functionally free from rust, Crack and scratch. 2.2 Structures and dimensions They are produced according to the drawing of individual product. 3. Electrical performance: PropertyTest conditionsPerformance VSWR< 2.0 3.1 Frequency Range Proving the suitable test ,according to custamer’s request and all the necessary condition of the set. 2400-2500MHz 3.2Impedance 502 ohms 3.3DirectionalOmni 3.4Antenna gain0.6~2.0 dBi 3.5Tolerance power1w 4.Material specification: ItemMaterialCharacteristic CoverThermal Plastic ElastormerHardness:65 (Gray) WireRG178 Coaxial CableTint Brown 5.Coaxial Cable Charcterictic: 5.1.Mechanical characterisitics MaterialSCCS Composition(N/M)7/0.08mm Center conductor O.D.0.30mm MaterialPTFEDielectric O.D.0.83Min MaterialSPC Coverage85%Min Braided Shield Strands 0.06mm MaterialFEPJacket O.D.1.89mm 5.2. Electric data ItemSpecificationUnit Capacitance85PF/M Impedance50 ± 2 Attenuation3.5(3GHz)Db/M 6.Weather ability: PropertyTest conditionPerformance 6.1Dry heat proof After leaving 96 hours at temperature 752,leave 1 hour in a normal ambient condition and measure. Clean the appearance before test. There shall be no detects on cover broken or antenna drop out, satisfy item-3. 6.2Cold proof After leaving 96 hours at temperature –302,leave 1 hour in a normal ambient condition and measure. Clean the appearance before test. There shall be no detects on cover broken or antenna drop out, satisfy item-3. 6.3Damp heat proof After leaving 96 hours at temperature 403 and 90 to 95%RH,leave 1 hour in a normal ambient condition and measure. Clean the appearance before test. There shall be no detects on cover broken or antenna drop out, satisfy item-3. 7.Sample dependability(O.C Standard ): According to MIL-STD-105D (About 1/200 pcs ungainly to repeal one lot in all quantity.) 8.Measurement instrument: 8.1 PC SIZE: PC-9801FA (NEC) 8.2 Room size: 400cm (W)X350cm(H)X630cm(L) 8.3 Net work analyzer: Test equipment on electrical functions Equipment by Hewlett Packard, Network Analyzer HP-8752A by Advantest, Network Analyzer R3767CG 9.Packing Instructions: One parcel bag contain = 15 pcs One middle box contain = 14 parcel bags (15 pcs x 14 parcel bags =210 pcs) One master carton contains =3 middle boxs (3x middle boxs = 630 pcs) M M e e a a s s u u r r e e m m e e n n t t C C o o n n d d i i t t i i o o n n D D i i a a g g r r a a m m (1).Electrical Performance Measurement: (2).Radiation Pattern Measurement: P P e e r r f f o o r r m m a a n n c c e e D D a a t t a a S S h h e e e e t t (1).Electrical Performance Data: P P e e r r f f o o r r m m a a n n c c e e D D a a t t a a S S h h e e e e t t (2).Vertical-Plane Radiation Pattern Data: P P e e r r f f o o r r m m a a n n c c e e D D a a t t a a S S h h e e e e t t (3). Horizontal-Plane Radiation Pattern Data:

* All specifications are subject to change without notice ** Theoretical wireless signal rate based on IEEE Standard 802.11g of chipset used. Actual Throughput will vary. Network conditions and environmental factors lower actual throughput rate and distance 1 LanRead y Technologies Inc. 3F., No.166, Sinhu 2nd Rd., Neihu District, Taipei City 114, Taiwan Tel: 886-2-2796-8188 Fax: 886-2-2796-8158 http//:www.lanready.com Network on Demand Network on Demand Network on Demand Network on Demand Network on Demand Model No.: AWS1705FOL Product Description: High Gain Wireless-G 5 dBi Omni Long Range USB Adapter w/Light The High Gain Wireless-G 5dBi Omni Antenna USB 2.0 Adapter combines the coverage extender benefits of a 5dBi high gain antenna, the versatility of a Wireless-G USB2.0 Wireless Adapter and the addition of a USB light into one complete solution. If one was to use a High Gain Router or in Wireless HotSpot user’s can receive the signals but cannot send back due to the poor coverage area of standard wireless products where the wireless signals does not have enough strength to send back to High Gain stations. With AWS1705FOL one will overcome the problem of sending signals back to High Gain Wireless Router or HotSpot due to the integration of High Gain 5dBi Omni Antenna and Wireless-G USB2.0 Adapter. The “USB2.0 Wireless-G “Coverage Extender” will amplify your wireless signals to a greater distance, into reflective corners and hard-to-reach areas. In Wireless ”Hot Spots” environments, you will benefit from the increased coverage to access “Hot Spot Gateway “ without extra Access Point or Client Bridge , Power Adapter as AWS1705FOL is self powered through the USB port and requires no external power adapters so you can stay connected wherever you go. Features „ Connects at a full 54Mbps via USB 2.0, up to 8 times faster than a USB 1.1 adapter „ High gain 5dBi for wireless range extender „ Compact size for greater flexibility „ Also compatible with USB 1.1 desktop and notebook computers „ Plug-and-Play Compatible with windows 98SE, 2000, Millennium, XP and Linux „ High security 64/128/256bit WEP Encryption, TKIP, WPA, 802.11i * All specifications are subject to change without notice ** Theoretical wireless signal rate based on IEEE Standard 802.11g of chipset used. Actual Throughput will vary. Network conditions and environmental factors lower actual throughput rate and distance 2 LanRead y Technologies Inc. 3F., No.166, Sinhu 2nd Rd., Neihu District, Taipei City 114, Taiwan Tel: 886-2-2796-8188 Fax: 886-2-2796-8158 http//:www.lanready.com Network on Demand Network on Demand Network on Demand Network on Demand Network on Demand Wireless-G USB 2.0 Adapter Specification 【WUB1700S / WUB1700SL】Electrical Specifications Interface USB 2.0 Standard, USB 1.1 Compliant Standards Conformance IEEE802.11 / 802.11b / 802.11g, ARIB STD-T66 compliant Data Transfer Rate IEEE802.11b：1 / 2 / 5.5 / 11Mbps (auto sensing) IEEE802.11g：6 / 9 / 12 / 18 / 24 / 36 / 48 / 54Mbps (auto sensing) Access Method Infrastructure Mode, Ad-Hoc Mode (802.11 Ad-Hoc), Roaming Security WEP 64/128/256bit, TKIP, WPA, 802.11i,compliant AES encryption Quality of Service (QOS)802.11e Software AP RTS/CTS support Fragment and Reassembly Power Saving support Hardware –WEP (64 and 128 bit) MAC address filter Support software bridge on Win 98 , WinME, Win2000, WinXP International Regulation802.11d Frequency Range IEEE802.11b：2.4 to 2.497GHz IEEE802.11g：2.4 to 2.4835GHz Wireless Medium OFDM & DSSS (with Barker coding and CCK for backward compatibility with 802.11b) Media Access Protocol CSMA / CA Modulation Method IEEE802.11b：DBPSK (1Mbps), DQPSK (2Mbps), CCK (5.5/11Mbps) IEEE802.11g：BPSK (6/9Mbps), QPSK (12/18Mbps), 16-QAM (24/36Mbps), 64QAM (48/54Mbps) Operating Channels 1~11 (U.S. & Canada), 1~13 (channel availability depends on local regulations) Transmit Power Settings14dBm (OFDM) / 16dBm (CCK) Receiver Sensitivity 1 Mbps：-88dBm 2 Mbps：-83dBm 5.5 Mbps：-79dBm 11 Mbps：-70dBm 12 Mbps：-76dBm 24 Mbps：-71dBm 36 Mbps：-67dBm 54 Mbps：-62dBm Internal Antenna Type 5 dBi Omni Antenna * All specifications are subject to change without notice ** Theoretical wireless signal rate based on IEEE Standard 802.11g of chipset used. Actual Throughput will vary. Network conditions and environmental factors lower actual throughput rate and distance 3 LanRead y Technologies Inc. 3F., No.166, Sinhu 2nd Rd., Neihu District, Taipei City 114, Taiwan Tel: 886-2-2796-8188 Fax: 886-2-2796-8158 http//:www.lanready.com Network on Demand Network on Demand Network on Demand Network on Demand Network on Demand LED Indicators Power / Link Power Consumption -Power Save mode = 115mA -Standby mode = 20mA -Transmit mode = 420mA -Receive Mode = 120mA Operating systems Windows XP, Windows2000, Windows ME, 98SE, Linux Environmental & Mechanical Characteristics Operating Temperature 32 °F ~ 131 °F (0 °C ~ 55 °C) Storage Temperature -13 °F ~ 158 °F (-20 °C ~ 70 °C) Operating Humidity 10% to 80% Non-Condensing Storage Humidity 5% to 90% Non-Condensing Dimensions 188 (H) x 73 (W) x 73 (L) mm 【PCBA: 5(H) x 19(W) x 45(L) mm】 Weight 265g Certifications FCC part 15b、CE Antennal Specifications Antenna Type 2.4GHz 5 dBi Indoor Omni Antenna Frequency Range 2.4 ~ 2.5GHz Network Specification IEEE 802.11b , IEEE 802.11g , Wireless 2.4Ghz Network Gain 5 dBi V. S . W. R < 2 Beam Width-H Plane 360° Beam Width-E Plane 28° Polarization Vertical (Linear) Input Impedance 50 Ohms Operation Temperature -20°C - + 70°C Storage Temperature -30°C - +85°C Humidity 95% maximum (non-condensing) * All specifications are subject to change without notice ** Theoretical wireless signal rate based on IEEE Standard 802.11g of chipset used. Actual Throughput will vary. Network conditions and environmental factors lower actual throughput rate and distance 4 LanRead y Technologies Inc. 3F., No.166, Sinhu 2nd Rd., Neihu District, Taipei City 114, Taiwan Tel: 886-2-2796-8188 Fax: 886-2-2796-8158 http//:www.lanready.com…

Text truncated - open the document above for the full version.

1 LanReady Technologies Inc. 4F., No.337, Sinhu 2nd Rd., Neihu District, Taipei City 114, Taiwan Tel: 886-2-2796-8188 Fax: 886-2-2796-8158 http//:www.lanready.com Model No.: ID0800P 2.4GHz 8 dBi Patch Directional Antenna ID0800P is a directional high gain antenna. It feature Selectivity and Directivity. For Wirless dense environment , the noise and interference overload the WLAN system, nobody can expect satisfactory wireless performance. The most effective solution is to specify the radio service spece, then focus the radio signal within the spece, and keep off the noise and inteference . Features „ High gain : 8 dBi „ High performance „ Low backward radiation „ Low profile „ Smart and elegant style „ 360° Tilt-and-swivel design for best reception „ Versatle Mounting Design „ Light-weight Electrical Specifications Antenna Type 2.4GHz 8dBi Indoor Patch Antenna Frequency Range 2.4 ~ 2.4835GHz Network Specification IEEE 802.11b , IEEE 802.11g , Wireless 2.4Ghz Network Gain 8dBi V.S.W.R < 1.5 Beam Width-H Plane 110° (Vertical Beam Width-E Plane 60° (Horizontal Polarization Vertical (Linear) Input Impedance 50 Ohms Connector Reverse SMA Male Plug Cable RG178, Length: 100 CM Mounting 360 ̊ Degree Adjustable Stand, Wall Mount or Table Mount Operation Temperature -20 ̊C - + 70 ̊C Storage Temperature -30 ̊C - +85 ̊C Humidity 95% maximum (non-condensing) System Requirements One Wireless Device with an external Antenna connector Connector Type : Reverse SMA Female Jack or Reverse TNC Male Package Content Hi-Gain Wireless Directional Antenna with Cable and Reverse SMA Connector 1 set Wall Mounting Screw & Wire Organizing Bracket 1 set Quick Installation Guide 1 pc RP-SMA Female to RP-TNC Male Connector Adapter (for Use with Other Brands of Wireless Devices) 1 pc 2 LanReady Technologies Inc. 4F., No.337, Sinhu 2nd Rd., Neihu District, Taipei City 114, Taiwan Tel: 886-2-2796-8188 Fax: 886-2-2796-8158 http//:www.lanready.com Antenna Pattern Test Report： H plane (viewed vertically) E plane (viewed horizontally) H Plane H-Pol E-Pol H+V E Plane H-PolE-Pol H+V Average Gain -9.85 2.00 2.27 Average Gain 0.49 -13.21 0.67 Peak Gain -6.21 7.85 7.88 Peak Gain 7.46 -9.72 7.52 Antenna S11 & V.S.W.R Test Report RF Cable RG-178 + SMA Male R/P test report： Coaxial Cable Attenuation Ratings Nominal attenuation db/100 feet at (MHz) RG/U CABLE 1.0 10 50 100 200 400 900 1000 3000 5000 RG-178 2.6 5.6 10.5 14.0 19.0 28.0 46.0 85.0 100 3 LanReady Technologies Inc. 4F., No.337, Sinhu 2nd Rd., Neihu District, Taipei City 114, Taiwan Tel: 886-2-2796-8188 Fax: 886-2-2796-8158 http//:www.lanready.com

Walsin Technology Corporation Introduction of RFANT5220110A0T Jan.-2005



                                                              L L T T C C C C M M u u l l t t i i L L a a y y e e r r C C h h i i p p A A n n t t e e n n n n a a – – B B r r o o a a d d B B a a n n d d T T y y p p e e F F o o r r I I S S M M B B a a n n d d 2 2 . . 4 4 G G H H z z A A p p p p l l i i c c a a t t i i o o n n




Surface Mounted Devices with a small dimension of 5.2 x 2.0 x 1.1 mm 3 meet future miniaturization trend.
Embedded and LTCC (Low Temperature Co-fired Ceramic) technology is able to future integrate with system design as well as beautifying the housing of final product.
High Stability in Temperature / Humidity Change















Item Specification Central frequency 2.450 GHz (Note-1) Bandwidth 150MHz (typical) Gain 0 ~ 2 dBi VSWR 2 max. Polarization Linear Azimuth Beamwidth Omni-directional Impedance 50 W *Note 1. Central Frequency should be defined after customers’ application approval.




           Bluetooth Wireless LAN HormRF ISM band 2.4GHz applications.             Outline of 2.4GHz Chip Antenna



 Test Board Insertion Loss (S11) Patent Pending W T C W T C
         W T C W T C
         2 .0 ±0 .2 m m 1 .1 5 ±0 .1 0 m m 5.2 ± 0.2 mm 0.30 ± 0.15 mm 0.30 ± 0.15 mm  2 .0 ±0 .2 m m 1 .1 5 ±0 .1 0 m m 5.2 ± 0.2 mm 0.30 ± 0.15 mm 0.30 ± 0.15 mm

     W WW W

     W WW W               !"#  !"# Walsin Technology Corporation Contact Detail to the HF Division, Walsin Technology Corporation Jan 2003 CONTACT INFORMATION For more information, please contact with Walsin Technology Corporation. Tel : 886-3-475-8711 Fax : 886-3-475-5197 E mail : [email protected] Web Site : http://www.passivecomponent.com Specification subject to change without prior notice.
