SCD0027802.11g Outdoor Access Point

Table of Contents Table of Contents ......................................................................................2 Package Contents ......................................................................................3 Introduction ....................................................................................4 Features and Benefits ......................................................................................5 Four Operational Modes .......................................................................................6 Frequently Ask Questions .................................................32 Package Contents The standard package of the system includes: z WOR1000 System x 1 z PSE BOX x 1 z Arrester x 2 z RF Cable x 2 z Ethernet cable x 2 z Console cable x 1 z AC Power cable x1 z Accessories package x1 z CD-ROM x 1 Note: Using a power supply with a different voltage than the one included with the Outdoor Bridge will cause damage and void the warranty for this product. Ethernet & RS-232 Console Connecter : Console Port --- It is used for initial setup and configuration of the device LAN Port --- It is used for connecting the enclosed PSE for Power Over Ethernet WAN Port --- It used for connecting to ADSL for ISP Ethernet RJ-45 Connector (LAN) Ethernet RJ-45 Connector (WAN) Console Port Connector PSE BOX : for Power Over Ethernet (POE) Minimum System Requirements Power Over Ethernet : RJ-45 cable connecter PSE BOX (POWER &DATA OUT port) and WOR1000 WAN or LAN Ethernet Port Power LED Link Active LED PSE BOX AC Power cable  Computers with Windows, Macintosh, or Linux-based operating systems with an installed Ethernet Adapter  Internet Explorer version 6.0 or Netscape Navigator version 7.0 and above Introduction The OUTDOOR BRIDGE covers a large operating distance, providing an 802.11b/g outdoor WLAN which enables users to access the Internet or an organization’s network. At up to five times the speed of previous wireless devices, you can work faster and more efficiently, increasing productivity. With the OUTDOOR BRIDGE, bandwidth-intensive applications like graphics or multimedia will benefit significantly because large files are able to move across the network quickly. The OUTDOOR BRIDGE features a die-cast watertight housing and a built-in lightning protector to protect the access point from harsh environmental conditions, including extreme variance in temperature. It also includes Power over Ethernet (POE) and a unique outdoor remote-mounted design for easy installation. With two mounting kits, you have the option of either pole or wall mounting. The OUTDOOR BRIDGE is suitable for manufacturing plants, industrial sites, military bases, universities, hotels, airports and golf courses. The OUTDOOR BRIDGE has Dual Radio functionality for simultaneous AP and Bridge operations for backhaul applications. Configurable in four different modes (access point, bridge, multi-point bridge, and wireless client), the OUTDOOR BRIDGE offers 128-bit encryption, WPA and 802.1X authentication when used with a RADIUS server, MAC address access control, and additional security features. Features and Benefits Features the benefit of Robust Outdoor Housing - Designed for harsh outdoor environments, with die-cast, watertight housing, built-in heater and temperature sensor High Performance Dual Radio usage for simultaneous operations of AP and Bridge for backhaul applications. The dual radio can be configures for AP and Bridge ; AP and AP ; Bridge and Bridge for various applications Features the benefits of repeating up to 6 MAC ID for each radio, therefore ability to repeat up to 12 MAC ID with dual radio functionality for great coverage and benefits 4 Different Operation modes with WDS (Wireless Distribution System) – Capable of operating in one of four different operation modes to meet your wireless networking requirements: access point (AP), Point-to-Point (PtP) bridge,Point-to-multipoint (PtMP) bridge, Repeater. Embedded DHCP Server automatically assigns IP addresses to wireless clients. Connect networks in different buildings when used in conjunction with high-gain outdoor antennas. Easy Installation with PoE. Compatible with IEEE802.11g standards to provide a wireless data rate of up to 54Mbps.* Backward compatible with the 802.11b standard to provide a wireless data rate of up to 11Mbps with 802.11b devices - that means you can migrate your system to the 802.11g standard on your own schedule without sacrificing connectivity. Better security with WPA and 802.1X- The OUTDOOR BRIDGE can securely connect to wireless clients on the network using WPA (Wi-Fi Protected Access) providing a much higher level of security for your data and communications than has previously been available. In conjunction with a RADIUS server, 802.1X authentication verifies the identity of would-be clients. Communicate between IEEE802.11b and IEEE802.11g bands - Optional configuration allows communication between bands. Two mounting kits - Gives you the flexibility of either wall or pole outdoor mounting. Four Operational Modes AP Mode Cable/ADSL Modem Eth WAN Port Wireless Internet Repeater Mode Access Point Repeater1 Repeater2 Wireless Client Point to Point (P2P : Wireless Bridge) Mode L2 SwitchL2 Switch P2P-1P2P-2 LAN1 LAN2 Wired Network Wired Network L2 Switch LAN2 Wired Network L2 Switch LAN3 Wired Network P2P-1 P2P-2 PMP LAN1 Wired Network PMP ( Wireless Bridge) Mode Using the Configuration Menu To configure the OUTDOOR BRIDGE, use a computer which is connected to the OUTDOOR BRIDGE with an Ethernet cable (see the Network Layout diagram). First, disable the Access the Internet using a proxy server function. To disable this function, go to Control Panel > Internet Options > Connections > LAN Settings and uncheck the enable box. Start your web browser program (Internet Explorer, Netscape Navigator) . Type the IP address and http port of the OUTDOOR BRIDGE in the address field (h…

Text truncated - open the document above for the full version.

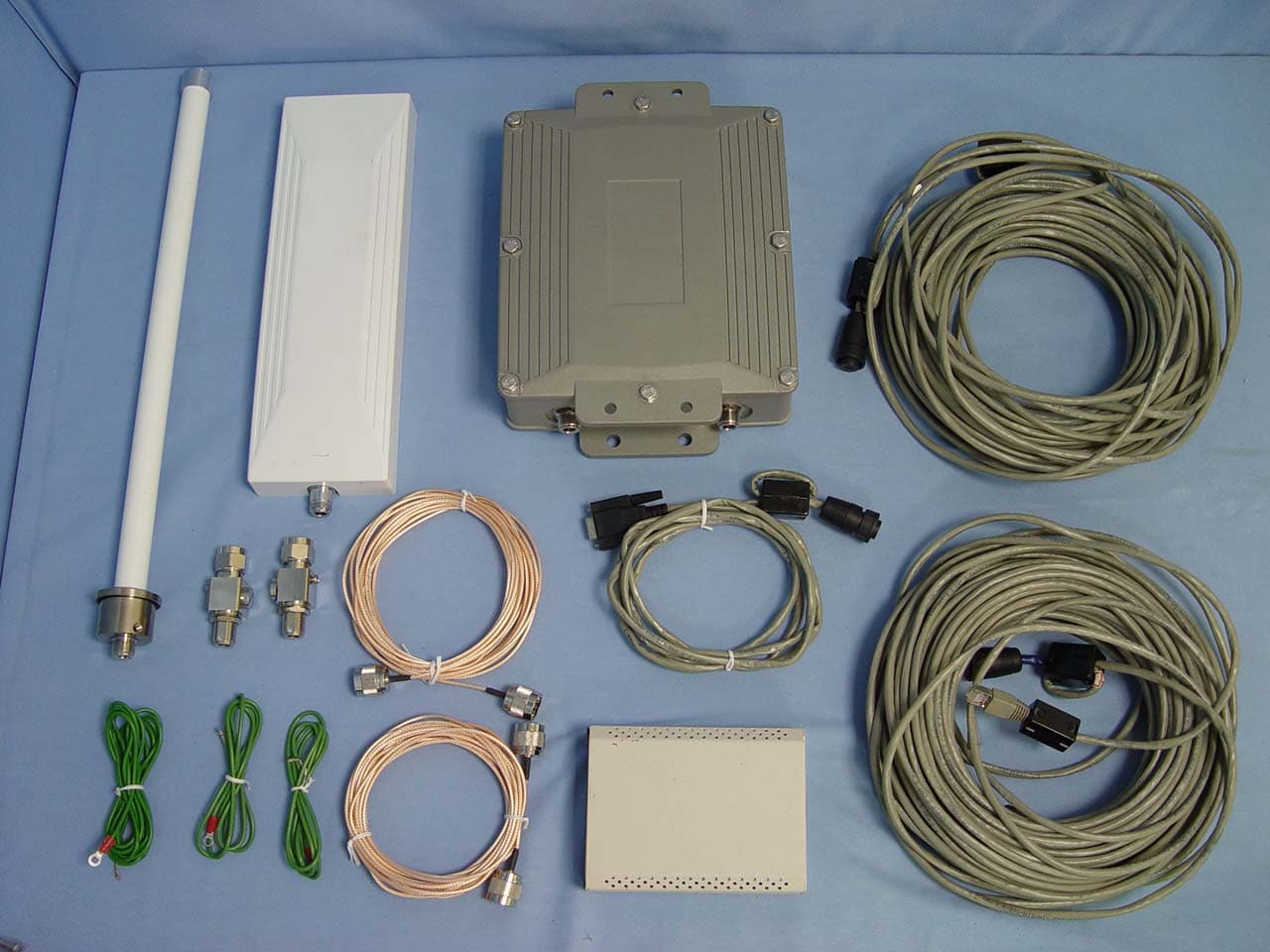

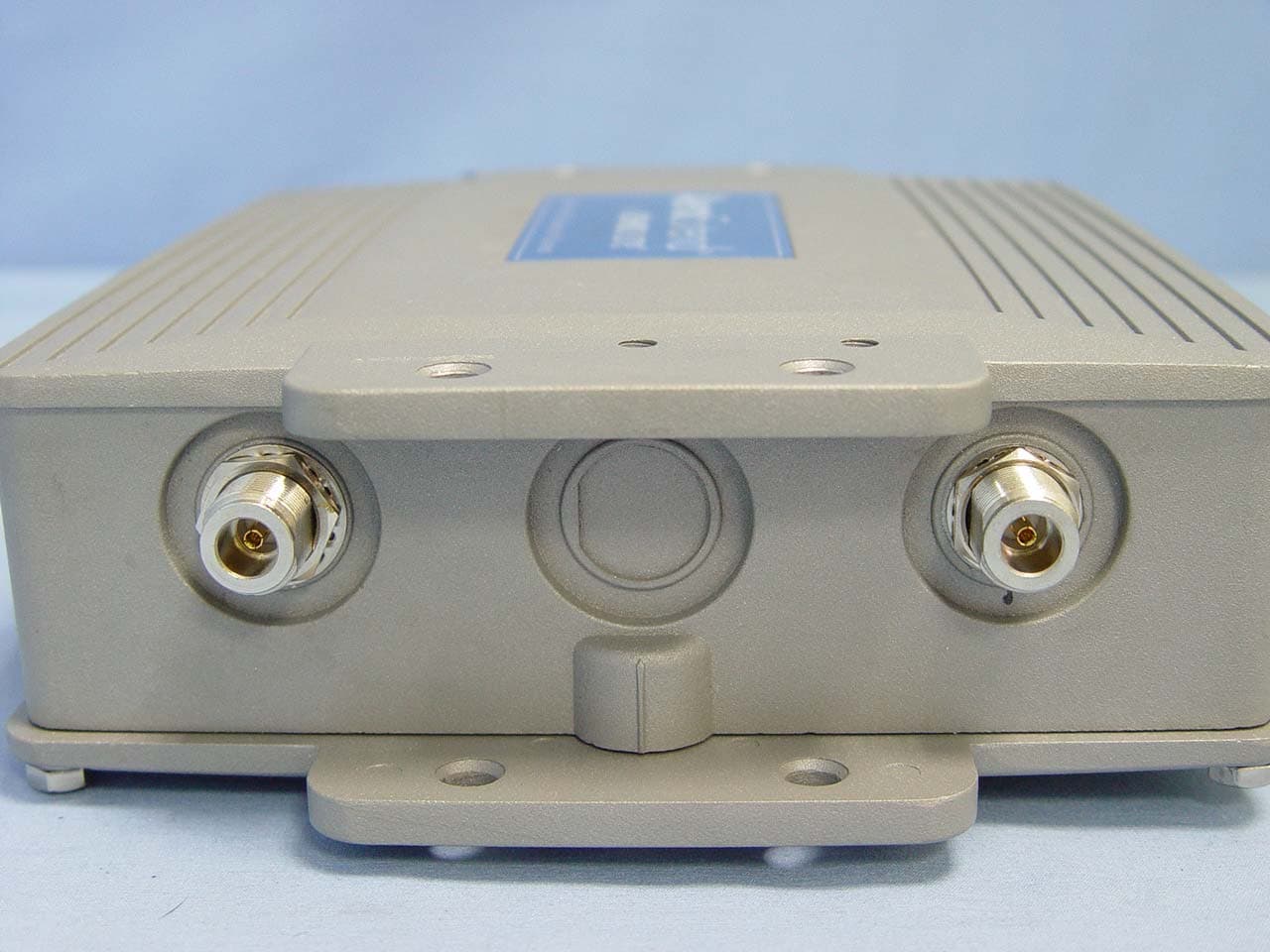

Compliance Certification Services Inc. Report No: 50314002 Date of Issue: October 25, 2005 Page 1 Total Page: 12 Rev. 00 EXTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No: 50314002 Date of Issue: October 25, 2005 Page 2 Rev. 00 Compliance Certification Services Inc. Report No: 50314002 Date of Issue: October 25, 2005 Page 3 Rev. 00 Compliance Certification Services Inc. Report No: 50314002 Date of Issue: October 25, 2005 Page 4 Rev. 00

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. Model Name : WOR1000 Serial No. Made in Taiwan LanReady FCC ID: SCD0027

Compliance Certification Services Inc. Report No: 50314002 Date of Issue: October 25, 2005 Page 5 Rev.00 INTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No: 50314002 Date of Issue: October 25, 2005 Page 6 Rev.00 Compliance Certification Services Inc. Report No: 50314002 Date of Issue: October 25, 2005 Page 7 Rev.00 Compliance Certification Services Inc. Report No: 50314002 Date of Issue: October 25, 2005 Page 8 Rev.00 Compliance Certification Services Inc. Report No: 50314002 Date of Issue: October 25, 2005 Page 9 Rev.00 Compliance Certification Services Inc. Report No: 50314002 Date of Issue: October 25, 2005 Page 10 Rev.00 Compliance Certification Services Inc. Report No: 50314002 Date of Issue: October 25, 2005 Page 11 Rev.00 Indoor Omni Antenna / Gain: -0.8 dBi Compliance Certification Services Inc. Report No: 50314002 Date of Issue: October 25, 2005 Page 12 Rev.00 Patch Directional Antenna / Gain: 3.2 dBi

2 LanReady Technologies Inc. 4F., No.337, Sinhu 2nd Rd., Neihu District, Taipei City 114, Taiwanʳ Tel: 886-2-2796-8188 Fax: 886-2-2796-8158 http//:www.lanready.com Model No.: OA2410FO 2.4GHz 10dBi Outdoor /Indoor Omni Antenna The Outdoor/Indoor 10 dBi Omni antenna emits a powerful amplified signal over a 360 degree radius., delivering a strong multi-direction signal from an Access Point or a Bridge . It is the most effective when placed at the top of buildings or in the center of large rooms Features „High gain: 10 dBi „Increase your Wireless Network Strength „For Wireless-b/g/n Application „Omni-Directional , best for Point-To-Multi-Point Bridging „Better Height Coverage (E-Plan 30̓ ) for Hot Spot application „Weatherproof & Corrosion Resistant for Indoor /Outdoor Electrical Specifications Antenna Type 2.4GHz 10 dBi Indoor Omni Antenna Frequency Range 2.4 ~ 2. 5GHz Network Specification IEEE 802.11b , IEEE 802.11g , IEEE802.11n Wireless 2.4Ghz Network Gain 10 dBi V. S . W. R < 2 Beam Width-H Plane 360̓ Beam Width-E Plane 30̓ Polarization Vertical (Linear) Input Impedance 50 Ohms Connector Reverse N Type Operation Temperature -20̓˖ - + 70̓˖ Storage Temperature -30̓˖ʳˀʳʾˋˈ̓˖ Humidity 95% maximum (non-condensing) Waterproof IP66 Package Content High-Gain Wireless Omni Antenna with Cable and Reverse N type Connector 1 Set Quick Installation Guide 1 pc 3 LanReady Technologies Inc. 4F., No.337, Sinhu 2nd Rd., Neihu District, Taipei City 114, Taiwanʳ Tel: 886-2-2796-8188 Fax: 886-2-2796-8158 http//:www.lanready.com CCS WUGU Antenna Pattern Job No.:3-30-100 Date:2005/3/14 Time:֑Հ 06:57 Temp.(к)/Hum.(%):25к/60% Tested b y: ER IC Center freq.(MHz): 2400 Polarization : H Plane Max gain(dBi):8.66 Min gain(dBi):8.00 Avg gain(dBi):8.33 OA2410FO T3 4 LanReady Technologies Inc. 4F., No.337, Sinhu 2nd Rd., Neihu District, Taipei City 114, Taiwanʳ Tel: 886-2-2796-8188 Fax: 886-2-2796-8158 http//:www.lanready.com CCS WUGU Antenna Pattern Job No.:3-30-99 Date:2005/3/14 Time:֑Հ 06:55 Temp.(к)/Hum.(%):25к/60% Tested b y: ER IC Center freq.(MHz): 2450 Polarization : H Plane Max gain(dBi):8.69 Min gain(dBi):7.79 Avg gain(dBi):8.26 OA2410FO T3 5 LanReady Technologies Inc. 4F., No.337, Sinhu 2nd Rd., Neihu District, Taipei City 114, Taiwanʳ Tel: 886-2-2796-8188 Fax: 886-2-2796-8158 http//:www.lanready.com CCS WUGU Antenna Pattern Job No.:3-30-101 Date:2005/3/14 Time:֑Հ 06:59 Temp.(к)/Hum.(%):25к/60% Tested b y: ER IC Center freq.(MHz): 2500 Polarization : H Plane Max gain(dBi):7.93 Min gain(dBi):6.65 Avg gain(dBi):7.40 OA2410FO T3 6 LanReady Technologies Inc. 4F., No.337, Sinhu 2nd Rd., Neihu District, Taipei City 114, Taiwanʳ Tel: 886-2-2796-8188 Fax: 886-2-2796-8158 http//:www.lanready.com CCS WUGU Antenna Pattern Job No.:3-30-103 Date:2005/3/14 Time:֑Հ 07:04 Temp.(к)/Hum.(%):25к/60% Tested b y: ER IC Center freq.(MHz): 2400 Polarization : E Plane Max gain(dBi):-8.77 Min gain(dBi):-15.45 Avg gain(dBi):-10.55 OA2410FO T3 7 LanReady Technologies Inc. 4F., No.337, Sinhu 2nd Rd., Neihu District, Taipei City 114, Taiwanʳ Tel: 886-2-2796-8188 Fax: 886-2-2796-8158 http//:www.lanready.com CCS WUGU Antenna Pattern Job No.:3-30-102 Date:2005/3/14 Time:֑Հ 07:02 Temp.(к)/Hum.(%):25к/60% Tested b y: ER IC Center freq.(MHz): 2450 Polarization : E Plane Max gain(dBi):-9.36 Min gain(dBi):-14.74 Avg gain(dBi):-11.02 OA2410FO T3 8 LanReady Technologies Inc. 4F., No.337, Sinhu 2nd Rd., Neihu District, Taipei City 114, Taiwanʳ Tel: 886-2-2796-8188 Fax: 886-2-2796-8158 http//:www.lanready.com CCS WUGU Antenna Pattern Job No.:3-30-104 Date:2005/3/14 Time:֑Հ 07:06 Temp.(к)/Hum.(%):25к/60% Tested b y: ER IC Center freq.(MHz): 2500 Polarization : E Plane Max gain(dBi):-10.07 Min gain(dBi):-20.87 Avg gain(dBi):-12.79 OA2410FO T3 9 LanReady Technologies Inc. 4F., No.337, Sinhu 2nd Rd., Neihu District, Taipei City 114, Taiwanʳ Tel: 886-2-2796-8188 Fax: 886-2-2796-8158 http//:www.lanready.com CCS WUGU Antenna Pattern Job No.:3-30-106 Date:2005/3/14 Time:֑Հ 07:14 Temp.(к)/Hum.(%):25к/60% Tested b y: ER IC Center freq.(MHz): 2400 Polarization : E Plane Max gain(dBi):8.50 Min gain(dBi):-33.34 Avg gain(dBi):-0.38 OA2410FO T3 E PLANE : LanReady Technologies Inc. 4F., No.337, Sinhu 2nd Rd., Neihu District, Taipei City 114, Taiwanʳ Tel: 886-2-2796-8188 Fax: 886-2-2796-8158 http//:www.lanready.com CCS WUGU Antenna Pattern Job No.:3-30-105 Date:2005/3/14 Time:֑Հ 07:12 Temp.(к)/Hum.(%):25к/60% Tested b y: ER IC Center freq.(MHz): 2450 Polarization : E Plane Max gain(dBi):8.62 Min gain(dBi):-31.54 Avg gain(dBi):-0.08 OA2410FO T3 E PLANE 21 LanReady Technologies Inc. 4F., No.337, Sinhu 2nd Rd., Neihu District, Taipei City 114, Taiwanʳ Tel: 886-2-2796-8188 Fax: 886-2-2796-8158 http//:www.lanready.com CCS WUGU Antenna Pattern Job No.:3-30-107 Date:2005/3/14 Time:֑Հ 07:16 Temp.(к)/Hum.(%):25к/60% Tested b y: ER IC Center freq.(MHz): 2500 Polarization : E Plane Max gain(dBi):7.93 Min gain(dBi):-32.99 Avg gain(dBi):-0.41 OA2410FO T3 E PLANE 22 LanReady Technologies Inc. 4F., No.337, Sinhu 2nd Rd., Neihu District, Taipei City 114, Taiwanʳ Tel: 886-2-2796-8188 Fax: 886-2-2796-8158 http//:www.lanready.com CCS WUGU Antenna Pattern Job No.:3-30-109 Date:2005/3/14 Time:֑Հ 07:23 Temp.(к)/Hum.(%):25к/60% Tested b y: ER IC Center freq.(MHz): 2400 Polarization : H Plane Max gain(dBi):-8.76 Min gain(dBi):-43.13 Avg gain(dBi):-14.66 OA2410FO T3 E PLANE 23 LanReady Technologies Inc. 4F., No.337, Sinhu 2nd Rd., Neihu District, Taipei City 114, Taiwanʳ Tel: 886-2-2796-8188 Fax: 886-2-2796-8158 http//:www.lanready.com CCS WUGU Antenna Pattern Job No.:3-30-108 Date:2005/3/14 Time:֑Հ 07:21 Temp.(к)/Hum.(%):25к/60% Tested b y: ER IC Center freq.(MHz): 2450 Polarization : H Plane Max gain(dBi):-8.26 Min gain(dBi):-42.60 Avg gain(dBi):-13.25 OA2410FO T3 E PLANE 24 LanReady Technologies Inc. 4F., No.337, Sinhu 2nd Rd., Neihu District, Taipei City 114, Taiwanʳ Tel: 886-2-2796-8188 Fax: 886-2-2796-8158 http//:www.lanready.com CCS WUGU Antenna Pattern Job No.:3-30-110 Date:…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Report No.: 50314002-RP1 FCC ID: SCD0027 Date of Issue: October 25, 2005 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 Total Page: 73 Rev. 00 FCC 47 CFR PART 15 SUBPART C TEST REPORT For 802.11g Outdoor Access point Trade Name / Model LanReady / WOR1000 Pheenet / WLO-2401DG Sohoware / WLG2000 Digicom / 8E4258 Wavegate XT Essentia / ESS24002 Issued to LanReady Technologies Inc. 3F, No.116, Sinhu 2nd Rd., Neihu District, Taipei City 114, Taiwan R.O.C. Issued by Compliance Certification Services Inc. No. 81-1, Lane 210, Bade Rd. 2, Luchu Hsiang, Taoyuan Hsien, (338) Taiwan, R.O.C. http://www.ccsemc.com.tw [email protected] Compliance Certification Services Inc. Report No.: 50314002-RP1 FCC ID: SCD0027 Date of Issue: October 25, 2005 Page 2 Rev. 00 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION....................................................................................................3 2. EUT DESCRIPTION ...........................................................................................................................4 3. TEST METHODOLOGY ....................................................................................................................5 3.1 EUT CONFIGURATION........................................................................................................................5 3.2 EUT EXERCISE....................................................................................................................................5 3.3 GENERAL TEST PROCEDURES.............................................................................................................5 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS........................................................6 3.5 DESCRIPTION OF TEST MODES...........................................................................................................7 4. INSTRUMENT CALIBRATION........................................................................................................8 4.1 MEASURING INSTRUMENT CALIBRATION......................................................................................8 4.2 MEASUREMENT EQUIPMENT USED.........................................................................................8 5. FACILITIES AND ACCREDITATIONS ..........................................................................................9 5.1 FACILITIES .... ....................................................................................................................................9 5.2 EQUIPMENT........................................................................................................................................9 5.3 LABORATORY ACCREDITATIONS AND LISTING..................................................................................9 5.4 TABLE OF ACCREDITATIONS AND LISTINGS.....................................................................................10 6. SETUP OF EQUIPMENT UNDER TEST .......................................................................................11 6.1 SETUP CONFIGURATION OF EUT.......................................................................................................11 6.2 SUPPORT EQUIPMENT ...............................................................................................................11 7. FCC PART 15.247 REQUIREMENTS.............................................................................................12 7.1 6DB BANDWIDTH.............................................................................................................................12 7.2 PEAK POWER....................................................................................................................................16 7.3 AVERAGE POWER............................................................................................................................20 7.4 BAND EDGES MEASUREMENT ................................................................................................24 7.5 PEAK POWER SPECTRAL DENSITY....................................................................................................41 7.6 SPURIOUS EMISSIONS ................................................................................................................46 7.7 POWERLINE CONDUCTED EMISSIONS...............................................................................................66 APPENDIX 1 RADIO FREQUENCY EXPOSURE ..............................................................................69 APPENDIX 2 PHOTOGRAPHS OF TEST SETUP ..............................................................................71 Compliance Certification Services Inc. Report No.: 50314002-RP1 FCC ID: SCD0027 Date of Issue: October 25, 2005 Page 4 Rev. 00 2. EUT DESCRIPTION Product 802.11g Outdoor Access point Trade Name / Model LanReady / WOR1000 Pheenet / WLO-2401DG Sohoware / WLG2000 Digicom / 8E4258 Wavegate XT Essentia / ESS24002 Model Discrepancy All the specification and layout are identical except they come with different model numbers and trade names for marketing purpose. Power Supply Model: F919I-4810 I/P: AC 100-240V, 2A, 50-60Hz O/P: DC 48V, 1.0A Frequency Range 2412 ~ 2462 MHz Transmit Power IEEE 802.11b: 22.09 dBm IEEE 802.11g: 12.99 dBm Modulation Technique IEEE 802.11b: DSSS (CCK, DQPSK, DBPSK) IEEE 802.11g: DSSS (CCK, DQPSK, DBPSK) + OFDM (QPSK, BPSK, 16-QAM, 64-QAM) Transmit Data Rate IEEE 802.11b: 11, 5.5, 2, 1 Mbps IEEE 802.11g: 54, 48, 36, 24, 18, 12, 11, 9, 6, 5.5, 2, 1 Mbps Number of Channels 11 Channels Antenna Specification Omni Antenna: 10 dBi Patch Directional Antenna: 14 dBi Lightning Arrester Insertion Loss 0.8 dB RF cable loss Insertion Loss: 1…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Report No.: 50314002-RP1 FCC ID: SCD0027 Date of Issue: October 25, 2005 Page 71 Rev. 00 APPENDIX 2 PHOTOGRAPHS OF TEST SETUP Conducted Emissions Setup Photos Compliance Certification Services Inc. Report No.: 50314002-RP1 FCC ID: SCD0027 Date of Issue: October 25, 2005 Page 72 Rev. 00 Radiated Emissions Setup Photos Compliance Certification Services Inc. Report No.: 50314002-RP1 FCC ID: SCD0027 Date of Issue: October 25, 2005 Page 73 Rev. 00 Powerline Conducted Emissions Setup Photos
