SCD0031802.11 b//g Access Point

Administrator’s Manual Administrator’s Manual Version 1.0.1 Administrator’s Manual Copyright The intellectual property rights and copyright of this manual belong to vendor. and are protected by the R.O.C. copyright laws and international copyright laws. No part or the manual in its entirety may be transshipped, transmitted, duplicated, distributed, displayed, published, or broadcasted in any form or by any means without the prior written permission of vendor. The trademarks mentioned in the manual belong to the owners of the respective registered companies or organizations. Administrator’s Manual i Table of Contents 1. Preface............................................................................................ 1 1.1. Brief Introduction ............................................................................................1 1.2. Before you Read ............................................................................................2 1.2.1. Audience................................................................................................2 1.2.2. Document Convention ...........................................................................2 2. Product Description ...................................................................... 3 2.1. Package Contents ..........................................................................................3 2.2. Front Panel.....................................................................................................4 2.3. Hardware Specifications.................................................................................6 2.4. Technical Specifications .................................................................................7 2.4.1. Standards ..............................................................................................7 2.4.2. Networking.............................................................................................7 2.4.3. Firewall ..................................................................................................7 2.4.4. User Management .................................................................................8 2.4.5. Administration........................................................................................8 2.4.6. Accounting.............................................................................................9 3. Installation.................................................................................... 10 3.1. Installation ....................................................................................................10 3.1.1. System Requirements .........................................................................10 3.1.2. Installation Procedure..........................................................................10 3.1.3. Setting up the PC for the Public LAN and Private LAN....................... 11 3.2. Getting Started .............................................................................................19 3.2.1. System Concept ..................................................................................19 3.2.2. Connecting Network Devices ..............................................................20 3.2.3. Begin Installation .................................................................................21 4. Console Interface........................................................................ 28 4.1. Main Menu of Console interface ..................................................................28 Administrator’s Manual ii 4.2. Utilities for network debugging .....................................................................29 4.3. Change admin password .............................................................................30 4.4. Reload factory default ..................................................................................31 4.5. Restart..........................................................................................................31 5. Web Management Interface ........................................................ 32 5.1. System Configuration...................................................................................32 5.1.1. Configuration Wizard ...........................................................................33 5.1.2. System Information..............................................................................43 5.1.3. WAN Configuration ..............................................................................45 5.1.4. Authentication Configuration ...............................................................47 5.1.5. Private Configuration ...........................................................................57 5.2. User Authentication ......................................................................................59 5.2.1 Authentication Policies ..............................................................................60 5.2.2 Group Configuration..................................................................................67 5.2.3 Black List Configuration ...........................................................................68 5.2.4 Roaming Configuration ............................................................................69 5.2.5 Additional Configuration...........................................................................71 5.2.6 On-demand User Configuration...............................................................75 5.3 Group Profile ................................................................................................79 5.3.1 Firewall Profile .........................................................................................80 5.3.2 Login Schedule Profiles ...........................................................................82 5.4 Network Configuration..................................................................................83 5.4.1 Network Address Translate...…

Text truncated - open the document above for the full version.

LanReady Technologies Inc. 3F, No.166, Sinhu 2nd Rd., Neihu District, Taipei City 114, Taiwan, R.O.C. TEL: (02) 2796 8188 FAX: (02) 2796 8158 ID:80408803 LanReady Technologies Inc. http://www.lanready.com 1/1 AC1000 RF Power Specifications Output Power = RF Module – RF Cable loss + Antenna Gain ATransmit Power with 8 dBi /5dBi / 2dBi antenna V.S. Data Rate Data Rate IEEE 802.11g RF Module Maximum Output Power (dBm) 6Mbps 9 9Mbps 9 12Mbps 9 18Mbps 9 24Mbps 8 36Mbps 8 48Mbps 8 54Mbps 8 Data Rate IEEE 802.11b RF Module Maximum Output Power (dBm) 1Mbps 16 2Mbps 16 5.5Mbps 16 11Mbps 16 LanReady Technologies Inc. 3F, No.166, Sinhu 2nd Rd., Neihu District, Taipei City 114, Taiwan, R.O.C. TEL: (02) 2796 8188 FAX: (02) 2796 8158 ID:80408803 LanReady Technologies Inc. http://www.lanready.com 2/2 BPower Control Code : ACK02.asc CRF Power Check a Power Meter CheckAgilent E4416A bComputer ControlSWAC1000 Cal. c RF Power Spec.IEEE 802.11g 6Mbps 9 dBm Test Power 9.5 dBm IEEE 802.11b 11Mbps15 dBm Test Power 16 dBm dUpload RF Power setting code to AC1000 Flash Jason Lo/ Sr. Engineer LanReady Technologies Inc. Tel: 886-2-27968188#322 Fax: 886-2-2796-8158 [email protected]

Dear Mike: Please see our reply as below. Tks. Best Regard Amanda Hi Amanda, Please address the following issues. Question#1: The label is too vague to read, please provide clear one. Ans:Please see the Label Smp & Lct. Question#2: Please provide RF functional block and schematics. Ans. Attached. Question#3: FCC warning statement indicated in page 10 of user manual is movable by cursor, please correct. Ans: The Page 10 of usermanual had been revised. Question#4: According to the submitted block diagram, the EUT has POE function but test report didn't investigate it. Please provide the test data to demonstrate the compliance. Ans: Sorry, in fact, the EUT doesn't have the "POE" function. So the blk dia had been revised. Question#5: According to 15.247(b), if transmitting antenna gain is greater than 6 dBi, the conducted output power from the intentional radiator shall be reduced by the amount in dB. Please correct the limit of conducted output power. Ans: The test report had been revised. The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 30 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender.

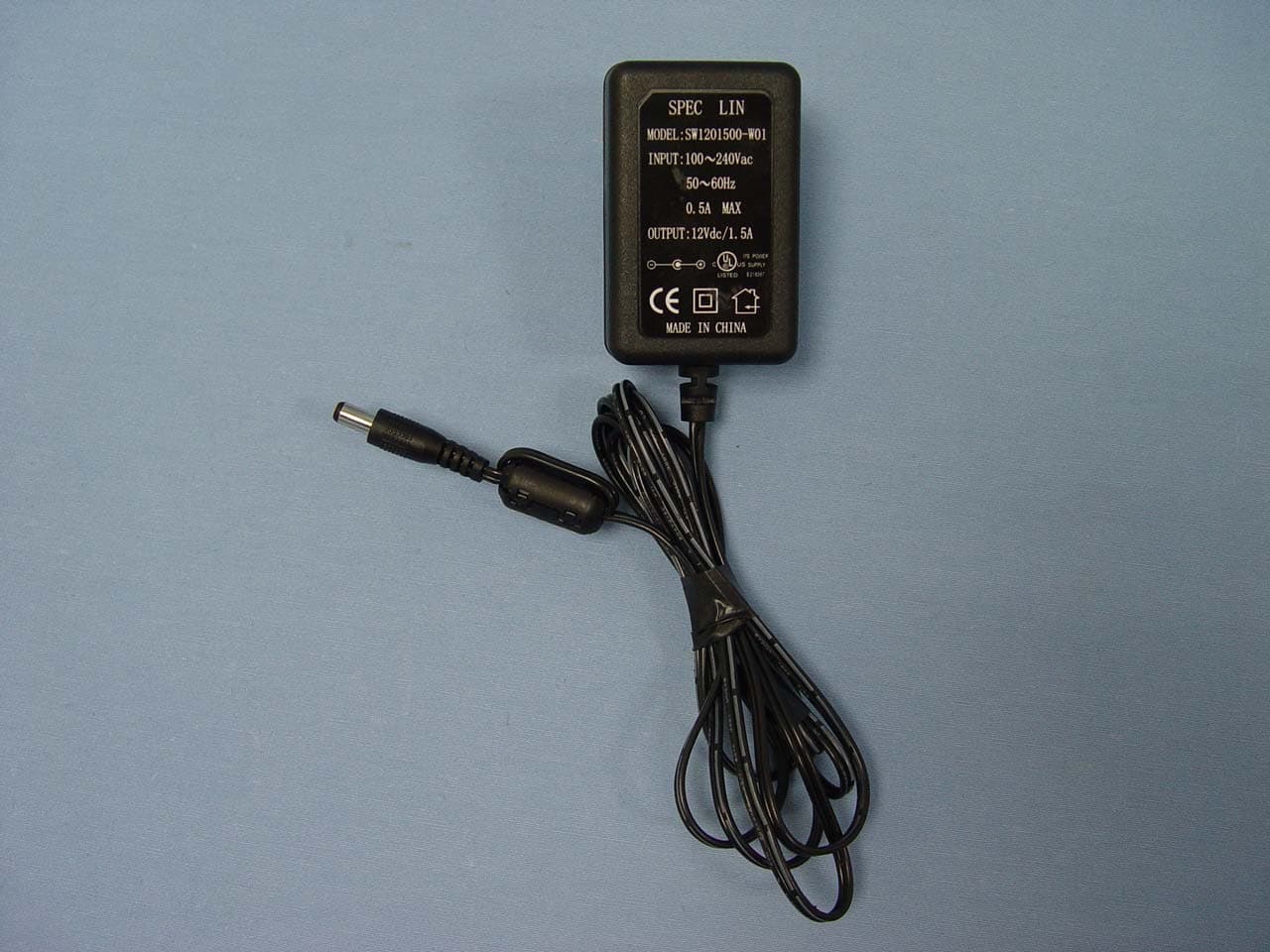

Compliance Certification Services Inc. Report No: 50314003 Date of Issue: September 02, 2005 Page 1 Total Page: 11 Rev. 00 EXTERNAL PHOTOGRAPHS OF EUT LanReady / AC1000 Raytalk / RA-455, RA456 Rheenet / WAS101 City-Netet Inc. / WHG-743C Compliance Certification Services Inc. Report No: 50314003 Date of Issue: September 02, 2005 Page 2 Total Page: 11 Rev. 00 Compliance Certification Services Inc. Report No: 50314003 Date of Issue: September 02, 2005 Page 3 Total Page: 11 Rev. 00 Gigabyte / GN-B48G Ovislink / WIAS-1000G Compliance Certification Services Inc. Report No: 50314003 Date of Issue: August 11, 2005 Page 4 Rev.00 Micronet / SP913 Cipherium / bonalinx-W1310, bonalinx-M3000, bonalinx-A1000, bonalinx-G 3000, bonalinx-A 1020 Compliance Certification Services Inc. Report No: 50314003 Date of Issue: August 11, 2005 Page 5 Rev.00

Compliance Certification Services Inc. Report No: 50314003 Date of Issue: September 02, 2005 Page 1 Total Page: 11 Rev. 00 EXTERNAL PHOTOGRAPHS OF EUT LanReady / AC1000, Raytalk / RA-455, RA456 Rheenet / WAS101, City-Netet Inc. / WHG-743C Compliance Certification Services Inc. Report No: 50314003 Date of Issue: September 02, 2005 Page 2 Total Page: 11 Rev. 00 Gigabyte / GN-B48G Compliance Certification Services Inc. Report No: 50314003 Date of Issue: September 02, 2005 Page 3 Total Page: 11 Rev. 00 Ovislink / WIAS-1000G Compliance Certification Services Inc. Report No: 50314003 Date of Issue: August 11, 2005 Page 4 Rev.00 Micronet / SP913 Compliance Certification Services Inc. Report No: 50314003 Date of Issue: August 11, 2005 Page 5 Rev.00 Cipherium / bonalinx-W1310, bonalinx-M3000, bonalinx-A1000, bonalinx-G 3000, bonalinx-A 1020

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. Model Name : AC1000 Serial No. Made in Taiwan LanReady FCC ID: SCD0031 12V DC 1A

Compliance Certification Services Inc. Report No: 50314003 Date of Issue: August 11, 2005 Page 6 Rev.00 INTERNAL PHOTOGRAPHS OF EUT Module 1 Module 1 Module 2 Module 2 Compliance Certification Services Inc. Report No: 50314003 Date of Issue: August 11, 2005 Page 7 Rev.00 Module 1 Module 2 Compliance Certification Services Inc. Report No: 50314003 Date of Issue: August 11, 2005 Page 8 Rev.00 Compliance Certification Services Inc. Report No: 50314003 Date of Issue: August 11, 2005 Page 9 Rev.00 Compliance Certification Services Inc. Report No: 50314003 Date of Issue: August 11, 2005 Page 10 Rev.00

APVDCHKDDSGD SPECIFICATION PRODUCT CODE: TT98024 2005.01.26 2005.01.25 2005.01.25 1. General: 1.1 Scope This specification is applied for fixed 1/2 Dipole antenna. (Type 2.4GHz external standard dipole antenna.) 1.2 Operating Temperature -10+75 1.3 Storage Temperature -20+75 1.4 Test conditions Standard test conditions should be from 5 to 35 in temperature , 45 to 85%RH and 860 to 1060 hpa in barometric pressure. Should conducted at 202,655%RH and 860 to 1060 hpa. 2. Appearances, structures and dimensions: 2.1 Appearances Finished on each part should be good, functionally free from rust, Crack and scratch. 2.2 Structures and dimensions They are produced according to the drawing of individual product. 3. Electrical performance: PropertyTest conditionsPerformance VSWR< 2.0 3.1 Frequency Range Proving the suitable test ,according to custamer’s request and all the necessary condition of the set. 2400-2500MHz 3.2Impedance 502 ohms 3.3DirectionalOmni 3.4Antenna gain0.6~2.0 dBi 3.5Tolerance power1w 4.Material specification: ItemMaterialCharacteristic CoverThermal Plastic ElastormerHardness:65 (Gray) WireRG178 Coaxial CableTint Brown 5.Coaxial Cable Charcterictic: 5.1.Mechanical characterisitics MaterialSCCS Composition(N/M)7/0.08mm Center conductor O.D.0.30mm MaterialPTFEDielectric O.D.0.83Min MaterialSPC Coverage85%Min Braided Shield Strands 0.06mm MaterialFEPJacket O.D.1.89mm 5.2. Electric data ItemSpecificationUnit Capacitance85PF/M Impedance50 ± 2 Attenuation3.5(3GHz)Db/M 6.Weather ability: PropertyTest conditionPerformance 6.1Dry heat proof After leaving 96 hours at temperature 752,leave 1 hour in a normal ambient condition and measure. Clean the appearance before test. There shall be no detects on cover broken or antenna drop out, satisfy item-3. 6.2Cold proof After leaving 96 hours at temperature –302,leave 1 hour in a normal ambient condition and measure. Clean the appearance before test. There shall be no detects on cover broken or antenna drop out, satisfy item-3. 6.3Damp heat proof After leaving 96 hours at temperature 403 and 90 to 95%RH,leave 1 hour in a normal ambient condition and measure. Clean the appearance before test. There shall be no detects on cover broken or antenna drop out, satisfy item-3. 7.Sample dependability(O.C Standard ): According to MIL-STD-105D (About 1/200 pcs ungainly to repeal one lot in all quantity.) 8.Measurement instrument: 8.1 PC SIZE: PC-9801FA (NEC) 8.2 Room size: 400cm (W)X350cm(H)X630cm(L) 8.3 Net work analyzer: Test equipment on electrical functions Equipment by Hewlett Packard, Network Analyzer HP-8752A by Advantest, Network Analyzer R3767CG 9.Packing Instructions: One parcel bag contain = 15 pcs One middle box contain = 14 parcel bags (15 pcs x 14 parcel bags =210 pcs) One master carton contains =3 middle boxs (3x middle boxs = 630 pcs) M M e e a a s s u u r r e e m m e e n n t t C C o o n n d d i i t t i i o o n n D D i i a a g g r r a a m m (1).Electrical Performance Measurement: (2).Radiation Pattern Measurement: P P e e r r f f o o r r m m a a n n c c e e D D a a t t a a S S h h e e e e t t (1).Electrical Performance Data: P P e e r r f f o o r r m m a a n n c c e e D D a a t t a a S S h h e e e e t t (2).Vertical-Plane Radiation Pattern Data: P P e e r r f f o o r r m m a a n n c c e e D D a a t t a a S S h h e e e e t t (3). Horizontal-Plane Radiation Pattern Data:

1 LanReady Technologies Inc. 4F., No.337, Sinhu 2nd Rd., Neihu District, Taipei City 114, Taiwan Tel: 886-2-2796-8188 Fax: 886-2-2796-8158 http//:www.lanready.com Model No.: AN0800FO-S 2.4GHz 8dBi Omni Antenna w/SMA Connector AN0800FO-T 2.4Ghz 8dBi Omni Antenna w/TNC Connector AN0800FO is the perfect solution to extend the range and increase the signal strength of our wireless network. Configuration and setup of this antenna is easy and fast. This antenna is great for Wireless Access Points and Router that serve your wireless signal to multiple users in multiple locations. Features „ High gain: 8 dBi „ High performance „ Low profile „ Smart and elegant style „ Versatle Mounting Design „ Light-weight Electrical Specifications Antenna Type 2.4GHz 8 dBi Indoor Omni Antenna Frequency Range 2.4 ~ 2. 5GHz Network Specification IEEE 802.11b , IEEE 802.11g , Wireless 2.4Ghz Network Gain 8 dBi V. S . W. R < 2 Beam Width-H Plane 360 ̊ Beam Width-E Plane 40 ̊ Polarization Vertical (Linear) Input Impedance 50 Ohms Connector Reverse SMA Operation Temperature -20 ̊C - + 70 ̊C Storage Temperature -30 ̊C - +85 ̊C Humidity 95% maximum (non-condensing) Package Content High-Gain Wireless Omni Antenna with Cable and Reverse SMA 1 Set Quick Installation Guide 1 pc 2 LanReady Technologies Inc. 4F., No.337, Sinhu 2nd Rd., Neihu District, Taipei City 114, Taiwan Tel: 886-2-2796-8188 Fax: 886-2-2796-8158 http//:www.lanready.com 3 LanReady Technologies Inc. 4F., No.337, Sinhu 2nd Rd., Neihu District, Taipei City 114, Taiwan Tel: 886-2-2796-8188 Fax: 886-2-2796-8158 http//:www.lanready.com 4 LanReady Technologies Inc. 4F., No.337, Sinhu 2nd Rd., Neihu District, Taipei City 114, Taiwan Tel: 886-2-2796-8188 Fax: 886-2-2796-8158 http//:www.lanready.com 5 LanReady Technologies Inc. 4F., No.337, Sinhu 2nd Rd., Neihu District, Taipei City 114, Taiwan Tel: 886-2-2796-8188 Fax: 886-2-2796-8158 http//:www.lanready.com 6 LanReady Technologies Inc. 4F., No.337, Sinhu 2nd Rd., Neihu District, Taipei City 114, Taiwan Tel: 886-2-2796-8188 Fax: 886-2-2796-8158 http//:www.lanready.com 7 LanReady Technologies Inc. 4F., No.337, Sinhu 2nd Rd., Neihu District, Taipei City 114, Taiwan Tel: 886-2-2796-8188 Fax: 886-2-2796-8158 http//:www.lanready.com 8 LanReady Technologies Inc. 4F., No.337, Sinhu 2nd Rd., Neihu District, Taipei City 114, Taiwan Tel: 886-2-2796-8188 Fax: 886-2-2796-8158 http//:www.lanready.com

Compliance Certification Services Inc. Report No.: 50314003-RP1 FCC ID: SCD0031 Date of Issue: August 15, 2005 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 Total Page: 70 Rev. 00 FCC 47 CFR PART 15 SUBPART C TEST REPORT For 802.11b/g Access point Trade Name / Model: LanReady / AC1000 Ovislink / WIAS-1000G Gigabyte / GN-B48G Pheenet / PWAS101 Raytalk / RA-455, RA456 City-Netek Inc. / WHG-734C Micronet / SP913 Cipherium / bonalinx-W 1310, bonalinx-M 3000, bonalinx-A 1000, bonalinx-G 3000, bonalinx-A 1020 Issued to LanReady Technologies Inc. 3F, No.116, Sinhu 2nd Rd., Neihu District, Taipei City 114, Taiwan (R.O.C.) Issued by Compliance Certification Services Inc. No. 81-1, Lane 210, Bade Rd. 2, Luchu Hsiang, Taoyuan Hsien, (338) Taiwan, R.O.C. TEL: 886-3-324-0332 FAX: 886-3-324-5235 Compliance Certification Services Inc. Report No.: 50314003-RP1 FCC ID: SCD0031 Date of Issue: August 15, 2005 Page 2 Rev. 00 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION....................................................................................................3 2. EUT DESCRIPTION ...........................................................................................................................4 3. TEST METHODOLOGY ....................................................................................................................4 3.1 EUT CONFIGURATION........................................................................................................................5 3.2 EUT EXERCISE....................................................................................................................................5 3.3 GENERAL TEST PROCEDURES.............................................................................................................5 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS........................................................6 3.5 DESCRIPTION OF TEST MODES...........................................................................................................6 4. INSTRUMENT CALIBRATION........................................................................................................7 5. FACILITIES AND ACCREDITATIONS ..........................................................................................8 5.1 FACILITIES .........................................................................................................................................8 5.2 EQUIPMENT........................................................................................................................................8 5.3 LABORATORY ACCREDITATIONS AND LISTING..................................................................................8 5.4 TABLE OF ACCREDITATIONS AND LISTINGS.......................................................................................9 6. SETUP OF EQUIPMENT UNDER TEST .......................................................................................10 6.1 SETUP CONFIGURATION OF EUT.......................................................................................................10 6.2 SUPPORT EQUIPMENT ...............................................................................................................10 7. FCC PART 15.247 REQUIREMENTS.............................................................................................11 7.1 6dB BANDWIDTH.............................................................................................................................11 7.2 PEAK POWER....................................................................................................................................16 7.3 BAND EDGES MEASUREMENT ................................................................................................21 7.4 PEAK POWER SPECTRAL DENSITY....................................................................................................38 7.5 RADIO FREQUENCY EXPOSURE........................................................................................................43 7.6 SPURIOUS EMISSIONS ................................................................................................................45 7.7 POWERLINE CONDUCTED EMISSIONS...............................................................................................65 APPENDIX 1 PHOTOGRAPHS OF TEST SETUP ..............................................................................68 Compliance Certification Services Inc. Report No.: 50314003-RP1 FCC ID: SCD0031 Date of Issue: August 15, 2005 Page 4 Rev. 00 2. EUT DESCRIPTION Product 802.11b/g Access point Trade Name / Model Number LanReady / AC1000 Ovislink / WIAS-1000G Gigabyte / GN-B48G Pheenet / WAS101 Raytalk / RA-455, RA456 City-Netek Inc / WHG-734C Micronet / SP913 Cipherium / bonalinx-W 1310, bonalinx-M 3000, bonalinx-A 1000, bonalinx-G 3000, bonalinx-A 1020 Model Discrepancy 1. All the above models are identical except that they come with 13 different models with 5 different external appearance for sale. Please refer to the external photos for further details. 2. Type Trade Name / Model No. Type 1 LanReady / AC1000 Pheenet / WAS101 Raytalk / RA-455, RA456 WHG-734C / City-Netek Inc Type 2 Gigabyte / GN-B48G Type 3 Ovislink / WIAS-1000G Type 4 Micronet / SP913 Type 5 Cipherium / bonalinx-W 1310, bonalinx-M 3000, bonalinx-A 1000, bonalinx-G 3000, bonalinx-A 1020 Power Supply SPEC LIN / SW1201500-W01 I/P: 100-240Vac,50-60Hz, 0.5A Max O/P: 12Vdc, 1.5A Frequency Range 2412 ~ 2462 MHz Transmit Power IEEE 802.11b: 16.02 dBm IEEE 802.11g: 9.29 dBm Modulation Technique IEEE 802.11b: DSSS (CCK, DQPSK, DBPSK) IEEE 802.11g: OFDM (QPSK, BPSK, 16-QAM, 64-QAM) Transmit Data Rate IEEE 802.11b: 11, 5.5, 2, 1 Mbps IEEE 802.11g: 54,…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Report No.: 50314003-RP1 FCC ID: SCD0031 Date of Issue: August 15, 2005 Page 68 Rev. 00 APPENDIX 1 PHOTOGRAPHS OF TEST SETUP Conducted Emission Setup Photos Compliance Certification Services Inc. Report No.: 50314003-RP1 FCC ID: SCD0031 Date of Issue: August 15, 2005 Page 69 Rev. 00 Radiated Emission Setup Photos Compliance Certification Services Inc. Report No.: 50314003-RP1 FCC ID: SCD0031 Date of Issue: August 15, 2005 Page 70 Rev. 00 Powerline Conducted Emissions Setup Photos
