SCD020067802.11b/g/n AP ROUTER

AP-952X Industrial Wall-mounted Wireless-N/BG AP/Bridge User's Manual Release Version : 0.0.1 Release Date : 2010/07/23 Table of Contents Chapter 1. Before You Start .............................................................................................. 1 1.1 Preface......................................................................................................................................1 1.2 Package Contents .....................................................................................................................1 Chapter 2. System Overview............................................................................................. 2 2.1 Introduction of AP-952X ............................................................................................................2 2.2 Specification ............................................................................................................................3 Chapter 3. Base Installations ............................................................................................ 6 3.1 Installations ...............................................................................................................................6 3.1.1 System Requirements .......................................................................................................6 3.1.2 Panel Function Descriptions ..............................................................................................6 3.1.3 Hardware Installation.........................................................................................................8 3.2 Software Configuration..............................................................................................................9 3.2.1 Getting Start ......................................................................................................................9 3.2.2 Quick Configuration ......................................................................................................... 11 Chapter 4. AP Mode Configuration................................................................................. 13 4.1 Connect AP-952X to the Wired Local Network ......................................................................14 4.1.1 Network Requirement......................................................................................................14 4.1.2 Configure LAN Port .........................................................................................................15 4.2 Create Your Wireless Network ................................................................................................17 4.2.1 Configure Wireless General Setup ..................................................................................17 4.2.2 Configure Wireless Advanced Setup ...............................................................................19 4.2.3 Create Virtual AP .............................................................................................................22 4.2.3.1 Configure Virtual AP ................................................................................................24 4.2.3.2 Block Wireless Clients...........................................................................................30 4.2.3.3 Monitor Associated Wireless Clients........................................................................31 4.3 Expand Your Wireless Network ...............................................................................................32 4.3.1 Create WDS Link.............................................................................................................32 4.3.2 View WDS Link Status ..................................................................................................33 4.4 Manage the System ................................................................................................................34 4.4.1 Configure System Time ...................................................................................................34 4.4.2 Configure Management ...................................................................................................35 4.4.3 Configure SNMP..............................................................................................................37 4.4.4 Backup / Restore and Reset to Factory...........................................................................38 4.4.5 Firmware Upgrade...........................................................................................................39 4.4.6 Network Utility .................................................................................................................40 4.4.7 Reboot.............................................................................................................................41 4.5 Observer the Status.................................................................................................................42 4.5.1 Overview .........................................................................................................................42 4.5.2 Extra Info .........................................................................................................................43 4.5.3 Event Log ........................................................................................................................45 Chapter 5. WDS Mode Configuration ............................................................................. 46 5.1 Connect AP-952X to the Wired Local Network ........................................................................46 5.1.1 Network Requirement......................................................................................................46 5.1.2 Configure LAN Port .........................................................................................................47 5.2 Expand Your Wireless Network .......................................…

Text truncated - open the document above for the full version.

AP-952X Industrial Wall-mounted Wireless-N/BG AP/Bridge User's Manual 41 4.4 Manage the System 4.4.1 Configure System Time System time can be configured via this page where manual setting and NTP server configuration are both supported. Please click on System -> Time Server and follow the below setting. „ Local Time : Display the current time of the system. „ Setup Time Use NTP : Enable Network Time Protocol, NTP, to synchronize the system time with NTP server. Î Default NTP Server : Select the NTP Server from the drop-down list. Î Time Zone : Please set a time zone from where the accurate time can be supplied, (GMT+08:00) Taipei for example. Î Daylight saving time : Enable Daylight saving time from where the accurate time needed. If Time server setting selected in “Setup Time User NTP”, please verify system's DNS and Default Gateway setting first. Change these settings as described here and click Save button to save your changes. Click Reboot button to activate your changes AP-952X Industrial Wall-mounted Wireless-N/BG AP/Bridge User's Manual 42 4.4.2 Configure Management The administrator can later obtain the geographical location of the system via the information configured here. The administrator also can change system password and configure system login methods. Please click System -> Management and follow the below settings. „ System Information Î System Name : Enter a desired name or use the default provided. Î Description : Denote further information of the system. Î Location : Enter related geographical location information of the system; administrator/manager will be able to locate the system easily. „ Root Password : Log in as a root user and is allowed to change its own. Root user also can change admin user's and operator user's password. Click Save button to activate the new password. Î New Password : Please input the new password of administrator. Î Check New Password : Please input again the new password of administrator. „ Admin Login Methods : The admin manager can enable or disable system login methods, it also can change services port. Click Save button to activate the admin login methods. Î Enable HTTP : Select Enable HTTP to activate HTTP Service Î HTTP Port : Please input 1 ~ 65535 value to set HTTP Port; default value is 80 Î Enable Telnet : Select Enable HTTP to activate HTTP Service Î Telnet Port : Please input 1 ~ 65535 value to set HTTP Port; default value is 23 AP-952X Industrial Wall-mounted Wireless-N/BG AP/Bridge User's Manual 43 „ Ping Watchdog : The ping watchdog sets the AP-952X Device to continuously ping a user defined IP address (it can be the internet gateway for example). If it is unable to ping under the user defined constraints, the AP- 952X device will automatically reboot. This option creates a kind of "fail-proof" mechanism. Ping Watchdog is dedicated for continuous monitoring of the particular connection to remote host using the Ping tool. The Ping works by sending ICMP “echo request” packets to the target host and listening for ICMP “echo response” replies. If the defined number of replies is not received, the tool reboots the device. Î Enable Ping Watchdog : control will enable Ping Watchdog Tool. Î IP Address To Ping : specify an IP address of the target host which will be monitored by Ping Watchdog Tool. Î Ping Interval : specify time interval (in seconds) between the ICMP “echo requests” are sent by the Ping Watchdog Tool. Default is 300 seconds. Î Startup Delay : specify initial time delay (in seconds) until first ICMP “echo requests” are sent by the Ping Watchdog Tool. The value of Startup Delay should be at least 60 seconds as the network interface and wireless connection initialization takes considerable amount of time if the device is rebooted. Default is 300 seconds. Î Failure Count To Reboot : specify the number of ICMP “echo response” replies. If the specified number of ICMP “echo response” packets is not received continuously, the Ping Watchdog Tool will reboot the device. Change these settings as described here and click Save button to save your changes. Click Reboot button to activate your changes Click “Continue to this website” to access the AP-952X's GUI. The AP-952X's Home page will be appear. AP-952X Industrial Wall-mounted Wireless-N/BG AP/Bridge User's Manual 44 4.4.3 Configure SNMP SNMP is an application-layer protocol that provides a message of format for communication between SNMP managers and agents. By enabling SNMP function, the administrator can obtain the system information remotely. Please click on System -> SNMP Setup and follow the below setting. „ SNMP v2c Enable : Check to enable SNMP v2c. Î ro community : Set a community string to authorize read-only access. Î rw community : Set a community string to authorize read/write access. „ SNMP v3 Enable : Check to enable SNMP v3. SNMPv3 supports the highest level SNMP security. Î SNMP ro user : Set a community string to authorize read-only access. Î SNMP ro password : Set a password to authorize read-only access. Î SNMP rw user : Set a community string to authorize read/write access. Î SNMP rw password : Set a password to authorize read/write access. „ SNMP Trap : Events such as cold start, interface up & down, and association & disassociation will report to an assigned server. Î Community : Set a community string required by the remote host computer that will receive trap messages or notices send by the system. Î IP : Enter the IP addresses of the remote hosts to receive trap messages. Change these settings as described here and click Save button to save your changes. Click Reboot button to activate your changes AP-952X Industrial Wall-mounted Wireless-N/BG AP/Bridge User's Manual 45 4.4.4 Bacup / Restore and Reset to Factory Current settings on the system can be backed up, or previous backed up settings can be restored as well as resetting the system back to factory default can be performed via this page. Please click on Utilities -> Profile Setting and follow th…

Text truncated - open the document above for the full version.

Aug. 04, 2010 Federal Communications Commission Authorization and Evaluation Division FCC IDSCD020067 Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the applicant hereby requests confidential treatment of information applied this application as outlined below: 1. Block Diagram 2. Circuit Diagram 3. Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application Sincerely,

Date: Aug. 04, 2010 Subject: DoC declaration To Whom it may concern, We, as the grantee of this project FCC ID: SCD020067, would like to declare that the composite portion categorized as computer peripheral has been authorized under the Declaration of Conformity procedures. Regards,

Aug. 04, 2010 Dear Sir, I hereby have entrusted the following person to be a proxy regarding application for Type Certification. Compliance Certification Services Inc. Address: No. 11, Wugong 6 th Rd., Wugu Towership, Taipei County 24891, Taiwan Mr. Rex Lai Job Title: Section Manager Email: [email protected] I am therefore responsible for the contents of the application. Brand Name and Model Name of the specified radio equipment: LanReady / FCC ID: SCD020067 Product Name: 802.11b/g /n AP Router

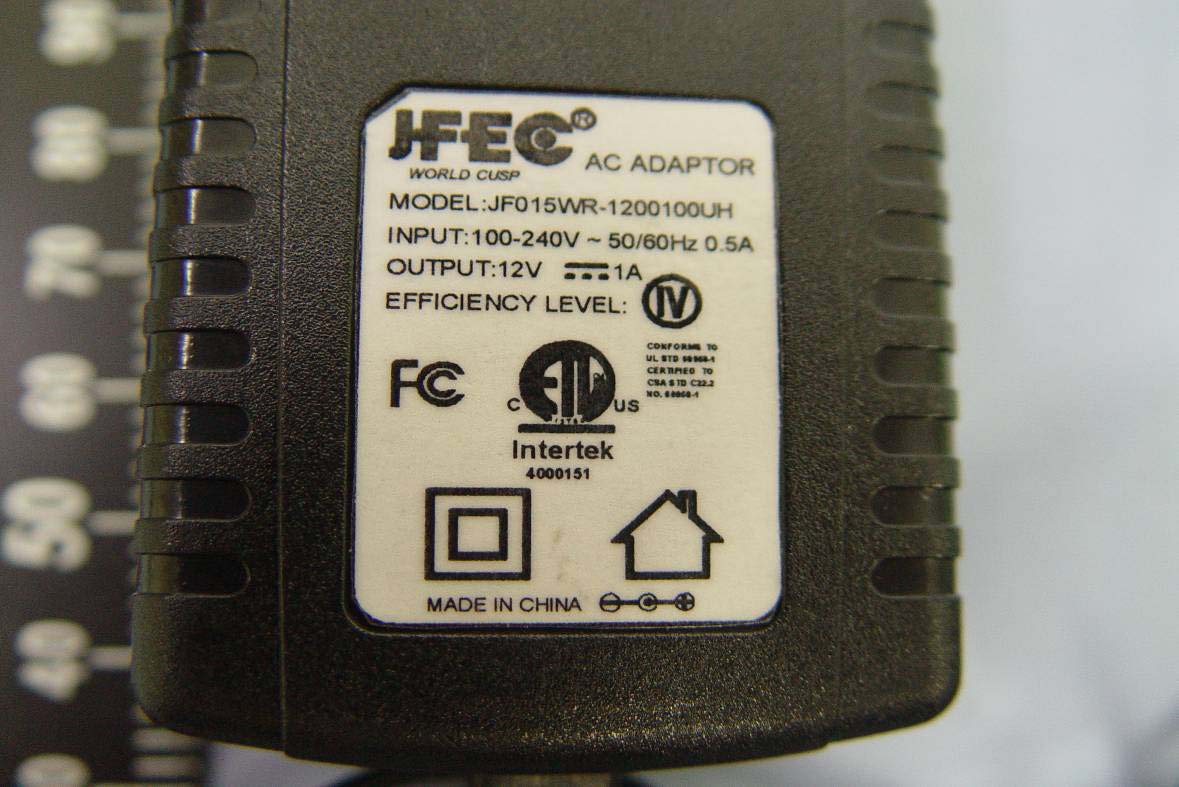

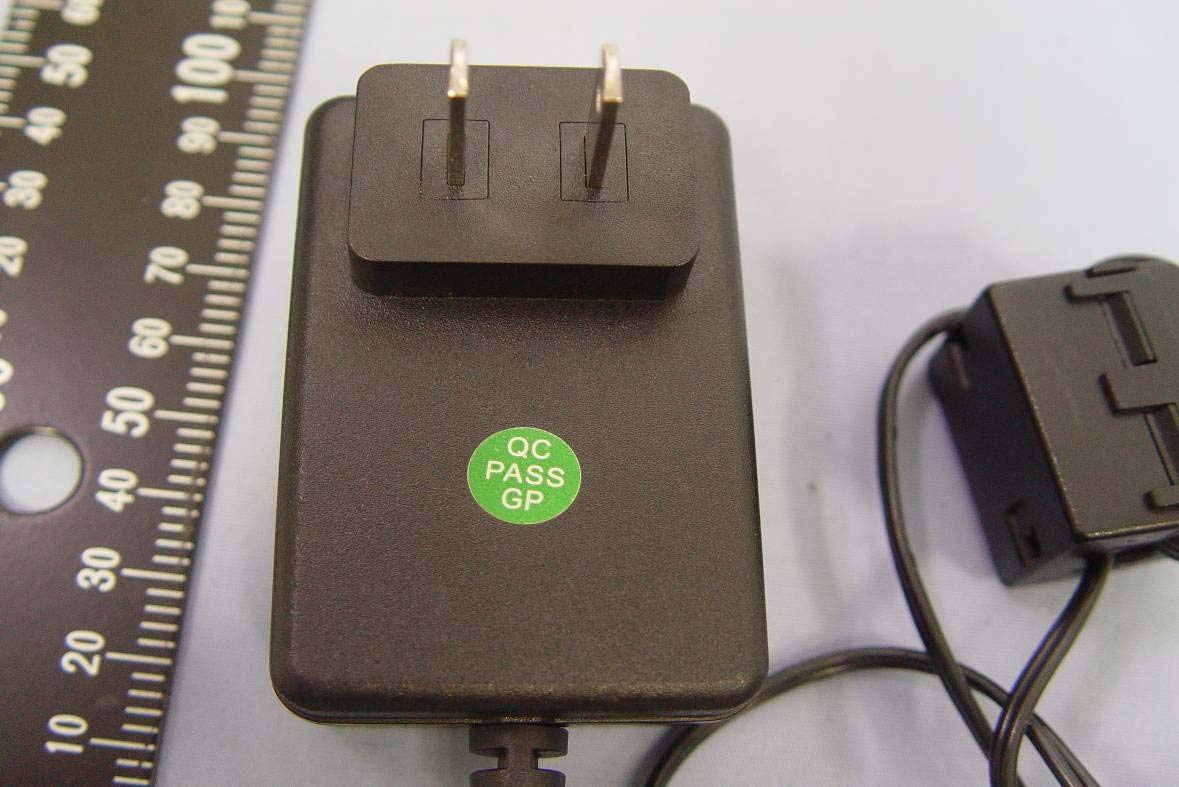

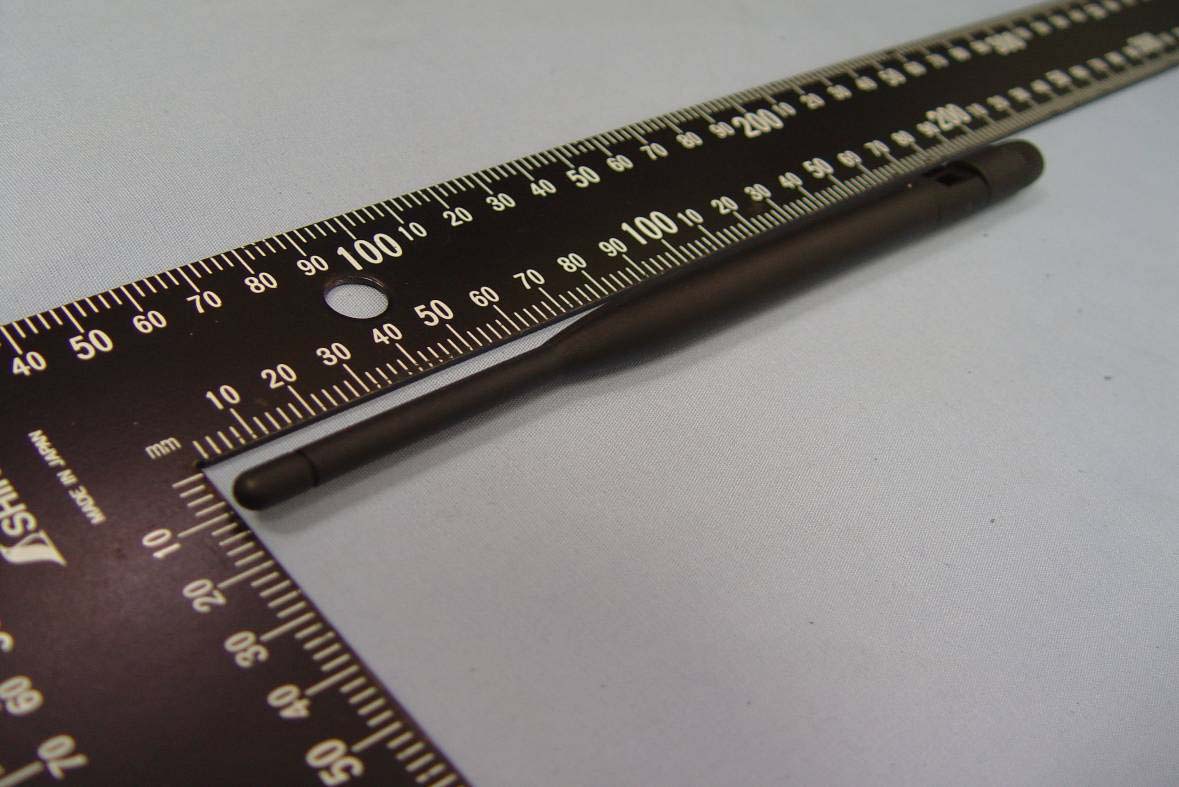

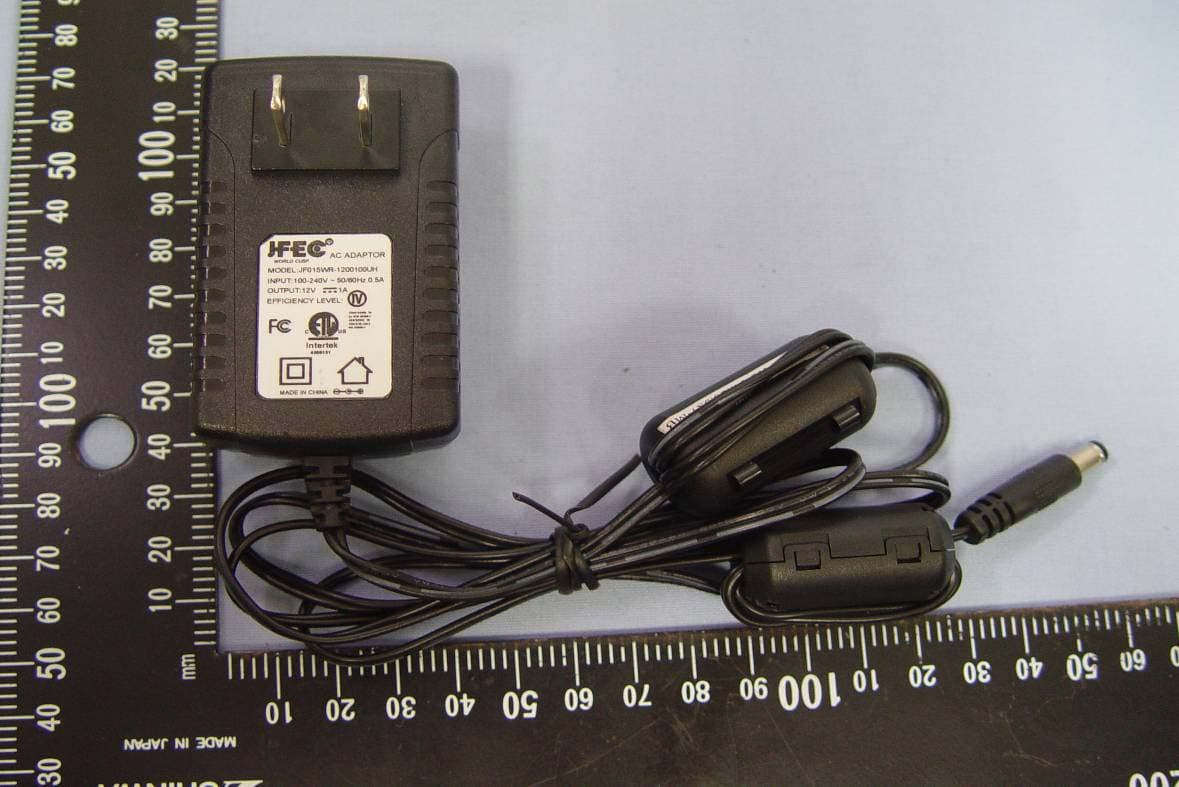

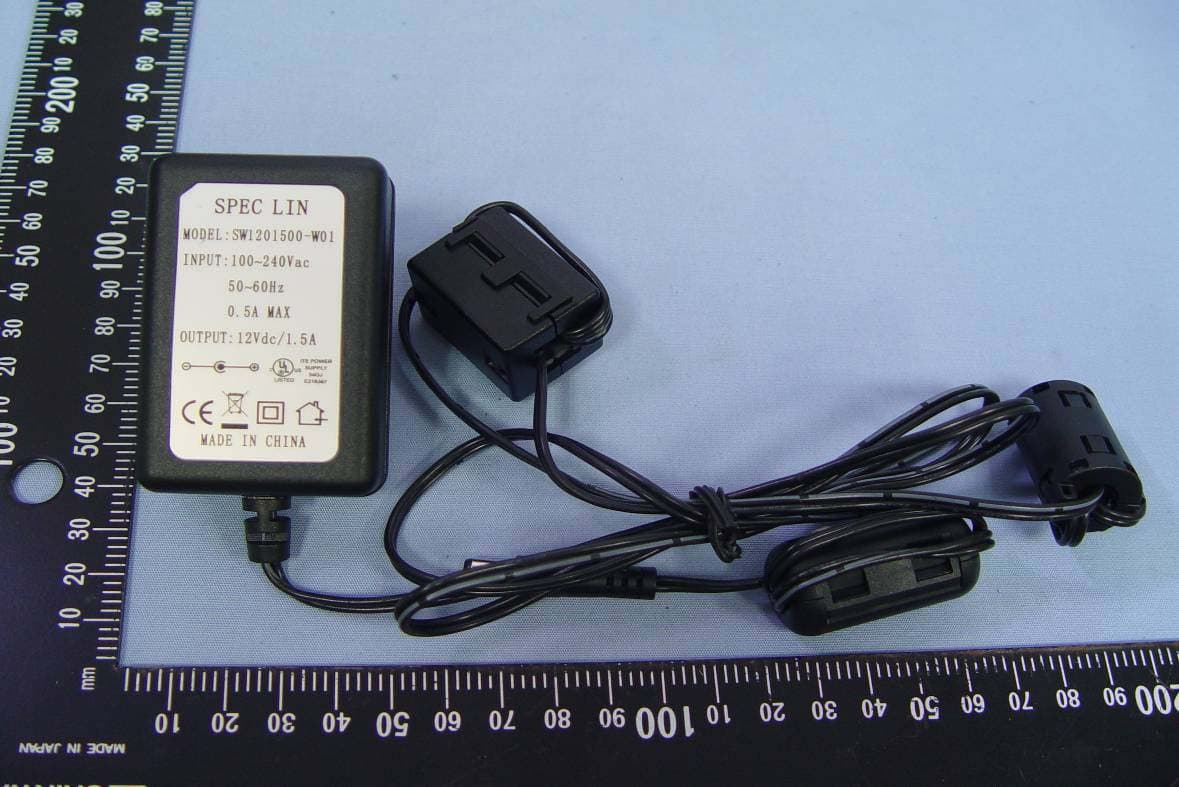

Compliance Certification Services Inc. Report No: T100513003 Date of Issue: June 17, 2010 APPENDIX 1 - PHOTOGRAPHS OF EUT EXTERNAL PHOTOGRAPHS OF EUT For 2dBi Compliance Certification Services Inc. Report No: T100513003 Date of Issue: June 17, 2010 Compliance Certification Services Inc. Report No: T100513003 Date of Issue: June 17, 2010 For 5dBi Compliance Certification Services Inc. Report No: T100513003 Date of Issue: June 17, 2010 Compliance Certification Services Inc. Report No: T100513003 Date of Issue: June 17, 2010 Compliance Certification Services Inc. Report No: T100513003 Date of Issue: June 17, 2010 Compliance Certification Services Inc. Report No: T100513003 Date of Issue: June 17, 2010 Compliance Certification Services Inc. Report No: T100513003 Date of Issue: June 17, 2010 Compliance Certification Services Inc. Report No: T100513003 Date of Issue: June 17, 2010 Compliance Certification Services Inc. Report No: T100513003 Date of Issue: June 17, 2010 Compliance Certification Services Inc. Report No: T100513003 Date of Issue: June 17, 2010 Compliance Certification Services Inc. Report No: T100513003 Date of Issue: June 17, 2010 Compliance Certification Services Inc. Report No: T100513003 Date of Issue: June 17, 2010 For 5dBi Antenna Compliance Certification Services Inc. Report No: T100513003 Date of Issue: June 17, 2010 第 14 頁 Rev. 00 For 2dBi Antenna

Compliance Certification Services Inc. Report No: T100513003 Date of Issue: June 17, 2010 INTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No: T100513003 Date of Issue: June 17, 2010 Compliance Certification Services Inc. Report No: T100513003 Date of Issue: June 17, 2010 Compliance Certification Services Inc. Report No: T100513003 Date of Issue: June 17, 2010 Compliance Certification Services Inc. Report No: T100513003 Date of Issue: June 17, 2010 Compliance Certification Services Inc. Report No: T100513003 Date of Issue: June 17, 2010 Compliance Certification Services Inc. Report No: T100513003 Date of Issue: June 17, 2010 Compliance Certification Services Inc. Report No: T100513003 Date of Issue: June 17, 2010

承 認 書 核主主 123456789 10 11 12 13 14 准管辦 敬主主 會管辦 第 次 品管試驗文號 限 量 PCS JETCSA 限量累計 PCS CECNS 新 設 UL ˇ 無 暫 承 認 封 面 更 換 ˇ 原始承認 多家承認 暫 承 認 圖 面 作 廢 受文單位 新 圖 面 追 加 頁 舊 圖 面 作 廢 頁 舊 封 面 更 換 頁 發 行 章 廠商零件代號 生產廠商名稱 代理廠商名稱 備 註 ( 注意 1 ) 採購部僅發行本封面. ( 注意 2 ) 承認時要確認事項 => 舊圖面,本圖面,樣品,有關零件等之性能,形狀尺寸,影響及其他. 生效日期以發行章為準.舊封面作廢請各單位自行更換 供 應 廠 商 資 料 萬旭電業股份有限公司 廠商 文管 生管 承 料 號 認 品 名 印 楊惠婷羅堅榮 泰 鉅 科 技 股 份 有 限 公 司 品保 採購 安規指定 承認區分 羅堅榮 71020019010010 ANT DIPOLE 2.4G 2dBi BLK WFW2315A1 ˇˇ ˇ 第 次變更 ˇ ˇ 正 式 承 認 暫 承 認 ˇ 存 檔 編 號 承 認 書 SPECIFICATION FOR APPROVAL 客 戶 CUSTOMER 日 期 DATE 品 名 DESCRIPTION 客 戶 料 號 CUSTOMER P/N 成 品 編 號 Part NO. 萬旭電業股份有限公司 WANSHIH ELECTRONIC CO., LTD. 台北縣五股鄉五工六路72號3樓 3F 72 WU KONG 6TH RD., WU KU INDUSTRIAL DISTRICT TAIPEI HSIEN, TAIWAN,R.O.C. TEL：(02) 22988066 (5 LINE) FAX：(02)22981102 泰鉅科技股份有限公司 2008/6/25 WFW2315A1 WSS001 2.4GHz Dipole Antenna with RP-SMA(M)(Black)(SM3056) 1 Table of Contents Table of Contents ......... 1 Specification ......... 2 Antenna Drawing ......... 3 Electrical Properties Return Loss ......... 4 V.S.W.R ......... 5 Radiation Pattern ......... 6-7 Material Data Sheet Coaxial Cable ......... 8-10 Housing ......... 11-12 Hinge ......... 13 2 SPECIFICATION 1. Description ：2.45GHz Swivel Type Antenna With RP-SMA(M) 2. Customer ：泰鉅科技股份有限公司 3. Model No. ：WSS001 4. Part No. ：WFW2315A1 5. Standard ：IEEE 802.11b/g Wireless LAN 6. Antenna Profile ：139 mm (see Drawing) 7. Color ：Black 8. Electrical Characteristics Operating Frequency ：2.4~2.5GHz Antenna Type ：Dipole Polarization Type ：Linear Type of Radiation ：Toroidal Antenna Gain ：2.0 dBi Typical Impedance ：50 Ohm nominal V.S.W.R. ：2.0:1 Max. 9. Mechanical Characteristics Swivel ：90 degrees Connector ：RP-SMA(M) Core ：N/A 10. Raw Material Coaxial Cable ：RG-178 Housing ：TPU Hinge ：PC+ALLOY 3 X.XX ±0.3 X.X ±0.5 X ±1.0 ANGULAR ±5.0° TOLERANCES: 作業說明： 1. 天線本體，WSW0028 2dBi 天線作業標準指導書規定製作。 依據 QA-0028 QC管理工程圖 ,執行品質管制。 WFW2315 Jason 李金昭 郭雅珍 WSS001 2.4GHz Dipole Antenna with RP-SMA(M)(Black) 9 外套 L96<黑> ν B2WSS001L096IT @WSS001 13φ*96L 外套<黑>黑1 或同級品 8銅管 L26ν B052260L00000Z @5.2φ*26.0L*0.25t 銅管銀1 或同級品 7 固定鉚釘(黑鋅) ν B02892200160A5 @028922001-6 4.80*1.95φ固定鉚釘<大>(黑鋅)黑2 或同級品 6下座<黑>ν B130L02550001I @13φ下座 * 25.5L <黑> 黑1 或同級品 5上座ν B130L028000A1I @13φ上座 * 28L <黑> 黑1 或同級品 4連接軸ν B0SM3056C000A5 @SM3056-C 連接軸銀1 或同級品 3 絕緣 母PIN ν B0SM3056B000A5 @SM3056-B 絕緣 母PIN白/金1 或同級品 2 RP-SMA φ12.5 本體 ν B0SM3056A000A5 @SM3056-A 本體 RP-SMA(M) φ12.5 Connector W/P 黑1 或同級品 1 RG-178 Coaxial Cable ν 19RG17800030AE @RG-178 CABLE 105SV(萬泰)橙 1101 或同級品 NO 材料名稱 環材 電腦編號零件規格顏色 切斷尺寸 用量 備註 4 Electrical Properties Return Loss 5 Electrical Properties V. S . W. R 6 Electrical Properties Radiation Pattern – H Plane 7 Electrical Properties Radiation Pattern – E Plane 8 Coaxial Cable Data Sheet RG-178 9 10 11 Housing Material Data Sheet z Housing – TPU 12 13 z Hinge (Base/Holder) – PC+ALLOY

Product Number: R-AN2400-1901RS Product Name: 2.4 GHz External Antenna Page 1 Version: 1.0 Issue Date: 2007-06-25 Index: 1. Reliability Testing 2. Specification 3. S Parameter Test Data 4. Antenna Radiation Pattern 5. Mechanical Drawing 6. MSDS & SGS Report ================================================== 1. Reliability Testing Test Item Procedure Requirement 1. Visual inspection and Dimension Check Applicable methods using x5 magnification follow specification 2. Rapid Changing of Temperature -40 ̊C (30minutes) to 90 ̊C (30minutes); 24 cycles After 2 hours recovery: 1. no visible damage 2. Freq. Tol.: < ±5% 3. Damp Heat 24 hours at 60 ̊C; 90 ~ 95% RH After 2 hours recovery: 1. no visible damage 2. Freq. Tol. : < ±5% 4. Endurance 24 hours at 90 ̊C After 2 hours recovery: 1. no visible damage 2. Freq Tol.: < ±5% Model Number: R-AN2400-1901RS Product Name: 2.4 GHz External Antenna Page 2 Version: 1.0 Issue Date: 2007-06-25 2. Specification A. Electrical Characteristics S.W.R. <= 2.0 @ 2400 ~ 2500 MHz Antenna Gain 5.0 ± 0.7 dBi (*Depends on Product Mechanical Environment*) Impedance 50 Ohm B. Material Material of Radiator Cu (Plated) Connector Type 50 Ohm SMA Male Reverse C. Environmental Operation Temperature - 30 ̊C ~ + 85 ̊C Storage Temperature - 30 ̊C ~ + 85 ̊C 3. S Parameter Test data Model Number: R-AN2400-1901RS Product Name: 2.4 GHz External Antenna Page 3 Version: 1.0 Issue Date: 2007-06-25 4. Antenna Radiation Pattern Testing Equipment Specification: Antenna Anechoic Chamber Dimension: 8 x 4 x 4 m Quite Zone: 600mm @1 GHz Isolation: >100dB @ 1 MHz ~ 10 GHz Testing Equipment: Agilent 5071B Received Antenna: 0.7 ~ 6.0 GHz for Gain Calibration Double Ridged Horn Antenna 5. Mechanical Drawing 6. MSDS & SGS Report Ø 1 3 . 0 R 7 . 8 Ø 6 . 3 ± 0 . 2 155.0±1 14.5 196.6±2.0 1 1 . 8 ± 0 . 1 ∅ B C D SCALE: 1/1 UNITS: mmREVISION: B1 Cortec Technology Inc. PART NAME: APPROVED BY R Tolerance X.XXX.XX° ±1° ±0.10±0.05 APPROVER D C A E DATE SIGN 7 6 5 D E DESCRIPTION 7 5 6 4 3 1 2 TITLE: PART NO.: DWG NAME: 4 3 2 1 C B A R-AN2400-1901RS B CHECKED BY DESIDNED BY RoHS 88 2007/04/06 R-AN2400-1901RS.dwg Antenna 2.4GHz 5dBi Antenna 2.4GHz 5dBi 1 Body Body2 2 Rivet 3 1 Black TPE Eletrodeposition R-AN1901-01R-AN03-T02 R - A N 0 3 - 5 1 4 CZ R - S M A 3 2 4 - C C 8 M R A N T 4 Spring L=94.0mm SMA Male Revers 5 Black Body1 R-AN03-T01 6 7 Tube 8 Cable Cu RG178 Ø 5 . 2 0 / L = 2 6 . 0 m m L=70.0mm R-AN1901-06R-AN94-02S R - R G - 1 7 8 U 1 2 1 111 1 9 PA-6 Black Ø8.20/ L=30.0 mm ABS Sleeve R-AN1901-04A PA-6 Eletrodeposition 1 Part Number Q'ty Description No. Material Finished Zhang yue xin CuCuCu 2007/04/06 Liu kui 2007/04/06 Grant TPE Datasheet Coaxial Cable Datasheet RG-178 Coaxial Cable Specification 1. Cable Type MIL – C – 17 / RG-178 2. Impedance 50 ± 3 ohm Material silver-coated copper Conductor Numbers 7 Conductor Size 0.102 mm 3. Inner Conductor Outer Diameter 0.3 mm Material FEP Color Clear Average Thickness 0.28 mm 4. Dielectric Layer Diameter 0.86 mm Material silver-coated copper Construction 16-3-0.1 mm 5. Braid (Shielding) Coverage 95 % Material FEP Color Brown Average Thickness 0.25 mm 6. Outer Cover Diameter 1.80 ± 0.05 mm 7. V.S.W.R Testing < 1.3 (DC ~ 6.0 GHz) 100 MHz 46 900 MHz 155 1800 MHz 295 2400 MHz 340 5200 MHz 505 8. Attenuation (dB / 100 meter ) 6000 MHz 550 9. Capacitance 97 ± 3 ( pF / meter) 10. Maximum Power 30 dBm 11. Spark Test 2.0 KV 12. Rating Temp. and Volt. 200 ̊C / 30V 13. Conductor Resistance 335 ohm / KM / 20 ̊C max. 14. Dielectric Resistance 3 G ohm / KM / 20 ̊C min. PA-6 Datasheet ABS Datasheet

Compliance Certification Services Inc. Report No.: T100513003-RP FCC ID: SCD020067 Date of Issue: June 3, 2010 Page 90 Rev. 00 APPENDIX I RADIO FREQUENCY EXPOSURE LIMIT According to §15.247(i), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission's guidelines. See § 1.1307(b)(1) of this chapter. EUT Specification EUT 802.11b/g /n AP Router Frequency band (Operating) WLAN: 2.412GHz ~ 2.462GHz WLAN: 5.18GHz ~ 5.32GHz / 5.50GHz ~ 5.70GHz WLAN: 5.745GHz ~ 5.825GHz Others Device category Portable (<20cm separation) Mobile (>20cm separation) Others Exposure classification Occupational/Controlled exposure (S = 5mW/cm 2 ) General Population/Uncontrolled exposure (S=1mW/cm 2 ) Antenna diversity Single antenna Multiple antennas Tx diversity Rx diversity Tx/Rx diversity Max. output power IEEE 802.11b mode: 19.75 dBm(94.40 mW) IEEE 802.11g mode: 21.28 dBm(134.27 mW) draft 802.11n Standard-20 MHz Channel mode: 22.97 dBm(198.15 mW) draft 802.11n Wide-40 MHz Channel mode: 24.36 dBm(272.89 mW) Antenna gain (Max) 1. Dipole Antenna / Gain: 5 dBi (Numeric gain: 3.16) Antenna Calculation for MIMO Mode: 5dBi + 10 log (2) = 8.01 dBi (Numeric gain: 6.32) 2. Dipole Antenna / Gain: 2.51 dBi (Numeric gain: 1.78) Antenna Calculation for MIMO Mode: 2.51dBi + 10 log (2) = 5.52 dBi (Numeric gain: 3.56) Evaluation applied MPE Evaluation* SAR Evaluation N/A Remark: 1. The maximum output power is 24.36 dBm(272.89 mW) at 2437MHz (with 6.32 numeric antenna gain.) 2. DTS device is not subject to routine RF evaluation; MPE estimate is used to justify the compliance. 3. For mobile or fixed location transmitters, no SAR consideration applied. The maximum power density is 1.0 mW/cm2 even if the calculation indicates that the power density would be larger. TEST RESULTS No non-compliance noted. MPE EVALUATION No non-compliance noted. Compliance Certification Services Inc. Report No.: T100513003-RP FCC ID: SCD020067 Date of Issue: June 3, 2010 Page 91 Rev. 00 Calculation Given d GP E ×× = 30 & 3770 2 E S= Where E = Field strength in Volts / meter P = Power in Watts G = Numeric antenna gain d = Distance in meters S = Power density in milliwatts / square centimeter Combining equations and re-arranging the terms to express the distance as a function of the remaining variables yields: 2 3770 30 d GP S ×× = Changing to units of mW and cm, using: P (mW) = P (W) / 1000 and d (cm) = d(m) / 100 Yields () () 2 2 0796.0 100/3770 1000/30 d GP d GP S × ×= × ×× = Equation 1 Where d = Distance in cm P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 Maximum Permissible Exposure Substituting the MPE safe distance using d = 20 cm into Equation 1: Yields GPS××=000199.0 Where P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 Compliance Certification Services Inc. Report No.: T100513003-RP FCC ID: SCD020067 Date of Issue: June 3, 2010 Page 92 Rev. 00 IEEE 802.11b mode: EUT output power = 94.40 mW Numeric Antenna gain = 3.16 Æ Power density = 0.0593 mW / cm2 IEEE 802.11g mode: EUT output power = 134.27 mW Numeric Antenna gain = 3.16 Æ Power density = 0.0844 mW / cm2 draft 802.11n Standard-20 MHz Channel mode: EUT output power = 198.15 mW Numeric Antenna gain = 6.32 Æ Power density = 0.2492 mW / cm2 draft 802.11n Wide-40 MHz Channel mode: EUT output power = 272.89 mW Numeric Antenna gain = 6.32 Æ Power density = 0.3432 mW / cm2 (For mobile or fixed location transmitters, the maximum power density is 1.0 mW/cm 2 even if the calculation indicates that the power density would be larger.)

Compliance Certification Services Inc. Report No.: T100513003-RP FCC ID: SCD020067 Date of Issue: June 3, 2010 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 Total Page: 95 Rev. 00 FCC 47 CFR PART 15 SUBPART C TEST REPORT For 802.11b/g /n AP Router Trade Name / Model: Please see Page 4 Issued to LanReady Technologies Inc. 3F, No.116, Sinhu 2nd Rd., Neihu District, Taipei City 114, Taiwan (R.O.C.) Issued by Compliance Certification Services Inc. No. 11, Wu-Gong 6 th Rd., Wugu Industrial Park, Taipei Hsien 248, Taiwan (R.O.C.) http://www.ccsrf.com [email protected] Compliance Certification Services Inc. Report No.: T100513003-RP FCC ID: SCD020067 Date of Issue: June 3, 2010 Page 2 Rev. 00 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION....................................................................................................3 2. EUT DESCRIPTION ...........................................................................................................................4 3. TEST METHODOLOGY ....................................................................................................................6 3.1 EUT CONFIGURATION........................................................................................................................6 3.2 EUT EXERCISE....................................................................................................................................6 3.3 GENERAL TEST PROCEDURES.............................................................................................................6 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS ........................................................7 3.5 DESCRIPTION OF TEST MODES...........................................................................................................8 4. INSTRUMENT CALIBRATION........................................................................................................9 4.1 MEASURING INSTRUMENT CALIBRATION......................................................................................9 4.2 MEASUREMENT EQUIPMENT USED .........................................................................................9 4.3 MEASUREMENT UNCERTAINTY .............................................................................................10 5. FACILITIES AND ACCREDITATIONS ........................................................................................11 5.1 FACILITIES .......................................................................................................................................11 5.2 EQUIPMENT......................................................................................................................................11 5.3 TABLE OF ACCREDITATIONS AND LISTINGS.....................................................................................12 6. SETUP OF EQUIPMENT UNDER TEST .......................................................................................13 6.1 SETUP CONFIGURATION OF EUT.......................................................................................................13 6.2 SUPPORT EQUIPMENT ...............................................................................................................13 7. FCC PART 15.247 REQUIREMENTS.............................................................................................14 7.1 6DB BANDWIDTH.............................................................................................................................14 7.2 PEAK POWER....................................................................................................................................25 7.3 AVERAGE POWER............................................................................................................................27 7.4 BAND EDGES MEASUREMENT ................................................................................................29 7.5 PEAK POWER SPECTR…

Text truncated - open the document above for the full version.
