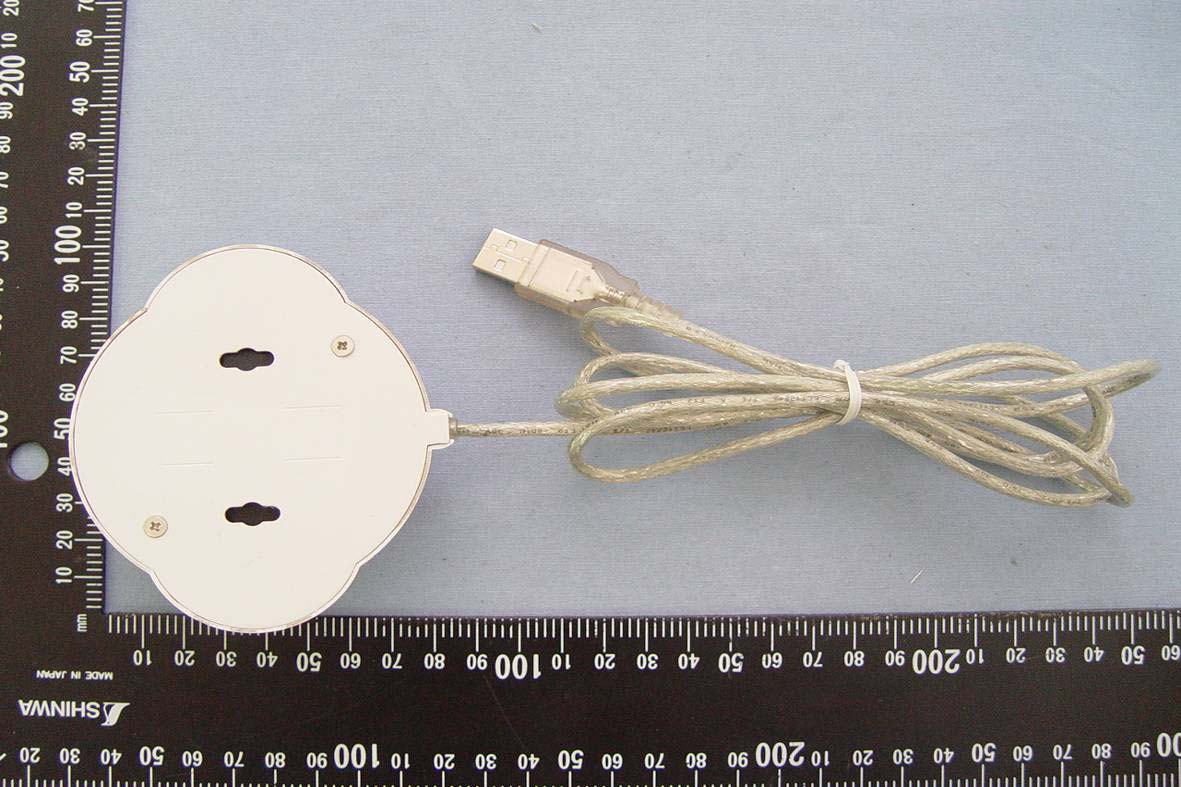

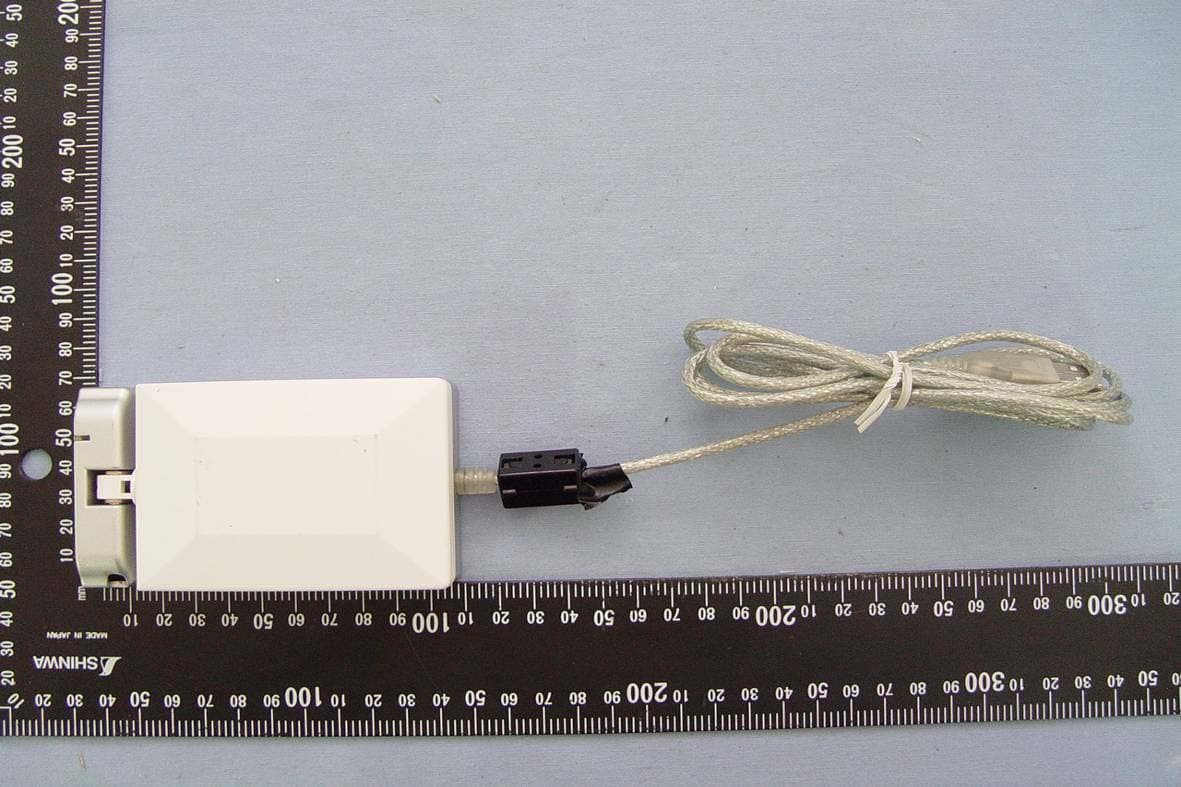

SCD030014802.11b/g/n USB Adapter

2 802.11b/g/n USB Adapter WUB1900RM User’s Manual 3 Table of Contents 1. Introduction ................................................................................................................. 4 1.1 Package Contents ................................................................................................. 4 1.2 Features ................................................................................................................ 4 2. Installation ................................................................................................................... 5 3. Configuring the Adapter ............................................................................................ 11 4. Wireless Utility ........................................................................................................ 17 4.1 Wireless Information ............................................................................................ 17 4.2 AP List ................................................................................................................. 18 4.3 Profile Settings..................................................................................................... 19 4.4 Configuring Encryption ........................................................................................ 21 4.5 Ad-hoc and Peer-to-Peer Wireless Networks ...................................................... 27 4.6 Wi-Fi Protected Setup (WPS) .............................................................................. 30 4.7 SoftAP............................................................................................................. 30 4.7 About ................................................................................................................... 38 Appendix A – Features.................................................................................................. 39 Appendix B – Information .............................................................................................. 40 Technical Support ......................................................................................................... 41 4 1. Introduction Congratulations on your purchase of the Wireless N USB Adapter. Its high bandwidth combined with extended wireless coverage delivers fast and reliable connection for all of your networking applications when used with other Wireless N products. A full range of security features such as WEP, WPA-PSK, and WPA2-PSK provide the highest level of wireless network security. The bundled Wireless Utility allows you to set up the adapter with an easy-to-use user interface. Best of all the Wireless N USB Adapter works with 802.11g and 802.11b network devices ensuring compatibility with your existing wireless products. 1.1 Package Contents Before you begin the installation, please check the items of your package. The package should include the following items: • WUB1900RM Wireless N USB Adapter • USB Cable • Quick Installation Guide • Installation CD (Driver/Utility/Manual) 1.2 Features • Industry’s highest wireless data rate with IEEE 802.11n draft specification 2.0 • 64-bit/128-bit WEP encryption, Pre-shared Key (PSK), and Wi-Fi Protected Access (WPA2 and WPA) support provide full protection for your wireless connection • Higher data rate increases the reliability and stability of wireless connections • Great for environments with higher wireless data traffic requirements • Fully backward-compatible with 802.11b/g devices • Works best with other Wireless N products 5 2. Installation This section provides instructions on how to install the WUB1900RM Wireless N USB Adapter. The driver is installed along with the utility. Step 1 Insert the USB adapter into an available USB port and turn on your computer. Step 2 After turning on the computer, Windows will launch the Found New Hardware Wizard. The Found New Hardware Wizard appears differently depending on your operating system. Click Cancel to quit the wizard and insert the Installation CD into your CD drive. 6 Step 3 The Autorun screen will pop up. Select Install Utility and Driver from the menu. 7 Note: If the Autorun screen doesn’t appear automatically, or if you get a blank white screen, go to Start, Run, and type D:\Utility\Setup.exe (where D is the letter of your CD drive) and click OK. Windows Vista users: At this point, you may get a warning message like the one below. Make sure that you click Allow to continue with the installation. 8 Step 4 Click Next at the welcome screen. Step 5 Click Install to begin install. 9 Step 6 Click Continue Anyway at the Windows Logo Screen. (For Windows 2000, click Yes at the Digital Signature Not Found prompt). 10 For Windows Vista, click the Install this driver software anyway button when the security warning appears. Step 7 Click Finish. 11 3. Configuring the Adapter This section describes how to connect your wireless adapter to a wireless network. Note to Windows XP Users: You must disable the Wireless Zero Configuration Utility in order to use the bundled Wireless Utility. Please follow the steps below to disable XP’s wireless utility. Windows Vista users can skip the following instructions and go to Step 1 Double-click on the Wireless Network Connection Icon in the system tray and then click on Properties or Advanced. When the new wireless network connection properties window appears, go to the Wireless Networks tab, uncheck the “Use Windows to configure my wireless network settings” check box and click OK. 12 Step 1 To open the utility, double click on the Wireless Monitor icon in the system tray at the bottom right-hand corner of your screen. Step 2 Go to the Available Network tab, select the SSID (Network Name) of the wireless network you wish to connect to, and double click Add to Profile. 13 If the network you are attempting to connect to is configured for encryption, you will see an orange lock icon next to the network. 14 When you click on it and click …

Text truncated - open the document above for the full version.

Date: 2009/12/14 Subject: Ad Hoc Mode Function Declaration FCC ID: SCD030014 To Whom it may concern, This device is able to be operated on both master and client mode. Ad Hoc function is available on client mode and not able to work on non-US frequencies. Please contact the one signed below or the authorized agent for this filing. Thank you. Regards, Signature Name/Title: / Engineering Division Director Company Name: Address: TEL: FAX: Email:

ACX Advanced Ceramic X AT3216 Series Multilayer Chip Antenna Features ™ Monolithic SMD with small, low-profile and light-weight type. ™ Wide bandwidth Applications ™Bluetooth/Wireless LAN/Home RF ™ISM band 2.4GHz applications Specifications Part Number Frequency Range (MHz) Peak Gain （XZ-V） Average Gain （XZ-V） VSWR Impedance AT3216 -B2R7HAA_ 2400 ~ 2500 0.5 dBi typ. -0.5 dBi typ.2 max. 50 Ω Q’ty/Reel (pcs) : 3,000pcs Operating Temperature Range : -40 ~ +85 o C Storage Temperature Range : -40 ~ +85 o C Power Capacity : 3W max. Part Number AT 3216 - B 2R7 HAA ‡ ‡ i ghfe dc c Type AT : Antenna d Dimensions ( L × W ) 3.2× 1.6 mm e Material Code B f Frequency Range 2R7=2700MHz g Specification Code HAA h Packaging T: Tape & Reel B: Bulk i Soldering =lead-containing /LF=lead-free Terminal Configuration No. Terminal Name No. Terminal Name c Feeding Point d NC d c ACX Advanced Ceramic X Dimensions and Recommended PC Board Pattern Unit : mm a W T L Mark L W T a Dimensions 3.2±0.2 1.6±0.2 1.3+ 0.1/-0.2 0.5±0.3 (a) Without Matching Circuits (b) With Matching Circuits 1.2pF 3.3nH 2.6 4.2 1.6 1.9 2.7nH 0.4 * *Line width should be designed to match 50Ω characteristic impedance, depending on PCB material and thickness. ACX Advanced Ceramic X Typical Electrical Characteristics (T=25 o C) ™Test Board Ground 13.5mm 6.5mm 39.5mm 4mm No Ground Matching Circuit 50Ω Feed Line 19mm Antenna 6.5mm ™Return Loss (a) Without Matching Circuits (b) With Matching Circuits ACX Advanced Ceramic X Radiation Patterns .... XZ cut @2.45GHz Vertical Horizontal YZ cut @2.45GHz Vertical Horizontal XZ-V/XZ-H YZ-V/YZ-H XY cut @2.45GHz Vertical Horizontal Z 270 o 0 o X Y XY-cut scanning direction Y 270 o 0 o X Z XZ-cut scanning direction Z X 0 o 270 Y YZ-cut scanning direction 180 180 180 o XY-V/XY-H 90 o 90 o 90 o Advanced Ceramic X Corp. 16 Tzu Chiang Road, Hsinchu Industrial District Hsinchu Hsien 303, Taiwan TEL:886-3-5987008 FAX:886-3-5987001 E-mail: [email protected] http://www.acxc.com.tw This datasheet has been downloaded from: www.DatasheetCatalog.com Datasheets for electronic components.

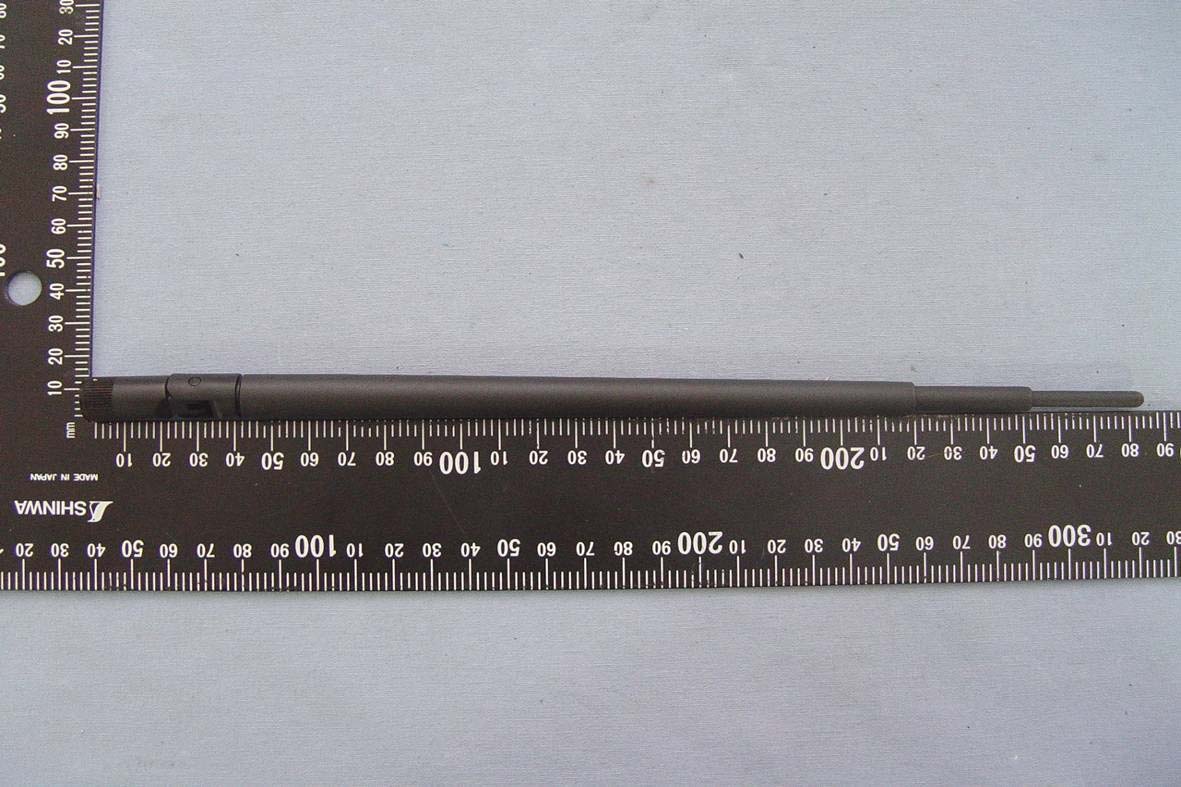

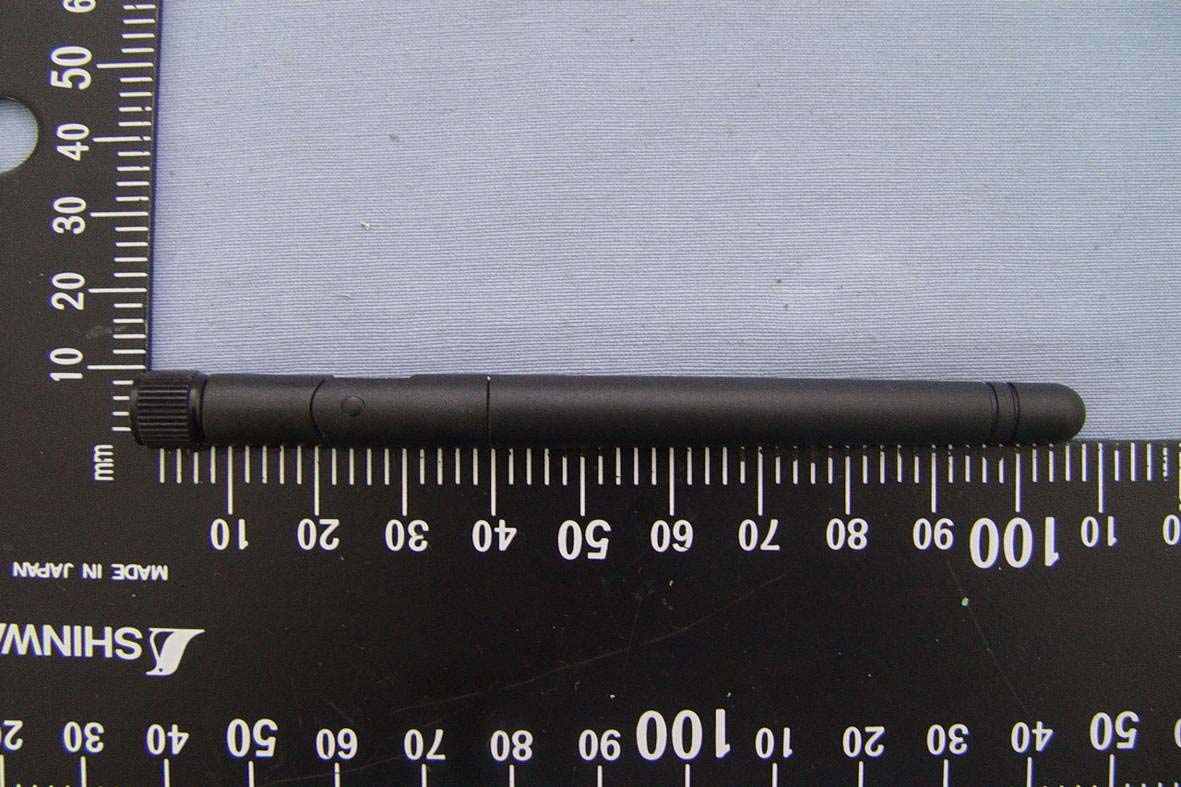

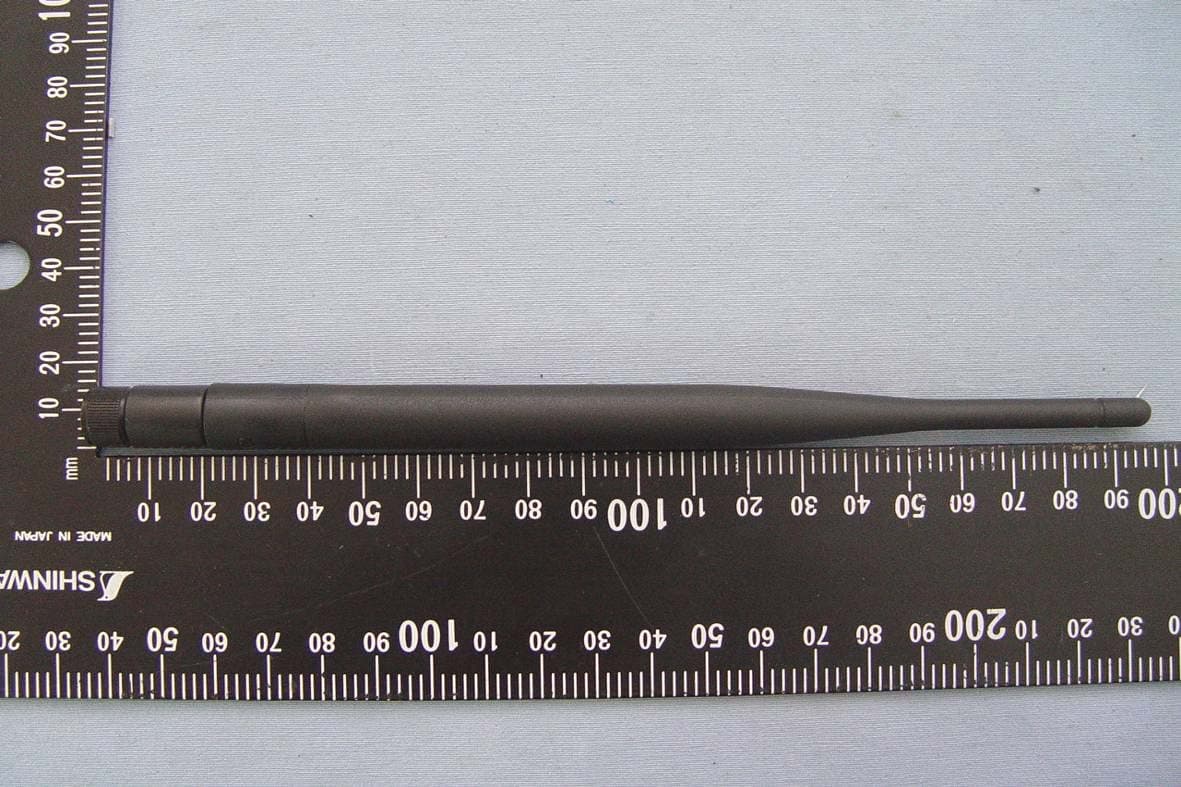

Product Number: R-AN2400-1901RS Product Name: 2.4 GHz External Antenna Page 1 Version: 1.0 Issue Date: 2007-06-25 Index: 1. Reliability Testing 2. Specification 3. S Parameter Test Data 4. Antenna Radiation Pattern 5. Mechanical Drawing 6. MSDS & SGS Report ================================================== 1. Reliability Testing Test Item ProcedureRequirement 1. Visual inspection and Dimension Check Applicable methods using x5 magnification follow specification 2. Rapid Changing of Temperature -40 ̊C (30minutes) to 90 ̊C (30minutes); 24 cycles After 2 hours recovery: 1. no visible damage 2. Freq. Tol.: < ±5% 3. Damp Heat 24 hours at 60 ̊C; 90 ~ 95% RH After 2 hours recovery: 1. no visible damage 2. Freq. Tol. : < ±5% 4. Endurance 24 hours at 90 ̊C After 2 hours recovery: 1. no visible damage 2. Freq Tol.: < ±5% Product Number: R-AN2400-1901RS Product Name: 2.4 GHz External Antenna Page 2 Version: 1.0 Issue Date: 2007-06-25 2. Specification A. Electrical Characteristics S.W.R. <= 2.0 @ 2400 ~ 2500 MHz Antenna Gain 5.0 ± 0.7 dBi (*Depends on Product Mechanical Environment*) Impedance 50 Ohm B. Material Material of Radiator Cu (Plated) Connector Type 50 Ohm SMA Male Reverse C. Environmental Operation Temperature - 30 ̊C ~ + 85 ̊C Storage Temperature - 30 ̊C ~ + 85 ̊C 3. S Parameter Test data Product Number: R-AN2400-1901RS Product Name: 2.4 GHz External Antenna Page 3 Version: 1.0 Issue Date: 2007-06-25 4. Antenna Radiation Pattern Testing Equipment Specification: Antenna Anechoic Chamber Dimension: 8 x 4 x 4 m Quite Zone: 600mm @1 GHz Isolation: >100dB @ 1 MHz ~ 10 GHz Testing Equipment: Agilent 5071B Received Antenna: 0.7 ~ 6.0 GHz for Gain Calibration Double Ridged Horn Antenna 5. Mechanical Drawing 6. MSDS & SGS Report Œ     ˥ ˊ ˁ ˋ Œ        ˄ˈˈˁ˃̈́˄ ˄ˇˁˈ ˄ˌˉˁˉ̈́˅ˁ˃ ˄ ˄ ˁ ˋ ̈́ ˃ ˁ ˄ 䞌 B C D SCALE: 1/1 UNITS: mmREVISION: B1 Cortec Technology Inc. PART NAME: APPROVED BY R Tolerance X.XXX.XX° ±1° ±0.10±0.05 APPROVER D C A E DATE SIGN 7 6 5 D E DESCRIPTION 7 5 6 4 3 1 2 TITLE: PART NO.: DWG NAME: 4 3 2 1 C B A R-AN2400-1901RS B CHECKED BY DESIDNED BY RoHS 88 2007/04/06 R-AN2400-1901RS.dwg Antenna 2.4GHz 5dBi Antenna 2.4GHz 5dBi 2 ˕̂˷̌ ˕̂˷̌˅ ˅ ˥˼̉˸̇ ˆ 2 ˕˿˴˶˾ ˧ˣ ̆ ̆˿˸̇̅̂˷˸̃̂̆˼̇˼̂́ ˥ˀ˔ˡ˄ˌ˃˄ˀ˃˄˥ˀ˔ˡ˃ˆˀ˧˃˅ ˥ ˀ ˔ ˡ ˃ ˆ ˀ ˈ ˄ ˇ ˖˭ ˥ ˀ ˦ ˠ ˔ ˆ ˅ ˇ ˀ ˖ ˖ ˋ ˠ ˥ ˔ ˡ ˧ ˇ ˦̃̅˼́˺ ʳ˟ːˌˇˁ˃̀̀ ˦ˠ˔ʳˠ˴˿˸ʳ˥˸̉˸̅̆ ˈ ˕˿˴˶˾ ˕̂˷̌˄ ˥ˀ˔ˡ˃ˆˀ˧˃˄ ˉ ˊ ˧̈˵˸ ˋ ˖˴˵˿˸ ˖̈ ˥ ̊˄ˊˋ Œ ˈ ˁ ˅ ˃ ˂ ˟ ː ˅ ˉ ˁ ˃ ʳ ̀ ̀ ˟ːˊ˃ˁ˃̀̀ ˥ˀ˔ˡ˄ˌ˃˄ˀ˃ˉ˥ˀ˔ˡˌˇˀ˃˅˦ ˥ ˀ ˥ ̊ ˀ ˄ ˊ ˋ ˨ 2 3 2 222 2 ˌ ˣ˔ˀˉ ˕˿˴˶˾ Œ.OO ˔˕˦ ˦˿˸˸̉˸ ˥ˀ˔ˡ˄ˌ˃˄ˀ˃ˇ˔ ˣ˔ˀˉ ̆˿˸̇̅̂˷˸̃̂̆˼̇˼̂́ 2 Part Number Q'ty Description No. Material Finished Zhang yue xin ˖̈˖̈˖̈ 2007/04/06 Liu kui 2007/04/06 Grant TPE Datasheet Coaxial Cable Datasheet RG-178 Coaxial Cable Specification 1. Cable Type MIL – C – 17 / RG-178 2. Impedance 50 ± 3 ohm Material silver-coated copper Conductor Numbers 7 Conductor Size 0.102 mm 3. Inner Conductor Outer Diameter 0.3 mm Material FEP Color Clear Average Thickness 0.28 mm 4. Dielectric Layer Diameter 0.86 mm Material silver-coated copper Construction 16-3-0.1 mm 5. Braid (Shielding) Coverage 95 % Material FEP Color Brown Average Thickness 0.25 mm 6. Outer Cover Diameter 1.80 ± 0.05 mm 7. V.S.W.R Testing < 1.3 (DC ~ 6.0 GHz) 100 MHz 46 900 MHz 155 1800 MHz 295 2400 MHz 340 5200 MHz 505 8. Attenuation (dB / 100 meter ) 6000 MHz 550 9. Capacitance 97 ± 3 ( pF / meter) 10. Maximum Power 30 dBm 11. Spark Test 2.0 KV 12. Rating Temp. and Volt. 200 ̊C / 30V 13. Conductor Resistance 335 ohm / KM / 20 ̊C max. 14. Dielectric Resistance 3 G ohm / KM / 20 ̊C min. PA-6 Datasheet ABS Datasheet

1 LanReady Technologies Inc. 3F., No.166, Sinhu 2nd Rd., Neihu District, Taipei City 114, Taiwan Tel: 886-2-2796-8188 Fax: 886-2-2796-8158 http//:www.lanready.com Model No.: AN0800FO-I 2.4GHz 8dBi Omni Antenna I-pex Connector AN0800FO is the perfect solution to extend the range and increase the signal strength of our wireless network. Configuration and setup of this antenna is easy and fast. This antenna is great for Wireless Access Points and Router that serve your wireless signal to multiple users in multiple locations. Features „ High gain: 8 dBi „ High performance „ Low profile „ Smart and elegant style „ Versatle Mounting Design „ Light-weight Electrical Specifications Antenna Type 2.4GHz 8 dBi Indoor Omni Antenna Frequency Range 2.4 ~ 2. 5GHz Network Specification IEEE 802.11b , IEEE 802.11g , Wireless 2.4Ghz Network Gain 8 dBi V. S . W. R < 2 Beam Width-H Plane 360 ̊ Beam Width-E Plane 40 ̊ Polarization Vertical (Linear) Input Impedance 50 Ohms Connector Reverse SMA Operation Temperature -20 ̊C - + 70 ̊C Storage Temperature -30 ̊C - +85 ̊C Humidity 95% maximum (non-condensing) Package Content High-Gain Wireless Omni Antenna with Cable and Reverse SMA 1 Set Quick Installation Guide 1 pc 2 LanReady Technologies Inc. 3F., No.166, Sinhu 2nd Rd., Neihu District, Taipei City 114, Taiwan Tel: 886-2-2796-8188 Fax: 886-2-2796-8158 http//:www.lanready.com CCS WUGU Antenna Pattern Job No.:AN2408FO(C)-2400-H Date:2006/6/15 Time:下午 04:06 Temp.(°C)/Hum.(%):25°C/80% Tested by: Center freq.(MHz): 2400 Polarization : H Plane Max gain(dBi):6.86 Min gain(dBi):5.97 Avg gain(dBi):6.43 AN2408FO(C) 3 LanReady Technologies Inc. 3F., No.166, Sinhu 2nd Rd., Neihu District, Taipei City 114, Taiwan Tel: 886-2-2796-8188 Fax: 886-2-2796-8158 http//:www.lanready.com CCS WUGU Antenna Pattern Job No.:AN2408FO(C)-2400-E Date:2006/6/15 Time:下午 04:19 Temp.(°C)/Hum.(%):25°C/80% Tested by: Center freq.(MHz): 2400 Polarization : E Plane Max gain(dBi):6.99 Min gain(dBi):-50.08 Avg gain(dBi):-0.69 AN2408FO(C) 4 LanReady Technologies Inc. 3F., No.166, Sinhu 2nd Rd., Neihu District, Taipei City 114, Taiwan Tel: 886-2-2796-8188 Fax: 886-2-2796-8158 http//:www.lanready.com CCS WUGU Antenna Pattern Job No.:AN2408FO(C)-2450-H Date:2006/6/15 Time:下午 04:08 Temp.(°C)/Hum.(%):25°C/80% Tested by: Center freq.(MHz): 2450 Polarization : H Plane Max gain(dBi):6.97 Min gain(dBi):6.24 Avg gain(dBi):6.65 AN2408FO(C) 5 LanReady Technologies Inc. 3F., No.166, Sinhu 2nd Rd., Neihu District, Taipei City 114, Taiwan Tel: 886-2-2796-8188 Fax: 886-2-2796-8158 http//:www.lanready.com CCS WUGU Antenna Pattern Job No.:AN2408FO(C)-2450-E Date:2006/6/15 Time:下午 04:17 Temp.(°C)/Hum.(%):25°C/80% Tested by: Center freq.(MHz): 2450 Polarization : E Plane Max gain(dBi):7.02 Min gain(dBi):-39.42 Avg gain(dBi):-0.69 AN2408FO(C) 6 LanReady Technologies Inc. 3F., No.166, Sinhu 2nd Rd., Neihu District, Taipei City 114, Taiwan Tel: 886-2-2796-8188 Fax: 886-2-2796-8158 http//:www.lanready.com CCS WUGU Antenna Pattern Job No.:AN2408FO(C)-2500-H Date:2006/6/15 Time:下午 04:10 Temp.(°C)/Hum.(%):25°C/80% Tested by: Center freq.(MHz): 2500 Polarization : H Plane Max gain(dBi):6.77 Min gain(dBi):5.83 Avg gain(dBi):6.28 AN2408FO(C) 7 LanReady Technologies Inc. 3F., No.166, Sinhu 2nd Rd., Neihu District, Taipei City 114, Taiwan Tel: 886-2-2796-8188 Fax: 886-2-2796-8158 http//:www.lanready.com CCS WUGU Antenna Pattern Job No.:AN2408FO(C)-2500-E Date:2006/6/15 Time:下午 04:15 Temp.(°C)/Hum.(%):25°C/80% Tested by: Center freq.(MHz): 2500 Polarization : E Plane Max gain(dBi):7.04 Min gain(dBi):-37.42 Avg gain(dBi):-0.84 AN2408FO(C)

LanReady Technologies Inc. 3F., No.166, Sinhu 2nd Rd., Neihu District, Taipei City 114, Taiwan Tel: 886-2-2796-8188 Fax: 886-2-2796-8158 http//:www.lanready.com Model No.: AN2410FO-S 2.4GHz 10dBi Omni Antenna w/SMA Connector AN2410FO is the perfect solution to extend the range and increase the signal strength of our wireless network. Configuration and setup of this antenna is easy and fast. This antenna is great for Wireless Access Points and Router that serve your wireless signal to multiple users in multiple locations. Features „ High gain: 10 dBi „ High performance „ Low profile „ Smart and elegant style „ Versatle Mounting Design „ Light-weight Electrical Specifications Antenna Type 2.4GHz 10 dBi Indoor Omni Antenna Frequency Range 2.412 ~ 2. 483GHz Network Specification IEEE 802.11b , IEEE 802.11g , Wireless 2.4Ghz Network Peak Gain 10 dBi V. S . W. R < 2 Beam Width-H Plane 360 ̊ Beam Width-E Plane 20 ̊ Polarization Vertical (Linear) Input Impedance 50 Ohms Connector Reverse SMA Male Operation Temperature -20 ̊C - + 70 ̊C Storage Temperature -30 ̊C - +85 ̊C Humidity 95% maximum (non-condensing) Package Content High-Gain Wireless Omni Antenna with Cable and Reverse SMA 1 Set Quick Installation Guide 1 pc LanReady Technologies Inc. 3F., No.166, Sinhu 2nd Rd., Neihu District, Taipei City 114, Taiwan Tel: 886-2-2796-8188 Fax: 886-2-2796-8158 http//:www.lanready.com CCS WUGU Antenna Pattern Job No.:7-21-2400-OA2410B2-H Date:2005/7/21 Time:PM 05:16 Temp.()/Hum.(%):25/60% Tested by: STEVEN Center freq.(MHz): 2400 Polarization : H Plane Max gain(dBi):8.70 Min gain(dBi):8.19 Avg gain(dBi):8.45 AN2410FO LanReady Technologies Inc. 3F., No.166, Sinhu 2nd Rd., Neihu District, Taipei City 114, Taiwan Tel: 886-2-2796-8188 Fax: 886-2-2796-8158 http//:www.lanready.com CCS WUGU Antenna Pattern Job No.:7-21-2400-OA2410B2-E Date:2005/7/21 Time:PM 05:09 Temp.()/Hum.(%):25/60% Tested by: STEVEN Center freq.(MHz): 2400 Polarization : E Plane Max gain(dBi):9.06 Min gain(dBi):-35.52 Avg gain(dBi):-0.10 AN2410FO LanReady Technologies Inc. 3F., No.166, Sinhu 2nd Rd., Neihu District, Taipei City 114, Taiwan Tel: 886-2-2796-8188 Fax: 886-2-2796-8158 http//:www.lanready.com CCS WUGU Antenna Pattern Job No.:7-21-2450-OA2410B2-H Date:2005/7/21 Time:PM 05:14 Temp.()/Hum.(%):25/60% Tested by: STEVEN Center freq.(MHz): 2450 Polarization : H Plane Max gain(dBi):8.62 Min gain(dBi):8.17 Avg gain(dBi):8.39 AN2410FO LanReady Technologies Inc. 3F., No.166, Sinhu 2nd Rd., Neihu District, Taipei City 114, Taiwan Tel: 886-2-2796-8188 Fax: 886-2-2796-8158 http//:www.lanready.com CCS WUGU Antenna Pattern Job No.:7-21-2450-OA2410B2-E Date:2005/7/21 Time:PM 05:07 Temp.()/Hum.(%):25/60% Tested by: STEVEN Center freq.(MHz): 2450 Polarization : E Plane Max gain(dBi):9.09 Min gain(dBi):-32.07 Avg gain(dBi):0.59 AN2410FO LanReady Technologies Inc. 3F., No.166, Sinhu 2nd Rd., Neihu District, Taipei City 114, Taiwan Tel: 886-2-2796-8188 Fax: 886-2-2796-8158 http//:www.lanready.com CCS WUGU Antenna Pattern Job No.:7-21-2500-OA2410B2-H Date:2005/7/21 Time:PM 05:17 Temp.()/Hum.(%):25/60% Tested by: STEVEN Center freq.(MHz): 2500 Polarization : H Plane Max gain(dBi):8.95 Min gain(dBi):8.25 Avg gain(dBi):8.61 AN2410FO LanReady Technologies Inc. 3F., No.166, Sinhu 2nd Rd., Neihu District, Taipei City 114, Taiwan Tel: 886-2-2796-8188 Fax: 886-2-2796-8158 http//:www.lanready.com CCS WUGU Antenna Pattern Job No.:7-21-2500-OA2410B2-E Date:2005/7/21 Time:PM 05:10 Temp.()/Hum.(%):25/60% Tested by: STEVEN Center freq.(MHz): 2500 Polarization : E Plane Max gain(dBi):8.97 Min gain(dBi):-32.60 Avg gain(dBi):0.47 AN2410FO

LanRead y Technologies Inc. 3F., No.166, Sinhu 2nd Rd., Neihu District, Taipei City 114, Taiwan Tel: 886-2-2796-8188 Fax: 886-2-2796-8158 http//:www.lanready.com Network on Demand Network on Demand Network on Demand Network on Demand Network on Demand Model No.: IN2410P 2.4GHz 10 dBi Patch Directional Antenna IN2410P is a directional high gain antenna. It feature Selectivity and Directivity. For Wirless dense environment , the noise and interference overload the WLAN system, nobody can expect satisfactory wireless performance. The most effective solution is to specify the radio service spece, then focus the radio signal within the spece, and keep off the noise and inteference . Features „ High gain : 10 dBi „ High performance „ Low backward radiation „ Low profile „ Smart,Slim and elegant style „ 270 Tilt-and-swivel design for best reception „ Versatle Mounting Design „ Light-weight Electrical Specifications Antenna Type 2.4GHz 10dBi Indoor Patch Antenna Frequency Range 2.4 ~ 2. 5GHz Network Specification IEEE 802.11b , IEEE 802.11g , IEEE802.11n Network Gain 10dBi V. S . W. R < 2 Beam Width-H Plane 110 (Vertical Beam Width-E Plane 60 (Horizontal Polarization Vertical (Linear) Input Impedance 50 Ohms Connector Reverse SMA Male Plug Cable RG178, Length: 100 CM Mounting 270 ̊ Degree Adjustable Stand, Wall Mount or Table Mount Operation Temperature -20 ̊C - + 70 ̊C Storage Temperature -30 ̊C - +85 ̊C Humidity 95% maximum (non-condensing) Package Content Hi-Gain Wireless Directional Antenna with Cable and Reverse SMA Connector 1 set Wall Mounting Screw & Wire Organizing Bracket 1 set Quick Installation Guide 1 pcs System Requirements One Wireless Device with an external Antenna connector Connector Type : Reverse SMA Male Plug LanRead y Technologies Inc. 3F., No.166, Sinhu 2nd Rd., Neihu District, Taipei City 114, Taiwan Tel: 886-2-2796-8188 Fax: 886-2-2796-8158 http//:www.lanready.com Network on Demand Network on Demand Network on Demand Network on Demand Network on Demand LanRead y Technologies Inc. 3F., No.166, Sinhu 2nd Rd., Neihu District, Taipei City 114, Taiwan Tel: 886-2-2796-8188 Fax: 886-2-2796-8158 http//:www.lanready.com Network on Demand Network on Demand Network on Demand Network on Demand Network on Demand Antenna Pattern Test Report A Antenna with 100cm RG-178 Cable aAntenna H-Plane to receiver antenna H-Plane CCS WUGU Antenna Pattern Job No.:5-19-P1-2400-OPEN Date:2005/5/19 Time:AM 11:38 Temp.()/Hum.(%):25/60% Tested by: ERIC Center freq.(MHz): 2400 Polarization : H Plane Max gain(dBi):5.95 Min gain(dBi):-15.42 Avg gain(dBi):0.01 IN2410P with 100cm RG-178 Cable LanRead y Technologies Inc. 3F., No.166, Sinhu 2nd Rd., Neihu District, Taipei City 114, Taiwan Tel: 886-2-2796-8188 Fax: 886-2-2796-8158 http//:www.lanready.com Network on Demand Network on Demand Network on Demand Network on Demand Network on Demand CCS WUGU Antenna Pattern Job No.:5-19-P1-2450-OPEN Date:2005/5/19 Time:AM 11:36 Temp.()/Hum.(%):25/60% Tested by: ERIC Center freq.(MHz): 2450 Polarization : H Plane Max gain(dBi):5.24 Min gain(dBi):-15.79 Avg gain(dBi):-0.79 IN2410P with 100cm RG-178 Cable LanRead y Technologies Inc. 3F., No.166, Sinhu 2nd Rd., Neihu District, Taipei City 114, Taiwan Tel: 886-2-2796-8188 Fax: 886-2-2796-8158 http//:www.lanready.com Network on Demand Network on Demand Network on Demand Network on Demand Network on Demand CCS WUGU Antenna Pattern Job No.:5-19-P1-2500-OPEN Date:2005/5/19 Time: AM 11:40 Temp.()/Hum.(%):25/60% Tested by: ERIC Center freq.(MHz): 2500 Polarization : H Plane Max gain(dBi):5.42 Min gain(dBi):-16.91 Avg gain(dBi):-0.77 IN2410P with 100cm RG-178 Cable LanRead y Technologies Inc. 3F., No.166, Sinhu 2nd Rd., Neihu District, Taipei City 114, Taiwan Tel: 886-2-2796-8188 Fax: 886-2-2796-8158 http//:www.lanready.com Network on Demand Network on Demand Network on Demand Network on Demand Network on Demand bAntenna E-Plane to receiver antenna E-Plane CCS WUGU Antenna Pattern Job No.:5-19-A-2400-E1 Date:2005/5/19 Time:PM 02:30 Temp.()/Hum.(%):25/60% Tested by: ERIC Center freq.(MHz): 2400 Polarization : E Plane Max gain(dBi):6.17 Min gain(dBi):-27.10 Avg gain(dBi):-1.05 IN2410P with 100cm RG-178 Cable LanRead y Technologies Inc. 3F., No.166, Sinhu 2nd Rd., Neihu District, Taipei City 114, Taiwan Tel: 886-2-2796-8188 Fax: 886-2-2796-8158 http//:www.lanready.com Network on Demand Network on Demand Network on Demand Network on Demand Network on Demand CCS WUGU Antenna Pattern Job No.:5-19-A-2450-E1 Date:2005/5/19 Time: PM 02:28 Temp.()/Hum.(%):25/60% Tested by: ERIC Center freq.(MHz): 2450 Polarization : E Plane Max gain(dBi):5.35 Min gain(dBi):-25.89 Avg gain(dBi):-1.68 IN2410P with 100cm RG-178 Cable LanRead y Technologies Inc. 3F., No.166, Sinhu 2nd Rd., Neihu District, Taipei City 114, Taiwan Tel: 886-2-2796-8188 Fax: 886-2-2796-8158 http//:www.lanready.com Network on Demand Network on Demand Network on Demand Network on Demand Network on Demand CCS WUGU Antenna Pattern Job No.:5-19-A-2500-E1 Date:2005/5/19 Time: PM 02:32 Temp.()/Hum.(%):25/60% Tested by: ERIC Center freq.(MHz): 2500 Polarization : E Plane Max gain(dBi):5.40 Min gain(dBi):-36.01 Avg gain(dBi):-1.59 IN2410P with 100cm RG-178 Cable LanRead y Technologies Inc. 3F., No.166, Sinhu 2nd Rd., Neihu District, Taipei City 114, Taiwan Tel: 886-2-2796-8188 Fax: 886-2-2796-8158 http//:www.lanready.com Network on Demand Network on Demand Network on Demand Network on Demand Network on Demand B Antenna with 15cm RG-178 Cable aAntenna H-Plane to receiver antenna H-Plane CCS WUGU Antenna Pattern Job No.:5-19-A-2400 Date:2005/5/19 Time: PM 02:14 Temp.()/Hum.(%):25/60% Tested by: ERIC Center freq.(MHz): 2400 Polarization : H Plane Max gain(dBi):8.80 Min gain(dBi):-12.48 Avg gain(dBi):2.78 IN2410P with 15cm RG-178 Cable LanRead y Technologies Inc. 3F., No.166, Sinhu 2nd Rd., Neihu District, Taipei City 114, Taiwan Tel: 886-2-2796-8188 Fax: 886-2-2796-8158 http//:www.lanready.com Network on Demand Network on Demand Network on D…
