SCD03003IEEE802.11 b/g/n USB Dongle

1 WUB1900 IEEE 802.11b/g/n USB Adapter (Bandwidth 20/40MHz) User’s Manual 2 1. Introduction The WUB1900 USB Dongle Adapter (hereafter called USB Dongle adapter), compliant with IEEE 802.11b/g, is a high-efficiency wireless adapter for wireless networking at home, in office, or in public places. This USB Dongle adapter connects directly to any USB-ready desktop/notebook computers, so that you can share files, printers, and high-speed access to the Internet over your existing wireless network easily, without disassembling your computer. The WUB1900 USB Dongle Adapter has a data rate of up to 160Mbps, and can auto-negotiate to 54, 48, 36, 24, 18, 12, 11, 9, 6, 5.5, 2, 1Mbps to be compatible with any IEEE 802.11b/g device. The WUB1900 USB Dongle Adapter is compatible with Windows 98SE/ME/2000/XP and can be used in either Ad-hoc mode (computer-to-computer, without a wireless router) or Infrastructure mode (computer-to-wireless router, a wireless router is required). 1.1 Features „ Connects at a 160Mbps via USB 2.0, up to 13 times faster than a WiFi-b „ Compact size for greater flexibility „ Also compatible with USB 1.1 desktop and notebook computers „ Plug-and-Play Compatible with windows XP (32/64bit),Vista „ Security : WEP 64/128 bits TKIP/802.11i compliant AES –CCMP encryptionWPA-PSK,WPA2-PSK,802.1x,EAP-TLS,EAP-TTLS,PEAP-TL,PEAP(EAP -GTC),PEAP(EAP-MSCHAPv2),Jumpstar2.0 „ Support WPA/WPA2-Personal, WPA/WPA2-Enterprise „ QoS :WMM „ Support WPS „ Support Hardware Push Button for WPS „ Support 802.11 d , 802.11h „ Support DFS1.0 and 2.0 „ Support WHQL „ RTS & Fragment Threshold support „ WOL(Wake On WLan) Support Advance Feature „ Roaming „ Japan Mid Band „ WoW and Dual Core support „ 802.11 adhoc „ ACU ( for XP only) 3 1.2 Package Contents Before you begin the installation, please check the items of your package. The package should include the following items: ‧ One WUB1900 ‧ One Quick Installation Guide ‧ One Driver & Utility CD (with User’s Manual) ‧ USB Cable If any of the above items is missing, contact your supplier as soon as possible. 4 2. Installation Procedures This chapter describes the instructions that guide you through the proper installation of your WUB1900 for the Windows 98SE/ME/2000 /XP/VISTA operating systems. The complete installation of the WUB1900 consists of the following steps STEP 1：Insert the provided Driver and Utility CD into your CD drive. STEP 2：Click Install Driver from the Setup menu. STEP 3：When the welcome screen appears, click Next. STEP 4：Click Next to accept the default destination folder for the software or click Browse to manually select a different destination folder. STEP 5：For Windows XP, click Continue Anyway at the Windows Logo Compatibility screen. STEP 6：Click Finish to complete the installation. STEP 7：Remove the Driver & Utility CD from your CD drive and then restart your computer. Before Installation In addition to the items shipped with the client adapter, you will also need the following in order to install the adapter: Windows XP/Vista CD-ROM. (original Windows installation CD-ROM or diskettes) Driver Installation for Windows This section describes the installation procedures of the WUB1900 driver for the Windows XP/Vista operating systems. Note: Before you start the installation, you are advised to keep the Windows CD-ROM in case you might need certain system files. 5 2.1 Install Driver & Utility Software Note1: Before installing the utility software, DO NOT insert the USB adapter into your computer. If the adapter is inserted already, Windows will detect the adapter and request for a driver. Click Cancel to quit the wizard and remove the adapter from your computer. Note2: If you have installed the USB adapter driver & utility already, please uninstall the old version first. Step 1 Insert the provided Driver and Utility CD into your CD drive. Step 2 Click Install Driver & Utility from the Setup menu. Note: If the Setup menu does not appear automatically, go to Start, Run, type D:\autorun.exe (where D is the letter of your CD drive) and click OK. 6 2.2 Install Utility Software Step 1 When the welcome screen appears, select the language you want ,then click Next. Step 2 Select “I accept the terms of the license agreement”, then click Next 7 Step 3 Please insert USB dongle while this screen appears, then press “OK” Step 4 Choose the Destination Folder, then press Next Step 5 Click Next to accept the default destination folder for the software or click Browse to manually select a different destination folder. 8 Step 6 Click Next, then choose PCI Client Utility (PCU), then Press Next 9 Step 7 You can choose Single Sign On feature or not while you install the utility ,then press Next Step 8 Click Continue Anyway at the Windows Logo Compatibility screen. Then finish utility installation. 10 11 2.3 Install WPS Step 1 Choose setup language. Step 2 Click Next to start install Jumpstart. 12 Step 3 Select “I accept the terms of the license agreement” ,then click Next Step 4 Click Continue Anyway at the Windows Logo Compatibility screen. Then finish utility installation. 13 Step 3 Click Finish. 14 2.3 Install Driver for Win XP / Vista Step 1 Choose install the software automatically (Recommended) ,then press Next 15 Step 2 Click Continue Anyway at the Windows Logo Compatibility screen. Then finish utility installation. Step 3 Click Finish. Restart the computer if you are prompted to do so. 16 3. Configuring USB Adapter as a Wireless Client The USB adapter can be set to either Station or Access Point Mode from the Mode drop-down menu. Station mode is the default selection and should be selected if you want to connect to a wireless router/access point or conduct peer-to-peer networking. To open the utility, go to Start, (All) Programs,Atheros/Atheros Client Utility. Step 1 In Profile Management, Select the Scan of your wireless router/access point from the Available Network list and click on the Activate button. 17 Step 2 Verify that the adapter has adequa…

Text truncated - open the document above for the full version.

LanReady Technologies, Inc. 3F, No.166, Sinhu 2nd Rd., Neihu District, Taipei City 114, Taiwan, R.O.C. TEL: (02) 2796 8188 FAX: (02) 2796 8158 Http://www.lanready.com Date: November 23, 2007 Compliance Certification Services Certification Division 47173 Benicia Street, Fremont, CA 94538 To whom it may concern: We, the undersigned, hereby authorize the Taiwan office of Compliance Engineering Services, Inc., d.b.a. Compliance Certification Services and hereafter referred to as CCS TW, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by CCS TW on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing CCS TW as our agent, we still recognize that we are responsible to: a) Comply with the relevant provisions of the certification program; b) Make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) Make claims regarding certification only in respect of the scope for which certification has been granted; d) Do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) Upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) Use certification only to indicate the products are certified as being in conformity with specified standards; g) Endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) Ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) Keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) Take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) Document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Jason Lo / Director, Engineering Div. LanReady Technologies Inc. REMARK: 1. This authorization letter will be sent along with your application when filing with the Certification Division. 2. Please follow the format and type it on company letterhead and send original to us.

LanReady Technologies Inc., FCC ID: SCD03003, Assessment NO.: AN08T7471, Notice#1 Inbox X Priority X from [email protected] to Jessica Ho <[email protected]. com>, cc [email protected], date Jan 10, 2008 10:13 PM subject LanReady Technologies Inc., FCC ID: SCD03003, Assessment NO.: AN08T7471, Notice#1 hide details Jan 10 (4 days ago) Reply Dear Jessica, Review of this application is complete. Please reply to the following item. Q1: User manual page 20 shows the possibility for setting transmit power to 100 mW. Please confirm that this configuration setting was used for all measurements in EMC and SAR reports. Best regards, Tim Dwyer Technical Reviewer The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 30 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender. Reply Reply to all Forward from application <application@tw. ccsemc.com> to [email protected], cc "application.2007" <[email protected]>, date Jan 14, 2008 4:04 AM subject Re:LanReady Technologies Inc., FCC ID: SCD03003, Assessment NO.: AN08T7471, Notice#1 hide details 4:04 AM (16 hours ago) Reply Dear Tim, Plz see my reply, thank you. Best Regards, Amanda <tim.dwyer@ccsemc. com> 2008/01/11 11:13 AM "Jessica Ho" <[email protected]> <[email protected]> LanReady Technologies Inc., FCC ID: SCD03003, Assessment NO.: AN08T7471, Notice#1 Dear Jessica, Review of this application is complete. Please reply to the following item. Q1: User manual page 20 shows the possibility for setting transmit power to 100 mW. Please confirm that this configuration setting was used for all measurements in EMC and SAR reports. Ans: The value of 100mW is the best declard data in manual. But actually it is based on RF output power and antenna gain to conduct test. Plz have the revised test report, due to human mistake, the Mid channel for output power of draft 802.11n Standard-20 MHz Channel mode is 17.72dBm. Sorry for the inconvenience. - Show quoted text - WUB1900 Test Report-1 revised 0114.pdf 1990K View as HTML Download

LanReady Technologies, Inc. 3F, No.116, Sinhu 2nd Rd., Neihu District, Taipei City 114, Taiwan, R.O.C. TEL: (02) 2796 8188 FAX: (02) 2796 8158 Http://www.lanready.com November 23, 2007 Federal Communications Commission Authorization and Evaluation Division FCC ID: SCD03003 Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: 1. Schematics 2. Operational Description 3. Block Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely Yours, Jason Lo / Director, Engineering Div. LanReady Technologies Inc.

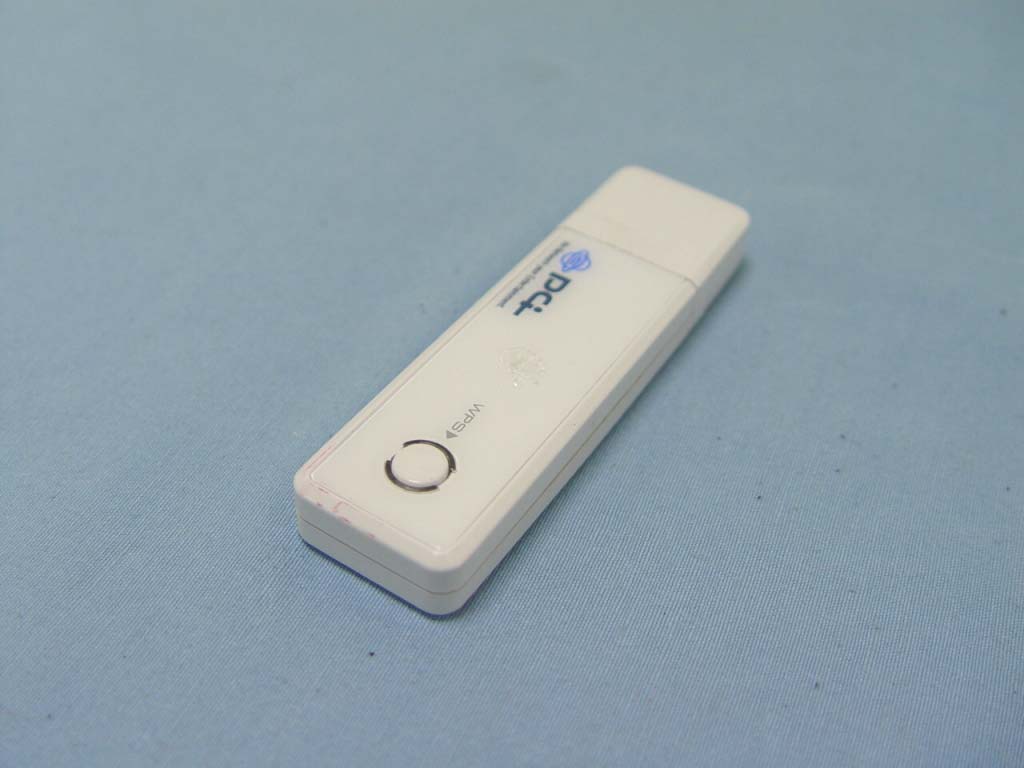

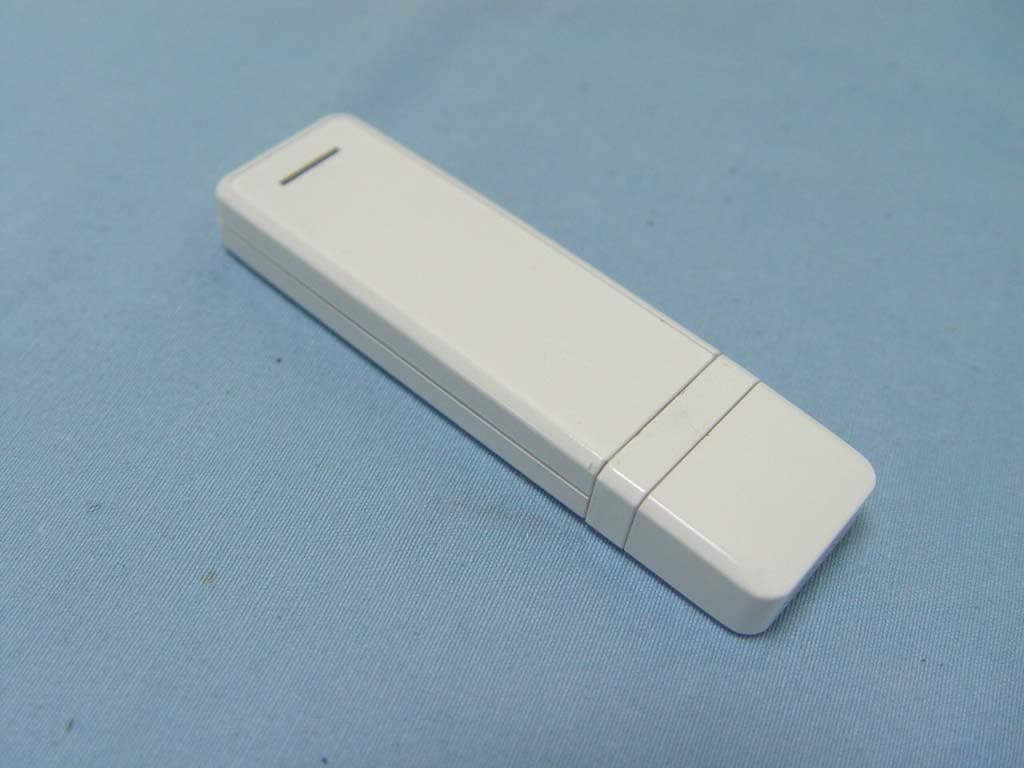

Compliance Certification Services Inc. Report No.: 71012001 Date of Issue: January 4, 2008 Page 1 Total Page: 6 Rev. 00 EXTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: 71012001 Date of Issue: January 4, 2008 Page 2 Total Page: 6 Rev. 00

5.9 cm 1.8cm

Compliance Certification Services Inc. Report No.: 71012001 Date of Issue: January 4, 2008 Page 3 Rev.00 INTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: 71012001 Date of Issue: January 4, 2008 Page 4 Rev.00 Compliance Certification Services Inc. Report No.: 71012001 Date of Issue: January 4, 2008 Page 5 Rev.00 PCB Antenna Compliance Certification Services Inc. Report No.: 71012001 Date of Issue: January 4, 2008 Page 6 Rev.00

WUB190-2400 CCS WUGU Antenna Pattern Job No.:WUB1900- PCB ANT Date:2007/12/27 Time:下午 02:20 Temp.(°C)/Hum.(%):25°C/80% Tested by: Center freq.(MHz): 2400 Polarization : H Plane Max gain(dBi):-0.80 Min gain(dBi):-6.32 Avg gain(dBi):-2.62 WUB190-2450 CCS WUGU Antenna Pattern Job No.:WUB1900 - PCB ANT Date:2007/12/27 Time:下午 02:22 Temp.(°C)/Hum.(%):25°C/80% Tested by: Center freq.(MHz): 2450 Polarization : H Plane Max gain(dBi):-0.30 Min gain(dBi):-5.85 Avg gain(dBi):-2.62 WUB190-2500 CCS WUGU Antenna Pattern Job No.:WUB1900 - PCB ANT Date:2007/12/27 Time:下午 02:23 Temp.(°C)/Hum.(%):25°C/80% Tested by: Center freq.(MHz): 2500 Polarization : H Plane Max gain(dBi):-0.30 Min gain(dBi):-5.44 Avg gain(dBi):-2.57

Compliance Certification Services Inc. Report No.: 71012001-SF FCC ID: SCD03003 Date of Issue: January 4, 2008 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. ANSI/IEEE Std. C95.1-1992 in accordance with the requirements of FCC Report and Order: ET Docket 93-62, and OET Bulletin 65 Supplement C FCC TEST REPORT For IEEE802.11 b/g/n USB Dongle Trade Name / Model: LanReady / WUB1900, PCI / GW-US300GXS Issued to LanReady Technologies Inc. 4F, No. 337, Sinhu 2nd Rd., Neihu District, Taipei City 114, Taiwan (R.O.C.) Issued by Compliance Certification Services Inc. No. 11, Wugong 6th Rd., Wugu Industrial Park, Taipei Hsien 248, Taiwan. http://www.ccsemc.com.tw [email protected] Page 1 Total Page: 25 Rev. 00 Compliance Certification Services Inc. Report No.: 71012001-SF FCC ID: SCD03003 Date of Issue: January 4, 2008 TABLE OF CONTENTS 1. EUT DESCRIPTION..................................................................................................................4 2. REQUIREMENTS FOR COMPLIANCE TESTING DEFINED BY THE FCC.................5 3. DOSIMETRIC ASSESSMENT SYSTEM................................................................................5 3.1 MEASUREMENT SYSTEM DIAGRAM.........................................................................6 3.2 SYSTEM COMPONENTS.................................................................................................7 4. EVALUATION PROCEDURES...............................................................................................9 5. MEASUREMENT UNCERTAINTY......................................................................................13 6. EXPOSURE LIMIT..................................................................................................................14 7. TYPICAL COMPOSITION OF INGREDIENTS FOR LIQUID TISSUE PHANTOMS.15 8. MEASUREMENT RESULTS..................................................................................................16 8.1 SYSTEM PERFORMANCE CHECK..............................................................................16 8.2 TEST LIQUID CONFIRMATION...................................................................................17 8.3 EUT TUNE-UP PROCEDURES AND TEST MODE.....................................................18 8.4 SAR MEASUREMENTS RESULTS...............................................................................20 9. EUT PHOTOS...........................................................................................................................22 10. EQUIPMENT LIST & CALIBRATION STATUS................................................................23 11. FACILITIES..............................................................................................................................24 12. REFERENCES..........................................................................................................................24 13. ATTACHMENTS......................................................................................................................25 Page 2 Rev. 00 Compliance Certification Services Inc. Report No.: 71012001-SF FCC ID: SCD03003 Date of Issue: January 4, 2008 1. CERTIFICATE OF COMPLIANCE (SAR EVALUATION) Applicant: LanReady Technologies Inc. 4F, No. 337, Sinhu 2nd Rd., Neihu District, Taipei City 114, Taiwan (R.O.C.) Equipment Under Test: IEEE802.11 b/g/n USB Dongle Trade Name / Model Number: LanReady / WUB1900, PCI / GW-US300GXS Date of Test: November 15, 2007 Device Category: PORTABLE DEVICES Exposure Category: GENERAL POPULATION/UNCONTROLLED EXPOSURE APPLICABLE STANDARDS STANDARD TEST RESULT FCC OET 65 Supplement C No non-compliance noted Deviation from Applicable Standard None The device was tested by Compliance Certification Services Inc. in accordance with the measurement methods and procedures specified in OET Bulletin 65 Supplement C (Edition 01-01). The test results in this report apply only to the tested sample of the stated device/equipment. Other similar device/equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Reviewed by: Rex Lai anager ication Services Inc. Section M Compliance Certif Page 3 Rev. 00 Compliance Certification Services Inc. Report No.: 71012001-SF FCC ID: SCD03003 Date of Issue: January 4, 2008 2. EUT DESCRIPTION Product IEEE802.11 b/g/n USB Dongle Trade Name / Model Number LanReady / WUB1900, PCI / GW-US300GXS Model Discrepancy All the specification and layout are identical except they come with different model numbers for marketing purposes. Frequency Range 802.11b: 2412 ~ 2462 MHz 802.11g: 2412 ~ 2462 MHz draft 802.11n Standard-20 MHz Channel mode: 2412 ~ 2462 MHz draft 802.11n Wide-40 MHz Channel mode: 2422 ~ 2452 MHz Max. O/P Power: (Conducted/Peak) 802.11b: 12.74 dBm 802.11g: 18.63 dBm draft 802.11n Standard-20 MHz Channel mode: 20.32 dBm draft 802.11n Wide-40 MHz Channel mode: 15.86 dBm Max. SAR (1g): 802.11b: 0.288 W/kg 802.11g: 1.030 W/kg draft 802.11n Standard-20 MHz Channel mode: 1.440 W/kg draft 802.11n Wide-40 MHz Channel mode: 0.413 W/kg Modulation Technique 802.11b: Direct Sequence Spread Spectrum(DSSS) 802.11g: Orthogonal Frequency Division Multiplexing (OFDM) 802.11n: Orthogonal Frequency Division Multiplexing (OFDM) Antenna Specification Antenna type: PCB Antenna Host 1 IBM, Model: 1951-I3V, SN: L3B2188 Remark: The sample selected for test was prototype that approximated to production product and was provided by manufacturer. Page 4 Rev. 00 Compliance Certification Services Inc. Report No.: 71012001-SF FCC ID: SCD03003 Date of Issue: January 4, 2008 3. REQUIREMENTS FOR COMPLIANCE TESTING DEFINED BY THE FCC The US Federal Communications Commission has released the report and order “Guidelines…

Text truncated - open the document above for the full version.

Date/Time: 11/15/2007 10:12:56 AM Test Laboratory: Compliance Certification Services Inc. D2450V2 SN-728 Body DUT: Dipole 2450 MHz; Type: D2450V2; Serial: D2450V2 - SN:728 Communication System: CW2450; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium parameters used: f = 2450 MHz; ı = 1.98 mho/m; İ r = 51.5; ȡ = 1000 kg/m 3 Phantom section: Flat Section Air Temperature:24.4 deg C;Liquid Temperature:23.4 deg C Area Scan Find Secondary Maximum Within 2dB and with a peak SAR value greater than 0.0012W/kg DASY4 Configuration: z Probe: EX3DV3 - SN3531; ConvF(7.88, 7.88, 7.88); z Sensor-Surface: 2.5mm (Mechanical Surface Detection) z Electronics: DAE4 Sn558; Calibrated: 8/29/2007 z Phantom: SAM 12; Type: SAM V4.0; Serial: TP-1150 z Measurement SW: DASY4, V4.7 Build 55; Postprocessing SW: SEMCAD, V1.8 Build 176 Pin=250mW,d=10mm/Area Scan (6x6x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 14.2 mW/g Pin=250mW,d=10mm/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 95.3 V/m; Power Drift = -0.055 dB Peak SAR (extrapolated) = 28.4 W/kg SAR(1 g) = 13.6 mW/g; SAR(10 g) = 6.21 mW/g Maximum value of SAR (measured) = 19.3 mW/g Pin=250mW,d=10mm/Z Scan (1x1x21): Measurement grid: dx=20mm, dy=20mm, dz=5mm Maximum value of SAR (measured) = 19.7 mW/g Page1 Page2 Date/Time: 11/15/2007 2:01:59 PM Test Laboratory: Compliance Certification Services Inc. 802.11b Horizontal Bottom Flat Touched mode WUB1900 DUT: WUB1900; Type: IEEE802.11 b/g/n USB Dongle; Serial: N/A Communication System: IEEE 802.11b WLAN; Frequency: 2437 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 2437 MHz; ı = 1.96 mho/m; İ r = 51.5; ȡ = 1000 kg/m 3 Phantom section: Flat Section Air Temperature:24.4 deg C;Liquid Temperature:23.4 deg C Area Scan Find Secondary Maximum Within 2dB and with a peak SAR value greater than 0.0012W/kg DASY4 Configuration: z Probe: EX3DV3 - SN3531; ConvF(7.88, 7.88, 7.88); z Sensor-Surface: 2.5mm (Mechanical Surface Detection) z Electronics: DAE4 Sn558; Calibrated: 8/29/2007 z Phantom: SAM 12; Type: SAM V4.0; Serial: TP-1150 z Measurement SW: DASY4, V4.7 Build 55; Postprocessing SW: SEMCAD, V1.8 Build 176 Middle CH, Rate=1M/Area Scan (5x8x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.302 mW/g Middle CH, Rate=1M/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 2.92 V/m; Power Drift = -0.049 dB Peak SAR (extrapolated) = 0.435 W/kg SAR(1 g) = 0.288 mW/g; SAR(10 g) = 0.144 mW/g Maximum value of SAR (measured) = 0.375 mW/g Page1 Page2 Date/Time: 11/15/2007 1:06:46 PM Test Laboratory: Compliance Certification Services Inc. 802.11g Horizontal Bottom Flat Touched mode WUB1900 DUT: WUB1900; Type: IEEE802.11 b/g/n USB Dongle; Serial: N/A Communication System: IEEE 802.11g WLAN; Frequency: 2437 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 2437 MHz; ı = 1.96 mho/m; İ r = 51.5; ȡ = 1000 kg/m 3 Phantom section: Flat Section Air Temperature:24.4 deg C;Liquid Temperature:23.4 deg C Area Scan Find Secondary Maximum Within 2dB and with a peak SAR value greater than 0.0012W/kg DASY4 Configuration: z Probe: EX3DV3 - SN3531; ConvF(7.88, 7.88, 7.88); z Sensor-Surface: 2.5mm (Mechanical Surface Detection) z Electronics: DAE4 Sn558; Calibrated: 8/29/2007 z Phantom: SAM 12; Type: SAM V4.0; Serial: TP-1150 z Measurement SW: DASY4, V4.7 Build 55; Postprocessing SW: SEMCAD, V1.8 Build 176 Middle CH, Rate=6M/Area Scan (4x8x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.817 mW/g Middle CH, Rate=6M/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 5.31 V/m; Power Drift = -0.041 dB Peak SAR (extrapolated) = 0.939 W/kg SAR(1 g) = 0.670 mW/g; SAR(10 g) = 0.362 mW/g Maximum value of SAR (measured) = 0.839 mW/g Page1 Page2 Date/Time: 11/15/20073:36:39 PM Test Laboratory: Compliance Certification Services Inc. 802.11n Horizontal Bottom Flat Touched mode WUB1900 HT20 DUT: WUB1900; Type: IEEE802.11 b/g/n USB Dongle; Serial: N/A Communication System: IEEE 802.11n WLAN; Frequency: 2412 MHz;Duty Cycle: 1:1 Medium parameters used: f = 2412 MHz; ı = 1.93 mho/m; İ r = 51.6; ȡ = 1000 kg/m 3 Phantom section: Flat Section Air Temperature:24.4 deg C;Liquid Temperature:23.4 deg C Area Scan Find Secondary Maximum Within 2dB and with a peak SAR value greater than 0.0012W/kg DASY4 Configuration: z Probe: EX3DV3 - SN3531; ConvF(7.88, 7.88, 7.88); z Sensor-Surface: 2.5mm (Mechanical Surface Detection) z Electronics: DAE4 Sn558; Calibrated: 8/29/2007 z Phantom: SAM 12; Type: SAM V4.0; Serial: TP-1150 z Measurement SW: DASY4, V4.7 Build 55; Postprocessing SW: SEMCAD, V1.8 Build 176 Low CH, Rate=6.5M/Area Scan (5x8x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 1.28 mW/g Low CH, Rate=6.5M/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 6.39 V/m; Power Drift = -0.169 dB Peak SAR (extrapolated) = 1.99 W/kg SAR(1 g) = 1.290 mW/g; SAR(10 g) = 0.668 mW/g Maximum value of SAR (measured) = 1.57 mW/g Page1 Page2 Date/Time: 11/15/20073:06:34 PM Test Laboratory: Compliance Certification Services Inc. 802.11n Horizontal Bottom Flat Touched mode WUB1900 HT20 DUT: WUB1900; Type: IEEE802.11 b/g/n USB Dongle; Serial: N/A Communication System: IEEE 802.11n WLAN; Frequency: 2437 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 2437 MHz; ı = 1.96 mho/m; İ r = 51.5; ȡ = 1000 kg/m 3 Phantom section: Flat Section Air Temperature:24.4 deg C;Liquid Temperature:23.4 deg C Area Scan Find Secondary Maximum Within 2dB and with a peak SAR value greater than 0.0012W/kg DASY4 Configuration: z Probe: EX3DV3 - SN3531; ConvF(7.88, 7.88, 7.88); z Sensor-Surface: 2.5mm (Mechanical Surface Detection)Sensor-Surface: 0mm (Fix Surface) z Electronics: DAE4 Sn558; Calibrated: 8/29/2007 z Phantom: SAM 12; Type: SAM V4.0; Serial: TP-1150 z Measurement SW: DASY4, V4.7 Build 55; Postprocessing SW: SEMCAD, V1.8 Bui…
