SRD10050ILLUMINANCE UV RECORDER WL

To prevent any loss or damage to our customers, other people and/or property, and to ensure the proper use of our products we ask that before using our product you carefully read, understand and follow the safety rules and precautions for our products as outlined below. Explanation of Warning Symbols Explanation of Picture Symbols DANGER These entries are actions that absolutely under no circumstance should be taken. The taking of such an action may cause serious personal physical damage or death. Denotes an important warning or caution. Denotes a forbidden action. CAUTION These entries are actions that if taken may lead to physical injury or damage to persons or things. Denotes an action that must be taken. DANGER Do not take apart, repair or modify the Unit. Touching them may result in malfunction or unexpected accidents. If water or a foreign object enters into the Unit, immediately turn OFF the power, remove batteries, and stop using. Continued use may cause fire or electrocution. Do not use this Unit in wet or humid places, such as a bathroom. It may cause a fire or other trouble including malfunction. If water or a foreign object enters the case, immediately cease using it. Store the Unit and accessories out of the reach of children. Touching them may result in unexpected accidents. If any smoke or strange smells are emitted from the Unit, immediately turn OFF the power, remove batteries, and stop using. Continued use may cause fire or electrocution. Do not drop the Unit, or expose the Unit to a strong impact. If that happens to the Unit, immediately turn OFF the power, remove batteries, and stop using. Continued use may cause fire or electrocution. When installing and using this product, make sure to follow all warnings and directions from your computer manufacturer. CAUTION This Unit is not waterproof. If the Unit gets dirty, wipe it with a clean cloth. Harmful gases or chemicals may cause corrosion and/or other danger to the Unit. Also, by coming in contact with hazardous substances, harm may occur to the people handling the Unit. Therefore, do not use or store the Unit in any environment that is exposed to chemicals and harmful gases. Battery life varies depending upon the type of battery, the battery performance, the measuring environment, and the frequency of communication. Battery terminals may provide insufficient contact due to age or vibration. This may lead to data loss. Use the Unit in an environment within the operational range. Condensation may occur when a Unit is moved from one environment to another where there is a great difference in temperature. To prevent damage to the Unit from static electricity, remove static electricity from your body by touching metal around you (door knob, window frame) before touching the Unit. Static electricity may cause not only damage to the Unit, but may cause breaks in or a loss of data. If the Unit is not to be used for a long period of time, for safety reasons please remove the battery. If left in the Unit, it may leak and lead to malfunctioning.Please use a new battery when you use the Unit again. Do not store or leave the Unit in any place exposed to high temperature and high humidity. If the Unit is not to be used for a long period of time, store it in a place with a normal temperature and without condensation with other items included. Do not disconnect the communication cable during USB communication. This may harmfully effect the Unit or your PC. We shall not guarantee the operation of our device if you have connected it to your computer using a USB hub or a USB extension cable. Please do not insert your fingers or any foreign objects into the sensor or USB connection jacks. Do not use or store the Unit in any of the following places. Doing so may cause electrocution, fire and/or other adverse effects to the device and/or your computer. -Areas exposed to direct sunlight This will cause the inside of the Unit to become overheated and may cause fire, deformation, and/or other damage including malfunction. -Areas prone to strong magnetic fields This may cause damage including malfunction. - Areas exposed to water leakage This may cause electrocution or other damage including malfunction. - Areas exposed to excessive vibration This may cause injury, malfunction, damage or loss of proper electrical contact. - Areas near fire or exposed to excessive heat This may cause damage including malfunction and deformation. -Areas prone to dust and dirt This may cause damage including malfunction. Illuminance UV Recorder WL RTR-574 is a Data Logger, with built-in wireless communication capability, designed to measure and record Illuminance, Ultraviolet Light, Temperature and Humidity at a set interval. Collect the Data not the Logger: Wireless communication with a Base Unit makes it possible to download data from a RTR-574 Data Logger (Remote Unit) without going to the location or collecting the Unit. The downloaded data can then be easily viewed in graph form and saved on your computer to help you analyze the data and/or share over a network. From hereafter in this manual, Illuminance UV Recorder WL RTR-574 will be referred to as the “Unit”. As a Remote Unit, the Unit requires a Base Unit to carry out wireless communication. (Compatible Base Units: RTR-500, RTR-500AW/RTR-500NW) Please set it up after getting the Base Unit ready. RTR-574 User’s Manual Thank you for purchasing our product. Carefully read this instruction manual before using this Unit. Package Contents Illuminance UV Recorder WL RTR-574 Illuminance UV Sensor (ISA-3151) Temperature/Humidity Sensor (THA-3151) USB Communication Cable (US-15C) AA Alkaline Battery User's Manual (including Warranty) © Copyright T&D Corporation. All rights reserved. 2010/05 160XXXXXXXX (1st Edition) This is printed using recycled paper. http://www.tandd.com/ 817-1 Shimadachi, Matsumoto, Nagano, JAPAN 390-0852 Fax: +81-263-40-3152 E-mail: [email protected] REC MarkThe recording status is shown here.…

Text truncated - open the document above for the full version.

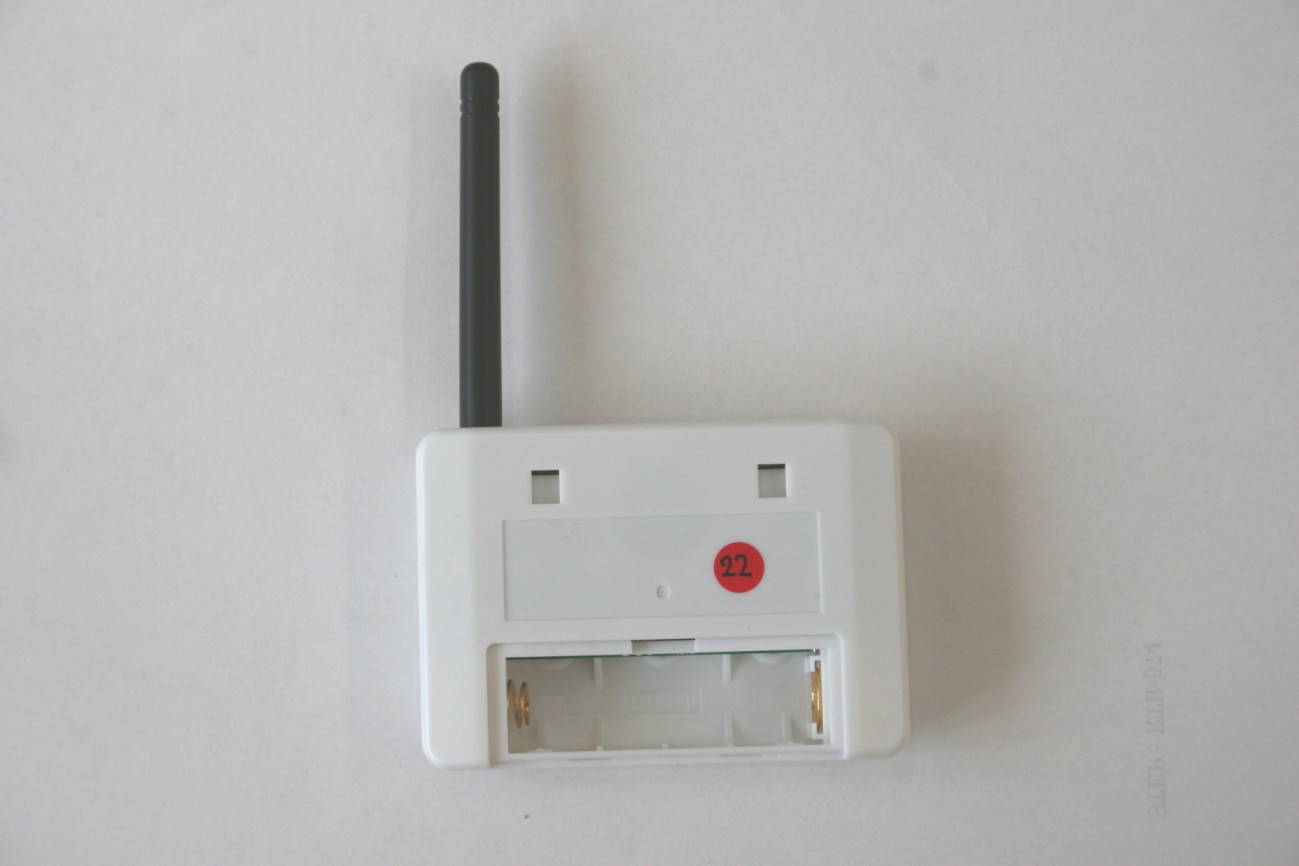

T&D CORPORATION FCC ID: SRD10050 EXTERNAL PHOTOS

T&D CORPORATION FCC ID: SRD10050 INTERNAL PHOTOS

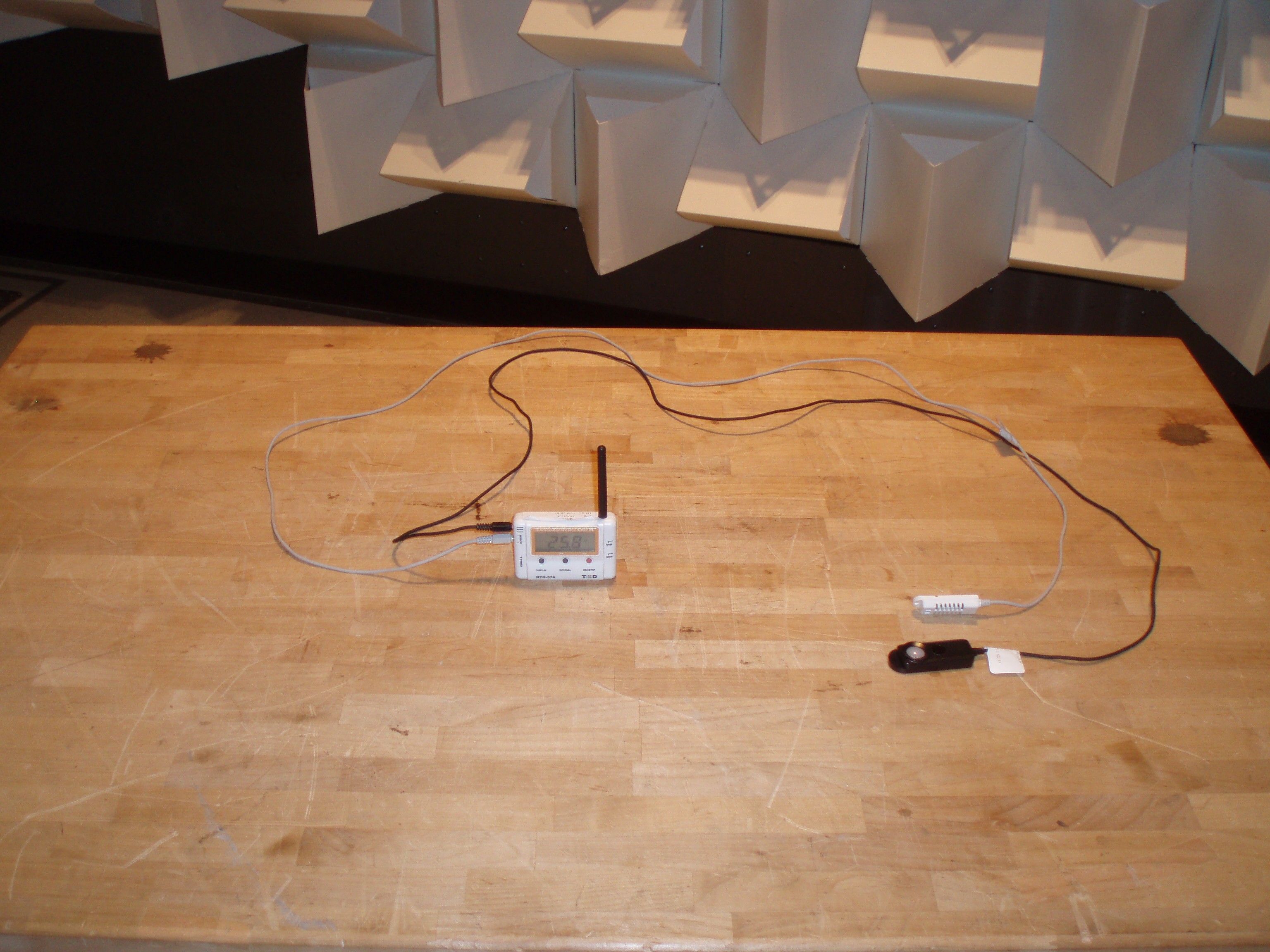

FCC PART 15.247 AND IC RSS-210 TEST REPORT DIGITAL SPREAD SPECTRUM Applicant T&D CORPORATION Address 817-1 SHIMADACHI MATSUMOTO 390-0852 JAPAN FCC ID SRD10050 ID 5558A-10050 Model Number RTR-574 Product Description ILLUMINANCE UV RECORDER WL Date Sample Received 7/1/2010 Date Tested 8/2/2010 Tested By Joe Scoglio Approved By Mario R. de Aranzeta Report Number 1596AT10TestReport.doc Test Results PASS FAIL THE ATTACHED REPORT SHALL NOT BE REPRODUCED EXCEPT IN FULL WITHOUT THE WRITTEN APPROVAL OF TIMCO ENGINEERING, INC. 849 NW State Road 45 Newberry, FL 32669 USA Ph: 888.472.2424 or 352.472.5500 Fax: 352.472.2030 Email: [email protected] Website: www.timcoengr.com Testing Certificate # 0955-01 APPLICANT: T&D CORPORATION FCC ID: SRD10050 IC: 5558A-10050 REPORT: Z:\T\T&D CORP_SRD\1596AT10\1596AT10TestReport.doc Page 2 of 18 TABLE OF CONTENT GENERAL REMARKS ............................................................................................................................... 3 GENERAL INFORMATION ........................................................................................................................ 4 EMC EQUIPMENT LIST............................................................................................................................ 5 TEST PROCEDURES ................................................................................................................................ 6 RADIATION INTERFERENCE ................................................................................................................... 7 POWER LINE CONDUCTED INTERFERENCE .......................................................................................... 9 OCCUPIED BANDWIDTH ....................................................................................................................... 12 POWER OUTPUT .................................................................................................................................... 13 SPURIOUS EMISSIONS AT ANTENNA TERMINALS ............................................................................... 14 RADIATED SPURIOUS EMISSIONS INTO ADJACENT RESTRICTED BAND .......................................... 15 POWER SPECTRAL DENSITY ................................................................................................................ 18 APPLICANT: T&D CORPORATION FCC ID: SRD10050 IC: 5558A-10050 REPORT: Z:\T\T&D CORP_SRD\1596AT10\1596AT10TestReport.doc Page 3 of 18 GENERAL REMARKS The attached report shall not be reproduced except in full without the written permission of Timco Engineering Inc. The test results relate only to the items tested. Summary The device under test does: fulfill the general approval requirements as identified in this test report not fulfill the general approval requirements as identified in this test report Attestations This equipment has been tested in accordance with the standards identified in this test report. To the best of my knowledge and belief, these tests were performed using the measurement procedures described in this report. All instrumentation and accessories used to test products for compliance to the indicated standards are calibrated regularly in accordance with ISO 17025 requirements. Testing Certificate # 0955-01 I attest that the necessary measurements were made, under my supervision, at: Timco Engineering Inc. 849 NW State Road 45 Newberry, Fl 32669 Authorized Signatory Name: Mario de Aranzeta C.E.T. Compliance Engineer/ Lab. Supervisor Date: 8/2/2010 APPLICANT: T&D CORPORATION FCC ID: SRD10050 IC: 5558A-10050 REPORT: Z:\T\T&D CORP_SRD\1596AT10\1596AT10TestReport.doc Page 4 of 18 GENERAL INFORMATION DUT Specification Applicable Standard Part 15.247 DUT Description ILLUMINANCE UV RECORDER WL FCC ID SRD10050 IC 5558A-10050 Operating Frequency TX/ RX: 902 – 928 MHz DUT Power Source 110–120Vac/50– 60Hz DC Power Battery Operated Exclusively Test Item Prototype Pre-Production Production Type of Equipment Fixed Mobile Portable Test Facility Timco Engineering Inc. located at 849 NW State Road 45 Newberry, FL 32669 USA. Test Conditions Temperature: 26ºC Relative humidity: 50% Test Exercise The DUT was placed in continuous transmit mode of operation. Test Supporting Equipment Supporting Device Manufacturer Model / FCC ID Serial Number N/A APPLICANT: T&D CORPORATION FCC ID: SRD10050 IC: 5558A-10050 REPORT: Z:\T\T&D CORP_SRD\1596AT10\1596AT10TestReport.doc Page 5 of 18 EMC EQUIPMENT LIST Device Manufacturer Model Serial Number Cal/Char Date Due Date 3-Meter Semi- Anechoic Chamber Panashield N/A N/A Listed 3/10/10 3/10/12 AC Voltmeter HP 400FL 2213A14499 CAL 3/23/09 3/23/11 Antenna: Dipole Kit Electro- Metrics TDA-30/1-4 153 CHAR 6/10/09 6/10/11 Frequency Counter HP 5385A 3242A07460 CAL 5/26/09 5/26/11 Hygro- Thermometer Extech 445703 0602 CAL 1/30/09 1/30/11 Modulation Analyzer HP 8901A 3435A06868 CAL 5/26/09 5/26/11 Digital Multimeter Fluke FLUKE-77-3 79510405 CAL 5/18/09 5/18/11 Analyzer Tan Tower Preamplifier HP 8449B-H02 3008A00372 CAL 11/21/09 11/21/11 Analyzer Tan Tower Quasi- Peak Adapter HP 85650A 3303A01690 CAL 11/22/09 11/22/11 Analyzer Tan Tower RF Preselector HP 85685A 3221A01400 CAL 11/21/09 11/21/11 Analyzer Tan Tower Spectrum Analyzer HP 8566B Opt 462 3138A07786 3144A20661 CAL 11/24/09 11/24/11 Temperature Chamber Tenney Engineering TTRC 11717-7 CHAR 4/25/10 4/25/12 APPLICANT: T&D CORPORATION FCC ID: SRD10050 IC: 5558A-10050 REPORT: Z:\T\T&D CORP_SRD\1596AT10\1596AT10TestReport.doc Page 6 of 18 TEST PROCEDURES Radiation Interference: ANSI C63.4-2003 using a spectrum analyzer, a preselector, a quasi-peak adapter, and an appropriate antenna. The analyzer was calibrated in dB above a microvolt at the output of the antenna. The resolution bandwidth was 100 kHz with an appropriate sweep speed and the video bandwidth was 300 kHz up to 1 GHz and 1 MHz with a video BW of 3 MHz above 1 GHz. When an emission was found, the table was rotated to produce the maximum signal st…
