SRD10080HAND HELD DATA COLLECTOR

© Copyright T&D Corporation. All rights reserved. 2010.11 RTR-500DC Introductory Manual Thank you for purchasing our product. This manual explains in brief how to get an RTR- 500DC unit ready for use and how to install the software. Details about how to use the software "RTR- 500DC for Windows" and its functions can be found in the software "Operation Guide (Help)". i Notices Carefully read this manual so that you can properly use this product. T&D Corporation accepts no responsibility for any malfunction of and/or trouble with this product or with your computer that is caused by the improper handling of this product and will deem such trouble or malfunction as falling outside the conditions for free repair of the attached warranty. - All rights of this Introductory Manual belong to T&D Corporation. It is prohibited to use, duplicate and/or arrange a part or whole of this Introductory Manual without the permission of T&D Corporation. - Microsoft ® and Windows ® are registered trademarks of Microsoft Corporation USA and are binding in the USA and all other countries. - Company names and product names are trademarks or registered trademarks of each company. - Specifications, design and other contents are subject to change without notice. - On screen messages in this manual may vary slightly from the actual messages. - Please notify the shop where you purchased this product or T&D Corporation of any mistakes, errors or unclear explanations in this manual. T&D Corporation accepts no responsibility for any damage or loss of income caused by the use of our product. - This product has been designed for private or industrial use only. It is not for use in situations where strict safety precautions are necessary such as in connection with medical equipment, whether directly or indirectly. - We are not responsible for any malfunction or trouble caused by the use of our product or by any problem caused by the use of measurement results of this Unit. Please be fully aware of this before using our product. - Some of our products, which come under the category of strategic goods in foreign trade law, need the permission of the Japanese government to be exported outside of Japan. - The Manual itself can be downloaded from our Website: http://www.tandd.com/ ii Safety Precautions and Instructions The following items should be strictly obeyed for the safe usage of this Unit, and for protecting yourself and other people from bodily harm and/or damage to property. Before using this product, please read the following carefully and fully understand the contents. Explanation of Symbols Explanation of Warning Symbols D ANGER These entries are actions that absolutely under no circumstance should be taken. The taking of such an action may cause serious personal physical damage or death. CAUTION These entries are actions that if taken may lead to physical injury or damage to persons or things. Explanation of Picture Symbols Denotes an important warning or caution. Denotes a forbidden action. Denotes an action that must be taken. iii WARNING Be sure to follow the war nings and notices about use from your PC maker when installing and using this unit. Do not take apart, repair or modify the main unit. Doing so may cause fire or electrocution. If water or a foreign body enters in this unit, turn the power off and remove the batteries. Continued use may cause fire or electrocution. Do not use this unit in wet or humid places, such as a bathroom. Store RTR-500DC main units, batteries and communication cables out of the reach of children. It is dangerous to touch or swallow batteries. Connecting a communication cable that is connected to a PC or a Data Logger to the telephone cable may cause fire or damage. If any smoke or strange smells are emitted from the unit, immediately turn the power OFF and remove the batteries. Continued use may cause fire or electrocution. Do not drop the unit, or expose the unit to a strong impact. If that happens to the unit, immediately turn the power OFF and remove the batteries. Continued use may cause fire or electrocution. iv CAUTION This unit is not water-resistant. If the unit gets dirty , wipe it with a clean cloth and a mild detergent. Do not put your fingers or foreign matter into the communication port. Battery life depends on the kind of the batteries, measurement en vironment, communication frequency, ambient temperature, and battery quality. Do not use batteries other than specified. Doing so may cause fire or damage. Do not use an AC adaptor other than specified. Doing so may lead to fire or damage. Battery terminals may provide insufficient contact due to age or vibration. This may lead to data loss. If the unit will not be used for period of time, f or safety reasons please remove the battery. If left in the unit, it may leak and lead to malfunctioning. Condensation may occur if the unit is moved from one environment to another where the difference in temperature is great. Use the unit in an environment where the ambient temperature is from 0 to 50 C (32 to 144 F) and the humidity is 90％RH (no condensation) or less. Do not expose the unit to harmful gases or chemicals. It may cause corrosion and/or other danger to the unit and to people handling the unit. To prevent damage to the unit from static electricity, remove static electricity from your body by touching metal around you (door knob, window frame) before touching the unit. Static electricity may cause not only damage to the unit, but may cause breaks in or a loss of data. v CAUTION Do not use the unit in places such as listed below. It may cause electrocution, fire or have adverse effects on the unit or your PC. - In places exposed to direct sun light. The inside temperature of the unit will rise and may cause fire, damage or defor mation. - In areas exposed to strong magnetic fields. It may cause damage. - In places exposed to water leakage. It may cause damage or electrocution. - In areas exposed to static electricity…

Text truncated - open the document above for the full version.

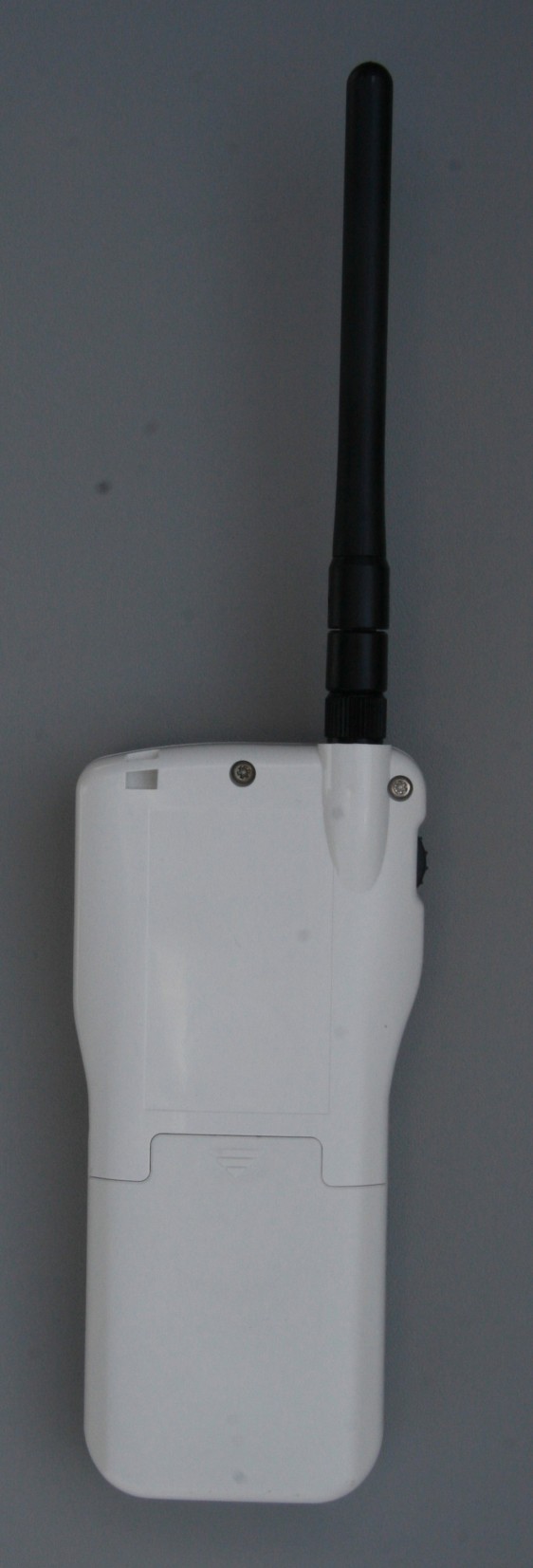

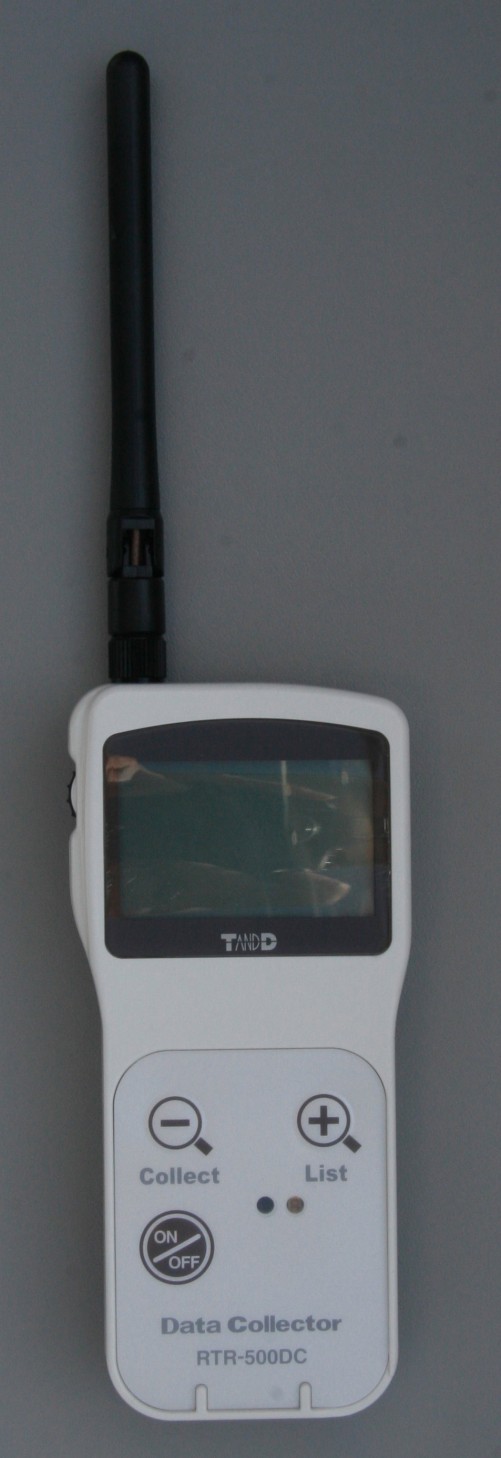

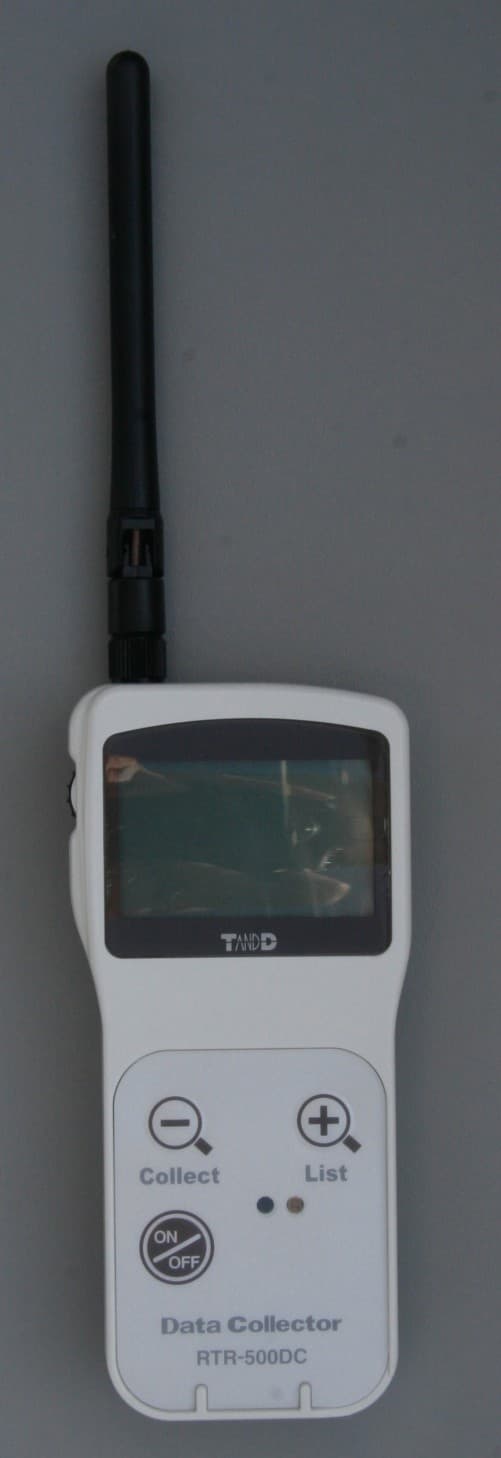

T&D CORPORATION FCC ID: SRD10080 EXTERNAL PHOTOS

DocNo:852-0478-7000 図名:RTR-500DC(US向け)ｼﾘｱﾙｼｰﾙ版下 日付:2010/10/27 作成:岡崎 製品ｺｰﾄﾞ:162-0478-0010 材料：ﾎﾟﾘｴｽﾃﾙﾌｨﾙﾑ 色:ｼﾙﾊﾞｰ(銀ﾏ ｯﾄ)厚さ100ﾐ ｸﾛﾝ 文字色： 黒 ラミ ネート 加工の事 岡崎 10 10 27

T&D CORPORATION FCC ID: SRD10080 INTERNAL PHOTOS

FCC PART 15.247 AND IC RSS-210 TEST REPORT DIGITAL SPREAD SPECTRUM Applicant T&D CORPORATION Address 817-1 SHIMADACHI MATSUMOTO 390-0852 JAPAN FCC ID SRD10080 IC 5558A-10080 Model Number RTR-500DC Product Description HAND HELD DATA COLLECTOR Date Sample Received 11/19/2010 Date Tested 11/29/2010 Tested By Joe Scoglio Approved By Mario R. de Aranzeta Report Number 2635AT10TestReport.doc Test Results PASS FAIL THE ATTACHED REPORT SHALL NOT BE REPRODUCED EXCEPT IN FULL WITHOUT THE WRITTEN APPROVAL OF TIMCO ENGINEERING, INC. 849 NW State Road 45 Newberry, FL 32669 USA Ph: 888.472.2424 or 352.472.5500 Fax: 352.472.2030 Email: [email protected] Website: www.timcoengr.com Testing Certificate # 0955-01 APPLICANT: T&D CORPORATION FCC ID: SRD10080 IC: 5558A-10080 REPORT: T\T&D CORP_SRD\2635AT10\2635AT10TestReport.doc Page 2 of 20 Mdea 3.14.2008 TABLE OF CONTENT GENERAL REMARKS ............................................................................................................................... 3 GENERAL INFORMATION ........................................................................................................................ 4 EMC EQUIPMENT LIST............................................................................................................................ 5 TEST PROCEDURES ................................................................................................................................ 6 RADIATION INTERFERENCE ................................................................................................................... 7 POWER LINE CONDUCTED INTERFERENCE ........................................................................................ 10 OCCUPIED BANDWIDTH ....................................................................................................................... 13 POWER OUTPUT .................................................................................................................................... 15 SPURIOUS EMISSIONS AT ANTENNA TERMINALS ............................................................................... 16 RADIATED SPURIOUS EMISSIONS INTO ADJACENT RESTRICTED BAND .......................................... 18 POWER SPECTRAL DENSITY ................................................................................................................ 20 APPLICANT: T&D CORPORATION FCC ID: SRD10080 IC: 5558A-10080 REPORT: T\T&D CORP_SRD\2635AT10\2635AT10TestReport.doc Page 3 of 20 Mdea 3.14.2008 GENERAL REMARKS The attached report shall not be reproduced except in full without the written permission of Timco Engineering Inc. The test results relate only to the items tested. Summary The device under test does: fulfill the general approval requirements as identified in this test report not fulfill the general approval requirements as identified in this test report Attestations This equipment has been tested in accordance with the standards identified in this test report. To the best of my knowledge and belief, these tests were performed using the measurement procedures described in this report. All instrumentation and accessories used to test products for compliance to the indicated standards are calibrated regularly in accordance with ISO 17025: 2005 requirements. Testing Certificate # 0955-01 I attest that the necessary measurements were made, under my supervision, at: Timco Engineering Inc. 849 NW State Road 45 Newberry, Fl 32669 Authorized Signatory Name: Mario R. de Aranzeta Compliance Engineer Date: December 30, 2010 APPLICANT: T&D CORPORATION FCC ID: SRD10080 IC: 5558A-10080 REPORT: T\T&D CORP_SRD\2635AT10\2635AT10TestReport.doc Page 4 of 20 Mdea 3.14.2008 GENERAL INFORMATION DUT Specification Applicable Standard Part 15.247 DUT Description HAND HELD DATA COLLECTOR FCC ID SRD10080 IC 5558A-10080 Model RTR-500DC Operating Frequency TX: 902-928 MHz DUT Power Source 110–120Vac/50– 60Hz DC Power 3v Battery Operated Exclusively Test Item Prototype Pre-Production Production Type of Equipment Fixed Mobile Portable Test Facility Timco Engineering Inc. located at 849 NW State Road 45 Newberry, FL 32669 USA. Test Conditions Temperature: 26ºC Relative humidity: 50% Test Exercise The DUT was placed in continuous transmit mode of operation. Test Supporting Equipment Supporting Device Manufacturer Model / FCC ID Serial Number N/A APPLICANT: T&D CORPORATION FCC ID: SRD10080 IC: 5558A-10080 REPORT: T\T&D CORP_SRD\2635AT10\2635AT10TestReport.doc Page 5 of 20 Mdea 3.14.2008 EMC EQUIPMENT LIST Device Manufacturer Model Serial Number Cal/Char Date Due Date 3-Meter Semi- Anechoic Chamber Panashield N/A N/A Listed 3/10/10 3/10/12 AC Voltmeter HP 400FL 2213A14499 CAL 3/23/09 3/23/11 Antenna: Dipole Kit Electro- Metrics TDA-30/1-4 153 CHAR 6/10/09 6/10/11 Frequency Counter HP 5385A 3242A07460 CAL 5/26/09 5/26/11 Hygro- Thermometer Extech 445703 0602 CAL 1/30/09 1/30/11 Modulation Analyzer HP 8901A 3435A06868 CAL 5/26/09 5/26/11 Digital Multimeter Fluke FLUKE-77-3 79510405 CAL 5/18/09 5/18/11 Analyzer Tan Tower Preamplifier HP 8449B-H02 3008A00372 CAL 11/21/09 11/21/11 Analyzer Tan Tower Quasi- Peak Adapter HP 85650A 3303A01690 CAL 11/22/09 11/22/11 Analyzer Tan Tower RF Preselector HP 85685A 3221A01400 CAL 11/21/09 11/21/11 Analyzer Tan Tower Spectrum Analyzer HP 8566B Opt 462 3138A07786 3144A20661 CAL 11/24/09 11/24/11 Temperature Chamber Tenney Engineering TTRC 11717-7 CHAR 4/25/10 4/25/12 APPLICANT: T&D CORPORATION FCC ID: SRD10080 IC: 5558A-10080 REPORT: T\T&D CORP_SRD\2635AT10\2635AT10TestReport.doc Page 6 of 20 Mdea 3.14.2008 TEST PROCEDURES Radiation Interference: ANSI C63.4-2003 using a spectrum analyzer, a preselector, a quasi-peak adapter, and an appropriate antenna. The analyzer was calibrated in dB above a microvolt at the output of the antenna. The resolution bandwidth was 100 kHz with an appropriate sweep speed and the video bandwidth was 300 kHz up to 1 GHz and 1 MHz with a video BW of 3 MHz above 1 GHz. When an emissi…

Text truncated - open the document above for the full version.

T&D CORPORATION FCC ID: SRD10080 TEST SET UP PHOTOS RADIATED EMISSIONS: POWERLINE CONDUCTED EMISSIONS:
