SRD50010Wireless Thermo Recorder

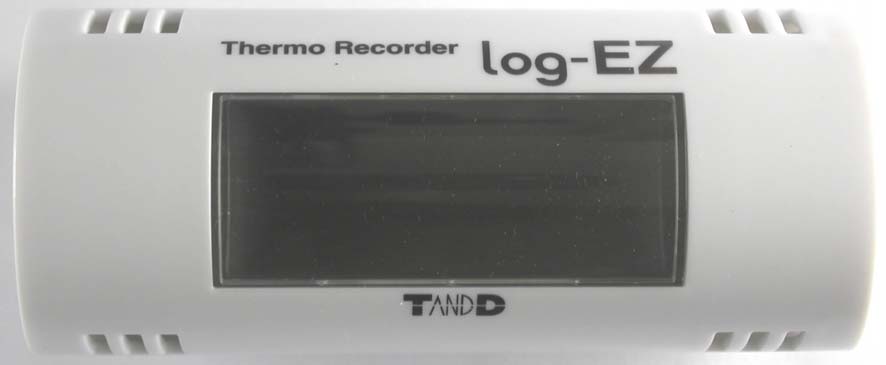

ATTACHMENT A2 to File No.: T35019-00 mikes-testingpartners gmbh ‹ Ohmstrasse 2-4 ‹ D-94342 Strasskirchen ‹ Tel:+49-9424-9481-0 ‹ Fax:+49-9424-9481-240 Photo documentation of the EUT Model: RTR-322 External Views: ATTACHMENT A2 to File No.: T35019-00 mikes-testingpartners gmbh ‹ Ohmstrasse 2-4 ‹ D-94342 Strasskirchen ‹ Tel:+49-9424-9481-0 ‹ Fax:+49-9424-9481-240 Side views:

85 36 RTR-322(海外) 外観図 坂野 設計 製図 検図 承認 内 容 年 月 日担当 株式会社 ティアンドデイ 材料 処理 品名 製品コード 0 0.5 0.5 6 6 30 30 120 120 350 350 1000 ±0.05 ±0.1 ±0.5±0.8 1 2 3 ±0.2 ±0.3 差 公 度 尺 位 単 Doc.No.RTR322海外外観 1:1 mm

ATTACHMENT A2 to File No.: T35019-00 mikes-testingpartners gmbh ‹ Ohmstrasse 2-4 ‹ D-94342 Strasskirchen ‹ Tel:+49-9424-9481-0 ‹ Fax:+49-9424-9481-240 Internal view – Rear view of PCB: ATTACHMENT A2 to File No.: T35019-00 mikes-testingpartners gmbh ‹ Ohmstrasse 2-4 ‹ D-94342 Strasskirchen ‹ Tel:+49-9424-9481-0 ‹ Fax:+49-9424-9481-240 Internal view – Front view of PCB:

FCC ID:SRD50010 mikes-testingpartners gmbh File No. T35019-00-06HU, page 1 of 43 Ohmstrasse 2-4 x 94342 STRASSKIRCHEN x GERMANY Tel.:+49(0)9424-94810 xFax: ++49(0)9424-9481240 Rev. No. 1.2, 9.9.2010 EMI − T E S T R E P O R T - FCC Part 15.247 - Test Report No. : T35019-00-06HU 18. May 2011 ______________________________________________________________________________________________ Date of issue Type / Model Name : RTR-322 Product Description : Wireless Thermo Recorder Applicant : T&D CORPORATION Address : 817-1 Shimadachi Matsumoto City NAGANO 390-0852 JAPAN Manufacturer : T&D CORPORATION Address : 817-1 Shimadachi Matsumoto City NAGANO 390-0852 JAPAN Licence holder : T&D CORPORATION Address : 817-1 Shimadachi Matsumoto City NAGANO 390-0852 JAPAN Test Result according to the standards listed in clause 1 test standards: POSITIVE The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test results without the written permission of the test laboratory. FCC ID:SRD50010 mikes-testingpartners gmbh File No. T35019-00-06HU, page 2 of 43 Ohmstrasse 2-4 x 94342 STRASSKIRCHEN x GERMANY Tel.:+49(0)9424-94810 xFax: ++49(0)9424-9481240 Rev. No. 1.2, 9.9.2010 Contents 1 TEST STANDARDS 3 2 SUMMARY 4 3 EQUIPMENT UNDER TEST 5 3.1 Photo documentation of the EUT – Detailed photos see attachment A2 5 3.2 Power supply system utilised 5 3.3 Short description of the equipment under test (EUT) 5 4 TEST ENVIRONMENT 6 4.1 Address of the test laboratory 6 4.2 Environmental conditions 6 4.3 Statement of the measurement uncertainty 6 4.4 Measurement protocol for FCC, VCCI and AUSTEL 6 5 TEST CONDITIONS AND RESULTS 9 5.1 Conducted emissions 9 5.2 Emission bandwidth 10 5.3 Maximum peak conducted output power 15 5.4 Spurious emissions conducted 20 5.5 Spurious emissions 29 5.6 Power spectral density 33 5.7 Receiver radiated emissions 37 5.8 Maximum permissible exposure (MPE) 40 5.9 Antenna application - Detailed photos see attachment A2 42 6 USED TEST EQUIPMENT AND ACCESSORIES 43 FCC ID:SRD50010 mikes-testingpartners gmbh File No. T35019-00-06HU, page 3 of 43 Ohmstrasse 2-4 x 94342 STRASSKIRCHEN x GERMANY Tel.:+49(0)9424-94810 xFax: ++49(0)9424-9481240 Rev. No. 1.2, 9.9.2010 1 TEST STANDARDS The tests were performed according to following standards: FCC Rules and Regulations Part 15, Subpart A - General (October, 2010) Part 15, Subpart A, Section 15.31 Measurement standards Part 15, Subpart A, Section 15.33 Frequency range of radiated measurements Part 15, Subpart A, Section 15.35 Measurement detector functions and bandwidths FCC Rules and Regulations Part 15, Subpart C - Intentional Radiators (October, 2010) Part 15, Subpart C, Section 15.203 Antenna requirement Part 15, Subpart C, Section 15.205 Restricted bands of operation Part 15, Subpart C, Section 15.207 Conducted limits Part 15, Subpart C, Section 15.209 Radiated emission limits, general requirements Part 15, Subpart C, Section 15.247 Operation within the bands 902 - 928 MHz, 2400 - 2483.5 MHz and 5725 - 5850 MHz FCC Rules and Regulations Part 1, Subpart I - Procedures Implementing the National Environmental Policy Act of 1969 Part 1, Subpart I, Section 1.1310 Radiofrequency radiation exposure limits Part 1, Subpart 2, Section 2.1093 Radiofrequency radiation exposure evaluation: portable device OET Bulletin 65, 65A, 65B, 65C Edition 97-01, August 1997 – Evaluating Compliance with FCC Guidelines for Human Exposure to Radio Frequency Electromagnetic Fields. ANSI C63.4: 2003 Methods of Measurement of Radio-Noise Emissions from Low- Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz. ANSI C95.1:1992 IEEE Standard for Safety Levels with respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz CISPR 16-4-2: 2003 Uncertainty in EMC measurement CISPR 22: 2005 Information technology equipment EN 55022: 2006 FCC ID:SRD50010 mikes-testingpartners gmbh File No. T35019-00-06HU, page 4 of 43 Ohmstrasse 2-4 x 94342 STRASSKIRCHEN x GERMANY Tel.:+49(0)9424-94810 xFax: ++49(0)9424-9481240 Rev. No. 1.2, 9.9.2010 2 SUMMARY GENERAL REMARKS: The EuT is battery powered. After each measurement the battery voltage was checked via Multimeter. After the third measurement the battery was replaced by a new one. To activate the test mode of the RTR-322 unit it is necessary to hold continually switch 1 and then connecting the power (inserting a battery). The conducted tests were performed with a modified test sample with antenna connector cable. The radiated tests were performed with an original sample. The EuT is declared as Class B digital device. FINAL ASSESSMENT: The equipment under test fulfills the EMC requirements cited in clause 1 test standards. Date of receipt of test sample : acc. to storage records Testing commenced on : 07. March 2011 Testing concluded on : 06. April 2011 Checked by: Tested by: Harald Buchwald Dipl. Ing.(FH) Manager: EMC Markus Huber FCC ID:SRD50010 mikes-testingpartners gmbh File No. T35019-00-06HU, page 5 of 43 Ohmstrasse 2-4 x 94342 STRASSKIRCHEN x GERMANY Tel.:+49(0)9424-94810 xFax: ++49(0)9424-9481240 Rev. No. 1.2, 9.9.2010 3 EQUIPMENT UNDER TEST 3.1 Photo documentation of the EUT – Detailed photos see attachment A2 3.2 Power supply system utilised Power supply voltage : 1.5 V / DC (Battery Size AA) 3.3 Short description of the equipment under test (EUT) The EuT is a wireless thermo recorder. The RTR-322 (log-EZ) measures and records temperature and humidity of the Location where it is placed. The measured datas can be downloaded via RTR-300 unit. Number of tested samples: 1 Serial number: Prototype EUT operation mode: The equipment under test was operated during the measurement under the following conditions: - TX mode at CH 0 (2433.00 MHz), CH 123 (2457.593994156MHz), CH 247 (2482.387939484MHz) - RX mode at CH 0 (2433.00 MHz), CH 123 (2457.593994156MHz), CH 247 (2482.387939484MHz) - Device Idle (Radio Off) EUT configuration: The following peripheral devices…

Text truncated - open the document above for the full version.

mikes-testingpartners gmbh File No. T35019-00-07HU, page 9 of 46 Ohmstrasse 2-4 x 94342 STRASSKIRCHEN x GERMANY Tel.: +49(0)9424-94810 x Fax: +49(0)9424-9481240 Rev. No. 1.0, 26.1.2011 5.2 Occupied bandwidth For test instruments and accessories used see section 6 Part MB. 5.2.1 Description of the test location Test location: Shielded Room S4 5.2.2 Photo documentation of the test set-up 5.2.1 Applicable standard According to RSS-Gen, 4.6.1: When an occupied bandwidth value is not specified in the applicable RSS, the transmitted signal bandwidth to be reported is to be its 99% emission bandwidth, as calculated or measured. 5.2.2 Description of Measurement The bandwidth was measured with the function “bandwidth measurement” of the spectrum analyser. The EUT is connected via suitable attenuator at the spectrum analyser. The measurement is repeated for every different modulation standard of the EUT and recorded. Spectrum analyser settings: see attached plots: 5.2.3 Test result Channel number Fundamental frequency (MHz) 99 % Bandwidth (MHz) 0 2433.00 1.264 123 2457.59 1.360 247 2482.39 1.376 Remarks: For detailed test result please refer to following test protocols. The RSS Gen defines no limit for the occupied bandwidth! mikes-testingpartners gmbh File No. T35019-00-07HU, page 31 of 46 Ohmstrasse 2-4 x 94342 STRASSKIRCHEN x GERMANY Tel.: +49(0)9424-94810 x Fax: +49(0)9424-9481240 Rev. No. 1.0, 26.1.2011 5.6 Emissions falling within restricted bands For test instruments and accessories used see section 6 Part SER 1, SER 2, SER 3. 5.6.1 Description of the test location Test location: OATS1 Test distance: 3 metres Test location: Anechoic Chamber A2 Test distance: 3 metres 5.6.2 Photo documentation of the test set-up mikes-testingpartners gmbh File No. T35019-00-07HU, page 32 of 46 Ohmstrasse 2-4 x 94342 STRASSKIRCHEN x GERMANY Tel.: +49(0)9424-94810 x Fax: +49(0)9424-9481240 Rev. No. 1.0, 26.1.2011 5.6.3 Applicable standard According to RSS-Gen, 7.2.2: Restricted bands, identified in Table 1, are designated primarily for safety-of-life services (distress calling and certain aeronautical bands), certain satellite downlinks, radio astronomy and some government uses. Except where otherwise indicated, the following restrictions apply: (a) fundamental components of modulation of licence-exempt radio apparatus shall not fall within the restricted bands of Table 1; (b) unwanted emissions falling into restricted bands of Table 1 shall comply with the limits specified in RSS-Gen; (c) unwanted emissions not falling within restricted frequency bands shall either comply with the limits specified in the applicable RSS, or with those specified in RSS-Gen. 5.6.4 Description of Measurement The measurement is performed radiated. For testing above 1 GHz, if the emission level of the EUT in peak mode complies with the average limit is 20 dB lower, then testing will be stopped and peak values of the EUT will be reported, otherwise, the emission will be measured in average mode again and reported. 5.6.4.1 Radiated emission test f < 1 GHz In the frequency range from 9 kHz to 30 MHz no radiated emissions could be measured. In the frequency range from 30 MHz up to 1 GHz no radiated emissions could be measured.
