SW8FW21404 Port Wireless USB Server

4-Port Wireless USB Server User's Manual 3 Table of Contents Safety instructions ...............................................................4 Copyright...............................................................................4 Trademarks ...........................................................................4 Introduction...........................................................................5 Features.................................................................................5 Package contents .................................................................5 Connectivity ..........................................................................6 System requirement .............................................................6 Product overview..................................................................7 Connection............................................................................8 - Power connection...................................................................... 8 - Network connection..................................................................10 Utility installation................................................................ 13 Utility operation .................................................................. 14 - Getting started..........................................................................14 - Device mapping........................................................................16 - Device request .........................................................................18 - Device setting...........................................................................20 - Printer sharing ..........................................................................23 - Server manager .......................................................................25 :HEEDVHGFRQ¿JXUDWLRQ.................................................. 35 - Home page...............................................................................35 - Network page ...........................................................................36 - Status page ..............................................................................37 - Upgrade page...........................................................................37 - Log page ..................................................................................38 - Settings page ...........................................................................39 Regulatory compliance ...................................................... 40 - FCC conditions.........................................................................40 - CE ............................................................................................40 - WEEE information ....................................................................40 6SHFL¿FDWLRQ....................................................................... 41 4 Before attempting to connect, operate or adjust this product, please save and read the User's Manual completely. The style of the product shown in this User's Manual may be different from the actual unit due to various models. Safety instructions Always read the safety instructions carefully: Ŷ.HHSWKLV8VHU¶V0DQXDOIRUIXWXUHUHIHUHQFH Ŷ.HHSWKLVHTXLSPHQWDZD\IURPKXPLGLW\ Ŷ,IDQ\RIWKHIROORZLQJVLWXDWLRQDULVHVJHWWKHHTXLSPHQW checked by a service technician: • The equipment has been exposed to moisture. • The equipment has been dropped and damaged. • The equipment has obvious sign of breakage. • The equipment has not been working well or cannot get LWWRZRUNDFFRUGLQJWRWKH8VHU¶V0DQXDO Copyright This document contains proprietary information protected by copyright. All right are reserved. No part of this manual may be reproduced by any mechanical, electronic or other means, in any form, without prior written permission of the manufacturer. Trademarks All trademarks and registered trademarks are the property of their respective owners or companies. 5 Introduction This server allows you to control the USB devices (such as multi-function printer, scanner, keyboard and etc.) using a computer through a network. it provides USB2.0 full-speed data transmission rate up to 480Mbps, and 4 USB device connections are supported. Except the Ethernet connection, the built-in WiFi connection allows you to access these USB devices without 5 meters limitation of USB cable. Features Ŷ&RPSOLDQWZLWK86%YHUVLRQVSHFL¿FDWLRQ Ŷ+LJKVSHHG86%GDWDWUDQVPLVVLRQUDWHXSWR0ESV Ŷ0ESV(WKHUQHWSRUWIRU/$1 ŶEJQ:L)LIRUZLUHOHVV/$1 Ŷ&HQWUDOL]HGUHPRWH86%VHUYHUPDQDJHPHQW Ŷ&HQWUDOL]HGUHPRYHGHYLFHVWDWXVPRQLWRULQJ Ŷ.9'&(6'LPPXQLW\WR86%SRUW Ŷ',1UDLOPRXQWDEOH Package contents ŶWireless USB server x1 Ŷ&' 'ULYHU 8VHU¶V0DQXDO [ Ŷ3RZHUDGDSWHU $8(88.86DGDSWHUFRQYHUWHU included) 6 Connectivity - The USB server provides the following connections to your USB devices Ŷ86%+LJKVSHHGSRUWV Ŷ)XOOP$SRZHUSURYLGHGWRHDFKSRUW - The USB Server provides the following connections to your Network Ŷ5-(WKHUQHWFRQQHFWRU Ŷ0ESVDXWRVHQVLQJ $XWR0',;FDSDEOH Ŷ,3DGGUHVVLQJ6WDWLF'+&3 System requirement Ŷ,%0FRPSDWLEOHFRPSXWHURU0DF Ŷ:LQGRZV ® :LQGRZV9LVWD ® :LQGRZV;3 ® ELW Windows 2000 ® and Mac OS ® ; Ŷ%XLOWLQ86%SRUWFRPSXWHU Ŷ0%5$0RUKLJKHU Ŷ3HQWLXP ® 0+]RUKLJKHU Ŷ0DFLQWRVK0DF26; RUODWHU Ŷ/LQX[RU/DWHU 7 Product overview 8 9 10 11 765 4 3 2 1 1 WiFi antenna 2 Reset button: Presses to restore the factory default settings. 3 Link/Act: ŶLights green when connecting to an available network. ŶFlashes green when the wireless data is transmitting. 4 Power indicator: Lights up when the power is on. 5 Signal strength: Displays the status of signal strength. 6 RJ-45 Ethernet connector: Connects to an available LAN (Local area network). 7 LED indicator : Lights up when a USB type-A co…

Text truncated - open the document above for the full version.

Good Way Technology Co., Ltd. FCC Declaration of Conformity Number: CF302 Version: V04 Date: 22-09-2011 A declaration of conformity can only be issued by a U.S. entity based on a test report from an accredited laboratory. Accredited laboratories are located in the US, or in a country where the FCC has signed an MRA with. For a full list of accredited laboratories recognized by the FCC, please go to the FCC website https://fjallfoss.fcc.gov/oetcf/eas/reports/TestFirmSearch.cfm and for Test Firm Type, select “Accredited”. Additional information on administrative requirements for Declaration of Conformity can be found in KDB Publication Number 349827. We, (responsible party must be a legal entity registered within the U.S., see FCC rule part 2.909 (2), must a U.S. address, such as importer or local manufacturer) Company Name: Good Way Technology Co., Ltd. Address: 3F, No. 135, Lane 235, Pau Chiao Rd Postal/Zip: 231 City: Hsin- Tien City State/Province: Taipei Hsien Country: Taiwan Contact Person: Mr. Ms. Name: Mark Tu Function: Technical Supervisor Email: [email protected] Web: Phone: 886-289191200 Fax: 886-289191200 declare for the equipment identified by: Product Description 4 Port Wireless USB Server Type or Model(s) FW2140 Tradename or Brand(s) GOODWAY that: (if the DoC test reports are available at this moment, please cross item a below) a). The following test reports, issued by an FCC accredited Laboratory, are subject to this declaration: Accredited Test Firm or Laboratory name: Accreditation Reference: Test Report Number: Date of issue: Cerpass Technology Corporation (Taipei, Taiwan) APEC TEL / designation No. TW1049 TED1108164 Sep. 28, 2011 Cerpass Technology Corporation (Taipei, Taiwan) APEC TEL / designation No. TW1049 TEFI1108164 Sep. 28, 2011 (if no DoC test report is available at this moment, then if you agree with the statement made in item b below, please cross item b below) b). DoC testing is pending at this moment, but will execute and finish the required DoC testing in an FCC accredited Laboratory before marketing the device in the U.S. The following Accredited Test Firm will complete DoC testing: Accredited Test Firm or Laboratory name: Attestation: In addition to our declaration above, we also will ensure to label the equipment with the FCC logo, the name of the manufacturer and model number, as required by the FCC rule part 15.19. City and Country: Date: Name: (this must be a person) Function: Signature: (or official company stamp) Enschede, The Netherlands 2011-10-12 Mark Koop (authorized person) Manager This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. DoC

Good Way Technology Limited Channel Declaration Number: CF309 Version: V01 Date: 08-09-2011 (This form must be used and submitted for applications concerning equipment that may risk operating on non-U.S. frequencies that not allowed to use in the U.S., or equipment that may risk operating beyond the frequency channels for which it is certified.) To: Federal Communications Commission 7345 Oakland Mills Road Columbia MD 21046 Attention: Application Examiner / Review Engineer Subject: Amount of Channels limited for devices marketed in the US Hereby, we: (the applicant company) Company Name Good Way Technology Co., Ltd. Address: 3F, No. 135, Lane 235, Pau Chiao Rd. Postal/Zip: 231 City: Taipei Hsien State/Province: Country: Taiwan declare that this device identified by: Grantee Code (CG) Product Code FCC ID: SW8 FW2140 (below, please provide the channels and frequencies supported by this device) only supports IEEE802.11b/g/n(HT20) channel 1-11 (2412–2462 MHz) and IEEE802.11n(HT40) channel 3-9 (2422–4452 MHz) for marketing and use in the US. The end user will not be able to select any other channel or non US frequency that could violate the restricted bands in the US. (Attestation) (the applicant company or its authorized representative) City and Country: Date: Name: (this must be a person) Function: Signature: (or official company stamp) Enschede, The Netherlands 2011-10-11 Mark Koop (authorized person) Manager

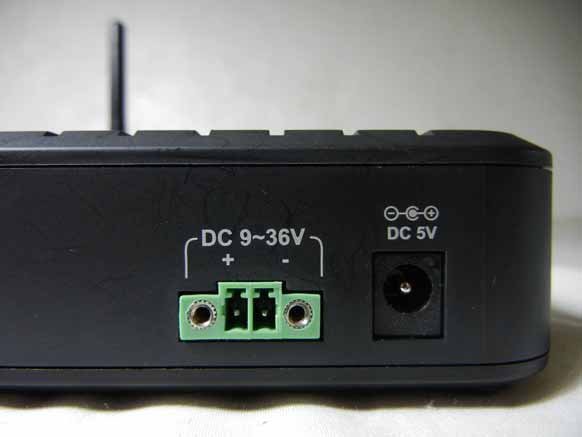

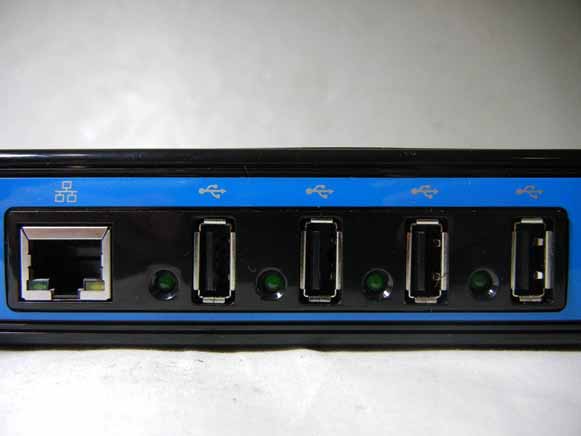

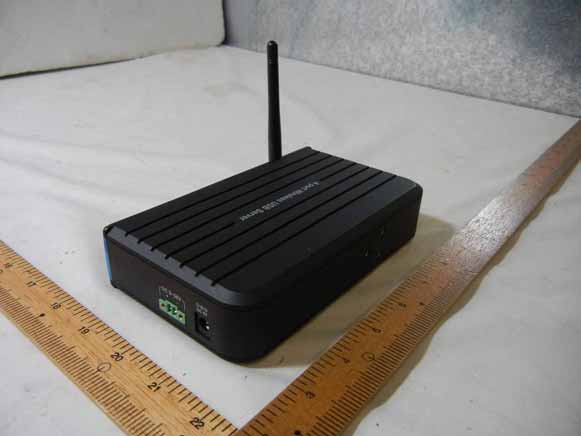

CERPASS TECHNOLOGY CORP. Report No.: TEFI1108164 Cerpass Technology Corp. Issued Date : Sep. 28, 2011 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : A1 of A7 FCC ID : SW8FW2140 Appendix A. Photographs of EUT CERPASS TECHNOLOGY CORP. Report No.: TEFI1108164 Cerpass Technology Corp. Issued Date : Sep. 28, 2011 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : A2 of A7 FCC ID : SW8FW2140

Label & Location

CERPASS TECHNOLOGY CORP. Report No.: TEFI1108164 Cerpass Technology Corp. Issued Date : Sep. 28, 2011 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : A3 of A7 FCC ID : SW8FW2140 CERPASS TECHNOLOGY CORP. Report No.: TEFI1108164 Cerpass Technology Corp. Issued Date : Sep. 28, 2011 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : A4 of A7 FCC ID : SW8FW2140 CERPASS TECHNOLOGY CORP. Report No.: TEFI1108164 Cerpass Technology Corp. Issued Date : Sep. 28, 2011 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : A5 of A7 FCC ID : SW8FW2140 CERPASS TECHNOLOGY CORP. Report No.: TEFI1108164 Cerpass Technology Corp. Issued Date : Sep. 28, 2011 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : A6 of A7 FCC ID : SW8FW2140 CERPASS TECHNOLOGY CORP. Report No.: TEFI1108164 Cerpass Technology Corp. Issued Date : Sep. 28, 2011 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : A7 of A7 FCC ID : SW8FW2140

Test Result of RF Exposure Evaluation . Product: 4 Port Wireless USB Server . Test Item: RF Exposure Evaluation Data . Test site: OATSI-SD Antenna Gain Frequency Range: 2.412-2.462 GHz Antenna type: Dipole Antenna Antenna Gain: 2 dBi EUT Operation condition Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. Output Power into Antenna & RF Exposure Evaluation Distance Test Date: Sep. 23, 2011 Temperature: 24 Atmospheric pressure: 1020 hPa Humidity: 65% Modulation Standard Channel Frequency (MHz) Output Power to Antenna (dBm) Power Density (S) (mW/cm 2 ) 802.11b (11Mbps) 01 2412 17.68 0.018 06 2437 17.45 0.018 11 2462 17.28 0.017 802.11g (54Mbps) 01 2412 15.32 0.011 06 2437 15.07 0.010 11 2462 15.38 0.011 802.11n HT20 (130Mbps) 01 2412 15.24 0.011 06 2437 15.39 0.011 11 2462 15.29 0.011 802.11n HT40 (270Mbps) 03 2422 15.13 0.010 06 2437 15.26 0.011 09 2452 15.35 0.011 The MPE is calculated as 0.018 mW / cm 2 < limit 1 mW / cm 2 . So, RF exposure limit warning or SAR test are not required.

CERPASS TECHNOLOGY CORP. Report No.: TEFI1108164 Cerpass Technology Corp. Issued date : Sep. 28, 2011 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 1 of 93 FCC ID : SW8FW2140 FCC TEST REPORT According to FCC Rules and Regulations Part 15 Subpart C Applicant : Good Way Technology Co., Ltd. Address : 3F, No. 135, Lane 235, Pau Chiao Rd., Hsin-Tien City, 231 Taipei Hsien, Taiwan Equipment : 4 Port Wireless USB Server Model No. : FW2140 FCC ID. : SW8FW2140 Trade Name : GOOD WAY ‚ The test result refers exclusively to the test presented test model / sample., ‚ Without written approval of Cerpass Technology Corp., the test report shall not be reproduced except in full. ‚ The EUT is also considered as a kind of computer peripheral, because the connection to computer is necessary for typical use. It has been verified to comply with the requirements of FCC Part 15, Subpart B, Class B (DoC). The test report has been issued separately. CERPASS TECHNOLOGY CORP. Report No.: TEFI1108164 Cerpass Technology Corp. Issued date : Sep. 28, 2011 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 2 of 93 FCC ID : SW8FW2140 Contents 1. Report of Measurements and Examinations .................................................................................... 6 1.1 List of Measurements and Examinations ................................................................................... 6 2. Test Configuration of Equipment under Test ................................................................................... 7 2.1 Feature of Equipment under Test ............................................................................................... 7 2.2 RF Specifications ....................................................................................................................... 7 2.3 Carrier Frequency of Channels .................................................................................................. 8 2.4 Test Mode and Test Software ..................................................................................................... 8 2.5 Description of Test System ......................................................................................................... 9 2.6 General Information of Test ...................................................................................................... 10 2.7 Measurement Uncertainty ........................................................................................................ 10 3. Antenna Requirements ..................................................................................................................... 11 3.1 Standard Applicable ................................................................................................................. 11 3.2 Antenna Construction and Directional Gain ............................................................................. 11 4. Test of Conducted Emission ............................................................................................................ 12 4.1 Test Limit .................................................................................................................................. 12 4.2 Test Procedures ....................................................................................................................... 12 4.3 Typical Test Setup .................................................................................................................... 13 4.4 Measurement Equipment ......................................................................................................... 13 4.5 Test Result and Data ................................................................................................................ 14 4.6 Test Photographs ..................................................................................................................... 20 5. Test of Radiated Emission ............................................................................................................... 21 5.1 Test Limit .................................................................................................................................. 21 5.2 Test Procedures ....................................................................................................................... 21 5.3 Typical Test Setup .................................................................................................................... 22 5.4 Measurement Equipment ......................................................................................................... 22 5.5 Test Result and Data ................................................................................................................ 23 5.6 Test Photographs ..................................................................................................................... 59 6. 6dB Bandwidth Measurement Data ................................................................................................. 60 6.1 Test Limit .................................................................................................................................. 60 6.2 Test Procedures ....................................................................................................................... 60 6.3 Test Setup Layout .................................................................................................................... 60 6.4 Measurement Equipment ......................................................................................................... 60 6.5 Test Result and Data ................................................................................................................ 60 7. Maximum Peak Output Power ......................................................................................................... 67 7.1 Test Limit ................................................................................................................…

Text truncated - open the document above for the full version.

CERPASS TECHNOLOGY CORP. Report No.: TEFI1108164 Cerpass Technology Corp. Issued date : Sep. 28, 2011 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 19 of 92 FCC ID : SW8FW2140 4.6 Test Photographs Front View Rear View CERPASS TECHNOLOGY CORP. Report No.: TEFI1108164 Cerpass Technology Corp. Issued date : Sep. 28, 2011 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 58 of 92 FCC ID : SW8FW2140 5.6 Test Photographs Front View Rear View

CERPASS TECHNOLOGY CORP. Report No.: TEFI1108164 Cerpass Technology Corp. Issued date : Sep. 28, 2011 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 19 of 92 FCC ID : SW8FW2140 4.6 Test Photographs Front View Rear View CERPASS TECHNOLOGY CORP. Report No.: TEFI1108164 Cerpass Technology Corp. Issued date : Sep. 28, 2011 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 58 of 92 FCC ID : SW8FW2140 5.6 Test Photographs Front View Rear View
