SW8TD1000Power Switch

Power Switch User’s Manual ABOUT THIS MANUAL This manual is designed for use with the Power Switch. Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. The manufacturer does not make any representations or warranties (implied or otherwise) regarding the accuracy and completeness of this document and shall in no event be liable for any loss of profit or any commercial damage, including but not limited to special, incidental, consequential, or other damage. SAFETY INSTRUCTIONS Always read the safety instructions carefully: „ Keep this User’s Manual for future reference „ Keep this equipment away from humidity „ If any of the following situation arises, get the equipment checked by a service technician: xThe equipment has been exposed to moisture. xThe equipment has been dropped and damaged. xThe equipment has obvious sign of breakage. xThe equipment has not been working well or you cannot get it to work according to the User’s Manual. COPYRIGHT This document contains proprietary information protected by copyright. All right are reserved. No part of this manual may be reproduced by any mechanical, electronic or other means, in any form, without prior written permission of the manufacturer. TRADEMARKS All trademarks and registered trademarks are the property of their respective owners or companies. i Table of Contents 1. Introduction............................................................................................................ 1 Features.............................................................................................................. 2 Package Contents............................................................................................... 2 LED Indicator...................................................................................................... 2 Z-Wave “ ............................................................................................................. 2 Wireless Range .................................................................................................. 3 2. Installation .............................................................................................................. 4 Hardware Connection ......................................................................................... 4 Product Description............................................................................................. 5 Installation Requirements ................................................................................... 5 Installing the PowerSwitch ................................................................................ 6 3. Specifications......................................................................................................... 7 4. Regulatory Compliance ......................................................................................... 8 FCC Conditions .................................................................................................. 8 WEEE Information .............................................................................................. 8 ii 1. Introduction The Power Switch allows you to turn on/off the attached appliance, electronic device or lamp wirelessly by using Z-Wave “ protocol remote control. You can control the attached load in your home through PC connectivity with a Z-Wave “ USB dongle when you are away from home.ʳʳʳʳ ʳʳʳNote: To avoid any dangerous accident, please don’t use this product on the plug of extended power line or else instead of wall plug. ʳʳ ʳ ʳ ʳ ʳ 1 Features Simple plug and play installation. Support electronic appliance or lamp with maximum loading of 1500W Stand-by power consumption: 0.6 W Control On/Off function manually with knob button or remote control by PC equipped with Z-Wave “ certified USB dongle. Fully compatible with Z-Wave “ enabled network and capable of communicating with any Z-Wave “ certified device. All products other then the Power Switch itself are sold separately. Package Contents Power Switch x1 User’s Manual x1 LED Indicator LEDColorDescription PowerRed Power Switch Power on. LinkGreen Z-Wave “ RF transfer or receive. Z-Wave Z-Wave “ is a state-of-the-art wireless technology used as a standard for wireless home control. It is a next-generation wireless ecosystem that lets all your home electronics talk to each other, and to you, via a controller or gateway. It uses simple, reliable, low-power radio waves that easily travel through walls, floors and cabinets. All products featuring the Z-Wave “ logo are certified to work with one another. 2 3 Wireless Range The Power Switch is made wireless by Z-Wave “ technology. Typical range for a wireless module is approximately 100 feet. When installing the module consider an open area with little obstruction for the best signal and performance. Avoiding the obstruction between the module and controller may make a negative effect on wireless performance and range. 2. Installation Hardware Connection LED Z-Wave “ Enabled Outlet Plug Switch Button 4 Product Description Below is a description of button, light and plugs for the Power Switch. Z-Wave “ Enable Outlet This outlet is a socket where the device or equipment you wish to control should plug into, such as LCD monitor. Note that any device plugged into this outlet must NOT exceed 1500 watts. LED The light will blink to indicate that the module has been entered “Program Mode” or when it is communicating wirelessly to the Z-Wave “ controller (i.e. Z-Wave “ Dongle). Switch Button When the Power Switch has been installed, pressing the switch button will manually turn the attached device on or off. When primary controller is waiting for inclusion or exclusion to setup Z-Wave “ Network, please press this button could add or remove this device from Z-Wave “ network. Wall Outlet Plug Located on t…

Text truncated - open the document above for the full version.

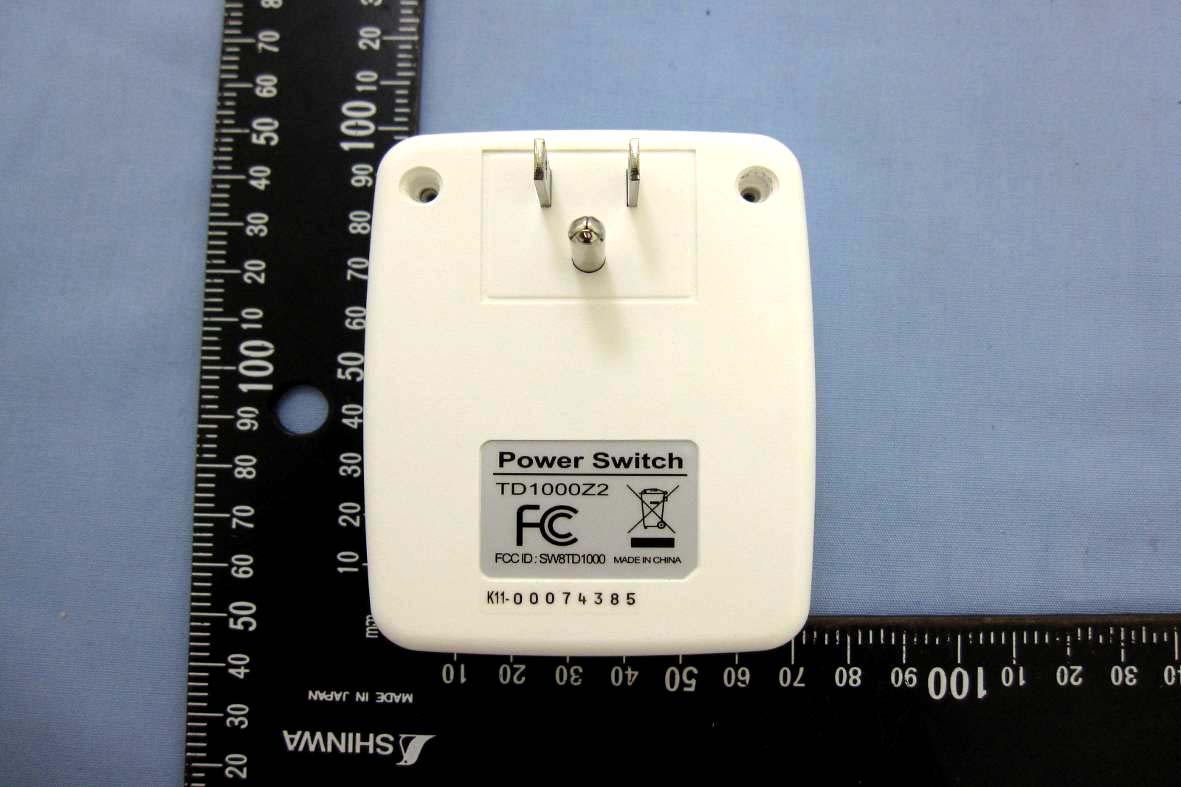

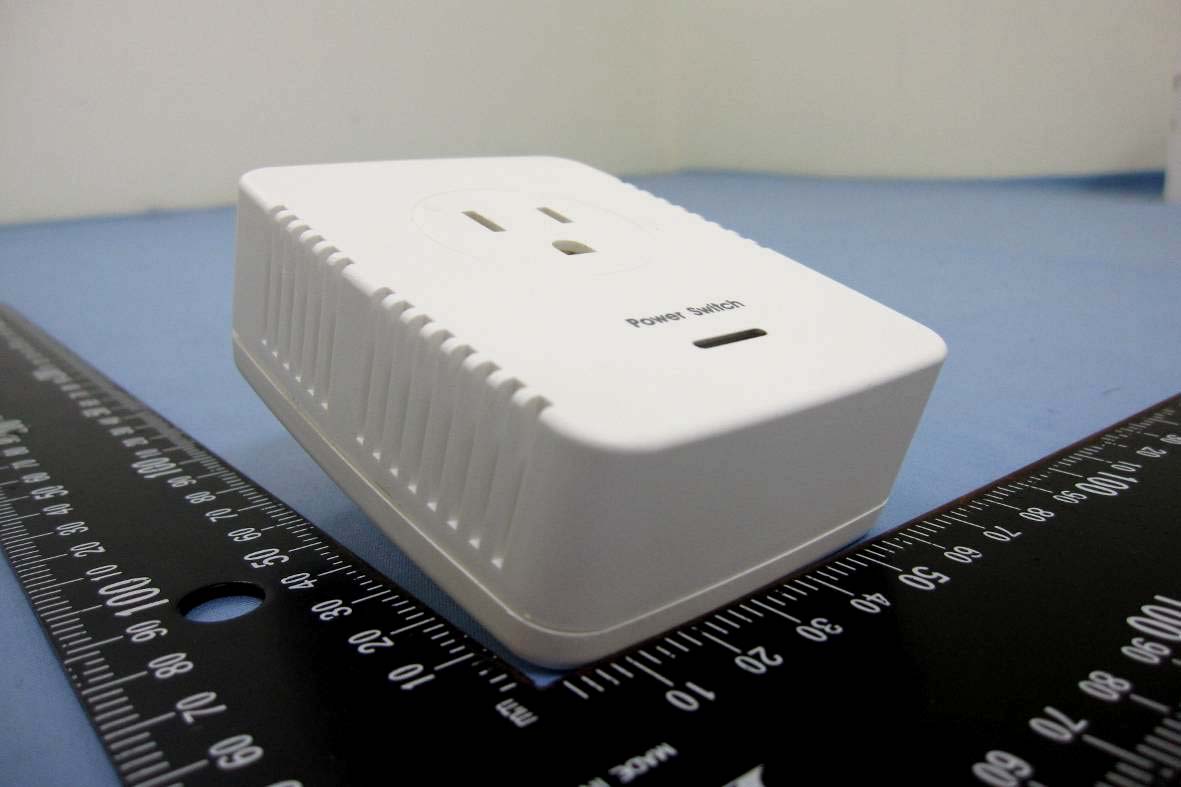

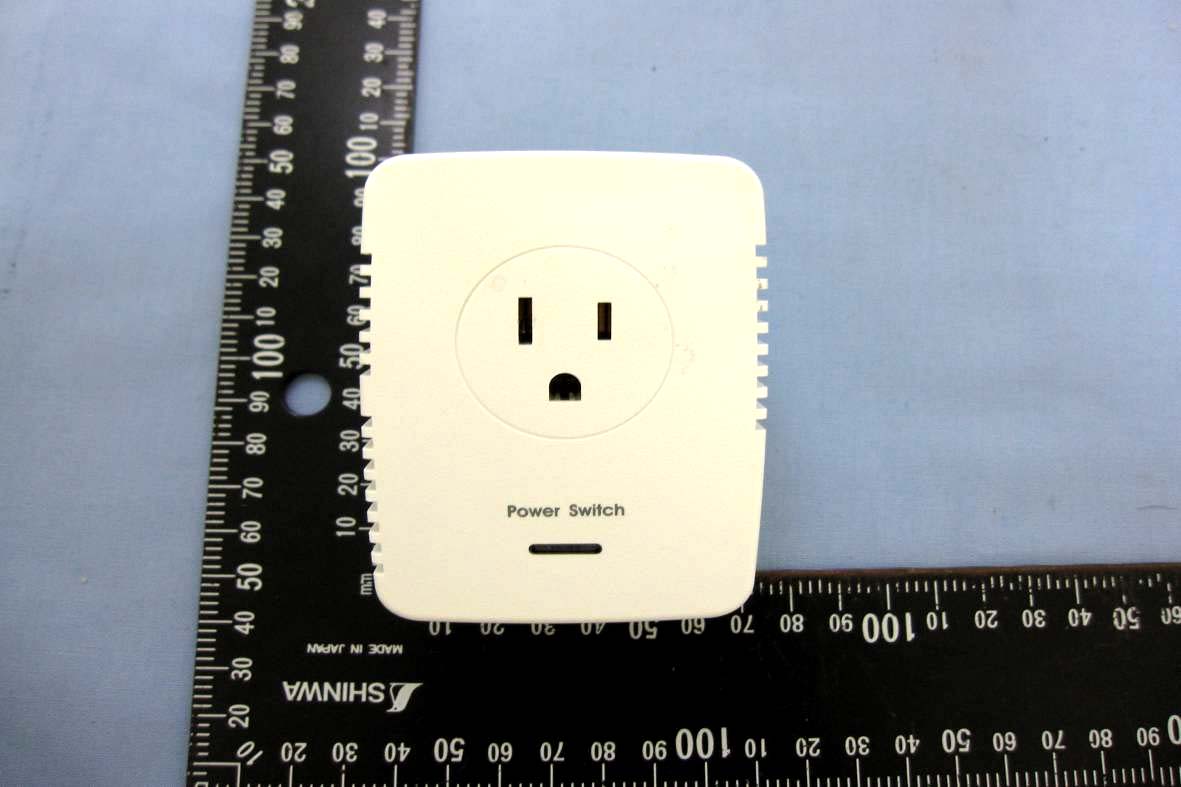

Compliance Certification Services Inc. Report No.: T110804212 Date of Issue: August 17, 2011 A1 - 1 / 7 APPENDIX 1 - PHOTOGRAPHS OF EUT EXTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: T110804212 Date of Issue: August 17, 2011 A1 - 2

E338330 XXXX TD1000Z2 120V~60Hz 12.5A (Resistive) 8A (Tungsten) E338330 XXXX TD1000Z2 120V~60Hz 12.5A (Resistive) 8A (Tungsten)

Compliance Certification Services Inc. Report No.: T110804212 Date of Issue: August 17, 2011 A1 - 3 INTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: T110804212 Date of Issue: August 17, 2011 A1 - 4 Compliance Certification Services Inc. Report No.: T110804212 Date of Issue: August 17, 2011 A1 - 5 Compliance Certification Services Inc. Report No.: T110804212 Date of Issue: August 17, 2011 A1 - 6 Compliance Certification Services Inc. Report No.: T110804212 Date of Issue: August 17, 2011 A1 - 7

Compliance Certification Services Inc. FCC ID: SW8TD1000 Report No.: T110804212-RP1 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 / 26 FCC 47 CFR PART 15 Subpart C TEST REPORT For Power Switch Model Number: TD1000Z2 Trade Name: GOOD WAY Issued to GOOD WAY TECHNOLOGY CO., LTD. 3F, No. 135, Ln. 235, Baociao Rd., Sindian Dist., New Taipei City 231, Taiwan, R.O.C. Issued by Compliance Certification Services Inc. No.11, Wu-Gong 6th Rd., Wugu Industrial Park, New Taipei City 248, Taiwan (R.O.C.) http://www.ccsrf.com [email protected] Issued Date: August 16, 2011 Compliance Certification Services Inc. FCC ID: SW8TD1000 Report No.: T110804212-RP1 Page 2 Revision History Rev. Issue Date Revisions Effect Page Revised By 00 August 16, 2011 Initial Issue ALL Sandy Lin Compliance Certification Services Inc. FCC ID: SW8TD1000 Report No.: T110804212-RP1 Page 3 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION................................................................................................................ 4 2. EUT DESCRIPTION...................................................................................................................................... 5 3. TEST METHODOLOGY ............................................................................................................................... 6 3.1 EUT CONFIGURATION................................................................................................................. 6 3.2 EUT EXERCISE............................................................................................................................. 6 3.3 GENERAL TEST PROCEDURES...................................................................................................... 6 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS.................................................. 7 3.5 DESCRIPTION OF TEST MODES.................................................................................................... 7 4. INSTRUMENT CALIBRATION................................................................................................................... 8 4.1 MEASURING INSTRUMENT CALIBRATION............................................................................... 8 4.2 MEASUREMENT EQUIPMENT USED .................................................................................. 8 4.3 MEASUREMENT UNCERTAINTY ........................................................................................ 9 5. FACILITIES AND ACCREDITATIONS .................................................................................................... 10 5.1 FACILITIES ................................................................................................................................ 10 5.2 EQUIPMENT...............................................................................................................................10 5.3 TABLE OF ACCREDITATIONS AND LISTINGS.............................................................................. 11 6. SETUP OF EQUIPMENT UNDER TEST ...................................................................................................12 6.1 SETUP CONFIGURATION OF EUT................................................................................................ 12 6.2 SUPPORT EQUIPMENT ........................................................................................................ 12 7. FCC PART 15.249 REQUIREMENTS ........................................................................................................ 13 7.1 20 DB BANDWIDTH.............................................................................................................. 13 7.2 SPURIOUS EMISSION .......................................................................................................... 15 7.3 POWERLINE CONDUCTED EMISSIONS ........................................................................... 21 APPENDIX I PHOTOGRAPHS OF TEST SETUP ............................................................................................24 APPENDIX 1 - PHOTOGRAPHS OF EUT Compliance Certification Services Inc. FCC ID: SW8TD1000 Report No.: T110804212-RP1 Page 4 1. TEST RESULT CERTIFICATION Applicant: GOOD WAY TECHNOLOGY CO., LTD. 3F, No. 135, Ln. 235, Baociao Rd., Sindian Dist., New Taipei City 231, Taiwan, R.O.C. Equipment Under Test: Power Switch Tr a d e N a m e : GOOD WAY Model Number: TD1000Z2 Date of Test: August 8 ~ 15, 2011 APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 15 Subpart C No non-compliance noted We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4: 2003 and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements emission limits of FCC Rules Part 15.107, 15.109,15.207, 15.209 and 15.249. The test results of this report relate only to the tested sample identified in this report. Approved by: Reviewed by: Rex Lai Gina Lo Section Manager Section Manager Compliance Certification Services Inc. Compliance Certification Services Inc. Compliance Certification Services Inc. FCC ID: SW8TD1000 Report No.: T110804212-RP1 Page 5 2. EUT DESCRIPTION Product Power Switch Trade Name GOOD WAY Model Number TD1000Z2 Model Discrepancy N/A Received Date August 4, 2011 Power Supply AC110~120V/60Hz Frequency Range 908 MHz Modulation Technique FSK Antenna Gain 4.01 dBi Antenna Designation PCB Antenna Remark: 1. The sample selected for test was production product and was provided by manufacturer. 2. This submittal(s) (test report) is inte…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. FCC ID: SW8TD1000 Report No.: T110804212-RP1 Page 24 APPENDIX I PHOTOGRAPHS OF TEST SETUP Conducted Emission Set Up Photo Compliance Certification Services Inc. FCC ID: SW8TD1000 Report No.: T110804212-RP1 Page 25 Radiated Emission Set up Photos Compliance Certification Services Inc. FCC ID: SW8TD1000 Report No.: T110804212-RP1 Page 26 Powerline Conducted Emissions Setup Photos
