Wireless Audio / Mic Adapter User’s Manual Wireless Audio/ Mic Adapter User’s Manual ABOUT THIS MANUAL This manual is designed for use with the Wireless Audio / Mic Adapter. Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. The manufacturer does not make any representations or warranties (implied or otherwise) regarding the accuracy and completeness of this document and shall in no event be liable for any loss of profit or any commercial damage, including but not limited to special, incidental, consequential, or other damage. SAFETY INSTRUCTIONS Always read the safety instructions carefully: Keep this User’s Manual for future reference Keep this equipment away from humidity If any of the following situation arises, get the equipment checked by a service technician:  The equipment has been exposed to moisture.  The equipment has been dropped and damaged.  The equipment has obvious sign of breakage.  The equipment has not been working well or you cannot get it to work according to the User’s Manual. COPYRIGHT This document contains proprietary information protected by copyright. All right are reserved. No part of this manual may be reproduced by any mechanical, electronic or other means, in any form, without prior written permission of the manufacturer. i Table of Contents ii Table of Contents 1. Introduction .................................................................................................................... 1 Features ......................................................................................................................... 2 Package Contents.......................................................................................................... 2 System Requirements .................................................................................................... 2 2. Using the Adapter .......................................................................................................... 3 Hardware Connection..................................................................................................... 3 How to Use Your Wireless Audio / Mic Adapter .............................................................. 4 3. Specifications................................................................................................................. 5 4. Regulatory Compliance................................................................................................. 6 FCC Conditions.............................................................................................................. 6 CE .................................................................................................................................. 6 WEEE Information.......................................................................................................... 6 Introduction 1. Introduction This Wireless Audio / Mic Adapter enables you to not only transmit audio from your PC or Notebook one side to the other side wirelessly but also transmit your voice back from the other side to PC or Notebook side in the same room. Without messy wires, just connect USB audio dongle to your PC or Notebook and connect wireless audio box to your stereo’s speaker or microphone speak, you will enjoy the good quality of the sounds. You can also use the mobile strap to hang up the wireless audio box. The audio box can be taken as a MP3 player for personal enjoyment or as a VoIP soft-phone application. It’s a more flexible for users since they don’t need to worry about the distance limitation. This Wireless Audio / Mic Adapter adopt the RF 2.4G wireless solutions and bundled with USB transmitter dongle and receiver box. The transmitter distance can be extended up to 10 meters. It is also compatible with Windows®2000, XP SP2, Vista™ 32/64-bit, Windows® 7 and Mac OS X v10.x or later operation system. 1 Wireless Audio / Mic Adapter User’s Manual Features No more wires, and less cable clutter Proprietary 2.4GHz Wireless solution Easy system expansion with stereo sound support Hands-free communication. Plug and play, quick and convenient use, no driver / software installation. Low power consumption / Low audio noise Support 1-1 Broadcasting Volume controlled through your computer or manually on the adapter Package Contents Wireless Audio Dongle x1 Wireless Audio Box x1 User’s Manual x1 AAA Battery x1 Mobile Strap x1 Power Adapter (Optional) x1 System Requirements The minimum requirements for the PC are: Intel Pentium III or AMD K6 500 CPU above At least 128MB RAM At least 50 MB hard disk space PC or Mac with one USB port With one of the following operating systems：  Windows 2000, XP , Vista and Windows 7,  Mac OS X v10.x or later 2 2. Using the Adapter 2. Using the Adapter Hardware Connection 3 Wireless Audio / Mic Adapter User’s Manual How to Use Your Wireless Audio / Mic Adapter Caution: DO NOT powered on the wireless audio box alone with battery insert and power adapter connected at the same time to avoid uncessery dangerous. No external driver installed under OS support of Win 2000, XP, Vista, Win 7and Mac. Please follow the steps as below and complete the association process between Wireless Audio Dongle and Wireless Audio Box. 1. Plug the Wireless Audio Dongle into the USB port of PC or Mac, and you may find the LED start blinking for powered on indicator. 2. Powered on the Wireless Audio Box with battery insert or power adapter connected first, and then press the Wireless Audio Box PWR button over 3 seconds until the Wireless Audio Box LED start blinking for powered on indicator. 3. Please plug headphone or speaker into audio output before pairing. Press the Wireless Audio Dongle pairing bottom over 3 seconds first and then press the Wireless Audio Box Volume bottom over 3 seconds until you heard the beep sound form headp…

Text truncated - open the document above for the full version.

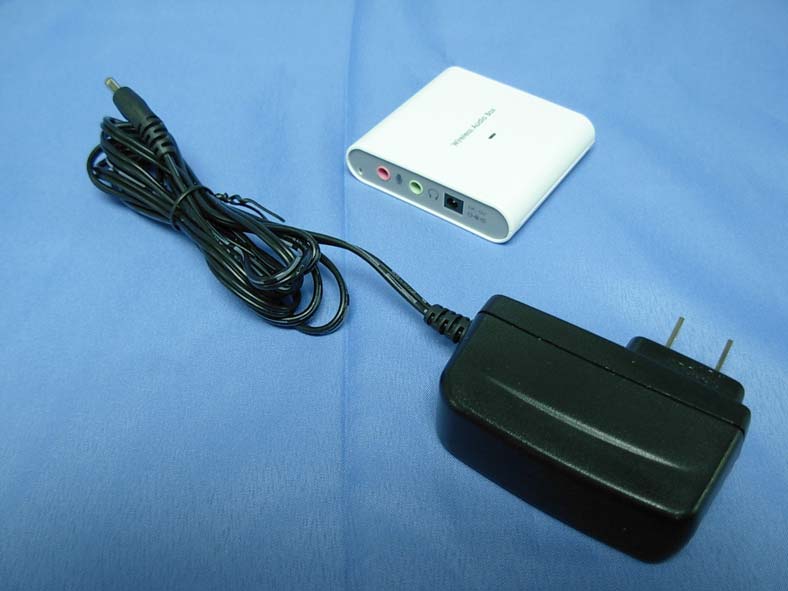

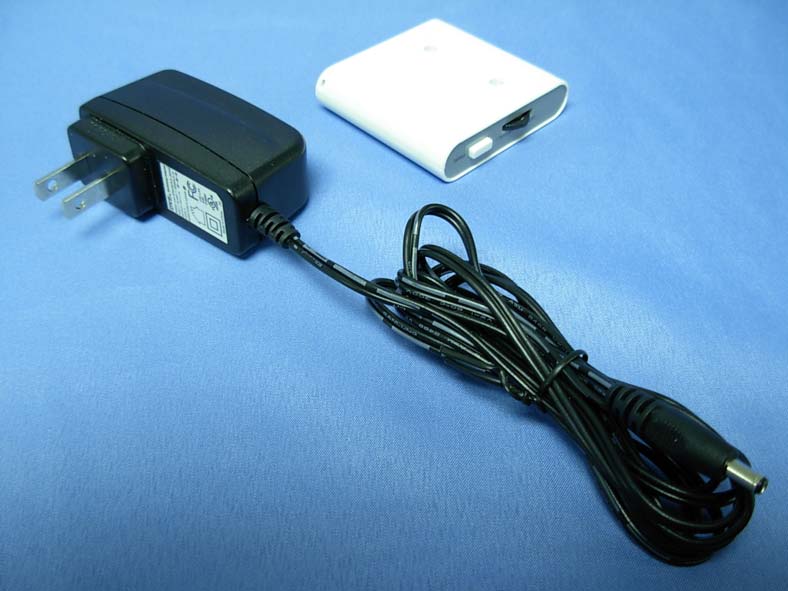

Report No： 103257R-RFUSP42V01-A Page: 79 of 85 Attachement EUT Photograph (1) EUT Photo (2) EUT Photo (Box) Report No： 103257R-RFUSP42V01-A Page: 80 of 85 (3) EUT Photo

FCC ID.: SW8WA2300 FCC ID Label The FCC ID Label will be placed on the equipment as shown in the photograph below. Wireless Audio Box Model No.: WA2300 FCC ID : SW8WA2300 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. S/N: Made in Taiwan

FCC ID.: SW8WA2300 FCC ID Label The FCC ID Label will be placed on the equipment as shown in the photograph below. Wireless Audio Box Model No.: WA2300 FCC ID : SW8WA2300 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. S/N: Made in Taiwan

Report No： 103257R-RFUSP42V01-A Page: 81 of 85 (4) EUT Photo (5) EUT Photo Report No： 103257R-RFUSP42V01-A Page: 82 of 85 (6) EUT Photo Report No： 103257R-RFUSP42V01-A Page: 83 of 85 (7) EUT Photo Report No： 103257R-RFUSP42V01-A Page: 84 of 85 (8) EUT Photo Report No： 103257R-RFUSP42V01-A Page: 85 of 85 (9) EUT Photo

Report No. 103257R-RF-US-Exp-A Page: 1 of 3 RF Exposure Evaluation declaration Product Name ：Wireless Audio Box Model No. ：WA2300 FCC ID. ：SW8WA2300 Applicant : GOOD WAY TECHNOLOGY CO., LTD. Address : 3F, No. 135 Lane 235, Pau Chiao Rd., Hsin Tien Taipei County, Taiwan. Date of Receipt : 2010/03/17 Date of Declaration : 2010/04/28 Report No. : 103257R-RF-US-Exp-A Report Version : V1.0 The declaration results relate only to the samples calculated. The declaration shall not be reproduced except in full without the written approval of QuieTek Corporation. Report No. 103257R-RF-US-Exp-A Page: 2 of 3 1. RF Exposure Evaluation 1.1. Limits According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (Minutes) (A) Limits for Occupational/ Control Exposures 300-1500 -- -- F/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/ Uncontrolled Exposures 300-1500 -- -- F/1500 6 1500-100,000 -- -- 1 30 F= Frequency in MHz Friis Formula Friis transmission formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm 2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. 1.2. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. The temperature and related humidity: 18°Cand 78％ RH. Report No. 103257R-RF-US-Exp-A Page: 3 of 3 1.3. Test Result of RF Exposure Evaluation Product Wireless Audio Box Test Mode Mode 1: Transmit Test Condition RF Exposure Evaluation Antenna Gain Antenna Gain: The maximum Gain measured in fully anechoic chamber is 2.08dBi or 1.614 in linear scale. Output Power into Antenna & RF Exposure Evaluation Distance: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 1 2404 0.7379 0.00024 13 2440 0.7311 0.00023 25 2476 0.6776 0.00022 The power density Pd (4th column) at a distance of 20 cm calculated from the Friis transmission formula is far below the limit of 1 mW/cm 2 .

Report No： 103257R-RFUSP42V01-A Page: 1 of 85 Test Report Product Name：Wireless Audio Box Model No. ：WA2300 FCC ID. ：SW8WA2300 Applicant ： GOOD WAY TECHNOLOGY CO., LTD. Address ： 3F, No. 135 Lane 235, Pau Chiao Rd., Hsin Tien Taipei County, Taiwan. Date of Receipt：2010/03/17 Issued Date ：2010/04/28 Report No. ：103257R-RFUSP37V02-A Report Version ：V1.0 The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Report No： 103257R-RFUSP42V01-A Page: 2 of 85 Test Report Certification Issued Date : 2010/04/28 Report No. : 103257R-RFUSP42V01-A Product Name ： Wireless Audio Box Applicant ： GOOD WAY TECHNOLOGY CO., LTD. Address ： 3F, No. 135 Lane 235, Pau Chiao Rd., Hsin Tien Taipei County, Taiwan. Manufacturer ： GOOD WAY TECHNOLOGY CO., LTD. Model No. ： WA2300 FCC ID. ： SW8WA2300 EUT Voltage ： AC 100-240V, 50/60Hz Trade Name ： GOOD WAY Applicable Standard ： FCC CFR Title 47 Part 15 Subpart C Section 15.247: 2009 Test Result ： Complied The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Documented By : ( Carol Tsai / Engineering Adm. Specialist ) Reviewed By : ( Sheena Huang / Engineer ) Approved By : ( Roy Wang / Manager ) Report No： 103257R-RFUSP42V01-A Page: 3 of 85 TABLE OF CONTENTS Description Page 1. General Information.................................................................................................................6 1.1. EUT Description ............................................................................................................. 6 1.2. Operational Description .................................................................................................. 7 1.3. Test Mode .......................................................................................................................8 1.4. Tested System Details .................................................................................................... 9 1.5. Configuration of tested System ...................................................................................... 9 1.6. EUT Exercise Software ................................................................................................ 10 1.7. Test Facility...................................................................................................................11 2. Conducted Emission.............................................................................................................13 2.1. Test Equipment............................................................................................................. 13 2.2. Test Setup .................................................................................................................... 13 2.3. Limits ............................................................................................................................ 14 2.4. Test Procedure ............................................................................................................. 14 2.5. Test Specification.......................................................................................................... 14 2.6. Uncertainty ................................................................................................................... 14 2.7. Test Result....................................................................................................................15 2.8. Test Photo .................................................................................................................... 17 3. Peak Power Output................................................................................................................18 3.1. Test Equipment............................................................................................................. 18 3.2. Test Setup .................................................................................................................... 18 3.3. Test procedures ............................................................................................................ 18 3.4. Limits ............................................................................................................................ 18 3.5. Test Specification.......................................................................................................... 18 3.6. Uncertainty ................................................................................................................... 18 3.7. Test Result....................................................................................................................19 4. Radiated Emission.................................................................................................................22 4.1. Test Equipment............................................................................................................. 22 4.2. Test Setup .................................................................................................................... 22 4.3. Limits ............................................................................................................................ 23 4.4. Test Procedure ............................................................................................................. 24 4.5. Test Specification.......................................................................................................... 24 Report No： 103257R-RFUSP42V01-A Page: 4 of 85 4.6. Uncertainty ................................................................................................................... 24 4.7. Test Result....................................................................................................................25 4.8. Test Photo .....................................................................................…

Text truncated - open the document above for the full version.

Report No： 103257R-RFUSP42V01-A Page: 17 of 85 2.8. Test Photo Test Mode ： Mode 1: Transmit-Box Description： Front View of Conducted Emission Test Setup Test Mode ： Mode 1: Transmit-Box Description： Back View of Conducted Emission Test Setup Report No： 103257R-RFUSP42V01-A Page: 33 of 85 4.8. Test Photo Test Mode ： Mode 1: Transmit-Box Description： Front View of Radiated Emission Test Setup (Bilog) Test Mode ： Mode 1: Transmit-Box Description： Back View of Radiated Emission Test Setup (Bilog) Report No： 103257R-RFUSP42V01-A Page: 34 of 85 Test Mode ： Mode 1: Transmit-Box Description： Front View of Radiated Emission Test Setup (Horn)
