SW8WA2301Wireless Audio Dongle

Wireless Audio / Mic Adapter User’s Manual Wireless Audio/ Mic Adapter User’s Manual ABOUT THIS MANUAL This manual is designed for use with the Wireless Audio / Mic Adapter. Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. The manufacturer does not make any representations or warranties (implied or otherwise) regarding the accuracy and completeness of this document and shall in no event be liable for any loss of profit or any commercial damage, including but not limited to special, incidental, consequential, or other damage. SAFETY INSTRUCTIONS Always read the safety instructions carefully: Keep this User’s Manual for future reference Keep this equipment away from humidity If any of the following situation arises, get the equipment checked by a service technician:  The equipment has been exposed to moisture.  The equipment has been dropped and damaged.  The equipment has obvious sign of breakage.  The equipment has not been working well or you cannot get it to work according to the User’s Manual. COPYRIGHT This document contains proprietary information protected by copyright. All right are reserved. No part of this manual may be reproduced by any mechanical, electronic or other means, in any form, without prior written permission of the manufacturer. i Table of Contents ii Table of Contents 1. Introduction .................................................................................................................... 1 Features ......................................................................................................................... 2 Package Contents.......................................................................................................... 2 System Requirements .................................................................................................... 2 2. Using the Adapter .......................................................................................................... 3 Hardware Connection..................................................................................................... 3 How to Use Your Wireless Audio / Mic Adapter .............................................................. 4 3. Specifications................................................................................................................. 5 4. Regulatory Compliance................................................................................................. 6 FCC Conditions.............................................................................................................. 6 CE .................................................................................................................................. 6 WEEE Information.......................................................................................................... 6 Introduction 1. Introduction This Wireless Audio / Mic Adapter enables you to not only transmit audio from your PC or Notebook one side to the other side wirelessly but also transmit your voice back from the other side to PC or Notebook side in the same room. Without messy wires, just connect USB audio dongle to your PC or Notebook and connect wireless audio box to your stereo’s speaker or microphone speak, you will enjoy the good quality of the sounds. You can also use the mobile strap to hang up the wireless audio box. The audio box can be taken as a MP3 player for personal enjoyment or as a VoIP soft-phone application. It’s a more flexible for users since they don’t need to worry about the distance limitation. This Wireless Audio / Mic Adapter adopt the RF 2.4G wireless solutions and bundled with USB transmitter dongle and receiver box. The transmitter distance can be extended up to 10 meters. It is also compatible with Windows®2000, XP SP2, Vista™ 32/64-bit, Windows® 7 and Mac OS X v10.x or later operation system. 1 Wireless Audio / Mic Adapter User’s Manual Features No more wires, and less cable clutter Proprietary 2.4GHz Wireless solution Easy system expansion with stereo sound support Hands-free communication. Plug and play, quick and convenient use, no driver / software installation. Low power consumption / Low audio noise Support 1-1 Broadcasting Volume controlled through your computer or manually on the adapter Package Contents Wireless Audio Dongle x1 Wireless Audio Box x1 User’s Manual x1 AAA Battery x1 Mobile Strap x1 Power Adapter (Optional) x1 System Requirements The minimum requirements for the PC are: Intel Pentium III or AMD K6 500 CPU above At least 128MB RAM At least 50 MB hard disk space PC or Mac with one USB port With one of the following operating systems：  Windows 2000, XP , Vista and Windows 7,  Mac OS X v10.x or later 2 2. Using the Adapter 2. Using the Adapter Hardware Connection 3 Wireless Audio / Mic Adapter User’s Manual How to Use Your Wireless Audio / Mic Adapter Caution: DO NOT powered on the wireless audio box alone with battery insert and power adapter connected at the same time to avoid uncessery dangerous. No external driver installed under OS support of Win 2000, XP, Vista, Win 7and Mac. Please follow the steps as below and complete the association process between Wireless Audio Dongle and Wireless Audio Box. 1. Plug the Wireless Audio Dongle into the USB port of PC or Mac, and you may find the LED start blinking for powered on indicator. 2. Powered on the Wireless Audio Box with battery insert or power adapter connected first, and then press the Wireless Audio Box PWR button over 3 seconds until the Wireless Audio Box LED start blinking for powered on indicator. 3. Please plug headphone or speaker into audio output before pairing. Press the Wireless Audio Dongle pairing bottom over 3 seconds first and then press the Wireless Audio Box Volume bottom over 3 seconds until you heard the beep sound form headp…

Text truncated - open the document above for the full version.

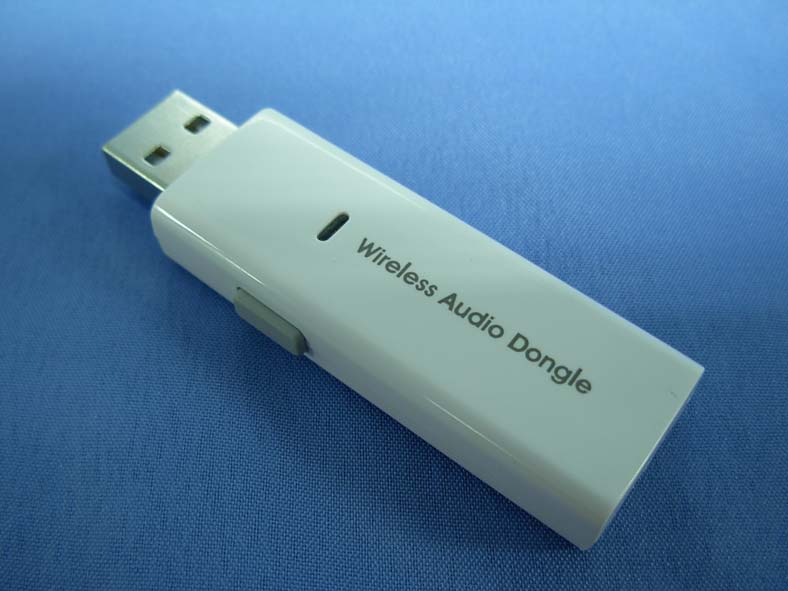

Report No： 103257R-RFUSP42V01 Page: 80 of 85 Attachement EUT Photograph (1) EUT Photo (2) EUT Photo

FCC ID.: SW8WA2301 FCC ID Label The FCC ID Label will be placed on the equipment as shown in the photograph below. Wireless Audio Dongle Model No.: WA2301 FCC ID : SW8WA2301 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. S/N: Made in Taiwan

FCC ID.: SW8WA2301 FCC ID Label The FCC ID Label will be placed on the equipment as shown in the photograph below. Wireless Audio Dongle Model No.: WA2301 FCC ID : SW8WA2301 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. S/N: Made in Taiwan

Report No： 103257R-RFUSP42V01 Page: 81 of 85 (3) EUT Photo (4) EUT Photo Report No： 103257R-RFUSP42V01 Page: 82 of 85 (5) EUT Photo Report No： 103257R-RFUSP42V01 Page: 83 of 85 (6) EUT Photo Report No： 103257R-RFUSP42V01 Page: 84 of 85 (7) EUT Photo Report No： 103257R-RFUSP42V01 Page: 85 of 85 (8) EUT Photo

RF Exposure Statement 1. Standard Applicable: According to 1.1307(b)(1), system operating under the previsions of this section shall be operated in manner that ensure that the public is not exposed is not exposed to radio frequency energy level in excess of the Commission’s guideline. This is a portable device. 2. Measurement Result: This is a portable device and the max average output power is 10.34dBm = (10.81mW) The antenna gain of the device is 2.6dBi. The EIRP of the device is 10.34 + 2.6 = 12.94dBm = 19.68mW Lower than low threshold 60/f GHz = 60/2.476 = 24.232mW The SAR/MPE measurement is not necessary. ( Roy Wang / Manager ) (Sheena Huang / Engineer )

Report No： 103257R-RFUSP42V01 Page: 1 of 85 Test Report Product Name：Wireless Audio Dongle Model No. ：WA2301 FCC ID. ：SW8WA2301 Applicant ： GOOD WAY TECHNOLOGY CO., LTD. Address ： 3F, No. 135 Lane 235, Pau Chiao Rd., Hsin Tien Taipei County, Taiwan. Date of Receipt：2010/03/17 Issued Date ：2010/04/27 Report No. ：103257R-RFUSP37V02 Report Version ：V1.0 The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Report No： 103257R-RFUSP42V01 Page: 2 of 85 Test Report Certification Issued Date : 2010/04/27 Report No. : 103257R-RFUSP42V01 Product Name ： Wireless Audio Dongle Applicant ： GOOD WAY TECHNOLOGY CO., LTD. Address ： 3F, No. 135 Lane 235, Pau Chiao Rd., Hsin Tien Taipei County, Taiwan. Manufacturer ： GOOD WAY TECHNOLOGY CO., LTD. Model No. ： WA2301 FCC ID. ： SW8WA2301 EUT Voltage ： DC 5V (Power by PC) Trade Name ： GOOD WAY Applicable Standard ： FCC CFR Title 47 Part 15 Subpart C Section 15.247: 2009 Test Result ： Complied The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Documented By : ( Carol Tsai / Engineering Adm. Specialist ) Reviewed By : ( Sheena Huang / Engineer ) Approved By : ( Roy Wang / Manager ) Report No： 103257R-RFUSP42V01 Page: 3 of 85 TABLE OF CONTENTS Description Page 1. General Information.................................................................................................................6 1.1. EUT Description ............................................................................................................. 6 1.2. Operational Description .................................................................................................. 7 1.3. Test Mode .......................................................................................................................8 1.4. Tested System Details .................................................................................................... 9 1.5. Configuration of tested System .................................................................................... 10 1.6. EUT Exercise Software ................................................................................................ 11 1.7. Test Facility...................................................................................................................12 2. Conducted Emission.............................................................................................................14 2.1. Test Equipment............................................................................................................. 14 2.2. Test Setup .................................................................................................................... 14 2.3. Limits ............................................................................................................................ 15 2.4. Test Procedure ............................................................................................................. 15 2.5. Test Specification.......................................................................................................... 15 2.6. Uncertainty ................................................................................................................... 15 2.7. Test Result....................................................................................................................16 2.8. Test Photo .................................................................................................................... 18 3. Peak Power Output................................................................................................................19 3.1. Test Equipment............................................................................................................. 19 3.2. Test Setup .................................................................................................................... 19 3.3. Test procedures ............................................................................................................ 19 3.4. Limits ............................................................................................................................ 19 3.5. Test Specification.......................................................................................................... 19 3.6. Uncertainty ................................................................................................................... 19 3.7. Test Result....................................................................................................................20 4. Radiated Emission.................................................................................................................23 4.1. Test Equipment............................................................................................................. 23 4.2. Test Setup .................................................................................................................... 23 4.3. Limits ............................................................................................................................ 24 4.4. Test Procedure ............................................................................................................. 25 4.5. Test Specification.......................................................................................................... 25 Report No： 103257R-RFUSP42V01 Page: 4 of 85 4.6. Uncertainty ................................................................................................................... 25 4.7. Test Result....................................................................................................................26 4.8. Test Photo .............................................................................................…

Text truncated - open the document above for the full version.

Report No： 103257R-RFUSP42V01 Page: 18 of 85 2.8. Test Photo Test Mode ： Mode 1: Transmit-Dongle Description： Front View of Conducted Emission Test Setup Test Mode ： Mode 1: Transmit-Dongle Description： Back View of Conducted Emission Test Setup Report No： 103257R-RFUSP42V01 Page: 34 of 85 4.8. Test Photo Test Mode ： Mode 1: Transmit-Dongle Description： Front View of Radiated Emission Test Setup (Bilog) Test Mode ： Mode 1: Transmit-Dongle Description： Back View of Radiated Emission Test Setup (Bilog) Report No： 103257R-RFUSP42V01 Page: 35 of 85 Test Mode ： Mode 1: Transmit-Dongle Description： Front View of Radiated Emission Test Setup (Horn)
