SW8WA2600Wireless Skype Phone

Wireless USB Phone User’s Manual Wireless USB Phone User’s Manual Safety Instructions Always read the safety instructions carefully „ Keep this User’s Manual for future reference „ Keep this equipment away from humidity „ If any of the following situation arise, get the equipment checked by a service technician: • The equipment has been exposed to moisture. • The equipment has been dropped and damaged. • The equipment has obvious signs of damage. • The equipment has not been working well or you cannot get it working according to User’s Manual. Copyright Statement No part of this publication may be reproduced in any form by any means without prior written permission. Other trademarks or brand names mentioned herein are trademarks or registered trademarks of their respective companies. Disclaimer Information in this document is subject to change without notice. The manufacturer does not make any representations or warranties (implied or otherwise) regarding the accuracy and completeness of this document and shall in no event be liable for any loss of profit or any commercial damage, including but not limited to special, incidental, consequential, or other damage. Skype is a registered trademark of Skype Technologies SA. Windows is a registered trademark of Microsoft Corporation. About User’s Manual This user’s manual and the provided software on the CD are based on Skype 2.0. As Skype upgrades occasionally, for the software compatible with the latest Skype version, please contact your supplier. May 2006, Rev1.0 i Table of Contents Table of Contents 1. Introduction.......................................................................................................1 Features.............................................................................................................................1 Package Contents..............................................................................................................2 System Requirements........................................................................................................2 Exterior Overview.............................................................................................................3 Keypads and Controls................................................................................................................3 USB Dongle LED Status...........................................................................................................4 2. Installation on Host Computer.........................................................................5 Installing Skype Software.................................................................................................5 Installing SkyWin Software..............................................................................................5 Installing the USB Dongle................................................................................................7 Accessing SkyWin Functions...........................................................................................8 Managing SkyWin Access to Skype.................................................................................9 3. Establishing the Connection..........................................................................11 Step 1. Ensure the link status on the host computer........................................................11 Step 2. Power on the Wireless Phone Handset................................................................11 Verifying the Link Status via the LCD............................................................................12 Notes on Establishing Wireless Link..............................................................................13 4. Getting Started................................................................................................14 LCD Screen.....................................................................................................................14 LCD Indicators........................................................................................................................14 LCD Language.........................................................................................................................15 Charging the Phone.........................................................................................................15 Standby Mode.................................................................................................................16 Always Link Function.....................................................................................................17 Resetting the Wireless Phone..........................................................................................18 About the Speaker and Microphone Volume ..................................................................18 5. Using the Phone with Skype ..........................................................................19 Calling a Skype User.......................................................................................................19 Initializing a Call from Host Computer ..........................................................................20 Speed Dialing..................................................................................................................20 Answering a Call.............................................................................................................21 Ending / Rejecting a Call................................................................................................21 Holding a Call.................................................................................................................21 Muting.............................................................................................................................22 Clearing the Entered Numbers........................................................................................22 ii Wireless USB P…

Text truncated - open the document above for the full version.

Bluetooth Declaration Per FCC 15.247 Requirements 1 Output power and channel separation of a Bluetooth device in the different operating modes: The different operating modes (data-mode, acquisition-mode) of a Bluetooth device don’t influence the output power and the channel spacing. There is only one transmitter which is driven by identical input parameters concerning these two parameters. Only a different hopping sequence will be used. For this reason the check of these RF parameters in one op-mode is sufficient. 2 Frequency range of a Bluetooth device: Hereby we declare that the maximum frequency of this device is: 2402 – 2480 MHz. This is according the Bluetooth Core Specification V 1.0B (+ critical errata) for devices which will be operated in the USA. This was checked during the Bluetooth Qualification tests (Test Case: TRM/CA/04-E). Other frequency ranges ( e.g. for Spain, France, Japan) which are allowed according the Core Specification are not supported by this device. 3 Co-ordination of the hopping sequence in data mode to avoid simultaneous occupancy by multiple transmitters: Bluetooth units which want to communicate with other units must be organized in a structure called piconet. This piconet consist of max. 8 Bluetooth units. One unit is the master the other seven are the slaves. The master co-ordinates frequency occupation in this piconet for all units. As the master hop sequence is derived from it’s BD address which is unique for every Bluetooth device, additional masters intending to establish new piconets will always use different hop sequences. 4 Example of a hopping sequence in data mode: Example of a 79 hopping sequence in data mode: 40, 21, 44, 23, 42, 53, 46, 55, 48, 33, 52, 35, 50, 65, 54, 67, 56, 37, 60, 39, 58, 69, 62, 71, 64, 25, 68, 27, 66, 57, 70, 59, 72, 29, 76, 31, 74, 61, 78, 63, 01, 41, 05, 43, 03, 73, 07, 75, 09, 45, 13, 47, 11, 77, 15, 00, 64, 49, 66, 53, 68, 02, 70, 06, 01, 51, 03, 55, 05, 04 5 Equally average use of frequencies in data mode and behaviour for short transmissions: The generation of the hopping sequence in connection mode depends essentially on two input values: 1. LAP/UAP of the master of the connection 2. Internal master clock The LAP (lower address part) are the 24 LSB’s of the 48 BD_ADDRESS. The BD_ADDRESS is an unambiguous number of every Bluetooth unit. The UAP (upper address part) are the 24 MSB’s of the 48 BD_ADDRESS. The internal clock of a Bluetooth unit is derived from a free running clock which is never adjusted and is never turned off. For synchronisation with other units only offset are used. It has no relation to the time of the day. Its resolution is at least half the RX/TX slot length of 312.5 μs. The clock has a cycle of about one day (23h30). In most case it is implemented as 28 bit counter. For the deriving of the hopping sequence the entire LAP (24 bits), 4 LSB’s (4 bits) (Input 1) and the 27 MSB’s of the clock (Input 2) are used. With this input values different mathematical procedures (permutations, additions, XOR-operations) are performed to generate the sequence. This will be done at the beginning of every new transmission. Regarding short transmissions the Bluetooth system has the following behaviors: The first connection between the two devices is established, a hopping sequence was generated. For transmitting the wanted data the complete hopping sequence was not used. The connection ended. The second connection will be established. A new hopping sequence is generated. Due to the fact that the Bluetooth clock has a different value, because the period between the two transmission is longer (and it cannot be shorter) than the minimum resolution of the clock (312.5 μs). The hopping sequence will always differ from the first one. 6 Receiver input bandwidth and behaviors for repeated single or multiple packets: The input bandwidth of the receiver is 1 MHz. In every connection one Bluetooth device is the master and the other one is the slave. The master determines the hopping sequence (see chapter 5). The slave follows this sequence. Both devices shift between RX and TX time slot according to the clock of the master. Additionally the type of connection (e.g. single or multislot packet) is set up at the beginning of the connection. The master adapts its hopping frequency and its TX/RX timing according to the packet type of the connection. Also the slave of the connection will use these settings. Repeating of a packet has no influence on the hopping sequence. The hopping sequence generated by the master of the connection will be followed in any case. That means, a repeated packet will not be send on the same frequency, it is send on the next frequency of the hopping sequence. 7 Dwell time in data mode The dwell time of 0.3797s within a 30 second period in data mode is independent from the packet type (packet length). The calculation for a 30 second period is a follows: Dwell time = time slot length * hop rate / number of hopping channels *30s Example for a DH1 packet (with a maximum length of one time slot) Dwell time = 625 μs * 1600 1/s / 79 * 30s = 0.3797s (in a 30s period) For multislot packet the hopping is reduced according to the length of the packet. Example for a DH5 packet (with a maximum length of five time slots) Dwell time = 5 * 625 μs * 1600 * 1/5 *1/s / 79 * 30s = 0.3797s (in a 30s period) This is according the Bluetooth Core Specification V 1.0B (+ critical errata) for all Bluetooth devices. There for all Bluetooth devices comply with the FCC dwell time requirement in data mode. This was checked during the Bluetooth Qualification tests. The Dwell time in hybrid mode is measured and stated in the test report. 8 Channel Separation in hybrid mode The nominal channel spacing of the Bluetooth system is 1Mhz independent of the operating mode. The maximum “initial carrier frequency tolerance” which is allowed for Bluetooth is fcenter = 75 kHz. This was checked during the Bluetooth Qualification tests (Test Case:…

Text truncated - open the document above for the full version.

Date: 2006/3/7 Compliance Certification Services Certification Division 561F Monterey Road Morgan Hill, CA 95037 To whom it may concern: We, the undersigned, hereby authorize the Taiwan office of Compliance Engineering Services, Inc., d.b.a. Compliance Certification Services and hereafter referred to as CCS TW, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by CCS TW on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing CCS TW as our agent, we still recognize that we are responsible to: a) Comply with the relevant provisions of the certification program; b) Make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) Make claims regarding certification only in respect of the scope for which certification has been granted; d) Do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) Upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) Use certification only to indicate the products are certified as being in conformity with specified standards; g) Endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) Ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) Keep a record of all complaints made known to the us relating to the product compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) Take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) Document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, ------------------------------- REMARK: 1. This authorization letter will be sent along with your application when filing with the Certification Division. 2. Please follow the format and type it on company letterhead and send original to us.

June 14, 2006 Federal Communications Commission Authorization and Evaluation Division FCC ID:SW8WA2600 Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: 1. Schematics 2. Operational Description 3. Block Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, -------------------------------------------------

Wireless USB Phone User’s Manual Wireless USB Phone User’s Manual Safety Instructions Always read the safety instructions carefully „ Keep this User’s Manual for future reference „ Keep this equipment away from humidity „ If any of the following situation arise, get the equipment checked by a service technician: • The equipment has been exposed to moisture. • The equipment has been dropped and damaged. • The equipment has obvious signs of damage. • The equipment has not been working well or you cannot get it working according to User’s Manual. Copyright Statement No part of this publication may be reproduced in any form by any means without prior written permission. Other trademarks or brand names mentioned herein are trademarks or registered trademarks of their respective companies. Disclaimer Information in this document is subject to change without notice. The manufacturer does not make any representations or warranties (implied or otherwise) regarding the accuracy and completeness of this document and shall in no event be liable for any loss of profit or any commercial damage, including but not limited to special, incidental, consequential, or other damage. Skype is a registered trademark of Skype Technologies SA. Windows is a registered trademark of Microsoft Corporation. About User’s Manual This user’s manual and the provided software on the CD are based on Skype 2.0. As Skype upgrades occasionally, for the software compatible with the latest Skype version, please contact your supplier. May 2006, Rev1.0 i Table of Contents Table of Contents 1. Introduction.......................................................................................................1 Features.............................................................................................................................1 Package Contents..............................................................................................................2 System Requirements........................................................................................................2 Exterior Overview.............................................................................................................3 Keypads and Controls................................................................................................................3 USB Dongle LED Status...........................................................................................................4 2. Installation on Host Computer.........................................................................5 Installing Skype Software.................................................................................................5 Installing SkyWin Software..............................................................................................5 Installing the USB Dongle................................................................................................7 Accessing SkyWin Functions...........................................................................................8 Managing SkyWin Access to Skype.................................................................................9 3. Establishing the Connection..........................................................................11 Step 1. Ensure the link status on the host computer........................................................11 Step 2. Power on the Wireless Phone Handset................................................................11 Verifying the Link Status via the LCD............................................................................12 Notes on Establishing Wireless Link..............................................................................13 4. Getting Started................................................................................................14 LCD Screen.....................................................................................................................14 LCD Indicators........................................................................................................................14 LCD Language.........................................................................................................................15 Charging the Phone.........................................................................................................15 Standby Mode.................................................................................................................16 Always Link Function.....................................................................................................17 Resetting the Wireless Phone..........................................................................................18 About the Speaker and Microphone Volume ..................................................................18 5. Using the Phone with Skype ..........................................................................19 Calling a Skype User.......................................................................................................19 Initializing a Call from Host Computer ..........................................................................20 Speed Dialing..................................................................................................................20 Answering a Call.............................................................................................................21 Ending / Rejecting a Call................................................................................................21 Holding a Call.................................................................................................................21 Muting.............................................................................................................................22 Clearing the Entered Numbers........................................................................................22 ii Wireless USB P…

Text truncated - open the document above for the full version.

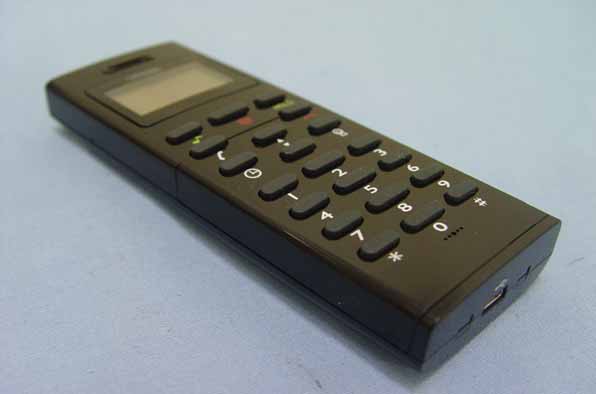

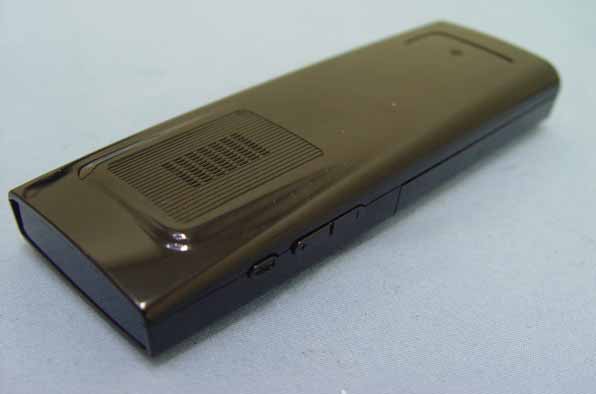

Compliance Certification Services Inc. Report No.: 60307001 Date of Issue: June 13, 2006 Page 1 Total Page: 5 Rev. 00 EXTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No: 60307001 Date of Issue: June 13, 2006 Page 2 Rev.00

Compliance Certification Services Inc. Report No: 60307001 Date of Issue: June 13, 2006 Page 3 Rev.00 INTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No: 60307001 Date of Issue: June 13, 2006 Page 4 Rev.00 Compliance Certification Services Inc. Report No: 60307001 Date of Issue: June 13, 2006 Page 5 Rev.00

G G a a i i n n F F o o r r c c e e T T e e c c h h n n o o l l o o g g y y C C o o . . , , L L t t d d A A P P P P R R O O V V A A L L S S H H E E E E T T Antenna MODEL NAME AT7020-E3R0HBAT PART NUMBER CUSTOMER GainForce VENDOR MODEL 028221-6858 ACCESSORIES SPECIFICATION SAMPLE DRAWING TEST REPORT APPROVED STATUS ACX Advanced Ceramic X Features v Monolithic SMD with small, low-profile and light-weight type. v Wide bandwidth Applications v2.4GHz WLAN, Home RF, Bluetooth Modules, etc. Specifications Part Number Frequency Range (MHz) Peak Gain (dBi typ.) Average Gain (dBi typ.) VSWR Impedance AT7020 -E3R0HBA_ 2400~2500 0dBi (XZ-V) -2dBi (XZ-V) 2 max. 50 Ω Q’ty/Reel (pcs) : 1,000 pcs Operating Temperature Range : -40 ~ +85 o C Storage Temperature Range : -40 ~ +85 o C Power Capacity : 3W max. Part Number Å Type AT : Antenna Ç Dimensions ( L × W ) 7.0× 2.0 mm É Material Code E Ñ Frequency Range 3R0=3000MHz Ö Specification Code HBA Ü Packaging T: Tape & Reel B: Bulk Terminal Configuration No. Terminal Name No. Terminal Name Å Feeding Point É NC Ç NC Ñ NC AT7020 Series Multilayer Chip Antenna AT 7020 - E 3R0 HBA p ÅÇ ÉÑÜÖ Å Ç É Ñ ACX Advanced Ceramic X Dimensions and Recommended PC Board Pattern Mark L W L1 W1 T a Dimensions 7.00.2 2.00.2 2.60.2 0.50.2 2.0+ 0.1/-0.2 0.50.3 (a) Without Matching Circuits (Unit in mm) (b) With Matching Circuits *Line width should be designed to match 50Ω characteristic impedance, depending on PCB material and thickness. Unit : mm a T (Matching circuit and component values will be different, depending on PCB layout) L W L1 W1 0.83 2.8 1 1.6 1.6 1 0.8 0.82 0.8 1 1 2 2 10 3.86 0 Ohm 0.83 2.8 1 1.6 1.6 1 0.8 0.82 0.8 1 1 2 2 10 3.86 2.2 nH 1.5 nH ACX Advanced Ceramic X Typical Electrical Characteristics (T=25 o C) vTest Board (Unit in mm) vReturn Loss(With Matching Circuits) 3.86 40 20 Ground No Ground 10 Antenna ACX Advanced Ceramic X vRadiation Patterns XZ cut @2.45GHz Vertical Horizontal YZ cut @2.45GHz Vertical Horizontal XZ-V/XZ-H YZ-V/YZ-H XY cut @2.45GHz Vertical Horizontal XY-V/XY-H 180 o 270 o 0 o 90 o X Z Y XY-cut scanning direction 180 270 o 0 o 90 o X Z Y XZ-cut scanning direction 180 270 0 o 90 o X Z Y YZ-cut scanning direction Advanced Ceramic X Corp. 16 Tzu Chiang Road, Hsinchu Industrial District Hsinchu Hsien 303, Taiwan TEL:886-3-5987008 FAX:886-3-5987001 E-mail: [email protected] http://www.acxc.com.tw ACX Adv anced Ceram ic X Item Requirements Procedure Solderability 1. No apparent damage 2. More than 75% of the terminal electrode shall be covered with new solder 1. Preheat: 120± 5 o C 2. Solder: 230± 5 o C for 5± 1 sec Thermal shock (Temperature Cycle) 1. No apparent damage 2. Fulfill the electrical specification after test 1. One cycle/ step 1: 85 ± 5 o C for 20sec step 2: -40 ± 3 o C for 20sec 2. Cycle time: 30min 3. No. of cycles: 100 4. Recovery: 1-2hrs Heat Resistance 1. No apparent damage 2. Fulfill the electrical specification after test 1. Temperature: 85± 2 o C 2. Duration: 24±2hrs 3. Recovery: 1-2hrs Low Temperature Resistance 1. No apparent damage 2. Fulfill the electrical specification after test 1. Temperature: -40 o ± 5 o C 2. Duration: 24 ±2hrs 3. Recovery: 1-2hrs Humidity Resistance 1. No apparent damage 2. Fulfill the electrical specification after test 1. Temperature: 85± 2 o C 2. Humidity: 80% ~ 85% RH 3. Duration: 1000±48hrs 4. Recovery: 1-2hrs Soldering strength (Push strength) 1. 9.8N minimum 1. Solder specimen onto test jig. 2. Apply push force at 0.5mm/s until electrode pads are peeled off or ceramic are broken. Pushing force is applied to longitude direction Deflection (Bending) 1. No apparent damage 2. Fulfill the electrical specification 1. Solder specimen onto test jig (FR4, 0.8mm) using the recommend soldering profile. 2. Apply a bending force of 2mm deflection ` Drop Shock 1. No apparent damage 1. Dropped onto hard wood from height of 50 cm for 3 times ; each x,y and z direction except terminal direction Mechanical & Environmental Characteristics R230 Pressure Rod 90mm ACX Adv anced Ceram ic X Typical Soldering Profile ™Typical Soldering Profile for Lead-free Process Flow Soldering : Reflow Soldering : T e m p erature ( o C) 20s. 230 o C 180 o C 260C 5s, max. Time (s.) 60s, min. Pre-heating 30s. 230 o C 180 o C 250 o C 10s, max. Time (s.) 60s, min. Pre-heating T e m p erature ( o C) The sample must be pre-heated before soldering .The temperature difference between preheating and soldering must be within 150 . Notes ™The contents of this data sheet are subject to change without notice. Please confirm the specifications and delivery conditions when placing your order. ACX Advanced Ceramic X Taping Specifications ™Tape Dimensions (Unit: mm) φ1.55 +0.05 A’ t D 7.5 ± 0.1 1.75 ± 0.1 C T A B 16± 0.2 A A’ B C D t T 4.0 0.1 4.0 0.1 1.9 0.1 3.5 0.1 2.0 0.1 0.20 0.05 Max. 1.4 4.0 0.1 4.0 0.1 2.4 0.1 5.5 0.1 2.0 0.1 0.20 0.05 Max. 1.4 7020 4.0 0.1 4.0 0.1 2.4 0.1 7.3 0.1 2.0 0.1 0.22 0.05 Max. 1.55 7635 8.0 0.1 4.0 0.1 3.75 0.1 7.85 0.1 2.0 0.1 0.30 0.05 Max. 1.40 8516 4.0 0.1 4.0 0.1 1.85 0.1 8.70 0.1 2.0 0.1 0.25 0.05 Max. 1.40 9520 4.0 0.1 4.0 0.1 2.3 0.1 9.7 0.1 2.0 0.1 0.22 0.05 Max. 1.45 R130 8.0 0.1 4.0 0.1 3.35 0.1 10.35 0.1 2.0 0.1 0.25 0.05 Max. 1.40 Typ e 3216 5020 ™Quantity Type 3216 5020 7020 7635 8516 9520 R130 Quantity /per reel 3,000pcs 2,000 1,000 pcs 1,000 pcs 1000pcs 1,000 pcs 1,000 pcs ™Reel Dimensions (Unit: mm) 178 ± 2.0 60 ± 0.5 1.4 Label: Customer’s Name, ACX P/N, Q’ty, Date, ACX Corp. D:13.0 ± 0.3 2.0 ± 0.5 D:21.8 ± 0.8 Label 19.5 16.7 ± 0.3 ™Leader and Trailer Tape (Plastic material) Trailer End Trailer (80mm min.) Cover Tape Only 60mm min. Leader End Empty Compartments with Cover Tape (80mm min.) ™Peel-off Force Peelin g Direction Top Cover Tape Carrier Ta pe <10 0 Peel-off force should be in the range of 0.1 – 0.6 N at a peel-off speed of 30010 mm/min . ACX Adv anced Ceramic X ™Storage Conditions (1) Temperature: 15 ~35, relative humidity (RH): 45~75%. (2) Non-corrosive environment (3) Products should b…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Report No: 60307001-SF FCC ID: SW8WA2600 Date of Issue: Jun 28, 2006 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 Total Page: 24 Rev. 00 ANSI/IEEE Std. C95.1-1992 in accordance with the requirements of FCC Report and Order: ET Docket 93-62, and OET Bulletin 65 Supplement C FCC TEST REPORT For Wireless Skype phone Model: WA2600 Trade Name: GOOD WAY Issued to GOOD WAY TECHNOLOGY CO., LTD. 3F, No. 135, Lane 235, Pau Chiao Rd., Hsin-Tien City, Taipei Hsien, Taiwan, R.O.C. Issued by Compliance Certification Services Inc. No. 11, Wu-Kung 6 Rd, Wu-Ku Hsiang, Wu-Ku Industrial District, Taipei Hsien, (248) Taiwan. http://www.ccsemc.com.tw [email protected] Compliance Certification Services Inc. Report No: 60307001-SF Date of Issue: Jun 28, 2006 Page 2 Rev. 00 TABLE OF CONTENTS 1. EUT DESCRIPTION ..................................................................................................................4 2. REQUIREMENTS FOR COMPLIANCE TESTING DEFINED BY THE FCC .................5 3. DOSIMETRIC ASSESSMENT SYSTEM ................................................................................5 3.1 MEASUREMENT SYSTEM DIAGRAM .........................................................................6 3.2 SYSTEM COMPONENTS...................................................................…

Text truncated - open the document above for the full version.
