SW8WD6000Z-Wave USB Dongle

Z-Wave USB Dongle User’s Manual Z-Wave USB Dongle i ABOUT THIS MANUAL This manual is designed for use with the Z-Wave USB Dongle. Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. The manufacturer does not make any representations or warranties (implied or otherwise) regarding the accuracy and completeness of this document and shall in no event be liable for any loss of profit or any commercial damage, including but not limited to special, incidental, consequential, or other damage. SAFETY INSTRUCTIONS Always read the safety instructions carefully: „ Keep this User’s Manual for future reference „ Keep this equipment away from humidity „ If any of the following situation arises, get the equipment checked by a service technician: xThe equipment has been exposed to moisture. xThe equipment has been dropped and damaged. xThe equipment has obvious sign of breakage. xThe equipment has not been working well or you cannot get it to work according to the User’s Manual. COPYRIGHT This document contains proprietary information protected by copyright. All right are reserved. No part of this manual may be reproduced by any mechanical, electronic or other means, in any form, without prior written permission of the manufacturer. TRADEMARKS All trademarks and registered trademarks are the property of their respective owners or companies. Z-Wave USB Dongle ii Table of Contents 1. Introduction............................................................................................................ 1 Features ............................................................................................................................. 1 Package Contents .............................................................................................................. 2 System Requirements........................................................................................................ 2 Applicable for Serial Products of Z-Wave ......................................................................... 2 2. Installation .............................................................................................................. 3 On Windows XP and 2000 ................................................................................................ 3 On Windows Vista and 7................................................................................................... 5 3. Specifications......................................................................................................... 7 4. Regulatory Compliance ......................................................................................... 8 FCC Conditions ................................................................................................................ 8 CE ..................................................................................................................................... 8 WEEE Information ........................................................................................................... 8 Z-Wave USB Dongle 1 1. Introduction ThisZ-Wave USB Dongle enables you to access your USB devices without limitation caused by wire. This Dongle is designed to adapt your regular USB 2.0 interface to a Wireless USB interface. Simply plug this dongle to your USB socket then the notebook turns into a wireless USB enabled platform, access your Z-Wave USB devices such as printer, scanner freely without boundary up to 10 meters. Just plug the dongle in, then enjoy the freedom and take the advantage of operation wirelessly with the latest Wireless USB technology. Features Simply plug in PC/Notebook USB port with driver installation Fully compatible with Z-wave enable network that can communicate with any Z-wave certified device. Z-Wave USB Dongle 2 Package Contents Z-Wave USB Dongle x1 CD (Driver and User’s Manual) x1 Quick Installation Guide x1 System Requirements Windows “ 2000, XP, Vista¥, Windows “ 7 Applicable For Serial Product of Z-Wave Z-Wave dongle is Z-WaveR-Certified software and is compatible with Z-Wave Cerfied devices. Z-Wave standard is designed to ensure that Z-Wave-Certified devices work together, regardless of manufacturer. Z-Wave devices can also act as repeaters, re-transmitting RF signals around obstacles and radio dead spots to help ensure that messages are successfully delivered. Z-Wave USB Dongle 2. Installation On Windows XP and 2000 To install Driver: 1. Insert the provided CD into disk drive. Click Next to the Next step for installation. 3 Z-Wave USB Dongle 4 2. Click Install to begin the installation. 3. Click Finish to exit the wizard. 4. Please Plug in Z-Wave USB Dongle to the USB Port on your PC. Z-Wave USB Dongle On Windows Vista and 7 To install Driver: 1. Insert the provided CD into your disc drive, locate and double-click the Setup.exefile under E:\Driver where E is your disc drive letter. Click Nextto the next step for installation. 5 Z-Wave USB Dongle 6 2. Click Finish to exit the wizard. 3. Please Plug in Z-Wave USB Dongle to the USB Port on your PC. Z-Wave USB Dongle 3. Specifications Protocol Z-Wave USB Dongle User Interface USB A-Type Plug USB Compliance USB 2.0 specification; backward compatible with USB 1.1 Transmit Power 94.92 dBm Frequency 908.42MHz Transmit Data Rate 9.6 kbps, 40 kbps ˥ ̇ range ˄ˈ̀ʳ˼́˷̂̂̅ʿʳˆ˃̀ʳ̂̈̇˷̂̂̅ʳʳ Housing ˣ˿˴̆̇˼˶ Dimension 59(L)X26(W)X12.4(H)mm ( Not include USB A-Type Plug) Weight Approximately 11g Operation temperature 10-40°C Storage temperature -10~80°C Relative Humidity 0~80% non-condensing 7 Z-Wave USB Dongle 4. Regulatory Compliance CE This equipment is in compliance with the requirements of the following regulations: EN 55 022: CLASS B WEEE Information For EU (European Union) member users: According to the WEEE (Waste electrical and electronic equipment) Directive, do not dispose of this prod…

Text truncated - open the document above for the full version.

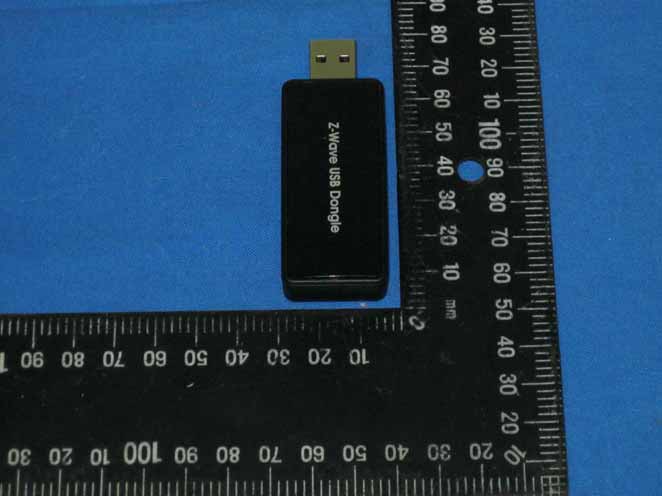

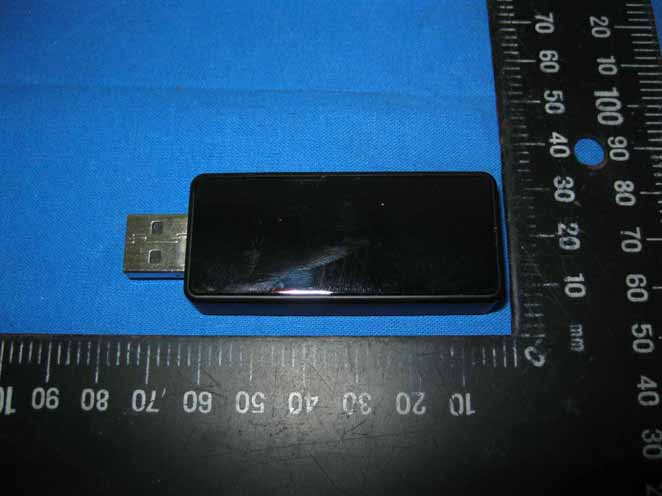

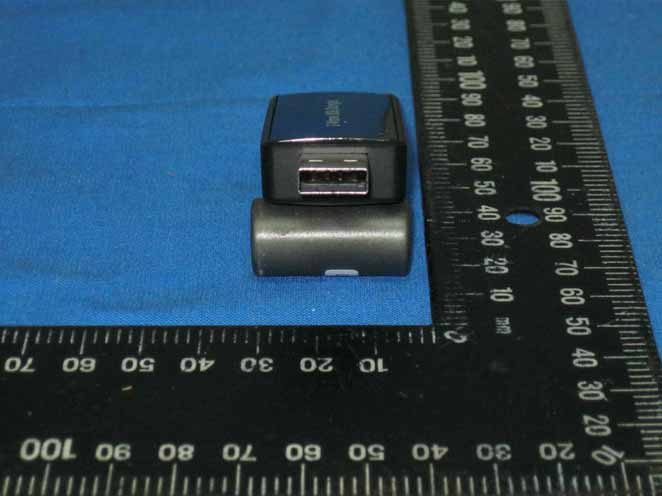

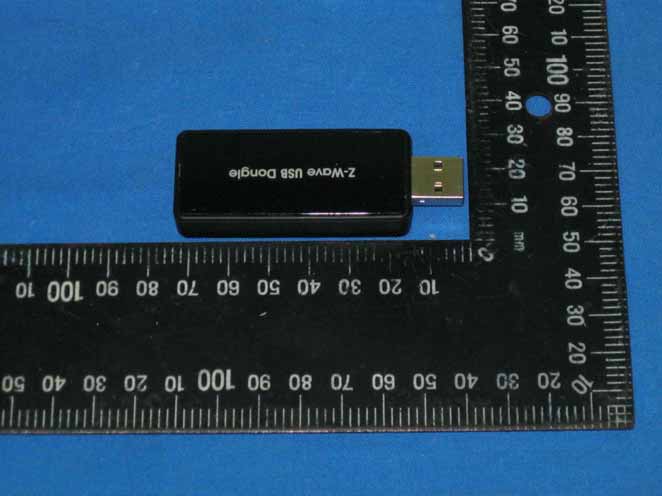

Report No.T101027203 Page 1 of 5 External Photo Report No.T101027203 Page 2 of 5 Report No.T101027203 Page 3 of 5

Report No.T101027203 Page 4 of 5 Internal Photo Report No.T101027203 Page 5 of 5

FCC IDSW8WD6000 Report No.T101027203-RP1 Page 1 of 24 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. FCC 47 CFR PART 15 SUBPART C AND ANSI C63.4:2003 TEST REPORT For Z-Wave USB Dongle Model : WD6000 Trade Name : GOOD WAY Issued for GOOD WAY TECHNOLOGY CO., LTD. 3F, No. 135, Lane 235, Pau Chiao Rd., Hsin-Tien City, Taipei Hsien, Taiwan, R.O.C. Issued by Compliance Certification Services Inc. Hsinchu Lab. NO. 989-1 Wen Shan Rd., Shang Shan Village, Qionglin Shiang Hsinchu County 30741, Taiwan, R.O.C TEL: +886-3-5921698 FAX: +886-3-5921108 http://www.ccsrf.com E-Mail : [email protected] Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. The client should not use it to claim product endorsement by TAF or any government agencies. The test results in the report only apply to the tested sample. FCC IDSW8WD6000 Report No.T101027203-RP1 Page 2 of 24 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Revision History Rev. Issue Date Revisions Effect Page Revised By 00 11/17/2010 Initial Issue All Page 24 Winnie Chen FCC IDSW8WD6000 Report No.T101027203-RP1 Page 3 of 24 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. TABLE OF CONTENTS TITLE PAGE NO. 1. TEST REPORT CERTIFICATION ................................................................................ 4 2. EUT DESCRIPTION ..................................................................................................... 5 2.1 DESCRIPTION OF EUT & POWER ....................................................................... 5 3. DESCRIPTION OF TEST MODES ............................................................................... 6 4. TEST METHODOLOGY ............................................................................................... 6 5. FACILITIES AND ACCREDITATION ........................................................................... 6 5.1 FACILITIES ............................................................................................................ 6 5.2 ACCREDITATIONS................................................................................................ 7 5.3 MEASUREMENT UNCERTAINTY ......................................................................... 7 6. SETUP OF EQUIPMENT UNDER TEST...................................................................... 8 7. FCC PART 15.249 REQUIREMENTS .......................................................................... 9 7.1 RADIATED EMISSION........................................................................................... 9-16 7.2 CONDUCTED EMISSION ...................................................................................... 17-21 APPENDIX II SETUP PHOTOS ....................................................................................... 22-24 FCC IDSW8WD6000 Report No.T101027203-RP1 Page 4 of 24 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. 1. TEST REPORT CERTIFICATION Applicant GOOD WAY TECHNOLOGY CO., LTD. Address 3F, No. 135, Lane 235, Pau Chiao Rd., Hsin-Tien City, Taipei Hsien, Taiwan, R.O.C. Equipment Under Test Z-Wave USB Dongle Model WD6000 Trade Name GOOD WAY Tested Date October 27 ~ November 16, 2010 APPLICABLE STANDARD Standard Test Result FCC Part 15 Subpart C AND ANSI C63.4:2003 PASS WE HEREBY CERTIFY THAT: The above equipment has been tested by Compliance Certification Services Inc., and found compliance with the requirements set forth in the technical standards mentioned above. The results of testing in this report apply only to the product/system, which was tested. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Approved by: Reviewed by: Alex Chiu Gundam Lin Director Team Leader FCC IDSW8WD6000 Report No.T101027203-RP1 Page 5 of 24 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. 2. EUT DESCRIPTION 2.1 DESCRIPTION OF EUT & POWER Product Name Z-Wave USB Dongle Model Number WD6000 Received Date October 27, 2010 Frequency Range 908.42MHz Transmit Power 94.92 dBμV/m Channel Number 1 Channel Transmit Data Rate 9.6 kbps, 40 kbps Type of Modulation ASK Antenna Type PCB Antenna, Antenna Gain -3.10 dBi Power Source 5.0VDC (From Notebook PC, Powered From Host Device) I/O Port USB port × 1 Remark : 1. The sample selected for test was engineering sample that approximated to production product and was provided by manufacturer. 2. For more details, please refer to the User’s manual of the EUT. 3. This submittal(s) (test report) is intended for FCC ID: SW8WD6000 filing to comply with Section 15.207, 15.209 and 15.249 of the FCC Part 15, Subpart C Rules. FCC IDSW8WD6000 Report No.T101027203-RP1 Page 6 of 24 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. 3. DESCRIPTION OF TEST MODES The EUT (WD6000) had been tested under operating condition. There are three channels have been tested as following : Channel Frequency (MHz) 1 908.42 After verification, all tests were carried out with the worst case test modes as shown below except radiated spurious emission below 1GHz, which worst case was in normal link mode only, and powerline conducted emission below 30MHz, which worst case was in normal link mode. 4. TEST METHODOLOGY The tests documented in this report were performed in accordance with ANSI C63.4: 2003 and FCC CFR 47, 15.207, 15.209 and 15.249. 5. FACILITIES AND ACCREDITATION 5.1 FACILITIES All measur…

Text truncated - open the document above for the full version.

FCC IDSW8WD6000 Report No.T101027203-RP1 Page 22 of 24 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. APPENDIX II SETUP PHOTOS RADIATED EMISSION SETUP Below 1 GHz FCC IDSW8WD6000 Report No.T101027203-RP1 Page 23 of 24 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Above 1 GHz FCC IDSW8WD6000 Report No.T101027203-RP1 Page 24 of 24 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. CONDUCTED EMISSION SETUP
