T5E-200427Emergency Alarm Transmitter

1 DRAFT COPY DRAFT COPY FIGURE 1 AIR-PAK SCBA WITH PAK-ALERT DISTRESS ALARM ASSEMBLY AND INTEGRATED TRANSMITTER CONTROL CONSOLE ASSEMBLY SENSOR MODULE ASSEMBLY WITH INTEGRAL TRANSMITTER WARNING THE SCOTT PAK-ALERT DISTRESS ALARM IS INTENDED FOR USE WITH SCOTT SELF-CONTAINED BREATHING APPARATUS (SCBA) WHICH MAY SUPPORT HUMAN LIFE IN HAZARDOUS ATMOSPHERES. FAILURE TO CAREFULLY READ AND UNDERSTAND THE FOLLOWING INSTRUCTIONS MAY RESULT IN SERIOUS INJURY OR DEATH TO THE SCBA USER. USE OF A RESPIRATOR INTEGRATED WITH A PAK-ALERT DISTRESS ALARM WILL REQUIRE MODI- FICATION OF THE RESPIRATOR "REGULAR OPERATIONAL INSPECTION PROCEDURES" AND WILL REQUIRE TRAINING OF THE RESPIRATOR USER IN THE USE OF PASS EQUIPPED RESPIRATORS. THE FOLLOWING INSTRUCTIONS SUPPLEMENT BUT DO NOT REPLACE THE OPERATING AND MAINTENANCE INSTRUCTIONS SUPPLIED WITH EACH RESPIRATOR. Copyright © 2006, SCOTT, All Rights Reserved OPERATION AND MAINTENANCE INSTRUCTIONS FOR SCOTT PAK-ALERT TM DISTRESS ALARM WITH SCOTT PAK-TRACKER LOCATOR SYSTEM INTEGRATED WITH AIR-PAK ® 2.2/3.0/4.5/Fifty SELF-CONTAINED BREATHING APPARATUS (SCBA) HAND HELD RECEIVER RED COVERS 2 DRAFT COPY DRAFT COPY WARNING NO PERSONAL ALERT SAFETY SYSTEM, RES- PIRATOR OR COMBINATION OF PERSONAL ALERT SAFETY SYSTEM AND RESPIRATOR, BY THEMSELVES, CAN PROVIDE COMPLETE PRO- TECTION IN FIRE SITUATIONS. HOWEVER, USING AN ALARM AND A RESPIRATOR IN AC- CORDANCE WITH THE REQUIREMENTS OF AN ORGANIZED RESPIRATORY PROTECTION PROGRAM IS ONE OF THE MANY SAFETY PRE- CAUTIONS WHICH SHOULD BE TAKEN TO AVOID PERSONAL INJURY OR DEATH. WARNING USERS OF RESPIRATORS EQUIPPED WITH THE PAK-ALERT DISTRESS ALARM MUST BE AWARE OF THE PROPER OPERATION OF THE DISTRESS ALARM. IF THE GREEN LIGHT IS NOT FLASHING NORMALLY, OR IF THE UNIT EXHIBITS ANY OTHER SIGNS OF A MALFUNC- TION WITHOUT THE USER TAKING PROPER CORRECTIVE ACTION, IT MAY LEAD TO CIR- CUMSTANCES THAT RESULT IN SERIOUS INJURY OR DEATH. WARNING DO NOT OPERATE THIS EQUIPMENT WHILE UNDER THE INFLUENCE OF DRUGS, ALCO- HOL, OR ANY MEDICATIONS OR SUBSTANCES WHICH MAY AFFECT VISION, DEXTERITY, OR JUDGMENT. USERS OF THIS EQUIPMENT MUST BE IN GOOD PHYSICAL AND MENTAL HEALTH IN ORDER TO OPERATE SAFELY. DO NOT USE THIS EQUIPMENT WHEN FATIGUE PREVENTS SAFE OPERATION. STAY ALERT WHEN OPERATING THIS EQUIPMENT. INAT- TENTION OR CARELESSNESS WHILE OPERATING THIS EQUIPMENT MAY RESULT IN SERIOUS INJURY OR DEATH. THE SCOTT PAK-ALERT DISTRESS ALARM DESCRIPTION The PAK-ALERT SE + distress alarm is a PERSONAL ALERT SAFETY SYS- TEM (PASS) intended to assist in locating a respirator user who is incapacitated or in need of assistance. The SCOTT PAK-ALERT distress alarm is an optional accessory intended only for the SCOTT AIR-PAK® 2.2/ 3.0/4.5/Fifty Self-Contained Breathing Apparatus (SCBA). The SCOTT PAK-ALERT distress alarm consists of a sensor module mounted to the bottom of the respirator backframe, a pressure switch mounted between the cylinder and gauge line, and a control console mounted on the wearer’s right shoulder strap at the pressure gauge loca- tion. The SCOTT PAK-ALERT distress alarm reaches full alarm in a total of thirty (30) seconds. In addition to the standard PASS functionality, the PAK-ALERT SE + is also equipped with a SCOTT PAK-TRACKER locator device which is activated with the PASS alarm. The locator has a transmitter which emits a radio signal that can be tracked using the SCOTT PAK-TRACKER Hand Held Receiver unit. The SCOTT PAK-ALERT SE + equipped with the locator transmitter can be identified by the two RED covers on the Sensor Module. See FIGURE 2. The SCOTT PAK-TRACKER Locator System is a two part electronic system consisting of a PAK-TRACKER Transmitter, which is integrated into the PAK- ALERT SE + distress alarm, and a PAK-TRACKER Hand Held Receiver, which is a directional receiver or “sniffer” used to locate the signal coming from the PAK-TRACKER Transmitter. This line of electronic accessories is for use by fire fighters, first responders, domestic preparedness and law enforcement officers, as well as haz-mat and industrial users. The PAK-TRACKER Transmitter works in conjunction with the PAK-ALERT SE + distress alarm. A short time after activation of the full alarm, the unit begins transmitting a signal with a unique ID number that can be received by the PAK-TRACKER Hand Held Receiver. The PAK-TRACKER Hand Held Receiver is then used as a directional sen- sor to lead the rescue crew to the downed user. By pointing the PAK-TRACKER Hand Held Receiver in the direction of the strongest signal, the rescue crew can follow the signal to the downed user. FIGURE 2 RED COVERS ON SENSOR MODULE RED COVERS ON SENSOR MODULE 3 DRAFT COPY DRAFT COPY Training and practice in realistic emergency simulations is required before use of this equipment. The users must become thoroughly familiar with the operation and the limitations of the system before entering a potentially haz- ardous or life threatening situation. The SYSTEM USE instructions, SCOTT part number 595102-01, comprise instructions for both the PAK-TRACKER Hand Held Receiver and the PAK-TRACKER Transmitter. Those instructions are to be used as the basis of training for use of the whole system and in- clude an overview of the system operation and limitations of the system, as well as any user level maintenance. QUESTIONS OR CONCERNS If you have any questions or concerns regarding use of this equipment, con- tact your authorized SCOTT dealer or distributor, or contact SCOTT at 1-800-247-7257 (or 704-291-8300 outside the continental United States) or visit our web site at www.scotthealthsafety.com. 1 Kevlar is a registered trademark of E. I. Du Pont de Nemours, Inc. The SCOTT PAK-ALERT distress alarm is approved by the National Insti- tute of Occupational Safety and Health (NIOSH) on all models of SCOTT AIR-PAK 2.2/3.0/4.5/Fifty SCBA except as specified in the limitations of use on the SCBA approval label and in the SCBA Operating and Mainte- nance Instructions. NIOSH certified SCBA’s are …

Text truncated - open the document above for the full version.

Scott Health & Safety 4320 Goldmine Road Monroe, NC 28110 U.S.A. Fire & Security Scott Health & Safety Tele:704.291.8395 Fax: 704.291.8380 e-mail: [email protected] Date: 07/06/2006 Time: 13:20 To: FCC Authorization & Evaluation Division 7435 Oakland Mills Road Columbia, MD 21045-0429 From: Klaus Wilkens Phone: 704-291-8395 Certification and Regulation Engineer Fax: 704-291-8380 Applicant: Scott Health & Safety Division of Scott Technologies, Inc. EMail: [email protected] ______________________________________________________________________________________ Subject: Request for Non disclosure for FCC ID: T5E -200427 To Whom It May Concern: Pursuant to 47 CFR Section 0.459, Scott Health & Safety Division of Scott Technologies, Inc. hereby requests non disclosure and confidential treatment of the following materials submitted in support of FCC certification application for FCC ID # T5E - 200427 a. Schematic Diagrams b. Operational Description c. Block Diagram Above materials contain trade secrets, proprietary and technical information which would customarily be guarded from competitors under 47 CFR section 0.457(d)(2). Disclosure or publication of any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. Scott Health & Safety Division of Scott Technologies, Inc. understands that pursuant to 47 CFR section 0.457(d)(1)(ii) disclosure of the applicant and all accompanying documentation will not be made before the date of the grant. Sincerely yours, By: Klaus Wilkens Title: Certification and Regulation Engineer, Scott Health & Safety Division of Scott Technologies, Inc ____________________________________________________________________________________

Scott Health & Safety 4320 Goldmine Road Monroe, NC 28110 U.S.A. Fire & Security Scott Health & Safety Tele:704.291.8395 Fax: 704.291.8380 e-mail: [email protected] Date: 4 April 2006 Time: 10 : 05 To: FCC Authorization & Evaluation Division 7435 Oakland Mills Road Columbia, MD 21045-0429 From: Klaus Wilkens Phone: 704-291-8395 Certification and Regulation Engineer Fax: 704-291-8380 Applicant: Scott Health & Safety Division of Scott Technologies, Inc. EMail: [email protected] ______________________________________________________________________________________ Dear Ladies and/or Gentlemen: I appoint Kenneth L. Boston, James Blaha and Teresa White at L.S. Compliance, Inc., to act as an agent in the preparation of applications under Part 15 of the rules and regulations of the Federal Communications Commission. I certify that the exhibitions properly describe the device being submitted under this application and will implement any changes described in the test report. The labels described will be affixed to each item. The following statement is required by the Federal Communications Commission: By checking Yes, the applicant certifies that, in the case of an individual applicant, he or she is not subject to a denial of federal benefits, that included FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C 853(a), or, in the case of a non-individual applicant (e.g. corporation, partnership, or other unincorporated association), no party to the application is subject to a denial of federal benefits, that includes FCC benefits, pursuant to that section. ___X___Yes _______No By: Klaus Wilkens Title: Certification and Regulation Engineer, Scott Health & Safety Division of Scott Technologies, Inc.

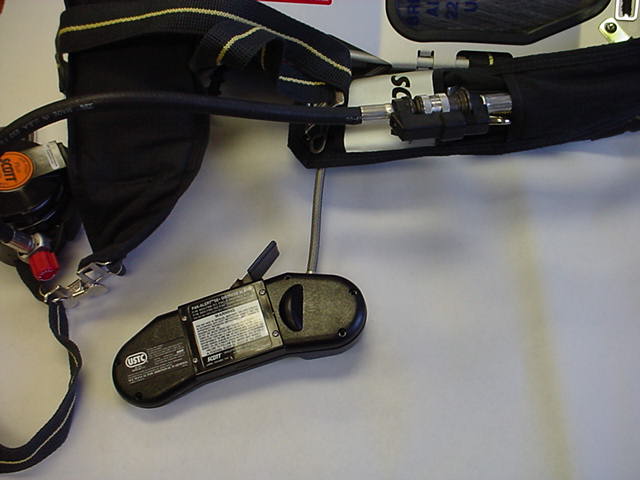

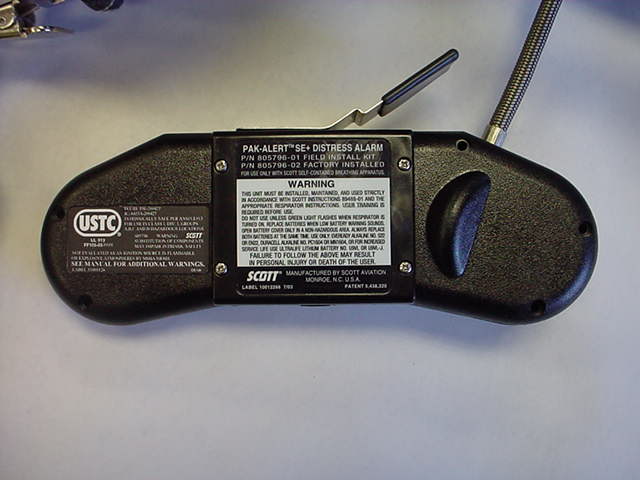

Scott Health & Safety T5E-200427 FCC ID#: T5E-200427 Photo One – External Front View Scott Health & Safety T5E-200427 FCC ID#: T5E-200427 Photo Two – External Bottom View Scott Health & Safety T5E-200427 FCC ID#: T5E-200427 Photo Three – External Close-Up of FCC ID Label Scott Health & Safety T5E-200427 FCC ID#: T5E-200427 Photo Four – External

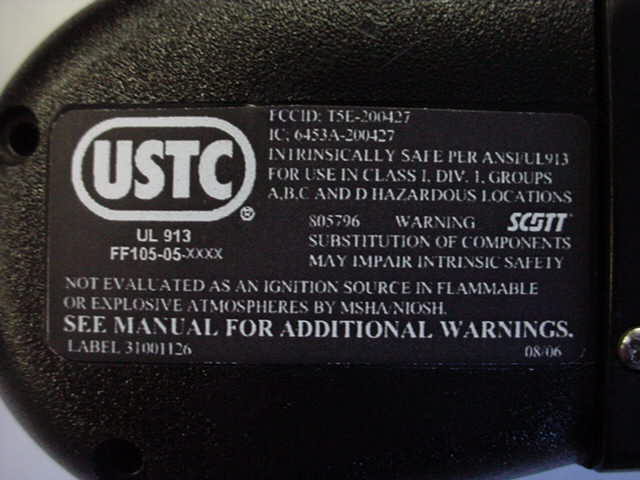

B R E A K A L L S H A R P E D G E S O N E X T E R N A L S U R F A C E S . F C C I D : T 5 E - 2 0 0 4 2 7 I C : 6 4 5 3 A - 2 0 0 4 2 7 I N T R I N S I C A L L Y S A F E P E R A N S I / U L 9 1 3 F O R U S E I N C L A S S I , D I V . 1 , G R O U P S A , B , C A N D D H A Z A R D O U S L O C A T I O N S 8 0 5 7 9 6 W A R N I N G S U B S T I T U T I O N O F C O M P O N E N T S M A Y I M P A I R I N T R I N S I C S A F E T Y N O T E V A L U A T E D A S A N I G N I T I O N S O U R C E I N F L A M M A B L E O R E X P L O S I V E A T M O S P H E R E S B Y M S H A / N I O S H . S E E M A N U A L F O R A D D I T I O N A L W A R N I N G S . L A B E L 3 1 0 0 1 1 2 6 0 9 / 0 6

Scott Health & Safety GEN 1A FCC ID#: T5E-200427 Photo One – Internal Open for Inspection Scott Health & Safety GEN 1A FCC ID#: T5E-200427 Photo Two – Internal RF Section Scott Health & Safety GEN 1A FCC ID#: T5E-200427 Photo Three – Internal RF Section Scott Health & Safety GEN 1A FCC ID#: T5E-200427 Photo Four – Internal RF Section, Shield Removed Scott Health & Safety GEN 1A FCC ID#: T5E-200427 Photo Five – Internal Close-Up of RF Section

LS Research, LLC Page 29 of 31 Test Report Number: 306211 TX Prepared For: Scott Health & Safety Confidential Appendix B Source Based Time Averaging and Operational Declarations Scott Health and Safety, the manufacturer of the EUT is requesting a mathematical adjustment of the measured RF power, at the frequency of operation, based on source based time averaging characteristics of the EUT. The request is for a reduction in the measured RF power, based on 0.8 % transmitter duty factor out of any 100 ms window of measurement. The supporting evidence is presented below as the declared theory of operation from the manufacturer, along with two measurements of the transmit packet envelope and repetition cycles as captured on an oscilloscope. Theory of Operation The transceiver operates on a single channel at 2425.0 MHz with a nominal conducte d output power of +20 dBm and is stabilized by means of an internal voltage regulator. The device operates in a packet mode only. No continuous RF carrier is possible. Each packet is 872 μS long and is repeated at a rate of 4 times per second. The average time between packets is ¼ second but they will dither in time. The shortest repetition between two adjacent packets is 173 mS. Digital data is sent using O-QPSK modulation at a bit rate of 2 MCPS with a payload bit rate of 250 MBPS. Output frequency is controlled to within 20 ppm by a 16.00 MHz crystal on the radio transceiver chip. The RF oscillator is entirely contained within the radio chip. No external inductor is used. The antenna is a printed circuit board Planar Inverted F (PIFA) with a nominal gain of -2 dBi and a peak gain of -1.9 dBi along a single axis. The minimum separation distance of the EUT from the user will be greater than 2.5 cm, in all cases, based on the dimensions of the enclosure, as well as the typical usage where the EUT will be used and worn outside of protective fire-fighting clothing and gear. LS Research, LLC Page 30 of 31 Test Report Number: 306211 TX Prepared For: Scott Health & Safety Confidential Oscilloscope trace demonstrating the maximum transmit envelope at 872 μs. Oscilloscope trace demonstrating the minimum separation in adjacent packets at 173 ms. Transmit packet on time: 0.87 (mS) Packet repetition time: 173.00 (mS) Maximum peak output power at antenna input terminal: 19.9 (dBm) Antenna gain(typical): -1.9 (dBi) Antenna gain(typical): 0.65 (numeric) Maximum peak output power at antenna output: 18.03 (dBm) Maximum peak output power at antenna output: 63.53 (mW) Use-based time-averaged power, conducted: 0.32 (mW) Maximum peak radiated output: 113.30 (dBuV/m @ 3m) Maximum peak radiated output: 18.10 (dBm) Maximum peak radiated output: 64.57 (mW) Use-based time-averaged power, radiated: 0.33 (mW) Low threshold for d<2.5 cm at 2.425 GHz: 24.74 (mW) Low threshold for d>2.5 cm at 2.425 GHz: 49.48 (mW) In both cases, computed and measured, the output power is below the low threshold for all separation distances greater than and less than 2.5 cm. LS Research, LLC Page 31 of 31 Test Report Number: 306211 TX Prepared For: Scott Health & Safety Confidential Photo of the EUT with the enclosure, demonstrating the minimum separation of 2.5 cm from the human body.

LS Research, LLC W66 N220 Commerce Court Cedarburg, WI 53012 262-375-4400 Fax: 262-375-4248 COMPLIANCE TESTING OF: Scott Pak-Alert™ Prepared For: Scott Health & Safety Division of Scott Technologies, Inc. Attn.: Ms. Ann Carver 4320 Goldmine Road Monroe, NC 28079 Test Report Number: 306211 TX-V1 Test Dates: April 20 th through May 18 th , 2006 All results of this report relate only to the items that were tested. This report is not to be reproduced, except in full, without written approval of LS Research, LLC. LS Research, LLC Page 2 of 31 Test Report Number: 306211 TX Prepared For: Scott Health & Safety Confidential Table of Contents Section Description Page Index 1 LS Research, LLC in Review 3 2 Signature Page 4 3 Product and General Information 5 4 Introduction 5 5 Product Description 6 6 Test Requirements 7 7 Summary of Test Report 7 8 Radiated Emissions Test 15.247 (b) and (d) 8-17 9 Band-Edge Measurements 15.247 (d) 18-19 10 Occupied Bandwidth 15.247 (a) 20 11 Power Output 15.247 (b) 21-22 12 Spurious Emissions 15.247 (d) 23-25 13 Spectral Density 15.247 (e) 26 14 MPE Calculations15.31(i) 27 Appendix A Test Equipment List 28 B Source Based Time Averaging and Operational Declarations 29-31 LS Research, LLC Page 3 of 31 Test Report Number: 306211 TX Prepared For: Scott Health & Safety Confidential 1. LS Research, LLC In Review LS Research, LLC - Accreditations and Listing’s As an EMC Testing Laboratory, our Accreditation and Assessments are recognized through the following: A2LA – American Association for Laboratory Accreditation Accreditation based on ISO/IEC 17025 : 2005 with Electrical (EMC) Scope of Accreditation A2LA Certificate Number: 1255.01 Federal Communications Commission (FCC) – USA Listing of 3 Meter Semi-Anechoic Chamber based on Title 47 CFR – Part 2.948 FCC Registration Number: 90756 Industry Canada On file, 3 Meter Semi-Anechoic Chamber based on RSS-212 – Issue 1 File Number: IC 3088-A On file, 3 and 10 Meter OATS based on RSS-212 – Issue 1 File Number: IC 3088 U. S. Conformity Assessment Body (CAB) Validation Validated by the European Commission as a U. S. Competent Body operating under the U. S. /EU, Mutual Recognition Agreement (MRA) operating under the European Union Electromagnetic Compatibility –Council Directive 2004/108/EC (formerly 89/336/EEC, Article 10.2) Date of Validation: January 16, 2001 Validated by the European Commission as a U.S. Notified Body operating under the U.S./EU, Mutual Recognition Agreement (MRA) operating under the European Union Telecommunication Equipment – Council Directive 99/5/EC, Annex V. Date of Validation: November 20, 2002 Notified Body Identification Number: 1243 LS Research, LLC Page 4 of 31 Test Report Number: 306211 TX Prepared For: Scott Health & Safety Confidential 2. Signature Page Prepared By: August 30, 2006 Teresa A. White, Document Coordinator Date Tested By: August 30, 2006 Khairul Aidi Zainal, EMC Engineer Date Approved By: August 30, 2006 Brian E. Petted, VP of Engineering Date LS Research, LLC Page 5 of 31 Test Report Number: 306211 TX Prepared For: Scott Health & Safety Confidential 3. Product and General Information Manufacturer: Scott Health & Safety, Division of Scott Technologies, Inc. Date(s) of Test: April 20 th – May 18 th , 2006 Test Engineer(s): √ Aidi Zainal Abtin Spantman Ken Boston Model #: 805796 Serial #: Engineering unit Voltage: (2) 9V batteries Operation Mode: Continuous transmit 4. Introduction Between April 20 th and May 18 th , 2006, a series of Conducted and Radiated RF Emission tests were performed on one sample of the Scott Health & Safety, Division of Scott Technologies, Inc. Pak-Alert™, Model Number 805796 here forth referred to as the “Equipment Under Test” or “EUT”. These tests were performed using the procedures outlined in ANSI C63.4-2003 for intentional radiators, and in accordance with the limits set forth in FCC Part 15.247 (Industry Canada RSS-210) for a low power transmitter. These tests were performed Khairul Aidi Zainal, EMC Engineer at LS Research, LLC. All Radiated and Conducted RF Emission tests were performed upon the EUT to measure the emissions in the frequency bands described in FCC Title 47 CFR, Part 15, including 15.35, 15.205, 15.247 and Industry Canada RSS-210 to determine whether these emissions are below the limits expressed within the standards. These tests were performed in accordance with the procedures described in the American National Standard for methods of measurement of Radio- Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz (ANSI C63.4-2003). Another document used as a reference for the EMI Receiver specification was the Comite International Special Des Perturbations Radioelelectriques (CISPR) Number 16-1, 2003. All tests were performed at LS Research, LLC in Cedarburg, Wisconsin, unless otherwise noted. LS Research, LLC Page 6 of 31 Test Report Number: 306211 TX Prepared For: Scott Health & Safety Confidential 5. Product Description The Scott Pak-Alert™, Model Number 805796 is a radio transceiver attached to an air tank. The device is used to send out an RF and an audio signal for tracking purposes in cases of emergency. If an emergency arises, the user must press a red button to activate the device. Pressing the yellow button twice will set the device on standby and pressing it two more times will deactivate the device. The RF signal transmitted is an FSK signal on a single DTS channel, operating at 2425 MHz with digital data as a data source and has a data rate of 250 kbps. Two 9V batteries provide power to the device. The antenna used on the device is a printed circuit board F antenna with a -1.9 dBi perceived gain as measured with a ground plane present. 77.104−−= TT PEG = 122.8 – 19.9 – 104.8 = -1.9 dBi Where, P T = transmitted power in dBm. G T = the gain of the transmitter antenna in dBi (dB above an Isotropic radiator). E = the radiated Electric Field in dBμV/m. LS Research, LLC Page 7 of 31 Test …

Text truncated - open the document above for the full version.

Test Setup Photos Scott Health & Safety Page 1 of 2 Photos Taken During Radiated Emission Testing View of the EUT setup in vertical orientation View of the EUT setup in Horizontal orientation View of the EUT setup in Side orientation Test Setup Photos Scott Health & Safety Page 2 of 2 Photo of the EUT with the enclosure, demonstrating the minimum separation of 2.5 cm from the human body.
