T5E201122AX3 SEMS + BT

Page 1 of 36 P/N 595289-01 Rev B 5/15 OPERATION AND MAINTENANCE INSTRUCTIONS SEMS II SCOTT ELECTRONIC MANAGEMENT SYSTEM USER PERSONAL DISTRESS ALARM AND USER ACCOUNTABILITY SYSTEM FOR THE SCOTT AIR-PAK X3 SELF-CONTAINED BREATHING APPARATUS SEMS II CONSOLE ON AIR-PAK X3 SCBA WARNING THE SCOTT SEMS II PERSONAL DISTRESS ALARM AND USER ACCOUNTABILITY SYSTEM IS INTENDED FOR USE WITH SCOTT SELF-CONTAINED BREATHING APPARATUS (SCBA) WHICH MAY SUPPORT HUMAN LIFE IN HAZARDOUS ATMOSPHERES. FAILURE TO CAREFULLY READ AND UNDERSTAND THE FOLLOWING INSTRUCTIONS MAY RESULT IN SERIOUS INJURY OR DEATH TO THE SCBA USER. USE OF A RESPIRATOR INTEGRATED WITH THE SEMS II / BLUETOOTH USER ACCOUNTABILITY SYSTEM WILL REQUIRE MODIFICATION OF THE RESPIRATOR "REGULAR OPERATIONAL INSPECTION PROCEDURES" AND WILL REQUIRE TRAINING OF THE RESPIRATOR USER IN THE USE OF SUCH RESPIRATORS. THE FOLLOWING INSTRUCTIONS SUPPLEMENT BUT DO NOT REPLACE THE OPERATING AND MAINTENANCE INSTRUCTIONS SUPPLIED WITH EACH RESPIRATOR. © 2015 Scott Safety. SCOTT, the SCOTT SAFETY Logo, Scott Health and Safety, SEMS II, PAK-ALERT, PAK-TRACKER, AIR- PAK, and NxG are registered and/or unregistered marks of Scott Technologies, Inc. or its affiliates. DRAFT COPY - NOT FOR PUBLICATION IMPERIUM ACCOUNTABILITY BASE STATION (SHOWN WITH REQUIRED PERSONAL COMPUTER, NOT INCLUDED) WARNING THIS PRODUCT IS DESIGNED AND INTENDED TO FUNCTION PROPERLY IN REASONABLE/ORDINARY FIREFIGHT- ING CONDITIONS. IT HAS BEEN CERTIFIED TO THE STANDARDS CONTAINED IN THE 2013 EDITION OF NFPA 1982. LIKE ALL EQUIPMENT, THE FUNCTIONALITY OF THIS PRODUCT MAY BE COMPROMISED BY EXTREME FIRE CONDITIONS. Page 2 of 36 P/N 595289-01 Rev B 5/15 WARNING DO NOT OPERATE THIS EQUIPMENT WHILE UN- DER THE INFLUENCE OF DRUGS, ALCOHOL, OR ANY MEDICATIONS OR SUBSTANCES WHICH MAY AFFECT VISION, DEXTERITY, OR JUDG- MENT. USERS OF THIS EQUIPMENT MUST BE IN GOOD PHYSICAL AND MENTAL HEALTH IN ORDER TO OPERATE SAFELY. DO NOT USE THIS EQUIPMENT WHEN FATIGUE PREVENTS SAFE OPERATION. STAY ALERT WHEN OPERATING THIS EQUIPMENT. INATTENTION OR CARELESS- NESS WHILE OPERATING THIS EQUIPMENT MAY RESULT IN SERIOUS INJURY OR DEATH. SYSTEM DESCRIPTION SEMS II ACCOUNTABILITY SYSTEM The SCOTT Electronic Management System (SEMS II) is a respirator user accountability system that provides communication between respirator users in a hazardous area and an incident commander or other designated person outside of the hazardous area. The SCOTT SEMS II Personal Distress Alarm (PDA) is an optional accessory. It is intended to be integrated only with a compatible SCOTT self-contained breathing apparatus (SCBA) such as the AIR-PAK SCBA. The installation of the SCOTT SEMS II Personal Distress Alarm is approved by the National Institute of Occupational Safety and Health (NIOSH) on specific models of SCOTT SCBA. The complete SCOTT Emergency Management System (SEMS) consists of: • The Personal Alert Safety System (PASS) on the SCBA to sound a loud alarm when the user is motionless for a short period of time; • The IMPERIUM software with computer Base Station monitoring the status of SCBA users, including air supply levels, PASS activation, and evacuation calls. –Max. of 150 SCBAs using SEMS II –Max. of 50 SCBAs using BLUETOOTH ® backup • The PAK-TRACKER Locator System to locate the transmitted signal from a SEMS II Personal Distress Alarm (PDA) Portable Unit where PASS has been activated. The complete IMPERIUM ACCOUNTABILITY SYSTEM consists of: • Individual transmitting SEMS II (or SEMS II with a BLUETOOTH backup) enabled portable unit with Control Consoles integrated into to the SCOTT self-contained breathing apparatus; • Programmable ID Tags and programming equipment, (Tags are available in a variety of forms); • A Personal Computer (not included) with IMPERIUM software installed; • Receiver(s) to capture transmitted SEMS II and BLUETOOTH signals to personal computer. Refer to the SCOTT CONNECT IMPERIUM ACCOUNTABILITY BASE STATION SOFTWARE Installation and Use instructions, SCOTT P/N 595290-01, in the HELP directory of the IMPERIUM software for a complete listing of all equipment available for the IMPERIUM ACCOUNTABILITY SYESTEM. All items are sold separately. SEMS II equipped PDA Portable Units provide a continuous limited two- way communication between the SCBA respirator control console and X3 AIR-PAK SCBA WITH SEMS II DISTRESS ALARM ASSEMBLY SEMS II CONTROL CONSOLE ASSEMBLY SENSOR MODULE ASSEMBLY SEMS II SCOTT ELECTRONIC MANAGEMENT SYSTEM PERSONAL DISTRESS ALARM AND BASE STATION NOTE USE IN ACCORDANCE WITH NFPA 1500, "STANDARD ON FIRE DEPARTMENT OCCUPATIONAL SAFETY AND HEALTH PROGRAM." The BLUETOOTH trademarks are owned by BLUETOOTH SIG, Inc. Other trademarks and trade names in this document are those of their respective owners. © 2013 BLUETOOTH SIG, Inc. Subject to change without prior notice. MOTOROLA and the Stylized M Logo are trademarks or registered trademarks of Motorola Trademark Holdings, LLC. Page 3 of 36 P/N 595289-01 Rev B 5/15 WARNING NO PERSONAL ALERT SAFETY SYSTEM, RESPIRATOR OR COMBINATION OF PERSONAL ALERT SAFETY SYSTEM AND RESPIRATOR, BY THEMSELVES, CAN PROVIDE COMPLETE PROTECTION IN DANGEROUS SITUATIONS. FAILURE TO FOLLOW THE INSTRUCTIONS IN THIS MANUAL AND THE REQUIREMENTS OF AN ORGANIZED RESPIRATORY PROTECTION PROGRAM MAY LEAD TO SITUATIONS WHICH COULD RESULT IN SERIOUS INJURY OR DEATH. WARNING USERS OF RESPIRATORS EQUIPPED WITH THE SEMS II DISTRESS ALARM MUST BE AWARE OF THE PROPER OPERATION OF THE DISTRESS ALARM. IF THE GREEN LIGHT IS NOT FLASHING NORMALLY, OR IF THE UNIT EXHIBITS ANY OTHER SIGNS OF A MALFUNCTION WITHOUT THE USER TAKING PROPER CORRECTIVE ACTION, IT MAY LEAD TO CIRCUMSTANCES THAT RESULT IN SERIOUS INJURY OR DEATH. SYSTEM DESCRIPTION CONTINUED ON NEXT PAGE... SEMS II PERSONAL DISTRESS ALARM CONTROL CONSOLE The SCOTT SEMS II PDA Portable Unit, when added to a SCOTT SCBA respirator consists of a Sensor Module with battery compartment mounted to the bottom of the respirator backframe, a pres…

Text truncated - open the document above for the full version.

Request for Confidentiality Date: July 2, 2015 Confidentiality Request for: FCC ID: T5E201122A IC ID: 6453A-201122A To Whom It May Concern, Pursuant to FCC 47 CRF 0.457(d) and 0.459 and IC RSP-100, Section 6.4, the applicant requests that a part of the subject FCC and/or IC application be held confidential. The applicant requests the exhibits listed below be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Block Diagram Schematics -Other proprietary information may be listed Applicant has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Sincerely, (Signature) Name: Klaus Wilkens Title: Senior Certification Engineer Phone: (704)291-8395 Email: [email protected]

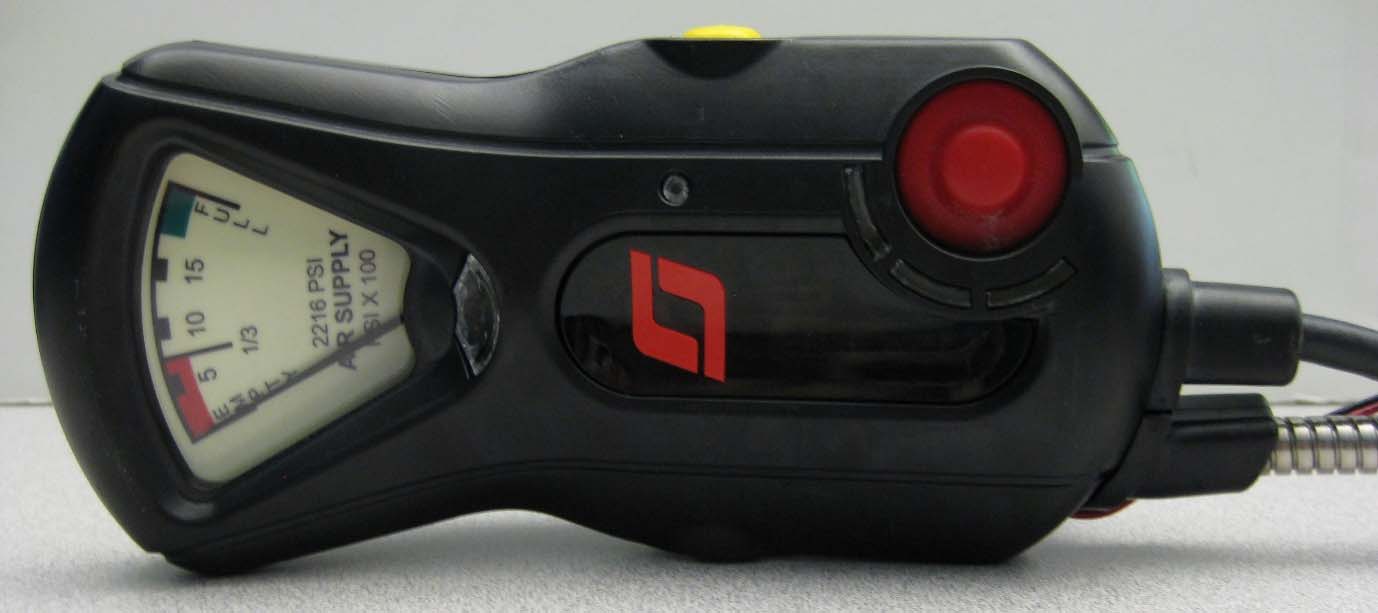

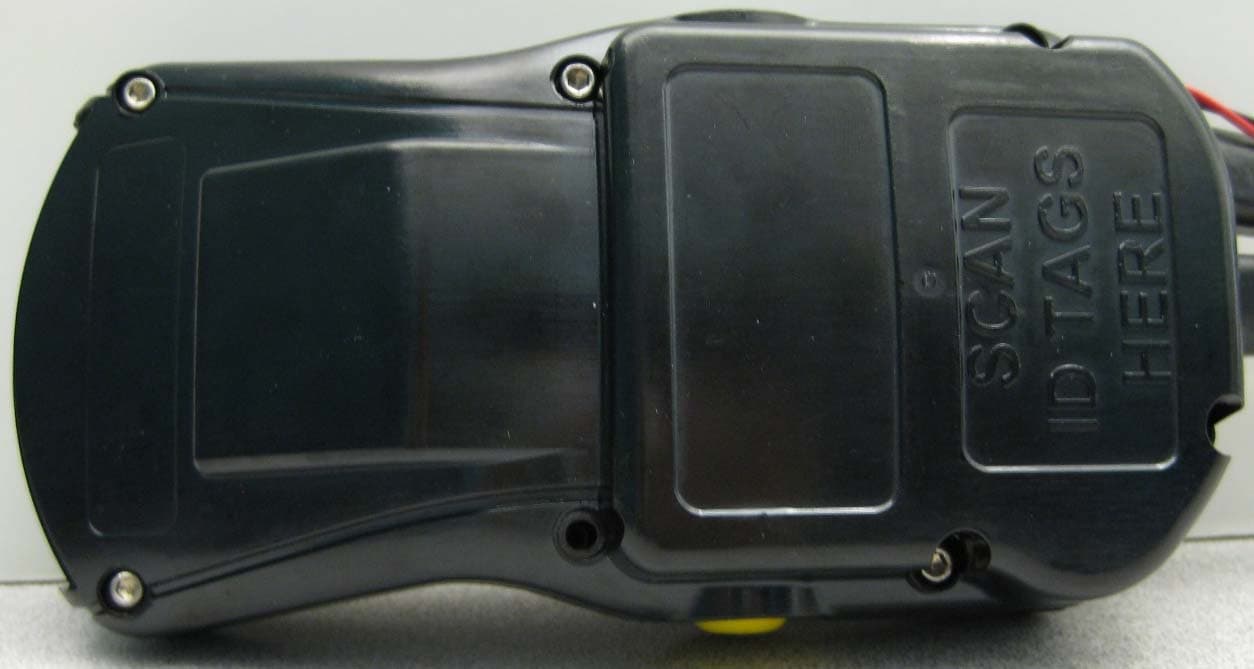

EXTERNAL PHOTOS Page 1 of 2 EXTERNAL PHOTOS Page 2 of 2

.

Theory of Operation SEMS II / Blue Tooth Scott Emergency Management System (SEMS II) with Blue Tooth is a telemetry system for firefighter, comprises mainly of two devices a (1) Control Module which house the piezos for the Personnel Alarm Safety System (PASS) and (2) an Console unit which houses the telemetry radio being capable of bidirectional communications with a base station (gateway) comprised of a USB or PCMCIA card. The system operates on a radio frequency of 2.4 GHz, where by the console unit is capable of transmitting and receiving information to and from the base station. The transmission range is 450ft in a typical indoor environment and 2000ft line of sight (LOS). The Console also contains a blue tooth radio with ability to pair and transmit data every 60 seconds. CONSOLE Unit: The console unit is carried by a firefighter as part of the Self Contained Breathing Apparatus (SCBA) and is automatically activated “powered on” when air is applied to the system; the principle of the automatic activation is the same as the Heads Up Display (HUD) which is part of the SCBA. The console unit is only capable of being turned off when no air pressure is sensed or applied on the system. The user must double click the reset button on the console to turn the console and control module off. The method of turning the console and PASS control module off is the same as Scott PASS system currently utilized on the NFPA 1982 edition 2007. The console unit has three buttons a (Reset) button “yellow”, a (Manual) PASS alarm button “Red” and a (Withdraw) button “Blue”. By depressing the “RESET” pushbutton the Console unit (if in a PASS alarm) the PASS alarm will be reset and stop the alarm sounds. Furthermore, the Reset button is used to turn the PASS off if no air pressure is on the system. The Manual “PASS alarm” pushbutton if depressed will cause an audible alarm, the alarm can be reset by the “Reset” button. The Withdraw button when depressed will transmit a signal to the base station, and alert the person at the base station that that individual is withdrawing from his/hers area. The SEMS II system console unit utilizes the same control module (PASS unit) as the 2007 edition currently in production at Scott Health and Safety. The console unit contains 2 transceivers that operate in the 2.4GHz unlicensed spectrum (FCC part 15). The transceivers are: 1. An 802.15.1 Bluetooth transceiver operating the basic data rate (1MBPS) 2. An 802.15.4 Zigbee transceiver operating on a single channel (2405MHz). Both transceivers are connected to an internal antenna and communicate with the gateway that is connected to a PC as the base station. The system provides an Ad-Hoc network between the console units and the base station which provides the users with a great range than competitive point to point systems currently on the market. The console is capable of transmitting a SCBA identification name, manual and auto PASS alarms, air pressure and a withdraw message. The console is capable of receiving an Evacuate message from the base station and a RF Range messages both visual and audible indicators for all alarms and messages. The console also contain a 125kHz RFID scanner which allows a user to read a RFID tag which can be programmed with information about the firefighter and the information is transmitted to the base station. To read the information from the RFID tag the user depresses the Withdraw button o the console while there is no air pressure on the system the user is prompted with a visual indicator to swap the RFID tag and if read is successful the console will display a visual flashing indication. The console blue tooth radio coupled to an antenna operates in the 2.4 GHz spectrum.

Aug 21, 2015 To Whom it may concern; To assist in clarifying part numbers referenced in the FCC submission, below is a hierarchical listing of the associated part numbers/description being used for the X3 SEMS II/BT console.  201122-xx Top Level Assembly- console with SEMII and BT o 201123-xx Subassembly level 1- no back cover/no potting  201272-xx Subassembly level 2 -PCB assembly board stack  200730-xx Subassembly level 3- SEMS II/ BT radio assembly Klaus Wilkens Senior Certification Engineer Tyco/Scott Health & Safety 4320 Goldmine Rd Monroe, NC 28110 (704)291-8395 (704)291-8380 Fax

DETAIL A 1 1 2 2 3 3 4 4 AA BB COMMERCIAL RESTRICTIVE LEGEND - ALL ITEMS, ASSEMBLIES, SPECIFICATIONS AND DIMENSIONS INCLUDED ON THIS DRAWING ARE PROPRIETARY TO AND THE PROPERTY OF SCOTT TECHNOLOGIES, INC. AND MAY NOT BE USED TO MANUFACTURE OR DUPLICATE THE ITEMS SHOWN HEREON. THE CONTENTS OF THIS DRAWING IN WHOLE, OR IN PART, ARE NOT TO BE USED, REPRODUCED, OR DISCLOSED TO ANY THIRD PARTY WITHOUT OBTAINING THE EXPRESS WRITTEN AUTHORIZATION OF SCOTT TECHNOLOGIES, INC. DRAWN BY SCALE DRAWING NUMBERCAGE CODE TITLE APPROVED BY DESIGNED BY SIZE REV SHEET 1 OF 1 Scott Health and Safety Monroe Corporate Center 4320 Goldmine Road Monroe, North Carolina 28110 DECIMAL ANGLE .XX .XXX ± 1/2° ± .01 ± .005 UNLESS OTHERWISE SPECIFIED: DIMENSIONS ARE IN INCHES. ALL DIMENSIONS AFTER PLATING. J. LANDIS C. PARKULO W. REED 6/18/2008 6/17/2008 6/18/2008 ANTENNA 2/1 B 15927 200764 C A .24 - .03 .01+ SOURCE CONTROL DRAWING ONLY THE ITEM DESCRIBED ON THIS DRAWING WHEN PROCURED FROM THE VENDOR(S) LISTED HEREON IS APPROVED BY SCOTT HEALTH AND SAFETY, A SCOTT TECHNOLOGIES COMPANY, MONROE, NORTH CAROLINA 28111, FOR USE IN THE APPLICATION(S) SPECIFIED HEREON. A SUBSTITUTE ITEM SHALL NOT BE USED WITHOUT PRIOR TESTING AND APPROVAL BY SCOTT HEALTH AND SAFETY. APPROVED SOURCE(S) OF SUPPLY SCOTT P/NVENDORVENDOR ITEM NO. 200764-01OPCB04841 NEARSON INC. 7432 ALBAN STATION BLVD. SUIT B226 SPRINGFIELD, VA 22150 PH: 10703-913-5552 DOUBLE SIDED FOAM ADHESIVE STRIP NOTES: 1. DESCRIPTION: EMBEDDED MICROSTRIP ANTENNA. 2. APPLICATION FREQUENCY: 2405 MHz. 3. THIS COMPONENT/ASSEMBLY SHALL BE CERTIFIED THAT IT IS MANUFACTURED IN COMPLIANCE WITH RoHS STANDARD. REVISION REVECN Nr.DESCRIPTIONDATEENGINEERCHECKED A PRE RELEASE6/18/2008J. LANDISW. REED B 129808 Modify Vendor No. from AA02 04841 to OPCP04841, INITIAL RELEASE 10/06/2008D.THOMPSONW. REED C 129960 ADD .14 MAX. HEAT SHRINK HEIGHT NOTE11/12/2008D.THOMPSONW. REED 1.37 MM TEFLON COAX CABLE AND CONNECTOR ASSEMBLY, EMMERSON 415-0088-250, OR TYCO 2015357-2, OR HIROSE U.FL-2LP-088K1T-A-(200). P/N 200764-01 AS SHOWN CABLE LENGTH 4.00 ± .25 2.25 MAX. HEAT SHRINK Notice This document or information contained within this document resides with a certifying agency. Contact Scott’s Certification Group before revising this document or any documentation specified within this document. ASSEMBLE CABLE AS SHOWN .14 MAX. HEAT SHRINK HEIGHT

W66 N220 Commerce Court ● Cedarburg, WI 53012 USA ● Phone: 262.375.4400 ● Fax: 262.375.4248 ● www.lsr.com Prepared For: Tyco/Scott Health and Safety Name: X3 SEMS + BT Report: 315096 C FCC RF Model: 201122-31, 201122-32 and 201122-33 LSR: C-2202 Serial: Test Page 1 of 11 Page 125kHz RFID SAR exclusion calculations Compliance Testing of: X3 SEMS + BT Prepared For: Tyco/Scott Health and Safety Attn: Ann Carver 4320 Goldmine Road Monroe, NC 28110 This Test Report is issued under the Authority of: Khairul A. Zainal, Sr. EMC Engineer Signature: Date: 9/22/15 This Test Report may not be reproduced, except in full, without written approval of LS Research, LLC. Prepared For: Tyco/Scott Health and Safety Name: X3 SEMS + BT Report: 315096 C FCC RF Model: 201122-31, 201122-32 and 201122-33 LSR: C-2202 Serial: Test Page 2 of 11 ii. Table of Contents Table of Contents Page 1 ii. Table of Contents ....................................................................................................................... 2 iii. LS Research, LLC ...................................................................................................................... 3 1.0 Conformance Summary ............................................................................................................. 4 2.0 SAR Test Exclusion Threshold .................................................................................................. 4 3.0 Separation distance used for calculations. ................................................................................. 4 4.0 Client Information ...................................................................................................................... 5 4.1 Equipment Under Test (EUT) Information ................................................................................ 5 4.2 Product Description ................................................................................................................... 5 4.3 Modifications Incorporated In the EUT for Compliance Purposes ........................................... 5 4.4 Deviations & Exclusions from Test Specifications ................................................................... 5 4.5 Additional Information .............................................................................................................. 5 5.0 RF Conducted Measurement Data ............................................................................................. 6 6.0 SAR Test Exclusion Calculation ............................................................................................... 7 7.0 Separation Distance Exhibit ............................................................................................................ 9 Prepared For: Tyco/Scott Health and Safety Name: X3 SEMS + BT Report: 315096 C FCC RF Model: 201122-31, 201122-32 and 201122-33 LSR: C-2202 Serial: Test Page 3 of 11 iii. LS Research, LLC LSR, LLC in Review As an EMC Testing Laboratory, our Accreditation and Assessments are recognized through the following: A2LA – American Association for Laboratory Accreditation Accreditation based on ISO/IEC 17025: 2005 with Electrical (EMC) Scope of Accreditation A2LA Certificate Number: 1255.01 Federal Communications Commission (FCC) – USA Listing of 3 Meter Semi-Anechoic Chamber based on Title 47 CFR – Part 2.948 FCC Registration Number: 90756 Industry Canada On file, 3 Meter Semi-Anechoic Chamber based on RSS-212 – Issue 1 File Number: IC 3088-A On file, 3 and 10 Meter OATS based on RSS-212 – Issue 1 File Number: IC 3088 U. S. Conformity Assessment Body (CAB) Validation Validated by the European Commission as a U. S. Competent Body operating under the U. S./EU, Mutual Recognition Agreement (MRA) operating under the European Union Electromagnetic Compatibility –Council Directive 2004/108/EC (formerly 89/336/EEC, Article 10.2). Date of Validation: January 16, 2001 Validated by the European Commission as a U.S. Notified Body operating under the U.S. /EU, Mutual Recognition Agreement (MRA) operating under the European Union Telecommunication Equipment – Council Directive 99/5/EC, Annex V. Date of Validation: November 20, 2002 Notified Body Identification Number: 1243 Prepared For: Tyco/Scott Health and Safety Name: X3 SEMS + BT Report: 315096 C FCC RF Model: 201122-31, 201122-32 and 201122-33 LSR: C-2202 Serial: Test Page 4 of 11 1.0 Conformance Summary The EUT was found to MEET the requirements for SAR test exclusion per FCC §2.1091 and RSS102 using methods of FCC KDB 447498 D01 General RF Exposure Guidance v05r02 as a standalone device. 2.0 SAR Test Exclusion Threshold SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 20 cm 1-g SAR test exclusion threshold equation: [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)] * [√f(GHz)] ≤ 3.0 10-g SAR test exclusion threshold equation: [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)] * [√f(GHz)] ≤ 7.5 SAR test exclusion threshold calculation for below 100 MHz is listed in KDB 447498 D01 General RF Exposure Guidance section 4.3.1(3) 3.0 Separation distance used for calculations. A conservative separation distance of 50mm was used in all calculations. Please refer to section 7 for separation distance justification. Prepared For: Tyco/Scott Health and Safety Name: X3 SEMS + BT Report: 315096 C FCC RF Model: 201122-31, 201122-32 and 201122-33 LSR: C-2202 Serial: Test Page 5 of 11 4.0 Client Information Manufacturer Name: Tyco/Scott Health and Safety Address: 4320 Goldmine Road Contact Person: Ann Carver 4.1 Equipment Under Test (EUT) Information The following information has been supplied by the applicant. Product Name: X3 SEMS + BT Model Number: 201122-31, 201122-32 and 201122-33 Serial Number: Test FCC ID T5E201122A 4.2 Product Description Scott Emergency Management System (SEMS II) with Blue Tooth is a telemetry system for firefighter…

Text truncated - open the document above for the full version.

W66 N220 Commerce Court ● Cedarburg, WI 53012 Phone: 262.375.4400 ● Fax: 262.375.4248 www.lsr.com ENGINEERING TEST REPORT # 315096B LSR Job #: C-2202 Compliance Testing of: X3 SEMS + BT Test Date(s) April 7 th – May 8 th , 2015 Prepared For: Tyco/Scott Health and Safety Attn: Ann Carver 4320 Goldmine Road Monroe, NC 28110 This Test Report is issued under the Authority of: Shane D. Rismeyer, EMC Engineer Signature: Date: 6/2/15 Test Report Reviewed by: Signature: Date: 9/14/15 Report by: Shane D. Rismeyer, EMC Engineer Signature: Date: 6/2/15 This Test Report may not be reproduced, except in full, without written approval of LS Research, LLC. LS Research, LLC Page 2 of 31 Prepared For: Tyco/Scott Model Number: 201122-31, 201122-32 and 201122-33 Report #: 315096B EUT: X3 SEMS + BT Serial Number: Test LSR Job #: C-2202 Table of Contents 1.0 Summary of Test Report ............................................................................................................ 4 2.0 Test Facilities ............................................................................................................................. 4 3.0 Client Information ...................................................................................................................... 4 3.1 Equipment Under Test (EUT) Information ................................................................................ 5 3.2 Product Description ................................................................................................................... 5 3.3 Modifications Incorporated In the EUT for Compliance Purposes ........................................... 5 3.4 Deviations & Exclusions from Test Specifications ................................................................... 5 3.5 Additional Information .............................................................................................................. 5 4.0 Conditions of Test ...................................................................................................................... 6 5.0 Test Equipment .......................................................................................................................... 6 6.0 Conformance Summary ............................................................................................................. 6 Appendix A – Test Equipment ............................................................................................................. 7 Appendix B – Test Data ........................................................................................................................ 8 B.1 – RF Conducted Emissions ........................................................................................................ 8 B.2 – Radiated Emissions ............................................................................................................... 18 Appendix C - Uncertainty Summary .................................................................................................. 30 Appendix D - References .................................................................................................................... 31 LS Research, LLC Page 3 of 31 Prepared For: Tyco/Scott Model Number: 201122-31, 201122-32 and 201122-33 Report #: 315096B EUT: X3 SEMS + BT Serial Number: Test LSR Job #: C-2202 LS Research, LLC in Review As an EMC Testing Laboratory, our Accreditation and Assessments are recognized through the following: A2LA – American Association for Laboratory Accreditation Accreditation based on ISO/IEC 17025: 2005 with Electrical (EMC) Scope of Accreditation A2LA Certificate Number: 1255.01 Federal Communications Commission (FCC) – USA Listing of 3 Meter Semi-Anechoic Chamber based on Title 47 CFR – Part 2.948 FCC Registration Number: 90756 Industry Canada On file, 3 Meter Semi-Anechoic Chamber based on RSS-212 – Issue 1 File Number: IC 3088-A On file, 3 and 10 Meter OATS based on RSS-212 – Issue 1 File Number: IC 3088 U. S. Conformity Assessment Body (CAB) Validation Validated by the European Commission as a U. S. Competent Body operating under the U. S./EU, Mutual Recognition Agreement (MRA) operating under the European Union Electromagnetic Compatibility –Council Directive 2004/108/EC (formerly 89/336/EEC, Article 10.2). Date of Validation: January 16, 2001 Validated by the European Commission as a U.S. Notified Body operating under the U.S. /EU, Mutual Recognition Agreement (MRA) operating under the European Union Telecommunication Equipment – Council Directive 99/5/EC, Annex V. Date of Validation: November 20, 2002 Notified Body Identification Number: 1243 LS Research, LLC Page 4 of 31 Prepared For: Tyco/Scott Model Number: 201122-31, 201122-32 and 201122-33 Report #: 315096B EUT: X3 SEMS + BT Serial Number: Test LSR Job #: C-2202 1.0 Summary of Test Report In April-May, 2015, the EUT, X3 SEMS + BT, was tested and MEETS the following requirements for the Bluetooth (FHSS) radio: FCC Requirement IC Requirement Test Requirements Measurement Procedure Compliance (Yes/No) 15.247 (a)(1) RSS-247 Section 5.1 (1) Bandwidth of a Frequency Hopping System ANSI C63.10-2013 Section 6.9 Yes 15.247(b) & 1.1310 RSS-247 Section 5.4 (2) Maximum Output Power ANSI C63.10-2013 Section 7.8 Yes 15.247 (a)(1) RSS-247 Section 5.1 (2) Carrier Frequency Separation ANSI C63.10-2013 Section 7.8 Yes 15.247 (a)(1)(iii) RSS-247 Section 5.1 (4) Number of Channels and Time of Occupancy ANSI C63.10-2013 Section 7.8 Yes 15.247(d) RSS-247 Section 5.5 RF Conducted Spurious Emissions at the Transmitter Antenna Terminal ANSI C63.10-2013 Section 7.8 Yes 15.247(c), 15.209 & 15.205 RSS-GEN Section 8.9, 8.10 Transmitter Radiated Emissions in Restricted Bands ANSI C63.10-2013 Section (6.3,6.5,6.6) Yes 2.1055 (d) RSS-GEN Section 6.11 Frequency Stability ANSI C63.10-2013 Section 6.8 Yes 15.207 RSS-GEN Section 8.8 Power Line Conducted Emissions Measurements ANSI C63.10-2013 Section 6.2 Yes 2.0 Test Facilities All testin…
