TMB-EM000018802.15.4 Transceiver Module

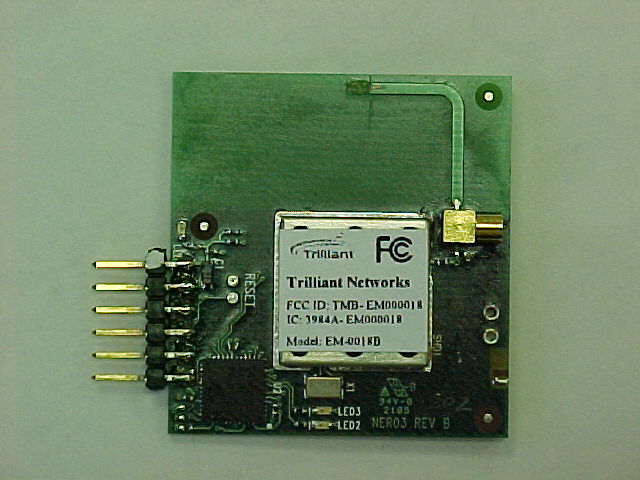

Trilliant Networks 100mw Radio Module In stallation Instructions January 3, 2007 Trilliant Net w ork s The Trilliant Networks 100mw Radio Module is a 2.4GHz 802.15.4 data transceiver module. The module contains a trance antenna or optional MMCX connector. Power is supplied by a host module with a nominal operating voltage of 3.3 volts. Specification of the radio includes: IEEE Standard: 802.15.4 Power Output: 100 mw (+20 dBm) Radio Sensitivity: -92 dBm minimum RF Data Rate: 250kbps Operating Frequency: 2.4-2.485 GHz Bit Error Rate: 7*10-7 @92dBm Network Topology: Mesh, Point to Point Spread Spectrum: Direct Sequence Modulation: O-QPSK Radio Dimensions: 1.6” x 1.5” Antenna Options: Directional trace antenna or MMCX external Compliance Statement (Part 15.19) This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) This device may not cause harmful interference. 2) This device must accept any interference received, including interference that may cause undesired operation. Warning (Part 15.21) Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. RF Exposure (OET Bulletin 65) To comply with FCC RF exposure requirements for mobile transmitting devices, this transmitter should only be used or installed at locations where there is at least 20cm separation distance between the antenna and all persons. FCC Interference Statement (Part 15.105 (b)) This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. To comply with FCC’s RF exposure limits for general population / uncontrolled exposure, the antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. OEM Responsibility to the FCC Rules and Regulations The 100mW Module has been certified per FCC Part 15 rules for integration into products without further testing or certification. To fulfill the FCC certification requirements the OEM of the “100mW” Module must ensure that the information provided on the “100mW” Label is placed on the outside of the final product. The “100mW” Module is labeled with its own FCC ID Number. If the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains Transmitter Module FCC ID: TMB-EM000018” or “Contains FCC ID: TMB-EM000018” The OEM of the “100mW” Module must only use the approved antenna, which has been certified with this module. The OEM of the “100mW” Module must test their final product configuration to comply with Unintentional Radiator Limits before declaring FCC compliance per Part 15 of the FCC rules. Industry Canada Statement The term “IC” before the certification/registration number only signifies that the Industry Canada technical specifications were met. Trilliant Networks, Inc. 950 Rue Cowie Granby, Quebec J2J 1P2 Canada Phone (450) 375-0556

Trilliant Networks 100 mw 802.15.4 Compliant Radio FCC ID#: TMB-EM000018 Photo One – External RF Module with Extender Cable & 3” Centurion Antenna Trilliant Networks 100 mw 802.15.4 Compliant Radio FCC ID#: TMB-EM000018 Photo Two – External Centurion Antenna Trilliant Networks 100 mw 802.15.4 Compliant Radio FCC ID#: TMB-EM000018 Photo Three – External Close-up of Antenna Connector Trilliant Networks 100 mw 802.15.4 Compliant Radio FCC ID#: TMB-EM000018 Photo Four – External Close-up of PCB Antenna Trilliant Networks 100 mw 802.15.4 Compliant Radio FCC ID#: TMB-EM000018 Photo Five – External RF Module-Component Side with Shielding Trilliant Networks 100 mw 802.15.4 Compliant Radio FCC ID#: TMB-EM000018 Photo Six – External Close-up of FCC ID Label

FCC ID Label File, Trilliant Networks Trilliant Networks FCC ID: TMB- EM000018 IC: 3984A- EM000018 Model: EM-0018B

Technical Data Sheet BRADYBONDZ(TM) B-423 THERMAL TRANSFER PRINTABLE GLOSSY WHITE POLYESTER LABEL STOCK TDS No. B-423 Effective Date: 03-Jun-2004 Description: GENERAL Print Technology: Thermal transfer Materials Type: White polyester Finish: Glossy white Adhesive: Permanent acrylic APPLICATIONS Electronic PCB and component identification, bar code label and rating plates. RECOMMENDED RIBBONS Brady series R6000 Brady series R4400 (colors - red, blue, green, white) Brady series R4900 and R6200 (alternates) AGENCY APPROVALS UL: B-423 is a UL Recognized Component to UL969 Labeling and Marking Standard when printed with Brady Series R6000 ribbon. See UL file MH17154 for specific details. UL information can be accessed on line at UL.com. Search in Certifications area. The Brady Series R4900 ribbon is also UL approved. CSA: B-423 is CSA Accepted to C22.2 No.0.15-95 Adhesive Labels Standard when printed with Brady Series R6000 ribbon. See CSA file 041833 for specific details. CSA information can be accessed online at directories.csa- international.org. DIN VDE 0472 Part 815: Brady B-423 meets requirements of a halogen-free material per DIN VDE 0472 part 815. (Statement based on review of product construction and confirmation halogen content test run at an independent test laboratory.) Details: PHYSICAL PROPERTIES TEST METHODS AVERAGE RESULTS Thickness ASTM D 1000 -Substrate -Adhesive -Total 0.002 inch (0.0508 mm) 0.001 inch (0.0254 mm) 0.003 inch (0.0762 mm) Adhesion to: -Stainless Steel - Painted Enamel - Textured ABS ASTM D 1000 20 minute dwell 24 hour dwell 20 minutes dwell 24 hour dwell 20 minutes dwell 24 hour dwell 51 oz/inch (56 N/100 mm) 78 oz/inch (85 N/100 mm) 54 oz/inch (59 N/100 mm) 67 oz/inch (73 N/100 mm) 10 oz/inch (11 N/100 mm) 15 oz/inch (17 N/100mm) Tack ASTM D 2979 Polyken™ Probe Tack 1 second dwell 21 oz (600 g) Dielectric Strength ASTM D 1000 8600 Volts B-423 is not recommended for low surface energy surfaces such as polyethylene and polypropylene. Performance properties tested on B-423 printed with Series R6000 and R6200 ribbons using the Bradyprinter™ THT Model 300X-Plus thermal transfer printer. Printed samples were laminated to aluminum and allowed to dwell 24 hours before exposure to the indicated environments. Unless noted, results are the same for both ribbons. PERFORMANCE PROPERTIES TEST METHOD TYPICAL RESULTS High Service Temperature 30 days at various temperatures No visible effect to label at 110°C. Slight discoloration at 120°C; moderate discoloration at 145°C but label is still functional. Low Service Temperature 30 days at -70°C No visible effect Short Term High Service Temperature 5 minutes at various temperatures No visible effect to label at 180°C. Slight discoloration and label shrinkage at 200°C; label is functional. Label becomes nonfunctional at 210°C due to label shrinkage. Humidity Resistance 30 days at 100°F (37°C) and 95% relative humidity. No visible effect UV Light Resistance 30 days in UV Sunlighter™ 100 Slight discoloration Weatherability ASTM G26 30 days in Xenon Arc Weatherometer No visible effect Salt Fog Resistance ASTM B 117 30 days in 5% salt fog solution chamber No visible effect PERFORMANCE PROPERTY CHEMICAL RESISTANCE Samples were printed with Series R6000 and R6200 ribbons using a Bradyprinter™ 300X-Plus thermal transfer printer. Samples were laminated to aluminum panels and allowed to dwell 24 hours prior to testing. Testing was conducted at room temperature and consisted of 30 minute immersions in the specified test fluid. After immersion, the samples were removed from the test fluid and the printed image rubbed 10 times with a cotton swab saturated with the test fluid. The rating scale below shows the effect to the quality of the print for each sample. SUBJECTIVE OBSERVATION OF VISUAL CHANGE CHEMICAL REAGENT EFFECT TO EFFECTS TO PRINTED IMAGE R6000 R6200 LABEL STOCK WITHOUT RUBWITH RUB WITHOUT RUB WITH RUB Acetone Slight adhesive ooze 1 5 1 5 Toluene Slight adhesive ooze 1 5 1 5 Isopropyl Alcohol No visible effect 1 1 1 1 Mineral Spirits No visible effect 1 1 1 1 Gasoline Slight adhesive ooze 1 1 1 1 JP-8 Jet Fuel Slight adhesive ooze 1 1 1 1 Brake Fluid No visible effect 1 1-2 1 5 Skydrol® 500B-4 Slight adhesive ooze 1 5 2 5 SAE 20 WT Oil at 70°C No visible effect 1 1 1 1 MIL 5606 Oil No visible effect 1 1 1 1 Formula 409® Cleaner No visible effect 1 1 1 1 Northwoods™ Buzz Saw Citrus Degreaser No visible effect 1 1 1 1 Deionized Water No visible effect 1 1 1 1 Rating Scale: 1= no visible effect 2= slight smear or print removal, detectable but minimal smear 3= moderate smear or print removal (print still legible) 4= severe smear or print removal (print illegible or just barely legible) 5= complete print and/or topcoat removal NP= print removed prior to rub Product testing, customer feedback, and history of similar products, support a customer performance expectation of at least two years from the date of receipt for this product as long as this product is stored in its original packaging in an environment below 80 degrees F and 60% RH . We are confident that our product will perform well beyond this time frame. However, it remains the responsibility of the user to assess the risk of using such product. We encourage customers to develop functional testing protocols that will qualify a product's fitness for use, in their actual applications. Trademarks: BradyBondz™ is a trademark of Brady Worldwide, Inc. BradyPrinter™ is a trademark of Brady Worldwide, Inc. Formula 409® is a registered trademark of the Clorox Company Northwoods™ is a trademark of the Superior Chemical Corporation Polyken™ is a trademark of Testing Machines Inc. Skydrol® is a registered trademark of the Monsanto Company Sunlighter™ is a trademark of the Test Lab Apparatus Company ASTM: American Society for Testing and Materials (U.S.A.) CSA: Canadian Standards Association SAE: Society of Automotive Engineers (U.S.A.) UL: Underwriters Laboratories Inc. (U.S.A.) All S.I. …

Text truncated - open the document above for the full version.

Trilliant Networks 100 mw 802.15.4 Compliant Radio FCC ID#: TMB-EM000018 Photo One – Internal Open for Inspection with Shield Removed Trilliant Networks 100 mw 802.15.4 Compliant Radio FCC ID#: TMB-EM000018 Photo Two – Internal Flip Side of RF Module Trilliant Networks 100 mw 802.15.4 Compliant Radio FCC ID#: TMB-EM000018 Photo Three – Internal PCB Board Trilliant Networks 100 mw 802.15.4 Compliant Radio FCC ID#: TMB-EM000018 Photo Four – Internal Close-up of FCC ID Label

Specifications subject to change without notice. 3425 N.44 th Street, LINCOLN, NE 68504 USA SALES PHONE: 800.228.4563 PHONE: 402.467.4491 • FAX: 402.467.4528 www.centurion.com • [email protected] Copyright  2004 Centurion Wireless Technologies, Inc. All Rights Reserved Specifications: ƒ ½ wave coaxial dipole ƒ Clutch allows 360º rotation ƒ Flexible element ƒ FCC Part 15 compliant polarized connector Frequency 2.4 – 2.5 GHz Polarization Vertical MMCX 1.0 dBi SMA 2.0 dBi Gain SMRP 1.0 dBi Nominal Impedance 50 ohms VSWR 1.5:1 max at resonance RF Power Handling 50 watts Size (Length) 8cm Temperature Range -40° to +80°C Drop Test 1M Connectors: Model # Part # Connector WCR2400-MMCX WCR2400MMCX MMCX Straight WCR2400-SMA WCR2400SMA SMA-Male WCR2400-SMRP WCR2400SMRP RP-SMA-Male (gold) WCRb – 1/17/05 WCR Model Number: WCR2400 External Antenna – Connector Mount 10 cm 8 cm Azimuth WCR2400MMCX Elevation WCR2400MMCX

L.S. Compliance, Inc. Page 46 of 50 Test Report Number: 305275-Tx-v1 Prepared For: NERTEC Design, Inc./Trilliant 19. MPE Calculations The following MPE calculations are based on the Centurion whip antenna, with a measured EFI of 120.4 dBμV/m, at 3 meters, and conducted RF power of +19.8 dBm as presented to the antenna. The declared gain of the antenna is listed as 2.0 dBi, but the calculated gain of this antenna, as used in the calculations below, based on the EFI measurements is 5.4 dB. Antenna Type: Centurion Wireless Technologies, Incorporated, model number “WCR-2400-SMRP” Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 where:S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Maximum peak output power at antenna input terminal:19.80 (dBm) Maximum peak output power at antenna input terminal:95.499 (mW) Antenna gain(typical):5.4(dBi) Maximum antenna gain:3.467 (numeric) Prediction distance:20 (cm) Prediction frequency:2400 (MHz) MPE limit for uncontrolled exposure at prediction frequency:1 (mW/cm^2) Power density at prediction frequency:0.065876 (mW/cm^2) Maximum allowable antenna gain:17.2 (dBi) 20cm =11.8 dB Margin of Compliance at 2 4R PG S π =

L.S. Compliance, Inc. W66 N220 Commerce Court Cedarburg, WI 53012 262-375-4400 Fax: 262-375-4248 COMPLIANCE TESTING OF : NERTEC 100 mW Module Prepared For: NERTEC Design, Incorporated Trilliant Attention: Mr. Robert Fischette 950 Cowie Street Grandby, Quebec J2J 1P2 Test Report Number: 305275-Tx-v1 Test Dates: August 8 TH through November 8 TH , 2005 All results of this report relate only to the items that were tested. This report is not to be reproduced, except in full, without written approval of L. S. Compliance, Inc. L.S. Compliance, Inc. Page 2 of 50 Test Report Number: 305275-Tx-v1 Prepared For: NERTEC Design, Inc./Trilliant Table of Contents Section Description Page Index 1 L. S. Compliance in Review 3 2 A2LA Certificate of Accreditation 4 3 A2LA Scope of Accreditation 5 4 Validation Letter-U.S. Competent Body for EMC Directive 2004/108/EC (formerly 89/336/EEC) 6 5 Signature Page 7 6 Product and General Information 8 7 Introduction 8 8 Product Description 9-10 9 Test Requirements 11 10 Summary of Test Report 11 11 Radiated Emissions Test 12-28 12 Band-Edge Measurements 29-31 13 Occupied Bandwidth 32-33 14 Conducted RF Emissions Test on AC Power Line 34-38 15 Power Output 15.247 (b) 39-40 16 Spurious Emissions 15.247 (d) 41-42 17 Spectral Density 43-44 18 Frequency and Power Stability over Voltage and Temperature Variations 45 19 MPE Calculations 46 Appendix A Test Equipment List 47 B Antenna Specification 48 C Firmware and Setup Instructions 49 D Operation Protocol and Duty Factor Calculation 50 L.S. Compliance, Inc. Page 3 of 50 Test Report Number: 305275-Tx-v1 Prepared For: NERTEC Design, Inc./Trilliant 1. L. S. Compliance In Review L.S. Compliance - Accreditations and Listing’s As an EMC Testing Laboratory, our Accreditation and Assessments are recognized through the following: A2LA – American Association for Laboratory Accreditation Accreditation based on ISO/IEC 17025 : 1999 with Electrical (EMC) Scope of Accreditation A2LA Certificate Number: 1255.01 Federal Communications Commission (FCC) – USA Listing of 3 Meter Semi-Anechoic Chamber based on Title 47 CFR – Part 2.948 FCC Registration Number: 90756 Industry Canada On file, 3 Meter Semi-Anechoic Chamber based on RSS-212 – Issue 1 File Number: IC 3088-A On file, 3 and 10 Meter OATS based on RSS-212 – Issue 1 File Number: IC 3088 U. S. Conformity Assessment Body (CAB) Validation Validated by the European Commission as a U. S. Competent Body operating under the U. S. /EU, Mutual Recognition Agreement (MRA) operating under the European Union Electromagnetic Compatibility –Council Directive 2004/108/EC (formerly 89/336/EEC), Article 10.2. Date of Validation: January 16, 2001 Validated by the European Commission as a U.S. Notified Body operating under the U.S./EU, Mutual Recognition Agreement (MRA) operating under the European Union Telecommunication Equipment – Council Directive 99/5/EC, Annex V. Date of Validation: November 20, 2002 Notified Body Identification Number: 1243 L.S. Compliance, Inc. Page 4 of 50 Test Report Number: 305275-Tx-v1 Prepared For: NERTEC Design, Inc./Trilliant 2. A2LA Certificate of Accreditation L.S. Compliance, Inc. Page 5 of 50 Test Report Number: 305275-Tx-v1 Prepared For: NERTEC Design, Inc./Trilliant 3. A2LA Scope of Accreditation L.S. Compliance, Inc. Page 6 of 50 Test Report Number: 305275-Tx-v1 Prepared For: NERTEC Design, Inc./Trilliant 4. Validation Letter – U.S. Competent Body for EMC Directive 2004/108/EC (formerly 89/336/EEC) L.S. Compliance, Inc. Page 7 of 50 Test Report Number: 305275-Tx-v1 Prepared For: NERTEC Design, Inc./Trilliant 5. Signature Page Prepared By: February 20, 2006 Teresa A. White, Document Coordinator Date Tested By: February 20, 2006 Abtin Spantman, EMC Engineer Date Approved By: February 20, 2006 Brian E. Petted, VP of Engineering Date L.S. Compliance, Inc. Page 8 of 50 Test Report Number: 305275-Tx-v1 Prepared For: NERTEC Design, Inc./Trilliant 6. Product and General Information Manufacturer: NERTEC Design, Incorporated Date(s) of Test: August 8 TH through November 8 TH , 2005 Test Engineer(s): Tom Smith √ Abtin Spantman Ken Boston Model #: EM-0018B Serial #: 201 and 202 Voltage: 3.3 VDC Operation Mode: Normal operation and continuous transmit with modulation 7. Introduction Between August 8 TH and November 8 TH , 2005, a series of Conducted and Radiated RF Emission tests were performed on two samples of the NERTEC Design, Incorporated’s 100 mW transceiver module, here forth collectively referred to as the “Equipment Under Test” or “EUT”. The first sample, serial number 201, was setup for radiated emissions measurements, while the second sample, serial number 202, was fitted with an SMA connector for conducted RF emissions measurements. These tests were performed using the procedures outlined in ANSI C63.4-2003 for intentional radiators, and in accordance with the limits set forth in FCC Part 15.247 (Industry Canada RSS-210) for a low power transmitter. These tests were performed by Abtin Spantman, EMC Engineer at L.S. Compliance, Incorporated. All Radiated and Conducted RF Emission tests were performed upon the EUT to measure the emissions in the frequency bands described in Title 47 CFR, FCC Part 15, including 15.35, 15.205, 15.247 and Industry Canada RSS-210 to determine whether these emissions are below the limits expressed within the standards. These tests were performed in accordance with the procedures described in the American National Standard for methods of measurement of Radio- Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz (ANSI C63.4-2003). Another document used as a reference for the EMI Receiver specification was the Comite International Special Des Perturbations Radioelelectriques (CISPR) Number 16-1, 2003. All tests were performed at L.S. Compliance, Inc., in Cedarburg, Wisconsin, unless otherwise noted. L.S. Compliance, Inc. Page 9 of 50 Test Report Number: 305275-Tx-v1 Prepared For: NERTEC Design…
