TSV-HHB1BBGWNetworking Device

Need help? Call 1-800-813-2199 for customer support or visit www.MyHomeHeartbeat.com If Your Broadband Gateway Extender . . . Getting started The Home Key screen should say: Follow the instructions on the Home Key screen to join the sensor to your system and name it. Broadband Gateway Extender To install and use the Broadband Gateway Extender, you will need the following (not included): • Home Heartbeat Starter Pack • Broadband service • Cable or DSL modem • Cable/DSL router with a free LAN port • Access to an Internet browser You may also need: • 1 additional Ethernet cable After you have successfully installed the Home Heartbeat Starter Pack (which includes at least one sensor), you can install the Broadband Gateway. Connect CARRY the Broadband Gateway Extender and the Home Key to the location of your Cable/DSL modem and router.* Using the enclosed Ethernet cable, plug one end into the LAN port on the Broadband Gateway Extender, and the other into a free LAN port on the router. If the Home Key or sensor is out of range, you can: • Add a Home Heartbeat Range Extender between the Base Station and Broadband Gateway Extender, • select an alternate location in your home for the Broadband Gateway Extender that is still within reach of your modem and router, or • try moving the Base Station to a more central location in your our home. Then, complete Step 2 and 3 again. Plug in and set up * If you purchased a router in order to add the Broadband Gateway Extender to your network, follow the manufacturer’s instructions to install. NOTE: All interconnecting equipment must be UL Listed. After you have made the connections, your setup should look something like this: To monitor your home online, you must register the Broadband Gateway Extender. Visit www.MyHomeHeartbeat.com. Choose a name and password, enter the ID number (found on the bottom of the unit), and input your account settings. After you’ve registered, you will be able to monitor the sensors you’ve installed from anywhere you have internet access. 4 Register 5 Conrm Gateway-Portal Link PLUG the Broadband Gateway Extender into a wall outlet. The green Status LED light on the top will blink quickly several times. After the light stops blinking, CLICK the thumbwheel to wake the Home Key if it is asleep, then SLIDE the Home Key into the Slide Channel on the top of the Broadband Gateway Extender. NOTE: If you slide the Home Key into the Broadband Gateway Extender Slide Channel and the Home Key screen shows either of the following messages, it means that the Home Key or sensor may be outside the range of the Base Station. Remove Key... Please try again Sensor out of range? Remove Key... Can't set up now Key out of range Device found OK to remove Key... Eaton can not take responsibility for the transmission time required for alerts to contact your cell phone or email, as it is regulated by your service provider. Verify that the Portal is receiving data from the Gateway by triggering an alert from one of your installed sensors. For example, open and close a door that you have set to “Alarm on open.” • will not respond, make sure the outlet it is plugged into has power. • does not show the status of your sensors online, make sure that all cables connected to the devices are plugged in correctly and securely. Router Broadband Gateway Cable/DSL Modem PC WAN Port LAN PortLAN Ports Ethernet Port Ethernet Port Router Broadband Gateway WAN Port LAN PortLAN Ports Power Port Status LED Power Supply Router Broadband Gateway Cable/DSL Modem PC WAN Port LAN PortLAN Ports Ethernet Port Ethernet Port Router Broadband Gateway WAN Port LAN PortLAN Ports Power Port Status LED IM00416013E Rev. 1 Part No.: 67A5035H01 © 2006 Eaton Corporation FCC Statement (Compliance Statement, Part 15.19): This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. WARNING (Part 15.21): Changes or modications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. To comply with FCC’s RF exposure limits for general population/uncontrolled exposure, the antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. Industry Canada Statement The term “IC” before the certication/registration number only signies that the Industry Canada technical specications were met. Interference This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment o and on, then the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna • Increase the separation between the equipment and the receiver • Connect the equipment into a power source on dierent circuit than the receiver. Broadband Gateway Extender • will not respond, make sure the outlet it is plugged into has power. • Broadband Gateway Extender Components Broadband Gateway Extender Uses: LAN Port Power Port Home Key Slide Channel Status LED Learn about the status of your home from any place with an internet connection, and …

Text truncated - open the document above for the full version.

Eaton Corporation Technology & Quality Center 170 Industry Drive, RIDC Park West Pittsburgh, PA 15275 FCC CONFIDENTIALITY Date: 6/27/2006 Time: 11:21 To: FCC Authorization & Evaluation Division 7435 Oakland Mills Road Columbia, MD 21045-0429 From: Steven G. Loughner Phone: 412 - 787 - 6560 Lead Engineer Fax: 412 - 787 - 6488 Applicant: Eaton Corporation E-Mail: [email protected] Subject: Request for Non disclosure for FCC ID: TSV – HHB1BBGW. To Whom It May Concern: Pursuant to 47 CFR Section 0.459, Eaton Corporation hereby requests non disclosure and confidential treatment of the following materials submitted in support of FCC certification application for FCC ID: TSV – HHB1BBGW. a. Schematic Diagrams b. Operational Description c. Block Diagram Above materials contain trade secrets, proprietary and technical information which would customarily be guarded from competitors under 47 CFR section 0.457(d)(2). Disclosure or publication of any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. Eaton Corporation understands that pursuant to 47 CFR section 0.457(d)(1)(ii) disclosure of the applicant and all accompanying documentation will not be made before the date of the grant. Sincerely yours, By: Steven G. Loughner Title: Lead Engineer / Eaton Corporation

Eaton Corporation Technology & Quality Center 170 Industry Drive, RIDC Park West Pittsburgh, PA 15275 FCC A U T H O R I Z A T I O N Date: 11/14/2005 Time: 06:27 To: FCC Authorization & Evaluation Division 7435 Oakland Mills Road Columbia, MD 21045-0429 From: Steven G. Loughner Phone: 412 - 787 - 6560 Lead Engineer Fax: 412 - 787 - 6488 Applicant: Eaton Corporation E-Mail: [email protected] Dear Ladies and/or Gentlemen: I appoint Kenneth L. Boston, James Blaha and Teresa White at L.S. Compliance, Inc., to act as an agent in the preparation of applications under Part 15 of the rules and regulations of the Federal Communications Commission. I certify that the exhibitions properly describe the device being submitted under this application and will implement any changes described in the test report. The labels described will be affixed to each item. The following statement is required by the Federal Communications Commission: By checking Yes, the applicant certifies that, in the case of an individual applicant, he or she is not subject to a denial of federal benefits, that included FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C 853(a), or, in the case of a non- individual applicant (e.g. corporation, partnership, or other unincorporated association), no party to the application is subject to a denial of federal benefits, that includes FCC benefits, pursuant to that section. √ Yes _____No By: Steven G. Loughner Title: Lead Engineer / Eaton Corporation

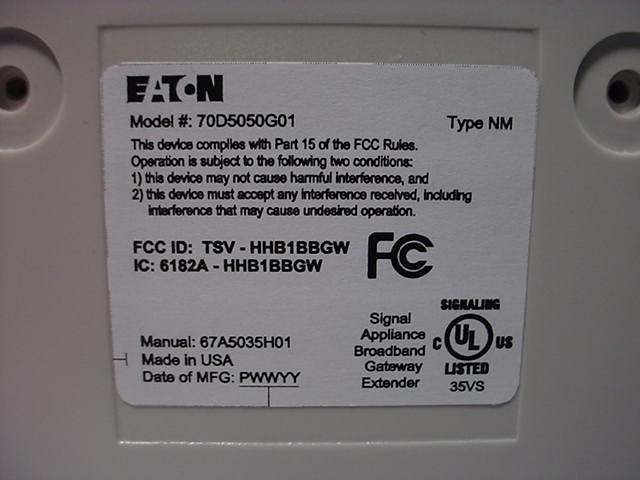

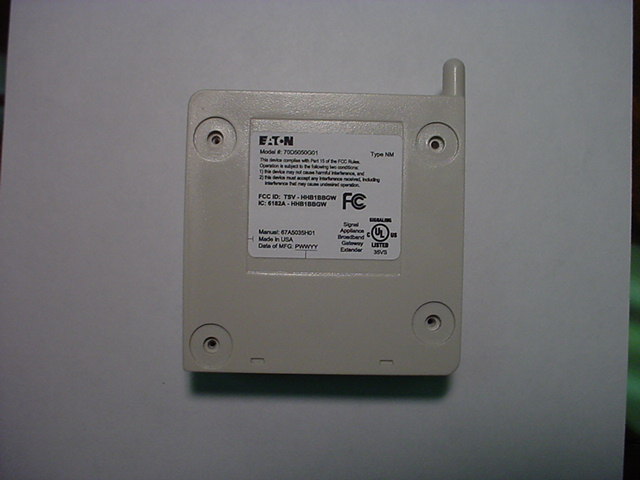

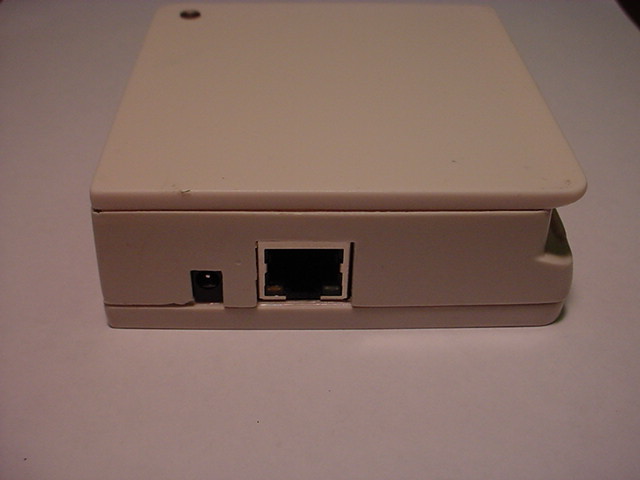

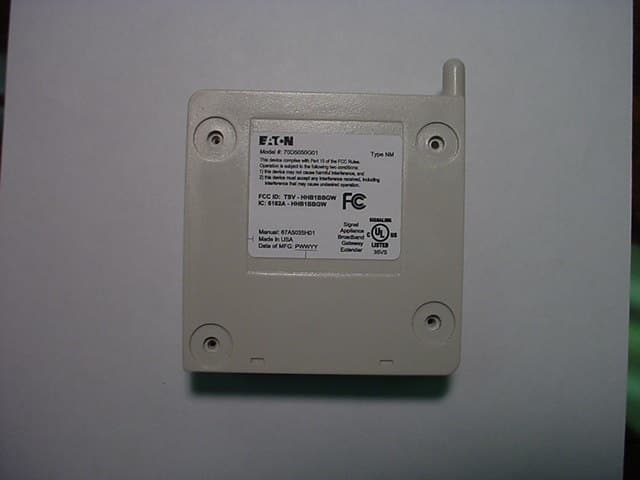

Eaton Corporation Gateway FCC ID#: TSV-HHB1BBGW Photo One – External Front Cover Eaton Corporation Gateway FCC ID#: TSV-HHB1BBGW Photo Two – External Side Connections Eaton Corporation Gateway FCC ID#: TSV-HHB1BBGW Photo Three – External Back Side, showing FCC ID Label Eaton Corporation Gateway FCC ID#: TSV-HHB1BBGW Photo Four – External Close-up of FCC ID Label

Eaton Corporation Gateway FCC ID#: TSV-HHB1BBGW Photo One – Internal Open for Inspection Eaton Corporation Gateway FCC ID#: TSV-HHB1BBGW Photo Two – Internal Component Side of PCB Eaton Corporation Gateway FCC ID#: TSV-HHB1BBGW Photo Three – Internal RF Section Eaton Corporation Gateway FCC ID#: TSV-HHB1BBGW Photo Four – Internal Flip Side of PCB Eaton Corporation Gateway FCC ID#: TSV-HHB1BBGW Photo Five – Internal Flip Side of RF Section Eaton Corporation Gateway FCC ID#: TSV-HHB1BBGW Photo Six – Internal Chip Antenna

2.45 GHz AntennaP/N 2450AT18A100 Detail Specification: 09/03/03 Page 1 of 3 General Specifications Part Number2450AT18A100Input Power500mW max. Frequency Range2400 - 2500 MhzImpedance50 Ω Peak Gain0.5 dBi typ. (XZ-V)Operating Temperature-40 to +85°C Average Gain-0.5 dBi typ. (XZ-V)Reel Quanity3,000 Return Loss9.5 dB min. No. Function Terminal Configuration 1Feeding Point 2NC Mechanical Dimensions Inmm L±± W±± T a±± Mounting Considerations Mount these devices with brown mark facing up. Units: mm Line width should be designed to provide 50Ω impedance matching characteristics. a) Without Matching Circuits b) With Matching Circuits Johanson Technology, Inc. reserves the right to make design changes without notice. All sales are subject to Johanson Technology, Inc. terms and conditions. www.johansontechnology.com 931 Via Alondra • Camarillo, CA 93012 • TEL 805.389.1166 FAX 805.389.1821 2003 Johanson Technology, Inc. All Rights Reserved "High Frequency Ceramic Solutions" 0.0080.1263.200.20 1.30 0.0200.012 0.063 0.051 1.60 +.004/-.008 0.0080.20 0.500.30 +0.1/-0.2 1 2 L W a T * 2.6 4.2 1.6 1.90.4 2.7nH 1.0pF 3.9nH 2.45 GHz AntennaP/N 2450AT18A100 Detail Specification: 09/03/03 Page 2 of 3 Typical Electrical Characteristics (T=25 o C) Test Board: Return Loss a) Without Matching Circuitsb) With Matching Circuits Johanson Technology, Inc. reserves the right to make design changes without notice. All sales are subject to Johanson Technology, Inc. terms and conditions. www.johansontechnology.com 931 Via Alondra • Camarillo, CA 93012 • TEL 805.389.1166 FAX 805.389.1821 2003 Johanson Technology, Inc. All Rights Reserved "High Frequency Ceramic Solutions" ) ) ) ) ) ) ) ) ) Ground 13.5mm 6.5mm 39.5mm6.5mm Matching Circuit No Ground 50Ω Feed Line Antenna 19mm 2.45 GHz AntennaP/N 2450AT18A100 Detail Specification: 09/03/03 Page 3 of 3 Typical Radiation Patterns Johanson Technology, Inc. reserves the right to make design changes without notice. All sales are subject to Johanson Technology, Inc. terms and conditions. www.johansontechnology.com 931 Via Alondra • Camarillo, CA 93012 • TEL 805.389.1166 FAX 805.389.1821 2003 Johanson Technology, Inc. All Rights Reserved "High Frequency Ceramic Solutions" ) ) ) ) ) ) ) ) ) XY-V/XY-H 180° 270° 0° 90° X Z Y XY-cut scanning direction XY cut @2.45GHz Vertical Horizontal XZ-V/XZ-H YZ-V/YZ-H 180° 270° 0° 90° X Z Y XZ-cut scanning direction 180° 270° 0° 90° X Z Y YZ-cut scanning direction XZ cut @2.45GHz Vertical Horizontal YZ cut @2.45GHz Vertical Horizontal

Prepared For: Eaton Corporation Model #:70D5050G01 LS Research, LLC EUT: Gateway Serial #: 0000AF060015 Template: 15.247 DTS TX (V1 6-09-06) Report #: 306387 TX-v1 Customer FCC ID #: TSV-HHB1BBGW Page 47 of 52 EXHIBIT 13. CHANNEL PLAN AND SEPARATION THIS TEST IS NOT REQUIRED FOR DTS SYSTEMS EXHIBIT 14. MPE CALCULATIONS The following MPE calculations are based on a Johanson Technology 2.45 GHz ceramic chip antenna, with a measured ERP of 113.9 dBμV/m at 1 meter, and conducted RF power of +18.9 dBm as presented to the antenna. The gain of the antenna is +0.5 dB

LS Research, LLC W66 N220 Commerce Court ● Cedarburg, WI 53012 ● USA Phone: 262.375.4400 ● Fax: 262.375.4248 www.lsr.com LS Research, LLC Prepared For: Eaton Corporation Template: 15.247 DTS TX (V1 6-09-06) Report #: 306387 TX-v1 Customer FCC ID #:TSV-HHB1BBGW Page 1 of 52 ------------------------------------------------------------------------------------------------------------------------- TEST REPORT: 306387 TX-v1 Compliance Testing of: Eaton HHB Broadband Gateway Extender. Test Date(s): August 28 th to September 7 th 2006 Prepared For: EATON Corporation Attn.: Mr. Richard Harwell 170 Industry Drive Pittsburgh, PA 15275 In accordance with: Federal Communications Commission (FCC) Part 15, Subpart C, Section 15.247 Digital Modulation Transmitters (DTS) Operating in the Frequency Band 2400 MHz – 2483.5 MHz This Test Report is issued under the Authority of: Brian E. Petted, VP of Engineering Signature: Date: September 11, 2006 Test Report Prepared by: Teresa A. White, Document Coordinator Signature: Date: September 11, 2006 Tested by: Khairul Aidi Zainal, EMC engineer Signature: Date: September 11, 2006 This Test Report may not be reproduced, except in full, without written approval of LS Research, LLC. Prepared For: Eaton Corporation Model #:70D5050G01 LS Research, LLC EUT: Gateway Serial #: 0000AF060015 Template: 15.247 DTS TX (V1 6-09-06) Report #: 306387 TX-v1 Customer FCC ID #: TSV-HHB1BBGW Page 2 of 52 TABLE OF CONTENTS (page 1 of 2) EXHIBIT 1. INTRODUCTION 4 1.1 Scope 4 1.2 Normative References 4 1.3 LS Research, LLC Test Facility 5 1.4 Location of Testing 5 1.5 Test Equipment Utilized 5 EXHIBIT 2. PERFORMANCE ASSESSMENT 6 2.1 Client Information 6 2.2 Equipment Under Test (EUT) Information 6 2.3 Associated Antenna Description 6 2.4 EUT’s Technical Specifications 7 2.5 Product Description 8 EXHIBIT 3. EUT OPERATING CONDITIONS & CONFIGURATIONS DURING TESTS 9 3.1 Climate Test Conditions 9 3.2 Applicability & Summary of EMC Emission Test Results 9 3.3 Modifications Incorporated in the EUT for Compliance Purposes 9 3.4 Deviations & Exclusions from Test Specifications 9 EXHIBIT 4. DECLARATION OF CONFORMITY 10 EXHIBIT 5. RADIATED EMISSIONS TEST 11 5.1 Test Setup 11 5.2 Test Procedure 11 5.3 Test Equipment Utilized 11 5.4 Test Results 12 5.5 Calculation of Radiated Emission Measurements 13 5.6 Radiated Emissions Test Data Chart 14-15 5.7 Test Setup Photo(s)-Radiated Emissions Test 16-17 5.8 Screen Captures-Radiated Emissions Testing 18-24 EXHIBIT 6. CONDUCTED EMISSIONS TEST, AC POWER LINE: 15.207 25 6.1 Test Setup 25 6.2 Test Procedure 25 6.3 Test Equipment Utilized 25 6.4 Test Results 25 6.5 FCC Limits of Conducted Emissions at the AC Mains Ports 26 6.6 Test Data Chart-Conducted Emissions 27 6.7 Test Setup Photo(s)-Conducted Emissions Test 28 6.8 Screen Captures-Conducted Emissions Test 29 EXHIBIT 7. OCCUPIED BANDWIDTH; 15.247(a)(2) 30 7.1 Limits 30 7.2 Method of Measurements 30 7.3 Test Equipment List 30 7.4 Screen Captures – Occupied Bandwidth 31-33 Prepared For: Eaton Corporation Model #:70D5050G01 LS Research, LLC EUT: Gateway Serial #: 0000AF060015 Template: 15.247 DTS TX (V1 6-09-06) Report #: 306387 TX-v1 Customer FCC ID #: TSV-HHB1BBGW Page 3 of 52 TABLE OF CONTENTS (Page 2 of 2) EXHIBIT 8. BAND-EDGE MEASUREMENTS 34 8.1 Method of Measurements 34 8.2 Screen Captures – Band-Edge Measurements 34-35 EXHIBIT 9. POWER OUTPUT (CONDUCTED); 15.247(b) 36 9.1 Method of Measurements 36 9.2 Test Data 36 9.3 Test Equipment List 37 9.4 Screen Captures – Power Output (Conducted) 37-38 EXHIBIT 10. POWER SPECTRAL DENSITY: 15.247(e) 39 10.1 Limits 39 10.2 Test Equipment List 39 10.3 Test Data 39 10.4 Screen Captures-Power Spectral Density 40-41 EXHIBIT 11. SPURIOUS RADIATED EMISSIONS: 15.247(d) 42 11.1 Limits 42-43 11.2 Test Equipment List 43 11.3 Test Data 43 11.4 Screen Captures-Spurious Radiated Emissions 44-45 EXHIBIT 12. FREQUENCY & POWER STABILITY OVER VOLTAGE VARIATIONS 46 EXHIBIT 13. CHANNEL PLAN AND SEPARATION 47 EXHIBIT 14. MPE CALCULATIONS 47 APPENDIX A TEST EQUIPMENT LIST 48 APPENDIX B ANTENNA SPECIFICATION(S) 49-51 APPENDIX C FIRMWARE AND SETUP INSTRUCTIONS 52 LSC Revision Control Date Revision # Revised By August 30, 2006 Version 0 Aidi Sept. 14, 2006 v1 T. White Prepared For: Eaton Corporation Model #:70D5050G01 LS Research, LLC EUT: Gateway Serial #: 0000AF060015 Template: 15.247 DTS TX (V1 6-09-06) Report #: 306387 TX-v1 Customer FCC ID #: TSV-HHB1BBGW Page 4 of 52 EXHIBIT 1. INTRODUCTION 1.1 SCOPE References: FCC Part 15, Subpart C, Section 15.247 Title: Telecommunication – Code of Federal Regulations, CFR 47, Part 15 Purpose of Test: To gain FCC Certification Authorization for Digital Modulation Transmitters operating in the Frequency Band of 2400 MHz – 2483.5 MHz Test Procedures: Both conducted and radiated emissions measurements were conducted in accordance with American National Standards Institute ANSI C63.4 – American National Standard for Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz. Environmental Classification: • Commercial, Industrial or Business • Residential 1.2 NORMATIVE REFERENCES Publication Year Title 47 CFR, Parts 0-15 (FCC) 2005 Code of Federal Regulations - Telecommunications ANSI C63.4 2004 American National Standard for Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz. CISPR 16-1-1 2003 Specification for radio disturbance and immunity measuring apparatus and methods. Part 1-1: Measuring Apparatus. CISPR 16-2-1 2003 Specification for radio disturbance and immunity measuring apparatus and methods. Part 201: Conducted disturbance measurement. FCC Public Notice DA 00-1407 2000 Part 15 Unlicensed Modular Transmitter Approval FCC ET Docket No. 99-231 2002 Amendment to FCC Part 15 of the Commission’s Rules Regarding Spread Spectrum Devices. FCC Procedures 2005, 03-23 Measurement of Digital Transmis…

Text truncated - open the document above for the full version.

Eaton Corporation Gateway FCC ID: TSV-HHB1BBGW TEST SETUP PHOTOS Page 1 of 3 Test Setup Photo(s) – Radiated Emissions Test Vertical Orientation Horizontal Orientation Eaton Corporation Gateway FCC ID: TSV-HHB1BBGW TEST SETUP PHOTOS Page 2 of 3 Test Setup Photo(s) – Radiated Emissions Test Side Orientation Eaton Corporation Gateway FCC ID: TSV-HHB1BBGW TEST SETUP PHOTOS Page 3 of 3 Test Setup Photo(s) – Conducted Emissions Test
