IM00416008E Rev. 2 Part No.: 67A5006H02 © 2006 Eaton Corporation Range Extender Uses: Range Extender Components Range Extender Home Key ™ Slide Channel Antenna Plugs into standard grounded outlet (3-prong) Status LED Expand the transmission zone to reach sensors that are farther away from the Base Station.* Perfect for: • Large houses • Houses with thick walls and floors • Houses with obstructions *Actual range may vary, depending on the location of the Base Station and home construction. FCC Statement (Compliance Statement, Part 15.19): This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. WARNING (Part 15.21): Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. To comply with FCC’s RF exposure limits for general population/uncontrolled exposure, the antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. Industry Canada Statement The term “IC” before the certification/registration number only signifies that the Industry Canada technical specifications were met. Interference This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, then the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna • Increase the separation between the equipment and the receiver • Connect the equipment into a power source on different circuit than the receiver. Sensor Maintenance No serviceable parts. Clean with a soft, dry cloth. Need help? Call 1-800-813-2199 for customer support or visit www.homeheartbeat.com If Your Range Extender . . . • will not respond, make sure the outlet it is plugged into actually has power. • frequently goes to Off Mesh, move the Range Extender closer to the Base Station, or add an additional Home Heartbeat Range Extender. Plug in CARRY the Range Extender and the Home Key to the wall outlet where you want to place it. Choose an outlet that is not controlled with a wall switch. PLUG the Range Extender into the wall outlet. The green light on the front will blink quickly several times. Range Extender The Awareness settings let you choose to have Home Heartbeat alert you if the Range Extender has lost its connection with the system (Off Mesh), or has a poor, okay, or good connection. Good Mesh is the strongest and indicates a high quality signal between the Base Station and the Range Extender. Okay Mesh and Poor Mesh indicate a connection of varying degree. Off Mesh is indicated when the Range Extender has lost the connection with the Base Station. If the Range Extender loses its Good Mesh frequently, try an alternate location or extra Range Extender to help maintain a good connection. Sensor Sensor Range Extender Sensor Base Station Sensor Use After the Range Extender is joined to the system, the green light will be steady. If the light blinks slowly, it means that the unit has lost the connection to the Base Station and its status will change to Off Mesh. The Range Extender will try to re-establish a connection with the Base Station, but if it is unable to, or if the Range Extender frequently loses its connection, try an alternate location and repeat Steps 1 and 2. When a device is communicating through the Range Extender, the green light on the front will blink rapidly. Set up After the light stops blinking, CLICK the thumbwheel to wake the Home Key if it is asleep, then SLIDE the Home Key into the channel on the top of the sensor. The Home Key screen should say: Please wait... Device found OK to remove Key. Follow the instructions on the Home Key screen to join the Range Extender to your system, name it, and set In-Home Awareness and "CallMe" Awareness . Device found OK to remove Key... If you slide the Home Key into the sensor Slide Channel and the Home Key screen shows either of the following messages, it means that the Home Key or sensor may be outside the range of the Base Station. If the Home Key or sensor is out of range, you can: • Add a Home Heartbeat Range Extender between the Base Station and Range Extender, or • select an alternate location for the Range Extender, or • try moving the Base Station to a more central location in your home. Then, complete Step 1 again. Remove Key... Please try again Sensor out of range? Remove Key... Can't set up now Key out of range IM00416007E Rev. 2 Part No.: 67A5007H01 © 2005 Eaton Corporation • Coffee Maker • VCR • Microwave • Power Tools • Outdoor Lighting • Appliances • Home Computer • Curling Iron • Toaster Oven • Gaming System • Stereo • Sump Pump Power Sensor Uses: Power Sensor Components PMS 314 MATCH CMYK PMS 431 MATCH CMYK Home Key ™ Slide Channel Antenna Plug for standard grounded outlet (3-prong) Power Sensor Plugs into standard grounded outlet (3-prong) Status LED FCC Statement (Compliance Statement, Part 15.19): This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harm…

Text truncated - open the document above for the full version.

Eaton Corporation Technology & Quality Center 170 Industry Drive, RIDC Park West Pittsburgh, PA 15275 FCC CONFIDENTIALITY Date: 11/16/2005 Time: 06:30 To: FCC Authorization & Evaluation Division 7435 Oakland Mills Road Columbia, MD 21045-0429 From: Steven G. Loughner Phone: 412 - 787 - 6560 Lead Engineer Fax: 412 - 787 - 6488 Applicant: Eaton Corporation E-Mail: [email protected] Subject: Request for Non disclosure for FCC ID: TSV – HHB1POWR. To Whom It May Concern: Pursuant to 47 CFR Section 0.459, Eaton Corporation hereby requests non disclosure and confidential treatment of the following materials submitted in support of FCC certification application for FCC ID: TSV – HHB1POWR. a. Schematic Diagrams b. Operational Description c. Block Diagram Above materials contain trade secrets, proprietary and technical information which would customarily be guarded from competitors under 47 CFR section 0.457(d)(2). Disclosure or publication of any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. Eaton Corporation understands that pursuant to 47 CFR section 0.457(d)(1)(ii) disclosure of the applicant and all accompanying documentation will not be made before the date of the grant. Sincerely yours, By: Steven G. Loughner Title: Lead Engineer / Eaton Corporation

Eaton Corporation Technology & Quality Center 170 Industry Drive, RIDC Park West Pittsburgh, PA 15275 FCC A U T H O R I Z A T I O N Date: 11/14/2005 Time: 06:27 To: FCC Authorization & Evaluation Division 7435 Oakland Mills Road Columbia, MD 21045-0429 From: Steven G. Loughner Phone: 412 - 787 - 6560 Lead Engineer Fax: 412 - 787 - 6488 Applicant: Eaton Corporation E-Mail: [email protected] Dear Ladies and/or Gentlemen: I appoint Kenneth L. Boston, James Blaha and Teresa White at L.S. Compliance, Inc., to act as an agent in the preparation of applications under Part 15 of the rules and regulations of the Federal Communications Commission. I certify that the exhibitions properly describe the device being submitted under this application and will implement any changes described in the test report. The labels described will be affixed to each item. The following statement is required by the Federal Communications Commission: By checking Yes, the applicant certifies that, in the case of an individual applicant, he or she is not subject to a denial of federal benefits, that included FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C 853(a), or, in the case of a non- individual applicant (e.g. corporation, partnership, or other unincorporated association), no party to the application is subject to a denial of federal benefits, that includes FCC benefits, pursuant to that section. √ Yes _____No By: Steven G. Loughner Title: Lead Engineer / Eaton Corporation

"Teresa White" <[email protected]> 07/07/2006 01:35 PM To Yunus Faziloglu/USA/VERITAS@VERITAS cc "Abtin Spantman" <[email protected]> bcc Subject RE: CS01994 Eaton Corp. FCC ID:TSV-HHB1POWR TCB Questions Yunus, Please see the attached revised test report, in response to items 1, 3 and 4. Please also see responses below. Thanks. Regards, Teresa LS Research, LLC W66 N220 Commerce Court Cedarburg, WI 53012 « Direct: 262.421.4991 « Main: 262.375.4400 ¬ Fax: 262.364.2649 | Email: twhite @lsr.com Visit us on the web: www.lsr.com Notice: This message and any included attachments are intended only for the use of the addressee, and may contain information that is privileged or confidential. If you are not the intended recipient, you are hereby notified that any review, copying or distribution of this communication is strictly prohibited. If you have received this e-mail in error, please destroy the original message and any copies or printouts hereof. Any views or opinions presented are solely those of the author of this e-mail, and do not necessarily represent those of LS Research, LLC, unless otherwise specifically stated. From: [email protected] [mailto:[email protected]] Sent: Monday, June 26, 2006 1:26 PM To: Teresa White Subject: CS01994 Eaton Corp. FCC ID:TSV-HHB1POWR TCB Questions Hi Teresa, Please address the following issues for this application, 1. Please clarify if Range Extender has been tested for radiated spurious emissions, which seems to have additional digital circuitry. Section 5 of the report states that Appliance Monitor was selected for testing. Response: The Range Extender was tested for radiated spurious emissions, as the photos in the setup show. As verification, a production unit of the Range Extender has been re-tested in normal operating mode, and the data, along with select signature scans has now been added to the updated test report (attached). 2. Please supply external and internal photos of the Range Extender. Response: Previously addressed. 3. Please supply test setup photos for AC line conducted emissions test. Response: Test report (v2) is now updated with the new information and revisions. 4. Please note that the limits on Pg 12 of the report for 735MHz and on Pg 13 of the report for unrestricted bands appear to be incorrect. Response: Test report (v2) is now updated with the new information and revisions. 5. The manual is missing applicable RF Exposure statements for mobile (20cm) category. Response: Previously addressed. Best Regards, Yunus Faziloglu Curtis-Straus LLC Bureau Veritas

Eaton Corporation Power Sensor FCC ID#: TSV-HHB1POWR Photo One – External Front View Eaton Corporation Power Sensor FCC ID#: TSV-HHB1POWR Photo Two – External Back View with FCC ID Label Eaton Corporation Power Sensor FCC ID#: TSV-HHB1POWR Photo Three – External Close-Up of FCC ID Label

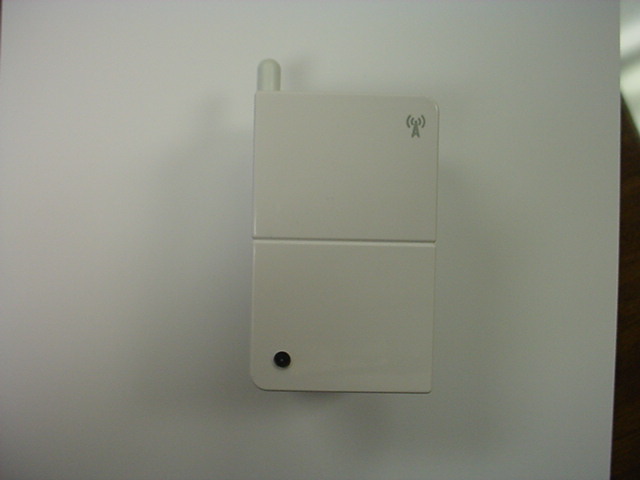

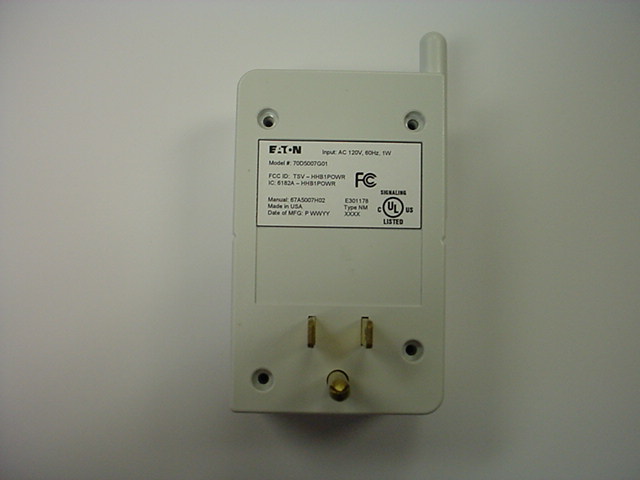

Eaton Range Extender TCB Response - External Photos Page 1 of 3 Eaton Corporation Range Extender FCC ID#: TSV-HHB1POWR Photo One – External Front View Eaton Range Extender TCB Response - External Photos Page 2 of 3 Eaton Corporation Range Extender FCC ID#: TSV-HHB1POWR Photo Two – External Back View, showing FCC ID Label Eaton Range Extender TCB Response - External Photos Page 3 of 3 Eaton Corporation Range Extender FCC ID#: TSV-HHB1POWR Photo Three – External Close Up of ID Label

0.83” x 1.55” (Radius Corners .06) Notes: 1. Material: Thermo Printable – Flexon Matte Silver Select 22830 2. Adhesive: Permanent Acrylic Adhesive. 3. Roll Specks: Roll Diameter not to exceed 4” with a 1” core 4. UL per MH12184

Eaton Corporation Power Sensor FCC ID#: TSV-HHB1POWR Photo One – Internal Open for Inspection Eaton Corporation Power Sensor FCC ID#: TSV-HHB1POWR Photo Two – Internal Open for Inspection-complete PCB Eaton Corporation Power Sensor FCC ID#: TSV-HHB1POWR Photo Three – Internal Close-Up of RF Section Eaton Corporation Power Sensor FCC ID#: TSV-HHB1POWR Photo Four – Internal Flip Side of PCB RF Section Eaton Corporation Power Sensor FCC ID#: TSV-HHB1POWR Photo Five – Internal Close-Up of Surface Mount Antenna

Eaton Range Extender TCB Response - Internal Photos Page 1 of 6 Eaton Corporation Range Extender FCC ID#: TSV-HHB1POWR Photo One – Internal Open for Inspection Eaton Range Extender TCB Response - Internal Photos Page 2 of 6 Eaton Corporation Range Extender FCC ID#: TSV-HHB1POWR Photo Two – Internal Eaton Range Extender TCB Response - Internal Photos Page 3 of 6 Eaton Corporation Range Extender FCC ID#: TSV-HHB1POWR Photo Three – Internal Eaton Range Extender TCB Response - Internal Photos Page 4 of 6 Eaton Corporation Range Extender FCC ID#: TSV-HHB1POWR Photo Four – Internal Eaton Range Extender TCB Response - Internal Photos Page 5 of 6 Eaton Corporation Range Extender FCC ID#: TSV-HHB1POWR Photo Five – Internal Eaton Range Extender TCB Response - Internal Photos Page 6 of 6 Eaton Corporation Range Extender FCC ID#: TSV-HHB1POWR Photo Six – Internal

2.45 GHz AntennaP/N 2450AT18A100 Detail Specification: 09/03/03 Page 1 of 3 General Specifications Part Number2450AT18A100Input Power500mW max. Frequency Range2400 - 2500 MhzImpedance50 Ω Peak Gain0.5 dBi typ. (XZ-V)Operating Temperature-40 to +85°C Average Gain-0.5 dBi typ. (XZ-V)Reel Quanity3,000 Return Loss9.5 dB min. No. Function Terminal Configuration 1Feeding Point 2NC Mechanical Dimensions Inmm L±± W±± T a±± Mounting Considerations Mount these devices with brown mark facing up. Units: mm Line width should be designed to provide 50Ω impedance matching characteristics. a) Without Matching Circuits b) With Matching Circuits Johanson Technology, Inc. reserves the right to make design changes without notice. All sales are subject to Johanson Technology, Inc. terms and conditions. www.johansontechnology.com 931 Via Alondra • Camarillo, CA 93012 • TEL 805.389.1166 FAX 805.389.1821 2003 Johanson Technology, Inc. All Rights Reserved "High Frequency Ceramic Solutions" 0.0080.1263.200.20 1.30 0.0200.012 0.063 0.051 1.60 +.004/-.008 0.0080.20 0.500.30 +0.1/-0.2 1 2 L W a T * 2.6 4.2 1.6 1.90.4 2.7nH 1.0pF 3.9nH 2.45 GHz AntennaP/N 2450AT18A100 Detail Specification: 09/03/03 Page 2 of 3 Typical Electrical Characteristics (T=25 o C) Test Board: Return Loss a) Without Matching Circuitsb) With Matching Circuits Johanson Technology, Inc. reserves the right to make design changes without notice. All sales are subject to Johanson Technology, Inc. terms and conditions. www.johansontechnology.com 931 Via Alondra • Camarillo, CA 93012 • TEL 805.389.1166 FAX 805.389.1821 2003 Johanson Technology, Inc. All Rights Reserved "High Frequency Ceramic Solutions" ) ) ) ) ) ) ) ) ) Ground 13.5mm 6.5mm 39.5mm6.5mm Matching Circuit No Ground 50Ω Feed Line Antenna 19mm 2.45 GHz AntennaP/N 2450AT18A100 Detail Specification: 09/03/03 Page 3 of 3 Typical Radiation Patterns Johanson Technology, Inc. reserves the right to make design changes without notice. All sales are subject to Johanson Technology, Inc. terms and conditions. www.johansontechnology.com 931 Via Alondra • Camarillo, CA 93012 • TEL 805.389.1166 FAX 805.389.1821 2003 Johanson Technology, Inc. All Rights Reserved "High Frequency Ceramic Solutions" ) ) ) ) ) ) ) ) ) XY-V/XY-H 180° 270° 0° 90° X Z Y XY-cut scanning direction XY cut @2.45GHz Vertical Horizontal XZ-V/XZ-H YZ-V/YZ-H 180° 270° 0° 90° X Z Y XZ-cut scanning direction 180° 270° 0° 90° X Z Y YZ-cut scanning direction XZ cut @2.45GHz Vertical Horizontal YZ cut @2.45GHz Vertical Horizontal

LS Research, LLC Page 38 of 44 Test Report Number: 305496-Tx-v2 Prepared For: Eaton Corporation 16. MPE Calculations The MPE calculations are based on the Johnson Technology Brand antenna, part number: 2450AT18A100 Ceramic Chip Antenna Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 where:S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiato r R = distance to the center of radiation of the antenna Maximum peak output power at antenna input terminal:20.80 (dBm) Maximum peak output power at antenna input terminal:120.226 (mW) Antenna gain(typical):0.5 (dBi) Maximum antenna gain:1.122 (numeric) Prediction distance:20 (cm) Prediction frequency:2400 (MHz) MPE limit for uncontrolled exposure at prediction frequency:1 (mW/cm^2) Power density at prediction frequency:0.026837 (mW/cm^2) Maximum allowable antenna gain:16.2 (dBi) 20cm =15.7 dB Margin of Compliance at 2 4R PG S π =

LS Research, LLC W66 N220 Commerce Court Cedarburg, WI 53012 262-375-4400 Fax: 262-375-4248 COMPLIANCE TESTING OF : Home Heartbeat Appliance Monitor/Range Extender Model # 70D5007G01 Prepared For: Eaton Corporation Attention: Mr. Richard Harwell 170 Industry Drive Pittsburgh, PA 15275 United States of America Test Report Number: 305496-Tx-v2 Test Dates: January 23 RD through 25 TH , 2006 All results of this report relate only to the items that were tested. This report is not to be reproduced, except in full, without written approval of LS Research, LLC. LS Research, LLC Page 2 of 44 Test Report Number: 305496-Tx-v2 Prepared For: Eaton Corporation Table of Contents Section Description Page Index 1 LS Research, LLC in Review 3 2 Signature Page 4 3 Product and General Information 5 4 Introduction 5 5 Product Description 6-8 6 Test Requirements 9 7 Summary of Test Report 9 8 Radiated Emissions Test 10-22 9 Band-Edge Measurements 23 10 Occupied Bandwidth 24 11 Conducted RF Emissions Test on AC Power Line 25-30 12 Power Output 15.247 (b) 31-32 13 Spurious Emissions 15.247 (d) 33-34 14 Spectral Density 35-36 15 Frequency and Power Stability over Voltage Variations 37 16 MPE Calculations 38 Appendix A Test Equipment List 39 B Antenna Specification 40 C Firmware and Setup Instructions 41 D Transmitter Duty Factor Calculations 42-44 LS Research, LLC Page 3 of 44 Test Report Number: 305496-Tx-v2 Prepared For: Eaton Corporation 1. LS Research, LLC In Review LS Research - Accreditations and Listing’s As an EMC Testing Laboratory, our Accreditation and Assessments are recognized through the following: A2LA – American Association for Laboratory Accreditation Accreditation based on ISO/IEC 17025 : 2005 with Electrical (EMC) Scope of Accreditation A2LA Certificate Number: 1255.01 Federal Communications Commission (FCC) – USA Listing of 3 Meter Semi-Anechoic Chamber based on Title 47 CFR – Part 2.948 FCC Registration Number: 90756 Listing of 3 and 10 meter OATS based on Title 47CFR – Part 2.948 FCC Registration Number: 90757 Industry Canada On file, 3 Meter Semi-Anechoic Chamber based on RSS-212 – Issue 1 File Number: IC 3088-A On file, 3 and 10 Meter OATS based on RSS-212 – Issue 1 File Number: IC 3088 U. S. Conformity Assessment Body (CAB) Validation Validated by the European Commission as a U. S. Competent Body operating under the U. S. /EU, Mutual Recognition Agreement (MRA) operating under the European Union Electromagnetic Compatibility –Council Directive 89/336/EEC, Article 10.2. Date of Validation: January 16, 2001 Validated by the European Commission as a U.S. Notified Body operating under the U.S./EU, Mutual Recognition Agreement (MRA) operating under the European Union Telecommunication Equipment – Council Directive 99/5/EC, Annex V. Date of Validation: November 20, 2002 Notified Body Identification Number: 1243 LS Research, LLC Page 4 of 44 Test Report Number: 305496-Tx-v2 Prepared For: Eaton Corporation 2. Signature Page Prepared By: June 20, 2006 Teresa A. White, Document Coordinator Date Tested By: June 20, 2006 Abtin Spantman, EMC Engineer Date Approved By: June 20, 2006 Brian E. Petted, VP of Engineering Date LS Research, LLC Page 5 of 44 Test Report Number: 305496-Tx-v2 Prepared For: Eaton Corporation 3. Product and General Information Manufacturer: Eaton Corporation Date(s) of Test: January 23 RD through 25 TH , 2006 Test Engineer(s): Tom Smith √ Abtin Spantman Ken Boston Model #: 70D5007G01 Serial #: Pre-production Samples Voltage: 120 VAC, 60 Hz Operation Mode: Normal operation and continuous transmit 4. Introduction Between January 23 RD and 25 TH , 2006, a series of Conducted and Radiated RF Emission tests were performed on two pre-production samples of the Eaton Corporation’s “Appliance Monitor/Range Extender”, Model # 70D5007G01 here forth collectively referred to as the “Equipment Under Test” or “EUT”. These tests were performed using the procedures outlined in ANSI C63.4-2003 for intentional radiators, and in accordance with the limits set forth in FCC Part 15.247 (Industry Canada RSS-210) for a low power transmitter. These tests were performed by Abtin Spantman, EMC Engineer at LS Research, LLC. All Radiated and Conducted RF Emission tests were performed upon the EUT to measure the emissions in the frequency bands described in Title 47 CFR, FCC Part 15, including 15.35, 15.205, 15.247 and Industry Canada RSS-210 to determine whether these emissions are below the limits expressed within the standards. These tests were performed in accordance with the procedures described in the American National Standard for methods of measurement of Radio- Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz (ANSI C63.4-2003). Another document used as a reference for the EMI Receiver specification was the Comite International Special Des Perturbations Radioelelectriques (CISPR) Number 16-1, 2003. All tests were performed at LS Research, LLC, in Cedarburg, Wisconsin, unless otherwise noted. LS Research, LLC Page 6 of 44 Test Report Number: 305496-Tx-v2 Prepared For: Eaton Corporation 5. Product Description The Eaton “Appliance Monitor/Range Extender” is a part of a Home monitoring system. The Appliance Monitor and the Range Extender use the same PC board design, and have the same core functionality from the transceiver and RF view point. The Eaton Range Extender and Appliance Monitor PC board is a dual-role product. Both product names share the same PC board, with identical RF sections. The difference between the two PC boards is their roles, as defined by the population options and the Bill of Materials. In the role of the Range Extender, additional digital memory is populated (to allow message storage and forwarding) while the analog circuitry used to measure the current in the 120 VAC line to the appliance is not populated. Additionally, the plastic housing does not have the AC outlet (and associated internal AC jack). Finally, the firmware in t…

Text truncated - open the document above for the full version.

Eaton Corporation Appliance/Range Extender FCC ID: TSV-HHB1POWR TEST SETUP PHOTOS Page 1 of 2 RADIATED EMISSIONS TEST View of the EUT (“Appliance Monitor” shown) setup in Side orientation (Highest emissions measured) View of the EUT setup in vertical orientation View of the EUT setup in Horizontal orientation Eaton Corporation Appliance/Range Extender FCC ID: TSV-HHB1POWR TEST SETUP PHOTOS Page 2 of 2 View of the EUT setup on the test pedestal (“Range Extender” shown)

LS Research, LLC Page 28 of 44 Test Report Number: 305496-Tx-v2 Prepared For: Eaton Corporation View of the EUT (“Appliance Monitor” shown) setup during emissions measurements conducted onto AC mains. LS Research, LLC Page 29 of 44 Test Report Number: 305496-Tx-v2 Prepared For: Eaton Corporation View of the EUT (“Range Extender” shown) setup during emissions measurements conducted onto AC mains.
