TSV-HHB1KFOBController/Monitor

IM00416002E Re v . 2 Part No.: 67A5004H02 © 2006 Eaton Corporation Home Key Uses: Home Key ™ Components Home Key ™ Thumbwheel Digital Screen Keychain The Home Key is a portable, tear-off display and controller for your Home Heartbeat system. Perfect for: • Visually monitoring your home’s status • Setting up Home Heartbeat sensors • Automatically setting the system to send cell phone and text message alerts after you have left home Buy one for every member of your family! (can be set up for left- or right-handed use) FCC Statement (Compliance Statement, Part 15.19): This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. WARNING (Part 15.21): Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. This portable transmitter with its antenna complies with FCC’s RF exposure limits for general population / uncontrolled exposure. This device must not be collocated or operated in conjunction with any other antenna or transmitter. Canada Statement The term “IC” before the certification/registration number only signifies that the Industry Canada technical specifications were met. Interference This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, then the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna • Increase the separation between the equipment and the receiver • Connect the equipment into a power source on different circuit than the receiver. Home Key Maintenance Cleaning the Home Key Clean with a soft, dry cloth. To check Home Key battery level Using the Home Key, highlight the Home Key icon. Click the thumbwheel once and note the battery status on the bottom line of the screen. Servicing the Home Key Rechargeable Battery If you notice that your Home Key, after charging, is not holding the charge for the expected 5–7 days, please contact Eaton at 1-800-813-2199. The battery in the Home Key is a lithium cell and must be serviced by a trained technician. Home Key Use The battery cell in the Home Key is intended for use at ordinary temperatures where anticipated high temperature excursions are not expected to exceed 212 ̊F (100 ̊C). WARNING: Risk of Fire, Explosion, or Burns. Do Not Crush, Disassemble, Heat Above 212 ̊F (100 ̊C), Incinerate. Home Key Disposal Dispose of the Home Key, which contains a rechargeable battery, in accordance with local environmental laws. Your local recycling center can provide guidelines for proper battery disposal.

Eaton Corporation Technology & Quality Center 170 Industry Drive, RIDC Park West Pittsburgh, PA 15275 FCC CONFIDENTIALITY Date: 11/16/2005 Time: 06:30 To: FCC Authorization & Evaluation Division 7435 Oakland Mills Road Columbia, MD 21045-0429 From: Steven G. Loughner Phone: 412 - 787 - 6560 Lead Engineer Fax: 412 - 787 - 6488 Applicant: Eaton Corporation E-Mail: [email protected] Subject: Request for Non disclosure for FCC ID: TSV – HHB1KFOB. To Whom It May Concern: Pursuant to 47 CFR Section 0.459, Eaton Corporation hereby requests non disclosure and confidential treatment of the following materials submitted in support of FCC certification application for FCC ID: TSV – HHB1KFOB. a. Schematic Diagrams b. Operational Description c. Block Diagram Above materials contain trade secrets, proprietary and technical information which would customarily be guarded from competitors under 47 CFR section 0.457(d)(2). Disclosure or publication of any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. Eaton Corporation understands that pursuant to 47 CFR section 0.457(d)(1)(ii) disclosure of the applicant and all accompanying documentation will not be made before the date of the grant. Sincerely yours, By: Steven G. Loughner Title: Lead Engineer / Eaton Corporation

Eaton Corporation Technology & Quality Center 170 Industry Drive, RIDC Park West Pittsburgh, PA 15275 FCC A U T H O R I Z A T I O N Date: 11/14/2005 Time: 06:27 To: FCC Authorization & Evaluation Division 7435 Oakland Mills Road Columbia, MD 21045-0429 From: Steven G. Loughner Phone: 412 - 787 - 6560 Lead Engineer Fax: 412 - 787 - 6488 Applicant: Eaton Corporation E-Mail: [email protected] Dear Ladies and/or Gentlemen: I appoint Kenneth L. Boston, James Blaha and Teresa White at L.S. Compliance, Inc., to act as an agent in the preparation of applications under Part 15 of the rules and regulations of the Federal Communications Commission. I certify that the exhibitions properly describe the device being submitted under this application and will implement any changes described in the test report. The labels described will be affixed to each item. The following statement is required by the Federal Communications Commission: By checking Yes, the applicant certifies that, in the case of an individual applicant, he or she is not subject to a denial of federal benefits, that included FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C 853(a), or, in the case of a non- individual applicant (e.g. corporation, partnership, or other unincorporated association), no party to the application is subject to a denial of federal benefits, that includes FCC benefits, pursuant to that section. √ Yes _____No By: Steven G. Loughner Title: Lead Engineer / Eaton Corporation

2.45 GHz AntennaP/N 2450AT18A100 Detail Specification: 09/03/03 Page 1 of 3 General Specifications Part Number2450AT18A100Input Power500mW max. Frequency Range2400 - 2500 MhzImpedance50 Ω Peak Gain0.5 dBi typ. (XZ-V)Operating Temperature-40 to +85°C Average Gain-0.5 dBi typ. (XZ-V)Reel Quanity3,000 Return Loss9.5 dB min. No. Function Terminal Configuration 1Feeding Point 2NC Mechanical Dimensions Inmm L±± W±± T a±± Mounting Considerations Mount these devices with brown mark facing up. Units: mm Line width should be designed to provide 50Ω impedance matching characteristics. a) Without Matching Circuits b) With Matching Circuits Johanson Technology, Inc. reserves the right to make design changes without notice. All sales are subject to Johanson Technology, Inc. terms and conditions. www.johansontechnology.com 931 Via Alondra • Camarillo, CA 93012 • TEL 805.389.1166 FAX 805.389.1821 2003 Johanson Technology, Inc. All Rights Reserved "High Frequency Ceramic Solutions" 0.0080.1263.200.20 1.30 0.0200.012 0.063 0.051 1.60 +.004/-.008 0.0080.20 0.500.30 +0.1/-0.2 1 2 L W a T * 2.6 4.2 1.6 1.90.4 2.7nH 1.0pF 3.9nH 2.45 GHz AntennaP/N 2450AT18A100 Detail Specification: 09/03/03 Page 2 of 3 Typical Electrical Characteristics (T=25 o C) Test Board: Return Loss a) Without Matching Circuitsb) With Matching Circuits Johanson Technology, Inc. reserves the right to make design changes without notice. All sales are subject to Johanson Technology, Inc. terms and conditions. www.johansontechnology.com 931 Via Alondra • Camarillo, CA 93012 • TEL 805.389.1166 FAX 805.389.1821 2003 Johanson Technology, Inc. All Rights Reserved "High Frequency Ceramic Solutions" ) ) ) ) ) ) ) ) ) Ground 13.5mm 6.5mm 39.5mm6.5mm Matching Circuit No Ground 50Ω Feed Line Antenna 19mm 2.45 GHz AntennaP/N 2450AT18A100 Detail Specification: 09/03/03 Page 3 of 3 Typical Radiation Patterns Johanson Technology, Inc. reserves the right to make design changes without notice. All sales are subject to Johanson Technology, Inc. terms and conditions. www.johansontechnology.com 931 Via Alondra • Camarillo, CA 93012 • TEL 805.389.1166 FAX 805.389.1821 2003 Johanson Technology, Inc. All Rights Reserved "High Frequency Ceramic Solutions" ) ) ) ) ) ) ) ) ) XY-V/XY-H 180° 270° 0° 90° X Z Y XY-cut scanning direction XY cut @2.45GHz Vertical Horizontal XZ-V/XZ-H YZ-V/YZ-H 180° 270° 0° 90° X Z Y XZ-cut scanning direction 180° 270° 0° 90° X Z Y YZ-cut scanning direction XZ cut @2.45GHz Vertical Horizontal YZ cut @2.45GHz Vertical Horizontal

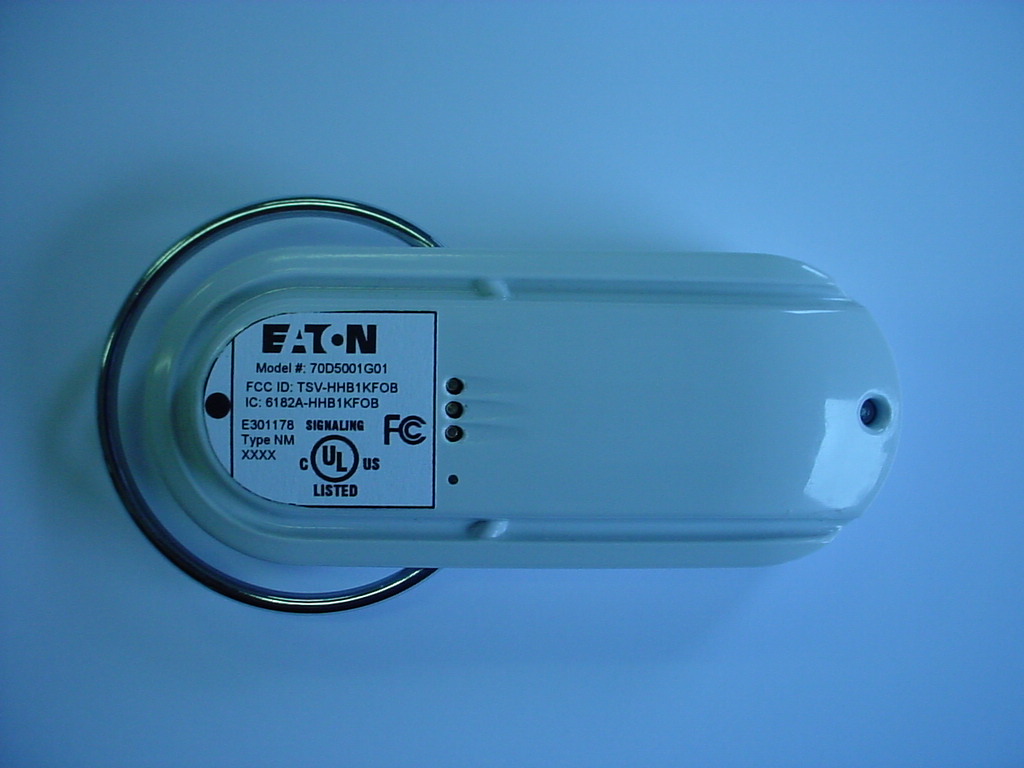

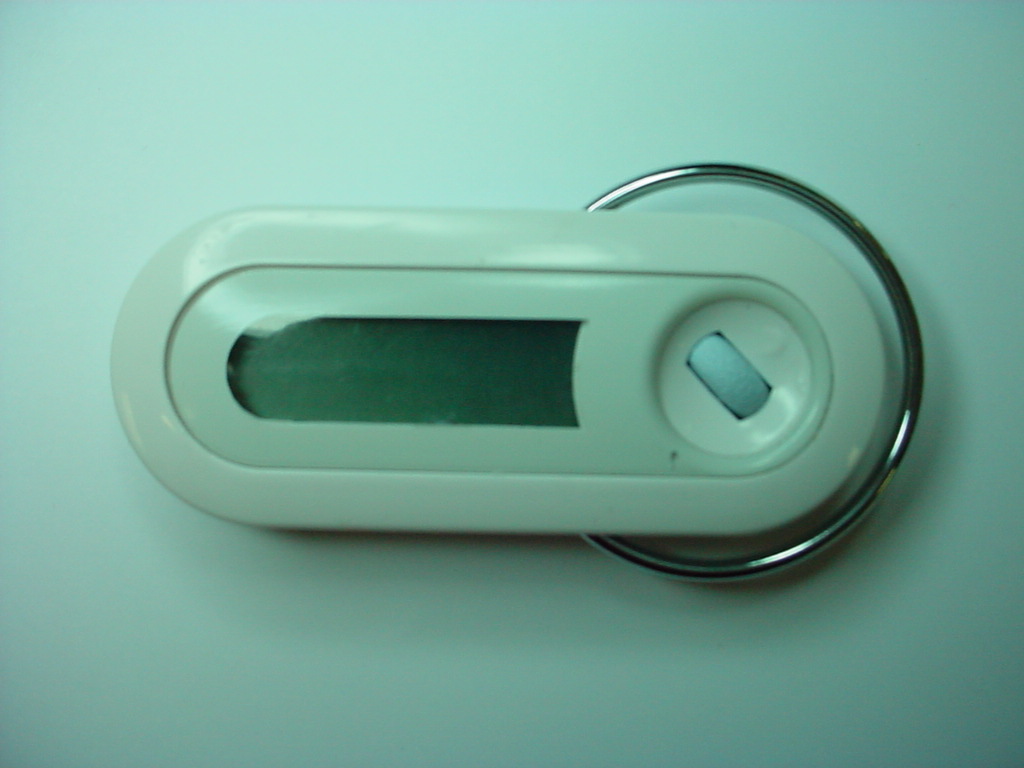

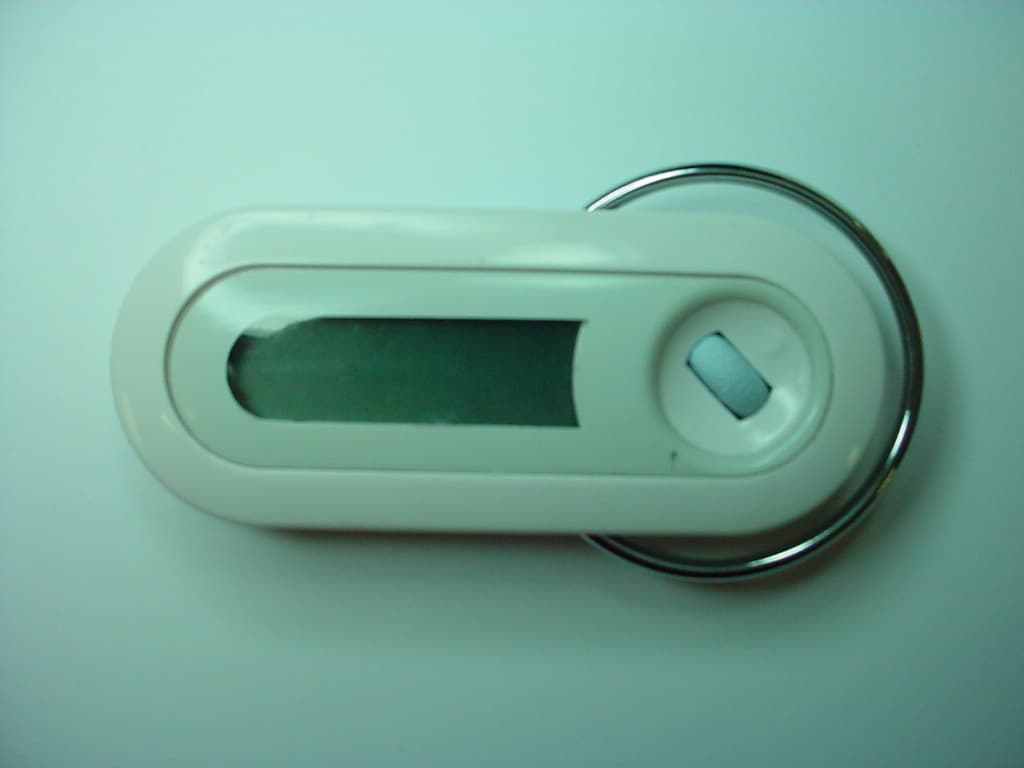

Eaton Corporation HOMEheartbeat-Whole Home Awareness System Key FOB FCC ID#: TSV-HHB1KFOB Photo One – External Top View – Showing Program Display & Thumb Control Eaton Corporation HOMEheartbeat-Whole Home Awareness System Key FOB FCC ID#: TSV-HHB1KFOB Photo Two – External Flip Side of Key FOB, showing FCC ID Label Eaton Corporation HOMEheartbeat-Whole Home Awareness System Key FOB FCC ID#: TSV-HHB1KFOB Photo Three – External Close-Up of FCC ID Label

Eaton Corporation HOMEheartbeat-Whole Home Awareness System Key FOB FCC ID#: TSV-HHB1KFOB Photo One – Internal Open for Inspection Eaton Corporation HOMEheartbeat-Whole Home Awareness System Key FOB FCC ID#: TSV-HHB1KFOB Photo Two – Internal Open for Inspection – PCB Display Side with Shield Removed Eaton Corporation HOMEheartbeat-Whole Home Awareness System Key FOB FCC ID#: TSV-HHB1KFOB Photo Three – Internal Comparison – With and Without Shield Eaton Corporation HOMEheartbeat-Whole Home Awareness System Key FOB FCC ID#: TSV-HHB1KFOB Photo Four – Internal PCB RF Side Without Shield Eaton Corporation HOMEheartbeat-Whole Home Awareness System Key FOB FCC ID#: TSV-HHB1KFOB Photo Five – Internal Close-up of RF Section Eaton Corporation HOMEheartbeat-Whole Home Awareness System Key FOB FCC ID#: TSV-HHB1KFOB Photo Six – Internal Close-up of Antenna

PCTEST ENGINEERING LABORATORY, INC. 6660 – B Dobbin Road • Columbia, MD 21045 • USA Telephone 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com (email: [email protected]) CERTIFICATE OF COMPLIANCE (SAR EVALUATION) PCTEST SAR REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: 0604060233-R1 Test Dates: April 11, 2006 Phone Type: Home Monitoring System-Key FOB FCC ID: TSV-HHB1KFOB Page 1 of 21 © 2006 PCTEST Engineering Laboratory, Inc APPLICANT NAME & ADDRESS: DATE & LOCATION OF TESTING: EATON Corporation Dates of Tests: April 11, 2006 170 Industry Drive Test Report S/N: 0604060233-R1 Pittsburgh, PA 15275 Test Site: PCTEST Lab, Columbia MD FCC ID: TSV-HHB1KFOB APPLICANT: EATON Corporation EUT Type: Home Monitoring System- Key FOB Tx/Rx Frequency: 2405 – 2483 MHz (DTS) Max. RF Output Power: 0.0489 W Conducted Max. SAR Measurement: 1.030 W/kg Body SAR Trade Name/Model(s): HHB1KFOB FCC Classification(s): Digital Transmission System (DTS) FCC Rule Part(s): §2.1093; FCC/OET Bulletin 65 Supplement C [July 2001] Application Type: Certification Test Device Serial No.: identical prototype [S/N: #1] This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001) and IEEE Std. 1528 - 2003. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST SAR REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: 0604060233-R1 Test Dates: April 11, 2006 Phone Type: Home Monitoring System-Key FOB FCC ID: TSV-HHB1KFOB Page 2 of 21 © 2006 PCTEST Engineering Laboratory, Inc TABLE OF CONTENTS 1. INTRODUCTION / SAR DEFINITION.....................................................................................3 2. SAR MEASUREMENT SETUP.................................................................................................4 3. DASY4 E-FIELD PROBE SYSTEM............................................................................................5 4. Probe Calibration Process.......................................................................................................6 5. PHANTOM & EQUIVALENT TISSUES......................................................................................7 6. TEST SYSTEM SPECIFICATIONS.............................................................................................8 7. DOSIMETRIC ASSESSMENT & PHANTOM SPECS.......................................................................9 8. DEFINITION OF REFERENCE POINTS....................................................................................10 9. TEST CONFIGURATION POSITIONS.....................................................................................11 10. ANSI/IEEE C95.1 - 1992 RF EXPOSURE LIMITS........................................................................12 11. MEASUREMENT UNCERTAINTIES....................................................................................13-14 12. SYSTEM VERIFICATION..................................................................................................15-16 13. SAR TEST DATA SUMMARY.................................................................................................16 14. SAR DATA SUMMARY....................................................................................................17-18 15. SAR TEST EQUIPMENT.......................................................................................................19 16. CONCLUSION..................................................................................................................20 17. REFERENCES....................................................................................................................21 PCTEST SAR REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: 0604060233-R1 Test Dates: April 11, 2006 Phone Type: Home Monitoring System-Key FOB FCC ID: TSV-HHB1KFOB Page 3 of 21 © 2006 PCTEST Engineering Laboratory, Inc 1. INTRODUCTION / SAR DEFINITION The FCC has adopted the guidelines for evaluating the environmental effects of radiofrequency radiation in ET Docket 93-62 on Aug. 6, 1996 to protect the public and workers from the potential hazards of RF emissions due to FCC-regulated portable devices.[1] The safety limits used for the environmental evaluation measurements are based on the criteria published by the American National Standards Institute (ANSI) for localized specific absorption rate (SAR) in IEEE/ANSI C95.1-1992 Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. (c) 1992 by the Institute of Electrical and Electronics Engineers, Inc., New York, New York 10017.[2] The measurement procedure described in IEEE/ANSI C95.3-1992 Recommended Practice for the Measurement of Potentially Hazardous Electromagnetic Fields - RF and Microwave[3] is used for guidance in measuring SAR due to the RF radiation exposure from the Equipment Under Test (EUT). These criteria for SAR evaluation are similar to those recommended by the National Council on Radiation Protection and Measurements (NCRP) in Biological Effects and Exposure Criteria for Radiofrequency Electromagnetic Fields,” NCRP Report No. 86 (c) NCRP, 1986, Bethesda, MD 20814.[6] SAR is a measure of the rate of energy absorption due to exposure to an RF transmitting source. SAR values have been related to t…

Text truncated - open the document above for the full version.

EATON FCC ID: TSV-HHB1KFOB SAR Photographs © 2006 PCTEST Lab. Home Monitoring System - Key FOB Model: HHB1KFOB EATON FCC ID: TSV-HHB1KFOB SAR Photographs © 2006 PCTEST Lab. Home Monitoring System - Key FOB Model: HHB1KFOB EATON FCC ID: TSV-HHB1KFOB SAR Photographs © 2006 PCTEST Lab. Home Monitoring System - Key FOB Model: HHB1KFOB EATON FCC ID: TSV-HHB1KFOB SAR Photographs © 2006 PCTEST Lab. Home Monitoring System - Key FOB Model: HHB1KFOB EATON FCC ID: TSV-HHB1KFOB SAR Photographs © 2006 PCTEST Lab. Home Monitoring System - Key FOB Model: HHB1KFOB EATON FCC ID: TSV-HHB1KFOB SAR Photographs © 2006 PCTEST Lab. Home Monitoring System - Key FOB Model: HHB1KFOB EATON FCC ID: TSV-HHB1KFOB SAR Photographs © 2006 PCTEST Lab. Home Monitoring System - Key FOB Model: HHB1KFOB EATON FCC ID: TSV-HHB1KFOB SAR Photographs © 2006 PCTEST Lab. Home Monitoring System - Key FOB Model: HHB1KFOB

L.S. Compliance, Inc. W66 N220 Commerce Court Cedarburg, WI 53012 262-375-4400 Fax: 262-375-4248 COMPLIANCE TESTING OF : Key FOB Prepared For: Eaton Corporation Attention: Mr. Richard Harwell 170 Industry Drive Pittsburgh, PA 15275 Test Report Number: 305497-Tx-v2 Test Dates: December 8 TH through 12 TH , 2005 All results of this report relate only to the items that were tested. This report is not to be reproduced, except in full, without written approval of L. S. Compliance, Inc. L.S. Compliance, Inc. Page 2 of 44 Test Report Number: 305497-Tx-v2 Prepared For: Eaton Corporation Table of Contents Section Description Page Index 1 L. S. Compliance in Review 3 2 A2LA Certificate of Accreditation 4 3 A2LA Scope of Accreditation 5 4 Validation Letter-U.S. Competent Body for EMC Directive 89/336/EEC 6 5 Signature Page 7 6 Product and General Information 8 7 Introduction 8 8 Product Description 9 9 Test Requirements 10 10 Summary of Test Report 10 11 Radiated Emissions Test 11-22 12 Band-Edge Measurements 23 13 Occupied Bandwidth 24-25 14 Conducted RF Emissions Test on AC Power Line 26-30 15 Power Output 15.247 (b) 31-32 16 Spurious Emissions 15.247 (d) 33-34 17 Spectral Density 35-36 18 Frequency and Power Stability over Voltage and Temperature Variations 37 19 MPE Calculations 38 Appendix A Test Equipment List 39 B Antenna Specification 40 C Firmware and Setup Instructions 41 D Transmitter Duty Factor Calculations 42-44 L.S. Compliance, Inc. Page 3 of 44 Test Report Number: 305497-Tx-v2 Prepared For: Eaton Corporation 1. L. S. Compliance In Review L.S. Compliance - Accreditations and Listing’s As an EMC Testing Laboratory, our Accreditation and Assessments are recognized through the following: A2LA – American Association for Laboratory Accreditation Accreditation based on ISO/IEC 17025 : 1999 with Electrical (EMC) Scope of Accreditation A2LA Certificate Number: 1255.01 Federal Communications Commission (FCC) – USA Listing of 3 Meter Semi-Anechoic Chamber based on Title 47 CFR – Part 2.948 FCC Registration Number: 90756 Industry Canada On file, 3 Meter Semi-Anechoic Chamber based on RSS-212 – Issue 1 File Number: IC 3088-A On file, 3 and 10 Meter OATS based on RSS-212 – Issue 1 File Number: IC 3088 U. S. Conformity Assessment Body (CAB) Validation Validated by the European Commission as a U. S. Competent Body operating under the U. S. /EU, Mutual Recognition Agreement (MRA) operating under the European Union Electromagnetic Compatibility –Council Directive 89/336/EEC, Article 10.2. Date of Validation: January 16, 2001 Validated by the European Commission as a U.S. Notified Body operating under the U.S./EU, Mutual Recognition Agreement (MRA) operating under the European Union Telecommunication Equipment – Council Directive 99/5/EC, Annex V. Date of Validation: November 20, 2002 Notified Body Identification Number: 1243 L.S. Compliance, Inc. Page 4 of 44 Test Report Number: 305497-Tx-v2 Prepared For: Eaton Corporation 2. A2LA Certificate of Accreditation L.S. Compliance, Inc. Page 5 of 44 Test Report Number: 305497-Tx-v2 Prepared For: Eaton Corporation 3. A2LA Scope of Accreditation L.S. Compliance, Inc. Page 6 of 44 Test Report Number: 305497-Tx-v2 Prepared For: Eaton Corporation 4. Validation Letter – U.S. Competent Body for EMC Directive 89/336/EEC L.S. Compliance, Inc. Page 7 of 44 Test Report Number: 305497-Tx-v2 Prepared For: Eaton Corporation 5. Signature Page Prepared By: December 23, 2005 Teresa A. White, Document Coordinator Date Tested By: December 23, 2005 Abtin Spantman, EMC Engineer Date Approved By: December 23, 2005 Brian E. Petted, VP of Engineering Date L.S. Compliance, Inc. Page 8 of 44 Test Report Number: 305497-Tx-v2 Prepared For: Eaton Corporation 6. Product and General Information Manufacturer: Eaton Corporation Date(s) of Test: December 8 TH through 12 TH , 2005 Test Engineer(s): Tom Smith √ Abtin Spantman Ken Boston Model #: 70D5001G01 Serial #: Pre-production Samples Voltage: 3.6 VDC Operation Mode: Normal operation and continuous transmit 7. Introduction Between December 8 TH and 12 TH , 2005, a series of Conducted and Radiated RF Emission tests were performed on two pre-production samples of the Eaton Corporation’s Model Number: 70D5001G01, here forth collectively referred to as the “Equipment Under Test” or “EUT”. The first sample was set up for radiated emissions tests, and the second sample was set up for conducted RF emissions tests. These tests were performed using the procedures outlined in ANSI C63.4-2003 for intentional radiators, and in accordance with the limits set forth in FCC Part 15.247 (Industry Canada RSS-210) for a low power transmitter. These tests were performed by Abtin Spantman, EMC Engineer at L.S. Compliance, Incorporated. All Radiated and Conducted RF Emission tests were performed upon the EUT to measure the emissions in the frequency bands described in Title 47 CFR, FCC Part 15, including 15.35, 15.205, 15.247 and Industry Canada RSS-210 to determine whether these emissions are below the limits expressed within the standards. These tests were performed in accordance with the procedures described in the American National Standard for methods of measurement of Radio- Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz (ANSI C63.4-2003). Another document used as a reference for the EMI Receiver specification was the Comite International Special Des Perturbations Radioelelectriques (CISPR) Number 16-1, 2003. All tests were performed at L.S. Compliance, Inc., in Cedarburg, Wisconsin, unless otherwise noted. L.S. Compliance, Inc. Page 9 of 44 Test Report Number: 305497-Tx-v2 Prepared For: Eaton Corporation 8. Product Description The Eaton “Key FOB” is a part of a Home monitoring system. Specifically, this is a portable display unit, shaped like an oversize key and called a fob, which attaches to a base unit and provides system personalization and display/alarm capabilities. This unit is comprised of a…

Text truncated - open the document above for the full version.

TEST SETUP PHOTOS EATON CORPORATION KEY FOB Page 1 of 4 View of the EUT setup in Side orientation View of the EUT setup in vertical orientation View of the EUT setup in Horizontal orientation TEST SETUP PHOTOS EATON CORPORATION KEY FOB Page 2 of 4 View of the EUT docked on the base-station during charging View of the EUT and base station with peripheral cables during investigations for general emissions. TEST SETUP PHOTOS EATON CORPORATION KEY FOB Page 3 of 4 View of the EUT setup on the test pedestal TEST SETUP PHOTOS EATON CORPORATION KEY FOB Page 4 of 4 Setup for the Conducted Emissions Test
