TSV-HHB1WSOCMonitoring Device

Water Shut-off Controller User’s Guide   Contents Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4 1. Water Shut-Off Controller Uses . . . . . . . . . . . . . . . . . . . . . . . .4 Water Shut-Off Controller Components . . . . . . . . . . . . . . . . . . . . . . . .5 Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6 Installing the Water Shut-Off Controller . . . . . . . . . . . . . . . . . . . . . . .7 1. Prepare . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8 2. Place . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9 3. Set Up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1 1 4. Test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17 5. Choose Sensor Controllers . . . . . . . . . . . . . . . . . . . . . . . . . . . .19 6. Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22 Compliance Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27  Introduction The Home Heartbeat Water Shut-Off Controller is designed to help you manage the flow of water into your home. You can use any Home Heartbeat sensor as a “controller” in combination with the Water Shut-Off Controller. For example, when used with Water Sensors, the system can be set to automatically shut off the water to your home in the event of a burst pipe or appliance leak. Or, you can add an Attention Sensor to shut off your main line with the press of a button. Your Home Key can be used to open and close the valve, or you can choose to operate the unit manually. This Guide will introduce you to Water Shut-Off Controller and assist you with setup and use. Water Shut-Off Controller Uses To shut off water in response to leaks from home appliances and products connected to main water lines, such as: • Washing machines • Toilets • Refrigerator automatic ice-makers • Kitchen, bath or laundry room sinks Great for use in: • Family Home • Vacation Home • Rental Properties  Water Shut-Off Controller Components Home Heartbeat Brass Ball Valve (not included) Pegs & Clip Use the clip to attach the ball valve to the pegs on the unit. Slide Channel Slide the Home Key here to add the unit to the system Valve Handle Use the handle to open and close the ball valve when unit is unplugged. Power Adapter Plug the adapter into a wall outlet— do not use an extension cord. WARNING: Do not remove the ferrite on the power supply cable.  Getting Started Before installing the Water Shut-Off Controller, please note the following: The product is for: • Indoor use only. • Use with cold water lines only. The use of this product requires the installation of: • The HomeHeartbeat Starter Pack. • At least one Home Heartbeat Sensor, which acts as a controller to trigger an alert and close the Water Shut-Off Controller (Eaton recommends Water Sensors and Attention Sensors). • A Home Heartbeat Brass Ball Valve (not included), through which the Water Shut-Off Controller is connected to the main water line. The ball valve must be pre-installed at least 18” downstream from a water meter and within 8 feet of a power outlet. WARNING: Do not put fingers inside the ball valve, as it can close with a force strong enough to sever them.  Installing the Water Shut-Off Controller Follow these steps to install the Water Shut-Off Controller: 1. Place the Water Shut-Off Controller by joining it to the brass ball valve that was installed on your main water line. 2. Set up the Water Shut-Off Controller using the Home Key. 3. Test that the system is working. 4. Choose sensor controllers that, on alert, will communicate with the Water Shut-Off Controller to shut off the water to your home. 5. Use the product—get alerts, and open and shut the valve.  1. Prepare Prepare the ball valve by following the following four steps: • REMOVE retaining ring • REMOVE valve handle • REMOVE plastic washer • REMOVE screw and nut NOTE Valve handle may be difficult to slide off. TIP: try sliding a flat head screwdriver between the handle and the valve to help pry it loose.  . Place JOIN the Water Shut-Off Controller to the ball valve by lining up the pegs on the Water Shut-Off Controller to the holes on the brass ball valve. Make sure the Slide Channel is facing you. The long side of the Water Shut-Off Controller should be parallel to the water pipe. ATTACH the horseshoe clip to hold the Water Shut-off Controller in place. When doing so, make sure that the clip rests on the inside of the pegs as shown in the bottom left hand corner of this page. WARNING To reduce risk of electrical shock, fire or damage to property or device: • DO NOT use extension cord. 10 CAUTION To reduce the risk of pinching your fingers, keep your hands away from the water shut-off controller when you connect the power. PLUG IN the Water Shut-Off Controller to a nearby outlet. DO NOT use an extension cord. You will hear the Water Shut-Off Controller rotate the ball valve 180 degrees. The green LED light will blink while the unit checks its position.* Wait for it to stop blinking before moving to Step 2. *Each time the Water Shut-Off Controller is first turned on (for example, during installation or after a power outage), it rotates the ball valve 180 degrees to check its position. 11 . Set up CARRY the Water Shut-Off Controller, your Home Key, a spare water sensor and a small glass of tap water to where the brass ball valve is installed in your home. (If all of your water sensors are in place, use a nearby water sensor.) CLICK the Home Key thumbwheel to wake the screen, and SLIDE the Home Key into the Slide Channel. The Home Key should sa…

Text truncated - open the document above for the full version.

Eaton Corporation Technology & Quality Center 170 Industry Drive, RIDC Park West Pittsburgh, PA 15275 FCC CONFIDENTIALITY Date: 11/16/2005 Time: 06:30 To: FCC Authorization & Evaluation Division 7435 Oakland Mills Road Columbia, MD 21045-0429 From: Steven G. Loughner Phone: 412 - 787 - 6560 Lead Engineer Fax: 412 - 787 - 6488 Applicant: Eaton Corporation E-Mail: [email protected] Subject: Request for Non disclosure for FCC ID: TSV – HHB1WSOC. To Whom It May Concern: Pursuant to 47 CFR Section 0.459, Eaton Corporation hereby requests non disclosure and confidential treatment of the following materials submitted in support of FCC certification application for FCC ID: TSV – HHB1WSOC. a. Schematic Diagrams b. Operational Description c. Block Diagram Above materials contain trade secrets, proprietary and technical information which would customarily be guarded from competitors under 47 CFR section 0.457(d)(2). Disclosure or publication of any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. Eaton Corporation understands that pursuant to 47 CFR section 0.457(d)(1)(ii) disclosure of the applicant and all accompanying documentation will not be made before the date of the grant. Sincerely yours, By: Steven G. Loughner Title: Lead Engineer / Eaton Corporation

Eaton Corporation Technology & Quality Center 170 Industry Drive, RIDC Park West Pittsburgh, PA 15275 FCC A U T H O R I Z A T I O N Date: 11/14/2005 Time: 06:27 To: FCC Authorization & Evaluation Division 7435 Oakland Mills Road Columbia, MD 21045-0429 From: Steven G. Loughner Phone: 412 - 787 - 6560 Lead Engineer Fax: 412 - 787 - 6488 Applicant: Eaton Corporation E-Mail: [email protected] Dear Ladies and/or Gentlemen: I appoint Kenneth L. Boston, James Blaha and Teresa White at L.S. Compliance, Inc., to act as an agent in the preparation of applications under Part 15 of the rules and regulations of the Federal Communications Commission. I certify that the exhibitions properly describe the device being submitted under this application and will implement any changes described in the test report. The labels described will be affixed to each item. The following statement is required by the Federal Communications Commission: By checking Yes, the applicant certifies that, in the case of an individual applicant, he or she is not subject to a denial of federal benefits, that included FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C 853(a), or, in the case of a non- individual applicant (e.g. corporation, partnership, or other unincorporated association), no party to the application is subject to a denial of federal benefits, that includes FCC benefits, pursuant to that section. √ Yes _____No By: Steven G. Loughner Title: Lead Engineer / Eaton Corporation

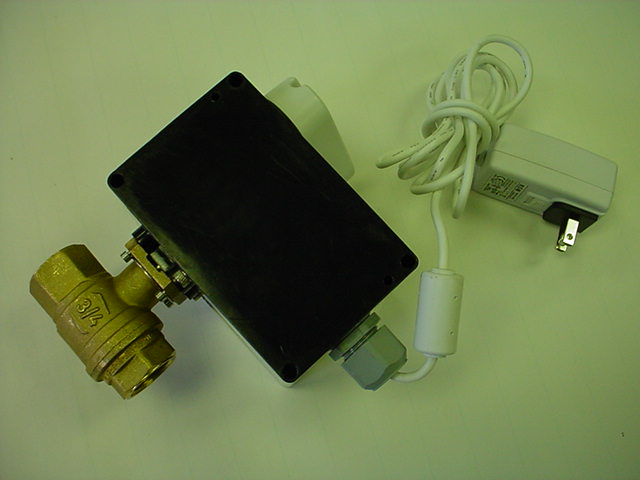

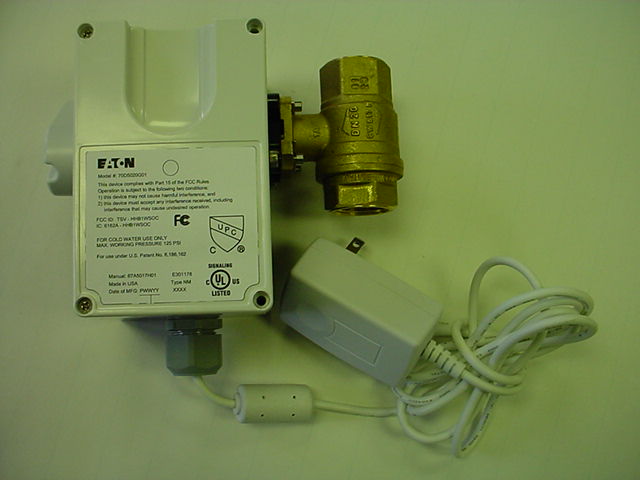

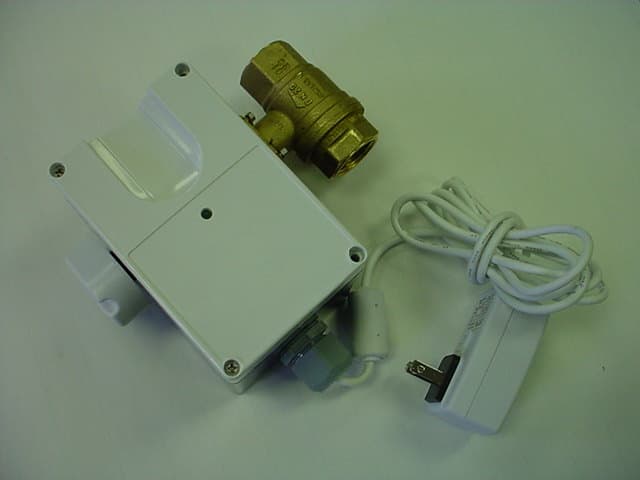

Eaton Corporation Water Shut Off Controller FCC ID#: TSV-HHB1WSOC Photo One – External Front View of Controller Eaton Corporation Water Shut Off Controller FCC ID#: TSV-HHB1WSOC Photo Two – External Back View of Controller Eaton Corporation Water Shut Off Controller FCC ID#: TSV-HHB1WSOC Photo Three – External Close Up of FCC ID Label Eaton Corporation Water Shut Off Controller FCC ID#: TSV-HHB1WSOC Photo Four – External View of Controller, Showing FCC ID Label

Eaton Corporation Water Shut Off Controller FCC ID#: TSV-HHB1WSOC Photo One – Internal Open for Inspection Eaton Corporation Water Shut Off Controller FCC ID#: TSV-HHB1WSOC Photo Two – Internal Front Side of RF Board Eaton Corporation Water Shut Off Controller FCC ID#: TSV-HHB1WSOC Photo Three – Internal Back Side of RF Board Eaton Corporation Water Shut Off Controller FCC ID#: TSV-HHB1WSOC Photo Four – Internal Close Up of RF Section Eaton Corporation Water Shut Off Controller FCC ID#: TSV-HHB1WSOC Photo Five – Internal Antenna Connection

Specifications subject to change without notice. 3425 N.44 th Street, LINCOLN, NE 68504 USA SALES PHONE: 800.228.4563 PHONE: 402.467.4491 • FAX: 402.467.4528 www.centurion.com • [email protected] Copyright  2004 Centurion Wireless Technologies, Inc. All Rights Reserved Specifications: ƒ Small and lightweight ƒ Wide bandwidth, ultra-wide band capable ƒ Available in tape and reel packaging ƒ SMT compatible Frequency Range 2.4 – 2.5 GHz 5.15-5.875 GHz Peak Gain > 2 dBi > 3 dBi Polarization Linear Nominal Impedance 50 ohms VSWR (Min. Performance) <2.0:1 Temperature Range -40° to +85°C Vibration 6G RMS (9.04g2/Hz) for 15 minutes each in vertical and horizontal. No appearance or functional axis. Thermal Shock Change after 4 repeated cycles of 1 hr. at +85°C and 1 hr. at -40°C. Transfer time is 5 min. Radiating Element Size 8 x 6 x 2.5 mm (L x W x H) Physical Mass 0.21 grams Length w/ Solder Tabs 12mm Connectors: Model # Part # Description Connector WIC2450-U CAF95901 Tape and Reel N/A WIC2450-U-SM CAF95943 Single-band on eval board SMA-female Edge- mount WIC2452-U-SM CAF94408 Ultrawide-band on eval board SMA-female Edge- mount 1.0 1.5 2.0 2.5 3.0 3.5 4.0 4.5 5.0 1800 2000 2200 2400 2600 2800 3000 3200 3400 3600 3800 4000 4200 4400 4600 4800 5000 5200 5400 5600 5800 6000 Frequency (MHz) VSWR WIC2450U a – 5/18/04 BlueChip Model Number: WIC2450-U Internal Antenna – Surface Mount Back Azimuth 2.45 GHz Free Space Elevation phi=0 2.45 GHz Free Space Parallel Patch on PCB connected directly to feed line for UWB Typical VSWR performance on evaluation PCB Elevation phi=0 5.8 GHz Free Space PCMCIA Design

LS Research, LLC Page 35 of 41 Test Report Number: 305498-Tx-v2 Prepared For: Eaton Corporation 16. MPE Calculations The MPE calculations are based on the Centurion Brand antenna, part number: WIC2450-U Ceramic Chip Antenna Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 where:S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Maximum peak output power at antenna input terminal:17.00 (dBm) Maximum peak output power at antenna input terminal:50.119 (mW) Antenna gain(typical):2(dBi) Maximum antenna gain:1.585 (numeric) Prediction distance:20 (cm) Prediction frequenc y:2400(MHz) MPE limit for uncontrolled exposure at prediction frequency:1 (mW/cm^2) Power density at prediction frequency:0.015803 (mW/cm^2) Maximum allowable antenna gain:20.0(dBi) 20cm =18.0 dB Margin of Compliance at 2 4R PG S π =

LS Research, LLC W66 N220 Commerce Court Cedarburg, WI 53012 Phone: 262-375-4400 Fax: 262-375-4248 COMPLIANCE TESTING OF : Home Heartbeat Water Valve Prepared For: Eaton Corporation Attention: Mr. Richard Harwell 170 Industry Drive Pittsburgh, PA 15275 United States of America Test Report Number: 305498-Tx-v2 Test Dates: March 13 TH through 27 TH , 2006 All results of this report relate only to the items that were tested. This report is not to be reproduced, except in full, without written approval of LS Research, LLC. LS Research, LLC Page 2 of 41 Test Report Number: 305498-Tx-v2 Prepared For: Eaton Corporation Table of Contents Section Description Page Index 1 L. S. Compliance in Review 3 2 Signature Page 4 3 Product and General Information 5 4 Introduction 5 5 Product Description 6-7 6 Test Requirements 8 7 Summary of Test Report 8 8 Radiated Emissions Test 9-20 9 Band-Edge Measurements 21 10 Occupied Bandwidth 22 11 Conducted RF Emissions Test on AC Power Line 23-27 12 Power Output 15.247 (b) 28-29 13 Spurious Emissions 15.247 (d) 30-31 14 Spectral Density 32-33 15 Frequency and Power Stability over Voltage Variations 34 16 MPE Calculations 35 Appendix A Test Equipment List 36 B Antenna Specification 37 C Firmware and Setup Instructions 38 D Transmitter Duty Factor Calculations 39-41 LS Research, LLC Page 3 of 41 Test Report Number: 305498-Tx-v2 Prepared For: Eaton Corporation 1. LS Research, LLC In Review LS Research, LLC - Accreditations and Listing’s As an EMC Testing Laboratory, our Accreditation and Assessments are recognized through the following: A2LA – American Association for Laboratory Accreditation Accreditation based on ISO/IEC 17025 : 2005 with Electrical (EMC) Scope of Accreditation A2LA Certificate Number: 1255.01 Federal Communications Commission (FCC) – USA Listing of 3 Meter Semi-Anechoic Chamber based on Title 47 CFR – Part 2.948 FCC Registration Number: 90756 Listing of 3 and 10 meter OATS based on Title 47CFR – Part 2.948 FCC Registration Number: 90757 Industry Canada On file, 3 Meter Semi-Anechoic Chamber based on RSS-212 – Issue 1 File Number: IC 3088-A On file, 3 and 10 Meter OATS based on RSS-212 – Issue 1 File Number: IC 3088 U. S. Conformity Assessment Body (CAB) Validation Validated by the European Commission as a U. S. Competent Body operating under the U. S. /EU, Mutual Recognition Agreement (MRA) operating under the European Union Electromagnetic Compatibility –Council Directive 89/336/EEC, Article 10.2. Date of Validation: January 16, 2001 Validated by the European Commission as a U.S. Notified Body operating under the U.S./EU, Mutual Recognition Agreement (MRA) operating under the European Union Telecommunication Equipment – Council Directive 99/5/EC, Annex V. Date of Validation: November 20, 2002 Notified Body Identification Number: 1243 LS Research, LLC Page 4 of 41 Test Report Number: 305498-Tx-v2 Prepared For: Eaton Corporation 2. Signature Page Prepared By: June 20, 2006 Teresa A. White, Document Coordinator Date Tested By: June 20, 2006 Abtin Spantman, EMC Engineer Date Approved By: June 20, 2006 Brian E. Petted, VP of Engineering Date LS Research, LLC Page 5 of 41 Test Report Number: 305498-Tx-v2 Prepared For: Eaton Corporation 3. Product and General Information Manufacturer: Eaton Corporation Date(s) of Test: March 13 TH through 27 TH , 2006 Test Engineer(s): Tom Smith √ Abtin Spantman Ken Boston Model #: Home Heartbeat Water Valve Serial #: Pre-production Samples Voltage: 120 VAC, 60 Hz Operation Mode: Normal operation and continuous transmit 4. Introduction Between March 13 TH and 27 TH , 2006, a series of Conducted and Radiated RF Emission tests were performed on one pre-production sample of the Eaton Corporation’s Model Number: “Home Heartbeat Water Valve”, here forth referred to as the “Equipment Under Test” or “EUT”. These tests were performed using the procedures outlined in ANSI C63.4-2003 for intentional radiators, and in accordance with the limits set forth in FCC Part 15.247 (Industry Canada RSS- 210) for a low power transmitter. These tests were performed by Abtin Spantman, EMC Engineer at LS Research, LLC. All Radiated and Conducted RF Emission tests were performed upon the EUT to measure the emissions in the frequency bands described in Title 47 CFR, FCC Part 15, including 15.35, 15.205, 15.247 and Industry Canada RSS-210 to determine whether these emissions are below the limits expressed within the standards. These tests were performed in accordance with the procedures described in the American National Standard for methods of measurement of Radio- Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz (ANSI C63.4-2003). Another document used as a reference for the EMI Receiver specification was the Comite International Special Des Perturbations Radioelelectriques (CISPR) Number 16-1, 2003. All tests were performed at LS Research, LLC, in Cedarburg, Wisconsin, unless otherwise noted. LS Research, LLC Page 6 of 41 Test Report Number: 305498-Tx-v2 Prepared For: Eaton Corporation 5. Product Description The Eaton “Home Heartbeat Water Valve” is part of a Home monitoring system. The Eaton “Home Heartbeat Water Valve”, also known as the Home Heartbeat Water Cop is a radio controlled water valve. The unit integrates into the Eaton Home Heartbeat system of controller and sensor/actuators using a 2.4 GHz ISM band Direct Sequence Spread Spectrum radio system as the communications link between separate modules. In operation, the Water Cop is inserted into the house water mains at the entrance to the structure. If a water leak is detected, the Home Heartbeat system can issue a radio command to the Water Cop to close the valve. The Water Cop operates off the household AC electrical system using an 120 VAC to 9 VDC wall-type adapter. Other units which communicate to the Water Cop are the Home Heartbeat FOB and the Home Heartbeat Base Station. If an optional Water Sensor is used, it communicates to…

Text truncated - open the document above for the full version.

Eaton Corporation Water Shut Off Controller FCC ID: TSV-HHB1WSOC TEST SETUP PHOTOS Page 1 of 2 RADIATED EMISSIONS TEST View of the EUT setup in Horizontal orientation (Highest emissions measured) View of the EUT setup in vertical orientation Eaton Corporation Water Shut Off Controller FCC ID: TSV-HHB1WSOC TEST SETUP PHOTOS Page 2 of 2 Front View of the EUT setup on the test pedestal Rear View of the EUT setup showing the wire draping LS Research, LLC Page 26 of 41 Test Report Number: 305498-Tx-v2 Prepared For: Eaton Corporation View of the EUT setup on the test pedestal, during the measurements of RF emissions onto AC Mains.
