American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 July 6, 2006 RE: FCC ID: TW4-809T_ATCB003689 Attention: Peter Lin I have a few comments on this Application. Please note that further comments may arise in response to answers provided to the questions below. 1. Please note that the 731 states the operating frequency range for the device is 2414 to 2468MHz. Please note that the device was only tested from 2428MHz to 2468MHz. Please either provide the low channel (2414MHz) data, or please correct the documentation to show operation from 2428- 2468MHz. 2. Please note that the manual states the device is 2mW for US market. Please note that, unless the antenna has significant loss, it is most likely that a 2mw device would not pass 15.249 limits. Please also note that the test data shows a significantly less power out than 2mW. Please address this issue and please correct the power levels advertised to be in line with power levels that would comply with 15.249 if necessary. 3. Please note that the manual states the bandwidth of the device is 18MHz. Please note that the report does not support this. Please correct so the report and other documentation agree. Dennis Ward mailto:[email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

WT68000881 1 Photo 1 Appearance of EUT Photo 2 Appearance of EUT

Label FCC ID: TW4-809T 15mm The Label must not be a stick-on paper label. The Label on these products must be permanently affixed to the product and readily visible at the time of purchase and must last the expected lifetime of the equipment not be readily detachable. This device complies with Part 15 o the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. The above FCC statement is list in user manual. Proposed Label Location on EUT EUT Bottom View/Proposed FCC ID Label Location FCC ID: TW4-809T Label ZT-809T FCC ID: TW4-809T 1588 7mm

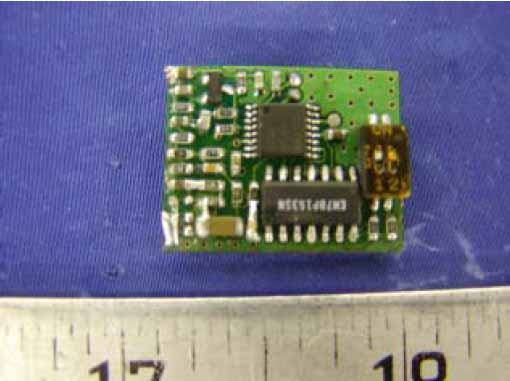

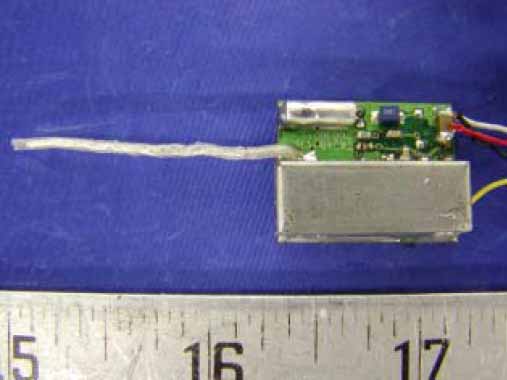

WT68000881 1 Photo 1 Inside of EUT Photo 2 Inside of EUT WT68000881 2 Photo 3 Inside of EUT

Report No.: WT68000881 Page 1/19 EMC TEST REPORT For 2.4G wireless camera Model Number: ZT-809T FCC ID: TW4-809T Report Number : WT068000881 Test Laboratory : Shenzhen Academy of Metrology and Quality Inspection EMC Laboratory Guangdong EMC Compliance Test Center Site Location : Bldg. of Metrology &Quality Inspection, Longzhu Road, Shenzhen, Guangdong, China Tel : 0086-755-26941637, 26941529, 26941531 Fax : 0086-755-26941545 Email : [email protected] Report No.: WT068000881 Page 2/19 TABLE OF CONTENTS TEST REPORT DECLARATION ........................................................................................................3 1. TEST RESULTS SUMMARY ...................................................................................................4 2. GENERAL INFORMATION ....................................................................................................5 2.1. Report information ............................................................................................................5 2.2. Laboratory Accreditation and Relationship to Customer .................................................5 2.3. Measurement Uncertainty .................................................................................................6 3. PRODUCT DESCRIPTION ......................................................................................................6 3.1. EUT Description ...............................................................................................................6 3.2. Related Submittal(s) / Grant (s) ........................................................................................6 3.3. Block Diagram of EUT Configuration..............................................................................6 3.4. Operating Condition of EUT ............................................................................................6 3.5. Special Accessories...........................................................................................................7 3.6. Equipment Modifications..................................................................................................7 3.7. Support Equipment List ....................................................................................................7 3.8. Test Conditions .................................................................................................................7 4. TEST EQUIPMENT USED .......................................................................................................7 5. CONDUCTED DISTURBANCE TEST ....................................................................................7 5.1. Test Standard and Limit ....................................................................................................7 5.2. Test Procedure ..................................................................................................................7 5.3. Test Arrangement..............................................................................................................7 5.4. Test Data ...........................................................................................................................7 6. RADIATED DISTURBANCE TEST ........................................................................................7 6.1. Test Standard and Limit ....................................................................................................7 6.2. Test Procedure ..................................................................................................................7 6.3. Test Arrangement..............................................................................................................7 6.4. Test Data ...........................................................................................................................7 7. BAND EDGE ...............................................................................................................................7 7.1. Test Standard and Limit ....................................................................................................7 7.2. Band Edge FCC 15.249(d) Limit ......................................................................................7 7.3. Test Procedure ..................................................................................................................7 7.4. Test Arrangement..............................................................................................................7 7.5. Test Data ...........................................................................................................................7 8. ANTENNA REQUIREMENT ...................................................................................................7 Report No.: WT068000881 Page 3/19 TEST REPORT DECLARATION Applicant : SHENZHEN AEE TECHNOLOGY CO., LTD Address : 1st Floor B building Shenzhen Tsinghua Hi-Tech Park Nanshan Hi-Tech Park North Shenzhen P.R.C Manufacturer : SHENZHEN AEE TECHNOLOGY CO., LTD Address : 1st Floor B building Shenzhen Tsinghua Hi-Tech Park Nanshan Hi-Tech Park North Shenzhen P.R.C EUT Description : 2.4G wireless camera Model Number ZT-809T FCC ID Number TW4-809T Test Standards: FCC Part 15 15.249 :2005 The EUT described above is tested by Shenzhen Academy of Metrology and Quality Inspection EMC Laboratory to determine the maximum emissions from the EUT.Shenzhen Academy of Metrology and Quality Inspection EMC Laboratory is assumed full responsibility for the accuracy of the test results. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4 (2003) and the energy emitted by the sample EUT tested as described in this report is in compliance with conducted and radiated emission limits of FCC Rules Part 15.29. The test report is valid for above tested sample only and shall not be reproduced in part without written…

Text truncated - open the document above for the full version.

WT68000881 1 Photo 1 Conducted Emission Test Photo 2 Radiated Emission Test
