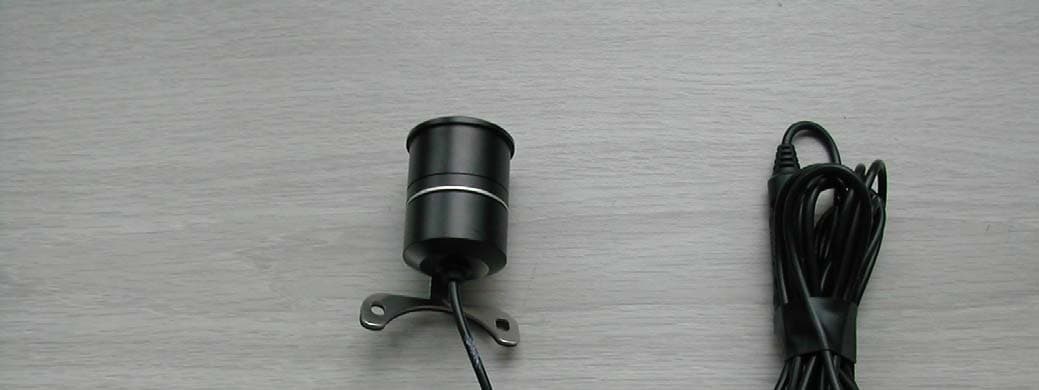

TW4CT0112.4 GHz Wireless Camera

Please read this manual thoroughly before any attempt to install and operate this product and retain it for your future reference. User's Manual Car Back View Monitor Night Vision & Weather-proof Model:011CF English TABLE OF CONTENTS SPECIFICATIONS 10 TROUBLESHOOTING 11 INSTALLATION & USAGE LCD Installation Camera Installation Find Reversing Power 6~7 8~9 INTRODUCTION 1~3 Notice Approval Information (FCC/CE) 1 2~3 7 EU Environmental Protection Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice. 9 6~9 PRODUCT 4~5 Package Contents Feature Locations 4 4 5 Features Maintenace INTRODUCTION Thank you for purchasing our car back view monitor. This product eel confident that you will be pleased with the quality and features of this product. The product is made of alloyed shell and special weather-proof enclosure that protect it against power and water sprays. It passed the IP67 testing. The product offers a new solution and experience for drivers. Drivers can check the back situations through the camera mounted on the rear car, and does not need to look back and forth. This product is only for accessorial reminding tool, thus we will not take any responsibility for resulting accident. Please read the manual thoroughly before using, and following the instruction accordingly. works at ISM-2.4GHz frequency band, which could be legally used worldwide without permission. We f Notice Notice: This product may cause interferences with other wireless equipment that operates at 2.4GHz ISM band. Please turn off one of the equipments to eliminate the interference. Product Assurance: This camera will emit electromagnetic wave, just like other wireless products, however, its transmitting power is less than other wireless products such as mobile phones. The 2.4GHz wireless camera meets wireless frequency security standards and recommended indexes while working. These standards and indexes are certificated by academic organization and represent the cogitative research of the scientific workers who continuously explore and annotate the involved fields. So we believe that our products are safe for customers. 1 3 This product complies with standards including Low Voltage Device Directive 2006/95/EC; EMC Directive 2004/108/EC and R&TTE Directive 1999/5/EC. It passed the subject tests by the authority concerned and is authorized to bear CE mark. CE This package comes with the following items. Please check whether they are all included in the packaging box, if one or some is missing, contact the retailer for replacement. Package Contents PRODUCT 4 ① Camera x1 ② LCD Monitor x1 ③ Detector x1 ④ Power Cable for Camera x1 ⑤ Video Cable for LCD Monitor x1 ⑥ Mounting Hardware x1 ⑦ Double Face Tape x1 ⑧ User’s Manual x1 ①②③ ④⑤⑥ ⑦⑧ Note: The picture may vary from the actual object. Features » » » » » Special optical lens substituting the original rear-view mirror 120° view angle for wide eyeshot Water resistance design for outdoor usage Easy installation, suitable for cars, small and medium buses Automatically start up the rear view images while reversing Camera 5 LCD Monitor Feature Locations Installing Hole Lens IR Lights Installing Bracket Brightness Contrastness Power ON/OFF Reverse Image Channel Button Channel Indicator INSTALLATION We strongly recommend you ask qualified technician or maintenance engineer to install this device. Improper installation of this monitor may cause battery leakage or short circuit. Please follow steps below to install the product. 6 LCD Installation 1. Install the LCD monitor to the bracket then stick it on the even place in the front of the car tightly. And adjust the angle for perfect viewing effect. LCD Monitor Installation Camera Installation 7 2. Connect the power to the +12V correctly. Camera Installation 1. Remove the screws from the license bracket, locate the camera on the license bracket then screw them tightly. 2. Connect the black pin of the camera to the black pin of the power cable. 3. Use the detector to detect the wire near reversing lights on the rear car body to find reversing power then connect the wire correctly. (Refer to Find Reversing Power section on Page8-9) Red wire connects to reversing power Black wire grounded Power Jack Find Reversing Power How to use the detector to find the power from the reverse power? 1. Tweak the key to the right side of the cigarette lighter, step on the reverse gear, the power from the reverse light will be on at once. 8 2. Clip the pincers to the metal of the car body. 3. Use the red pen to find the power from the wire until the LED light is on. Find out the light wire, then push the switch to the parking and use the red pen to detect it, if the light turns off, then the wire is the reverse power; if the light is still on, the wire is anode +12V. Black wire Blue wire Reversing power Ground 4. Red wire connects to anode +12V; blue wire connects to reversing power 12V; black wire connects ground. 9 Red wire Anode +12V 3P ◆ Do not shake or strike the product; ◆ Do not disassemble or repair the camera; doing so may cause damages to the product. ◆ The product can connect to the VCD/DVD and play program, however, please don’t watch the program while driving. ◆ Do not use solvent such as gasoline, cleaner or antistatic spray to clean the screen. ◆ Keep the battery out of children’s reach. ◆ Make sure the polarity are fit properly while installing battery. ◆ Never charge the battery, disassemble it or put it into fire. Maintenance S y s t e m a m r a C e D p l a y i s SPECIFICATIONS * Specifications are subject to minor change without prior notice. 10 Transmission Frequency Transmission Power Transmission Distance Modulation Mode Operating Temperature Storage Temperature Operating Humidity Operating Condition Imaging Sensor Type Picture Total Pixels Horizontal Resolution View Angle Minimum Illumination Night Vision Range …

Text truncated - open the document above for the full version.

S-M011L190011 CT011
 P 24.0,25#25# ,  , X10.0mm 1:1 1 A 216543 A B C D C A4 SHENZHEN AEE TECHNOLOGY CO LTD., 109871211 A B C D E F G H E F G H I J 214365 I J 871091211 25#25#   2007/05/14 CT011 24.0mm 10.0mm 1:2 1:1 P
 S-M011L190011 24.0mm 10.0mm

FCC ID: TW4CT011 Report No.: 070509FIA01 1 FCC TEST REPORT REPORT NO.: 070509FIA01 MODEL NO.: 011CF RECEIVED: May. 22, 2007 TESTED: May. 22 ~ Jun. 11, 2007 ISSUED: Jun. 11, 2007 APPLICANT: SHENZHEN AEE TECHNOLOGY CO., LTD. ADDRESS: 1/F., Blog. B, Tsinghua Hi-Tech Park, Northern Hi-Tech Industrial Park, Nanshan District, Shenzhen, P.R.C ISSUED BY: ADT (Shanghai) Corporation ADDRESS: 2F, Building C, No.1618, Yishan Rd., 201103, Shanghai, China This test report consists of 20 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by A2LA or any government agencies. The test results in the report only apply to the tested sample. ADT (Shanghai) Corporation. V 1.0.0 FCC ID: TW4CT011 Report No.: 070509FIA01 2 Table of Contents 1 CERTIFICATION............................................................................................ 3 2 SUMMARY OF TEST RESULTS...................................................................... 4 2.1 MEASUREMENT UNCERTAINTY................................................................... 4 3 GENERAL INFORMATION............................................................................. 5 3.1 GENERAL DESCRIPTION OF EUT................................................................. 5 3.2 DESCRIPTION OF TEST MODES................................................................... 5 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS..................................... 7 3.4 DESCRIPTION OF SUPPORT UNITS............................................................. 7 4 EMISSION TEST........................................................................................... 8 4.1 CONDUCTED EMISSION MEASUREMENT.................................................... 8 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT................................... 8 4.1.2 TEST RESULTS............................................................................................. 8 4.2 RADIATED EMISSION MEASUREMENT......................................................... 9 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT........................................ 9 4.2.2 TEST INSTRUMENTS.................................................................................. 10 4.2.3 TEST PROCEDURE.................................................................................... 11 4.2.4 DEVIATION FROM TEST STANDARD........................................................... 11 4.2.5 TEST SETUP.............................................................................................. 12 4.2.6 EUT OPERATING CONDITIONS................................................................... 12 4.2.7 TEST RESULTS........................................................................................... 13 4.3 BAND EDGES MEASUREMENT................................................................... 17 4.3.1 LIMITS OF BAND EDGES MEASUREMENT.................................................. 17 4.3.2 TEST INSTRUMENTS.................................................................................. 17 4.3.3 TEST PROCEDURE.................................................................................... 17 4.3.4 DEVIATION FROM TEST STANDARD........................................................... 17 4.3.5 EUT OPERATING CONDITION..................................................................... 17 4.3.6 TEST RESULTS........................................................................................... 17 5 PHOTOGRAPHS OF THE TEST CONFIGURATION....................................... 18 6 PHOTOGRAPHS OF THE EUT..................................................................... 19 7 APPENDIX - INFORMATION ON THE TESTING LABORATORY..................... 20 FCC ID: TW4CT011 Report No.: 070509FIA01 3 1 CERTIFICATION PRODUCT: 2.4G wireless camera MODEL NO.: 011CF BRAND NAME: AEE APPLICANT: SHENZHEN AEE TECHNOLOGY CO., LTD. TESTED: May. 22 ~ Jun. 11, 2007 TEST ITEM: ENGINEERING SAMPLE STANDARDS: 47 CFR Part 15, Subpart C (Section 15.249), ANSI C63.4-2003 The above equipment has been tested by ADT (Shanghai) Corporation, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s EMC characteristics under the conditions specified in this report. TECHNICAL ACCEPTANCE : , DATE:Jun. 11, 2007 Vivian Hsu Engineering Supervisor APPROVED BY : , DATE: Jun. 11 2007 Wallace Pan Director of Operations FCC ID: TW4CT011 Report No.: 070509FIA01 4 2 SUMMARY OF TEST RESULTS The EUT has been tested according to the following specifications: APPLIED STANDARD: 47 CFR Part 15, Subpart C Standard Paragraph Test Type ResultRemark 15.207 Conducted Emission Test N/A Refer to 4.1.2 15.249 Radiated Emission Test PASS Minimum passing margin is –1.32 dB at 4827.14 MHz 15.249(d) Band Edge Measurement PASSMeet the requirement of limit 2.1 MEASUREMENT UNCERTAINTY Where relevant, the following measurement uncertainty levels have been estimated for tests performed on the EUT as specified in CISPR 16-4: Measurement Value Conducted emissions 1.8dB Radiated emissions 3.2dB FCC ID: TW4CT011 Report No.: 070509FIA01 5 3 GENERAL INFORMATION 3.1 GENERAL DESCRIPTION OF EUT PRODUCT 2.4G wireless camera MODEL NO. 011CF POWER SUPPLY 12Vdc from battery POWER CABLE SUPPLIED 2m, non-shielded, detachable MODULATION TYPE FM FREQUENCY RANGE OF OPERATION 2.414 ~ 2.468 GHz CHANNEL SEPARATION 18 MHz NUMBER OF CHANNEL 4 ANTENNA TYPE Printed DATA CABLE SUPPLIED N/A I/O PORTS N/A NOTE: The above EUT information was declared by manufacturer and for more detailed features description, please refer to the manufacturer's specifications or User's Manual. 3.2 DESCRIPTION OF TEST MODES Four channels are provided to this EU…
