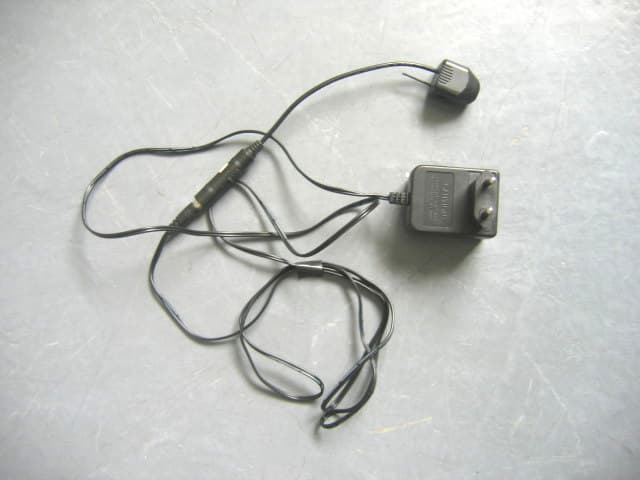

TW4AT1022.4 G Wireless Camera

User's Manual 2.4GHz Color Wireless Camera Kit MODEL: At102 & ZT-735 AEE TECHNOLOGY CO.,LTD. Please read this manual carefully and thoroughly be fore any attempt to install and operate this product and ret ain it for your future reference. English R TROUBLESHOOTING When you experience the operation problems, please check and try the following yourself before claiming that it is t he defective product or consulting the experienced technician. Abnormal Phenomena Possible Reasons/Solutions No image No sound Check whether the camera/receiver is connected to power supply and powered on. 1. Check if the channel of receiver is Snowflakes on Noisy the same as that of camera; 2. Check the distance & blocks. Blurimage Normalsound Adjust the lens of camera. Ghost image Normal sound 1. Interfered with other devices; 2. Check the distance & blocks. No color Normal sound Mismatching the TV system of PAL or NTSC. Normal image Noisy Interfered with other devices nearby; Remove or turn off such devices. 15 EU Environmental Protection Waste electrical products should not be disposed of w ith household waste. Please recycle where facilities exist. Check with your Local Authority or retailer fo r recycling advice. SPECIFICATIONS Items Value Transmission Frequency ISM 2,400MHz~ 2,483MHz Antenna Type Omni Transmission Distance 100m (Without Block) Operating Temperature o o o o F F Storage Temperature o o o o - 20C~+60C / - 4~+140 Storage Humidity ~85% RH Imaging Sensor 1/3-inch CMOS CMOS Total Pixels 628 582 (PAL)/ 510 492 (NTSC) S/N Ratio 40dB (AGC OFF) Horizontal Resolution 380 TV Lines Minimum Illumination 5 Lux/F1.2 Transmission Power 10mW (CE)/2mW (FCC) Power Supply DC 7.5V 300mA Consumption Current 80 mA (Max.) Dimensions (WxDxH) 23mmx31mmx23mm (Main Body) Weight Approx.20g (Main Body) Receiving Sensitivity -85dBm Power Supply DC 8.0V 200mA ConsumptionCurrent 150mA(Max.) Video Output Level 1 V p - p Ω @75 Audio Output Level 1 V p - p Ω @10k Dimensions (WxDxH) 100mmx70mmx18mm (Main Body) Weight Approx. 99g (Main Body) * Specifications are subject to minor change withou t prior notice. TABLE OF CONTENTS SPECIFICATIONS 14 TROUBLESHOOTING 15 14 1~4 1 1~2 3 3 4 4 INTRODUCTION Notice Approval Information (FCC/CE ) Warranty Copyright Restrictions Maintenance 5~7 5 6 7 PRODUCT Package Contents Feature Locations Adapter & Battery Clip INSTALLATION & USAGE Installation FixtheCamera Locate the Receiver Camera Channel Setup Receiver Mode Setup 8~13 8~10 11~12 121213 1. mode: Slide switch off to enter mode. In this m ode, Manual Manual L the receiver channel won't change until you press t he Channel Select “SEL" button; 2. mode: Slide L switch on to enter channel scan m ode. Channel Scan In this mode, all the available channels will displ ay one by one looping in turn per 5s. So you can watch the situat ions from up to 4 different cameras via one receiver. 13 Locate the Receiver The receiver can be placed horizontally or vertical ly. When it is placed vertically, the supplied holder is required. Horizontal Vertical Camera Channel Setup This camera has 4 selectable channels to avoid poss ible interference from other nearby wireless devices. Please open the channel switch cover and set the Channel Switch as the following d iagram. INTRODUCTION Thank you for your interest and support in our prod uct and purchasing this wireless camera kit. This product works at ISM -2.4GHz frequency band, which could be legally used worldwide without permission. We f eel confident that you will be pleased with th e quality and features of this product. The camera features one CMOS image sensor and a tra nsmitting module to capture the image and transmit them wirel essly. The receiver features a receiving module to receive and outputAV signals. Notice Notice: This product may cause interferences with other wir eless equipment that operates at 2.4GHz ISM band. Please turn off one of the equipments to eliminate the interference. Product Assurance: This camera will emit electromagnetic wave, just like other wireless products. But its transmitting power is lesser than other wireless products such as mobile phones. The 2.4GHz wireless camera meets wireless frequency security standards and recommended indexes while working. These standards and indexes are certificated by academic organization and repre sent the cogitative research of the scientific workers who continuously explore and annotate the involved fields. So we believe that ou r products are safe . for customers Approval Information All our products meet the requirements of approval FCC or CE, and are granted the FCC or CE certification. They are a uthorized to bear FCC or CE mark. Channel Frequency CH 1=2,414 MHz; CH2=2,432MHz; CH3=2,450MHz; CH4=2,468MHz 12 1 FCC This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residenti al installation. This equipment generates, uses and can rad iate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there i s no guarantee that interference will not occur in a particu lar installation. If this equipment does cause harmful inter ference to radio or television reception, which and be determined by turning the equipment off and on, the user is encouraged to t ry to correct the interference by one or more of the followi ng measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and th e receiver. -Connect the equipment into an outlet on a circuit dif ferent from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technici an for help. This device complies with Part 15 of the FCC Rules. Oper ation is subject to the following two conditions: (1) This device may not c ause harmful interference, a…

Text truncated - open the document above for the full version.

FCC ID:TW4AT102 FCC label size 12.7(W)*7.6(H)mm 12.7mm 7.6 mm

Report No.: SZEMO060400704RFI Page: 1 of 22 FCC ID: TW4AT102 Authorized Signature: Robinson Lo Laboratory Manager This report refers to the General Conditions for Inspection and Testing Services, printed overleaf This report details the results of the testing carried out on one sample. The results contained in this test report do not relate to other samples of the same product. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. This report may only be reproduced and distributed in full. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of SGS International Electrical Approvals or testing done by SGS International Electrical Approvals in connection with, distribution or use of the product described in this report must be approved by SGS International Electrical Approvals in writing. Member of the SGS Group (Société Générale de Surveillance) SGS-CSTC Standards Technical Services Ltd. 1/F., Building No. 1 Building, A No.198 Kezhu Road, Science Town Economic& Technology Development District Guangzhou, China 510663 Telephone: +86 (0) 20 8215 5555 Fax: +86 (0) 20 8207 5059 Email: [email protected] FEDERAL COMMUNICATIONS COMMISSION Registration number: 556682 FCC TEST REPORT Application No. : SZEMO060400704RF Applicant: SHENZHEN AEE TECHNOLOGY CO., LTD FCC ID: TW4AT102 Fundamental Carrier Frequency :2.414GHz and 2.468GHz Equipment Under Test (EUT): Name: 2.4G Wireless Camera Model: AT102(Trade mark: AEE), ZT-735(Trade mark: AEE), R35(Trade mark: SWANN) Standards: FCC PART 15: 2006  Please refer to section 2 for further details. Date of Receipt: 24 April 2006 Date of Test: 27 April to 24 May 2006 Date of Issue: 26 May 2006 Test Result : PASS * * In the configuration tested, the EUT complied with the standards specified above. SGS-CSTC Standards Technical Services Ltd. Report No.: SZEMO060400704RFI Page: 2 of 22 FCC ID: TW4AT102 2 Test Summary Test Test Requirement Stanadard Paragraph Result Flied Strength of Fundamental FCC PART 15 :2006 Section 15.249 (a) PASS Flied Strength of Harmornics or other Frequency FCC PART 15 :2006 Section 15.249 (a) Section 15.209 PASS Occupied Bandwidth FCC PART 15 :2006 Section 15.249 PASS Band Edges Measurement FCC PART 15 :2006 Section 15.249 (d) PASS SGS-CSTC Standards Technical Services Ltd. Report No.: SZEMO060400704RFI Page: 3 of 22 FCC ID: TW4AT102 3 Contents Page 1 COVER PAGE...........................................................................................................................................1 2 TEST SUMMARY....................................................................................................................................................2 3 CONTENTS..............................................................................................................................................................3 4 GENERAL INFORMATION...................................................................................................................................4 4.1 CLIENT INFORMATION.......................................................................................................................................4 4.2 GENERAL DESCRIPTION OF E.U.T...................................................................................................................4 4.3 DESCRIPTION OF SUPPORT UNITS...................................................................................................................4 4.4 STANDARDS APPLICABLE FOR TESTING...........................................................................................................4 4.5 TEST LOCATION................................................................................................................................................4 4.6 OTHER INFORMATION REQUESTED BY THE CUSTOMER..................................................................................4 4.7 TEST FACILITY...................................................................................................................................................5 5 TEST RESULTS......................................................................................................................................................6 5.1 TEST INSTRUMENTS..........................................................................................................................................6 5.2 E.U.T. OPERATION...........................................................................................................................................6 5.3 TEST PROCEDURE & MEASUREMENT DATA.....................................................................................................7 5.3.1 Radiated Emissions...................................................................................................................................7 5.3.2 Occupied Bandwidth & Band Edge..................................................................................................15 -22 SGS-CSTC Standards Technical Services Ltd. Report No.: SZEMO060400704RFI Page: 4 of 22 FCC ID: TW4AT102 4 General Information 4.1 Client Information Applicant Name: SHENZHEN AEE TECHNOLOGY CO., LTD Applicant Address: 1st Floor B building Shenzhen Tsinghua Hi-Tech Park Nanshan Hi-Tech Park North Shenzhen P.R.C 4.2 General Description of E.U.T. Product Name: 2.4G Wireless Camera Model: AT102(Trade mark: AEE), ZT-735(Trade mark: AEE), R35(Trade mark: SWANN) Power Supply: Transmitter Part : 7.5V DC Receiver Part: 8.0V DC Power Cord: N/A- 4.3 Description of Support Units The EUT was tested as an independent unit. The transmitter have 4 frequencies in the 2.4GHz and 2.4835GHz can in exchange for choice. 4.4 Standards Applicable for Testing The customer requested FCC tests for a 2.4G Wirel…
