U4A-SCYICLS1Microprocessor Controlled Networked Lock

5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Certification Exhibit FCC ID: U4A-SCYICLS1 IC: 6982A-SCYICLS1 FCC Rule Part: 15.247 / 15.225 IC Radio Standards Specification: RSS-210 ACS Project Number: 10-0345 Manufacturer: Assa Abloy Model: N2-IA/IK Manual A8078A 04/11 Copyright 2011, Sargent Manufacturing Company, an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited. Profile Series v.N2 with Aperio™ Technology Mortise Lock Installation Instructions v.N2 1-800-810-WIRE • www.sargentlock.com • A8078A Copyright © 2011, Sargent Manufacturing Company, an ASSA ABLOY Group company. All rights reserved. Reproductions in whole or in part without express written permission of Sargent Manufacturing Company is prohibited. 04/08/11 1 2 3 4 5 6 7 Table of Contents Warning ...................................................................................2 General Description .................................................................3 Specifications ..........................................................................3 System Overview .....................................................................3 Parts Breakdown .....................................................................4 Lock Installation ......................................................................6 Operational Check ................................................................14 Lock LED Indications ............................................................15 Warning: Changes or modifications to this device not expressly approved by ASSA ABLOY could void the user’s authority to operate the equipment. Warning 1 FCC: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful Interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiv- er is Connected. • Consult the dealer or an experienced radio/TV technician for help. Industry Canada: This Class B digital apparatus meets all requirements of the Canadian Interference Causing Equipment Regulations. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Cet appareillage numérique de la classe B répond à toutes les exigences de l’interférence canadienne causant des règlements d’équipement. L’opération est sujette aux deux conditions suivantes: (1) ce dispositif peut ne pas causer l’interférence nocive, et (2) ce dispositif doit accepter n’importe quelle interférence reçue, y compris l’interférence qui peut causer l’opération peu désirée. “This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.” Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful communication. 8 04/08/11 1-800-810-WIRE • www.sargentlock.com • A8078A 3 Copyright © 2011, Sargent Manufacturing Company, an ASSA ABLOY Group company. All rights reserved. Reproductions in whole or in part without express written permission of Sargent Manufacturing Company is prohibited. Profile Series v.N2 Mortise Lock Warning: SARGENT Mfg. Co. Profile Series v.N2 locksets utilizing a door position switch (DPS) are not rated for, or intended for use in life safety applications. System Overview 4 ! To comply with “Fire Listed” doors, the batteries must be replaced with alkaline batteries only. Specifications General Description 2 3 The SARGENT ® Profile Series v.N2 lock with Aperio™ Technology makes it easy and cost-effective to bring access control to additional doors. It uses local wireless communication between the lock and an Aperio hub to connect to an access control system, eliminating the greatest cost and inconvenience of traditional access control – the wiring at the door. The Profile Series v.N2 includes HID ® iCLASS ® 13.56 MHz smart card tech- nology, and all technology features are supported by the physical security of SARGENT ANSI/BHMA Grade 1 hardware. This product is operated by six (6) “AA” alkaline batteries. SARGENT mortise locks are designed with quality components to provide high security, performance and durability. The Aperio mortise lock may be used for both indoor and outdoor applications. A weather-protective gasket is recommended for outdoor applications. Lock • IEEE 802.15.4 UHF interface • iCLASS technology • AES 128 bit encryption iCLASS Card Requirements • Supports HID 13.56 MHz iCLASS contactless credentials (full authenticatio…

Text truncated - open the document above for the full version.

Americas Division 110 Sargent Drive New Haven, CT 06511 USA Phone: +1 203 821-5714 Fax: +1 203 603-5981 Email: [email protected] Steven Pfalzgraf Applications Engineer March 9, 2011 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Dear Sir or Madam: I hereby appoint Sam Wismer at Advanced Compliance Solutions, Inc. to act as our agent in the preparation of an application for equipment authorization of FCC ID:U4A-SCYICLS1 to the FCC Rules and Regulations. I certify that all exhibits contained within this filing properly describe the device or system for which authorization is sought. I further certify that appropriate arrangements have been made to assure that production units of this equipment bearing the name and FCC ID:U4A-SCYICLS1 listed in this application will continue to comply with the Commission's requirements. I further certify by signature below that no party (per 47 CFR 1.2002(b)) to the application is subject to a denial of Federal benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). This appointment also includes the authority to complete FCC Form 731 on our behalf and sign the application as an authorized agent. Sincerely, Steven Pfalzgraf Applications Engineer

Advanced Compliance Solutions – 5015 B.U. Bowman Drive, Buford, GA 30518 Phone: (770) 831-8048 Fax: (770) 831-8598 March 21, 2011 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Gentlemen: Assa Abloy respectfully requests confidentiality of certain materials provided with the submission of the N2-IA/IK under FCC ID: U4A-SCYICLS1 in accordance with FCC Regulations 0.459. The confidentiality request applies to the following exhibits: 10-0345 – Schematics.pdf 10-0345 – System Block Diagram.pdf 10-0345 – Theory of Operation.pdf The N2-IA/IK has been developed at considerable effort and expense by Assa Abloy. These items are considered as Trade Secrets and therefore public access to the proprietary material could possibly result in duplication of equipment that could severely damage the company’s business advantage. I appreciate your assistance in this matter. Sincerely, Sam Wismer Vice President, Technology Agent

5015 B. U. Bowman Dr. Buford, GA 30518 March 21, 2011 ACS TCB 5015 B.U. Bowman Drive Buford, GA 30518 Re: FCC ID: U4A-SCYICLS1 To Whom It May Concern: The following application is submitted on behalf of our client, Assa Abloy, for evaluation of their model N2- IA/IK for certification under FCC Part 15.247 and FCC Part 15.225. The N2-IA/IK is a composite device which utilizes both 2.4GHz IEEE 802.15.4 under Part 15.247 and 13.56MHz RFID under Part 15.225. The N2-IA/IK was tested in full to the requirements of the aforementioned rules and was found to be in compliance. Sincerely, Sam Wismer Vice President, Technology Advanced Compliance Solutions, Inc.

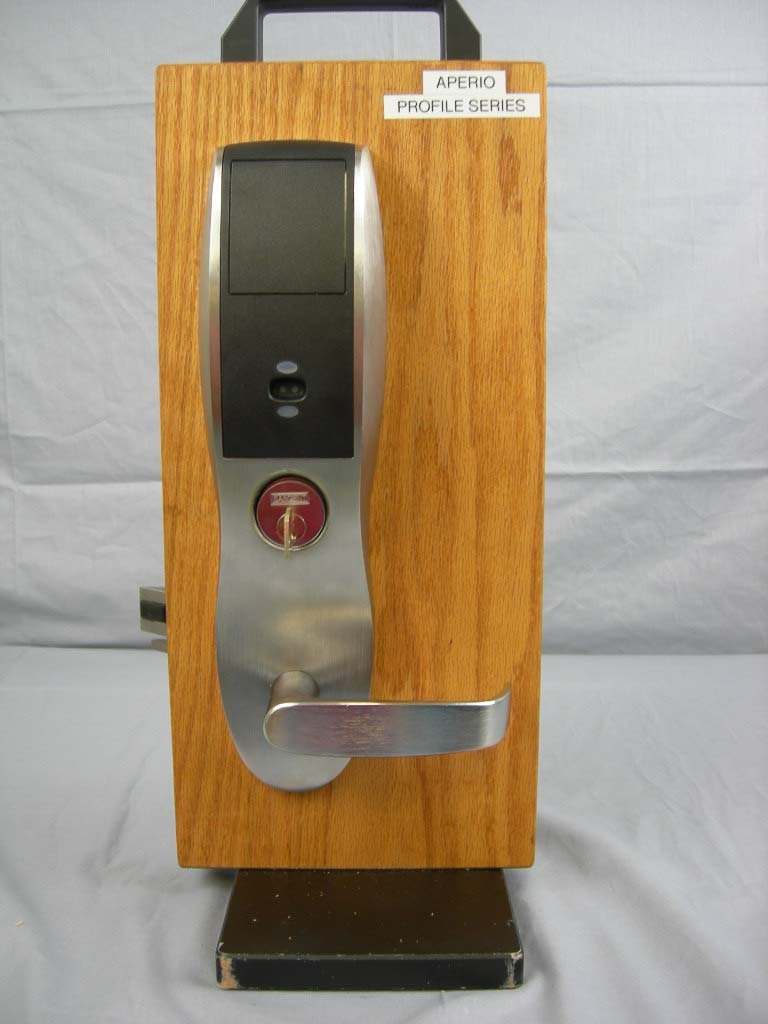

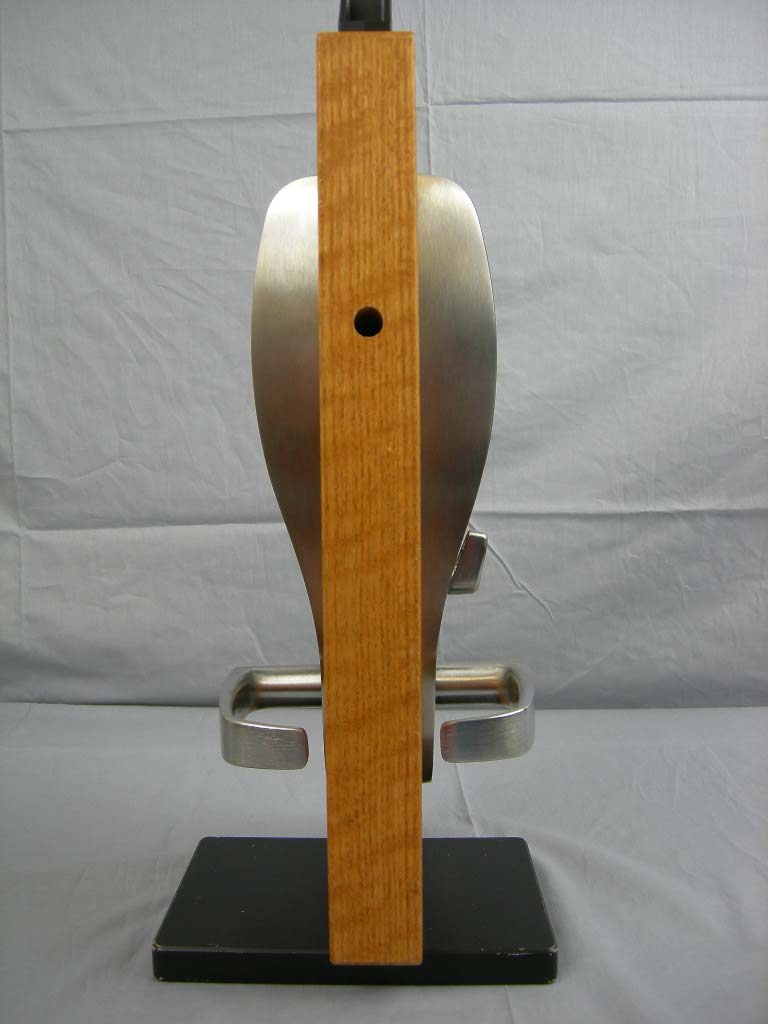

5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Certification Exhibit FCC ID: U4A-SCYICLS1 IC: 6982A-SCYICLS1 FCC Rule Part: 15.247 / 15.225 IC Radio Standards Specification: RSS-210 ACS Project Number: 10-0345 Manufacturer: Assa Abloy Model: N2-IA/IK External Photos Model(s): N2-IA/IK FCC ID: U4A-SCYICLS1 IC: 6982A-SCYICLS1 ACS Project Number: 10-0345 Advanced Compliance Solutions Page 2 Figure 1: Front View Model(s): N2-IA/IK FCC ID: U4A-SCYICLS1 IC: 6982A-SCYICLS1 ACS Project Number: 10-0345 Advanced Compliance Solutions Page 3 Figure 2: Back View Model(s): N2-IA/IK FCC ID: U4A-SCYICLS1 IC: 6982A-SCYICLS1 ACS Project Number: 10-0345 Advanced Compliance Solutions Page 4 Figure 3: Top View Model(s): N2-IA/IK FCC ID: U4A-SCYICLS1 IC: 6982A-SCYICLS1 ACS Project Number: 10-0345 Advanced Compliance Solutions Page 5 Figure 4: Side View Model(s): N2-IA/IK FCC ID: U4A-SCYICLS1 IC: 6982A-SCYICLS1 ACS Project Number: 10-0345 Advanced Compliance Solutions Page 6 Figure 5: Side View

5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Certification Exhibit FCC ID: U4A-SCYICLS1 IC: 6982A-SCYICLS1 FCC Rule Part: 15.247 / 15.225 IC Radio Standards Specification: RSS-210 ACS Project Number: 10-0345 Manufacturer: Assa Abloy Model: N2-IA/IK Label Information Model(s): N2-IA/IK FCC ID: U4A-SCYICLS1 IC: 6982A-SCYICLS1 ACS Project Number: 10-0345 Advanced Compliance Solutions Page 2 Figure 1: Label Sample Model(s): N2-IA/IK FCC ID: U4A-SCYICLS1 IC: 6982A-SCYICLS1 ACS Project Number: 10-0345 Advanced Compliance Solutions Page 3 Figure 2: Label Location

5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Certification Exhibit FCC ID: U4A-SCYICLS1 IC: 6982A-SCYICLS1 FCC Rule Part: 15.247 / 15.225 IC Radio Standards Specification: RSS-210 ACS Project Number: 10-0345 Manufacturer: Assa Abloy Model: N2-IA/IK Internal Photos Model(s): N2-IA/IK FCC ID: U4A-SCYICLS1 IC: 6982A-SCYICLS1 ACS Project Number: 10-0345 Advanced Compliance Solutions Page 2 Figure 1: Assembled View Model(s): N2-IA/IK FCC ID: U4A-SCYICLS1 IC: 6982A-SCYICLS1 ACS Project Number: 10-0345 Advanced Compliance Solutions Page 3 Figure 2: Main Controller PCB Front Model(s): N2-IA/IK FCC ID: U4A-SCYICLS1 IC: 6982A-SCYICLS1 ACS Project Number: 10-0345 Advanced Compliance Solutions Page 4 Figure 3: Main Controller PCB Back Model(s): N2-IA/IK FCC ID: U4A-SCYICLS1 IC: 6982A-SCYICLS1 ACS Project Number: 10-0345 Advanced Compliance Solutions Page 5 Figure 4: Main Controller PCB Back Model(s): N2-IA/IK FCC ID: U4A-SCYICLS1 IC: 6982A-SCYICLS1 ACS Project Number: 10-0345 Advanced Compliance Solutions Page 6 Figure 5: Secure PCB Front Model(s): N2-IA/IK FCC ID: U4A-SCYICLS1 IC: 6982A-SCYICLS1 ACS Project Number: 10-0345 Advanced Compliance Solutions Page 7 Figure 6: Secure PCB Back

5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Certification Exhibit FCC ID: U4A-SCYICLS1 IC: 6982A-SCYICLS1 FCC Rule Part: 15.247 / 15.225 IC Radio Standards Specification: RSS-210 ACS Project Number: 10-0345 Manufacturer: Assa Abloy Model: N2-IA/IK RF Exposure Model(s): N2-IA/IK FCC ID: U4A-SCYICLS1 IC: 6982A-SCYICLS1 ACS Project Number: 10-0345 Advanced Compliance Solutions Page 2 General Information: Applicant: Assa Abloy, Inc. ACS Project: 10-0345 Device Category: Mobile Environment: General Population/Uncontrolled Exposure Technical Information: Note: The 13.56MHz RFID radio is categorically excluded from RF exposure, therefore only information and calculations related to the 2.4GHz radio operating under Part 15.247 is provided. Antenna Information: Laird Technologies PCB model NanoBlue-IP04 Gain: 2 dBi Frequency Range: 2.4-2.5GHZ Polarization: Linear VSWR: <2.5:1 Dimensions: 1.88” x 0.5” x 0.032” Linx Technologies Chip model ANT-2.45-CHP Gain: 0.5 dBi Frequency Range: 2.45GHz VSWR: <2:1 Dimensions: 0.26” x 0.09” x 0.04” Taoglas Limited PCB FXP73.07.0100A Gain: 2.5 dBi Frequency Range: 2400-2483.5MHz VSWR: <1.5:1 Dimensions 47x7x0.1mm Power Determination: Maximum Antenna Gain: 2.5dBi Maximum Transmitter Conducted Power: -1.50dBm, 0.71mW Maximum System EIRP: 1.0dBm, 1.26mW MPE Calculation The Power Density (mW/cm 2 ) is calculated as follows: S = 2 4R PG  Where: S = power density (in appropriate units, e.g. mW/cm2) P = power input to the antenna (in appropriate units, e.g., mW) G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna (appropriate units, e.g., cm) MPE Calculator for Mobile Equipment Limits for General Population/Uncontrolled Exposure* 2405-1.51.000.712.51.778 200.0003 Power Densit y (mW/cm^2) Distance (cm) Transmit Frequency (MHz) Radio Power (dBm) Power Density Limit (mW/Cm2) Radio Power (mW) Antenna Gain (dBi) Antenna Gain (mW eq.) Model(s): N2-IA/IK FCC ID: U4A-SCYICLS1 IC: 6982A-SCYICLS1 ACS Project Number: 10-0345 Advanced Compliance Solutions Page 3 Installation Guidelines The installation manual should contain text similar to the following advising how to install the equipment to maintain compliance with the FCC RF exposure requirements: RF Exposure In accordance with FCC requirements of human exposure to radio frequency fields, the radiating element shall be installed such that a minimum separation distance of 20 centimeters will be maintained. Conclusion This device complies with the MPE requirements by providing adequate separation between the device, any radiating structure and the general population.
