U4A-SCYPROX4Microprocessor Controlled Networked Lock

5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Certification Exhibit FCC ID: U4A-SCYPROX4 IC: 6982A-SCYPROX4 FCC Rule Part: 15.209, 15.249 IC Radio Standards Specification: RSS-210 ACS Project Number: 11-0282.W06 Manufacturer: Assa Abloy Model: N2-PA/PK User Manual A8078B 08/11 Copyright 2011, Sargent Manufacturing Company, an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited. Profile Series v.N2 with Aperio ™ Technology Mortise Lock Installation Instructions v.N2 1-800-810-WIRE • www.sargentlock.com • A8078B Copyright © 2011, Sargent Manufacturing Company, an ASSA ABLOY Group company. All rights reserved. Reproductions in whole or in part without express written permission of Sargent Manufacturing Company is prohibited. 08/22/11 1 2 3 4 5 6 7 Table of Contents Warning ...................................................................................2 General Description .................................................................3 Specifications ..........................................................................3 System Overview .....................................................................3 Parts Breakdown .....................................................................4 Lock Installation ......................................................................6 Operational Check ................................................................14 Lock LED Indications ............................................................15 Warning: Changes or modifications to this device not expressly approved by ASSA ABLOY could void the user’s authority to operate the equipment. Warning 1 FCC: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful Interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiv- er is connected. • Consult the dealer or an experienced radio/TV technician for help. Industry Canada: This Class B digital apparatus meets all requirements of the Canadian Interference Causing Equipment Regulations. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Cet appareillage numérique de la classe B répond à toutes les exigences de l’interférence canadienne causant des règlements d’équipement. L’opération est sujette aux deux conditions suivantes: (1) ce dispositif peut ne pas causer l’interférence nocive, et (2) ce dispositif doit accepter n’importe quelle interférence reçue, y compris l’interférence qui peut causer l’opération peu désirée. “This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.” Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful communication. 8 08/22/11 1-800-810-WIRE • www.sargentlock.com • A8078B 3 Copyright © 2011, Sargent Manufacturing Company, an ASSA ABLOY Group company. All rights reserved. Reproductions in whole or in part without express written permission of Sargent Manufacturing Company is prohibited. Profile Series v.N2 Mortise Lock Warning: SARGENT Mfg. Co. Profile Series v.N2 locksets utilizing a door position switch (DPS) are not rated for, or intended for use in life safety applications. System Overview 4 ! To comply with “Fire Listed” doors, the batteries must be replaced with alkaline batteries only. Specifications General Description 2 3 The SARGENT ® Profile Series v.N2 lock with Aperio™ Technology makes it easy and cost-effective to bring access control to additional doors. It uses local wireless communication between the lock and an Aperio hub to connect to an access control system, eliminating the greatest cost and inconvenience of traditional access control – the wiring at the door. The Profile Series v.N2 is available with HID ® 125 kHz proximity or iCLASS ® 13.56 MHz smart card technology, and all technology features are supported by the physical security of SAR- GENT ANSI/BHMA Grade 1 hardware. This product is operated by six (6) “AA” alkaline batteries. SARGENT mortise locks are designed with quality components to provide high security, performance and durability. The Aperio mortise lock may be used for both indoor and outdoor applications. A weather-protective gasket is recommended for outdoor applications. Lock • IEEE 802.15.4 UHF interface • AES 128 bit encryption Credential Support • HID 13.56 MHz iCLASS (full authentication, all formats) • 12…

Text truncated - open the document above for the full version.

Americas Division 110 Sargent Drive New Haven, CT 06511 USA Phone: +1 203 821-5714 Fax: +1 203 603-5981 Email: [email protected] Steven Pfalzgraf Applications Engineer August 31, 2011 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Dear Sir or Madam: I hereby appoint Sam Wismer at Advanced Compliance Solutions, Inc. to act as our agent in the preparation of an application for equipment authorization of FCC ID:U4A-SCYPROX4 to the FCC Rules and Regulations. I certify that all exhibits contained within this filing properly describe the device or system for which authorization is sought. I further certify that appropriate arrangements have been made to assure that production units of this equipment bearing the name and FCC ID:U4A-SCYPROX4 listed in this application will continue to comply with the Commission's requirements. I further certify by signature below that no party (per 47 CFR 1.2002(b)) to the application is subject to a denial of Federal benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). This appointment also includes the authority to complete FCC Form 731 on our behalf and sign the application as an authorized agent. Sincerely, Steven Pfalzgraf Applications Engineer

Americas Division 110 Sargent Drive New Haven, CT 06511 USA Phone: +1 203 821-5714 Fax: +1 203 603-5981 Email: [email protected] Steven Pfalzgraf Applications Engineer August 31, 2011 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 RE: CONFIDENTIALITY REQUEST Gentlemen: ASSA ABLOY Inc. respectfully requests confidentiality of certain materials provided with the submission of the N2-PA/PK under FCC ID: U4A-SCYPROX4 in accordance with FCC Regulations 0.459. The confidentiality request applies to any and all schematics, engineering drawings and bills of material contained in this filing and included in the following files. ASSA ABLOY Documents: 11-0282 – Schematics.pdf 11-0282 – System Block Diagram.pdf 11-0282 – Theory of Operation.pdf The N2-PA/PK has been developed at considerable effort and expense by ASSA ABLOY Inc. / Sargent Manufacturing. These items are considered as Trade Secrets and therefore public access to the proprietary material could possibly result in duplication of equipment that could severely damage the company's business advantage. Sincerely, Name: Steven Pfalzgraf Signature: Title: Applications Engineer Date: August 31, 2011

5015 B. U. Bowman Dr. Buford, GA 30518 September 14, 2011 ACS TCB 5015 B.U. Bowman Drive Buford, GA 30518 Re: FCC ID: U4A-SCYPROX4 To Whom It May Concern: The following application is submitted on behalf of our client, Assa Abloy, for evaluation of their model N2- PA/PK for certification under FCC Part 15.209 and 15.249. The N2-PA/PK is a microprocessor controlled network lock. It uses local wireless communication between the lock and a hub to connect to an access control system. The model includes a 125kHz proximity reader and a 2.4GHz IEEE 802.15.4 radio. The N2-PA/PK was tested in full to the requirements of the aforementioned rules and was found to be in compliance. Sincerely, Sam Wismer Vice President, Technology Advanced Compliance Solutions, Inc.

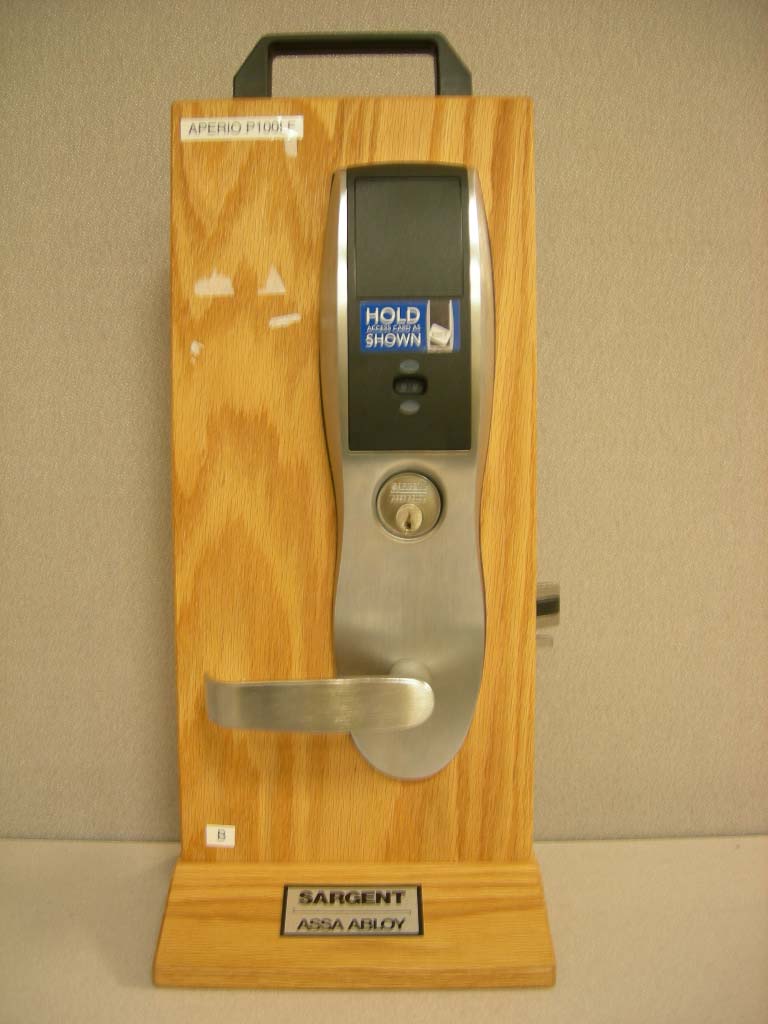

5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Certification Exhibit FCC ID: U4A-SCYPROX4 IC: 6982A-SCYPROX4 FCC Rule Part: 15.209, 15.249 IC Radio Standards Specification: RSS-210 ACS Project Number: 11-0282.W06 Manufacturer: Assa Abloy Model: N2-PA/PK External Photos Model: N2-PA/PK FCC ID: U4A-SCYPROX4 IC: 6982A-SCYPROX4 ACS Project: 11-0282.W06 Advanced Compliance Solutions Page 2 Figure 1: External Photo – Front View Model: N2-PA/PK FCC ID: U4A-SCYPROX4 IC: 6982A-SCYPROX4 ACS Project: 11-0282.W06 Advanced Compliance Solutions Page 3 Figure 2: External Photo – Rear View

5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Certification Exhibit FCC ID: U4A-SCYPROX4 IC: 6982A-SCYPROX4 FCC Rule Part: 15.209, 15.249 IC Radio Standards Specification: RSS-210 ACS Project Number: 11-0282.W06 Manufacturer: Assa Abloy Model: N2-PA/PK Label Information Model: N2-PA/PK FCC ID: U4A-SCYPROX4 IC: 6982A-SCYPROX4 ACS Project: 11-0282.W06 Advanced Compliance Solutions Page 2 Figure 1: Label Placement Label Placement

5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Certification Exhibit FCC ID: U4A-SCYPROX4 IC: 6982A-SCYPROX4 FCC Rule Part: 15.209, 15.249 IC Radio Standards Specification: RSS-210 ACS Project Number: 11-0282.W06 Manufacturer: Assa Abloy Model: N2-PA/PK Internal Photos Model: N2-PA/PK FCC ID: U4A-SCYPROX4 IC: 6982A-SCYPROX4 ACS Project: 11-0282.W06 Advanced Compliance Solutions Page 2 Figure 1: Internal Photo – Boards Installed Figure 2: Internal Photo – Boards Installed Model: N2-PA/PK FCC ID: U4A-SCYPROX4 IC: 6982A-SCYPROX4 ACS Project: 11-0282.W06 Advanced Compliance Solutions Page 3 Figure 3: Internal Photo Figure 4: Internal Photo Model: N2-PA/PK FCC ID: U4A-SCYPROX4 IC: 6982A-SCYPROX4 ACS Project: 11-0282.W06 Advanced Compliance Solutions Page 4 Figure 5: Internal Photo Figure 6: Internal Photo Model: N2-PA/PK FCC ID: U4A-SCYPROX4 IC: 6982A-SCYPROX4 ACS Project: 11-0282.W06 Advanced Compliance Solutions Page 5 Figure 7: Internal Photo

5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Certification Test Report FCC ID: U4A-SCYPROX4 IC: 6982A-SCYPROX4 FCC Rule Part: 15.209 IC Radio Standards Specification: RSS-210 ACS Report Number: 11-0282.W06.12.A Manufacturer: Assa Abloy Model: N2-PA/PK Test Begin Date: August 23, 2011 Test End Date: August 23, 2011 Report Issue Date: September 9, 2011 FOR THE SCOPE OF ACCREDITATION UNDER LAB Code 200612-0 This report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the Federal Government. Reviewed by: Kirby Munroe Director, Wireless Certifications ACS, Inc. This test report shall not be reproduced except in full. This report may be reproduced in part with prior written consent of ACS, Inc. The results contained in this report are representative of the sample(s) submitted for evaluation. This report contains 14 pages 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 TABLE OF CONTENTS 1 GENERAL ............................................................................................................................................ 3 1.1 PURPOSE .......................................................................................................................................... 3 1.2 PRODUCT DESCRIPTION ................................................................................................................... 3 1.3 TEST METHODOLOGY AND CONSIDERATIONS ................................................................................. 3 2 TEST FACILITIES .............................................................................................................................. 4 2.1 LOCATION ....................................................................................................................................... 4 2.2 LABORATORY ACCREDITATIONS/RECOGNITIONS/CERTIFICATIONS ................................................ 4 2.3 RADIATED EMISSIONS TEST SITE DESCRIPTION .............................................................................. 5 2.3.1 Semi-Anechoic Chamber Test Site .......................................................................................... 5 2.3.2 Open Area Tests Site (OATS) ................................................................................................. 6 2.4 CONDUCTED EMISSIONS TEST SITE DESCRIPTION ........................................................................... 7 3 APPLICABLE STANDARD REFERENCES .................................................................................... 7 4 LIST OF TEST EQUIPMENT ............................................................................................................ 8 5 SUPPORT EQUIPMENT .................................................................................................................... 9 6 EQUIPMENT UNDER TEST SETUP BLOCK DIAGRAM ........................................................... 9 7 SUMMARY OF TESTS ..................................................................................................................... 10 7.1 ANTENNA REQUIREMENT – FCC: SECTION 15.203 ....................................................................... 10 7.2 POWER LINE CONDUCTED EMISSIONS – FCC: SECTION 15.207 IC: RSS-GEN 7.2.4 ...................... 10 7.2.1 Measurement Procedure ....................................................................................................... 10 7.3 RADIATED EMISSIONS – FCC CFR 47 PART 15.209 / RSS-210 SECTION 2.5................................. 10 7.3.1 Measurement Procedure ....................................................................................................... 10 7.3.2 Distance Correction for Measurements Below 30 MHz – Part 15.31 .................................. 11 7.3.3 Measurement Results ............................................................................................................ 11 7.3.4 Sample Calculation ............................................................................................................... 12 7.4 20DB / 99% BANDWIDTH – FCC: SECTION 15.215, IC: RSS-GEN 4.6.1 ........................................ 13 7.4.1 Measurement Procedure ....................................................................................................... 13 7.4.2 Measurement Results ............................................................................................................ 13 8 CONCLUSION ................................................................................................................................... 14 Model: N2-PA/PK FCC ID: U4A-SCYPROX4 IC: 6982A-SCYPROX4 ACS Report: 11-0282.W06.12.A Advanced Compliance Solutions Page 3 1 GENERAL 1.1 Purpose The purpose of this report is to demonstrate compliance with Part 15 Subpart C of the FCC’s Code of Federal Regulations and Industry Canada’s Radio Standards Specification RSS-210. 1.2 Product description The N2-PA/PK is a microprocessor controlled networked lock. It uses local wireless communication between the lock and a hub to connect to an access control system. The N2- PA/PK includes a 125kHz proximity reader and a 2.4GHz IEEE 802.15.4 radio. The report applies to the 125kHz proximity radio only. A separate test report covers the 2.4GHz IEEE 802.15.4 radio operation. Technical Information: Band of Operation: 125kHz Number of Channels: 1 Modulation Format: ASK, FSK, PSK Antenna Type: Integral Loop Operating Voltage: 9VAC (Battery) Manufacturer Information: Assa Abloy Inc. 110 Sargent Dr. New Haven, CT 06511 Test Sample Serial Number(s): 0599 Test Sample Condition: The test samples were provided in good working order with no visible defects. 1.3 Test Methodology and Considerations The EUT was tested in an orientation of typical installation. The EUT is capable of producing three modulation types, dependant on the proximity card type being read. All th…

Text truncated - open the document above for the full version.

5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Certification Exhibit FCC ID: U4A-SCYPROX4 IC: 6982A-SCYPROX4 FCC Rule Part: 15.209, 15.249 IC Radio Standards Specification: RSS-210 ACS Project Number: 11-0282.W06 Manufacturer: Assa Abloy Model: N2-PA/PK Test Setup Photos Model: N2-PA/PK FCC ID: U4A-SCYPROX4 IC: 6982A-SCYPROX4 ACS Project: 11-0282.W06 Advanced Compliance Solutions Page 2 Figure 1: Radiated Emissions - Zigbee Figure 2: Radiated Emissions - Zigbee Model: N2-PA/PK FCC ID: U4A-SCYPROX4 IC: 6982A-SCYPROX4 ACS Project: 11-0282.W06 Advanced Compliance Solutions Page 3 Figure 3: Radiated Emissions – Zigbee Figure 4: Radiated Emissions – 125kHz Prox Model: N2-PA/PK FCC ID: U4A-SCYPROX4 IC: 6982A-SCYPROX4 ACS Project: 11-0282.W06 Advanced Compliance Solutions Page 4 Figure 5: Radiated Emissions – 125kHz Prox Figure 6: Radiated Emissions – 125kHz Prox
