U4A-YRBDGCB2Communication Bridge for Home Automation Devices

Specifications Model Name: Yale Connect Bridge Plus Model Number: AYR-BDG-CB2 Bluetooth specification: V5 2.4 GHz ISM Band Antenna: Internal single-band Wi-Fi specification: 802.11a/b/g/n 2.4 GHz, 5 GHz Antenna: Internal dual-band Security: WPA2 Power supply: 5VDC, 1A The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by YALE Home, Inc. is under license. Other trademarks and trade names are those of their respective owners. Apple, Apple Watch, HomeKit, iPad, iPad Air, and iPhone are trademarks of Apple Inc., registered in the U.S. and other countries. HomePod is a trademark of Apple Inc. Use of the Works with Apple badge means that an accessory has been designed to work specifically with the technology identified in the badge and has been certified bythe developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Environmental Yale Connect Bridge Plus: Dimensions: 3.75” x 3.5” x 1” Weight: 3.2 oz Certification: FCC, IC, CE Operating temp: 32° to 104° F (0° to 40° C) Storage Temp: -4° to 158° F (-20° to 70° C) Operating humidity: 10 to 85% non- condensing Safety -Read instructions before using this product -Keep these instructions for future reference -Heed all warnings on the product and in this manual -Follow all instructions -Do not use this unit near water or excessive moisture. Do not use this product near a bathtub, washbowl, kitchen sink, laundry tub, in a wet basement, near a swimming pool, or anywhere else that water or moisture are present. Do not use with wet hands. -Avoid prolonged exposure to direct sunlight or heat above operating temperature -Do not install near any heat sources, such as radiators, heat registers, stoves or other unit (including amplifiers) that produce excess heat -Only use attachments/ accessories specified by the manufacturer -Do not swallow any parts. Keep any small parts away from children at all times, potential choking hazard. -This product contains no user serviceable parts. Please contact your local supplier. -Modification of this product (including unauthorised hardware, firmware or software) in any way voids any warranty and compliance of this product and becomes the sole responsibility of the user. -User assumes all risk associated with the suitability, installation and performance of the module and other third party components, hardware, software and services that user selects.You assume all risk associated with the suitability, installation and performance of the door lock and other third party components, hardware, software and services that you select. Compliance FCC Compliance Notice Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1 ) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. ISED Compliance Notice INDUSTRY CANADA COMPLIANT This Class A digital apparatus complies with Canadian ICES-003. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to The following two conditions: (1) this device may not cause Yale Connect Bridge Plus Terms & Conditions See YaleHome.com for more information. 2021© Yale Home Yale® is a registered trademark of ASSA ABLOY Residential Group. Other products’ brand names may be trademarks or registered trademarks of their respective owners and are mentioned for reference purposes only. ©Copyright 2021. All rights reserved. Reproduction in whole or in part without the express written permission of ASSA ABLOY Residential Group is prohibited. P/N AYR-BDG-CB2-TC-0028 interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. INDUSTRIE CANADA CONFORME Cette classe A appareil numérique conforme à la norme NMB-003. Les changements ou modifica-tions non expressément approu-vés par la partie responsable de la conformité pourraient annuler l’autorité de l’utilisateur à utiliser l’équipement. Le présent appareil est conforme aux CNR d’industrie Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes: (1) l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur de l’appareil doit accepter tout brouil¬ lage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement. RF Radiation Exposure Radiation Exposure Statement : This e…

Text truncated - open the document above for the full version.

Built In Wi-Fi Setup SET UP WI-FI 9:41 Connecting your smart device to Wi-Fi will let you operate and check the status of your device remotely. SET UP WI-FI SKIP FOR NOW SET UP WI-FI 9:41 Analyzing Wi-Fi options... Please wait while we disover your Wi-Fi options. How would you like to connect your device to Wi-Fi? Use Built In Wi-Fi Connect to an Existing Bridge Set Up a New Wi-Fi Bridge SET UP WI-FI 9:41 How would you like to connect this device to Wi-Fi? SET UP WI-FI 9:41 CONNECT TO EXISTING BRIDGE Wi-Fi Thing 2530 MAPLE ST. House Hub JOHN’S HOUSE SHOW OTHER OPTIONS Add lock to existing bridge flow Go there now → How would you like to connect your device to Wi-Fi? Use Built In Wi-Fi Connect to an Existing Bridge Set Up a New Wi-Fi Bridge SET UP WI-FI 9:41 Yale: QR Reader August: Connect Setup

SET UP BRIDGE 9:41 Which bridge would you like to connect with? CONTINUE HOUSE NAME ANOTHER HOUSE NAME Bridge Serial Number A Different Bridge Serial Number Another Bridge Serial Number You will be able to lock, unlock, and check the status of your door from anywhere. Registering your BRIDGE... SET UP BRIDGE 9:41 TEST SIGNALS 9:41 You have successfully set up your bridge to work with your device. Next, let’s test your Bluetooth signals. TEST SIGNALS SKIP FOR NOW TEST BLUETOOTH 9:41 Please wait while we test your Bluetooth signals. Analyzing Bluetooth strength... TEST BLUETOOTH 9:41 Your Bluetooth connection looks good! CONTINUE RETEST SIGNALS TEST BLUETOOTH 9:41 It looks like we need a stronger Bluetooth connection. SUGGESTIONS FOR IMPROVING CONNECTION. CONTINUE RETEST SIGNALS TEST BLUETOOTH 9:41 We are unable to get a signal reading. Please check that your devices are properly powered. CONTINUE RETEST SIGNALS

2/22/21 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046-1609 Re: Confidentiality Request Dear Sir/Madam: This letter is to comply with 47 CFR 0.457(d)(2) and 0.459 pertaining to confidential material. ASSA ABLOY Inc. requests that the following documents regarding this submission for FCC ID U4A-YRBDGCB2 be kept confidential. 1. Schematics 2. Block Diagram 3. Theory of Operation 4. Bill of Materials The materials above have been developed at considerable effort and expense by ASSA ABLOY Inc. These items are considered as Trade Secrets and therefore public access to the proprietary material could possibly result in duplication of equipment that could severely damage the company's business advantage. Sincerely, James W. Forte, P.E. Senior Product Compliance Engineer ASSA ABLOY 110 Sargent Drive New Haven, CT. 06511 Phone: (203) 821-5788 [email protected]

2/22/21 Agent’s Authorization Letter FCC ID U4A-YRBDGCB2 I, an employee of ASSA ABLOY, do hereby authorize, until further notice, Jason Stewart at VPI Laboratories, 313 W 12800 S, Suite #311, Draper, UT 84020, to act on our behalf in dealings before the Federal Communications Commission with respect to all matters relating to equipment authorizations under 47 CFR. This authorization includes, but is not limited to, the signing of Form 731. I certify that no party (as defined in 47 CFR 1.2002) to this application, including myself, is subject to a denial of federal benefits, that include FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C., 853A Certified By: James W. Forte, P.E. Senior Product Compliance Engineer ASSA ABLOY 110 Sargent Drive New Haven, CT. 06511 Phone: (203) 821-5788 [email protected]

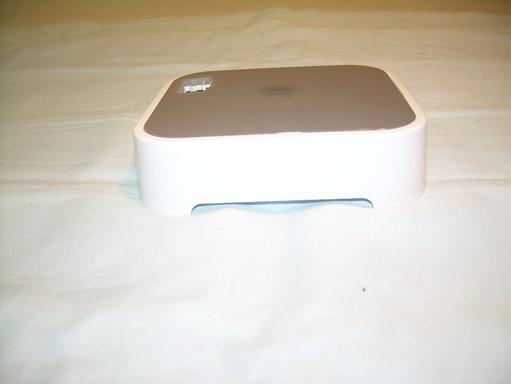

313 West 12800 South, Suite 311, Draper, UT 84020 • (801) 260-4040 YRBDGCB2_ExtPho.docx Page 1 of 6 PROPRIETARY External Photographs Photograph 1 – Top View of the EUT 313 West 12800 South, Suite 311, Draper, UT 84020 • (801) 260-4040 YRBDGCB2_ExtPho.docx Page 2 of 6 PROPRIETARY Photograph 2 – Bottom View of the EUT 313 West 12800 South, Suite 311, Draper, UT 84020 • (801) 260-4040 YRBDGCB2_ExtPho.docx Page 3 of 6 PROPRIETARY Photograph 3 – View of the Right Side of the EUT 313 West 12800 South, Suite 311, Draper, UT 84020 • (801) 260-4040 YRBDGCB2_ExtPho.docx Page 4 of 6 PROPRIETARY Photograph 4 – View of the Left Side of the EUT 313 West 12800 South, Suite 311, Draper, UT 84020 • (801) 260-4040 YRBDGCB2_ExtPho.docx Page 5 of 6 PROPRIETARY Photograph 5 – View of the Frnt Side of the EUT 313 West 12800 South, Suite 311, Draper, UT 84020 • (801) 260-4040 YRBDGCB2_ExtPho.docx Page 6 of 6 PROPRIETARY Photograph 6 – View of the Back Side of the EUT

Name: Yale Connect Plus Model: AYR-BDG-CB2 Designed in US, Made in China Input: 5V/1A Yale Solis Regular, 6pt COLOR LEGEND Gr eenIndicators (not printed) MagentaBody Border (not printed) DRAWING NO.TOLERANCESDEFAULT DRAWING NAME .X ± .25 .XX ±.1 Decimal DRAWING BY Dan Wang Unless otherwise specified, dimensions are in mm. DATE 12/03/20 REV 1 12/03/20 4/02/21 2 3 DATE Color match CMYK:C0 M0 Y0 K80 010-201203 Artwork, Product Lable, Yale Connect Plus,US FCC ID: U4A-YRBDGCB2 IC: 6982A-YRBDGCB2 d:10mm

313 West 12800 South, Suite 311, Draper, UT 84020 • (801) 260-4040 YRBDGCB2_IntPho.docx Page 1 of 2 PROPRIETARY Internal Photographs Photograph 1 – Top View of the PCB with Shield Photograph 2 – View of the Bottom Side of the PCB PCB WiFi Antenna PCB BLE Antenna 313 West 12800 South, Suite 311, Draper, UT 84020 • (801) 260-4040 YRBDGCB2_IntPho.docx Page 2 of 2 PROPRIETARY Photograph 3 – View of the Circuitry under the RF Shield

313 West 12800 South, Suite 311, Draper, UT 84020 • (801) 260-4040 YRBDGCB2_MPE.docx Page 1 of 2 PROPRIETARY 47 C.F.R. Part 1, Subpart I, Section 1.1310 47 C.F.R. Part 2, Subpart J, Section 2.1091 Maximum Permissible Exposure Calculations For FCC ID: U4A-YRBDGCB2 EUT Device Category = General Population/Uncontrolled Exposure EUT consists of two ISM band radio transmitting. One operating over a range of: 2402 MHz to 2480 MHz, and one operating over a range of 2412 MHz to 2462 MHz and 5180 MHz to 5825 MHz MPE Summary: According subpart 1.1307 (b)(1) and 2.1091 systems operating under the provisions of this section shall be operated in a manner that ensures the public is not exposed to RF energy level in excess of the communication guidelines. Limits for General Population/Uncontrolled Exposure Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm2) Averaging Time (Minutes) 0.3-1.34 614 1.63 *(100) 30 1.34-30 824/f 2.19/f *(180/f2) 30 30-300 27.5 0.073 0.2 30 300-1500 / / f/1500 30 1500-100,000 / / 1.0 30 f = frequency in MHz; * = Plane-wave equivalent power density Calculated Formulary: Predication of MPE limit at a given distance S = power density (in appropriate units, e.g. mW/cm 2 ) R = distance to the center of radiation of the antenna (appropriate units, e.g., cm) PG = EIRP 313 West 12800 South, Suite 311, Draper, UT 84020 • (801) 260-4040 YRBDGCB2_MPE.docx Page 2 of 2 PROPRIETARY MPE and Limit are calculated for this device as follows: 2.4 GHz Frequency Band BLE Transceiver Freq Output Power (dBm) Tune-up Tolerance (dB) Max Antenna Gain (dBi) Max EIRP (dBm) Max EIRP (mW) Power Density at 20 cm (mW/cm2) Limit (mW) Margin (mW) 2402 8.700 0.5 2.300 11.500 14.125 0.003 1.000 0.997 2440 13.120 0.5 2.300 15.920 39.084 0.008 1.000 0.992 2480 5.980 0.5 2.300 8.780 7.551 0.002 1.000 0.998 2.4 GHz Frequency Band 802.11b Freq Output Power (dBm) Tune-up Tolerance (dB) Max Antenna Gain (dBi) Max EIRP (dBm) Max EIRP (mW) Power Density at 20 cm (mW/cm2) Limit (mW) Margin (mW) 2412 4.100 0.5 2.300 6.900 4.898 0.001 1.000 0.999 2437 5.000 0.5 2.300 7.800 6.026 0.001 1.000 0.999 2462 4.700 0.5 2.300 7.500 5.623 0.001 1.000 0.999 802.11g 2412 9.400 0.5 2.300 12.200 16.596 0.003 1.000 0.997 2437 10.200 0.5 2.300 13.000 19.953 0.004 1.000 0.996 2462 10.100 0.5 2.300 12.900 19.498 0.004 1.000 0.996 802.11n 2412 8.900 0.5 2.300 11.700 14.791 0.003 1.000 0.997 2437 9.800 0.5 2.300 12.600 18.197 0.004 1.000 0.996 2462 9.200 0.5 2.300 12.000 15.849 0.003 1.000 0.997 5 GHz Frequency Band UNII-1 band 5180 18.000 0.5 2.300 20.800 120.226 0.024 1.000 0.976 5220 17.500 0.5 2.300 20.300 107.152 0.021 1.000 0.979 5240 17.700 0.5 2.300 20.500 112.202 0.022 1.000 0.978 UNII-2A 5260 14.600 0.5 2.300 17.400 54.954 0.011 1.000 0.989 5300 15.100 0.5 2.300 17.900 61.660 0.012 1.000 0.988 5320 15.300 0.5 2.300 18.100 64.565 0.013 1.000 0.987 UNII-2C 5500 17.600 0.5 2.300 20.400 109.648 0.022 1.000 0.978 5600 18.500 0.5 2.300 21.300 134.896 0.027 1.000 0.973 5700 17.700 0.5 2.300 20.500 112.202 0.022 1.000 0.978 UNII-3 band Antenna 0 5745 18.800 0.5 2.300 21.600 144.544 0.029 1.000 0.971 5785 19.600 0.5 2.300 22.400 173.780 0.035 1.000 0.965 5825 20.200 0.5 2.300 23.000 199.526 0.040 1.000 0.960 Result: There are two transceivers in the device. They should never transmit at the same time, however, if they should, the BLE MPE is less than 1% of the allowed exposure limit and the WiFi transceiver exposure in both the 2.4 GHz and 5 GHz bands is less than 1% of the limit and summing the percentages comes up to less than 2% of the MPE limit for the device. The device meets FCC MPE limit at 20 cm for General Population/Uncontrolled Exposure as specified in 47 CRF §1.1310 and §2.1091.

313 West 12800 South, Suite 311 Draper, UT 84020 (801) 260-4040 Test Report Certification FCC ID U4A-YRBDGCB2 Equipment Under Test AYR-BDG-CB2 Test Report Serial No V056066_01 Date of Test July 2, 2020 Report Issue Date January 25, 2021 Test Specifications: Applicant: FCC Part 15, Subpart C Assa Abloy 110 Sargent Drive New Haven, CT 06511 U.S.A. 313 West 12800 South, Suite 311, Draper, UT 84020 • (801) 260-4040 V056066_01_AYR-BDG-CB2_FCC_Sub_C_BLE.docx Page 2 of 40 PROPRIETARY Certification of Engineering Report This report has been prepared by VPI Laboratories, Inc. to document compliance of the device described below with the requirements of Federal Communications Commission (FCC) Part 15, Subpart C. This report may be reproduced in full. Partial reproduction of this report may only be made with the written consent of the laboratory. The results in this report apply only to the sample tested. Applicant Assa Abloy Manufacturer Smart Electronic Industrial (Dong Guan) Co., Ltd Brand Name YALE Model Number AYR-BDG-CB2 FCC ID U4A-YRBDGCB2 On this 25 th day of January 2021, I, individually and for VPI Laboratories, Inc., certify that the statements made in this engineering report are true, complete, and correct to the best of my knowledge, and are made in good faith. Although NVLAP has accredited the VPI Laboratories, Inc. EMC testing facilities, this report must not be used to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government. VPI Laboratories, Inc. Tested by: Norman P. Hansen Reviewed by: Benjamin N. Antczak 313 West 12800 South, Suite 311, Draper, UT 84020 • (801) 260-4040 V056066_01_AYR-BDG-CB2_FCC_Sub_C_BLE.docx Page 3 of 40 PROPRIETARY Revision History Revision Description Date 01 Original Report Release January 25, 2021 313 West 12800 South, Suite 311, Draper, UT 84020 • (801) 260-4040 V056066_01_AYR-BDG-CB2_FCC_Sub_C_BLE.docx Page 4 of 40 PROPRIETARY Table of Contents 1 Client Information ................................................................................................................................. 5 1.1 Applicant ....................................................................................................................................... 5 1.2 Manufacturer ................................................................................................................................. 5 2 Equipment Under Test (EUT) ............................................................................................................... 6 2.1 Identification of EUT .................................................................................................................... 6 2.2 Description of EUT ....................................................................................................................... 6 2.3 EUT and Support Equipment ........................................................................................................ 6 2.4 Interface Ports on EUT ................................................................................................................. 7 2.5 Modification Incorporated/Special Accessories on EUT .............................................................. 7 2.6 Deviation from Test Standard ....................................................................................................... 7 3 Test Specification, Methods and Procedures ........................................................................................ 8 3.1 Test Specification .......................................................................................................................... 8 3.2 Methods & Procedures .................................................................................................................. 8 3.3 Test Procedure ............................................................................................................................ 12 4 Operation of EUT During Testing ...................................................................................................... 13 4.1 Operating Environment ............................................................................................................... 13 4.2 Operating Modes ......................................................................................................................... 13 4.3 EUT Exercise Software ............................................................................................................... 13 5 Summary of Test Results .................................................................................................................... 14 5.1 FCC Part 15, Subpart C .............................................................................................................. 14 5.2 Result .......................................................................................................................................... 14 6 Measurements, Examinations and Derived Results ............................................................................ 15 6.1 General Comments ...................................................................................................................... 15 6.2 Test Results ................................................................................................................................. 15 7 Test Procedures and Test Equipment .................................................................................................. 27 7.1 Conducted Emissions at Mains Ports .......................................................................................... 27 7.2 Direct Connection at the Antenna Port Tests .............................................................................. 28 7.3 Radiated Emissions ..................................................................................................................... 29 7.4 Equipment Calibration .................................…
