U4A-YRHCPZB0LMYRMZB1 Zigbee Module

5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Certification Exhibit FCC ID: U4A-YRHCPZB0LM IC: 6982A-YRHCPZB0LM FCC Rule Part: 15.247 IC Radio Standards Specification: RSS-210 ACS Project Number: 14-0012 Manufacturer: Assa Abloy Inc. Model: YRMZB1 ® Yale Real Living™ ZigBee Module Installation and Programming Instructions ® Installing the ZigBee Module It is recommended that lock is programmed through the centralized user interface (PC or hand-held device) to ensure communication between the lock and the controller unit. The network controller first needs to be in enrollment or exclusion mode for the lock to be enrolled or unenrolled from network. To Enroll the Module: • Enter the 4-8 digit Master PIN code followed by the key. • Press the key followed by the key. • Press the key followed by the key. To Unenroll the Module: • Enter the 4-8 digit Master PIN code followed by the key. • Press the key followed by the key. • Press the key followed by the key. Enrolling/Unenrolling the Network Module: IMPORTANT: the batteries must be removed prior to removing and/or inserting the network module: • Remove battery cover. • Remove batteries. • Remove and/or insert network module. • Reinstall batteries. • Replace cover. P/N AYR200-ZB-INSTAL-FUL Rev B ! Warning: Changes or modifications to this device, not expressly approved by Yale Security Inc. could void the user's authority to operate the equipment. FCC: FCC ID: UA4-YRHCPZB0LM Model: YRMZB1 This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful Interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:  Reorient or relocate the receiving antenna.  Increase the separation between the equipment and receiver.  Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.  Consult the dealer or an experienced radio/TV technician for help. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Industry Canada: IC: 6982A-YRHCPZB0LM Model: YRMZB1 Section 7.1.2 of RSS-GEN Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful communication. En vertu des règlements d'Industrie Canada, cet émetteur radio ne peut fonctionner avec une antenne d'un type et un maximum (ou moins) approuvés pour gagner de l'émetteur par Industrie Canada. Pour réduire le risque d'interférence aux autres utilisateurs, le type d'antenne et son gain doivent être choisies de façon que la puissance isotrope rayonnée équivalente (PIRE) ne dépasse pas ce qui est nécessaire pour une communication réussie. Section 7.1.3 of RSS-GEN This Device complies with Industry Canada License-exempt RSS standard(s). Operation is subject to the following two conditions: 1) this device may not cause interference, and 2) this device must accept any interference, including interference that may cause undesired operation of the device. Cet appareil est conforme avec Industrie Canada RSS standard exemptes de licence(s). Son fonctionnement est soumis aux deux conditions suivantes: 1) ce dispositif ne peut causer des interférences, et 2) cet appareil doit accepter toute interférence, y compris les interférences qui peuvent causer un mauvais fonctionnement du dispositif. Product Support Tel 800.810.WIRE (9473) • www.yalelocks.com Yale® is a registered trademark of Yale Security Inc., an ASSA ABLOY Group company. Yale Real Living™ is a trademark of Yale Security Inc., an ASSA ABLOY Group company. Copyright © 2014, Yale Security Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Yale Security Inc. is prohibited. Yale Locks & Hardware is a division of Yale Security Inc., an ASSA ABLOY Group company. YALE, with its unique global reach and range of products, is the world's favorite lock – the preferred solution for securing your home, family and personal belongings. ASSA ABLOY is the global leader in door opening solutions, dedicated to satisfying end-user needs for security, safety and convenience.

Americas Division 110 Sargent Drive New Haven, CT 06511 USA Phone: +1 203 821-5714 Fax: +1 203 603-5981 Email: [email protected] Steven Pfalzgraf Applications Engineer March 3, 2014 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Dear Sir or Madam: I hereby appoint Sam Wismer at Advanced Compliance Solutions, Inc. to act as our agent in the preparation of an application for equipment authorization of FCC ID:U4A-YRHCPZB0LM to the FCC Rules and Regulations. I certify that all exhibits contained within this filing properly describe the device or system for which authorization is sought. I further certify that appropriate arrangements have been made to assure that production units of this equipment bearing the name and FCC ID:U4A-YRHCPZB0LM listed in this application will continue to comply with the Commission's requirements. I further certify by signature below that no party (per 47 CFR 1.2002(b)) to the application is subject to a denial of Federal benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). This appointment also includes the authority to complete FCC Form 731 on our behalf and sign the application as an authorized agent. Sincerely, Steven Pfalzgraf Applications Engineer

Americas Division 110 Sargent Drive New Haven, CT 06511 USA Phone: +1 203 821-5714 Fax: +1 203 603-5981 Email: [email protected] Steven Pfalzgraf Applications Engineer March 3, 2014 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 RE: CONFIDENTIALITY REQUEST Gentlemen: ASSA ABLOY Inc. respectfully requests confidentiality of certain materials provided with the submission of the YRMZB1 under FCC ID: U4A-YRHCPZB0LM in accordance with FCC Regulations 0.459. The confidentiality request applies to any and all schematics, engineering drawings and bills of material contained in this filing and included in the following files. ASSA ABLOY Documents: 14-0012 - Schematics.pdf 14-0012 - System Block Diagram.pdf 14-0012 - Theory of Operation.pdf The YRMZB1 has been developed at considerable effort and expense by ASSA ABLOY Inc. These items are considered as Trade Secrets and therefore public access to the proprietary material could possibly result in duplication of equipment that could severely damage the company's business advantage. Sincerely, Name:Steven PfalzgrafSignature: Title:Applications EngineerDate: February 3, 2012

5015 B. U. Bowman Dr. Buford, GA 30518 March 31, 2014 ACS TCB 5015 B.U. Bowman Drive Buford, GA 30518 Re: FCC ID: U4A-YRHCPZB0LM To Whom It May Concern: The following application is submitted on behalf of our client, Assa Abloy Inc., for evaluation of their model YRMZB1 for a limited modular approval certification under FCC Part 15.247. The YRMZB1 module utilizes an EM351 2.4GHz Zigbee radio with operation on standard channels. The YRMZB1 module is designed to be integrated into the following select remote controlled door locks: YRD210 Push Button Deadbolt YRD220 Touch Screen Deadbolt YRD240 Touch Screen Deadbolt w/o Cylinder YRT210 Push Button Lever Lock YRT220 Touch Screen Lever Lock The YRMZB1 module was evaluated in all host lock model variants in an orientation of typical installation per the aforementioned rules and were found to be in compliance. Sincerely, Sam Wismer Vice President, Technology Advanced Compliance Solutions, Inc.

Americas Division 110 Sargent Drive New Haven, CT 06511 USA Phone: +1 203 821-5714 Fax: +1 203 603-5981 Email: [email protected] Steven Pfalzgraf Applications Engineer March 3, 2014 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Dear Sir or Madam: ASSA ABLOY inc. is requesting that the YRMZB1 model under FCC ID: U4A-YRHCPZB0LM be granted a limited module approval. The YRMZB1 is designed to only be used with compatible ASSA ABLOY Yale Real Living electronic lock models. An installation guide is provided with each YRMZB1 to ensure that it gets properly installed into the host electronic lock to ensure full compliance. The YRMZB1 and all compatible host electronic lock models are all manufactured by ASSA ABLOY. Modular Approval Requirements: 1.The YRMZB1 does not have its own RF shielding. However the module is designed to work only with compatible Yale electronic lock models. The module has been tested with each compatible host model to ensure full compliance within every possible host. The module also contains instructions on how to properly install the module into the host to ensure compliance. 2.The module does implement buffered modulation/data inputs. 3.The module has its own power supply regulation. 4.The antenna for the YRMZB1 is permanently attached to the module. 5.The module was not tested in a standalone configuration however the module will only be used in compatible Yale electronic locks. Of which all combinations have been tested to ensure compliance. 6.The YRMZB1 is easily removed from the host by the end user. The module is labeled with its FCC ID and model as shown in the attached sample label documents. Each host contains instructions on how the end user can determine the FCC of the contained module. 7.The YRMZB1 complies with all applicable rules and operating requirements as long as it is properly installed into a compatible host device. Instructions are provide to ensure proper installation of the module. 8.The YRMZB1 module has been tested and shown to comply with all applicable RF exposure requirements. Sincerely, Steven Pfalzgraf Applications Engineer

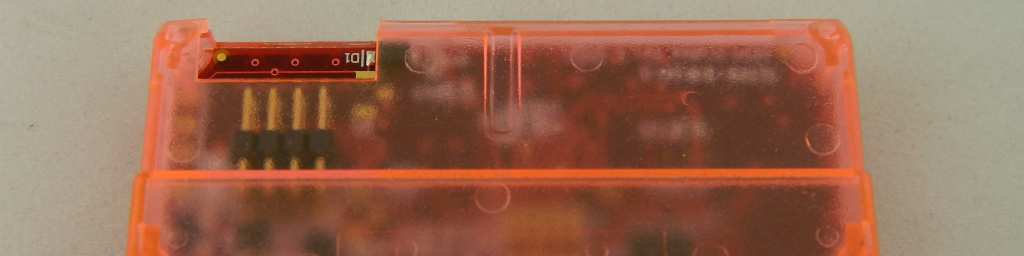

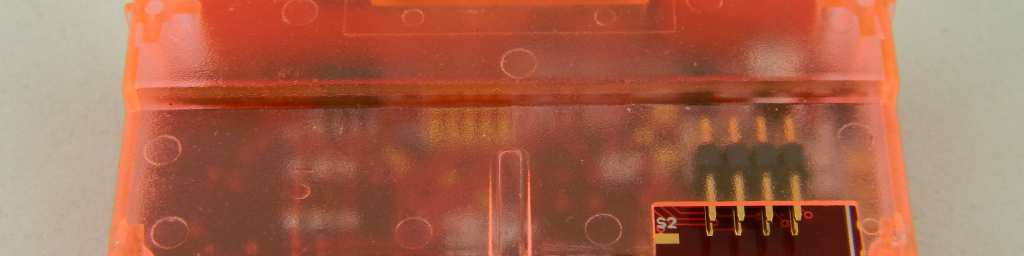

5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Certification Exhibit FCC ID: U4A-YRHCPZB0LM IC: 6982A-YRHCPZ0LM FCC Rule Part: 15.247 IC Radio Standards Specification: RSS-210 ACS Project Number: 14-0012 Manufacturer: Assa Abloy Inc. Model: YRMZB1 External Photos Model: YRMZB1FCC ID: U4A-YRHCPZB0LMIC: 6982A-YRHCPZB0LM ACS Project: 14-0012Advanced Compliance SolutionsPage 2 Figure 1: External Photo Figure 2: External Photo Model: YRMZB1FCC ID: U4A-YRHCPZB0LMIC: 6982A-YRHCPZB0LM ACS Project: 14-0012Advanced Compliance SolutionsPage 3 Figure 3: External Photo Figure 4: External Photo Model: YRMZB1FCC ID: U4A-YRHCPZB0LMIC: 6982A-YRHCPZB0LM ACS Project: 14-0012Advanced Compliance SolutionsPage 4 Figure 5: External Photo Figure 6: External Photo Model: YRMZB1FCC ID: U4A-YRHCPZB0LMIC: 6982A-YRHCPZB0LM ACS Project: 14-0012Advanced Compliance SolutionsPage 5 Figure 7: External Photo – EUT installed in host

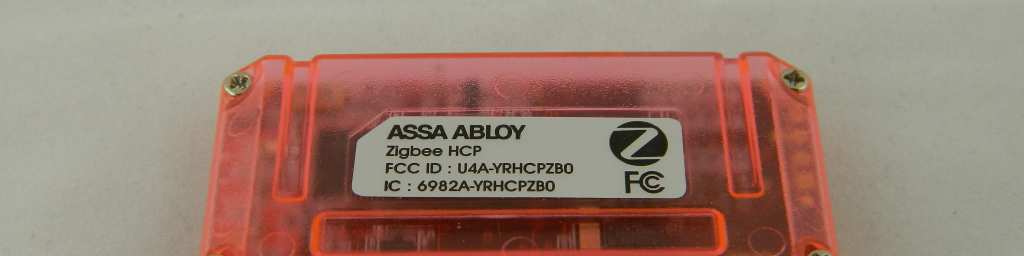

5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Certification Exhibit FCC ID: U4A-YRHCPZB0LM IC: 6982A-YRHCPZB0LM FCC Rule Part: 15.247 IC Radio Standards Specification: RSS-210 ACS Project Number: 14-0012 Manufacturer: Assa Abloy Inc. Model: YRMZB1 Label Information Model: YRMZB1FCC ID: U4A-YRHCPZB0LMIC: 6982A-YRHCPZB0LM ACS Project: 14-0012Advanced Compliance SolutionsPage 2 Figure 1: Sample Label and Location End users have straightforward commonly used methods for access to remove the module such that the FCC ID of the module is visible.

5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Certification Exhibit FCC ID: U4A-YRHCPZB0LM IC: 6982A-YRHCPZB0LM FCC Rule Part: 15.247 IC Radio Standards Specification: RSS-210 ACS Project Number: 14-0012 Manufacturer: Assa Abloy Inc. Model: YRMZB1 Internal Photos Model: YRMZB1FCC ID: U4A-YRHCPZB0LMIC: 6982A-YRHCPZB0LM ACS Project: 14-0012Advanced Compliance SolutionsPage 2 Figure 1: Internal Photo Figure 2: Internal Photo Model: YRMZB1FCC ID: U4A-YRHCPZB0LMIC: 6982A-YRHCPZB0LM ACS Project: 14-0012Advanced Compliance SolutionsPage 3 Figure 3: Internal Photo

5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Certification Exhibit FCC ID: U4A-YRHCPZB0LM IC: 6982A-YRHCPZB0LM FCC Rule Part: 15.247 IC Radio Standards Specification: RSS-210 ACS Project Number: 14-0012 Manufacturer: Assa Abloy, Inc. Model: YRMZB1 RF Exposure Model: YRMZB1FCC ID: U4A-YRHCPZB0LMIC: 6982A-YRHCPZB0LM ACS Project: 14-0012Advanced Compliance SolutionsPage 2 General Information: Applicant:Assa Abloy, Inc. Device Category:Mobile Environment:General Population/Uncontrolled Exposure Technical Information: Antenna Type: PCB Inverted F Antenna Gain: 0 dBi Maximum Transmitter Conducted Power: 3.04dBm,2.014 mW Maximum System EIRP: 3.04 dBm, 2.014 mW Exposure Conditions: Greater than 20 centimeters MPE Calculation The Power Density (mW/cm 2 ) is calculated as follows: S = 2 4R PG  Where: S = power density (in appropriate units, e.g. mW/cm2) P = power input to the antenna (in appropriate units, e.g., mW) G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna (appropriate units, e.g., cm) MPE Calculator for Mobile Equipment Limits for General Population/Uncontrolled Exposure* 24403.041.002.0101.000 200.0004 Power Density (mW/cm^2) Distance (cm) Transmit Frequency (MHz) Radio Power (dBm) Power Density Limit (mW/Cm2) Radio Power (mW) Antenna Gain (dBi) Antenna Gain (mW eq.) Installation Guidelines The installation manual should contain text similar to the following advising how to install the equipment to maintain compliance with the FCC RF exposure requirements: RF Exposure In accordance with FCC requirements of human exposure to radio frequency fields, the radiating element shall be installed such that a minimum separation distance of 20 centimeters will be maintained. Conclusion This device complies with the MPE requirements by providing adequate separation between the device, any radiating structure and the general population.

5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Certification Test Report FCC ID: U4A-YRHCPZB0LM IC: 6982A-YRHCPZB0LM FCC Rule Part: 15.247 IC Radio Standards Specification: RSS-210 ACS Report Number: 14-0012.W06.1B Manufacturer: Assa Abloy Inc. Model: YRMZB1 Test Begin Date: January 23, 2014 Test End Date: March 17, 2014 Report Issue Date: April 9, 2014 FOR THE SCOPE OF ACCREDITATION UNDER LAB Code 200612-0 This report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the Federal Government. Reviewed by: Kirby Munroe Director, Wireless Certifications ACS, Inc. This test report shall not be reproduced except in full. This report may be reproduced in part with prior written consent of ACS, Inc. The results contained in this report are representative of the sample(s) submitted for evaluation. This report contains 20 pages 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 TABLE OF CONTENTS 1GENERAL .............................................................................................................................................. 3 1.1PURPOSE............................................................................................................................................ 3 1.2PRODUCTDESCRIPTION..................................................................................................................... 3 1.3TESTMETHODOLOGY ANDCONSIDERATIONS................................................................................... 3 2TEST FACILITIES ................................................................................................................................ 4 2.1LOCATION......................................................................................................................................... 4 2.2LABORATORYACCREDITATIONS/RECOGNITIONS/CERTIFICATIONS.................................................. 4 2.3RADIATEDEMISSIONSTESTSITEDESCRIPTION................................................................................ 5 2.3.1Semi-Anechoic Chamber Test Site ........................................................................................... 5 2.3.2Open Area Tests Site (OATS) ................................................................................................... 6 2.4CONDUCTEDEMISSIONSTESTSITEDESCRIPTION............................................................................ 7 3APPLICABLE STANDARD REFERENCES ..................................................................................... 7 4LIST OF TEST EQUIPMENT.............................................................................................................. 8 5SUPPORT EQUIPMENT ...................................................................................................................... 9 6EQUIPMENT UNDER TEST SETUP BLOCK DIAGRAM ............................................................ 9 7SUMMARY OF TESTS ....................................................................................................................... 10 7.1ANTENNAREQUIREMENT–SECTION15.203 .................................................................................. 10 7.2POWERLINECONDUCTEDEMISSIONS–FCC15.207;ICRSS-GEN7.2.4 ...................................... 10 7.36DB/99%BANDWIDTH–FCC15.247(A)(2);ICRSS-210A8.2(A) .............................................. 10 7.3.1Measurement Procedure ........................................................................................................ 10 7.3.2Measurement Results.............................................................................................................. 10 7.4FUNDAMENTALEMISSIONOUTPUTPOWER–FCC15.247(B)(3),IC:RSS-210A8.4(4) ................ 12 7.4.1Measurement Procedure ........................................................................................................ 12 7.4.2Measurement Results.............................................................................................................. 12 7.5EMISSIONLEVELS–FCC15.247(D),15.205,15.209;ICRSS-2102.2/A8.5,RSS-GEN7.2.2 ....... 13 7.5.1Emissions into Non-restricted Frequency Bands ................................................................... 13 7.5.1.1Measurement Procedure .................................................................................................................... 13 7.5.1.2Measurement Results ......................................................................................................................... 13 7.5.2Emissions into Restricted Frequency Bands .......................................................................... 16 7.5.2.1Measurement Procedure .................................................................................................................... 16 7.5.2.2Duty Cycle Correction ....................................................................................................................... 16 7.5.2.3Measurement Results ......................................................................................................................... 16 7.5.2.4Sample Calculation: ........................................................................................................................... 18 7.6MAXIMUMPOWERSPECTRALDENSITY IN THEFUNDAMENTALEMISSION–FCC:SECTION 15.247(E)IC:RSS-210A8.2(B) .................................................................................................................. 19 7.6.1Measurement Procedure ........................................................................................................ 19 7.6.2Measurement Results.............................................................................................................. 19 8CONCLUSION ..................................................................................................................................... 20 Mo…

Text truncated - open the document above for the full version.

5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Certification Exhibit FCC ID: U4A-YRHCPZB0LM IC: 6982A-YRHCPZB0LM FCC Rule Part: 15.247 IC Radio Standards Specification: RSS-210 ACS Project Number: 14-0012 Manufacturer: Assa Abloy Inc. Model: YRMZB1 Test Setup Photos Model: YRMZB1FCC ID: U4A-YRHCPZB0LMIC: 6982A-YRHCPZB0LM ACS Project: 14-0012Advanced Compliance SolutionsPage 2 Figure 1: Radiated Emissions – Touchscreen Deadbolt – YRD220 Figure 2: Radiated Emissions – Touchscreen Deadbolt – YRD220 Model: YRMZB1FCC ID: U4A-YRHCPZB0LMIC: 6982A-YRHCPZB0LM ACS Project: 14-0012Advanced Compliance SolutionsPage 3 Figure 3: Radiated Emissions – Push Button Deadbolt – YRD210 Figure 4: Radiated Emissions – Push Button Deadbolt – YRD210 Model: YRMZB1FCC ID: U4A-YRHCPZB0LMIC: 6982A-YRHCPZB0LM ACS Project: 14-0012Advanced Compliance SolutionsPage 4 Figure 5: Radiated Emissions – Key Free Touchscreen Deadbolt – YRD240 Figure 6: Radiated Emissions – Key Free Touchscreen Deadbolt – YRD240 Model: YRMZB1FCC ID: U4A-YRHCPZB0LMIC: 6982A-YRHCPZB0LM ACS Project: 14-0012Advanced Compliance SolutionsPage 5 Figure 7: Radiated Emissions – Touchscreen Lever – YRT220 Figure 8: Radiated Emissions – Touchscreen Lever – YRT220 Model: YRMZB1FCC ID: U4A-YRHCPZB0LMIC: 6982A-YRHCPZB0LM ACS Project: 14-0012Advanced Compliance SolutionsPage 6 Figure 9: Radiated Emissions – Push Button Lever – YRT210 Figure 10: Radiated Emissions – Push Button Lever – YRT210
