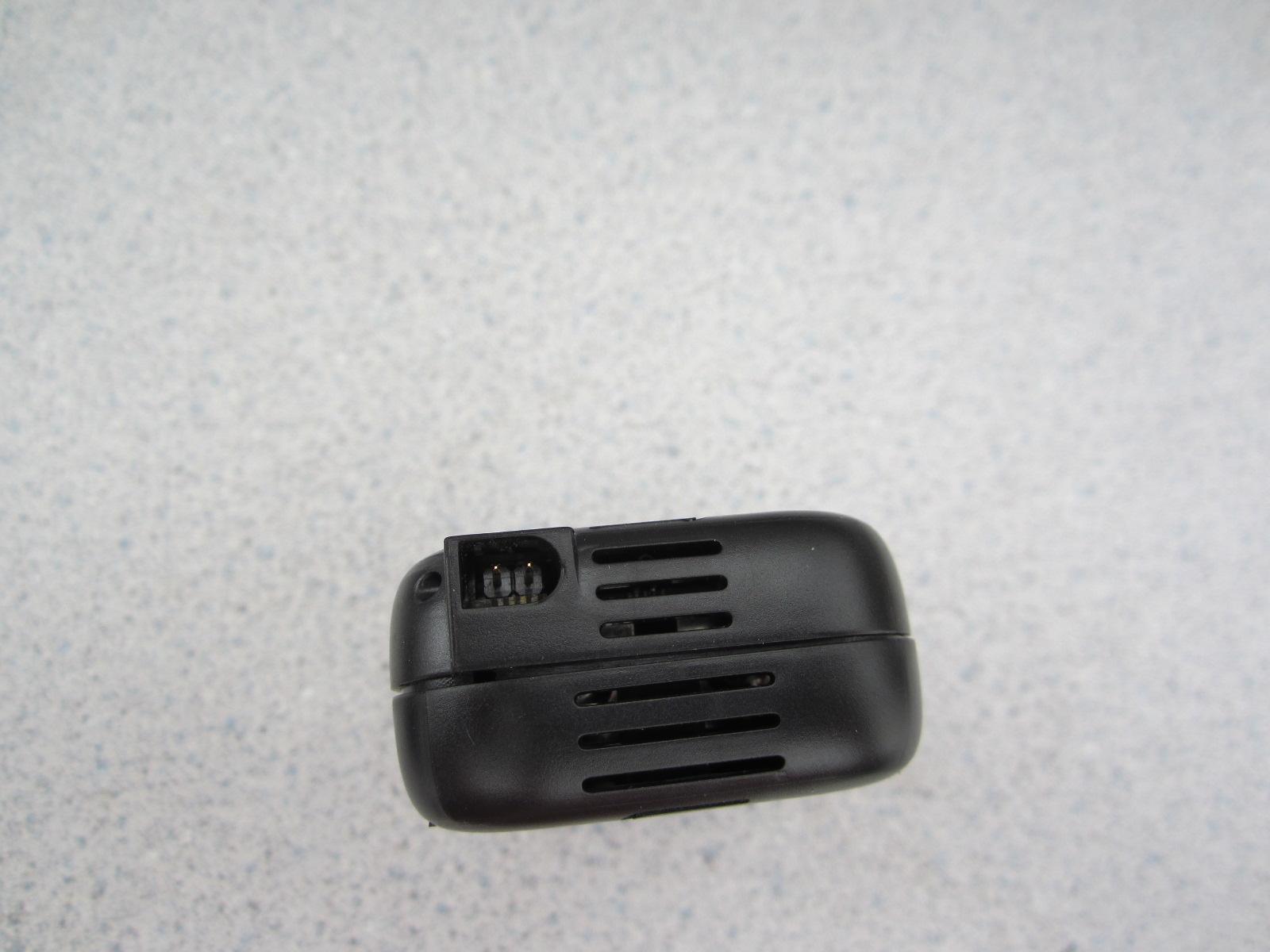

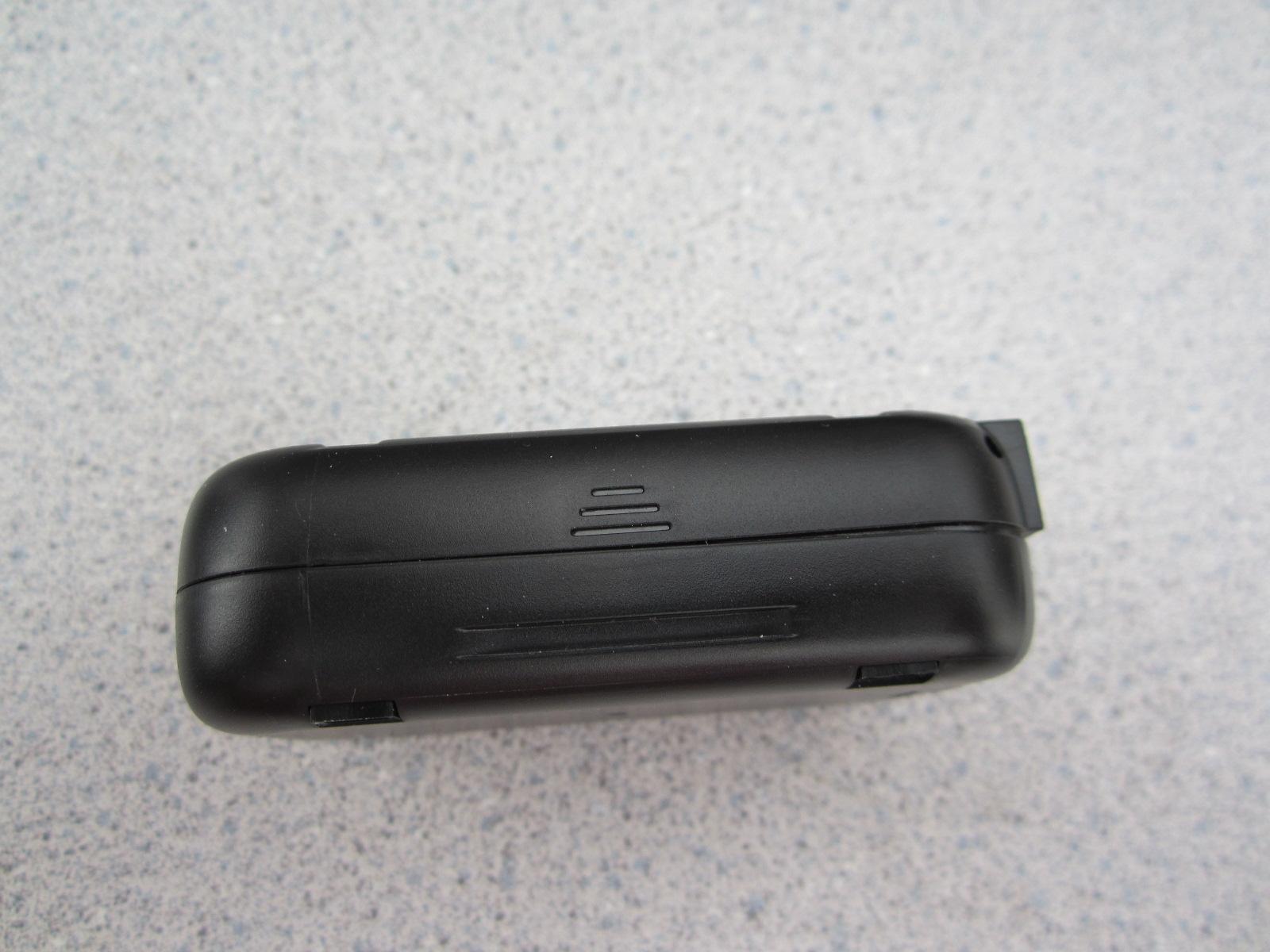

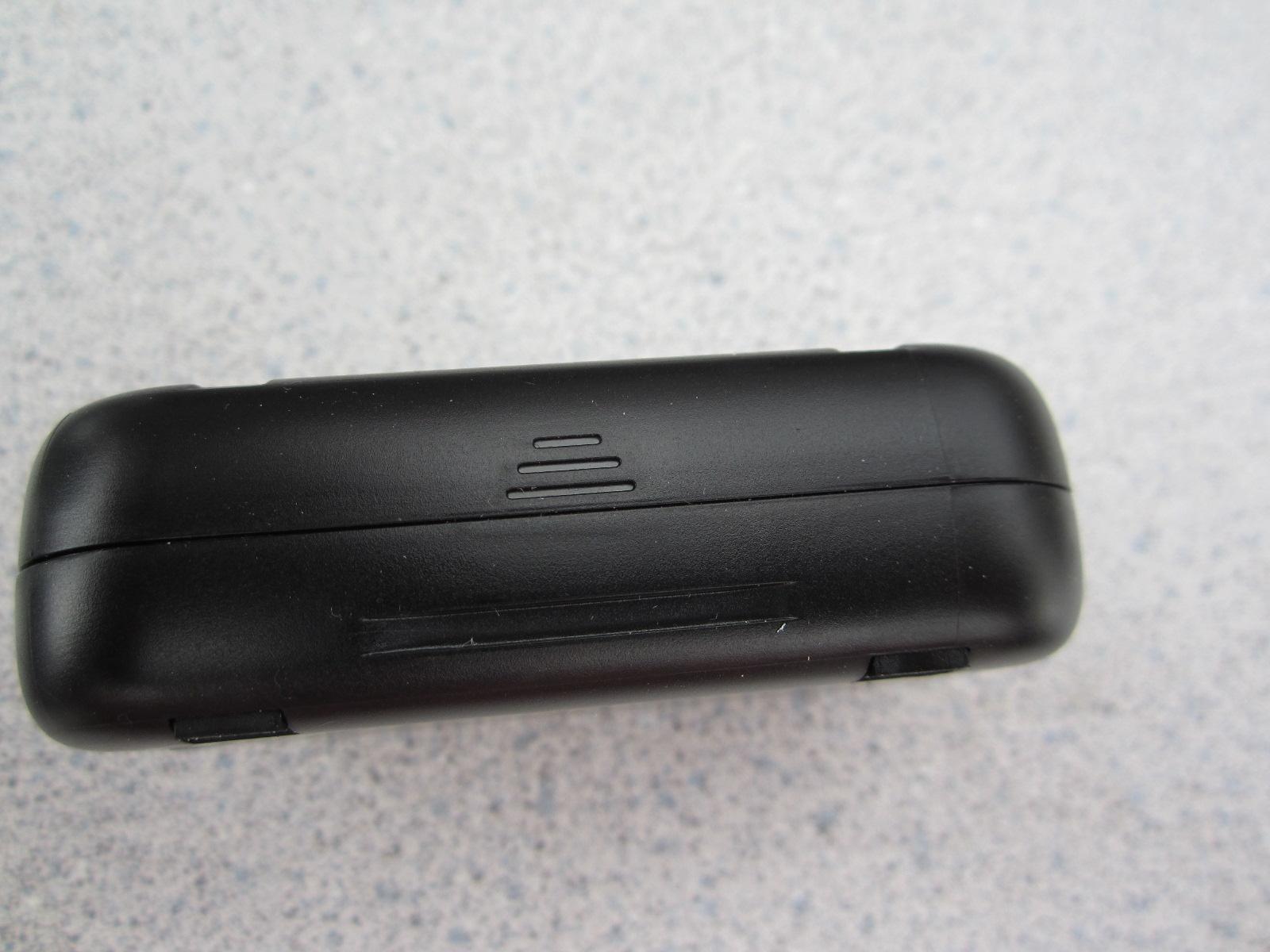

U62-0944Thermanode EZ

340 P a l l a d i o P a r k w a y  S u i t e 540  F o l s o m  C A  95630 Wireless Sensor Network Node Installation and User Manual Document Number 85-xxxx-001 Author Lisa Brown Revision Release 2.1 Date August 15, 2012 SynapSense Installation and User Manual Release 2.0 Page 2 This manual covers the general installation of the following SynapSense Wireless Sensor Network Nodes:  99-0039-002  99-0039-011  99-0039-012  99-0039-015  99-0189-001  99-0217-001  99-0331-001  99-0348-001  99-0360-001  99-0944-001 SynapSense Installation and User Manual Release 2.0 Page 3 Table of Contents Regulatory Notices ...................................................................................................................................................................4 Warranty Information ............................................................................................................................................................6 Operation .....................................................................................................................................................................................7 Installing external antenna: ................................................................................... Error! Bookmark not defined. Replacing batteries: .................................................................................................................................................................7 Troubleshooting and Diagnostics: .....................................................................................................................................7 SynapSense Installation and User Manual Release 2.0 Page 4 Regulatory Notices Notice to Users: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. The user’s manual or instruction manual for an intentional or unintentional radiator shall caution the user that changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. FCC Statement: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. The antenna(s) used for this transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Antenna Statement: Only the antenna supplied with this unit may be used. Any attempt to modify this antenna or substitute a different antenna by any means shall void the warranty and will void the FCC approval to operate this equipment. In the event an antenna is broken, a replacement antenna may be obtained by contacting the Product Support Center listed in the warranty section of this manual. CE Statement: This equipment has been tested and found to comply with the limits of the European Council Directive on the approximation of the law of the member states relating to electromagnetic compatibility (89/336/EEC) according to EN 55022 Class B. Industry Canada Equipment Notice: The Industry Canada certification identifies certified equipment. This certification means that the equipment meets certain telecommunications network protective, operational and safety requirements as prescribed in the appropriate Terminal Equipment Technical Document(s). The Department does not guarantee the equipment will operate to the user's satisfaction. Before installing this equipment, users should ensure that it is permissible to be connected to the facilities of the local telecommunications company. The equipment must also be installed using an acceptable method of connection. The customer should be aware that compliance with the above conditions may not prevent degradation of service in some situations. Repairs to certified equipment should be coordinated by a representative designated by the supplier. Any repairs or alterations made by the user to this equipment, or equipment malfunctions, may give the telecommunications company cause to request the user to disconnect the equipment. Users should ensure, for their own protection, that the electrical ground connectors of the power utility, telephone lines and internal metallic water pipe system, if present, are connected together. This presentation may be particularly important in rural areas. Caution: Users should not attempt to make such connections themselves, but should contact the appropriate electric inspection authority or electrician, as appropriate. This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two SynapSense Installation and User Manual Release 2.0 Page 5 conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout bro…

Text truncated - open the document above for the full version.

1.5 1.0 0.07 0.160 0.025 0.2 56 SPEC, LABEL, REGULATORY, THERMANODE EZ .015 .010 .005 60-1035-001 Notes 1. Material: See BOM for Blank Label 2. Text: Arial, size per best fit 3. After printing, verify text does not smear/rub 4. Ink must be RoHS Compliant 5 Serial Number (Human Readable): LL = Manufacturing Location: (PR=PRIDE) or (AM=AMPEROR) YY = Year (11=2011) WW= Work Week (assigned per manufacturer calendar) ZZZZ=Sequentially assigned # (hex-decimal 0-F) EZ = Product Code for ThermaNode EZ 6 Barcode: Code 128B, 0.1" Tall Min., verify if barcode is scannable. Barcode matches human readable characters. DO NOT SCALE DRAWING SHEET 1 OF 1 UNLESS OTHERWISE SPECIFIED: SCALE: REV A DWG. NO. A SIZE TITLE: NAME DATE COMMENTS: Q.A. MFG APPR. ENG APPR. CHECKED DRAWN FINISH MATERIAL INTERPRET GEOMETRIC TOLERANCING PER: DIMENSIONS ARE IN INCHES TOLERANCES: ONE PLACE DECIMAL TWO PLACE DECIMAL THREE PLACE DECIMAL PROPRIETARY AND CONFIDENTIAL THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF SYNAPSENSE CORPORATION. ANY REPRODUCTION IN PART OR AS A WHOLE WITHOUT THE WRITTEN PERMISSION OF SYNAPSENSE CORPORATION IS PROHIBITED. 5 3 2 1 4 Victor Stancu07/26/12

Page 1 of 8 Report No: 93248-19 RADIO FREQUENCY EXPOSURE REPORT FOR THE Device: Thermanode EZ Model: 0944 Report No.: 93248-19 Date of issue: July 23, 2012 PREPARED FOR: SynapSense Corporation 2365 Iron Point Road, Suite 100 Folsom CA 95630 PREPARED BY: Chuck Kendall CKC Laboratories, Inc. 5046 Sierra Pines Drive Mariposa, CA 95338 Page 2 of 8 Report No: 93248-19 Purpose: To demonstrate compliance with United States, Canada and/or European Union RF Exposure requirements for Portable equipment (devices used ≤20cm from the body) or Mobile equipment (devices used >20cm from the body) with power output below exemption levels and Mobile equipment, where Maximum Permissible Exposure (MPE) Calculations apply. United States Compliance Requirements (1.1310): RF Exposure Evaluation Limits Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minutes) 0.3-3.0 614 1.63 *(100) 6 3.0-30 1842/f 4.89/f *(900/f 2 ) 6 30-300 61.4 0.163 1 6 300-1500 --- --- f/300 6 1500-100,000 --- --- 5.0 6 RF Exposure Evaluation Limits General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minutes) 0.3-1.34 614 1.63 *(100) 30 1.34-30 824/f 2.19/f *(180/f 2 ) 30 30-300 27.5 0.073 0.2 30 300-1500 --- --- f/1500 30 1500-100,000 --- --- 1.0 30 * Plane wave equivalent power density Limit is calculated based on the mid-band frequency used in the operating frequency range. Exemption Level: Power output <60/f GHz (mW) Page 3 of 8 Report No: 93248-19 Canadian Compliance Requirements (RSS-102): RF Exposure Evaluation Limits Occupational / Controlled Exposure: Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (W/m 2 ) Averaging Time (minutes) 0.003-1.0 600 4.9 --- 6 1.0-10 600/f 4.9/f --- 6 10-30 60 4.9/f --- 6 30-300 60 0.163 10 6 300-1500 3.54 f 0.5 0.0094*f 0.5 f/3 6 1500-15,000 137 0.364 50 6 15,000-150,000 137 0.364 50 616000/f 1.2 RF Exposure Evaluation Limits General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (W/m 2 ) Averaging Time (minutes) 0.003-1.0 280 2.19 --- 6 1.0-10 280/f 2.19/f --- 6 10-30 28 2.19/f --- 6 30-300 28 0.073 2 6 300-1500 1.585 * f 0.5 0.0042 * f 0.5 f/150 6 1500-15,000 61.4 0.163 10 6 15,000-150,000 61.4 0.163 10 616000/f 1.2 *Power density limit applicable >100MHz Exemption Level: Frequency Range (MHz) Maximum Output Power (Conducted or EIRP) 0.003-1000 ≤ 200 mW 1000-2200 ≤ 100 mW 2200-3000 ≤ 20 mW 3000-6000 ≤ 10 mW Page 4 of 8 Report No: 93248-19 European Union Compliance Requirements (ICNIRP): RF Exposure Evaluation Limits Occupational / Controlled Exposure: Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (W/m 2 ) Averaging Time (minutes) 0.00082-0.065 610 24.4 --- 6 0.065-1.0 610 1.6/f --- 1.0-10 610/f 1.6/f --- 6 10-400 61 0.16 10 6 400-2000 3.0 * f 0.5 0.008 * f 0.5 f/40 6 2000-300,000 137 0.36 50 6 RF Exposure Evaluation Limits General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (W/m 2 ) Averaging Time (minutes) 0.003-0.150 87 5.0 --- 6 0.150-1.0 87 0.73/f -- 6 1.0-10 87/f 0.5 0.73/f --- 6 10-400 28 0.073 2 6 400-2000 1.375 f 0.5 0.0037*f 0.5 f/200 6 2000-300,000 61 0.16 10 6 *Power density limit applicable >100MHz Exemption Level: Power output < 20mW 1 Page 5 of 8 Report No: 93248-19 Device and Antenna Operating Configuration: Device operating at maximum output power with continuous transmission of modulated data. Orientated in wall mounted position as intended, the EUT is placed on the wooden table lined with Styrofoam of 10 cm thickness. The I/O cables and AC/DC power cables are routed in as designed. I/O cable are unterminated. The EUT is set in constant transmit mode at the rated power. The Support AC step-down transformer is remotely located. Antenna gain = 3.3 dBi Modulation: O-QPSK , Protocol: Zigbee (802.15) Freq: 2400-2483.5MHz Test Procedure: This equipment is evaluated in accordance with the guidelines set forth in OET Guide 65 & ANSI C95.1 for the US and Health Canada Safety Code 6 & RSS 102 for Canada. Other Considerations: None or Delete “none & Insert specific Page 6 of 8 Report No: 93248-19 MPE Calculations Applicability: Limit Used X General Population / Uncontrolled Exposure Occupational / Controlled Exposure RF Exposure Exemption Yes United States Yes Canada No Europe Equipment operational details: Config # Operating Frequency (MHz) Measured Output Power (dBm) Antenna Gain (dBi) Antenna Type / Configuration EIRP (dBm) 1 2445 4.7 3.3 integral 8.0 Measurements based from EMC Test Report(s): 93248-9 MPE Calculation: 2 4d EIRP DensityPower   Given: EIRP in mW or W and d in cm or m Config # Distance (cm) US (1.1310) Canada (RSS-102) EU (ICNIRP) Power Density (mW/cm 2 ) Limit (mW/cm 2 ) Power Density (W/m 2 ) Limit (W/m 2 ) Power Density (W/m 2 ) Limit (W/m 2 ) 1 20 Exempt -- Exempt -- Exempt -- Page 7 of 8 Report No: 93248-19 Summary: Exemptions: In the case the equipment meets compliance requirements by exemption the product is approved for use under mobile or portable conditions without further testing under the condition that any additional collocation or simultaneous transmission requirements (including necessary separation distances) have been met. Page 8 of 8 Report No: 93248-19 References Federal Communications Commission Knowledge Database (KDB) Publication 447498, “What are the RF exposure requirements and procedures for mobile and portable devices?” As in effect on the issue date of this report. Federal Communications Commission Bulletin OET 65 Supplement C, “Evaluating Compliance with FCC Guidelines for Human Exposure to Radiofrequency Electromagnetic Fields” June 2001 Title 47 Code of Federal …

Text truncated - open the document above for the full version.

This report contains a total of 29 pages and may be reproduced in full only. Partial reproduction may only be done with the written consent of CKC Laboratories, Inc. SynapSense ADDENDUM TEST REPORT TO 93248-9 Thermanode EZ Model: 0944 Tested To The Following Standards: FCC Part 15 Subpart C Sections 15.209, 15.247 and RSS-210 Issue 8 Report No.: 93248-9A Date of issue: August 16, 2012 This test report bears the accreditation symbol indicating that the testing performed herein meets the test and reporting requirements of ISO/IEC 17025 under the applicable scope of EMC testing for CKC Laboratories, Inc. We strive to create long-term, trust based relationships by providing sound, adaptive, customer first testing services. We embrace each of our customers’ unique EMC challenges, not as an interruption to set processes, but rather as the reason we are in business. Page 2 of 29 Report No.: 93248-9A TABLE OF CONTENTS Administrative Information .......................................................................................................................... 3 Test Report Information ............................................................................................................................................ 3 Revision History ......................................................................................................................................................... 3 Report Authorization ................................................................................................................................................. 3 Test Facility Information ............................................................................................................................................ 4 Site Registration & Accreditation Information .......................................................................................................... 4 Summary of Results ................................................................................................................................................... 5 Conditions During Testing.......................................................................................................................................... 5 Equipment Under Test ............................................................................................................................................... 6 Peripheral Devices ..................................................................................................................................................... 6 FCC Part 15 Subpart C ................................................................................................................................... 7 15.209 Radiated Emissions ........................................................................................................................................ 7 15.247 RF Power Output ......................................................................................................................................... 14 6dBc & 99% RSS 210 Occupied Bandwidth .............................................................................................................. 17 Bandedge ................................................................................................................................................................. 21 15.249 Power Spectral Density ................................................................................................................................ 24 Supplemental Information .......................................................................................................................... 28 Measurement Uncertainty ...................................................................................................................................... 28 Emissions Test Details .............................................................................................................................................. 28 Page 3 of 29 Report No.: 93248-9A ADMINISTRATIVE INFORMATION Test Report Information REPORT PREPARED FOR: REPORT PREPARED BY: SynapSense 340 Palladio Parkway, Suite 540 Folsom, CA 95630 Dianne Dudley CKC Laboratories, Inc. 5046 Sierra Pines Drive Mariposa, CA 95338 Representative: Michele Clemente Project Number: 93248 Customer Reference Number: 10524 DATE OF EQUIPMENT RECEIPT: June 25, 2012 DATE(S) OF TESTING: June 25-27, 2012 Revision History Original: Testing of the Thermanode EZ, Model: 0944 to FCC Part 15 Subpart C Sections 15.209, 15.247 and RSS- 210 Issue 8. Addendum A: To correct the information in the Power Output and Power Spectral Density sections. Report Authorization The test data contained in this report documents the observed testing parameters pertaining to and are relevant for only the sample equipment tested in the agreed upon operational mode(s) and configuration(s) as identified herein. Compliance assessment remains the client’s responsibility. This report may not be used to claim product endorsement by A2LA or any government agencies. This test report has been authorized for release under quality control from CKC Laboratories, Inc. Steve Behm Director of Quality Assurance & Engineering Services CKC Laboratories, Inc. Page 4 of 29 Report No.: 93248-9A Test Facility Information Our laboratories are configured to effectively test a wide variety of product types. CKC utilizes first class test equipment, anechoic chambers, data acquisition and information services to create accurate, repeatable and affordable test results. TEST LOCATION(S): CKC Laboratories, Inc. 5046 Sierra Pines Drive Mariposa, CA 95338 Site Registration & Accreditation Information Location CB # Taiwan Canada FCC Japan Mariposa A US0103 SL2-IN-E-1147R 3082A-2 90477 R-563 C-578 T-1492 G-87 Page 5 of 29 Report No.: 93248-9A SUMMARY OF RESULTS Standard / Specification: FCC Part 15 Subpart C Description Test Procedure/Method Results Radiated Emissio…

Text truncated - open the document above for the full version.
