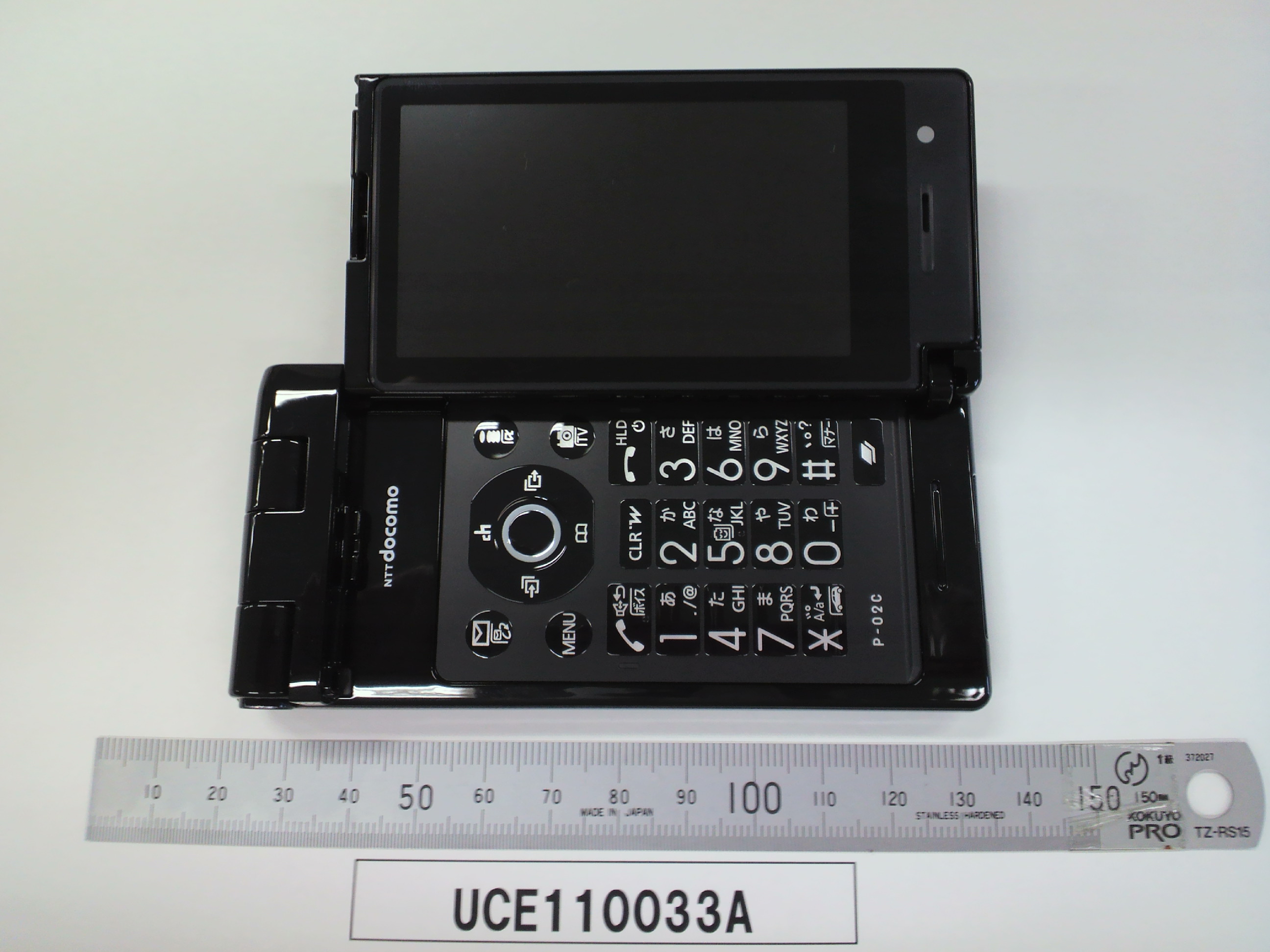

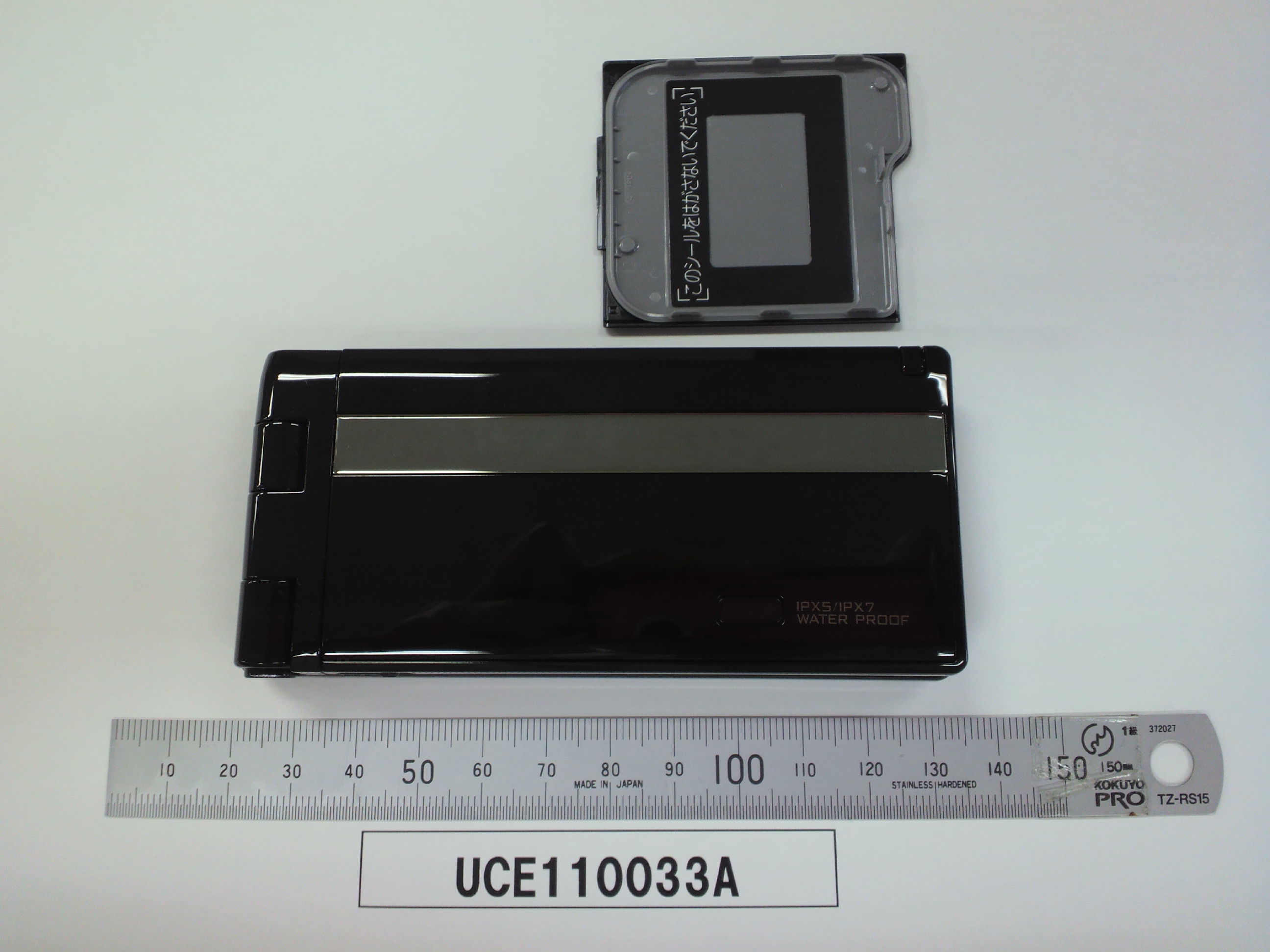

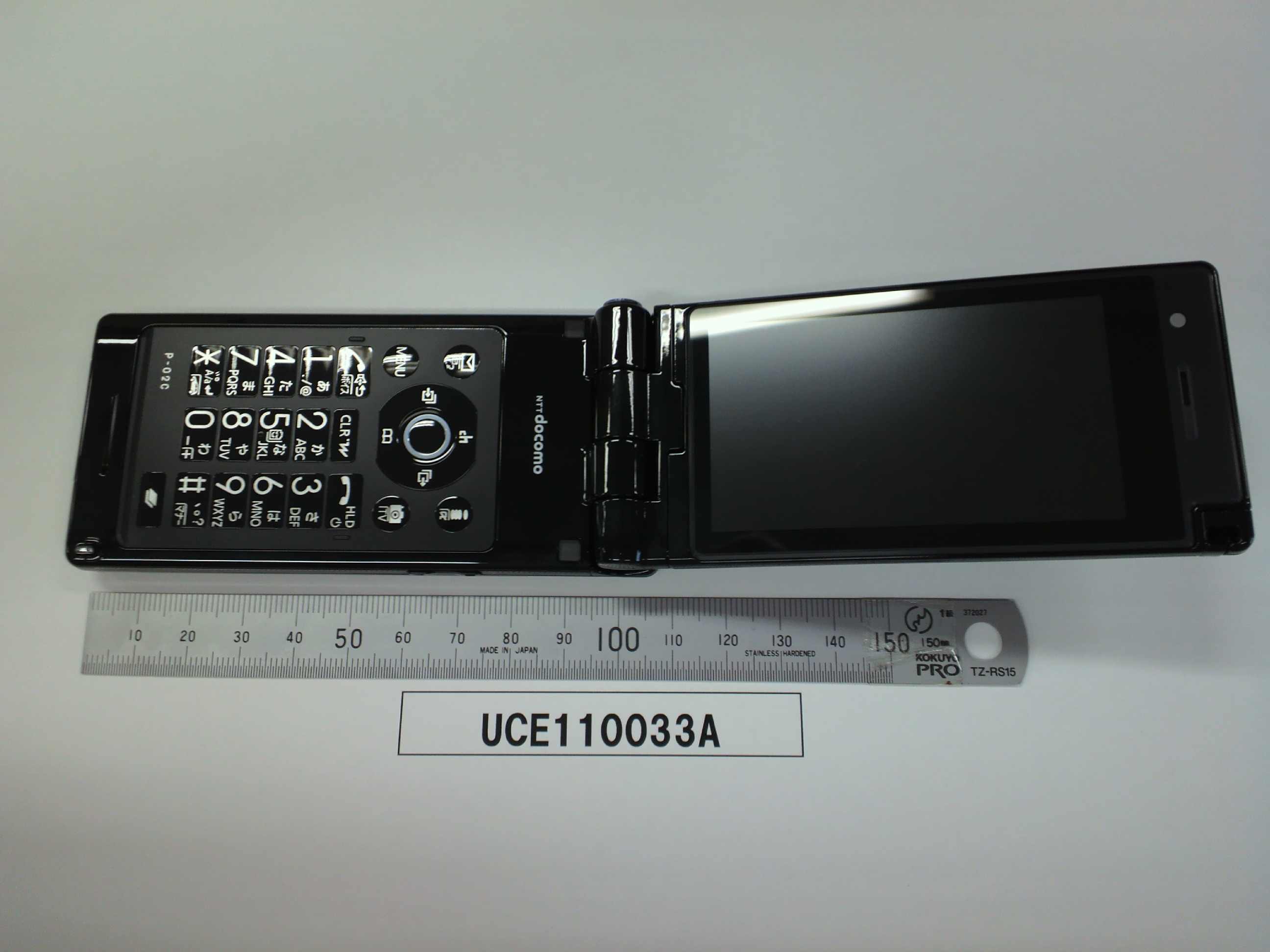

UCE110033AUMTS Cellular Mobile with RFID

P-02C INSTRUCTION MANUAL ’10.11 DOCOMO W-CDMA System Thank you for selecting the “docomo STYLE series P-02C”. Read this manual before use to correctly operate your P-02C. About manual of P-02C The operating procedures for the P-02C are also published as in “ 使いかたナビ (Guide)” on-screen manual installed onto your FOMA terminal, and “Instruction Manual (Detailed Version)” as a PDF. (In Japanese only) ◆ “Instruction Manual” (this manual) ◆ Description of the displayed content and operating procedures for basic functions ◆ “ 使いかたナビ (Guide)” (installed onto your FOMA terminal) ◆ Description of the outline and operations of frequently used functions From the P-02C +m ▶ LifeKit ▶ 使いかたナビ (Guide) ※ This function is available in Japanese mode only. ◆ “Instruction Manual (Detailed Version)” (PDF) ◆ From a PC, download detailed information about all the functions and the operating procedures. (In Japanese only) http://www.nttdocomo.co.jp/support/trouble/manual/ download/index.html ※ Note that the URL and published contents may be modified without notice. Basic Package ⿠ P-02C Handset (With Warranty and Back Cover P47) ⿠ Battery Pack P20 ⿠ Instruction Manual (Japanese version) ⿠ P-02C CD-ROM ⿠ See page 91 for optional items that support this FOMA terminal. For Using This Manual ⿠ Note that “P-02C” is referred to as “FOMA terminal” in this manual. ⿠ Most operating procedures and displays in this manual are shown with the default settings of the “BLACK” handset. Further, displays and illustrations shown in this manual are for reference. The actual ones might differ. ⿠ Most operating procedures and displays in this manual are shown when the FOMA terminal is in Normal Style. ⿠ Desktop Holder P42 1 FOMA Terminal ····································2 What You can Do with P-02C ···············3 Part Names and Functions ··················4 Styles ···················································6 Precautions ··········································7 Handling Precautions ························15 Waterproof Performance ···················18 Introduction ▶ P.1 ～ Before Using ·····························22 Charging, Power ON/OFF, etc. Screen Explanation ··················26 Viewing Display/Icon, etc. Character Entry·························33 Sound/Screen Setting ··············35 Select Ring Tone, Changing Displays, etc. Lock/Security ····························41 Various Security Codes, Various Lock Functions, Resetting to Default, etc. Basic Operation ▶ P.22 ～ Call Telephone···························45 Making a Call/Videophone Call, Receiving a Call/Videophone Call, Network Services, WORLD WING, etc. Mail ·············································53 Send i-mode Mail, Deco-mail, Decome-Anime, Receive i-mode Mail, Area Mail, etc. Phonebook ································57 Store Phonebook, Edit Phonebook, Delete Phonebook Connect ▶ P.45 ～ i-mode/Full Browser ·················59 Access Sites, Full Browser, Viewing and Operating Sites, Add Bookmark, Screen Memo, etc. i-Channel ···································62 Search ▶ P.59 ～ Camera ······································63 Shoot Still Images/Moving Pictures, etc. 1Seg ···········································66 Watching 1Seg, etc. Music ·········································70 Music&Video Channel, MUSIC Player, etc. i- α ppli/i-Widget ·························72 Starting i- α ppli, etc. i-motion/Movie ··························74 Play i-motion/Movie, etc. Enjoy ▶ P.63 ～ Osaifu-Keitai ·····························75 Osaifu-Keitai/ToruCa i-concier ·····································76 Displaying i-concier, etc. Convenient Tools ······················77 Schedule, Alarm, Bar Code Reader Data Management ·····················79 microSD Card, Infrared Communication, iC Communication, PC Connection More Convenient ▶ P.75 ～ Support ······································84 Troubleshooting, Warranty and After-sales Service, i-mode Fault Diagnosis Site, Updating Software, etc. Appendix ···································92 Function List, Main Specifications, SAR, Export Administration Regulations, Intellectual Property Right Index ········································105 Others ▶ P.84 ～ ※ It is prohibited to copy all or part of this manual without permission. ※ The instructions contained in this manual may be changed without notice. Contents Introduction 2 ⿠ Because the FOMA terminal uses a radio wave, you cannot use it in places where the radio wave do not reach, where it is weak even outdoors, or where are out-of-service area, such as inside tunnels, basements, or buildings. You might not be able to operate the FOMA terminal even when you are in a place with a fi ne view such as in a high-rise building or apartment. Note that you may experience interruption of calls even if the three antennas respond to a strong radio wave, and you remain without moving to use the FOMA terminal. ⿠ Use the FOMA terminal carefully to avoid disturbing other people when in public, or in crowded or quiet places. ⿠ Since the FOMA terminal uses radio waves as the medium of telecommunication, calls may be tapped by a third party. However, the W-CDMA system automatically supports tapping prevention, so your conversation will be incomprehensible to the third party, because it is recognized as mere noise. ⿠ The FOMA terminals change your voice into digital signals and send them to the other party. In places where the radio waves are weak, the digital signals may not be converted correctly, and in such a case, the voice may sound different from the actual one. ⿠ The user hereby agrees that the user shall be solely responsible for the result of the use of SSL/TLS. Neither DOCOMO nor the certifi ers as listed herein make any representation and warranty as for the security in the use of SSL/TLS. In the event that the user shall sustain damage or loss due to the use of SSL/TLS, neither DOCOMO nor the certifi ers shall be responsible for any such damage or loss. Certifi ers: VeriSig…

Text truncated - open the document above for the full version.

Panasonic Mobile Communications Development of Europe limited Willoughby Road, Bracknell, Berkshire, RG12 8FP Tel: +44 (0) 1344 862444 Fax: +44 (0) 1344 706796 VAT Reg No. GB787451290 Web: http:Panasonic.net/pmc Registered in England No. 4188880 Panasonic Mobile Communications Development of Europe Limited 22 nd September 2010 Telecommunication Certification Body RFI Global Services Ltd. Pavilion A Ashwood Park Basingstoke Hampshire RG23 8BG United Kingdom Subject: Certification Application FCC ID: UCE110033A It is requested that the following information is held Confidential on behalf of Panasonic Mobile Communications Development of Europe Ltd., on the confidentiality basis outlined below: 1. Permanent Confidentiality (FCC Rules Part 0.459 refers). Exhibit Category Exhibit Filenames Schematic Diagrams P-02C Schematics.pdf Parts list (BOM) P-02C BOM.pdf Block Diagrams P-02C UMTS RF Block Diagram.pdf P-02C RFID Block Diagram.pdf Operational Descriptions * P-02C UMTS RF Product Specification.pdf P-02C RFID Operational Description.pdf Tune up Information P-02C RF Calibration Spec.pdf The above information contains trade secrets and proprietary information not customarily released to the public. The public disclosure of this information might be harmful to the applicant and provide unjust benefits to its competitors. The applicant understands that pursuant to rule 0.457d, disclosure of this application and all accompanying documentation will not be made before the date of the grant for this application. * The Operational Descriptions contain proprietary information relating to the device implementation used. This information is not customarily released to the public. continued........

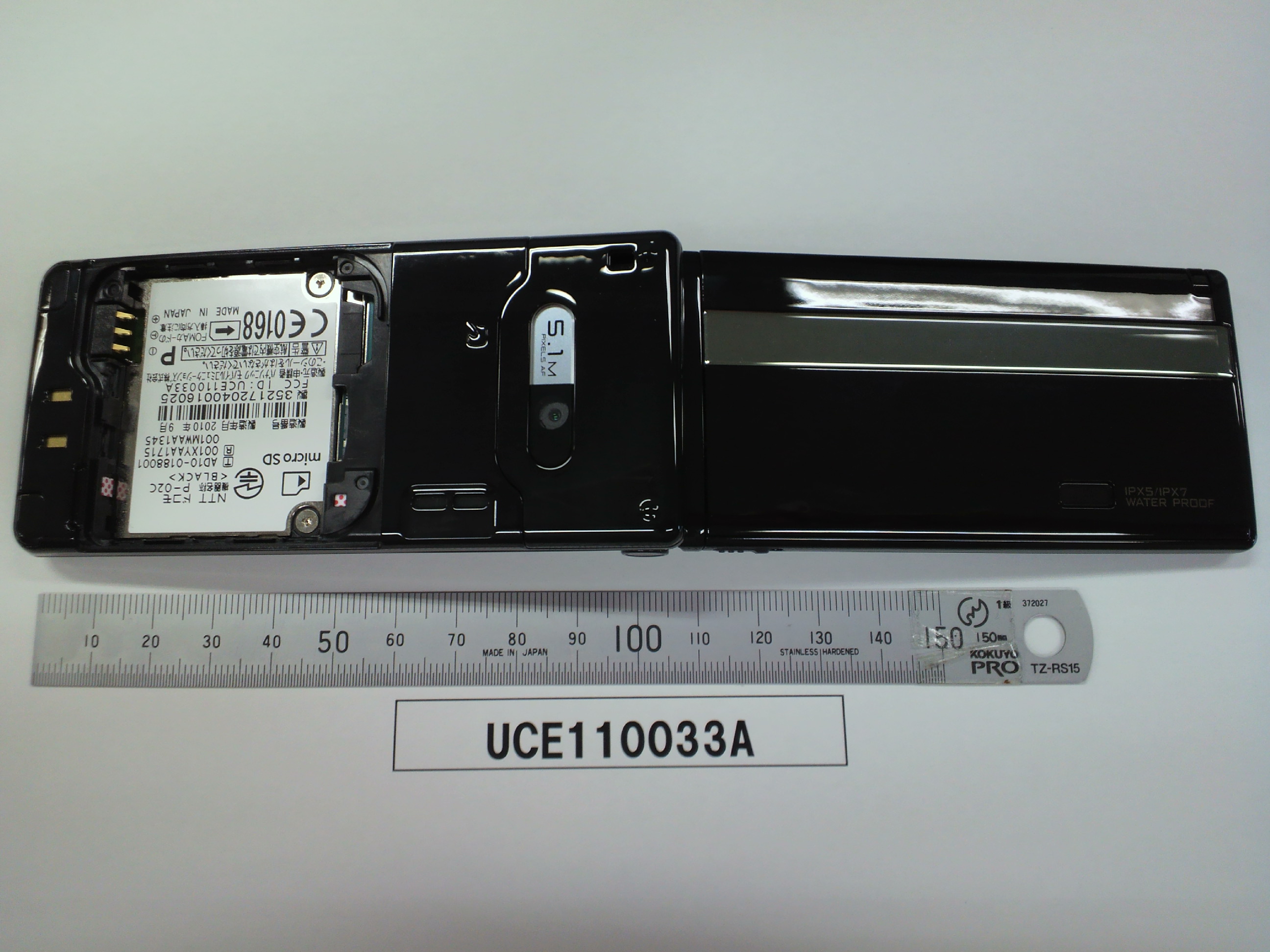

① Operater Name② Model Mame③ Color④ ID for JATE⑤ ID for TELEC⑥ Production Year & Month⑦ Bar Code of IMEI⑧ IMEI(Production Serial Number) ② ③ ④⑤ ⑥ ⑦⑧ ①

TEST REPORT FROM RFI GLOBAL SERVICES LTD Test of: NTT docomo P-02C To: FCC Part 15.225: 2009 Subpart C Test Report Serial No: RFI-RPT-RP78769JD07A V2.0 Version 2.0 Supersedes All Previous Versions This Test Report Is Issued Under The Authority Of Scott D’Adamo, Operations Manager Global Approvals: Checked By: Ian Watch Signature: Date of Issue: 16 September 2010 This report is issued in Adobe Acrobat portable document format (PDF). It is only a valid copy of the report if it is being viewed in PDF format with the following security options not allowed: Changing the document, Selecting text and graphics, Adding or changing notes and form fields. This report may not be reproduced other than in full, except with the prior written approval of RFI Global Services Ltd. The results in this report apply only to the sample(s) tested. TEST REPORT SERIAL NO: RFI-RPT-RP78769JD07A V2.0 VERSION 2.0 ISSUE DATE: 16 SEPTEMBER 2010 Page 2 of 21 RFI Global Services Ltd This page has been left intentionally blank. TEST REPORT SERIAL NO: RFI-RPT-RP78769JD07A V2.0 VERSION 2.0 ISSUE DATE: 16 SEPTEMBER 2010 RFI Global Services Ltd Page 3 of 21 Table of Contents 1. Customer Information .................................................................................................................. 4 2. Summary of Testing ..................................................................................................................... 5 3. Equipment Under Test (EUT) ....................................................................................................... 6 4. Operation and Monitoring of the EUT during Testing ............................................................... 8 5. Measurements, Examinations and Derived Results .................................................................. 9 6. Measurement Uncertainty .......................................................................................................... 20 Appendix 1. Test Equipment Used ................................................................................................ 21 TEST REPORT SERIAL NO: RFI-RPT-RP78769JD07A V2.0 VERSION 2.0 ISSUE DATE: 16 SEPTEMBER 2010 Page 4 of 21 RFI Global Services Ltd 1. Customer Information Company Name: Panasonic Mobile Communications Development of Europe Ltd Address: Panasonic House Willoughby Road Bracknell Berkshire RG12 8FP United Kingdom TEST REPORT SERIAL NO: RFI-RPT-RP78769JD07A V2.0 VERSION 2.0 ISSUE DATE: 16 SEPTEMBER 2010 RFI Global Services Ltd Page 5 of 21 2. Summary of Testing 2.1. General Information Specification Reference: 47CFR15.225 Specification Title: Code of Federal Regulations Volume 47 (Telecommunications) 2009: Part 15 Subpart C (Radio Frequency Devices) - Section 15.225 Specification Reference: 47CFR15.107 and 47CFR15.109 Specification Title: Code of Federal Regulations Volume 47 (Telecommunications) 2009: Part 15 Subpart B (Radio Frequency Devices) - Sections 15.107 and 15.109 Site Registration: 209735 Location of Testing: RFI Global Services Ltd, Wade Road, Basingstoke, Hampshire, RG24 8AH, United Kingdom Test Dates: 01 September 2010 to 03 September 2010 2.2. Summary of Test Results FCC Reference (47CFR) Measurement Result Part 15.107(a) Receiver/Idle Mode AC Conducted Spurious Emissions Part 15.109, 15.225(d) Receiver/Idle Mode Radiated Spurious Emissions Part 15.225(a)(b)(c)(d) Transmitter Fundamental Field Strength Part 15.209(a), 15.225(d) Transmitter Radiated Spurious Emissions Part 15.209(a), 15.225(c)(d) Transmitter Band Edge Radiated Emissions Part 2.1049 Transmitter 20 dB Bandwidth Part 15.225(e) Transmitter Frequency Stability (Temperature & Voltage Variation) Key to Results = Complied = Did not comply 2.3. Methods and Procedures Reference: ANSI C63.10 (2009) Title: American National Standard for Testing Unlicensed Wireless Devices 2.4. Deviations from the Test Specification For the measurements contained within this test report, there were no deviations from, additions to, or exclusions from the test specification identified above. TEST REPORT SERIAL NO: RFI-RPT-RP78769JD07A V2.0 VERSION 2.0 ISSUE DATE: 16 SEPTEMBER 2010 Page 6 of 21 RFI Global Services Ltd 3. Equipment Under Test (EUT) 3.1. Identification of Equipment Under Test (EUT) Brand Name: NTT docomo Model Name or Number: P-02C IMEI: 352172040013568 (Radiated sample) Hardware Version Number: Rev C Software Version Number: B-D02WP1-00.01.014 D02WP1_Cv10092802* FCC ID Number: UCE110033A *The Customer stated this software version is identical to D02WP1_Cv18092802 but allows the EUT to operate in UMTS band V mode when connected to an Agilent network simulator. RFID mode is not affected. Brand Name: NTT docomo Model Name or Number: P-02C IMEI: 352172040013865 (Conducted RF port sample) Hardware Version Number: Rev C Software Version Number: B-D02WP1-00.01.014 D02WP1_Cv18092802 FCC ID Number: UCE110033A Description: Battery Brand Name: NTT docomo Model Name or Number: P20* Description: AC Charger Brand Name: NTT docomo Model Name or Number: FOMA AC Adapter 01 for Global use / MAS-BH0008-A 002 Description: DC Charger Brand Name: NTT docomo Model Name or Number: FOMA DC Adapter 02 Description: Charge/USB Data cable Brand Name: NTT docomo Model Name or Number: FOMA USB Cable with Charge Function 01 Description: Personal Hands-Free Brand Name: NTT docomo Model Name or Number: Stereo Earphone Set 01 TEST REPORT SERIAL NO: RFI-RPT-RP78769JD07A V2.0 VERSION 2.0 ISSUE DATE: 16 SEPTEMBER 2010 RFI Global Services Ltd Page 7 of 21 3.2. Description of EUT The equipment under test was a UMTS cellular handset with RFID. 3.3. Modifications Incorporated in the EUT No modifications were applied to the EUT during testing. 3.4. Additional Information Related to Testing Tested Technology: RFID Category of Equipment: Transceiver Channel Spacing: Single channel device Transmit Frequency Range: 13.56 MHz Receive Frequency Range: 13.56 MHz Power Supply Requirement: Nominal 3.7 V Minimum 3.4 V Maximum 4.2 V Tested …
