P-01G INSTRUCTION MANUAL ’14.10 Thank you for selecting the “P-01G”. Read this manual befo re use to correctly operate your P-01G. For Using This Manual ⿠Note that “P- 01G” is referred to as “FOMA terminal” in this manual. ⿠Most operating pro cedures and displays in this manual are shown with the default settings of the “White” handset. Further, displays and illustrations show n in this manual are for reference. The actual ones might differ. ⿠P- 01G Handset (With Warranty) ⿠Battery Pack P31 ⿠Instruction Manual (Ja panese version) ⿠Fo r optional items (option) that support this FOMA terminal, refer to DOCOMO we bsite. https://www. nttdocomo.co.jp/product/option/ About manual of P-01G The operating procedures for the P-01G are also published as in “使いかたガイド (Guide)” on - scre en manual installed onto your FOMA terminal, and “Instruction Manual (Detailed Ve rsion)” as a PDF. (In Japanese only) ◆“Instru ction Manual” (this manual)◆ Description of the displayed content and operating pro cedures for basic functions ◆“使いかたガイド (Guide)” (installed onto your FOMA terminal)◆ Description of the outline and operations of frequently used functions From the P-01G m ▶ 便利ツール (Tool) ▶ 使いかたガイド (Guide) ※ T his function is available in Japanese mode only. ◆“Instru ction Manual (Detailed Version)” (PDF)◆ From a PC, download detailed information about all the functions and the operating pro cedures. (In Japanese only)( https://www.nttdocomo.co.jp/support/trouble/manual/ download/index.html) ※ Note that the URL and published contents may be modified without notice. Basic Package ⿠Desktop Holder P55 ⿠Back Cover P62 For Loss, Theft, Malfunction, and Inquiries while Overseas (24 - hour Reception) ■From DOCOMO mobile phones International call access code for the country you stay -81-3-6832-6600* (toll free) * You are charged a call fee to Japan when calling from a land - line phone, etc. ※ If yo u use P-01G, you should dial the number +81 - 3 - 6832 - 6600 (to enter ‘+ ’ , press and hold the ‘0 ’ key for at least one second). ■From land-line phones ＜Unive rsal number＞ Universal number international prefix -8000120-0151* * You might be charged a domestic call fee according to the call rate for the country you stay. ※ Fo r international call access codes for major countries and universal number international prefix, refer to the DOCOMO International Services website. ●If you lose your FOMA terminal or have it stolen, immediately take the steps necessary for suspending the use of the FOMA terminal. ●If the FOMA terminal you purc hased is damaged, bring your FOMA terminal to a repair counter specified by DOCOMO after returning to Japan. General Inquiries <docomo Information Center> Repairs 0120-005-250 (toll free) * Service available in English, Portuguese, Chinese, Spanish. * Unava ilable from part of IP phones. (Business hours: 9:00 a.m. to 8:00 p.m.) ■From DOCOMO mobile phones (In Japanese only) (No prefix) 113 (toll free) * Unavailable from land-line phones, etc. ■From land-line phones (In Japanese only) 0120-800-000 (toll free) * Unavailable from part of IP phones. ■From DOCOMO mobile phones (In Japanese only) (No prefix) 151 (toll free) * Unavailable from land - line phones, etc. ■From land-line phones (In Japanese only) 0120-800-000 (toll free) * Unavailable from part of IP phones. (Business hours: 24 hours (open all year round)) (Business hours: 9:00 a.m. to 8:00 p.m. (open all year round)) ●Please confirm the phone number before you dial. ●Fo r Applications or Repairs and After - Sales Service, please contact the above - mentioned information center or the docomo Shop etc. near you on the NTT DOCOMO website or the i - mode site. NTT DOCOMO website (https://www.nttdocomo.co.jp/english/) i-mode site ｉMenu ▶ お客様サポート (User support) ▶ ドコモショップ (docomo Shop) (In Japanese only) Don’t forget your mobile phone ... or your manners! When using your mobile phone in a public place, don’t forget to show common courtesy and consideration for others around you. Sales: Manufacturer: September ’ 14 (1st Edition) PXQP1014 ZA/J1 F0914 - 0 1 ※It is pro hibited to copy all or part of this manual without permission. ※The instru ctions contained in this manual may be changed without notice. Contents Introduction FOMA Terminal ······························2 Pa rt Names and Functions · ···········3 Precautions · ···································5 Handling Precautions · ·················13 Waterproof/Dust - proof Performance ···17 Basic Operation Before Using ·················································21 Scre en Explanation · ·····································24 Character Entry · ···········································31 Sound/Scre en Setting · ·································32 Lock/Security · ···············································36 Connect Call Telephone ··············································40 Mail · ·······························································46 Phonebook · ··················································49 Search i - mode/Full Bro wser · ····································50i - channel · ······················································52 Enjoy Camera ··························································53 1Seg · ·····························································55 Music · ····························································57 i - appli/i - Widget · ············································59 i - motion · ························································60 More Convenient Osaifu - Keitai · ················································61 i - concier · ·······················································62 Convenient To ols · ·········································62 Data Management · ·······································66 Others Support ·························································71 Appendix · ······················································78 Index · ····························································…

Text truncated - open the document above for the full version.

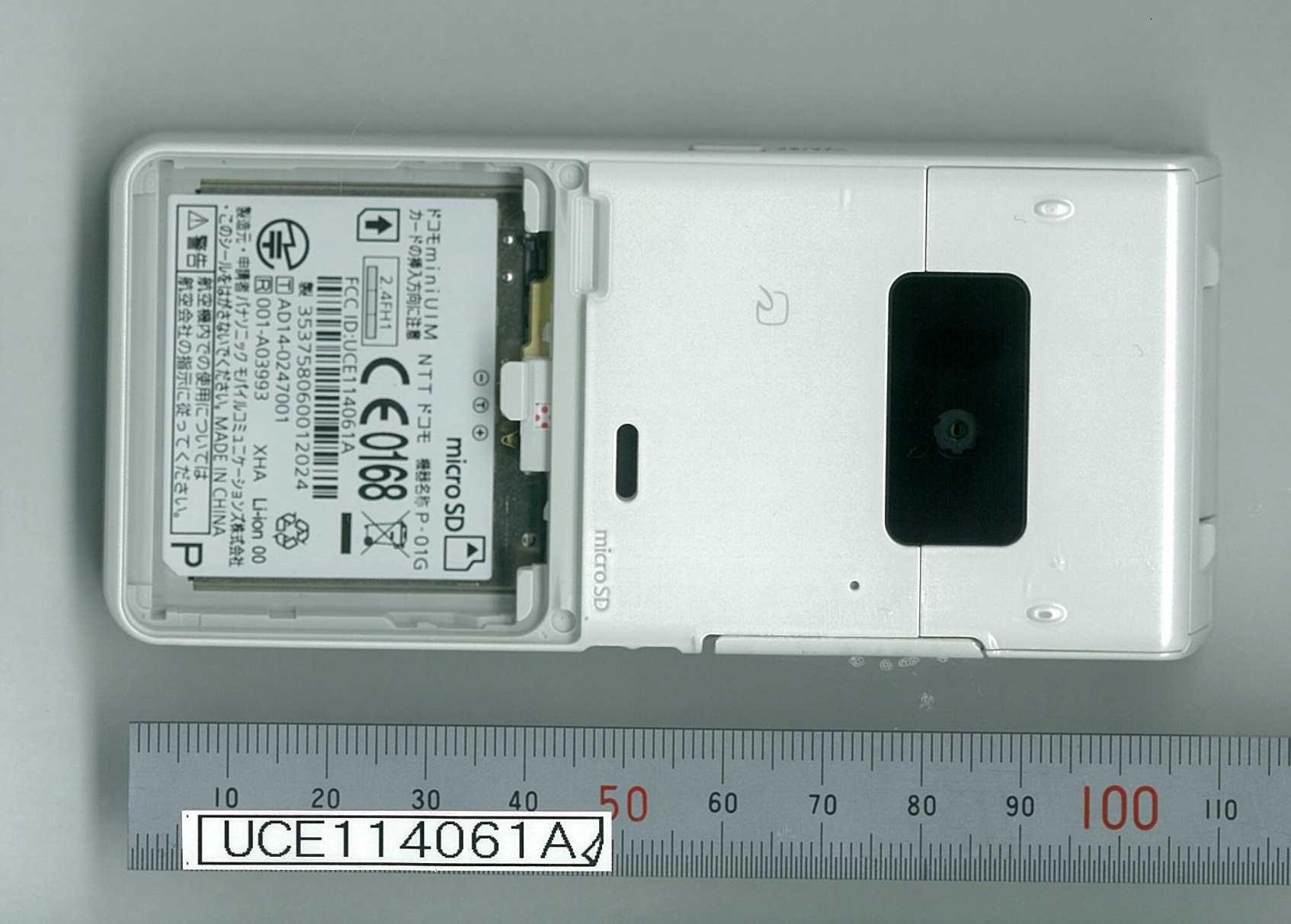

P PPP- ---01G 01G 01G 01G FCC ID Label and Location FCC ID Label and LocationFCC ID Label and LocationFCC ID Label and Location - --- FCC ID label FCC ID labelFCC ID labelFCC ID label Battery Area : Battery Area :Battery Area :Battery Area : Battery is placed in rear Battery is placed in rear Battery is placed in rear Battery is placed in rear side of the phone side of the phoneside of the phoneside of the phone Label Area : Label Area :Label Area :Label Area : This outline drawing This outline drawing This outline drawing This outline drawing shows the label in position shows the label in position shows the label in position shows the label in position within the battery within the battery within the battery within the battery compartment. compartment.compartment.compartment. The label is visible to the The label is visible to the The label is visible to the The label is visible to the user at the point of sale user at the point of sale user at the point of sale user at the point of sale prior to fitting the USIM, prior to fitting the USIM, prior to fitting the USIM, prior to fitting the USIM, battery pack and cover battery pack and coverbattery pack and coverbattery pack and cover (Rear View) (Rear View)(Rear View)(Rear View) - --- Label Label Label Label L LLL ocation ocationocationocation ① ①①① Operator OperatorOperatorOperator Name NameNameName ② ②②② Model Name Model NameModel NameModel Name ③ ③③③ ID for JATE ID for JATEID for JATEID for JATE ④ ④④④ ID for TELEC ID for TELECID for TELECID for TELEC ⑤ ⑤⑤⑤ Production Year & Month Production Year & MonthProduction Year & MonthProduction Year & Month ⑥ ⑥⑥⑥ Bar Code of IMEI Bar Code of IMEIBar Code of IMEIBar Code of IMEI ⑦ ⑦⑦⑦ IMEI(Production Serial Number IMEI(Production Serial NumberIMEI(Production Serial NumberIMEI(Production Serial Number） ））） FCC ID: UCE11 FCC ID: UCE11FCC ID: UCE11FCC ID: UCE114061 406140614061A AAA ① ①①① ② ②②② ③ ③③③ ④ ④④④ ⑤ ⑤⑤⑤ ⑥ ⑥⑥⑥ ⑦ ⑦⑦⑦

FCC 47 CFR part 2 (2.1093) Published RF Exposure KDB Procedures IEEE Std 1528-2013 SAR EVALUATION REPORT For NTT docomo, P-01G FCC ID: UCE114061A Test Report UL- SAR-RP10363939JD07 V3.0 ISSUE DATE: 10 September 2014 Prepared for Panasonic Mobile Communications Development of Europe Ltd Panasonic House Willoughby Road Bracknell Berkshire RG12 8FP United Kingdom Prepared by UL VERIFICATION SERVICES LTD PAVILION A, ASHWOOD PARK, ASHWOOD WAY BASINGSTOKE, HAMPSHIRE, RG23 8BG, UK TEL: +44 (0) 1256 312000 FAX: +44 (0) 1256 312001 REPORT NO: UL- SAR-RP10363939JD07 V3.0 Issue Date: 10 September 2014 Page 2 of 68 UL Verification Services Ltd. Report. No.:3.0 This report shall not be reproduced except in full, without the written approval of UL Verification Services Ltd. REVISION HISTORY Rev. Issue Date Revisions Revised By -- 27 Aug 2014 Initial Issue -- 1 02 Sept 2014 The following changes made in the report: 1. The EUT Name updated on front page to ‘P-01G’ 2. In section 6.1, the Software version number updated. 3. The typo in section 6.2 corrected from RFIF to RFID. 4. Appendix 3, the SAR distribution scan, the EUT name amended to ‘P-01G’ Naseer Mirza 2 10 Sept 2014 The following changes were made in the report:: 1. Bluetooth calculation in Section 6.12, 8.3.1, 8.3.2 corrected 2. Simultaneous transmission table included as section 8.4 Sandhya Menon REPORT NO: UL- SAR-RP10363939JD07 V3.0 Issue Date: 10 September 2014 Page 3 of 68 UL Verification Services Ltd. Report. No.:3.0 This report shall not be reproduced except in full, without the written approval of UL Verification Services Ltd. 1. Attestation of Test Results ................................................................................................................ 4 2. Test Specification, Methods and Procedures .................................................................................. 5 3. Facilities and Accreditation ............................................................................................................... 6 4. SAR Measurement System & Test Equipment ................................................................................. 7 5. Measurement Uncertainty ................................................................................................................. 8 6. Equipment Under Test (EUT) ............................................................................................................ 9 7. System Check and Dielectric Parameters ...................................................................................... 17 8. Measurements, Examinations and Derived Results ...................................................................... 18 9. SAR measurement variability .......................................................................................................... 22 Appendix 1. Test Equipment Used ..................................................................................................... 23 Appendix 2. Measurement Methods ................................................................................................... 26 Appendix 3. SAR Distribution Scans .................................................................................................. 28 Appendix 4. Photographs .................................................................................................................... 43 Appendix 6. System Check and Dielectric Parameters ..................................................................... 64 Appendix 7. Measurement Uncertainty Table .................................................................................... 65 Appendix 8. 3G Test set-up ................................................................................................................. 67 Appendix 9: Antenna Schematics ....................................................................................................... 68 TABLE OF CONTENTS REPORT NO: UL- SAR-RP10363939JD07 V3.0 Issue Date: 10 September 2014 Page 4 of 68 UL Verification Services Ltd. Report. No.:3.0 This report shall not be reproduced except in full, without the written approval of UL Verification Services Ltd. 1. Attestation of Test Results Applicant Name: Panasonic Mobile Communications Development of Europe Ltd Application Purpose Original Grant DUT Description Single Mode UTRA Mobile Phone with Bluetooth and RFID Test Device is An identical prototype Device category Portable Exposure Category General Population/Uncontrolled Exposure (1g SAR limit: 1.6 W/kg) Date Tested 20 Aug 2014 to 21 Aug 2014 The highest reported SAR values RF Exposure Conditions Licensed DSS Head 0.754 W/kg N/A Body-worn 1.182 W/kg 0.022 W/kg Simultaneous Transmission 1.204 W/kg 1.204 W/kg Applicable Standards FCC 47 CFR part 2 (2.1093) Published RF Exposure KDB Procedures IEEE Std 1528-2013 Test Results Pass UL Verification Services Ltd. tested the above equipment in accordance with the requirements set forth in the above standards. All indications of Pass/Fail in this report are opinions expressed by UL Verification Services Ltd. based on interpretations and/or observations of test results. Measurement Uncertainties are in accordance with the above standard and are published for informational purposes only. The test results show that the equipment tested is capable of demonstrating compliance with the requirements as documented in this report. Note: The results documented in this report apply only to the tested sample(s), under the conditions and modes of operation as described herein. This document may not be altered or revised in any way unless done so by UL Verification Services Ltd. and all revisions are duly noted in the revisions section. Any alteration of this document not carried out by UL Verification Services Ltd. will constitute fraud and shall nullify the document. This report must not be used by the client to claim product certification, approval, or endorsement by UKAS. This report is written to suppo…

Text truncated - open the document above for the full version.

REPORT NO: UL- SAR-RP10363939JD07 V3.0 Issue Date: 10 September 2014 Page 63 of 68 UL Verification Services Ltd. Report. No.:3.0 This report shall not be reproduced except in full, without the written approval of UL Verification Services Ltd. Appendix 5. Simulated Tissues The body mixture consists of water, Polysorbate (Tween 20) and salt. Visual inspection is made to ensure air bubbles are not trapped during the mixing process. The mixture is calibrated to obtain proper dielectric constant (permittivity) and conductivity of the tissue. Ingredient (% by weight) Frequency 835/850/900 MHz Head Body De-Ionized Water 52.87 71.30 Polysorbate 20 46.10 28.00 Salt 1.03 0.70 REPORT NO: UL- SAR-RP10363939JD07 V3.0 Issue Date: 10 September 2014 Page 64 of 68 UL Verification Services Ltd. Report. No.:3.0 This report shall not be reproduced except in full, without the written approval of UL Verification Services Ltd. Appendix 6. System Check and Dielectric Parameters Dielectric Property Measurements: The temperature of the tissue-equivalent medium used during measurement must also be within 18C to 25C and within ± 2C of the temperature when the tissue parameters are characterized. The dielectric parameters must be measured before the tissue-equivalent medium is used in a series of SAR measurements. The parameters should be re-measured after each 3 to 4 days of use; or earlier if the dielectric parameters can become out of tolerance; for example, when the parameters are marginal at the beginning of the measurement series. Tissue dielectric parameters were measured at the low, middle and high frequency of each operating frequency range of the test device. System Performance Check: Prior to the assessment, the system was verified in the flat region of the phantom, 900 MHz dipole was used. A forward power of 250 mW was applied to the 900 MHz and the system was verified to a tolerance of 5% for the 900MHz dipole. The applicable verification normalised to 1 Watt. Site 57: System Check 900 Head Date: 20/08/2014 Validation Dipole and Serial Number: D900V2 SN: 035 Simulant Frequency (MHz) Room Temp Liquid Temp Parameters Target Value Measured Value Deviation (%) Limit (%) Head 900 23.0 22.0  r 41.50 41.00 -1.20 5.00 σ 0.97 0.95 -1.65 5.00 1g SAR 10.50 10.48 -0.19 5.00 10g SAR 6.69 6.84 2.24 5.00 Site 56: System Check 900 Body Date: 20/08/2014 Validation Dipole and Serial Number: D900V2 SN: 035 Simulant Frequency (MHz) Room Temp Liquid Temp Parameters Target Value Measured Value Deviation (%) Limit (%) Body 900 23.0 22.5  r 55.00 52.43 -1.04 5.00 σ 1.05 1.01 -3.62 5.00 1g SAR 10.40 9.92 -4.62 5.00 10g SAR 6.73 6.60 -1.93 5.00 REPORT NO: UL- SAR-RP10363939JD07 V3.0 Issue Date: 10 September 2014 Page 65 of 68 UL Verification Services Ltd. Report. No.:3.0 This report shall not be reproduced except in full, without the written approval of UL Verification Services Ltd. Appendix 7. Measurement Uncertainty Table Measurement uncertainty tables for technologies tested. A.7.1. Uncertainty - UMTS FDD 5 Head Configuration 1g Type Source of uncertainty + Value - Value Probability Distribution Divisor c i (1g) Standard Uncertainty  i or  eff  + u (%) - u (%) B Probe calibration 6.000 6.000 normal (k=1) 1.0000 1.0000 6.000 6.000  B Axial Isotropy 0.250 0.250 normal (k=1) 1.0000 1.0000 0.250 0.250  B Hemispherical Isotropy 1.300 1.300 normal (k=1) 1.0000 1.0000 1.300 1.300  B Spatial Resolution 0.500 0.500 Rectangular 1.7321 1.0000 0.289 0.289  B Boundary Effect 0.769 0.769 Rectangular 1.7321 1.0000 0.444 0.444  B Linearity 0.600 0.600 Rectangular 1.7321 1.0000 0.346 0.346  B Detection Limits 0.200 0.200 Rectangular 1.7321 1.0000 0.115 0.115  B Readout Electronics 0.160 0.160 normal (k=1) 1.0000 1.0000 0.160 0.160  B Response Time 0.000 0.000 Rectangular 1.7321 1.0000 0.000 0.000  B Integration Time 1.730 1.730 Rectangular 1.7321 1.0000 0.999 0.999  B RF Ambient conditions 3.000 3.000 Rectangular 1.7321 1.0000 1.732 1.732  B Probe Positioner Mechanical Restrictions 4.000 4.000 Rectangular 1.7321 1.0000 2.309 2.309  B Probe Positioning with regard to Phantom Shell 2.850 2.850 Rectangular 1.7321 1.0000 1.645 1.645  B Extrapolation and integration / Maximum SAR evaluation 5.080 5.080 Rectangular 1.7321 1.0000 2.933 2.933  A Test Sample Positioning 2.510 2.510 normal (k=1) 1.0000 1.0000 2.510 2.510  A Device Holder uncertainty 0.154 0.154 normal (k=1) 1.0000 1.0000 0.154 0.154  B Phantom Uncertainty 4.000 4.000 Rectangular 1.7321 1.0000 2.309 2.309  B Drift of output power 5.000 5.000 Rectangular 1.7321 1.0000 2.887 2.887  B Liquid Conductivity (target value) 5.000 5.000 Rectangular 1.7321 0.6400 1.848 1.848  A Liquid Conductivity (measured value) 2.950 2.950 normal (k=1) 1.0000 0.6400 1.888 1.888  B Liquid Permittivity (target value) 5.000 5.000 Rectangular 1.7321 0.6000 1.732 1.732  A Liquid Permittivity (measured value) 2.840 2.840 normal (k=1) 1.0000 0.6000 1.704 1.704  Combined standard uncertainty t-distribution 9.58 9.58 >500 Expanded uncertainty k = 1.96 18.77 18.77 >500 REPORT NO: UL- SAR-RP10363939JD07 V3.0 Issue Date: 10 September 2014 Page 66 of 68 UL Verification Services Ltd. Report. No.:3.0 This report shall not be reproduced except in full, without the written approval of UL Verification Services Ltd. A.7.2. Uncertainty Rate- UMTS FDD 5 Body Configuration 1g Type Source of uncertainty + Value - Value Probability Distribution Divisor c i (1g) Standard Uncertainty  i or  eff  + u (%) - u (%) B Probe calibration 6.000 6.000 normal (k=1) 1.0000 1.0000 6.000 6.000  B Axial Isotropy 0.250 0.250 normal (k=1) 1.0000 1.0000 0.250 0.250  B Hemispherical Isotropy 1.300 1.300 normal (k=1) 1.0000 1.0000 1.300 1.300  B Spatial Resolution 0.500 0.500 Rectangular 1.7321 1.0000 0.289 0.289  B Boundary Effect 0.769 0.769 Rectangular 1.7321 1.0000 0.444 0.444  B Linearity 0.600 0.600 Rectangular 1.7321 1.0000 0.346 0.346  B Detection Limits 0.200 0.200 Rectangular…

Text truncated - open the document above for the full version.

UL VS LTD Pavilion A, Ashwood Park, Ashwood Way, Basingstoke, Hampshire, RG23 8BG, UK Telephone: +44 (0)1256 312000 Facsimile: +44 (0)1256 312001 TEST REPORT Test Report No. : UL-RPT-RP10363939JD08A Manufacturer : Panasonic Mobile Communications Development of Europe Ltd Model No. : NTT docomo P-01G/EB-4068 FCC ID : UCE114061A Technology : Bluetooth – Basic Rate & EDR Test Standard(s) : FCC Parts 15.207, 15.209(a) & 15.247 1. This test report shall not be reproduced in full or partial, without the written approval of UL VS LTD. 2. The results in this report apply only to the sample(s) tested. 3. The sample tested is in compliance with the above standard(s). 4. The test results in this report are traceable to the national or international standards. 5. Version 1.0. Date of Issue: 02 September 2014 Checked by: Ian Watch Senior Engineer, Radio Laboratory Issued by : pp John Newell Quality Manager, UL VS LTD This laboratory is accredited by UKAS. The tests reported herein have been performed in accordance with its terms of accreditation. The Bluetooth ® word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by UL VS LTD is under licence. Other trademarks and trade names are those of their respective owners. TEST REPORT SERIAL NO: UL-RPT-RP10363939JD08A VERSION 1.0 ISSUE DATE: 02 SEPTEMBER 2014 Page 2 of 47 UL VS LTD This page has been left intentionally blank. TEST REPORT SERIAL NO: UL-RPT-RP10363939JD08A VERSION 1.0 ISSUE DATE: 02 SEPTEMBER 2014 UL VS LTD Page 3 of 47 Table of Contents 1. Customer Information ................................................................................................................ 4 2. Summary of Testing ................................................................................................................... 5 2.1. General Information 5 2.2. Summary of Test Results 5 2.3. Methods and Procedures 5 2.4. Deviations from the Test Specification 5 3. Equipment Under Test (EUT) .................................................................................................... 6 3.1. Identification of Equipment Under Test (EUT) 6 3.2. Description of EUT 7 3.3. Modifications Incorporated in the EUT 7 3.4. Additional Information Related to Testing 8 3.5. Support Equipment 8 4. Operation and Monitoring of the EUT during Testing ............................................................. 9 4.1. Operating Modes 9 4.2. Configuration and Peripherals 9 5. Measurements, Examinations and Derived Results ...............................................................10 5.1. General Comments 10 5.2. Test Results 11 5.2.1. Transmitter AC Conducted Spurious Emissions 11 5.2.2. Transmitter 20 dB Bandwidth 14 5.2.3. Transmitter Carrier Frequency Separation 19 5.2.4. Transmitter Number of Hopping Frequencies and Average Time of Occupancy 22 5.2.5. Transmitter Maximum Peak Output Power 24 5.2.6. Transmitter Radiated Emissions 32 5.2.7. Transmitter Band Edge Radiated Emissions 38 6. Measurement Uncertainty ........................................................................................................46 7. Report Revision History ...........................................................................................................47 TEST REPORT SERIAL NO: UL-RPT-RP10363939JD08A VERSION 1.0 ISSUE DATE: 02 SEPTEMBER 2014 Page 4 of 47 UL VS LTD 1. Customer Information Company Name: Panasonic Mobile Communications Development of Europe Ltd Address: Panasonic House Willoughby Road Bracknell Berkshire RG12 8FP United Kingdom TEST REPORT SERIAL NO: UL-RPT-RP10363939JD08A VERSION 1.0 ISSUE DATE: 02 SEPTEMBER 2014 UL VS LTD Page 5 of 47 2. Summary of Testing 2.1. General Information Specification Reference: 47CFR15.247 Specification Title: Code of Federal Regulations Volume 47 (Telecommunications): Part 15 Subpart C (Intentional Radiators) - Section 15.247 Specification Reference: 47CFR15.207 and 47CFR15.209 Specification Title: Code of Federal Regulations Volume 47 (Telecommunications): Part 15 Subpart C (Intentional Radiators) - Sections 15.207 and 15.209 Site Registration: 209735 Location of Testing: UL VS LTD, Unit 3 Horizon, Wade Road, Kingsland Business Park, Basingstoke, Hampshire, RG24 8AH, United Kingdom Test Dates: 08 August 2014 to 01 September 2014 2.2. Summary of Test Results FCC Reference (47CFR) Measurement Result Part 15.207 Transmitter AC Conducted Emissions Part 15.247(a)(1) Transmitter 20 dB Bandwidth Part 15.247(a)(1) Transmitter Carrier Frequency Separation Part 15.247(a)(1)(iii) Transmitter Number of Hopping Frequencies and Average Time of Occupancy Part 15.247(b)(1) Transmitter Maximum Peak Output Power Part 15.247(d) & 15.209(a) Transmitter Radiated Emissions Part 15.247(d) & 15.209(a) Transmitter Band Edge Radiated Emissions Key to Results = Complied = Did not comply 2.3. Methods and Procedures Reference: ANSI C63.4 (2009) Title: American National Standard for Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz Reference: ANSI C63.10 (2009) Title: American National Standard for Testing Unlicensed Wireless Devices 2.4. Deviations from the Test Specification For the measurements contained within this test report, there were no deviations from, additions to, or exclusions from the test specification identified above. TEST REPORT SERIAL NO: UL-RPT-RP10363939JD08A VERSION 1.0 ISSUE DATE: 02 SEPTEMBER 2014 Page 6 of 47 UL VS LTD 3. Equipment Under Test (EUT) 3.1. Identification of Equipment Under Test (EUT) Brand Name: NTT docomo Model Name or Number: P-01G/EB-4068 IMEI: 353758060006562 (Radiated sample #1) Hardware Version: Rev C Software Version: ACPU: B-D42CS1-02.01.001 CCPU: D42CS1_Cv18122202 FCC ID: UCE114061A Brand Name: NTT docomo Model Name or Number: P-01G/EB-4068 IMEI: 353758060006554 (Radiated sample #2) Hardware Version: Rev C Software Version: ACPU: B-D42CS1-02.01.001 CCPU: D42CS1_Cv18122202 FCC ID: UCE114061A Brand Name: …

Text truncated - open the document above for the full version.

Panasonic Mobile Communications Development of Europe Ltd UL-RPT-10363939JD08 FCC ID: UCE114061A UL VS LTD 1 Test Setup Photographs for NTT Docomo P-01G/EB-4068 1. Radiated Emissions 1.1 Configuration 1: worst case orientation with AC charger connected. Photo 1 Photo 2 Panasonic Mobile Communications Development of Europe Ltd UL-RPT-10363939JD08 FCC ID: UCE114061A 2. AC Conducted Emissions 2.1 Configuration 1: with AC charger connected. Photo 1 Photo 2

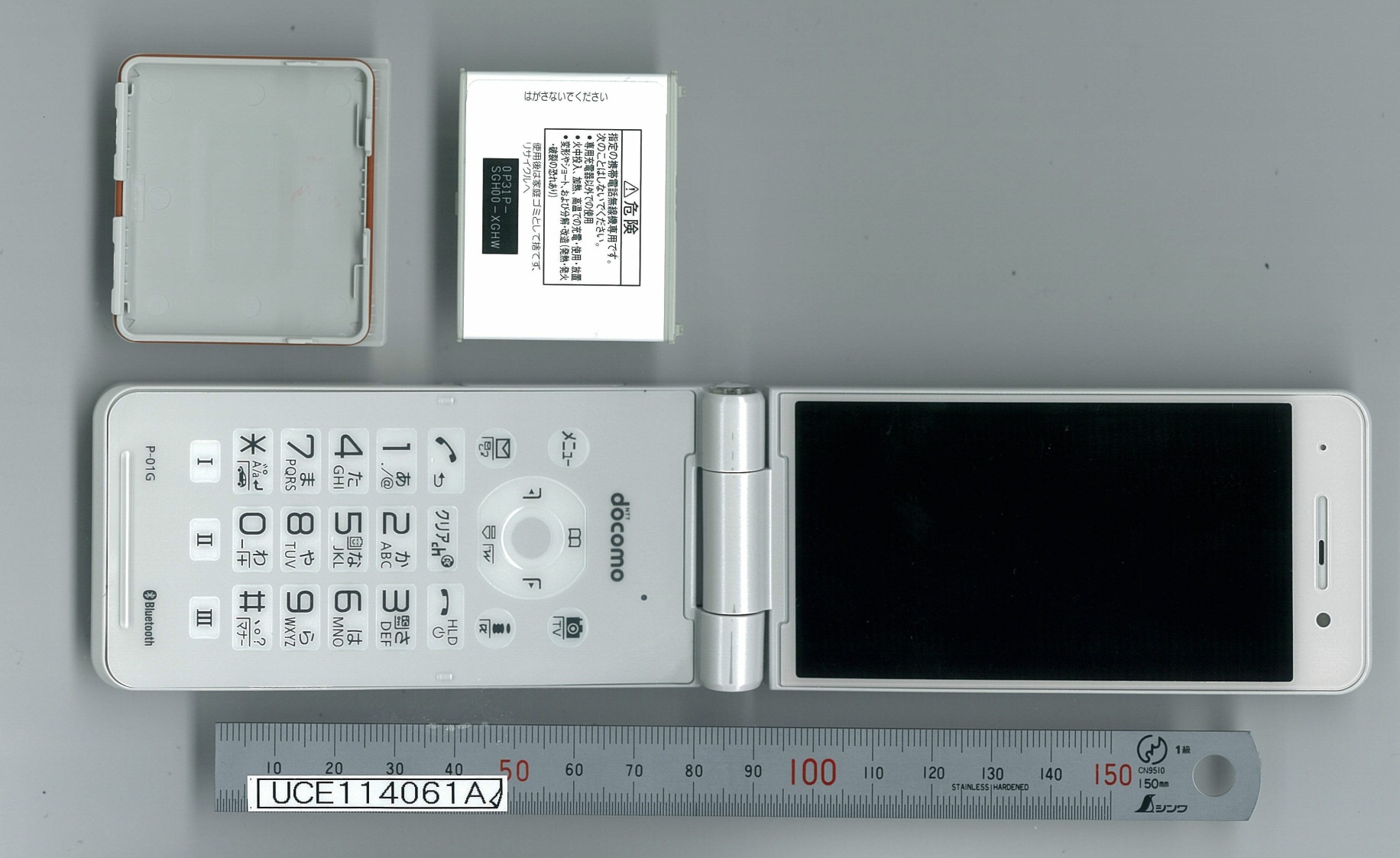

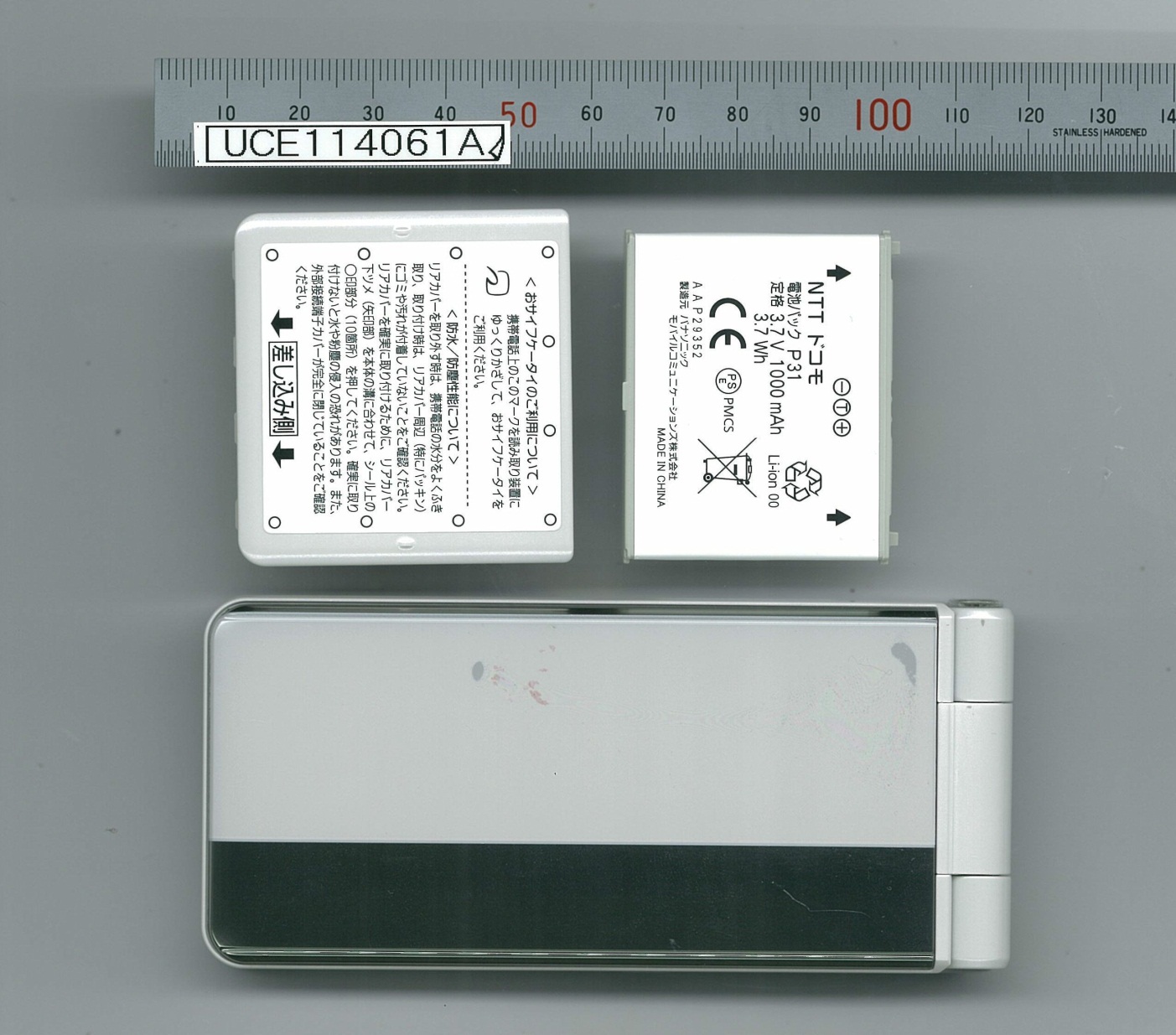

REPORT NO: UL- SAR-RP10363939JD07 V3.0 Issue Date: 10 September 2014 Page 43 of 68 UL Verification Services Ltd. Report. No.:3.0 This report shall not be reproduced except in full, without the written approval of UL Verification Services Ltd. Appendix 4. Photographs This appendix contains the following photographs: Photo Reference Number Title PHT/10363939JD07A/001 Test configuration for the measurement of Specific Absorption Rate (SAR) PHT/10363939JD07A/002 Touch Left PHT/10363939JD07A/003 Tilt Left PHT/10363939JD07A/004 Touch Right PHT/10363939JD07A/005 Tilt Right PHT/10363939JD07A/006 Front of EUT Facing Phantom Closed PHT/10363939JD07A/007 Front of EUT Facing Phantom Open PHT/10363939JD07A/008 Back of EUT Facing Phantom Closed PHT/10363939JD07A/009 Back of EUT Facing Phantom Open PHT/10363939JD07A/010 Front View of EUT Closed PHT/10363939JD07A/011 Front View of EUT Open PHT/10363939JD07A/012 Back View of EUT Closed PHT/10363939JD07A/013 Back View of EUT Open PHT/10363939JD07A/014 Front View of Conducted Sample PHT/10363939JD07A/015 Internal View of EUT PHT/10363939JD07A/016 Battery View PHT/10363939JD07A/017 Dummy Battery View PHT/10363939JD07A/018 850/900 Head Fluid Level PHT/10363939JD07A/019 850/900 Body Fluid Level REPORT NO: UL- SAR-RP10363939JD07 V3.0 Issue Date: 10 September 2014 Page 44 of 68 UL Verification Services Ltd. Report. No.:3.0 This report shall not be reproduced except in full, without the written approval of UL Verification Services Ltd. PHT/10363939JD07A/001: Test configuration for the measurement of Specific Absorption Rate (SAR) REPORT NO: UL- SAR-RP10363939JD07 V3.0 Issue Date: 10 September 2014 Page 45 of 68 UL Verification Services Ltd. Report. No.:3.0 This report shall not be reproduced except in full, without the written approval of UL Verification Services Ltd. PHT/10363939JD07A/002: Touch Left REPORT NO: UL- SAR-RP10363939JD07 V3.0 Issue Date: 10 September 2014 Page 46 of 68 UL Verification Services Ltd. Report. No.:3.0 This report shall not be reproduced except in full, without the written approval of UL Verification Services Ltd. PHT/10363939JD07A/003: Tilt Left REPORT NO: UL- SAR-RP10363939JD07 V3.0 Issue Date: 10 September 2014 Page 47 of 68 UL Verification Services Ltd. Report. No.:3.0 This report shall not be reproduced except in full, without the written approval of UL Verification Services Ltd. PHT/10363939JD07A/004: Touch Right REPORT NO: UL- SAR-RP10363939JD07 V3.0 Issue Date: 10 September 2014 Page 48 of 68 UL Verification Services Ltd. Report. No.:3.0 This report shall not be reproduced except in full, without the written approval of UL Verification Services Ltd. PHT/10363939JD07A/005: Tilt Right REPORT NO: UL- SAR-RP10363939JD07 V3.0 Issue Date: 10 September 2014 Page 49 of 68 UL Verification Services Ltd. Report. No.:3.0 This report shall not be reproduced except in full, without the written approval of UL Verification Services Ltd. PHT/10363939JD07A/006: Front of EUT Facing Phantom Closed REPORT NO: UL- SAR-RP10363939JD07 V3.0 Issue Date: 10 September 2014 Page 50 of 68 UL Verification Services Ltd. Report. No.:3.0 This report shall not be reproduced except in full, without the written approval of UL Verification Services Ltd. PHT/10363939JD07A/007: Front of EUT Facing Phantom Open REPORT NO: UL- SAR-RP10363939JD07 V3.0 Issue Date: 10 September 2014 Page 51 of 68 UL Verification Services Ltd. Report. No.:3.0 This report shall not be reproduced except in full, without the written approval of UL Verification Services Ltd. PHT/10363939JD07A/008: Back of EUT Facing Phantom Closed REPORT N…
