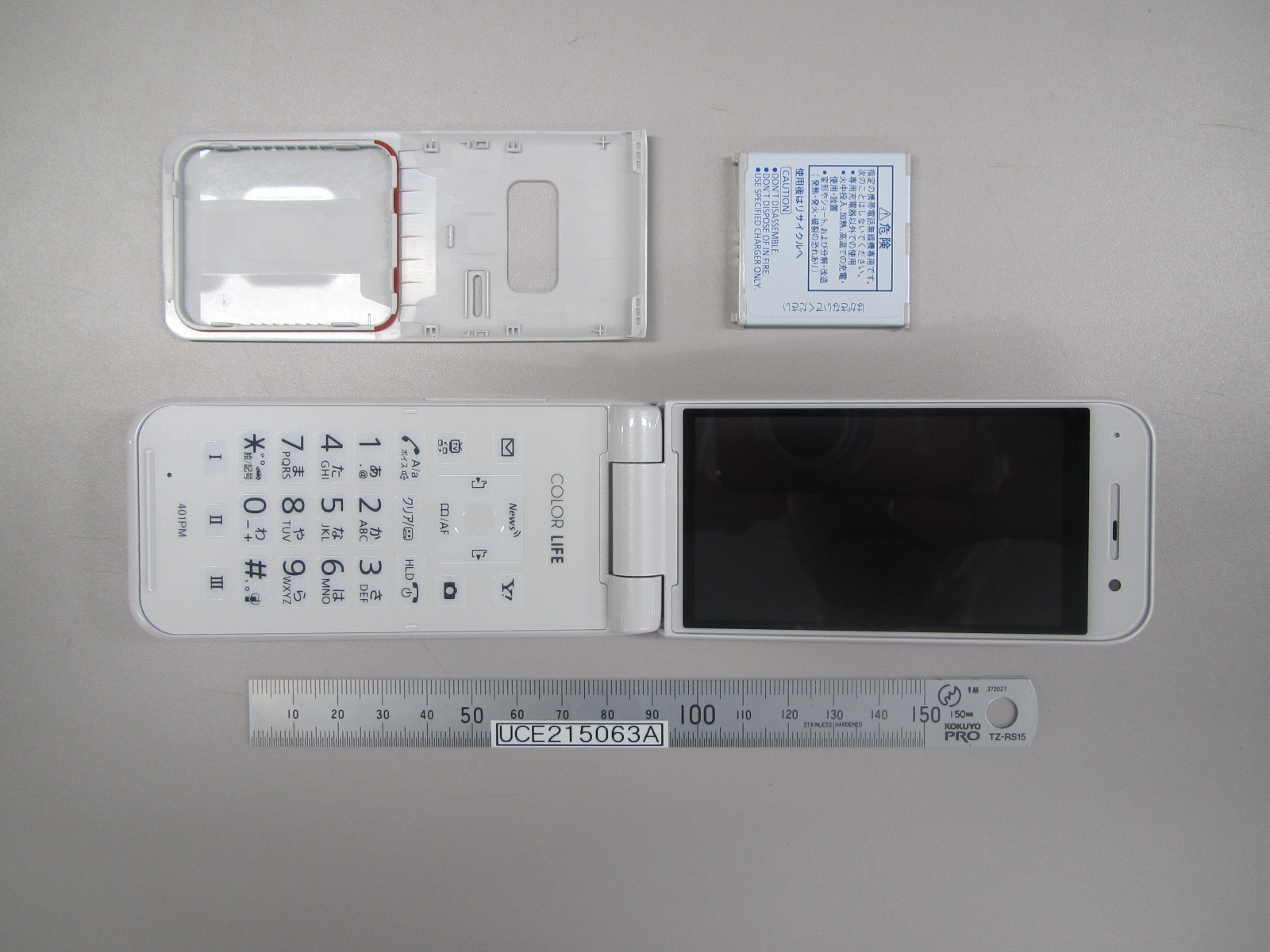

UCE215063ADual Mode GSM/ UMTS Mobile Phone with Bluetooth

User Guide Introduction Thank.you.for.purchasing.COLOR.LIFE.5. ◦  Read.this.guide.thoroughly.beforehand.for.proper.usage. ◦ Accessible .services.may.vary.by.service.area, . subscription, . etc. COLOR.LIFE.5.is.compatible.with.both.3G.and.GSM.network.technologies. Note ◦  Unauthorized.copying.of.any.part.of.this.guide.is.prohibited. ◦  Guide.content.is.subject.to.change.without.prior.notice. ◦ Efforts .have.been.made.to.ensure.the.accuracy.and.clarity.of.this.guide. . Please.contact.SoftBank.Customer. Support,. General.Information.( Z P.9-24).about.unclear.or.missing.information. Getting.Started Package.Contents.............................................1-1 Using. This .Guide...............................................1-1 USIM.Card.Installation.....................................1-3 Charging.Battery..............................................1-4 microSD.Card.Installation................................1-5 Parts.&.Functions..............................................1-6 Basic .Operations...............................................1-8 Display............................................................1-10 Handset.Menus...............................................1-12 Handset.Security............................................1-14 Mobile.Manners.............................................1-15 Text.Entry Entering.Text.....................................................2-1 Editing. T ext.......................................................2-4 Calling Emergency.Calls...............................................3-1 Voice.Calls........................................................3-1 Video.Calls........................................................3-2 International .Calls............................................3-3 Answer.Phone..................................................3-5 Optional.Services.............................................3-6 Phone .Book......................................................3-9 Messaging Basics................................................................4-1 Customizing.Handset. Addr ess..........................4-2 Sending.S!.Mail.&.SMS.....................................4-3 Receiving.Messages.........................................4-4 PC.Mail.............................................................4-6 Internet Getting.Started................................................5-1 Accessing.Internet............................................5-2 Bookmarks.&.Saved.Pages...............................5-3 Internet.Settings..............................................5-4 Connectivity Infrared.............................................................6-1 Bluetooth ® ........................................................6-3 External.Devices...............................................6-5 Camera Before.Using.Camera........................................7-1 Taking.Photos...................................................7-4 Recording. Videos ..............................................7-4 Camera .Functions.............................................7-5 Other.Functions Digital.TV..........................................................8-1 Media.Player....................................................8-4 Appendix Handset.Data.Backup.......................................9-1 Software.Update..............................................9-2 Troubleshooting................................................9-3 Safety.Precautions............................................9-5 Handling.Precautions.....................................9-13 Copyrights......................................................9-16 RF .Exposure.Information/. Specific.Absorption.Rate.(SAR).Information....9-19 Waterproofing/Dustproofing..........................9-21 Specifications.................................................9-24 Support...........................................................9-24 Contents 1-1 Package Contents  Handset.(COLOR.LIFE.5)  Battery.(PMBBH2)  クイックスタート . (Japanese)  お願いとご注意 .(Japanese)  保証書 . (Japanese) Note ⿟ Use SoftBank Mobile specified AC Charger (sold separately) to charge Battery. ⿟ For more information about AC Charger and accessories, please contact SoftBank Customer Support, General Information ( Z P.9-24). ⿟ COLOR LIFE 5 accepts microSD or microSDHC Card (not included). Purchase one to use related functions ( Z P.1-5, P.9-1). Using This Guide Before.reading.on,.please.make.note.of.the.following: ⿟ COLOR LIFE 5 is referred to as "handset." ⿟ "401PM" refers to this handset "COLOR LIFE 5." ⿟ "microSD Card" and "microSDHC Card" are referred to as "microSD Card." ⿟ Screenshots, etc. are for reference. Actual handset windows, menus, etc. may differ. ⿟ Key icons are simplified. ⿟ Most operation descriptions begin in Standby. ⿟ Pressing a Key for more than one second is described as "Press and Hold." Getting.Started 1-2 Getting.Started Guide.Symbols Softkeys Press.the.corresponding.Key.to.execute.the.function.or.operation. indicated .at.the.bottom.of.Display. Example: Multi.Selector Use.Multi.Selector.to.select.items,.navigate.menus,.etc..In.this. guide , . Multi.Selector.operations.are.indicated.as.shown.below. >z Up ?z Up/Down Xz . Up/Down/ Left/Right Cz Down Vz Left <z Left/Right *z Center Nz Right LeftRight Up DownCenter Japanese.Functions.&.Services When."(Japanese)".appears.in.a.title,.Japanese.ability.is.required. to .use.full.range.of.the.function.or.service. 1-3 Getting.Started USIM Card Installation ⿟ Always power off handset before removing Battery. (Removing Battery Cover: Z P.9-21/Removing Battery: Z P.1-4) ⿟ USIM PINs: Z P.1-14 Inserting 1 With IC chip down, insert USIM Card Removing 1 Slide out USIM Card gently Notch Important ⿟ USIM Card is the property of SoftBank Mobile. ⿟ Return USIM Card to SoftBank Mobile upon service cancellation. ⿟ USIM Card will be reissued for a fee if lost or damaged. ⿟ If USIM Card/handset with USIM Card installed is lost or stolen, contact SoftBank Customer Support or Sof…

Text truncated - open the document above for the full version.

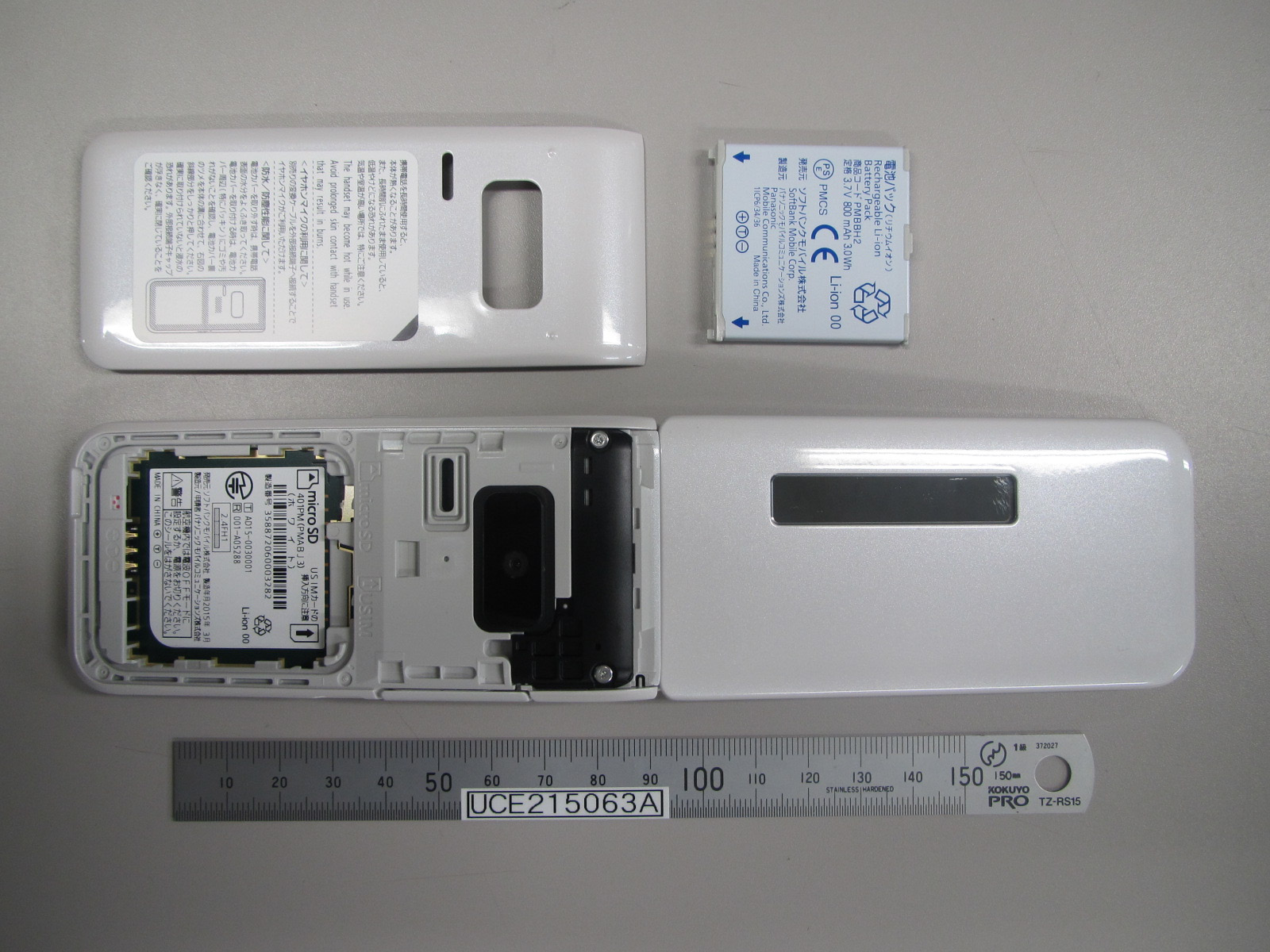

4 0 1 P M F C C I D L a b e l a n d L o c a t i o n - F C C I D l a b e l B a t t e r y A r e a : B a t t e r y i s p l a c e d i n r e a r s i d e o f t h e p h o n e L a b e l A r e a : T h i s o u t l i n e d r a w i n g s h o w s t h e l a b e l i n p o s i t i o n w i t h i n t h e b a t t e r y c o m p a r t m e n t . T h e l a b e l i s v i s i b l e t o t h e u s e r a t t h e p o i n t o f s a l e p r i o r t o f i t t i n g t h e U S I M , b a t t e r y p a c k a n d c o v e r ( R e a r V i e w ) - L a b e l L o c a t i o n ① O p e r a t o r N a m e ② M o d e l N a m e ③ I D f o r J A T E ④ I D f o r T E L E C ⑤ P r o d u c t i o n Y e a r & M o n t h ⑥ B a r C o d e o f I M E I ⑦ I M E I ( P r o d u c t i o n S e r i a l N u m b e r ） F C C I D : U C E 2 1 5 0 6 3 A ① ② ③ ④ ⑤ ⑥ ⑦

KDB 865664 D01 SAR Measurement 100MHz to 6GHz FCC 47 CFR part 2 (2.1093) SAR EVALUATION REPORT For Panasonic FCC ID: UCE215063A Model: 401PM Report Number UL-SAR-RP10640830JD04A V3.0 ISSUE DATE: 09 April 2015 Prepared for PANASONIC MOBILE COMMUNICATIONS DEVELOPMENT OF EUROPE LTD PANASONIC HOUSE WILLOUGHBY ROAD BRACKNELL BERKSHIRE RG12 8FP UNITED KINGDOM Prepared by UL VERIFICATION SERVICES LTD PAVILION A, ASHWOOD PARK, ASHWOOD WAY BASINGSTOKE, HAMPSHIRE, RG23 8BG, UK TEL: +44 (0) 1256 312000 FAX: +44 (0) 1256 312001 REPORT NO: UL-SAR-RP10640830JD04A V3.0 Issue Date:09 April 2015 Page 2 of 67 UL Verification Services Ltd. Report. No.: 3.0 This report shall not be reproduced except in full, without the written approval of UL Verification Services Ltd. REVISION HISTORY Rev. Issue Date Revisions Revised By -- 10 March 2015 Initial Issue -- 1 11 March 2015 The following amendments are made in the report: 1. Re-test was performed on Body-worn test at 10mm and new results are included in Section 10 2. Simultaneous Transmission was re-evaluated and tables amended in Section 11 3. Attestation of test results updated with values obtained after retest Sandhya Menon 2 09 April 2015 The following amendments are made in the report 1. The following note is included in Section 7.2: ‘10mm represents the minimum separation distance achieved with typical available carry accessories to be used with the handset, as advised by the manufacturer ‘ Sandhya Menon REPORT NO: UL-SAR-RP10640830JD04A V3.0 Issue Date:09 April 2015 Page 3 of 67 UL Verification Services Ltd. Report. No.: 3.0 This report shall not be reproduced except in full, without the written approval of UL Verification Services Ltd. 1. Attestation of Test Results ............................................................................................................... 4 2. Test Specification, Methods and Procedures ................................................................................. 5 2.1. Test Specification 5 2.2. Methods and Procedures Reference Documentation 5 2.3. Definition of Measurement Equipment 5 3. Facilities and Accreditation .............................................................................................................. 6 4. SAR Measurement System & Test Equipment ................................................................................ 7 4.1. SAR Measurement System 7 4.2. SAR Measurement Procedure 8 4.3. Volumetric Scan Procedure 10 4.4. Test Equipment 11 4.5. SAR System Specifications 12 5. Measurement Uncertainty ............................................................................................................... 13 5.1. Uncertainty - PCS 1900 Head Configuration 1g 14 5.2. Uncertainty - PCS Body Configuration 1g 15 6. Equipment Under Test (EUT) .......................................................................................................... 16 6.1. Identification of Equipment Under Test (EUT) 16 6.2. Wireless Technologies 17 6.3. Nominal and Maximum Output Power 17 6.4. Simultaneous Transmission Conditions 17 6.5. Additional Information Related to Testing 18 7. RF Exposure Conditions (Test Configurations) ............................................................................ 19 7.1. Head 19 7.2. Body-worn Accessory 19 8. Conducted Output Power Measurements ...................................................................................... 20 8.1. RF Output Average Power Measurement: GSM 20 9. Dielectric Property Measurements & System Check .................................................................... 21 9.1. Tissue Dielectric Parameters 21 9.2. System Check 22 9.3. Reference Target SAR Values 22 9.4. Dielectric Property Measurements & System Check Results 23 10. Measured SAR Results .................................................................................................................. 24 10.1. Specific Absorption Rate - Test Results 25 10.2. Bluetooth 26 11. Simultaneous Transmission SAR Analysis ................................................................................. 27 11.1. Simultaneous Transmission SAR Analysis 28 11.2. Simultaneous consideration for GSM + BT 28 Appendixes ........................................................................................................................................... 29 A.1. Photos 29 A.2. Antenna Locations 48 A.3. System Check Test Plots 49 A.4. SAR Test Plots 52 A.5. Calibration Certificate for E-Field Probe 65 A.6. Calibration Certificate for Dipole 66 A.7. Tissues-Equivalent Media Recipes 67 TABLE OF CONTENTS REPORT NO: UL-SAR-RP10640830JD04A V3.0 Issue Date:09 April 2015 Page 4 of 67 UL Verification Services Ltd. Report. No.: 3.0 This report shall not be reproduced except in full, without the written approval of UL Verification Services Ltd. 1. Attestation of Test Results Applicant Name: Panasonic Mobile Communications Development of Europe Ltd Application Purpose Original Grant DUT Description Dual Mode GSM/UTRA Mobile Phone with Bluetooth Test Device is An identical prototype Device category Portable Exposure Category General Population/Uncontrolled Exposure (1g SAR limit: 1.6 W/kg) Date Tested 02 March 2015 to 10 March 2015 The highest reported SAR values RF Exposure Conditions Licensed DSS Head 0.714 W/kg N/A Body-worn 0.713 W/kg 0.033 W/kg Simultaneous Transmission 0.746 W/kg 0.746 W/kg Applicable Standards FCC 47 CFR part 2 (2.1093) Published RF Exposure KDB Procedures IEEE Std 1528-2013 Test Results Pass UL Verification Services Ltd. tested the above equipment in accordance with the requirements set forth in the above standards. All indications of Pass/Fail in this report are opinions expressed by UL Verification Services Ltd. based on interpretations and/or observations of test results. Measurement Uncertainties are in accordance with the above standard and are published for informational purposes only. The test results show that the equipment tested is capable of demonstrating comp…

Text truncated - open the document above for the full version.

REPORT NO: UL-SAR-RP10640830JD04A V3.0 Issue Date:09 April 2015 Page 49 of 67 UL Verification Services Ltd. Report. No.: 3.0 This report shall not be reproduced except in full, without the written approval of UL Verification Services Ltd. A.3. System Check Test Plots This appendix contains the following SAR distribution scans. Scan Reference Number Title 001 System Performance Check 1900MHz Head 02 03 15 002 System Performance Check 1900MHz Body 10 03 15 REPORT NO: UL-SAR-RP10640830JD04A V3.0 Issue Date:09 April 2015 Page 50 of 67 UL Verification Services Ltd. Report. No.: 3.0 This report shall not be reproduced except in full, without the written approval of UL Verification Services Ltd. 001: System Performance Check 1900MHz Head 02 03 15 Date: 2/3/2015 DUT: Dipole 1900 MHz D1900V2; Type: D1900V2; Serial: D1900V2 - SN:540 0 dB = 11.4 W/kg = 10.58 dBW/kg Communication System: UID 0, CW (0); Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: 1900 MHz HSL Medium parameters used: f = 1900 MHz; σ = 1.43 S/m; ε r = 38.814; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: - Probe: ET3DV6 - SN1528; ConvF(5.19, 5.19, 5.19); Calibrated: 16/4/2014; - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1438; Calibrated: 12/5/2014 - Phantom: SAM (30deg probe tilt) with CRP v5.0; Type: QD000P40CD; Serial: TP:1836 - ; SEMCAD X Version 14.6.10 (7331) SAR/d=15mm, Pin=250 mW, dist=10.0mm (ET-Probe)/Area Scan (61x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 11.4 W/kg SAR/d=15mm, Pin=250 mW, dist=10.0mm (ET-Probe)/Zoom Scan (5x5x7) (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 92.52 V/m; Power Drift = 0.02 dB Peak SAR (extrapolated) = 16.9 W/kg SAR(1 g) = 9.78 W/kg; SAR(10 g) = 5.2 W/kg Maximum value of SAR (measured) = 10.9 W/kg REPORT NO: UL-SAR-RP10640830JD04A V3.0 Issue Date:09 April 2015 Page 51 of 67 UL Verification Services Ltd. Report. No.: 3.0 This report shall not be reproduced except in full, without the written approval of UL Verification Services Ltd. 002: System Performance Check 1900MHz Body 10 03 15 Date: 10/3/2015 DUT: Dipole 1900 MHz; Type: D1900V2; Serial: SN540 0 dB = 11.7 W/kg = 10.67 dBW/kg Communication System: UID 0, CW (0); Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: 1900 MHz MSL Medium parameters used: f = 1900 MHz; σ = 1.553 S/m; εr = 52.358; ρ = 1000 kg/m3 Phantom section: Flat Section DASY4 Configuration: - Probe: ET3DV6 - SN1528; ConvF(4.76, 4.76, 4.76); Calibrated: 16/4/2014; - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1438; Calibrated: 12/5/2014 - Phantom: SAM (30deg probe tilt) with CRP v5.0; Type: QD000P40CD; Serial: TP:1836 - ; SEMCAD X Version 14.6.10 (7331) SAR/d=15mm, Pin=250 mW, dist=10.0mm (ET-Probe) 2/Area Scan (61x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 11.7 W/kg SAR/d=15mm, Pin=250 mW, dist=10.0mm (ET-Probe) 2/Zoom Scan (5x5x7) (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 91.90 V/m; Power Drift = 0.07 dB Peak SAR (extrapolated) = 16.1 W/kg SAR(1 g) = 9.87 W/kg; SAR(10 g) = 5.35 W/kg Maximum value of SAR (measured) = 11.0 W/kg REPORT NO: UL-SAR-RP10640830JD04A V3.0 Issue Date:09 April 2015 Page 52 of 67 UL Verification Services Ltd. Report. No.: 3.0 This report shall not be reproduced except in full, without the written approval of UL Verification Services Ltd. A.4. SAR Test Plots This appendix contains the following system validation distribution scans. Scan Reference Number Title 001 Touch Left PCS 1900 CH661 002 Tilt Left PCS 1900 CH661 003 Touch Right PCS 1900 CH661 004 Touch Right PCS 1900 CH661 005 Front Open of EUT Facing Phantom GPRS 1900 2Tx CH661 006 Back Open of EUT Facing Phantom GPRS 1900 2Tx CH661 007 Front Closed of EUT Facing Phantom GPRS 1900 2Tx CH661 008 Back Closed of EUT Facing Phantom GPRS 1900 2Tx CH661 009 Front Open of EUT Facing Phantom PCS 1900 CH661 010 Back Open of EUT Facing Phantom PCS 1900 CH661 011 Front Closed of EUT Facing Phantom PCS 1900 CH661 012 Back Closed of EUT Facing Phantom PCS 1900 CH661 REPORT NO: UL-SAR-RP10640830JD04A V3.0 Issue Date:09 April 2015 Page 53 of 67 UL Verification Services Ltd. Report. No.: 3.0 This report shall not be reproduced except in full, without the written approval of UL Verification Services Ltd. 001: Touch Left PCS 1900 CH661 Date: 2/3/2015 DUT: Panasonic; Type: 401PM; Serial: 004401221425016 0 dB = 0.494 W/kg = -3.06 dBW/kg Communication System: UID 0, Generic GSM (0); Frequency: 1880 MHz;Duty Cycle: 1:8.30042 Medium: 1900 MHz HSL Medium parameters used (interpolated): f = 1880 MHz; σ = 1.411 S/m; ε r = 38.905; ρ = 1000 kg/m 3 Phantom section: Left Section DASY4 Configuration: - Probe: ET3DV6 - SN1528; ConvF(5.19, 5.19, 5.19); Calibrated: 16/4/2014; - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1438; Calibrated: 12/5/2014 - Phantom: SAM (30deg probe tilt) with CRP v5.0; Type: QD000P40CD; Serial: TP:1836 - ; SEMCAD X Version 14.6.10 (7331) Configuration/Touch Left - Middle/Area Scan (61x161x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.536 W/kg Configuration/Touch Left - Middle/Zoom Scan (5x5x7) (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 15.97 V/m; Power Drift = 0.01 dB Peak SAR (extrapolated) = 0.683 W/kg SAR(1 g) = 0.453 W/kg; SAR(10 g) = 0.277 W/kg Maximum value of SAR (measured) = 0.494 W/kg REPORT NO: UL-SAR-RP10640830JD04A V3.0 Issue Date:09 April 2015 Page 54 of 67 UL Verification Services Ltd. Report. No.: 3.0 This report shall not be reproduced except in full, without the written approval of UL Verification Services Ltd. 002: Tilt Left PCS 1900 CH661 Date: 2/3/2015 DUT: Panasonic; Type: 401PM; Serial: 004401221425016 0 dB = 0.343 W/kg = -4.65 dBW/kg Communication System: UID 0, Generic GSM (0); Frequency: 1880 MHz;Duty Cycle: 1:8.30042 Medium: 1900 MHz HSL Medium parameters…

Text truncated - open the document above for the full version.

UL VS LTD Pavilion A, Ashwood Park, Ashwood Way, Basingstoke, Hampshire, RG23 8BG, UK Telephone: +44 (0)1256 312000 Facsimile: +44 (0)1256 312001 TEST REPORT Test Report No. : UL-RPT-RP10640830JD03A Manufacturer : Panasonic Mobile Communications Development of Europe Ltd Model No. : SoftBank 401PM FCC ID : UCE215063A Technology : Bluetooth – Basic Rate & EDR Test Standard(s) : FCC Parts 15.207, 15.209(a) & 15.247 1. This test report shall not be reproduced in full or partial, without the written approval of UL VS LTD. 2. The results in this report apply only to the sample(s) tested. 3. The sample tested is in compliance with the above standard(s). 4. The test results in this report are traceable to the national or international standards. 5. Version 1.0 Date of Issue: 20 March 2015 Checked by: Sarah Williams Engineer, Radio Laboratory Issued by : pp John Newell Quality Manager, UL VS LTD This laboratory is accredited by UKAS. The tests reported herein have been performed in accordance with its’ terms of accreditation. The Bluetooth ® word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by UL VS LTD is under licence. Other trademarks and trade names are those of their respective owners. TEST REPORT SERIAL NO: UL-RPT-RP10640830JD03A VERSION NO. 1.0 ISSUE DATE: 20 MARCH 2015 Page 2 of 44 UL VS LTD This page has been left intentionally blank. TEST REPORT SERIAL NO: UL-RPT-RP10640830JD03A VERSION NO. 1.0 ISSUE DATE: 20 MARCH 2015 UL VS LTD Page 3 of 44 Table of Contents 1. Customer Information ................................................................................................................ 4 2. Summary of Testing ................................................................................................................... 5 2.1. General Information 5 2.2. Summary of Test Results 5 2.3. Methods and Procedures 5 2.4. Deviations from the Test Specification 5 3. Equipment Under Test (EUT) .................................................................................................... 6 3.1. Identification of Equipment Under Test (EUT) 6 3.2. Description of EUT 6 3.3. Modifications Incorporated in the EUT 7 3.4. Additional Information Related to Testing 7 3.5. Support Equipment 7 4. Operation and Monitoring of the EUT during Testing ............................................................. 8 4.1. Operating Modes 8 4.2. Configuration and Peripherals 8 5. Measurements, Examinations and Derived Results ................................................................ 9 5.1. General Comments 9 5.2. Test Results 10 5.2.1. Transmitter AC Conducted Spurious Emissions 10 5.2.2. Transmitter 20 dB Bandwidth 13 5.2.3. Transmitter Carrier Frequency Separation 18 5.2.4. Transmitter Number of Hopping Frequencies and Average Time of Occupancy 21 5.2.5. Transmitter Maximum Peak Output Power 23 5.2.6. Transmitter Radiated Emissions 30 5.2.7. Transmitter Band Edge Radiated Emissions 35 6. Measurement Uncertainty ........................................................................................................43 7. Report Revision History ...........................................................................................................44 TEST REPORT SERIAL NO: UL-RPT-RP10640830JD03A VERSION NO. 1.0 ISSUE DATE: 20 MARCH 2015 Page 4 of 44 UL VS LTD 1. Customer Information Company Name: Panasonic Mobile Communications Development of Europe Ltd Address: Panasonic House Willoughby Road Bracknell Berkshire RG12 8FP United Kingdom TEST REPORT SERIAL NO: UL-RPT-RP10640830JD03A VERSION NO. 1.0 ISSUE DATE: 20 MARCH 2015 UL VS LTD Page 5 of 44 2. Summary of Testing 2.1. General Information Specification Reference: 47CFR15.247 Specification Title: Code of Federal Regulations Volume 47 (Telecommunications): Part 15 Subpart C (Intentional Radiators) - Section 15.247 Specification Reference: 47CFR15.207 and 47CFR15.209 Specification Title: Code of Federal Regulations Volume 47 (Telecommunications): Part 15 Subpart C (Intentional Radiators) - Sections 15.207 and 15.209 Site Registration: FCC: 209735 Location of Testing: UL VS LTD, Unit 3 Horizon, Wade Road, Kingsland Business Park, Basingstoke, Hampshire, RG24 8AH, United Kingdom Test Dates: 06 March 2015 to 10 March 2015 2.2. Summary of Test Results FCC Reference (47CFR) Measurement Result Part 15.207 Transmitter AC Conducted Emissions Part 15.247(a)(1) Transmitter 20 dB Bandwidth Part 15.247(a)(1) Transmitter Carrier Frequency Separation Part 15.247(a)(1)(iii) Transmitter Number of Hopping Frequencies and Average Time of Occupancy Part 15.247(b)(1) Transmitter Maximum Peak Output Power Part 15.247(d) & 15.209(a) Transmitter Radiated Emissions Part 15.247(d) & 15.209(a) Transmitter Band Edge Radiated Emissions Key to Results = Complied = Did not comply 2.3. Methods and Procedures Reference: ANSI C63.4 (2009) Title: American National Standard for Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz Reference: ANSI C63.10 (2009) Title: American National Standard for Testing Unlicensed Wireless Devices 2.4. Deviations from the Test Specification For the measurements contained within this test report, there were no deviations from, additions to, or exclusions from the test specification identified above. TEST REPORT SERIAL NO: UL-RPT-RP10640830JD03A VERSION NO. 1.0 ISSUE DATE: 20 MARCH 2015 Page 6 of 44 UL VS LTD 3. Equipment Under Test (EUT) 3.1. Identification of Equipment Under Test (EUT) Brand Name: SoftBank Model Name or Number: 401PM Test Sample IMEI: 004401221425149 (Radiated sample) Hardware Version Number: Rev C Software Version Number: ACPU: B-S51CS1-10.01.002 CCPU: S51CS1_Cv62010101 FCC ID: UCE215063A Brand Name: SoftBank Model Name or Number: 401PM Test Sample IMEI: 004401221425222 (Conducted sample with RF port) Hardware Version Number: Rev C Software Version Number: ACPU: B-S51CS1-10.01.002 CCPU: S51CS1_Cv62010101 FCC ID:…

Text truncated - open the document above for the full version.

Panasonic Mobile Comms Dev of Europe Ltd FCC ID: UCE215063A UL-RPT-10640830JD02A & JD03A UL VS LTD 1 Test Setup Photographs for the SoftBank 401PM Transmitter Radiated Emissions Photo 1 Photo 2 Panasonic Mobile Comms Dev of Europe Ltd FCC ID: UCE215063A UL-RPT-10640830JD02A & JD03A UL VS LTD 2 AC Conducted Emissions Photo 1 Photo 2

REPORT NO: UL-SAR-RP10640830JD04A V3.0 Issue Date:09 April 2015 Page 29 of 67 UL Verification Services Ltd. Report. No.: 3.0 This report shall not be reproduced except in full, without the written approval of UL Verification Services Ltd. Appendixes A.1. Photos This appendix contains the following photographs: Photo Reference Number Title 001 Test configuration for the measurement of Specific Absorption Rate (SAR) 002 Touch Left 003 Tilt Left 004 Touch Right 005 Tilt Right 006 Front of EUT Open at 10mm Facing Phantom 007 Front of EUT Closed at 10mm Facing Phantom 008 Back of EUT Open at 10mm Facing Phantom 009 Back of EUT Closed at 10mm Facing Phantom 010 Front View of EUT Closed 011 Back View of EUT Closed 012 Front View of EUT Open 013 Back View of EUT Open 014 Internal View of EUT 015 Personal Hands Free (PHF) Kit 016 Front View of Conducted Sample 017 Internal View of Conducted Sample 018 Dummy Battery of Conducted Sample REPORT NO: UL-SAR-RP10640830JD04A V3.0 Issue Date:09 April 2015 Page 30 of 67 UL Verification Services Ltd. Report. No.: 3.0 This report shall not be reproduced except in full, without the written approval of UL Verification Services Ltd. 001: Test configuration for the measurement of Specific Absorption Rate (SAR) REPORT NO: UL-SAR-RP10640830JD04A V3.0 Issue Date:09 April 2015 Page 31 of 67 UL Verification Services Ltd. Report. No.: 3.0 This report shall not be reproduced except in full, without the written approval of UL Verification Services Ltd. 002: Touch Left REPORT NO: UL-SAR-RP10640830JD04A V3.0 Issue Date:09 April 2015 Page 32 of 67 UL Verification Services Ltd. Report. No.: 3.0 This report shall not be reproduced except in full, without the written approval of UL Verification Services Ltd. 003: Tilt Left REPORT NO: UL-SAR-RP10640830JD04A V3.0 Issue Date:09 April 2015 Page 33 of 67 UL Verification Services Ltd. Report. No.: 3.0 This report shall not be reproduced except in full, without the written approval of UL Verification Services Ltd. 004: Touch Right REPORT NO: UL-SAR-RP10640830JD04A V3.0 Issue Date:09 April 2015 Page 34 of 67 UL Verification Services Ltd. Report. No.: 3.0 This report shall not be reproduced except in full, without the written approval of UL Verification Services Ltd. 005: Tilt Right REPORT NO: UL-SAR-RP10640830JD04A V3.0 Issue Date:09 April 2015 Page 35 of 67 UL Verification Services Ltd. Report. No.: 3.0 This report shall not be reproduced except in full, without the written approval of UL Verification Services Ltd. 006: Front Open of EUT at 10mm Facing Phantom 10 mm 10 mm REPORT NO: UL-SAR-RP10640830JD04A V3.0 Issue Date:09 April 2015 Page 36 of 67 UL Verification Services Ltd. Report. No.: 3.0 This report shall not be reproduced except in full, without the written approval of UL Verification Services Ltd. 007: Front of EUT Closed at 10mm Facing Phantom 10 mm REPORT NO: UL-SAR-RP10640830JD04A V3.0 Issue Date:09 April 2015 Page 37 of 67 UL Verification Services Ltd. Report. No.: 3.0 This report shall not be reproduced except in full, without the written approval of UL Verification Services Ltd. 008: Back of EUT Open at 10mm Facing Phantom 10 mm REPORT NO: UL-SAR-RP10640830JD04A V3.0 Issue Date:09 April 2015 Page 38 of 67 UL Verification Services Ltd. Report. No.: 3.0 This report shall not be reproduced except in full, without the written approval of UL Verification Services Ltd. 009: Back of EUT Closed at 10mm Facing Phantom 10 mm REPORT NO: UL-SAR-RP10640830JD04A V3.0 Issue Date:09 April 2015 Page 39 of 67 UL Verification Services Ltd. Report. No.: 3.0 This report shall not be reproduced except in full, without the written approval of UL Verification Services Ltd. 010: Front View of EUT Closed REPORT NO: UL-SAR-RP10640830JD04A V3.0 Issue Date:09 April 2015 Page 40 of 67 UL Verification Services Ltd. Report. No.: 3.0 This report shall not be reproduced except in full, without the written approval of UL Verification Services Ltd. 011: Back View of EUT Closed REPORT NO: UL-SAR-RP10640830JD04A V3.0 Issue Date:09 April 2015 Page 41 of 67 UL Verification Services Ltd. Report. No.: 3.0 This report shall not be reproduced except in full, without the written approval of UL Verification Services Ltd. 012: Front View of EUT Open REPORT NO: UL-SAR-RP10640830JD04A V3.0 Issue Date:09 April 2015 Page 42 of 67 UL Verification Services Ltd. Report. No.: 3.0 This report shall not be reproduced except in full, without the written approval of UL Verification Services Ltd. 013: Back View of EUT Open REPORT NO: UL-SAR-RP10640830JD04A V3.0 Issue Date:09 April 2015 Page 43 of 67 UL Verification Services Ltd. Report. No.: 3.0 This report shall not be reproduced except in full, without the written approval of UL Verification Services Ltd. 014: Internal View of EUT REPORT NO: UL-SAR-RP10640830JD04A V3.0 Issue Date:09 April 2015 Page 44 of 67 UL V…
