P-01H INSTRUCTION MANUAL ’15.11 Thank you for selecting the “P-01H”. Read this manual befor e use to correctly operate your P-01H. For Using This Manual ⿠Note that “P-01H” is referred to as “FOMA terminal” in this manual. ⿠Most operating procedures and displays in this manual are shown with the default settings of the “White” handset. Further, displays and illustrations shown in this manual ar e for reference. The actual ones might differ. ⿠P-01H Handset (With Warranty) ⿠Battery Pack P32 ⿠Instruction Manual (Japanese version) ⿠For optional items (option) that support this FOMA terminal, refer to DOCOMO website. ( https://www.nttdocomo.co.jp/product/option/ ) (In Japanese only) About manual of P-01H The operating procedures for the P-01H are also published as in “使いかたガイド (Guide)” on - screen manual installed onto your FOMA terminal, and “Instruction Manual (Detailed V ersion)” as a PDF . (In Japanese only) ◆ “Instruction Manual” (this manual)◆ Description of the displayed content and operating pr ocedures for basic functions ◆“使いかたガイド (Guide)” (installed onto your FOMA terminal)◆ Description of the outline and operations of frequently used functions From the P-01H m ▶ 便利ツール (Tool) ▶ 使いかたガイド (Guide) ※ This function is available in Japanese mode only. ◆“Instruction Manual (Detailed Version)” (PDF)◆ Fr om a PC, download detailed information about all the functions and the operating procedur es. (In Japanese only)( https://www.nttdocomo.co.jp/support/trouble/manual/ download/index.html) ※ Note that the URL and published contents may be modified without notice. Basic Package ⿠Desktop Holder P55 ⿠Back Cover P63 Online various procedures, the content confirmation of your contract, etc. From this FOMA terminal ｉMenu ▶ お客様サポート (User support) ▶ お申込・お手続き (Applications/Procedures) ▶ ドコモオンライン手続き (DOCOMO online pr ocedures) (Packet communication charges free) (In Japanese only) ※Accessing from overseas may incur charges. From PC My docomo (https://www.nttdocomo.co.jp/mydocomo/) ▶ Select an item in “ドコモオンライン手続き (DOCOMO online pr ocedures)” (In Japanese only) ●You may not be able to access the site due to system maintenance or depending on the details of your subscription. ●Your “Network Security Code” and “ID/password” is required in order to use “ド コモオンライン手続き (DOCOMO online procedures)”. For Loss, Theft, Malfunction, and Inquiries while Overseas (24 - hour Reception) ■From DOCOMO mobile phones International call access code for the country you stay -81-3-6832-6600* (toll free) * You are charged a call fee to Japan when calling from a land - line phone, etc. ※ If you use P-01H, you should dial the number +81 - 3 - 6832 - 660 0 (to enter ‘+ ’ , press and hold the ‘0 ’ key for at least one second). ■From land-line phones ＜Universal number＞ Universal number international prefix -8000120-0151* * You might be charged a domestic call fee according to the call rate for the country you stay. ※ For international call access codes for major countries and universal number international prefix, refer to the DOCOMO website. ●If you lose your FOMA terminal or have it stolen, immediately take the steps necessary for suspending the use of the FOMA termi nal. ●If the FOMA terminal you purchased is damaged, bring your FOMA terminal to a r epair counter specified by DOCOMO after returning to Japan. General Inquiries <docomo Information Center> Repairs 0120-005-250 (toll free) * Service available in English, Portuguese, Chinese, Spanish. * Unavailable from part of IP phones. (Business hours: 9:0 0 a.m. to 8:0 0 p.m.) ■From DOCOMO mobile phones (In Japanese only) (No prefix) 113 (toll free) * Unavailable from land-line phones, etc. ■From land-line phones (In Japanese only) 0120-800-000 (toll free) * Unavailable from part of IP phones. ■From DOCOMO mobile phones (In Japanese only) (No prefix) 151 (toll free) * Unavailable from land - line phones, etc. ■From land-line phones (In Japanese only) 0120-800-000 (toll free) * Unavailable from part of IP phones. (Business hours: 24 hours (open all year round)) (Business hours: 9:00 a.m. to 8:00 p.m. (open all year round)) ●Please confirm the phone number bef ore you dial. ●For Applications or Repairs and After - Sales Service, please contact the abo ve - mentioned information center or the docomo Shop etc. near you on the NTT DOCOMO website or the i - mode site. NTT DOCOMO website (https://www.nttdocomo.co.jp/english/) i-mode site ｉMenu ▶ お客様サポート (User support) ▶ ドコモショップ (docomo Shop) (In Japanese only) Don’t forget your mobile phone ... or your manners! When using your mobile phone in a public place, don’t forget to show common courtesy and consideration for others around you. Sales: Manufacturer: November ’ 15 (1st Edition) PXQP1 019ZA/J1 F1 015 - 0 1 ※It is prohibited to copy all or part of this manual without permission. ※The instructions contained in this manual may be changed without notice. Contents Introduction ▶ P.1～ FOMA Terminal ······························2 Part Names and Functions ············3 P recautions ····································5 Handling Precautions ··················13 Waterproof/Dust - proof Performance ···17 Basic Operation ▶ P.21～～ Before Using ·················································21 Screen Explanation ······································24 Character Entry ············································32 Sound/Scr een Setting ··································33 Lock/Security ················································37 Connect ▶ P.42～～ Call Telephone ··············································42 Mail ································································48 Phonebook ···················································51 Search ▶ P.52～～ i - mode/Full Browser ·····································52i - channel ·······················································54 Enjoy ▶ P.55～～ Camera ··························································55 1Seg ······························································57 Mus…

Text truncated - open the document above for the full version.

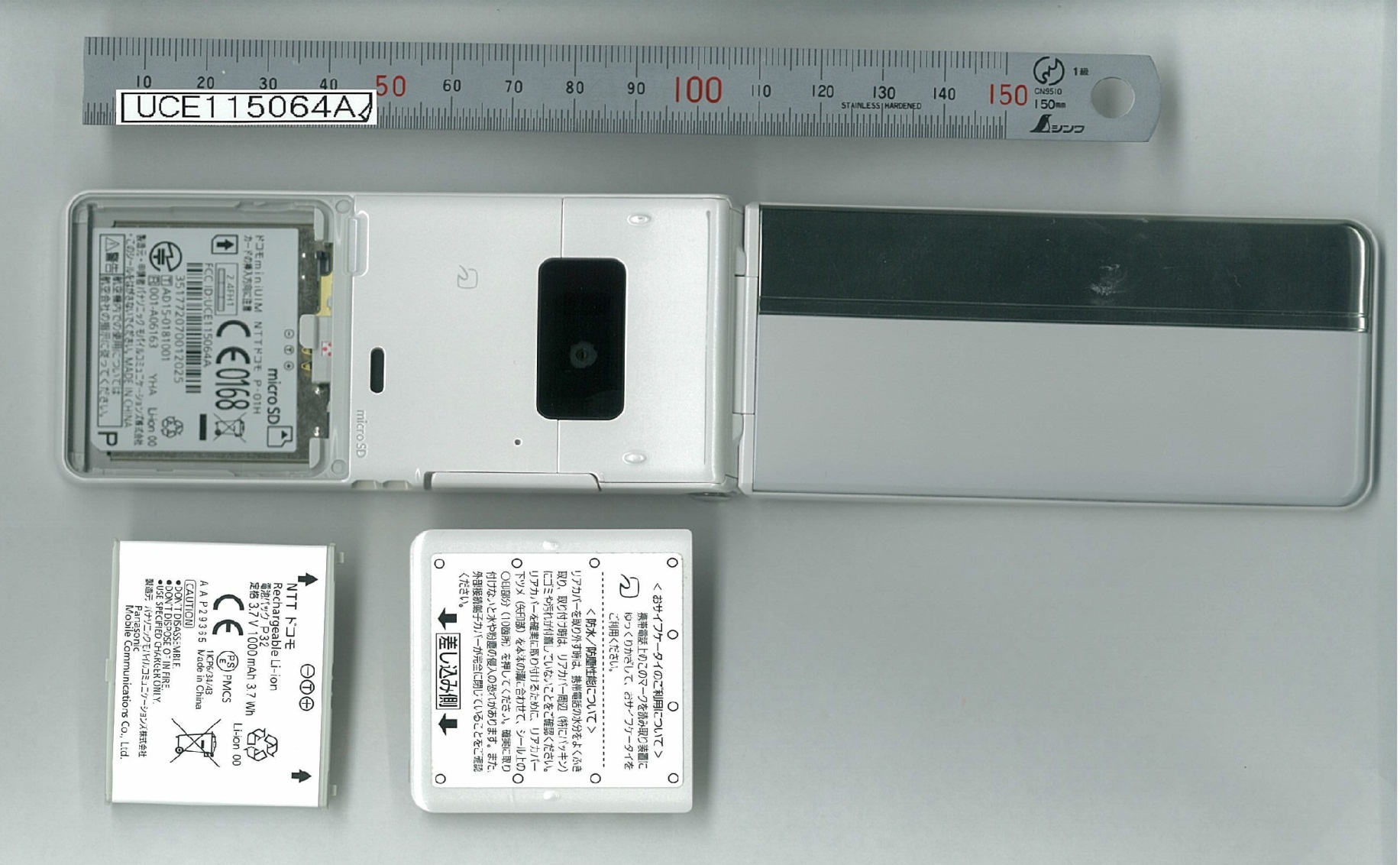

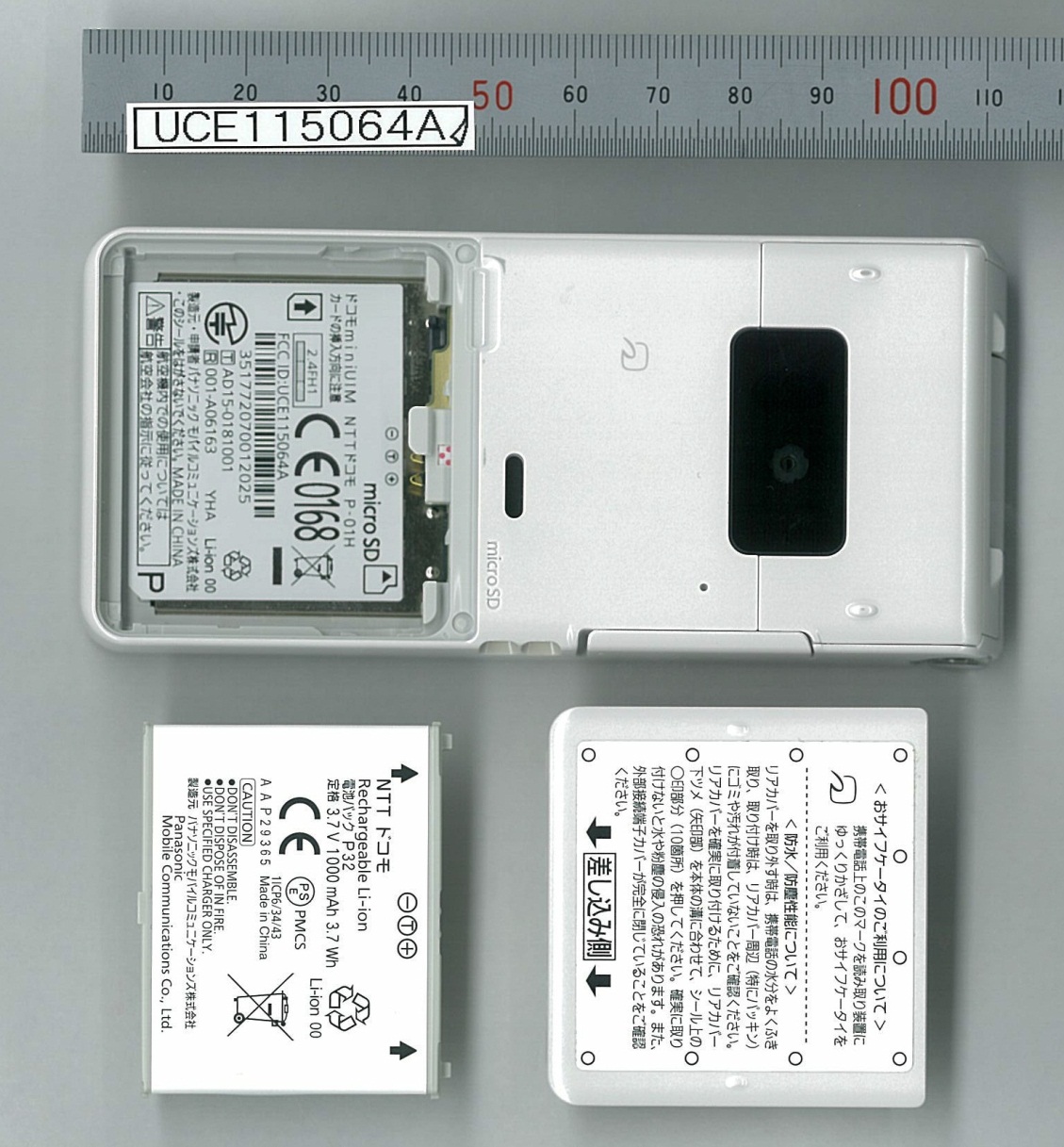

P PPP- ---01H 01H 01H 01H FCC ID Label and Location FCC ID Label and LocationFCC ID Label and LocationFCC ID Label and Location - --- FCC ID label FCC ID labelFCC ID labelFCC ID label Battery Area : Battery Area :Battery Area :Battery Area : Battery is placed in rear Battery is placed in rear Battery is placed in rear Battery is placed in rear side of the phone side of the phoneside of the phoneside of the phone Label Area : Label Area :Label Area :Label Area : This outline drawing This outline drawing This outline drawing This outline drawing shows the label in shows the label in shows the label in shows the label in position within the position within the position within the position within the battery compartment. battery compartment.battery compartment.battery compartment. The label is visible to the The label is visible to the The label is visible to the The label is visible to the user at the point of sale user at the point of sale user at the point of sale user at the point of sale prior to fitting the USIM, prior to fitting the USIM, prior to fitting the USIM, prior to fitting the USIM, battery pack and cover battery pack and coverbattery pack and coverbattery pack and cover (Rear View) (Rear View)(Rear View)(Rear View) - --- Label Label Label Label L LLL ocation ocationocationocation ① ①①① Operator OperatorOperatorOperator Name NameNameName ② ②②② Model Name Model NameModel NameModel Name ③ ③③③ ID for JATE ID for JATEID for JATEID for JATE ④ ④④④ ID for TELEC ID for TELECID for TELECID for TELEC ⑤ ⑤⑤⑤ Production Year & Month Production Year & MonthProduction Year & MonthProduction Year & Month ⑥ ⑥⑥⑥ Bar Code of IMEI Bar Code of IMEIBar Code of IMEIBar Code of IMEI ⑦ ⑦⑦⑦ IMEI(Production Serial Number IMEI(Production Serial NumberIMEI(Production Serial NumberIMEI(Production Serial Number） ））） FCC ID: UCE11 FCC ID: UCE11FCC ID: UCE11FCC ID: UCE115064 506450645064A AAA ① ①①① ② ②②② ③ ③③③ ④ ④④④ ⑤ ⑤⑤⑤ ⑥ ⑥⑥⑥ ⑦ ⑦⑦⑦ ¥

KDB 865664 D01 SAR Measurement 100MHz to 6GHz FCC 47 CFR part 2 (2.1093) SAR EVALUATION REPORT For Single Mode UTRA Mobile Phone with Bluetooth and RFID FCC ID: UCE115064A Model: P-01H Report Number UL-SAR-RP10833755JD09A V2.0 ISSUE DATE: 21 September 2015 Prepared for PANASONIC MOBILE COMMUNICATIONS DEVELOPMENT OF EUROPE LTD PANASONIC HOUSE WILLOUGHBY ROAD BRACKNELL BERKSHIRE RG12 8FP UNITED KINGDOM Prepared by UL VS LTD PAVILION A, ASHWOOD PARK, ASHWOOD WAY BASINGSTOKE, HAMPSHIRE, RG23 8BG, UK TEL: +44 (0) 1256 312000 FAX: +44 (0) 1256 312001 REPORT NO: UL-SAR-RP10833755JD09A V2.0 Issue Date:21 September 2015 Page 2 of 72 UL VS Ltd. Report. No.: 2.0 This report shall not be reproduced except in full, without the written approval of UL VS Ltd. REVISION HISTORY Rev. Issue Date Revisions Revised By -- 28 August 2015 Initial Issue -- 1 21 September 2014 The following amendments were made in the report: 1. Typo corrected in section 12.3 2. Typo corrected in section 10.1.2 3. Typo corrected in section 10.2 Sandhya Menon REPORT NO: UL-SAR-RP10833755JD09A V2.0 Issue Date:21 September 2015 Page 3 of 72 UL VS Ltd. Report. No.: 2.0 This report shall not be reproduced except in full, without the written approval of UL VS Ltd. 1. Attestation of Test Results .............................................................................................................. 4 2. Test Specification, Methods and Procedures ................................................................................ 5 2.1. Test Specification 5 2.2. Methods and Procedures Reference Documentation 5 2.3. Definition of Measurement Equipment 5 3. Facilities and Accreditation ............................................................................................................. 6 4. SAR Measurement System & Test Equipment ............................................................................... 7 4.1. SAR Measurement System 7 4.2. SAR Measurement Procedure 8 4.3. Volumetric Scan Procedure 10 4.4. Test Equipment 11 4.5. SAR System Specifications 12 5. Measurement Uncertainty ............................................................................................................. 13 5.1. Uncertainty – WCDMA 5 Head Configuration 1g 14 5.2. Uncertainty – WCDMA 5 Body Configuration 1g 15 6. Equipment Under Test (EUT) ........................................................................................................ 16 6.1. Identification of Equipment Under Test (EUT) 16 Support Equipment 16 6.2. Wireless Technologies 17 6.3. Nominal and Maximum Output Power 18 7. RF Exposure Conditions (Test Configurations) ........................................................................... 19 7.1. Head 19 7.2. Body-worn Accessory 19 8. Conducted Output Power Measurements .................................................................................... 20 8.1. RF Output Average Power Measurement: WCDMA 20 9. Dielectric Property Measurements & System Check ................................................................... 21 9.1. Tissue Dielectric Parameters 21 9.2. System Check 22 9.3. Reference Target SAR Values 22 9.4. Dielectric Property Measurements & System Check Results 23 10. Measured SAR Results ................................................................................................................ 24 10.1. Specific Absorption Rate - Test Results 25 10.2. Bluetooth 27 10.3. SAR Measurement Variability 28 11. Simultaneous Transmission SAR Analysis ................................................................................ 29 11.1. Simultaneous consideration for WWAN + WPAN 29 12. Appendixes .................................................................................................................................. 30 12.1. Photos and Ports Location 30 12.2. System Check Plots 50 12.3. SAR Test Plots 54 12.4. Calibration Certificate for E-Field Probe 70 12.5. Calibration Certificate for Dipole 71 12.6. Tissues-Equivalent Media Recipes 72 TABLE OF CONTENTS REPORT NO: UL-SAR-RP10833755JD09A V2.0 Issue Date:21 September 2015 Page 4 of 72 UL VS Ltd. Report. No.: 2.0 This report shall not be reproduced except in full, without the written approval of UL VS Ltd. 1. Attestation of Test Results Applicant Name: Panasonic Mobile Communications Development of Europe Ltd Application Purpose Original Grant FCC ID: UCE115064A DUT Description Single Mode UTRA Mobile Phone with Bluetooth and RFID Test Device is An identical prototype Device category Portable SAR Limits Exposure Category Peak Spatial-average (1g of tissue) General Population / Uncontrolled Exposure 1.6 W/kg The highest reported SAR RF Exposure Conditions Equipment Class Licensed DTS U-NII DSS Head 0.719 W/kg N/A N/A N/A Body-worn 1.452 W/kg N/A N/A N/A Simultaneous Transmission 1.485 W/kg N/A N/A 1.485 W/kg Applicable Standards FCC 47 CFR part 2 (2.1093) Published RF Exposure KDB Procedures IEEE Std 1528-2013 Date Tested 14 August 2015 to 27 August 2015 Test Results Pass UL VS Ltd. tested the above equipment in accordance with the requirements set forth in the above standards. All indications of Pass/Fail in this report are opinions expressed by UL VS Ltd. based on interpretations and/or observations of test results. Measurement Uncertainties are in accordance with the above standard and are published for informational purposes only. The test results show that the equipment tested is capable of demonstrating compliance with the requirements as documented in this report. Note: The results documented in this report apply only to the tested sample(s), under the conditions and modes of operation as described herein. This document may not be altered or revised in any way unless done so by UL VS Ltd. and all revisions are duly noted in the revisions section. Any alteration of this document not carried out by UL VS Ltd. will constitute fraud and shall nullify the document. This report must not be used by the client to claim product certification, appr…

Text truncated - open the document above for the full version.

REPORT NO: UL-SAR-RP10833755JD09A V2.0 Issue Date:21 September 2015 Page 50 of 72 UL VS Ltd. Report. No.: 2.0 This report shall not be reproduced except in full, without the written approval of UL VS Ltd. 12.2. System Check Plots This appendix contains the following system check distribution scans. Scan Reference Number Title 001 System Performance Check 900MHz Head 19 08 15 002 System Performance Check 900MHz Body 17 08 15 003 System Performance Check 900MHz Body 24 08 15 REPORT NO: UL-SAR-RP10833755JD09A V2.0 Issue Date:21 September 2015 Page 51 of 72 UL VS Ltd. Report. No.: 2.0 This report shall not be reproduced except in full, without the written approval of UL VS Ltd. 001: System Performance Check 900MHz Head 19 08 15 Date: 19/8/2015 DUT: Dipole 900 MHz D900V2; Type: D900V2; Serial: D900V2 - SN:035 0 dB = 2.87 W/kg = 4.58 dBW/kg Communication System: UID 0, CW; Frequency: 900 MHz;Duty Cycle: 1:1 Medium: 900 MHz HSL Medium parameters used: f = 900 MHz; σ = 0.952 S/m; ε r = 41.135; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: - Probe: ET3DV6 - SN1586; ConvF(6.17, 6.17, 6.17); Calibrated: 22/5/2015; - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1438; Calibrated: 29/4/2015 - Phantom: SAM A (30deg probe tilt) with CRP v5.0; Type: QD000P40CD; Serial: TP:1836 - ; SEMCAD X Version 14.6.10 (7331) SAR/d=15mm, Pin=250 mW, dist=10.0mm (ET-Probe) 2/Area Scan (61x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 2.87 W/kg SAR/d=15mm, Pin=250 mW, dist=10.0mm (ET-Probe) 2/Zoom Scan (5x5x7) (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 57.71 V/m; Power Drift = -0.01 dB Peak SAR (extrapolated) = 3.60 W/kg SAR(1 g) = 2.62 W/kg; SAR(10 g) = 1.73 W/kg Maximum value of SAR (measured) = 2.84 W/kg REPORT NO: UL-SAR-RP10833755JD09A V2.0 Issue Date:21 September 2015 Page 52 of 72 UL VS Ltd. Report. No.: 2.0 This report shall not be reproduced except in full, without the written approval of UL VS Ltd. 002: System Performance Check 900MHz Body 17 08 15 Date: 17/8/2015 DUT: Dipole 900 MHz D900V2; Type: D900V2; Serial: D900V2 - SN:035 0 dB = 2.82 W/kg = 4.50 dBW/kg Communication System: UID 0, CW; Frequency: 900 MHz;Duty Cycle: 1:1 Medium: 900 MHz MSL Medium parameters used: f = 900 MHz; σ = 1.033 S/m; ε r = 53.253; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: - Probe: ET3DV6 - SN1586; ConvF(6.06, 6.06, 6.06); Calibrated: 22/5/2015; - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1438; Calibrated: 29/4/2015 - Phantom: ELI v5.0 (30deg probe tilt); Type: QDOVA002AA; Serial: TP:xxxx - ; SEMCAD X Version 14.6.10 (7331) SAR/d=15mm, Pin=250 mW, dist=10.0mm (ET-Probe) 2 2 2/Area Scan (61x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 2.82 W/kg SAR/d=15mm, Pin=250 mW, dist=10.0mm (ET-Probe) 2 2 2/Zoom Scan (5x5x7) (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 54.39 V/m; Power Drift = -0.00 dB Peak SAR (extrapolated) = 3.58 W/kg SAR(1 g) = 2.59 W/kg; SAR(10 g) = 1.71 W/kg Maximum value of SAR (measured) = 2.82 W/kg REPORT NO: UL-SAR-RP10833755JD09A V2.0 Issue Date:21 September 2015 Page 53 of 72 UL VS Ltd. Report. No.: 2.0 This report shall not be reproduced except in full, without the written approval of UL VS Ltd. 003: System Performance Check 900MHz Body 24 08 15 Date: 24/8/2015 DUT: Dipole 900 MHz D900V2; Type: D900V2; Serial: D900V2 - SN:035 0 dB = 2.88 W/kg = 4.59 dBW/kg Communication System: UID 0, CW; Frequency: 900 MHz;Duty Cycle: 1:1 Medium: 900 MHz MSL Medium parameters used: f = 900 MHz; σ = 1.069 S/m; ε r = 54.054; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: - Probe: ET3DV6 - SN1586; ConvF(6.06, 6.06, 6.06); Calibrated: 22/5/2015; - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1438; Calibrated: 29/4/2015 - Phantom: SAM B (30deg probe tilt) with CRP v5.0; Type: QD000P40CD; Serial: TP:1836 - ; SEMCAD X Version 14.6.10 (7331) SAR/d=15mm, Pin=250 mW, dist=10.0mm (ET-Probe) 2 2 2 2/Area Scan (61x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 2.88 W/kg SAR/d=15mm, Pin=250 mW, dist=10.0mm (ET-Probe) 2 2 2 2/Zoom Scan (5x5x7) (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 46.02 V/m; Power Drift = 0.02 dB Peak SAR (extrapolated) = 3.69 W/kg SAR(1 g) = 2.66 W/kg; SAR(10 g) = 1.75 W/kg Maximum value of SAR (measured) = 2.88 W/kg REPORT NO: UL-SAR-RP10833755JD09A V2.0 Issue Date:21 September 2015 Page 54 of 72 UL VS Ltd. Report. No.: 2.0 This report shall not be reproduced except in full, without the written approval of UL VS Ltd. 12.3. SAR Test Plots This appendix contains the following SAR distribution scans. Scan Reference Number Title 001 Touch Left of DUT Open WCDMA 5 CH4183 002 Tilt Left of DUT Open WCDMA 5 CH4183 003 Touch Right of DUT Open WCDMA 5 CH4183 004 Tilt Right of DUT Open WCDMA 5 CH4183 005 Front of DUT Open WCDMA 5 CH4183 006 Back of DUT Open WCDMA 5 CH4183 007 Back of DUT Open WCDMA 5 CH4132 008 Back of DUT Open WCDMA 5 CH4233 009 Front of DUT Closed WCDMA 5 CH4183 010 Back of DUT Closed WCDMA 5 CH4183 011 Back of DUT Closed WCDMA 5 CH4132 012 Back of DUT Closed WCDMA 5 CH4233 013 Back of DUT Closed with PHF Kit WCDMA 5 CH4233 014 Back of DUT Closed WCDMA 5 RMC + HSDPA CH4233 015 Back of DUT Closed WCDMA 5 RMC + HSUPA CH4233 REPORT NO: UL-SAR-RP10833755JD09A V2.0 Issue Date:21 September 2015 Page 55 of 72 UL VS Ltd. Report. No.: 2.0 This report shall not be reproduced except in full, without the written approval of UL VS Ltd. 001: Touch Left of DUT Open WCDMA 5 CH4183 Date: 19/8/2015 DUT: Panasonic; Type: P-01H; Serial: 351772070005110 0 dB = 0.571 W/kg = -2.43 dBW/kg Communication System: UID 0, UMTS FDD (0); Frequency: 836.6 MHz;Duty Cycle: 1:1 Medium: 900 MHz HSL Medium parameters used (interpolated): f = 836.6 MHz; σ = 0.903 S/m; ε r = 41.538;…

Text truncated - open the document above for the full version.

UL VS LTD Pavilion A, Ashwood Park, Ashwood Way, Basingstoke, Hampshire, RG23 8BG, UK Telephone: +44 (0)1256 312000 Facsimile: +44 (0)1256 312001 TEST REPORT Test Report No. : UL-RPT-RP10833755JD07A V2.0 Manufacturer : Panasonic Mobile Communications Development of Europe Ltd Model No. : P-01H FCC ID : UCE115064A Technology : Bluetooth – Basic Rate & EDR Test Standard(s) : FCC Parts 15.207, 15.209(a) & 15.247 1. This test report shall not be reproduced in full or partial, without the written approval of UL VS LTD. 2. The results in this report apply only to the sample(s) tested. 3. The sample tested is in compliance with the above standard(s). 4. The test results in this report are traceable to the national or international standards. 5. Version 2.0 supersedes all previous versions. Date of Issue: 21 September 2015 Checked by: Steven White Project Lead, Radio Laboratory Issued by : pp John Newell Quality Manager, UL VS LTD This laboratory is accredited by UKAS. The tests reported herein have been performed in accordance with its terms of accreditation. The Bluetooth ® word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by UL VS LTD is under licence. Other trademarks and trade names are those of their respective owners. TEST REPORT SERIAL NO: UL-RPT-RP10833755JD07A VERSION NO. 2.0 ISSUE DATE: 21 SEPTEMBER 2015 Page 2 of 46 UL VS LTD This page has been left intentionally blank. TEST REPORT SERIAL NO: UL-RPT-RP10833755JD07A VERSION NO. 2.0 ISSUE DATE: 21 SEPTEMBER 2015 UL VS LTD Page 3 of 46 Table of Contents 1. Customer Information ................................................................................................................ 4 2. Summary of Testing ................................................................................................................... 5 2.1. General Information 5 2.2. Summary of Test Results 5 2.3. Methods and Procedures 5 2.4. Deviations from the Test Specification 5 3. Equipment Under Test (EUT) .................................................................................................... 6 3.1. Identification of Equipment Under Test (EUT) 6 3.2. Description of EUT 7 3.3. Modifications Incorporated in the EUT 7 3.4. Additional Information Related to Testing 7 3.5. Support Equipment 8 4. Operation and Monitoring of the EUT during Testing ............................................................. 9 4.1. Operating Modes 9 4.2. Configuration and Peripherals 9 5. Measurements, Examinations and Derived Results ...............................................................10 5.1. General Comments 10 5.2. Test Results 11 5.2.1. Transmitter AC Conducted Spurious Emissions 11 5.2.2. Transmitter 20 dB Bandwidth 14 5.2.3. Transmitter Carrier Frequency Separation 19 5.2.4. Transmitter Number of Hopping Frequencies and Average Time of Occupancy 22 5.2.5. Transmitter Maximum Peak Output Power 25 5.2.6. Transmitter Radiated Emissions 33 5.2.7. Transmitter Band Edge Radiated Emissions 38 6. Measurement Uncertainty ........................................................................................................45 7. Report Revision History ...........................................................................................................46 TEST REPORT SERIAL NO: UL-RPT-RP10833755JD07A VERSION NO. 2.0 ISSUE DATE: 21 SEPTEMBER 2015 Page 4 of 46 UL VS LTD 1. Customer Information Company Name: Panasonic Mobile Communications Development of Europe Ltd Address: Panasonic House Willoughby Road Bracknell Berkshire RG12 8FP United Kingdom TEST REPORT SERIAL NO: UL-RPT-RP10833755JD07A VERSION NO. 2.0 ISSUE DATE: 21 SEPTEMBER 2015 UL VS LTD Page 5 of 46 2. Summary of Testing 2.1. General Information Specification Reference: 47CFR15.247 Specification Title: Code of Federal Regulations Volume 47 (Telecommunications): Part 15 Subpart C (Intentional Radiators) - Section 15.247 Specification Reference: 47CFR15.207 and 47CFR15.209 Specification Title: Code of Federal Regulations Volume 47 (Telecommunications): Part 15 Subpart C (Intentional Radiators) - Sections 15.207 and 15.209 Site Registration: FCC: 209735 Location of Testing: UL VS LTD, Unit 3 Horizon, Wade Road, Kingsland Business Park, Basingstoke, Hampshire, RG24 8AH, United Kingdom Test Dates: 18 August 2015 to 25 August 2015 2.2. Summary of Test Results FCC Reference (47CFR) Measurement Result Part 15.207 Transmitter AC Conducted Emissions Part 15.247(a)(1) Transmitter 20 dB Bandwidth Part 15.247(a)(1) Transmitter Carrier Frequency Separation Part 15.247(a)(1)(iii) Transmitter Number of Hopping Frequencies and Average Time of Occupancy Part 15.247(b)(1) Transmitter Maximum Peak Output Power Part 15.247(d) & 15.209(a) Transmitter Radiated Emissions Part 15.247(d) & 15.209(a) Transmitter Band Edge Radiated Emissions Key to Results = Complied = Did not comply 2.3. Methods and Procedures Reference: ANSI C63.4 (2009) Title: American National Standard for Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz Reference: ANSI C63.10 (2009) Title: American National Standard for Testing Unlicensed Wireless Devices 2.4. Deviations from the Test Specification For the measurements contained within this test report, there were no deviations from, additions to, or exclusions from the test specification identified above. TEST REPORT SERIAL NO: UL-RPT-RP10833755JD07A VERSION NO. 2.0 ISSUE DATE: 21 SEPTEMBER 2015 Page 6 of 46 UL VS LTD 3. Equipment Under Test (EUT) 3.1. Identification of Equipment Under Test (EUT) Brand Name: DoCoMo Model Name or Number: P-01H Test Sample IMEI: 351772070005201 (Conducted sample with RF port) Hardware Version Number: Rev C Software Version Number: ACPU: B-D52CS1-01.03.2007 CCPU: D52CS1_Cv18122302 FCC ID: UCE115064A Brand Name: DoCoMo Model Name or Number: P-01H Test Sample IMEI: 351772070005144 (Radiated sample) Hardware Version Number: Rev C Software Version Number: AC…

Text truncated - open the document above for the full version.

Panasonic Mobile Communications Development of Europe Ltd UL-RPT-10833755JD07A FCC ID: UCE115064A UL VS LTD 1 Test Setup Photographs for the P-01H 1. Radiated Emissions Photo 1 Photo 2 Panasonic Mobile Communications Development of Europe Ltd UL-RPT-10833755JD07A FCC ID: UCE115064A Radiated Emissions (continued) Photo 3

Panasonic Mobile Communications Development of Europe Ltd UL-RPT-10833755JD07A FCC ID: UCE115064A UL VS LTD 1 Test Setup Photographs for the P-01H 1. AC Conducted Emissions Photo 1 Photo 2 Panasonic Mobile Communications Development of Europe Ltd UL-RPT-10833755JD07A FCC ID: UCE115064A AC Conducted Emissions (continued) Photo 3
