UCE214060ADual Mode GSM/UMTS Mobile Phone with Bluetooth

■■ご利用にあたって ■⿟USIMカードや、USIMカード装着済みの本機を盗難・紛 失された場合は、必ずお問い合わせ先（Zお問い合わせ先 一覧）までご連絡のうえ、緊急利用停止の手続きを行って ください。 ■⿟事故や故障、修理などにより本機やmicroSDカード ※ に登 録したデータ（電話帳・画像・音楽など）が消失・変化し たときの損害につきましては、当社では責任を負いかねま すのであらかじめご了承ください。大切な電話帳などの データは、控えをとっておかれることをおすすめします。 ■⿟本機は、電波を利用しているため、特に屋内や地下街、ト ンネル内などでは電波が届きにくくなり、通話やデジタル テレビ視聴が困難になることがあります。また、通話・デ ジタルテレビ視聴中に電波状態の悪い場所へ移動すると、 通話やデジタルテレビ映像が急に途切れることがあります ので、あらかじめご了承ください。 ■⿟本機を公共の場所でご利用いただくときは、周囲の迷惑に ならないようにご注意ください。 ■⿟本機は電波法に定められた無線局です。従って、電波法に 基づく検査を受けていただくことがあります。あらかじめ ご了承ください。 ■⿟一般の電話機やテレビ、ラジオなどをお使いになっている 近くで使用すると、雑音が入るなどの影響を与えることが ありますので、ご注意ください。 ■⿟microSDカード（市販）をご利用される場合は、あらかじ めmicroSDカードの取扱説明書をよくお読みになり、安全 に正しくご使用ください。 ■⿟傍受（ぼうじゅ）にご注意ください。 本機は、デジタル信号を利用した傍受されにくい商品です が、電波を利用している関係上、通常の手段を超える方法 をとられたときは第三者が故意に傍受するケースもまった くないとは言えません。この点をご理解いただいたうえで、 ご使用ください。 •■傍受とは、無線連絡の内容を第三者が別の受信機で故意 または偶然に受信することです。 本製品は、MPEG-4 Patent Portfolio License及びAVC Patent Portfolio Licenseに基づきライセンスされており、 以下に記載する行為に係るお客様の個人的かつ非営利目的の 使用を除いてはライセンスされておりません。 ⿟画像情報をMPEG-4 Visual、AVC規格に準拠して（以下、 MPEG-4/AVCビデオ）を記録すること。 ⿟個人的活動に従事する消費者によって記録された MPEG-4/AVCビデオ、または、ライセンスをうけた提供 者から入手したMPEG-4/AVCビデオを再生すること。 詳細についてはMPEG LA, L.L.C. (http://www.mpegla.com)をご参照ください。 MicrosoftⓇ、WindowsⓇ、Windows VistaⓇは米国 Microsoft Corporationの米国およびその他の国における商 標または登録商標です。 本書では各OS（日本語版）を次のように記載しています。 WindowsⓇ8は、MicrosoftⓇWindowsⓇ8、MicrosoftⓇ WindowsⓇ8 Pro、MicrosoftⓇWindowsⓇ8 Enterpriseの 略です。 WindowsⓇ7は、MicrosoftⓇWindowsⓇ7（Starter、 Home Basic、Home Premium、Professional、 Enterprise、Ultimate）の略です。 Windows VistaⓇは、Windows VistaⓇ（Home Basic、 Home Premium、Business、Enterprise、Ultimate）の 略です。 WindowsⓇXPは、MicrosoftⓇWindowsⓇXP Professional operating system、または MicrosoftⓇWindowsⓇXP Home Edition operating systemの略です。 WindowsはMicrosoft Windows operating systemの略称 として表記しています。 OracleとJavaは、Oracle Corporation 及びその子会社、関 連会社の米国及びその他の国における登録商標です。 ■■肖像権について 他人から無断で写真を撮られたり、撮られた写真を無断で公 表されたり、利用されたりすることがないように主張できる 権利が肖像権です。肖像権には、誰にでも認められている人 格権と、タレントなど経済的利益に着目した財産権（パブリ シティ権）があります。したがって、勝手に他人やタレント の写真を撮って公開したり、配布したりすることは違法行為 となりますので、適切なカメラ機能のご使用を心がけてくだ さい。 ■■著作権について 音楽、映像、コンピューター・プログラム、データベースな どは著作権法により、その著作物および著作権者の権利が保 護されています。こうした著作物を複製することは、個人的 にまたは家庭内で使用する目的でのみ行うことができます。 上記の目的を超えて、権利者の了解なくこれを複製（データ 形式の変換を含む）、改変、複製物の譲渡、ネットワーク上で の配信などを行うと、「著作権侵害」「著作者人格権侵害」と して損害賠償の請求や刑事処罰を受けることがあります。本 製品を使用して複製などをなされるときは、著作権法を遵守 のうえ、適切なご使用を心がけていただきますよう、お願い いたします。また、本製品にはカメラ機能が搭載されていま すが、本カメラ機能を使用して記録したものにつきましても、 上記と同様の適切なご使用を心がけていただきますよう、お 願いいたします。 ⿟お客様は別途著作権者の許諾なく本製品に搭載されたソフ トウェアの全部または一部を、複製もしくは改変、ハード ウェアからの分離、逆アセンブル、逆コンパイル、リバー スエンジニアリングなどの行為を自らせずまたは第三者に させないでください。またその利用を行わないでください。 アプリックス、microJBlend 及び JBlend、並びに、アプリックスまたは JBlendに関連する商標並びにロゴは、 米国、日本国及びその他の国における 株式会社アプリックスの商標または登 録商標です。 QRコードは株式会社デンソーウェーブの登録商標です。 microSDHCロゴはSD-3C, LLCの商標です。 着うたⓇ、着うたフルⓇは、 株式会社ソニー・ミュージックエンタテインメントの登録商 標です。 「待ちうたⓇ」はKDDI株式会社の登録商標です。 BluetoothⓇ is a registered trademark of the Bluetooth SIG, Inc. The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Panasonic Mobile Communications Co., Ltd. is under license. Other trademarks and trade names are those of their respective owners. 本製品のBluetoothソフトウェア・スタックは株式会社東芝 が開発したBluetooth™ Stack for Embedded Systems Spec 2.0を搭載しております。 Powered by MascotCapsuleⓇ MascotCapsuleⓇ is a registered trademark of HI CORPORATION © 2014 HI CORPORATION. All Rights Reserved. ■■ Electromagnetic Safety For body-worn operation, this mobile phone has been tested and meets RF exposure guidelines when used with an accessory containing no metal and positioning the handset a minimum 10 mm from the body. Use of other accessories may not ensure compliance with RF exposure guidelines. ■■ FCC Notice This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the manufacturer responsible for compliance could void the user's authority to operate the equipment. ■■ FCC RF Exposure Information Your handset is a radio transmitter and receiver. It is designed and manufactured not to exceed the emission limits for exposure to radio frequency (RF) energy set by the Federal Communications Commission of the U.S. Government. The guidelines are based on standards that were developed by independent scientific organization through periodic and thorough evaluation of scientific studies. The standards include a substantial safety margin designed to assure the safety of all persons, regardless of age and health. The exposure standard for wireless handsets employs a unit of measurement known as the Specific Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6 W/kg. The tests are performed in positions and locations (e.g. at the ear and worn on the body) as required by the FCC for each model. The highest SAR value for this model handset as reported to the FCC when tested for use at the ear is 1.046 W/kg, and when worn on the body in a holder or carry case, is 0.853 W/kg. Body-worn Operation; This device was tested for typical body-worn operations with the handset kept 10 mm from the body. To maintain compliance with FCC RF exposure requirements, use accessories that maintain a 10 mm separation distance between the user's body and the handset. The use of beltclips, holsters and similar accessories should not contain metallic components in its assembly. The use of accessories that do not satisfy these requirements may not comply with FCC RF exposure requirements, and should be avoided. The FCC has granted an Equipment Authorization for this model handset with all reported SAR levels evaluated as in compliance with the FCC RF emission guidelines. SAR information on this model handset is on file with the FCC and can be found under the Display Grant section of http://www.fcc.gov/oet/ea/ after searching on FCC ID UCE214060A. Additional information on Specific Absorption Rates (SAR) can …

Text truncated - open the document above for the full version.

⑦ ① Operater Name②Model Mame③ ID for JATE④ ID for TELEC⑤ Production Year & Month Code⑥Bar Code of IMEI⑦ IMEI(Production Serial Number) ② ③ ⑤ ⑥ ① ④

TEST REPORT Test of: S41CS1 To: KDB 865664 D01 SAR Measurement 100MHz to 6GHz FCC ID: UCE214060A Test Report Serial No: UL-SAR-RP10060149JD06 V3.0 Version 3.0 supersedes all previous versions This Test Report Is Issued Under The Authority Of Richelieu Quoi, SAR Technology Consultant: PP (APPROVED SIGNATORY) Checked By: Sandhya Menon (APPROVED SIGNATORY) Issue Date: 12 December 2013 Test Dates: 14 November 2013 This report is issued in portable document format (PDF). It is only a valid copy of the report if it is being viewed in PDF format with the following security options not allowed: Changing the document, Selecting text and graphics, Adding or changing notes and form fields. This report may not be reproduced other than in full, except with the prior written approval of UL. The results in this report apply only to the sample(s) tested. The Bluetooth® word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by UL. is under license. Other trademarks and trade names are those of their respective owners. Test Report Serial No: UL-SAR-RP10060149JD06 V3.0 Version 3.0 Issue Date: 12 December 2013 Page: 2 of 73 UL This page has been left intentionally blank. Test Report Serial No: UL-SAR-RP10060149JD06 V3.0 Version 3.0 Issue Date: 12 December 2013 Page: 3 of 73 UL TABLE OF CONTENTS 1. Customer Information ..................................................................................................... 4 2. Summary of Test Results ............................................................................................... 5 3. Test Specification, Methods and Procedures ............................................................... 8 4. Equipment Under Test (EUT) .......................................................................................... 9 5. Deviations from the Test Specification ....................................................................... 11 6. Operation and Configuration of the EUT during Testing ........................................... 12 7. Measurements, Examinations and Derived Results ................................................... 15 8. Measurement Uncertainty ............................................................................................ 20 Appendix 1. Test Equipment Used .................................................................................. 21 Appendix 2. Measurement Methods ................................................................................ 23 Appendix 3. SAR Distribution Scans ............................................................................... 27 Appendix 4. Photographs ................................................................................................. 46 Appendix 5. System Check .............................................................................................. 68 Appendix 6. Simulated Tissues........................................................................................ 69 Appendix 7. DASY4 System Details ................................................................................. 70 Appendix 8. Antenna Schematics .................................................................................... 73 Test Report Serial No: UL-SAR-RP10060149JD06 V3.0 Version 3.0 Issue Date: 12 December 2013 Page: 4 of 73 UL 1. Customer Information Company Name: Panasonic Mobile Comms Dev of Europe Ltd Address: Panasonic House Willoughby Road Bracknell Berkshire RG12 8FP United Kingdom Test Report Serial No: UL-SAR-RP10060149JD06 V3.0 Version 3.0 Issue Date: 12 December 2013 Page: 5 of 73 UL 2. Summary of Test Results Test Name Specification Reference Result Specific Absorption Rate – PCS 1900 KDB 865664 D01 SAR Measurement 100MHz to 6 GHz ANSI C95.1-1992 Key to Results = Complied = Did not comply Test Report Serial No: UL-SAR-RP10060149JD06 V3.0 Version 3.0 Issue Date: 12 December 2013 Page: 6 of 73 UL 2.1. Highest Standalone Reported SAR Individual Transmitter Evaluation per Band: Exposure Configuration Technology Band Mode Highest Reported 1g -SAR (W/kg) Equipment Class Max Rated Avg Power + Max Tolerance [dBm] HEAD (Separation Distance 0mm) PCS 1900 Voice 1.046 PCE 30.5 BODY-WORN (Separation Distance 10mm) PCS 1900 Data 0.853 PCE 28.5 Note(s): As per FCC KDB 447498 D01, Bluetooth maximum source based time average power was below the allowed threshold for 10 separation distances. For the estimated SAR level calculation, the Maximum Target power + Upper tolerance for Bluetooth = 0.0+2.0 dBm (~1.58 mW) is considered.  10mm Bluetooth estimated SAR level: Estimated Bluetooth SAR = (1.58mW/10mm)*(√1.9 / 7.5) = 0.029 W/kg 2.2. Highest Reported Simultaneous Transmission SAR: Simultaneous transmission SAR test exclusion is determined for each operating configuration and exposure condition according to the reported standalone SAR of each applicable simultaneous transmitting antenna. Simultaneous Transmitter Evaluation: Exposure Configuration Technology Band Highest Reported 1g SAR (W/kg) Equipment Class Max Rated Avg Power + Max Tolerance [dBm] Highest Reported Sum-SAR 1g-SAR (W/kg) SPLSR Ratio BODY-WORN (Separation Distance 10mm) PCS 1900 0.853 PCE 30.5 0.882 N/A Bluetooth 0.029 DSS 2.0 Note(s): 1. As per FCC KDB publication 447498 SAR peak location separation ratio (SPLSR) was not required as the sum of the combination of WWAN+WPAN <1.6 w/kg. 2. Bluetooth estimated SAR level calculation is shown in section 2.1 in this report Test Report Serial No: UL-SAR-RP10060149JD06 V3.0 Version 3.0 Issue Date: 12 December 2013 Page: 7 of 73 UL 2.3. SAR measurement variability and measurement uncertainty analysis: The SAR measurement variability and measurement uncertainty analysis was not required as the maximum measured SAR is < 0.8 W/kg. Note(s): The condition for SAR variability was met as the SAR level measured and calculated was below the specified threshold as per KDB publication 865664 D01, section 2.8.1 2.4. Location of Tests All the measurements describ…

Text truncated - open the document above for the full version.

Test Report Serial No: UL-SAR-RP10060149JD06 V3.0 Version 3.0 Issue Date: 12 December 2013 Page: 68 of 73 UL Appendix 5. System Check Prior to the assessment, the system was verified in the flat region of the phantom, 1900 MHz dipole was used. A forward power of 250 mW was applied to the 1900 MHz dipole and the system was verified to a tolerance of 5% for the dipoles. The applicable verification normalised to 1 Watt. System Check 1900 Head Date: 14/11/2013 Validation Dipole and Serial Number: D1900V2; SN: 540 Simulant Frequency (MHz) Room Temp Liquid Temp Parameters Target Value Measured Value Deviation (%) Limit (%) Head 1900 24.0 ºC 22.0 ºC  r 40.00 39.10 -2.25 5.00 σ 1.40 1.42 1.26 5.00 1g SAR 40.70 40.80 0.25 5.00 10g SAR 21.40 21.32 -0.37 5.00 System Check 1900 Body Date: 14/11/2013 Validation Dipole and Serial Number: D1900V2; SN: 540 Simulant Frequency (MHz) Room Temp Liquid Temp Parameters Target Value Measured Value Deviation (%) Limit (%) Body 1900 24.0ºC 22.0ºC  r 53.30 53.15 -0.28 5.00 σ 1.52 1.57 3.19 5.00 1g SAR 41.30 42.0 1.69 5.00 10g SAR 21.90 22.0 0.46 5.00 Test Report Serial No: UL-SAR-RP10060149JD06 V3.0 Version 3.0 Issue Date: 12 December 2013 Page: 69 of 73 UL Appendix 6. Simulated Tissues The body mixture consists of water, Polysorbate (Tween 20) and salt. Visual inspection is made to ensure air bubbles are not trapped during the mixing process. The mixture is calibrated to obtain proper dielectric constant (permittivity) and conductivity of the tissue. Ingredient (% by weight) Frequency 1900 MHz Head Body De-Ionized Water 55.24 71.61 Polysorbate 20 44.57 28 Salt 0.19 0.39 Test Report Serial No: UL-SAR-RP10060149JD06 V3.0 Version 3.0 Issue Date: 12 December 2013 Page: 70 of 73 UL Appendix 7. DASY4 System Details A.7.1. DASY4 SAR Measurement System UL, SAR measurement facility utilises the Dosimetric Assessment System (DASY™) manufactured by Schmid & Partner Engineering AG (SPEAG™) of Zurich, Switzerland. The DASY4 system is comprised of the robot controller, computer, near-field probe, probe alignment sensor, and the SAM phantom containing brain or muscle equivalent material. The robot is a six-axis industrial robot performing precise movements to position the probe to the location (points) of maximum electromagnetic field (EMF). A cell controller system contains the power supply, robot controller; teach pendant (Joystick), and remote control. This is used to drive the robot motors. The Staubli robot is connected to the cell controller to allow software manipulation of the robot. The data acquisition electronics (DAE) performs signal amplification, signal multiplexing, AD-conversion, offset measurements, mechanical surface detection, collision detection etc. The DAE is connected to the Electro-optical coupler (EOC). The EOC performs the conversion from the optical into digital electric signal of the DAE and transfers data to the PC plug-in card. The DAE3 utilises a highly sensitive electrometer-grade preamplifier with auto-zeroing, a channel and gain-switching mulitplexer, a fast 16- bit AD-converter and a command decoder and control logic unit. Transmission to the PC-card is accomplished through an optical downlink for data and status information and an optical uplink for commands and clock lines. The mechanical probe-mounting device includes two different sensor systems for frontal and sidewise probe contacts. They are also used for mechanical surface detection and probe collision detection. The robot uses its own controller with a built in VME-bus computer. Test Report Serial No: UL-SAR-RP10060149JD06 V3.0 Version 3.0 Issue Date: 12 December 2013 Page: 71 of 73 UL A.7.2. DASY4 SAR System Specifications Robot System Positioner: Stäubli Unimation Corp. Robot Model: RX90L Repeatability: 0.025 mm No. of Axis: 6 Serial Number: F00/SD89A1/A/01 Reach: 1185 mm Payload: 3.5 kg Control Unit: CS7 Programming Language: V+ Data Acquisition Electronic (DAE) System Serial Number: DAE3 SN:417 PC Controller PC: Dell Precision 340 Operating System: Windows 2000 Data Card: DASY Measurement Server Serial Number: 1080 Data Converter Features: Signal Amplifier, multiplexer, A/D converted and control logic. Software: DASY4 Software Connecting Lines: Optical downlink for data and status info. Optical uplink for commands and clock. PC Interface Card Function: 24 bit (64 MHz) DSP for real time processing Link to DAE3 16 nit A/D converter for surface detection system serial link to robot direct emergency stop output for robot. Test Report Serial No: UL-SAR-RP10060149JD06 V3.0 Version 3.0 Issue Date: 12 December 2013 Page: 72 of 73 UL DASY4 SAR System Specifications (Continued) E-Field Probe Model: ES3DV3 Serial No: 3304 Construction: Triangular core Frequency: 10 MHz to >4 GHz Linearity: 0.2 dB (30 MHz to 4 GHz) Probe Length (mm): 337 Probe Diameter (mm): 10 Tip Length (mm): 10 Tip Diameter (mm): 4 Sensor X Offset (mm): 2 Sensor Y Offset (mm): 2 Sensor Z Offset (mm): 2 Phantom Phantom: SAM Phantom Shell Material: Fibreglass Thickness: 2.0 0.1 mm

UL VS LTD Pavilion A, Ashwood Park, Ashwood Way, Basingstoke, Hampshire, RG23 8BG, UK Telephone: +44 (0)1256 312000 Facsimile: +44 (0)1256 312001 TEST REPORT Test Report No. : UL-RPT-RP10060149JD04A V2.0 Manufacturer : Panasonic Mobile Communications Development of Europe Ltd Model No. : Softbank S41CS1 FCC ID : UCE214060A Technology : PCS1900 Test Standard(s) : FCC Part 24 1. This test report shall not be reproduced in full or partial, without the written approval of UL VS LTD. 2. The results in this report apply only to the sample(s) tested. 3. The sample tested is in compliance with the above standard(s). 4. The test results in this report are traceable to the national or international standards. 5. Version 2.0 supersedes all previous versions. Date of Issue: 10 December 2013 Checked by: Sarah Williams WiSE Engineer Issued by : pp John Newell Group Quality Manager, WiSE Basingstoke, UL VS LTD This laboratory is accredited by UKAS. The tests reported herein have been performed in accordance with its’ terms of accreditation. TEST REPORT SERIAL NO: UL-RPT-RP10060149JD04A VERSION 2.0 ISSUE DATE: 10 DECEMBER 2013 Page 2 of 27 UL VS LTD This page has been left intentionally blank. TEST REPORT SERIAL NO: UL-RPT-RP10060149JD04A VERSION 2.0 ISSUE DATE: 10 DECEMBER 2013 UL VS LTD Page 3 of 27 Table of Contents 1. Customer Information .................................................................................................................4 2. Summary of Testing ....................................................................................................................5 2.1. General Information 5 2.2. Summary of Test Results 5 2.3. Methods and Procedures 5 2.4. Deviations from the Test Specification 5 3. Equipment Under Test (EUT) .....................................................................................................6 3.1. Identification of Equipment Under Test (EUT) 6 3.2. Description of EUT 7 3.3. Modifications Incorporated in the EUT 7 3.4. Additional Information Related to Testing 7 3.5. Support Equipment 7 4. Operation and Monitoring of the EUT during Testing ..............................................................8 4.1. Operating Modes 8 4.2. Configuration and Peripherals 8 5. Measurements, Examinations and Derived Results .................................................................9 5.1. General Comments 9 5.2. Test Results 10 5.2.1. Transmitter Output Power (EIRP) 10 5.2.2. Transmitter Frequency Stability (Temperature Variation) 12 5.2.3. Transmitter Frequency Stability (Voltage Variation) 14 5.2.4. Transmitter Occupied Bandwidth 16 5.2.5. Transmitter Out of Band Radiated Emissions 20 5.2.6. Transmitter Band Edge Radiated Emissions 24 6. Measurement Uncertainty ........................................................................................................26 7. Report Revision History ...........................................................................................................27 TEST REPORT SERIAL NO: UL-RPT-RP10060149JD04A VERSION 2.0 ISSUE DATE: 10 DECEMBER 2013 Page 4 of 27 UL VS LTD 1. Customer Information Company Name: Panasonic Mobile Communications Development of Europe Ltd Address: Panasonic House Willoughby Road Bracknell Berkshire RG12 8FP United Kingdom TEST REPORT SERIAL NO: UL-RPT-RP10060149JD04A VERSION 2.0 ISSUE DATE: 10 DECEMBER 2013 UL VS LTD Page 5 of 27 2. Summary of Testing 2.1. General Information Specification Reference: 47CFR24 Specification Title: Code of Federal Regulations Volume 47 (Telecommunications): Part 24 Subpart E (Personal Communication Services) Site Registration: 209735 Location of Testing: UL VS LTD, Unit 3 Horizon, Wade Road, Kingsland Business Park, Basingstoke, Hampshire, RG24 8AH, United Kingdom Test Dates: 15 November 2013 to 26 November 2013 2.2. Summary of Test Results FCC Reference (47CFR) Measurement Result Part 24.232(c) Transmitter Output Power (EIRP) Part 2.1055/24.235 Transmitter Frequency Stability (Temperature and Voltage Variation) Part 2.1049 Transmitter Occupied Bandwidth Part 2.1053/24.238 Transmitter Out of Band Radiated Emissions Part 2.1053/24.238 Transmitter Band Edge Radiated Emissions Key to Results = Complied = Did not comply 2.3. Methods and Procedures Reference: ANSI/TIA-603-C-2004 Title: Land Mobile Communications Equipment, Measurements and performance Standards Reference: ANSI C63.4 (2009) Title: American National Standard for Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz. Reference: FCC KDB 971168 D01 v02r01, 7 June 2013 Title: Measurement Guidance for Certification of Licensed Digital Transmitters 2.4. Deviations from the Test Specification For the measurements contained within this test report, there were no deviations from, additions to, or exclusions from the test specification identified above. TEST REPORT SERIAL NO: UL-RPT-RP10060149JD04A VERSION 2.0 ISSUE DATE: 10 DECEMBER 2013 Page 6 of 27 UL VS LTD 3. Equipment Under Test (EUT) 3.1. Identification of Equipment Under Test (EUT) Brand Name: Softbank Model Name or Number: S41CS1 IMEI: 004401221308196 (Radiated sample) Serial Number: C11 Hardware Version Number: Rev E Software Version Number: ACPU: B-S41CS1-13.01.001.srec CCPU: S41CS1_Cv52030205_foma11.srec FCC ID: UCE214060A Brand Name: Softbank Model Name or Number: S41CS1 IMEI: 004401221308105 (Conducted sample #1) Serial Number: C13 Hardware Version Number: Rev E Software Version Number: ACPU: B-S41CS1-13.01.001.srec CCPU: S41CS1_Cv52030205_foma11.srec FCC ID: UCE214060A Brand Name: Softbank Model Name or Number: S41CS1 IMEI: 004401221308055 (Conducted sample #2) Serial Number: C4 Hardware Version Number: Rev E Software Version Number: ACPU: B-S41CS1-13.01.001.srec CCPU: S41CS1_Cv52030205_foma11.srec FCC ID: UCE214060A Brand Name: Softbank Description: AC Charger Model Name or Number: ZTDAA1 Brand Name: Softbank Description: USB Data cable Model Name or Number: ZT…

Text truncated - open the document above for the full version.

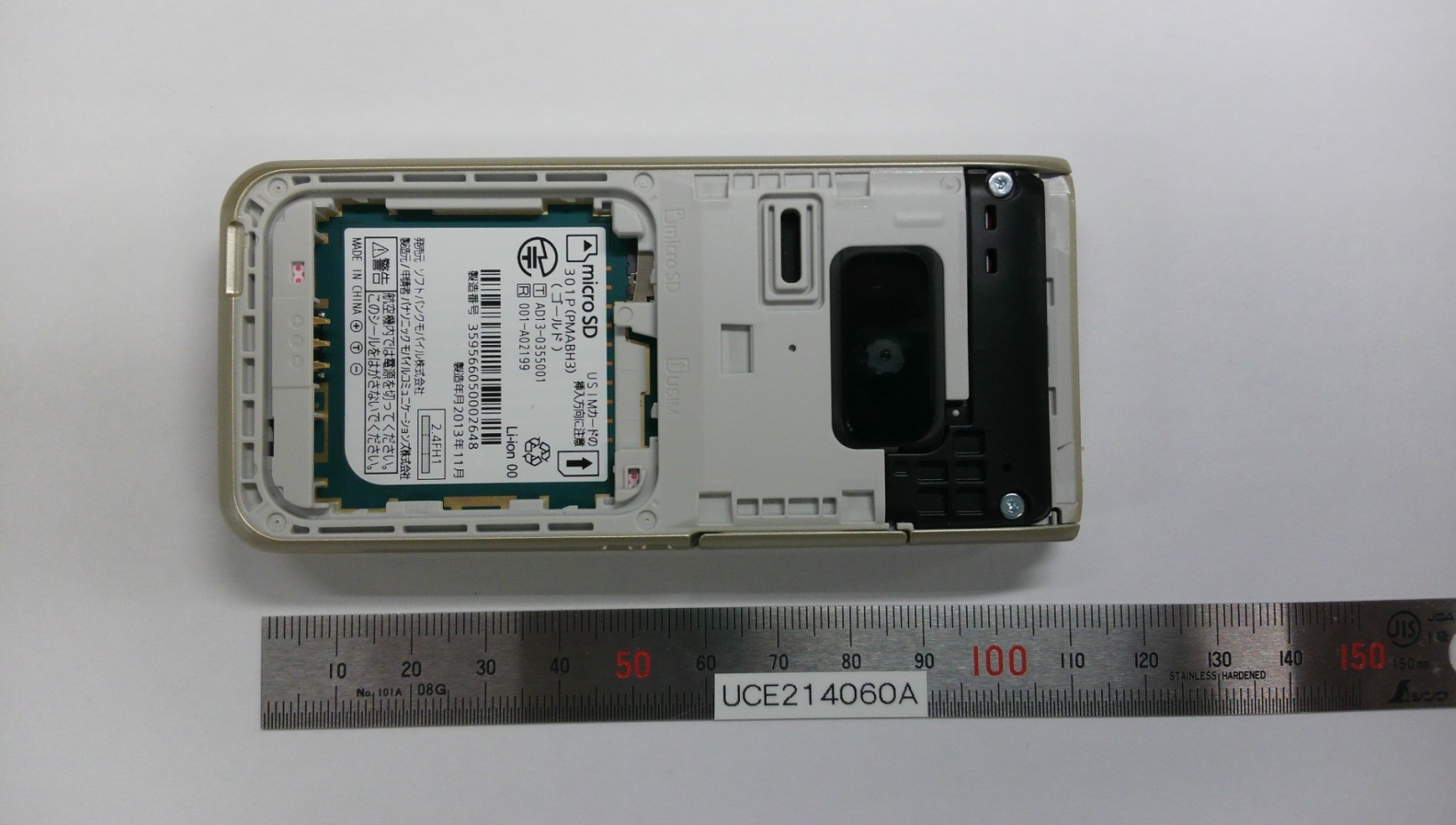

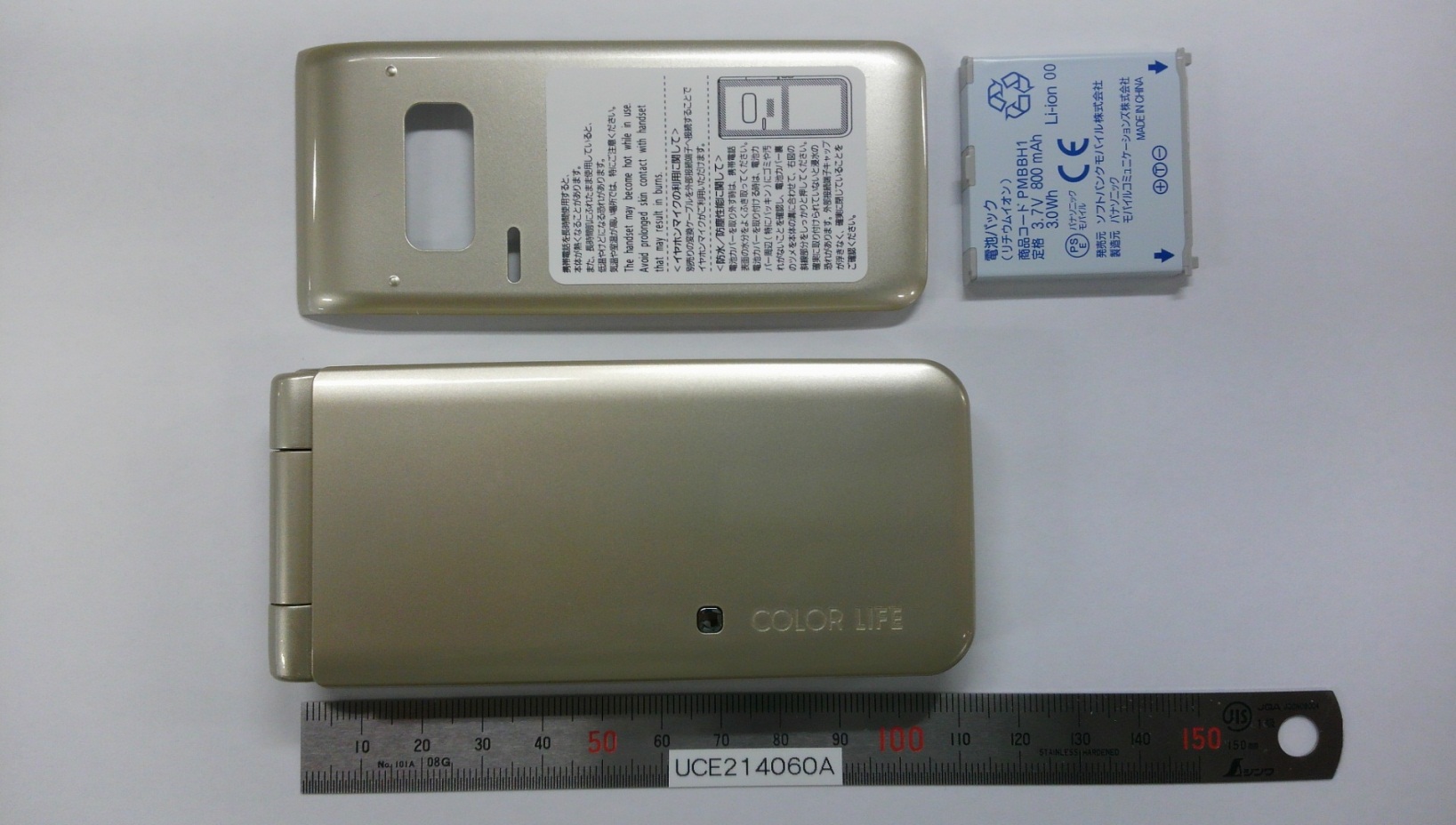

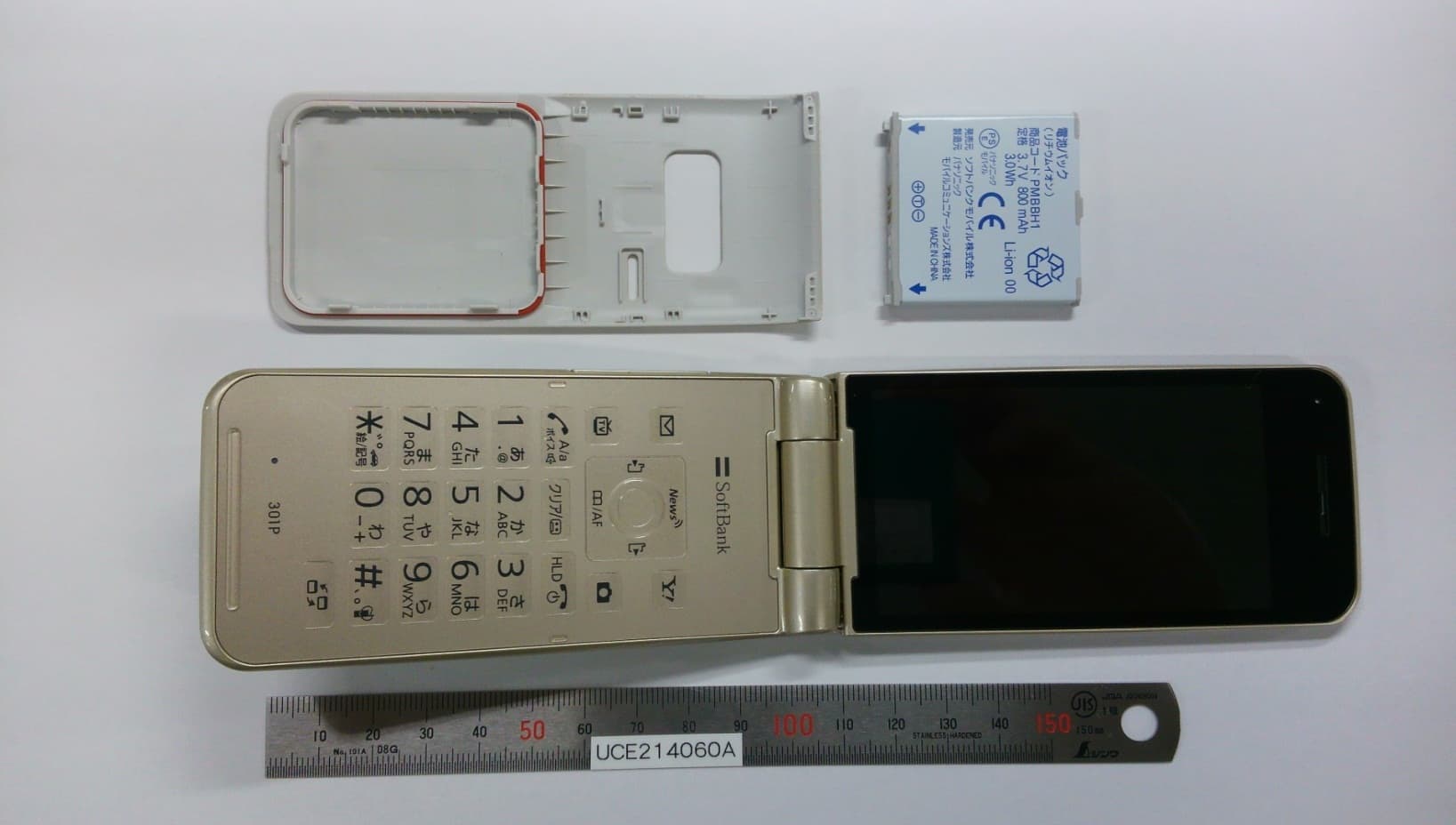

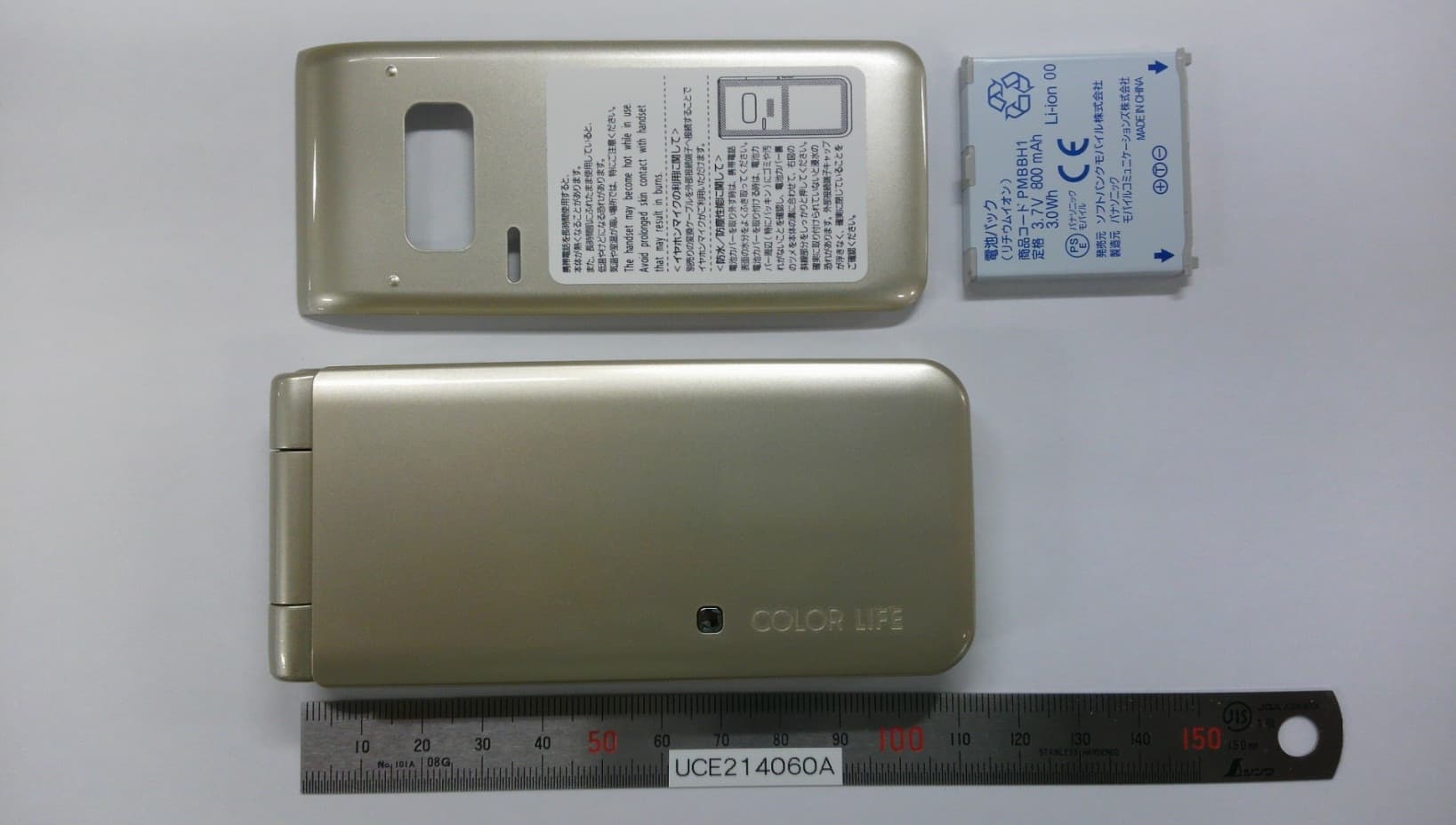

Test Report Serial No: UL-SAR-RP10060149JD06 V3.0 Version 3.0 Issue Date: 12 December 2013 Page: 46 of 73 UL Appendix 4. Photographs This appendix contains the following photographs: Photo Reference Number Title 001 Test configuration for the measurement of Specific Absorption Rate (SAR) 002 Touch Left 003 Tilt Left 004 Touch Right 005 Tilt Right 006 Front of EUT Open Facing Phantom 007 Back of EUT Open Facing Phantom 008 Front of EUT Closed Facing Phantom 009 Back of EUT Closed Facing Phantom 010 Front View of EUT Closed 011 Back View of EUT Closed 012 Front View of EUT Open 013 Back View of EUT Open 014 Internal View of Radiated EUT 015 Internal View of Conducted EUT 016 Personal Handsfree Kit (PHF) View 017 Battery View 018 Conducted Sample with Dummy battery 019 Dummy Battery View 020 1900 MHz Head Fluid Level 021 1900 MHz Body Fluid Level Test Report Serial No: UL-SAR-RP10060149JD06 V3.0 Version 3.0 Issue Date: 12 December 2013 Page: 47 of 73 UL 001: Test configuration for the measurement of Specific Absorption Rate (SAR) Test Report Serial No: UL-SAR-RP10060149JD06 V3.0 Version 3.0 Issue Date: 12 December 2013 Page: 48 of 73 UL 002: Touch Left Test Report Serial No: UL-SAR-RP10060149JD06 V3.0 Version 3.0 Issue Date: 12 December 2013 Page: 49 of 73 UL 003: Tilt Left Test Report Serial No: UL-SAR-RP10060149JD06 V3.0 Version 3.0 Issue Date: 12 December 2013 Page: 50 of 73 UL 004: Touch Right Test Report Serial No: UL-SAR-RP10060149JD06 V3.0 Version 3.0 Issue Date: 12 December 2013 Page: 51 of 73 UL 005: Tilt Right Test Report Serial No: UL-SAR-RP10060149JD06 V3.0 Version 3.0 Issue Date: 12 December 2013 Page: 52 of 73 UL 006: Front of EUT Open Facing Phantom Test Report Serial No: UL-SAR-RP10060149JD06 V3.0 Version 3.0 Issue Date: 12 December 2013 Page: 53 of 73 UL 007: Back of EUT Open Facing Phantom Test Report Serial No: UL-SAR-RP10060149JD06 V3.0 Version 3.0 Issue Date: 12 December 2013 Page: 54 of 73 UL 008: Front of EUT Closed Facing Phantom Test Report Serial No: UL-SAR-RP10060149JD06 V3.0 Version 3.0 Issue Date: 12 December 2013 Page: 55 of 73 UL 009: Back of EUT Closed Facing Phantom Test Report Serial No: UL-SAR-RP10060149JD06 V3.0 Version 3.0 Issue Date: 12 December 2013 Page: 56 of 73 UL 010: Front View of EUT Closed Test Report Serial No: UL-SAR-RP10060149JD06 V3.0 Version 3.0 Issue Date: 12 December 2013 Page: 57 of 73 UL 011: Back View of EUT Closed Test Report Serial No: UL-SAR-RP10060149JD06 V3.0 Version 3.0 Issue Date: 12 December 2013 Page: 58 of 73 UL 012: Front View of EUT Open Test Report Serial No: UL-SAR-RP10060149JD06 V3.0 Version 3.0 Issue Date: 12 December 2013 Page: 59 of 73 UL 013: Back View of EUT Open Test Report Serial No: UL-SAR-RP10060149JD06 V3.0 Version 3.0 Issue Date: 12 December 2013 Page: 60 of 73 UL 014: Internal View of Radiated EUT Test Report Serial No: UL-SAR-RP10060149JD06 V3.0 Version 3.0 Issue Date: 12 December 2013 Page: 61 of 73 UL 015: Internal View of Conducted EUT Test Report Serial No: UL-SAR-RP10060149JD06 V3.0 Version 3.0 Issue Date: 12 December 2013 Page: 62 of 73 UL 016: Personal Handsfree Kit (PHF) View Test Report Serial No: UL-SAR-RP10060149JD06 V3.0 Version 3.0 Issue Date: 12 December 2013 Page: 63 of 73 UL 017: Battery View Test Report Serial No: UL-SAR-RP10060149JD06 V3.0 Version 3.0 Issue Date: 12 December 2013 Page: 64 of 73 UL 018: Conducted Sample with Dummy battery View Test Report Serial No: UL-SAR-RP10060149JD06 V3.0 Version 3.0 Issue Date: 12 December 2013 Page: 65 of 73 UL 019: Dummy Battery View Test Report Serial No: UL-SAR-RP10060149JD06 V3.0 Version 3.0 Issue Date: 12 December 2013 Page: 66 of 73 UL 020: 1900 Head Fluid Level Test Report Serial No: UL-SAR-RP10060149JD06 V3.0 Version 3.0 Issue Date: 12 December 2013 Page: 67 of 73 UL 021: 1900 Body Fluid Level

Test Report Serial No: UL-SAR-RP10060149JD06 V3.0 Version 3.0 Issue Date: 12 December 2013 Page: 73 of 73 UL Appendix 8. Antenna Schematics Note: The following Antenna Schematics are shown below are with ‘Back of EUT Closed’.
