UCE111038AUMTS Cellular Mobile Radio with RFID

P-06C INSTRUCTION MANUAL ’11.5 Thank you for selecting the “docomo STYLE series P-06C”. Read this manual befor e use to correctly operate your P-06C. For Using This Manual ⿠Note that “P-06C” is referred to as “FOMA terminal” in this manual. ⿠Most operating procedures and displays in this manual are shown with the default settings of the “White” handset. Further, displays and illustrations shown in this manual ar e for reference. The actual ones might differ. ⿠Most operating procedur es and displays in this manual are described when the FOMA terminal is in Normal Style. See page 33 for the operations in Viewer Style (Touch panel). ⿠P-06C Handset (With Warranty and Back Cover P49) ⿠Battery Pack P23 ⿠Instruction Manual (Japanese version) ※ A CRYSTAL TOUCH PEN is provided as a free gift to users who purchase a special model. ⿠See page 1 01 f or optional items that support this FOMA terminal. About manual of P-06C The operating procedures for the P-06C are also published as in “使いかたガイド (Guide)” on - screen manual installed onto your FOMA terminal, and “Instruction Manual (Detailed V ersion)” as a PDF . (In Japanese only) ◆ “Instruction Manual” (this manual)◆ Description of the displayed content and operating procedures for basic functions ◆“使いかたガイド (Guide)” (installed onto your FOMA terminal)◆ Description of the outline and operations of frequently used functions From the P-06C m ▶ 便利ツール (Tool) ▶ 使いかたガイド (Guide) ※ This function is available in Japanese mode only. ◆“Instruction Manual (Detailed Version)” (PDF)◆ From a PC, download detailed information about all the functions and the operating pr ocedures. (In Japanese only) ( http://www.nttdocomo.co.jp/support/tr ouble/manual/ download/index.html) ※ Note that the URL and published contents may be modified without notice. Basic Package ⿠Touch Pen P01 ※ ⿠Desktop Holder P45 1 ※It is prohibited to copy all or part of this manual without permission. ※The instructions contained in this manual may be changed without notice. Contents Introduction ▶ P.1～ FOMA Terminal ································2 What You can Do with P-06C ···········3 Part Names and Functions ··············4 Precautions ······································6 Handling Precautions ····················15 Waterproof Performance ···············18 Basic Operation ▶ P.23～～ Before Using ···················································23 Screen Explanation ········································28 Character Entry ··············································38 Sound/Scr een Setting ····································40 Lock/Security ··················································45 Connect ▶ P.50～～ Call Telephone ················································50 Mail ··································································58 Phonebook ·····················································63 Search ▶ P.65～～ i - mode/Full Browser ·······································65 i - Channel ·························································68 Map/GPS ························································69 Enjoy ▶ P.72～～ Camera ····························································72 1Seg ································································75 Music ·······························································79 i - α ppli/i - Widget ···············································81 i - motion/Movie ···············································83 More Convenient ▶ P.84～～ Osaifu - Keitai ···················································84 i - concier ··························································85 Convenient T ools ············································86 Data Management ··········································89 Others ▶ P.94～～ Support ···························································94 Appendix ·······················································102 2 Introduction FOMA Terminal ⿠P-06C supports W - CDMA system. ⿠Because the FOMA terminal uses radio waves, you cannot use it in places where the radio waves do not reach, where they are weak even outdoors, such as inside tunnels, basements, or buildings, or out - of - service area. You might not be able to operate the FOMA terminal even when you are in a place with a fi ne view such as in a high - rise building or apartment. Note that you ma y experience interruption of calls even if the three antennas respond to a strong radio wave, and you remain without moving to use the FOMA terminal. ⿠Since the FOMA terminal uses radio waves as the medium of telecommunication, calls may be tapped by a third party. However, the W - CDMA system automatically supports tapping prevention, so your conversation will be incomprehensible to the third par ty, because it is recognized as mere noise. ⿠The FOMA terminals change your voice into digital signals and send them to the other party. In places where the radio waves are weak, the digital signals may not be converted correctly, and in such a case, the voice may sound different from the actual one. ⿠The user hereby agrees that the user shall be solely responsible for the result of the use of SSL/TLS. Neither DOCOMO nor the certifi ers as listed herein make any representation and warranty as for the security in the use of SSL/TLS. In the event that the user shall sustain damage or loss due to the use of SSL/TLS, neither DOCOMO nor the certifi ers shall be responsible for any such damage or loss. Certifi ers: VeriSign Japan K.K., Cybertrust Japan Co., Ltd., GlobalSign K.K., RSA Security Japan Ltd., SECOM Trust Systems Co., Ltd., Comodo CA Ltd., Entrust, Inc., and Go Daddy, Inc. ⿠This FOMA terminal supports FOMA Plus - Area and FOMA High - Speed Area. ⿠The FOMA terminal can be used only via the FOMA network provided by DOCOMO and in DOCOMO’s roaming area. ⿠You are advised that you make separate notes of information (such as Phonebook entries, schedule events, memos, record messages, voice memos) stored in the FOMA terminal and keep them i…

Text truncated - open the document above for the full version.

Panasonic Mobile Communications Development of Europe limited Willoughby Road, Bracknell, Berkshire, RG12 8FP Tel: +44 (0) 1344 862444 Fax: +44 (0) 1344 706796 VAT Reg No. GB787451290 Web: http:Panasonic.net/pmc Registered in England No. 4188880 Panasonic Mobile Communications Development of Europe Limited 4 th April 2011 Telecommunication Certification Body RFI Global Services Ltd. Pavilion A Ashwood Park Basingstoke Hampshire RG23 8BG United Kingdom Subject: Certification Application FCC ID: UCE111038A It is requested that the following information is held Confidential on behalf of Panasonic Mobile Communications Development of Europe Ltd., on the confidentiality basis outlined below: 1. Permanent Confidentiality (FCC Rules Part 0.459 refers). Exhibit Category Exhibit Filenames Schematic Diagrams P-06C Schematics.pdf Parts list (BOM) P-06C BOM.pdf Block Diagrams P-06C UMTS RF Block Diagram.pdf P-06C RFID Block Diagram.pdf Operational Descriptions * P-06C UMTS RF Product Specification.pdf P-06C RFID Operational Description.pdf Tune up Information P-06C RF Calibration Spec.pdf The above information contains trade secrets and proprietary information not customarily released to the public. The public disclosure of this information might be harmful to the applicant and provide unjust benefits to its competitors. The applicant understands that pursuant to rule 0.457d, disclosure of this application and all accompanying documentation will not be made before the date of the grant for this application. * The Operational Descriptions contain proprietary information relating to the device implementation used. This information is not customarily released to the public. continued........

TEST REPORT FROM RFI GLOBAL SERVICES LTD Test of: NTT docomo P-06C To: OET Bulletin 65 Supplement C: (2001-01) Test Report Serial No: RFI/SAR/RP80806JD08A V2.0 Version 2.0 supersedes all previous versions This Test Report Is Issued Under The Authority Of Chris Guy, Head of Global Approvals: (APPROVED SIGNATORY) Checked By: Richelieu Quoi (APPROVED SIGNATORY) Issue Date: 04 April 2011 Test Dates: 14 March 2011 This report is issued in portable document format (PDF). It is only a valid copy of the report if it is being viewed in PDF format with the following security options not allowed: Changing the document, Selecting text and graphics, Adding or changing notes and form fields. This report may not be reproduced other than in full, except with the prior written approval of RFI Global Services Ltd. The results in this report apply only to the sample(s) tested. Test Report Serial No: RFI/SAR/RP80806JD08A V2.0 Version 2.0 Issue Date: 04 April 2011 Page: 2 of 62 RFI Global Services Ltd. This page has been left intentionally blank. Test Report Serial No: RFI/SAR/RP80806JD08A V2.0 Version 2.0 Issue Date: 04 April 2011 Page: 3 of 62 RFI Global Services Ltd. TABLE OF CONTENTS 1. Customer Information ...................................................................................................... 4 2. Equipment Under Test (EUT) ........................................................................................... 5 3. Test Specification, Methods and Procedures ................................................................ 8 4. Deviations from the Test Specification ........................................................................... 9 5. Operation and Configuration of the EUT during Testing ............................................ 10 6. Summary of Test Results ............................................................................................... 12 7. Measurements, Examinations and Derived Results .................................................... 13 8. Measurement Uncertainty .............................................................................................. 18 Appendix 1. Test Equipment Used .................................................................................... 21 Appendix 2. Measurement Methods .................................................................................. 24 Appendix 3. SAR Distribution Scans ................................................................................ 26 Appendix 4. Photographs .................................................................................................. 37 Appendix 5. Validation of System ..................................................................................... 58 Appendix 6. Simulated Tissues ......................................................................................... 59 Appendix 7. DASY4 System Details .................................................................................. 60 Test Report Serial No: RFI/SAR/RP80806JD08A V2.0 Version 2.0 Issue Date: 04 April 2011 Page: 4 of 62 RFI Global Services Ltd. 1. Customer Information Company Name: Panasonic Mobile Comms Dev of Europe Ltd Address: Panasonic House Willoughby Road Bracknell Berkshire RG12 8FP United Kingdom Test Report Serial No: RFI/SAR/RP80806JD08A V2.0 Version 2.0 Issue Date: 04 April 2011 Page: 5 of 62 RFI Global Services Ltd. 2. Equipment Under Test (EUT) 2.1. Identification of Equipment Under Test (EUT) Description: UMTS cellular handset with RFID Brand Name: NTT docomo Model Name or Number: P-06C Serial Number: None stated (sample C10) IMEI Number: 3550 97040011329 Hardware Version Number: Rev C Software Version Number: B-D11CS1-00.01.027 D11CS1_Cv68091405 Hardware Revision of GSM Module: Not applicable Software Revision of GSM Module: Not applicable FCC ID Number: UCE111038A Country of Manufacture: None Stated Date of Receipt: 14 March 2011 2.2. Description of EUT The equipment under test was a single mode cellular mobile telephone with UMTS FDD V with UMTS Release 5 HSDPA capabilities, incorporating RFID. The Cellular Mobile Telephone also operates on RFID 13.5 MHz Band. 2.3. Modifications Incorporated in the EUT There were no modifications incorporated in the EUT during testing. Test Report Serial No: RFI/SAR/RP80806JD08A V2.0 Version 2.0 Issue Date: 04 April 2011 Page: 6 of 62 RFI Global Services Ltd. 2.4. Accessories The following accessories were supplied with the EUT during testing: Description: Battery Brand Name: NTT docomo Model Name or Number: P23 Serial Number: None Stated Cable Length and Type: Not applicable Country of Manufacture: None Stated Connected to Port 3 point contact Description: Personal Hands-Free Brand Name: NTT docomo Model Name or Number: Stereo Earphone Set 01 Serial Number: None Stated Cable Length and Type: ~1.8m / multi-core Country of Manufacture: None Stated Connected to Port AV Out Port Unique to Manufacturer Description: Micro-SD Memory Card Brand Name: None Stated Model Name or Number: None Stated Serial Number: None Stated Cable Length and Type: Not applicable Country of Manufacture: None Stated Connected to Port Dedicated micro-SD card port 2.5. Support Equipment The following support equipment was used to exercise the EUT during testing: Description: Communication Test Set Brand Name: Rohde & Schwarz Model Name or Number: CMU200 Serial Number: 111379 Cable Length and Type: ~4.0 m Utiflex RF cable Connected to Port: RF (Input/Output) Air Link Test Report Serial No: RFI/SAR/RP80806JD08A V2.0 Version 2.0 Issue Date: 04 April 2011 Page: 7 of 62 RFI Global Services Ltd. 2.6. Additional Information Related to Testing Equipment Category UMTS Band V / RFID Type of Unit Portable Transceiver Intended Operating Environment: Within UMTS and RFID Coverage. Transmitter Maximum Output Power Characteristics: UMTS Band V Communication Test Set was configured to allow the EUT to transmit at a maximum power of up to 24dBm. Transmitter Frequency Range: UMT…

Text truncated - open the document above for the full version.

Test Report Serial No: RFI/SAR/RP80806JD08A V2.0 Version 2.0 Issue Date: 04 April 2011 Page: 58 of 62 RFI Global Services Ltd. Appendix 5. Validation of System Prior to the assessment, the system was verified in the flat region of the phantom. A 900 MHz dipole was used. A forward power of 250 mW was applied to the dipole and the system was verified to a tolerance of ±5% for the 900 MHz dipole. The applicable verification (normalised to 1 Watt). Simulant Frequency (MHz) Room Temp Liquid Temp Parameters Target Value Measured Value Deviation (%) Limit (%) Body 900 23.0 ºC 22.5 ºC ε r 55.00 53.53 -2.67 5.00 σ 1.05 1.07 2.33 5.00 1g SAR 11.10 10.68 -3.78 5.00 10g SAR 7.14 6.88 -3.64 5.00 Date: 14/03/2011 Validation Dipole and Serial Number: D900V2; SN: 124 Simulant Frequency (MHz) Room Temp Liquid Temp Parameters Target Value Measured Value Deviation (%) Limit (%) Head 900 23.0 ºC 22.7 ºC ε r 41.50 41.90 0.96 5.00 σ 0.97 0.96 -1.30 5.00 1g SAR 11.00 11.12 1.09 5.00 10g SAR 7.01 7.20 2.71 5.00 Date: 14/03/2011 Validation Dipole and Serial Number: D900V2; SN: 124 Test Report Serial No: RFI/SAR/RP80806JD08A V2.0 Version 2.0 Issue Date: 04 April 2011 Page: 59 of 62 RFI Global Services Ltd. Appendix 6. Simulated Tissues The body mixture consists of De-ionised water, Polysorbate 20 and salt. Visual inspection is made to ensure air bubbles are not trapped during the mixing process. The mixture is calibrated to obtain proper dielectric constant (permittivity) and conductivity of the tissue. Ingredient Frequency 835/850/900 MHz Head De-Ionized Water 52.87 Polysorbate 20 (Tween 20) 46.10 Salt 1.03 Ingredient Frequency 835/850/900 MHz Body De-Ionized Water 71.30 Polysorbate 20 (Tween 20) 28.00 Salt 0.70 Test Report Serial No: RFI/SAR/RP80806JD08A V2.0 Version 2.0 Issue Date: 04 April 2011 Page: 60 of 62 RFI Global Services Ltd. Appendix 7. DASY4 System Details A.7.1. DASY4 SAR Measurement System RFI Global Services Ltd, SAR measurement facility utilises the Dosimetric Assessment System (DASY™) manufactured by Schmid & Partner Engineering AG (SPEAG™) of Zurich, Switzerland. The DASY4 system is comprised of the robot controller, computer, near-field probe, probe alignment sensor, and the SAM phantom containing brain or muscle equivalent material. The robot is a six-axis industrial robot performing precise movements to position the probe to the location (points) of maximum electromagnetic field (EMF). A cell controller system contains the power supply, robot controller; teach pendant (Joystick), and remote control. This is used to drive the robot motors. The Staubli robot is connected to the cell controller to allow software manipulation of the robot. The data acquisition electronics (DAE) performs signal amplification, signal multiplexing, AD-conversion, offset measurements, mechanical surface detection, collision detection etc. The DAE is connected to the Electro-optical coupler (EOC). The EOC performs the conversion from the optical into digital electric signal of the DAE and transfers data to the PC plug-in card. The DAE3 utilises a highly sensitive electrometer-grade preamplifier with auto-zeroing, a channel and gain-switching mulitplexer, a fast 16- bit AD-converter and a command decoder and control logic unit. Transmission to the PC-card is accomplished through an optical downlink for data and status information and an optical uplink for commands and clock lines. The mechanical probe-mounting device includes two different sensor systems for frontal and sidewise probe contacts. They are also used for mechanical surface detection and probe collision detection. The robot uses its own controller with a built in VME-bus computer. Test Report Serial No: RFI/SAR/RP80806JD08A V2.0 Version 2.0 Issue Date: 04 April 2011 Page: 61 of 62 RFI Global Services Ltd. A.7.2. DASY4 SAR System Specifications Robot System Positioner: Stäubli Unimation Corp. Robot Model: RX90L Repeatability: 0.025 mm No. of Axis: 6 Serial Number: F00/SD89A1/A/01 Reach: 1185 mm Payload: 3.5 kg Control Unit: CS7 Programming Language: V+ Data Acquisition Electronic (DAE) System Serial Number: DAE3 SN:450 PC Controller PC: Dell Precision 340 Operating System: Windows 2000 Data Card: DASY4 Measurement Server Serial Number: 1080 Data Converter Features: Signal Amplifier, multiplexer, A/D converted and control logic. Software: DASY4 Software Connecting Lines: Optical downlink for data and status info. Optical uplink for commands and clock. PC Interface Card Function: 24 bit (64 MHz) DSP for real time processing Link to DAE3 16 nit A/D converter for surface detection system serial link to robot direct emergency stop output for robot. Test Report Serial No: RFI/SAR/RP80806JD08A V2.0 Version 2.0 Issue Date: 04 April 2011 Page: 62 of 62 RFI Global Services Ltd. DASY4 SAR System Specifications (Continued) E-Field Probe Model: EX3DV3 Serial No: 3508 Construction: Triangular core Frequency: 10 MHz to >6 GHz Linearity: ±0.2 dB (30 MHz to 6 GHz) Probe Length (mm): 330 Probe Diameter (mm): 12 Tip Length (mm): 20 Tip Diameter (mm): 2.5 Sensor X Offset (mm): 1 Sensor Y Offset (mm): 1 Sensor Z Offset (mm): 1 Phantom Phantom: SAM Phantom Shell Material: Fibreglass Thickness: 2.0 ±0.1 mm

TEST REPORT FROM RFI GLOBAL SERVICES LTD Test of: P-06C FCC ID: UCE111038A To: FCC Part 22: 2010 Subpart H Test Report Serial No: RFI-RPT-RP80806JD04A V3.0 Version 3.0 supersedes all previous versions This Test Report Is Issued Under The Authority Of Chris Guy, Head of Global Approvals: Checked By: Ian Watch Signature: Date of Issue: 04 April 2011 This report is issued in Adobe Acrobat portable document format (PDF). It is only a valid copy of the report if it is being viewed in PDF format with the following security options not allowed: Changing the document, Selecting text and graphics, Adding or changing notes and form fields. This report may not be reproduced other than in full, except with the prior written approval of RFI Global Services Ltd. The results in this report apply only to the sample(s) tested. TEST REPORT SERIAL NO: RFI-RPT-RP80806JD04A V3.0 VERSION 4.0 ISSUE DATE: 04 APRIL 2011 Page 2 of 38 RFI Global Services Ltd This page has been left intentionally blank. TEST REPORT SERIAL NO: RFI-RPT-RP80806JD04A V3.0 VERSION 4.0 ISSUE DATE: 04 APRIL 2011 RFI Global Services Ltd Page 3 of 38 Table of Contents 1. Customer Information .................................................................................................................. 4 2. Summary of Testing ..................................................................................................................... 5 2.1. General Information 5 Summary of Test Results 5 2.2. Methods and Procedures 6 2.3. Deviations from the Test Specification 6 3. Equipment Under Test (EUT) ....................................................................................................... 7 3.1. Identification of Equipment Under Test (EUT) 7 3.2. Description of EUT 8 3.3. Modifications Incorporated in the EUT 8 3.4. Additional Information Related to Testing 8 3.5. Support Equipment 9 4. Operation and Monitoring of the EUT during Testing ............................................................. 10 4.1. Operating Modes 10 4.2. Configuration and Peripherals 10 5. Measurements, Examinations and Derived Results ................................................................ 11 5.1. General Comments 11 5.2. Test Results 12 5.2.1. Receiver/Idle Mode AC Conducted Spurious Emissions 12 5.2.2. Receiver/Idle Mode Radiated Spurious Emissions 14 5.2.3. Transmitter Effective Radiated Power (ERP) 18 5.2.4. Transmitter Conducted Output Power 20 5.2.5. Transmitter Frequency Stability (Temperature Variation) 22 5.2.6. Transmitter Frequency Stability (Voltage Variation) 23 5.2.7. Transmitter Occupied Bandwidth 24 5.2.8. Transmitter Out of Band Radiated Emissions 29 5.2.9. Transmitter Radiated Emissions at Band Edges 32 6. Measurement Uncertainty .......................................................................................................... 37 Appendix 1. Test Equipment Used ................................................................................................ 38 TEST REPORT SERIAL NO: RFI-RPT-RP80806JD04A V3.0 VERSION 4.0 ISSUE DATE: 04 APRIL 2011 Page 4 of 38 RFI Global Services Ltd 1. Customer Information Company Name: Panasonic Mobile Communications Development of Europe Ltd. Address: Panasonic House Willoughby Road Bracknell Berkshire RG12 8FP United Kingdom TEST REPORT SERIAL NO: RFI-RPT-RP80806JD04A V3.0 VERSION 4.0 ISSUE DATE: 04 APRIL 2011 RFI Global Services Ltd Page 5 of 38 2. Summary of Testing 2.1. General Information Specification Reference: 47CFR22 Specification Title: Code of Federal Regulations Volume 47 (Telecommunications) 2010: Part 22 Subpart H (Public Mobile Services) Specification Reference: 47CFR15.107 and 47CFR15.109 Specification Title: Code of Federal Regulations Volume 47 (Telecommunications) 2010: Part 15 Subpart B (Unintentional Radiators) - Sections 15.107 and 15.109 Site Registration: FCC: 209735 Location of Testing: RFI Global Services Ltd, Wade Road, Basingstoke, Hampshire, RG24 8AH Test Dates: 25 March 2011 to 29 March 2011 Summary of Test Results FCC Reference (47CFR) Measurement Result Part 15.107(a) Receiver/Idle Mode AC Conducted Spurious Emissions Part 15.109 Receiver/Idle Mode Radiated Spurious Emissions Part 22.913(a) Transmitter Effective Radiated Power (ERP) Part 2.1046 Transmitter Conducted Output Power Note 1 Part 2.1055/22.355 Transmitter Frequency Stability (Temperature and Voltage Variation) Part 2.1049 Transmitter Occupied Bandwidth Part 2.1053/22.917 Transmitter Out of Band Radiated Emissions Part 2.1053/22.917 Transmitter Band Edge Radiated Emissions Key to Results = Complied = Did not comply Note 1: The measurement was performed to support SAR tests. TEST REPORT SERIAL NO: RFI-RPT-RP80806JD04A V3.0 VERSION 4.0 ISSUE DATE: 04 APRIL 2011 Page 6 of 38 RFI Global Services Ltd 2.2. Methods and Procedures Reference: ANSI/TIA-603-C-2004 Title: Land Mobile Communications Equipment, Measurements and performance Standards Reference: ANSI C63.4 (2009) Title: American National Standard for Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz. 2.3. Deviations from the Test Specification For the measurements contained within this test report, there were no deviations from, additions to, or exclusions from the test specification identified above. TEST REPORT SERIAL NO: RFI-RPT-RP80806JD04A V3.0 VERSION 4.0 ISSUE DATE: 04 APRIL 2011 RFI Global Services Ltd Page 7 of 38 3. Equipment Under Test (EUT) 3.1. Identification of Equipment Under Test (EUT) Brand Name: NTT docomo Model Name or Number: P-06C IMEI: 355097040011329 (Radiated sample) Hardware Version Number: Rev C Software Version Number: B-D11CS1-00.01.027 D11CS1_Cv68091405 FCC ID: UCE111038A Brand Name: NTT docomo Model Name or Number: P-06C IMEI: 355097040010156 (Conducted RF port sample) Hardware Version Number: Rev C Software Version Number: B-D11CS1-00.01.027 D11CS1_Cv68091405 FCC ID: UCE111038A Description: AC Charger Brand Name: NTT docomo Mode…

Text truncated - open the document above for the full version.

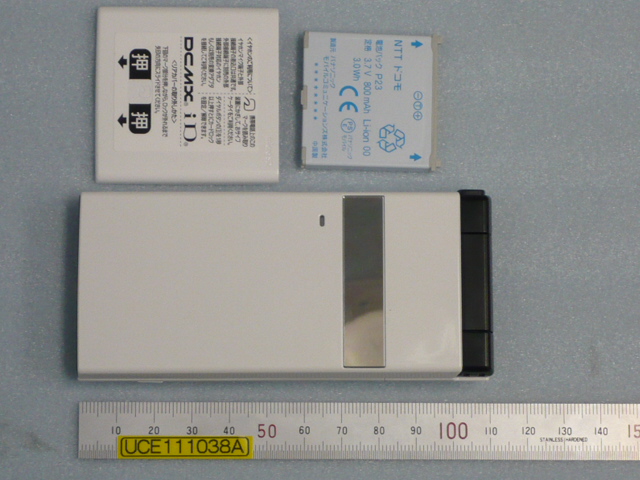

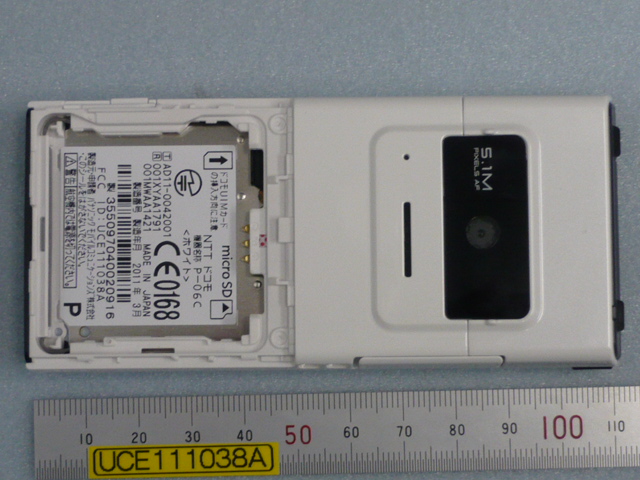

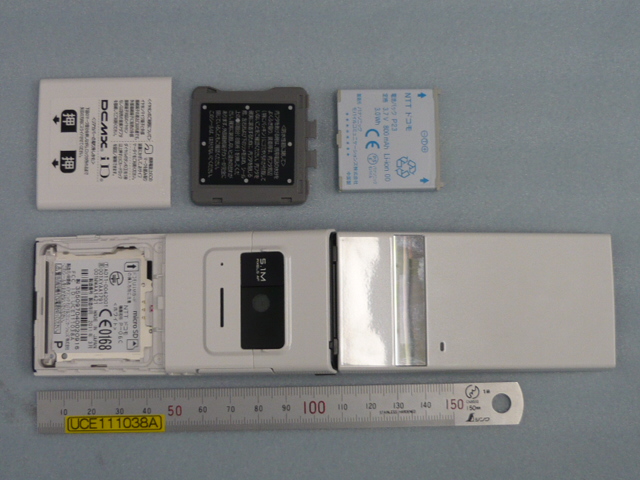

Test Report Serial No: RFI/SAR/RP80806JD08A V2.0 Version 2.0 Issue Date: 04 April 2011 Page: 37 of 62 RFI Global Services Ltd. Appendix 4. Photographs This appendix contains the following photographs: Photo Reference Number Title PHT/80806JD08/001 Test configuration for the measurement of Specific Absorption Rate (SAR) PHT/80806JD08/002 Touch Left PHT/80806JD08/003 Tilt Left PHT/80806JD08/004 Touch Right* PHT/80806JD08/005 Touch Right Mouth Jaw View 1* PHT/80806JD08/006 Touch Right Mouth Jaw View 2* PHT/80806JD08/007 Touch Right on Flat Section* PHT/80806JD08/008 Touch Right on Flat Section Mouth Jaw View 1* PHT/80806JD08/009 Touch Right on Flat Section Mouth Jaw View 2* PHT/80806JD08/010 Tilt Right PHT/80806JD08/011 Front of EUT Facing Phantom PHT/80806JD08/012 Rear of EUT Facing Phantom PHT/80806JD08/013 General Setup of Front of EUT Facing Phantom With PHF PHT/80806JD08/014 Front View of EUT PHT/80806JD08/015 Rear View of EUT PHT/80806JD08/016 Internal View of EUT PHT/80806JD08/017 Battery View PHT/80806JD08/018 PHF View PHT/80806JD08/019 900 MHz Head Fluid Level PHT/80806JD08/020 900 MHz Body Fluid Level *Note: Some points in the ‘Right Touch’ position could not be fully evaluated therefore the zoom scan was unable to fully enclose the peak SAR location as required by IEEE 1528 and OET Bulletin 65 Supplement C. This scan is repeated in the Mouth / Jaw configuration. Test Report Serial No: RFI/SAR/RP80806JD08A V2.0 Version 2.0 Issue Date: 04 April 2011 Page: 38 of 62 RFI Global Services Ltd. PHT/80806JD08/001: Test configuration for the measurement of Specific Absorption Rate (SAR) Test Report Serial No: RFI/SAR/RP80806JD08A V2.0 Version 2.0 Issue Date: 04 April 2011 Page: 39 of 62 RFI Global Services Ltd. PHT/80806JD08/002: Touch Left Test Report Serial No: RFI/SAR/RP80806JD08A V2.0 Version 2.0 Issue Date: 04 April 2011 Page: 40 of 62 RFI Global Services Ltd. PHT/80806JD08/003: Tilt Left Test Report Serial No: RFI/SAR/RP80806JD08A V2.0 Version 2.0 Issue Date: 04 April 2011 Page: 41 of 62 RFI Global Services Ltd. PHT/80806JD08/004: Touch Right Test Report Serial No: RFI/SAR/RP80806JD08A V2.0 Version 2.0 Issue Date: 04 April 2011 Page: 42 of 62 RFI Global Services Ltd. PHT/80806JD08/005: Touch Right Mouth Jaw View 1 Test Report Serial No: RFI/SAR/RP80806JD08A V2.0 Version 2.0 Issue Date: 04 April 2011 Page: 43 of 62 RFI Global Services Ltd. PHT/80806JD08/006: Touch Right Mouth Jaw View 2 Test Report Serial No: RFI/SAR/RP80806JD08A V2.0 Version 2.0 Issue Date: 04 April 2011 Page: 44 of 62 RFI Global Services Ltd. PHT/80806JD08/007: Touch Right on Flat Section Test Report Serial No: RFI/SAR/RP80806JD08A V2.0 Version 2.0 Issue Date: 04 April 2011 Page: 45 of 62 RFI Global Services Ltd. PHT/80806JD08/008: Touch Right on Flat Section Mouth Jaw View 1 Test Report Serial No: RFI/SAR/RP80806JD08A V2.0 Version 2.0 Issue Date: 04 April 2011 Page: 46 of 62 RFI Global Services Ltd. PHT/80806JD08/009: Touch Right on Flat Section Mouth Jaw View 2 Test Report Serial No: RFI/SAR/RP80806JD08A V2.0 Version 2.0 Issue Date: 04 April 2011 Page: 47 of 62 RFI Global Services Ltd. PHT/80806JD08/010: Tilt Right Test Report Serial No: RFI/SAR/RP80806JD08A V2.0 Version 2.0 Issue Date: 04 April 2011 Page: 48 of 62 RFI Global Services Ltd. PHT/80806JD08/011: Front of EUT Facing Phantom Test Report Serial No: RFI/SAR/RP80806JD08A V2.0 Version 2.0 Issue Date: 04 April 2011 Page: 49 of 62 RFI Global Services Ltd. PHT/80806JD08/012: Rear of EUT Facing Phantom Test Report Serial No: RFI/SAR/RP80806JD08A V2.0 Version 2.0 Issue Date: 04 April 2011 Page: 50 of 62 RFI Global Services Ltd. PHT/80806JD08/013: General Setup of Front of EUT Facing Phantom With PHF Test Report Serial No: RFI/SAR/RP80806JD08A V2.0 Version 2.0 Issue Date: 04 April 2011 Page: 51 of 62 RFI Global Services Ltd. PHT/80806JD08/014: Front View of EUT Test Report Serial No: RFI/SAR/RP80806JD08A V2.0 Version 2.0 Issue Date: 04 April 2011 Page: 52 of 62 RFI Global Services Ltd. PHT/80806JD08/015: Rear View of EUT Test Report Serial No: RFI/SAR/RP80806JD08A V2.0 Version 2.0 Issue Date: 04 April 2011 Page: 53 of 62 RFI Global Services Ltd. PHT/80806JD08/016: Internal View of EUT Test Report Serial No: RFI/SAR/RP80806JD08A V2.0 Version 2.0 Issue Date: 04 April 2011 Page: 54 of 62 RFI Global Services Ltd. PHT/80806JD08/017: Battery View Test Report Serial No: RFI/SAR/RP80806JD08A V2.0 Version 2.0 Issue Date: 04 April 2011 Page: 55 of 62 RFI Global Services Ltd. PHT/80806JD08/018: PHF View Test Report Serial No: RFI/SAR/RP80806JD08A V2.0 Version 2.0 Issue Date: 04 April 2011 Page: 56 of 62 RFI Global Services Ltd. PHT/80806JD08/019: 900 MHz Head Fluid Level Test Report Serial No: RFI/SAR/RP80806JD08A V2.0 Version 2.0 Issue Date: 04 April 2011 Page: 57 of 62 RFI Global Services Ltd. PHT/80806JD08/020: 900 MHz Body Fluid Level
