UCE111050AUMTS Tablet Device with Bluetooth and WLAN

’12.8 P-08D W WW 䂾౏౒䈱႐ᚲ䈪៤Ꮺ㔚⹤䉕䈗೑↪䈱㓙䈲䇮๟࿐䈱ᣇ䈻䈱ᔃ䈒䈳䉍䉕ᔓ䉏䈝䈮䇯 本体付属品 Q Q Q Q 目次／注意事項 1 目次 本体付属品. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 本端末のご利用について. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 安全上のご注意（必ずお守りください）. . . . . . . . . . . . . . . . . . . . . . 6 取り扱い上のご注意. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 防水／防塵性能. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24 ご使用前の確認 33 各部の名称と機能. . . . . . . . . . . . . . . . . . 33 ドコモminiUIMカード. . . . . . . . . . . . . . . 34 microSDカード. . . . . . . . . . . . . . . . . . . 36 充電. . . . . . . . . . . . . . . . . . . . . . . . . . 38 電源を入れる／切る. . . . . . . . . . . . . . . . 41 基本操作. . . . . . . . . . . . . . . . . . . . . . . 43 ホーム画面. . . . . . . . . . . . . . . . . . . . . . 45 アプリケーション画面. . . . . . . . . . . . . . . 51 Google Play. . . . . . . . . . . . . . . . . . . . . 52 文字入力. . . . . . . . . . . . . . . . . . . . . . . 53 ロック／セキュリティ. . . . . . . . . . . . . . . 56 初期設定 57 初期設定. . . . . . . . . . . . . . . . . . . . . . . 57 Googleアカウント. . . . . . . . . . . . . . . . . 58 アクセスポイントを設定する. . . . . . . . . . 58 Eメール設定. . . . . . . . . . . . . . . . . . . . . 61 SDカードバックアップ. . . . . . . . . . . . . . 61 Wi-Fi. . . . . . . . . . . . . . . . . . . . . . . . . . 63 電話帳／メール／ウェブブラ ウザ 65 電話帳. . . . . . . . . . . . . . . . . . . . . . . . . 65 spモードメール. . . . . . . . . . . . . . . . . . . 67 メッセージ（SMS）. . . . . . . . . . . . . . . . 67 Eメール. . . . . . . . . . . . . . . . . . . . . . . . 68 Gmail. . . . . . . . . . . . . . . . . . . . . . . . . 68 緊急速報「エリアメール」. . . . . . . . . . . . 69 ウェブブラウザ. . . . . . . . . . . . . . . . . . . 71 本体設定 72 設定メニュー. . . . . . . . . . . . . . . . . . . . . 72 目次／注意事項 2 付録 74 トラブルシューティング（FAQ）. . . . . . . 74 スマートフォンあんしん遠隔サポート. . . . . 78 端末初期化. . . . . . . . . . . . . . . . . . . . . . 79 保証とアフターサービス. . . . . . . . . . . . . 79 ソフトウェア更新. . . . . . . . . . . . . . . . . . 82 European RF Exposure Information. . . . 90 Declaration of Conformity. . . . . . . . . . . 90 FCC Notice. . . . . . . . . . . . . . . . . . . . . . 91 FCC RF Exposure Information. . . . . . . . 91 Important Safety Information. . . . . . . . 92 Handling Precautions. . . . . . . . . . . . . . 93 輸出管理規制. . . . . . . . . . . . . . . . . . . . . 93 知的財産権. . . . . . . . . . . . . . . . . . . . . . 94 SIMロック解除. . . . . . . . . . . . . . . . . . . 98 Quick Manual (English). . . . . . . . . . . . . 99 索引. . . . . . . . . . . . . . . . . . . . . . . . . . 109 目次／注意事項 3 本端末のご利用について • 本端末は、W-CDMA・無線LAN方式に対応しています。 • 本端末は無線を使用しているため、 トンネル・地下・建物の中などで電波 の届かない所、屋外でも電波の弱い所およびFOMAサービスエリア外では ご使用になれません。また、高層ビル・マンションなどの高層階で見晴ら しのよい場所であってもご使用になれない場合があります。なお、電波が 強くアンテナマークが4本たっている状態で、移動せずに使用している場 合でも通信が切れる場合がありますので、ご了承ください。 • 本端末は、無線による通信を行っていることから、電波状態の悪い所へ移 動するなど送信されてきたデジタル信号を正確に復元することができない 場合には、実際の送信内容と異なって受信される場合があります。 • 本端末は、FOMAプラスエリアおよびFOMAハイスピードエリアに対応し ております。 • お客様ご自身で本端末に登録された情報内容は、別にメモを取るなどして 保管してくださるようお願いします。本端末の故障や修理、機種変更やそ の他の取り扱いなどによって、 万が一、登録された情報内容が消失してし まうことがあっても、当社としては責任を負いかねますのであらかじめご 了承ください。 • 大切なデータはmicroSDカードに保存することをおすすめします。 • 本端末はパソコンなどと同様に、お客様がインストールを行うアプリケー ションなどによっては、お客様の端末の動作が不安定になったり、 お客様 の位置情報や端末に登録された個人情報などがインターネットを経由して 外部に発信され不正に利用される可能性があります。このため、ご利用に なるアプリケーションなどの提供元および動作状況について十分にご確認 の上ご利用ください。 • 本端末はｉモードのサイト（ 番組）への接続、ｉアプリなどには対応して おりません。 • 本端末は、データの同期や最新のソフトウェアバージョンをチェックする ための通信、サーバーとの接続を維持するための通信など一部自動的に通 信を行う仕様となっています。 また、アプリケーションのダウンロードや 動画の視聴などデータ量の大きい通信を行うと、パケット通信料が高額に なりますので、パケット定額サービスのご利用を強くおすすめします。 • 本端末では、マナーモードに設定中でも、カメラのシャッター音やアラー ム音は消音されません。 • ご利用の端末のソフトウェアバージョンについてはZP.73 • 本端末は、オペレーティングシステム（OS）のバージョンアップにより 機能が追加されたり、操作方法が変更になったりすることがあります。 機 能の追加や操作方法の変更などに関する最新情報は、ドコモのホームペー ジでご確認ください。 • OSをバージョンアップすると、古いバージョンのOSで使用していたアプ リケーションが使えなくなる場合や意図しない不具合が発生する場合があ ります。 目次／注意事項 4 • Googleが提供するサービスについては、Google Inc.の利用規約をお読み ください。またその他のウェブサービスについては、それぞれの利用規約 をお読みください。 • Googleアプリケーションおよびサービス内容は、将来予告なく変更され る場合があります。 • 紛失に備え、画面ロックを設定し、端末のセキュリティを確保してくださ い（ZP. 56）。 • 万が一紛失した場合は、Googleトーク、Gmail、Google Playなどの Googleサービスなどを他の人に利用されないように、パソコンより各種 サービスアカウントのパスワードを変更してください。 • spモード、mopera Uおよびビジネスmoperaインターネット以外のプロ バイダはサポートしておりません。 • microSDカードを挿入しなくても本端末をお使いいただくことはできます が 、ワンセグの番組録画など、microSDカードが挿入されていないとご利 用いただけない機能がございます。 このため、本端末をご利用になるときは、microSDカードを挿入すること をおすすめします。 • テザリングのご利用にはspモードのご契約が必要です。 • テザリングを有効にした状態では、インターネット接続・メールサービス 以外のspモードの機能をご利用になれません。 • テザリングを利用してインターネットに接続した場合、ご利用の環境によ っては外部機器においてアプリケーション（ブラウジング・ゲームなど） が正常に動作しない場合があります。 • ご利用の料金プランにより、テザリングご利用時のパケット通信料が異な ります。パケット定額サービスのご利用を強くおすすめします。 • ご利用時の料金など詳細については、 http://www.nttdocomo.co.jp/ をご覧ください。 目次／注意事項 5 安全上のご注意（必ずお守りください） ■ご使用の前に、この「安全上のご注意」をよくお読みの上、正しくお使い ください。また、お読みになった後は大切に保管してください。 ■ここに示した注意事項は、お使いになる人や、他の人への危害、財産への 損害を未然に防ぐための内容を記載していますので、必ずお守りください。 ■次の表示の区分は、表示内容を守らず、誤った使用をした場合に生じる危 害や損害の程度を説明しています。 この表示は、取り扱いを誤った場合、「死亡また は重傷を負う危険が切迫して生じることが想定さ れる」内容です。 この表示は、取り扱いを誤った場合、「死亡また は重傷を負う可能性が想定される」内容です。 この表示は、取り扱いを誤った場合、「軽傷を負 う可能性が想定される場合、および、物的損害の 発生が想定される」内容です。 ■次の絵表示の区分は、お守りいただく内容を説明しています。 禁止（してはいけないこと）を示します。 分解してはいけないことを示す記号です。 水がかかる場所で使用したり、水に濡らしたりしてはいけないこ とを示す記号です。 濡れた手で扱ってはいけないことを示す記号です。 目次／注意事項 6 指示に基づく行為の強制（必ず実行していただくこと）を示しま す。 電源プラグをコンセントから抜いていただくことを示す記号です。 ■「安全上のご注意」は下記の6項目に分けて説明しています。 本端末、アダプタ、卓上ホルダ、ドコモminiUIMカードの取り扱いについて ＜共通＞. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P.7 本端末の取り扱いについて. . . . . . . . . . . . . . . . . . . . . . . . . . . . . P.9 アダプタ、卓上ホルダの取り扱いについて. . . . . . . . . . . . . . . . . . P.12 ドコモminiUIMカードの取り扱いについて. . . . . . . . . . . . . . . . . . P.14 医用電気機器近くでの取り扱いについて. . . . . . . . . . . . . . . . . . . P.14 材質一覧. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P.15 本端末、アダプタ、卓上ホルダ、ドコモminiUIMカードの取り扱 いについて＜共通＞ 高温になる場所（火のそば、暖房器具のそば、こたつの中、 直射日光の当たる場所、炎天下の車内など）で使用、保管、 放置しないでください。 火災、やけど、けがの原因となります。 電子レンジなどの加熱調理機器や高圧容器に入れないでく ださい。 火災、やけど、けが、感電の原因となります。 分解、改造をしないでください。 火災、やけど、けが、感電の原因となります。 水や飲料水、ペットの尿などで濡らさないでください。 火災、やけど、けが、感電の原因となります。 防水性能については下記をご参照ください。 ZP.24「防水／防塵性能」 目次／注意事項 7 本端末に使用す…

Text truncated - open the document above for the full version.

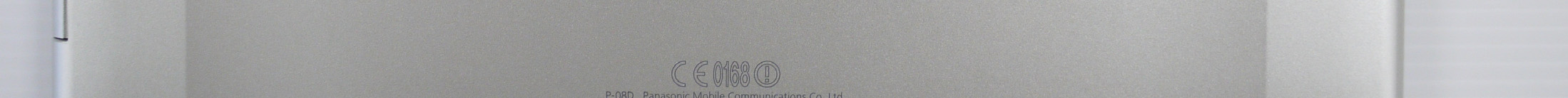

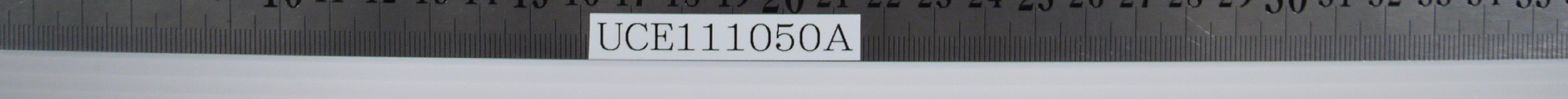

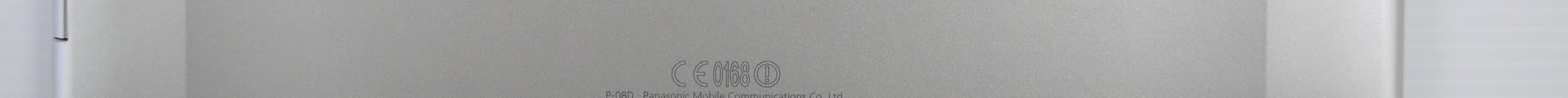

■ P-08D_FCCID Location FCCID ： UCE111050A <Top> <Bottom> Rear view Product/Trade Name Production Company Name

TEST REPORT FROM RFI GLOBAL SERVICES LTD Test of: EB-4055 FCC ID: UCE111050A To: OET Bulletin 65 Supplement C: (2001-01) IEEE 1528: 2003 Test Report Serial No: RFI-SAR-RP87983JD02A V2.0 Version 2.0 Supersedes All Previous Versions This Test Report Is Issued Under The Authority Of Chris Guy, Head of Global Approvals: (APPROVED SIGNATORY) Checked By: Richelieu Quoi (APPROVED SIGNATORY) Issue Date: 04 July 2012 Test Dates: 31 May 2012 This report is issued in portable document format (PDF). It is only a valid copy of the report if it is being viewed in PDF format with the following security options not allowed: Changing the document, Selecting text and graphics, Adding or changing notes and form fields. This report may not be reproduced other than in full, except with the prior written approval of RFI Global Services Ltd. The results in this report apply only to the sample(s) tested. The Bluetooth® word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by RFI Global Services Ltd. is under license. Other trademarks and trade names are those of their respective owners. Test Report Serial No: RFI-SAR-RP87983JD02A V2.0 Version 2.0 Issue Date: 04 July 2012 Page: 2 of 89 RFI Global Services Ltd. This page has been left intentionally blank. Test Report Serial No: RFI-SAR-RP87983JD02A V2.0 Version 2.0 Issue Date: 04 July 2012 Page: 3 of 89 RFI Global Services Ltd. TABLE OF CONTENTS 1. Customer Information ...................................................................................................... 4 2. Equipment Under Test (EUT) ........................................................................................... 5 3. Test Specification, Methods and Procedures ................................................................ 8 4. Deviations from the Test Specification ......................................................................... 10 5. Operation and Configuration of the EUT during Testing ............................................ 11 6. Summary of Test Results ............................................................................................... 13 7. Measurements, Examinations and Derived Results .................................................... 14 8. Measurement Uncertainty .............................................................................................. 26 Appendix 1. Test Equipment Used .................................................................................... 29 Appendix 2. Measurement Methods .................................................................................. 32 Appendix 3. SAR Distribution Scans ................................................................................ 34 Appendix 4. Photographs .................................................................................................. 59 Appendix 5. System Check ................................................................................................ 85 Appendix 6. Simulated Tissues ......................................................................................... 86 Test Report Serial No: RFI-SAR-RP87983JD02A V2.0 Version 2.0 Issue Date: 04 July 2012 Page: 4 of 89 RFI Global Services Ltd. 1. Customer Information Company Name: Panasonic Mobile Comms Dev of Europe Ltd Address: Panasonic House, Willoughby Road, Bracknell, Berkshire, RG12 8FP, United Kingdom Test Report Serial No: RFI-SAR-RP87983JD02A V2.0 Version 2.0 Issue Date: 04 July 2012 Page: 5 of 89 RFI Global Services Ltd. 2. Equipment Under Test (EUT) 2.1. Identification of Equipment Under Test (EUT) Description: Single Mode UMTS Tablet Device with WLAN and Bluetooth Brand Name: NTT docomo Model Name or Number: EB-4055 Serial Number: None Stated IMEI Number: 3599-520400-36369 Hardware Version Number: Rev C Software Version Number: ACPU: arrietty-ics-09-0417 CCPU: R1B_0_EC12_02_D00 Hardware Revision of GSM Module: Not Applicable Software Revision of GSM Module: Not Applicable FCC ID Number: UCE111050A Country of Manufacture: Japan Date of Receipt: 15 May 2012 Note(s): This sample was used to perform WWAN and WLAN SAR evaluation measurements only. Description: Single Mode UMTS Tablet Device with WLAN and Bluetooth Brand Name: NTT docomo Model Name or Number: EB-4055 Serial Number: None Stated IMEI Number: 3599-520400-36385 Hardware Version Number: Rev C Software Version Number: ACPU: arrietty-ics-09-0417 CCPU: R1B_0_EC12_02_D00 Hardware Revision of GSM Module: Not Applicable Software Revision of GSM Module: Not Applicable FCC ID Number: UCE111050A Country of Manufacture: Japan Date of Receipt: 15 May 2012 Note(s): This sample was used to perform WWAN and WLAN Conducted power measurements only. Test Report Serial No: RFI-SAR-RP87983JD02A V2.0 Version 2.0 Issue Date: 04 July 2012 Page: 6 of 89 RFI Global Services Ltd. 2.2. Description of EUT The equipment under test was a single mode UMTS Tablet device operating in the UMTS FDD V and Wi-Fi 2450 bands. The EUT has UMTS FDD V HSPA, WiFi802.11b/g/n and Bluetooth capabilities 2.3. Modifications Incorporated in the EUT EUT (IMEI: 3599-520400-36369) was used to perform WWAN and WLAN SAR test only. EUT (IMEI: 3599-520400-36385) was used to perform WWAN and WLAN conducted power measurements only. 2.4. Support Equipment The following support equipment was used to exercise the EUT during testing: Description: Wireless Communication Test Set Brand Name: Agilent Model Name or Number: 8960 Series 10 Serial Number: GB46311280 Cable Length and Type: ~4.0m Utiflex Cable Connected to Port: RF (Input / Output) Air Link Test Report Serial No: RFI-SAR-RP87983JD02A V2.0 Version 2.0 Issue Date: 04 July 2012 Page: 7 of 89 RFI Global Services Ltd. 2.5. Additional Information Related to Testing Equipment Category UMTS FDD V, WiFi802.11b/g/n Type of Unit Portable Transceiver Intended Operating Environment: Within UMTS , Wi-Fi and Bluetooth Coverage Transmitter Maximum Output Power Characteristics: UMTS Band V Communication Test Set co…

Text truncated - open the document above for the full version.

Test Report Serial No: RFI-SAR-RP87983JD02A V2.0 Version 2.0 Issue Date: 04 July 2012 Page: 32 of 89 RFI Global Services Ltd. Appendix 2. Measurement Methods A.2.1. Evaluation Procedure The Specific Absorption Rate (SAR) evaluation was performed in the following manner: a) (i) The evaluation was performed in an applicable area of the phantom depending on the type of device being tested. For devices worn about the ear during normal operation, both the left and right ear positions were evaluated at the centre frequency of the band at maximum power. The side, which produced the greatest SAR, determined which side of the phantom would be used for the entire evaluation. The positioning of the head worn device relative to the phantom was dictated by the test specification identified in section 3.1 of this report. (ii) For body worn devices or devices which can be operated within 20 cm of the body, the flat section of the SAM phantom was used were the size of the device(s) is normal. for bigger devices and base station the 2mm Oval phantom is used for evaluation. The type of device being evaluated dictated the distance of the EUT to the outer surface of the phantom flat section. b) The SAR was determined by a pre-defined procedure within the DASY4 software. The exposed region of the phantom was scanned near the inner surface with a grid spacing of 20mm x 20mm or appropriate resolution. c) A 5x5x7 matrix was performed around the greatest spatial SAR distribution found during the area scan of the applicable exposed region. SAR values were then calculated using a 3-D spline interpolation algorithm and averaged over spatial volumes of 1 and 10 grams. d) If the EUT had any appreciable drift over the course of the evaluation, then the EUT was re- evaluated. Any unusual anomalies over the course of the test also warranted a re-evaluation. Test Report Serial No: RFI-SAR-RP87983JD02A V2.0 Version 2.0 Issue Date: 04 July 2012 Page: 33 of 89 RFI Global Services Ltd. A.2.2. Specific Absorption Rate (SAR) Measurements to OET Bulletin 65 Supplement C: (2001- 01) Evaluating Compliance with FCC Guidelines for Human Exposure to Radio Frequency Electromagnetic Fields SAR measurements were performed in accordance with Appendix D of the standard FCC OET Bulletin 65 Supplement C: 2001, IEEE 1528 and FCC KDB procedures, against appropriate limits for each measurement position in accordance with the standard. In some cases the FCC was contacted using a PBA or KDB process to ensure test is performed correctly. The test was performed in a shielded enclosure with the temperature controlled to remain between +18.0ºC and +25.0ºC. The tissue equivalent material fluid temperature was controlled to give a maximum variation of ± 2.0ºC Prior to any SAR measurements on the EUT, system validation and material dielectric property measurements were conducted. In the absence of a detailed procedure within the specification, system validation and material dielectric property measurements were performed in accordance with Appendix C and Appendix D of FCC OET Bulletin 65 Supplement C: 2001 and FCC KDB publication 450824. Following the successful system validation and material dielectric property measurements, a SAR versus time sweep shall be performed within 10 mm of the phantom inner surface. If the EUT power output is stable after three minutes then the measurement probe will perform a coarse surface level scan at each test position in order to ascertain the location of the maximum local SAR level. Once this area had been established, a 5x5x7 cube of 175 points (5 mm spacing in each axis ≈ 27g) will be centred at the area of concern. Extrapolation and interpolation will then be carried out on the 27g of tissue and the highest averaged SAR over a 10g cube determined. Once the maximum interpolated SAR measurement is complete; the coarse scan is visually assessed to check for secondary peaks within 50% of the maximum SAR level. If there are any further SAR measurements required, extra 5x5x7 cubes shall be centred on each of these extra local SAR maxima. At the end of each position test case a second time sweep shall be performed to check whether the EUT has remained stable throughout the test. Test Report Serial No: RFI-SAR-RP87983JD02A V2.0 Version 2.0 Issue Date: 04 July 2012 Page: 34 of 89 RFI Global Services Ltd. Appendix 3. SAR Distribution Scans This appendix contains SAR distribution scans which are not included in the total number of pages for this report. Scan Ref Number Title SCN/87983JD02A/001 Base of EUT Antenna Retracted Facing Phantom FDD V CH4183 SCN/87983JD02A/002 Base of EUT Antenna Retracted Facing Phantom FDD V CH4132 SCN/87983JD02A/003 Base of EUT Antenna Retracted Facing Phantom FDD V CH4233 SCN/87983JD02A/004 Base of EUT Antenna Extended Facing Phantom FDD V CH4183 SCN/87983JD02A/005 Base of EUT Antenna Extended Facing Phantom FDD V CH4132 SCN/87983JD02A/006 Base of EUT Antenna Extended Facing Phantom FDD V CH4233 SCN/87983JD02A/007 Secondary Edge Landscape of EUT Antenna Retracted Facing Phantom FDD V CH4183 SCN/87983JD02A/008 Secondary Edge Landscape of EUT Antenna Extended Facing Phantom FDD V CH4183 SCN/87983JD02A/009 Secondary Edge Portrait of EUT Antenna Retracted Facing Phantom FDD V CH4183 SCN/87983JD02A/010 Base of EUT Antenna Retracted Facing Phantom Wi-Fi 802.11b 1Mbps CH6 SCN/87983JD02A/011 Base of EUT Antenna Extended Facing Phantom Wi-Fi 802.11b 1Mbps CH6 SCN/87983JD02A/012 Base of EUT Antenna Retracted Facing Phantom Wi-Fi 802.11b 1Mbps CH1 SCN/87983JD02A/013 Base of EUT Antenna Extended Facing Phantom Wi-Fi 802.11b 1Mbps CH1 SCN/87983JD02A/014 Base of EUT Antenna Retracted Facing Phantom Wi-Fi 802.11b 1Mbps CH11 SCN/87983JD02A/015 Base of EUT Antenna Extended Facing Phantom Wi-Fi 802.11b 1Mbps CH11 SCN/87983JD02A/016 Secondary Edge Landscape of EUT Antenna Retracted Facing Phantom Wi- Fi 802.11b 1Mbps CH6 SCN/87983JD02A/017 Secondary Edge Landscape of EUT Antenna Extended Facing Phantom Wi- Fi 802.…

Text truncated - open the document above for the full version.

Test Report Serial No: RFI-SAR-RP87983JD02A V2.0 Version 2.0 Issue Date: 04 July 2012 Page: 85 of 89 RFI Global Services Ltd. Appendix 5. System Check Prior to the assessment, the system was verified in the flat region of the phantom. 900 MHz and 2450 MHz dipoles were used. A forward power of 250 mW was applied to the dipole and the system was verified to a tolerance of ±5% for both the dipole. The applicable verification normalised to 1 Watt. System Check 850/900 Body System Check 2450 Body Simulant Frequency (MHz) Room Temp Liquid Temp Parameters Target Value Measured Value Deviation (%) Limit (%) Body 2450 24.0 ºC 23.0 ºC ε r 52.70 50.68 -3.83 5.00 σ 1.95 2.02 3.73 5.00 1g SAR 51.90 50.80 -2.12 5.00 10g SAR 24.10 23.08 -4.23 5.00 Date: 31/05/2012 Validation Dipole and Serial Number: D900V2; SN: 124 Simulant Frequency (MHz) Room Temp Liquid Temp Parameters Target Value Measured Value Deviation (%) Limit (%) Body 900 24.0 ºC 22.5 ºC ε r 55.00 55.51 0.92 5.00 σ 1.05 1.01 -3.60 5.00 1g SAR 11.10 11.28 1.62 5.00 10g SAR 7.14 7.36 3.08 5.00 Date: 31/05/2012 Validation Dipole and Serial Number: D2450V2; SN: 725 Test Report Serial No: RFI-SAR-RP87983JD02A V2.0 Version 2.0 Issue Date: 04 July 2012 Page: 86 of 89 RFI Global Services Ltd. Appendix 6. Simulated Tissues The body mixture consists of water, Polysorbate 20 and salt. Visual inspection is made to ensure air bubbles are not trapped during the mixing process. The mixture is calibrated to obtain proper dielectric constant (permittivity) and conductivity of the tissue. Ingredient Frequency 835/850/900 MHz Body De-Ionized Water 71.30 Polysorbate 20 (Tween 20) 28.00 Salt 0.70 Ingredient Frequency 2450 MHz Body De-Ionized Water 71.70 Polysorbate 20 (Tween 20) 28.00 Salt 0.30 Test Report Serial No: RFI-SAR-RP87983JD02A V2.0 Version 2.0 Issue Date: 04 July 2012 Page: 87 of 89 RFI Global Services Ltd. Appendix 7. DASY4 System Details A.7.1. DASY4 SAR Measurement System RFI Global Services Ltd, SAR measurement facility utilises the Dosimetric Assessment System (DASY™) manufactured by Schmid & Partner Engineering AG (SPEAG™) of Zurich, Switzerland. The DASY4 system is comprised of the robot controller, computer, near-field probe, probe alignment sensor, and the SAM phantom containing brain or muscle equivalent material. The robot is a six-axis industrial robot performing precise movements to position the probe to the location (points) of maximum electromagnetic field (EMF). A cell controller system contains the power supply, robot controller; teach pendant (Joystick), and remote control. This is used to drive the robot motors. The Staubli robot is connected to the cell controller to allow software manipulation of the robot. The data acquisition electronics (DAE) performs signal amplification, signal multiplexing, AD-conversion, offset measurements, mechanical surface detection, collision detection etc. The DAE is connected to the Electro-optical coupler (EOC). The EOC performs the conversion from the optical into digital electric signal of the DAE and transfers data to the PC plug-in card. The DAE3 utilises a highly sensitive electrometer-grade preamplifier with auto-zeroing, a channel and gain-switching mulitplexer, a fast 16- bit AD-converter and a command decoder and control logic unit. Transmission to the PC-card is accomplished through an optical downlink for data and status information and an optical uplink for commands and clock lines. The mechanical probe-mounting device includes two different sensor systems for frontal and sidewise probe contacts. They are also used for mechanical surface detection and probe collision detection. The robot uses its own controller with a built in VME-bus computer. Test Report Serial No: RFI-SAR-RP87983JD02A V2.0 Version 2.0 Issue Date: 04 July 2012 Page: 88 of 89 RFI Global Services Ltd. A.7.2. DASY4 SAR System Specifications Robot System Positioner: Stäubli Unimation Corp. Robot Model: RX90L Repeatability: 0.025 mm No. of Axis: 6 Serial Number: F00/SD89A1/A/01 Reach: 1185 mm Payload: 3.5 kg Control Unit: CS7 Programming Language: V+ Data Acquisition Electronic (DAE) System Serial Number: DAE3 SN:394 PC Controller PC: Dell Precision 340 Operating System: Windows 2000 Data Card: DASY4 Measurement Server Serial Number: 1080 Data Converter Features: Signal Amplifier, multiplexer, A/D converted and control logic. Software: DASY4 Software Connecting Lines: Optical downlink for data and status info. Optical uplink for commands and clock. PC Interface Card Function: 24 bit (64 MHz) DSP for real time processing Link to DAE3 16 nit A/D converter for surface detection system serial link to robot direct emergency stop output for robot. Test Report Serial No: RFI-SAR-RP87983JD02A V2.0 Version 2.0 Issue Date: 04 July 2012 Page: 89 of 89 RFI Global Services Ltd. DASY4 SAR System Specifications (Continued) E-Field Probe Model: EX3DV4 Serial No: 3814 Construction: Triangular core Frequency: 10 MHz to >6 GHz Linearity: ±0.2 dB (30 MHz to 6 GHz) Probe Length (mm): 330 Probe Diameter (mm): 12 Tip Length (mm): 20 Tip Diameter (mm): 2.5 Sensor X Offset (mm): 1 Sensor Y Offset (mm): 1 Sensor Z Offset (mm): 1 Phantom Phantom: SAM Phantom Shell Material: Fibreglass Thickness: 2.0 ±0.1 mm

TEST REPORT FROM RFI GLOBAL SERVICES LTD Test of: NTT docomo EB-4055 FCC ID: UCE111050A To: FCC Part 22: 2011 Subpart H Test Report Serial No.: RFI-RPT-RP87983JD08A V3.0 Version 3.0 Supersedes All Previous Versions This Test Report Is Issued Under The Authority Of John Newell, Group Quality Manager: Checked By: Steven White Signature: Date of Issue: 28 June 2012 This report is issued in Adobe Acrobat portable document format (PDF). It is only a valid copy of the report if it is being viewed in PDF format with the following security options not allowed: Changing the document, selecting text and graphics, adding or changing notes and form fields. This report may not be reproduced other than in full, except with the prior written approval of RFI Global Services Ltd. The results in this report apply only to the sample(s) tested. TEST REPORT SERIAL NO: RFI-RPT-RP87983JD08A V3.0 VERSION 3.0 ISSUE DATE: 28 JUNE 2012 Page 2 of 47 RFI Global Services Ltd This page has been left intentionally blank. TEST REPORT SERIAL NO: RFI-RPT-RP87983JD08A V3.0 VERSION 3.0 ISSUE DATE: 28 JUNE 2012 RFI Global Services Ltd Page 3 of 47 Table of Contents 1. Customer Information .................................................................................................................. 4 2. Summary of Testing ..................................................................................................................... 5 2.1. General Information 5 2.2. Summary of Test Results 5 2.3. Methods and Procedures 5 2.4. Deviations from the Test Specification 5 3. Equipment Under Test (EUT) ....................................................................................................... 6 3.1. Identification of Equipment Under Test (EUT) 6 3.2. Description of EUT 7 3.3. Modifications Incorporated in the EUT 7 3.4. Additional Information Related to Testing 7 3.5. Support Equipment 8 4. Operation and Monitoring of the EUT during Testing ............................................................... 9 4.1. Operating Modes 9 4.2. Configuration and Peripherals 9 5. Measurements, Examinations and Derived Results ................................................................ 10 5.1. General Comments 10 5.2. Test Results 11 5.2.1. Receiver/Idle Mode AC Conducted Spurious Emissions 11 5.2.2. Receiver/Idle Mode Radiated Spurious Emissions 14 5.2.3. Transmitter Effective Radiated Power (ERP) 18 5.2.4. Transmitter Frequency Stability (Temperature Variation) 20 5.2.5. Transmitter Frequency Stability (Voltage Variation) 21 5.2.6. Transmitter Occupied Bandwidth 22 5.2.7. Transmitter Out of Band Radiated Emissions 32 5.2.8. Transmitter Radiated Emissions at Band Edges 36 6. Measurement Uncertainty .......................................................................................................... 46 Appendix 1. Test Equipment Used ................................................................................................ 47 TEST REPORT SERIAL NO: RFI-RPT-RP87983JD08A V3.0 VERSION 3.0 ISSUE DATE: 28 JUNE 2012 Page 4 of 47 RFI Global Services Ltd 1. Customer Information Company Name: Panasonic Mobile Communications Development of Europe Ltd. Address: Panasonic House Willoughby Road Bracknell Berkshire RG12 8FP United Kingdom TEST REPORT SERIAL NO: RFI-RPT-RP87983JD08A V3.0 VERSION 3.0 ISSUE DATE: 28 JUNE 2012 RFI Global Services Ltd Page 5 of 47 2. Summary of Testing 2.1. General Information Specification Reference: 47CFR22 Specification Title: Code of Federal Regulations Volume 47 (Telecommunications) 2011: Part 22 Subpart H (Public Mobile Services) Specification Reference: 47CFR15.107 and 47CFR15.109 Specification Title: Code of Federal Regulations Volume 47 (Telecommunications) 2011: Part 15 Subpart B (Unintentional Radiators) - Sections 15.107 and 15.109 Site Registration: 209735 Location of Testing: RFI Global Services Ltd, Wade Road, Basingstoke, Hampshire, RG24 8AH. Test Dates: 30 May 2012 to 18 June 2012 2.2. Summary of Test Results FCC Reference (47CFR) Measurement Result Part 15.107(a) Receiver/Idle Mode AC Conducted Spurious Emissions Part 15.109 Receiver/Idle Mode Radiated Spurious Emissions Part 22.913(a) Transmitter Effective Radiated Power (ERP) Part 2.1055/22.355 Transmitter Frequency Stability (Temperature and Voltage Variation) Part 2.1049 Transmitter Occupied Bandwidth Part 2.1053/22.917 Transmitter Out of Band Radiated Emissions Part 2.1053/22.917 Transmitter Band Edge Radiated Emissions Key to Results = Complied = Did not comply 2.3. Methods and Procedures Reference: ANSI/TIA-603-C-2004 Title: Land Mobile Communications Equipment, Measurements and performance Standards Reference: ANSI C63.4 (2009) Title: American National Standard for Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz. Reference: ANSI C63.10 (2009) Title: American National Standard for Testing Unlicensed Wireless Devices 2.4. Deviations from the Test Specification For the measurements contained within this test report, there were no deviations from, additions to, or exclusions from the test specification identified above. TEST REPORT SERIAL NO: RFI-RPT-RP87983JD08A V3.0 VERSION 3.0 ISSUE DATE: 28 JUNE 2012 Page 6 of 47 RFI Global Services Ltd 3. Equipment Under Test (EUT) 3.1. Identification of Equipment Under Test (EUT) Brand Name: NTT docomo Model Name or Number: EB-4055 IMEI: 359952040036328 (Radiated sample) Hardware Version Number: Rev C Software Version Number: ACPU: arrietty-ics-09-0417 CCPU: R1B_0_EC12_02_D00 FCC ID: UCE111050A Brand Name: NTT docomo Model Name or Number: EB-4055 IMEI: 359952040036344 (Conducted RF port sample) Hardware Version Number: Rev C Software Version Number: ACPU: arrietty-ics-09-0417 CCPU: R1B_0_EC12_02_D00 FCC ID: UCE111050A Brand Name: NTT docomo Description: AC Charger Model Name or Number: Type P01 Brand Name: NTT docomo Description: USB Data cable Model Name or Number: Type 01 Brand Name: Panasonic Descr…

Text truncated - open the document above for the full version.

Test Report Serial No: RFI-SAR-RP87983JD02A V2.0 Version 2.0 Issue Date: 04 July 2012 Page: 59 of 89 RFI Global Services Ltd. Appendix 4. Photographs This appendix contains the following photographs: Photo Reference Number Title PHT/87983JD02A/001 Test configuration for the measurement of Specific Absorption Rate (SAR) PHT/87983JD02A/002 Base of EUT Antenna Retracted (Region 1) Facing Phantom PHT/87983JD02A/003 Base of EUT Antenna Retracted (Region 2) Facing Phantom PHT/87983JD02A/004 Base of EUT Antenna Extended(Region 2) Facing Phantom PHT/87983JD02A/005 Secondary-Edge Landscape of EUT with Antenna Retracted Facing Phantom PHT/87983JD02A/0…

Text truncated - open the document above for the full version.
