UCE112056ASingle Mode UMTS Cellular Mobile Radio

P-01E INSTRUCTION MANUAL ’12.10 Thank you for selecting the “P-01E”. Read this manual befo re use to correctly operate your P-01E. For Using This Manual ⿠Note that “P-01E” is referred to as “FOMA terminal” in this manual. ⿠Most operating procedures and displays in this manual are shown with the default settings of the “Black” handset. Further, displays and illustrations show n in this manual are for reference. The actual ones might differ. ⿠P-01E Handset (With Wa rranty and Back Cover P58) ⿠Battery Pack P23 ⿠Instruction Manual (Ja panese version) ⿠See page 71 for optional items that support this FOMA terminal. About manual of P-01E The operating procedures for the P-01E are also published as in “使いかたガイド (Guide)” on - scre en manual installed onto your FOMA terminal, and “Instruction Manual (Detailed Ve rsion)” as a PDF. (In Japanese only) ◆“Instru ction Manual” (this manual)◆ Description of the displayed content and operating pro cedures for basic functions ◆“使いかたガイド (Guide)” (installed onto your FOMA terminal)◆ Description of the outline and operations of frequently used functions From the P-01E m ▶ 便利ツール (Tool) ▶ 使いかたガイド (Guide) ※ This function is available in Japanese mode only. ◆“Instru ction Manual (Detailed Version)” (PDF)◆ From a PC, download detailed information about all the functions and the operating pro cedures. (In Japanese only)( http://www.nttdocomo.co.jp/support/trouble/manual/ download/index.html) ※ Note that the URL and published contents may be modified without notice. Basic Package ⿠Desktop Holder P51 1 ※It is prohibited to copy all or part of this manual without permission. ※The instructions contained in this manual may be changed without notice. Contents Introduction ▶ P.1～ Part Names and Functions ············2 FOMA Te rminal ······························4 Precautions ····································5 Handling Precautions ··················12 Waterproof/Dust - proof Performance ···15 Basic Operation ▶ P.19～～ Before Using ·················································19 Scre en Explanation ······································22 Character Entry · ···········································29 Sound/Scre en Setting ··································30 Lock/Security · ···············································33 Connect ▶ P.37～～ Call Telephone ··············································37 Mail · ·······························································43 Phonebook · ··················································46 Search ▶ P.47～～ i - mode/Full Bro wser ·····································47i - Channel ·······················································49 Enjoy ▶ P.50～～ Camera ··························································50 1Seg · ·····························································52 Music · ····························································54 i - αppli/i - Widget · ············································56 i - motion/Movie · ············································57 More Conve nient ▶ P.58～～ i - concier · ·······················································58 Convenient To ols ··········································58 Data Management · ·······································61 Others ▶ P.65～～ Support ·························································65 Appendix · ······················································72 Index · ····························································84 2 Introduction Part Names and Functions ❶Air vent Fo r adjusting the pressure inside the FOMA terminal ❷Earpiece Fo r listening to the other party ’ s voice ❸Display ❹oCommand navigation key Fo r operating functions and menus ❺mMenu key Fo r showing the Main Menu ❻lMail key Fo r showing the Mail Menu ❼dStart key Fo r starting to talk ❽Numeric keys Fo r entering phone numbers and text ❾QWE Multi one - touch key Light sensor Fo r sensing brightness (Do not cover it with your hands or do not put a sticker on it. Doing so might disable detecting the bri ghtness.) Micro phone Fo r speaking to the other party cCamera key/1Seg key rClear key/i - Channel key ii - mode key/i - αppli key hPower/End key Call/Charging indicator Lights while yo u are receiving a call or message, talking, or charging. Fo r turning on/off the power or ending a call Sub - display FOMA antenna ※ Camera For shooting portraits and/or landscapes Speaker ❷ ❸   ❻ ❹     ❾ ❽ ❺ ❼ ❶ 3 Introduction Back cover Remove this when attaching/removing the battery pack , docomo mini UIM card, and micro SD card. 1Seg antenna ※ For receiving 1Seg broadcasting Infrare d data port Fo r using infrared communication and the infrare d remote control Strap hole xMulti key Fo r showing the Task menu One - push open button For opening the FOMA terminal (Be careful not to dro p the FOMA terminal by the rebound when opened.) Connector terminal Integrated term inal for connecting earphone or fo r charging, etc. For using earphone Connect an optional connector-terminal- compatible earphone. When using a connector-terminal-non-compatible earphone, use an optional plug adapter for connection. Example for connecting the Stereo Earphone Set 01 (option) to external connector terminal This mobile phone serves as the port where both the AC Adapter (charging) and Stereo Earphone Set 01 (Earphone/microphone terminal) are plugged in. AC Adapter Stereo Earphone Set 01 Charging terminal ※The antenna is embedded in the handset. Cove ring the area near the antenna with yo ur hand may adversely affect the quality of the communication.              ❶ 4 Introduction FOMA Terminal ⿠P-01E supports W - CDMA system. ⿠Because the FOMA term inal uses radio waves, you cannot use it in places where the radio waves do not reach, where they are weak eve n outdoors, such as inside tunnels, basements, or buildings, or out - of - service are a. You might not be able to operate the FOMA term inal even when you are in a place with a fine view such as in a h…

Text truncated - open the document above for the full version.

① Operater Name②Model Mame③ Color④ ID for JATE⑤ ID for TELEC⑥Production Year & Month⑦Bar Code of IMEI⑧ IMEI(Production Serial Number) ② ③ ④⑤ ⑥ ⑦ ⑧ ①

TEST REPORT FROM RFI GLOBAL SERVICES LTD Test of: D22CS1 To: OET Bulletin 65 Supplement C: (2001-01) IEEE 1528: 2003 FCC ID: UCE112056A Test Report Serial No: RFI-SAR-RP89460JD03A V3.0 Version 3.0 Supersedes All Previous Versions This Test Report Is Issued Under The Authority Of Chris Guy, Head of Global Approvals: (APPROVED SIGNATORY) Checked By: Richelieu Quoi (APPROVED SIGNATORY) Issue Date: 07 September 2012 Test Dates: 08 August to 10 August 2012 This report is issued in portable document format (PDF). It is only a valid copy of the report if it is being viewed in PDF format with the following security options not allowed: Changing the document, Selecting text and graphics, Adding or changing notes and form fields. This report may not be reproduced other than in full, except with the prior written approval of RFI Global Services Ltd. The results in this report apply only to the sample(s) tested. Test Report Serial No: RFI-SAR-RP89460JD03A V3.0 Version 3.0 Issue Date: 07 September 2012 Page: 2 of 70 RFI Global Services Ltd. This page has been left intentionally blank. Test Report Serial No: RFI-SAR-RP89460JD03A V3.0 Version 3.0 Issue Date: 07 September 2012 Page: 3 of 70 RFI Global Services Ltd. TABLE OF CONTENTS 1. Customer Information ...................................................................................................... 4 2. Equipment Under Test (EUT) ........................................................................................... 5 3. Test Specification, Methods and Procedures ................................................................ 8 4. Deviations from the Test Specification ........................................................................... 9 5. Operation and Configuration of the EUT during Testing ............................................ 10 6. Summary of Test Results ............................................................................................... 12 7. Measurements, Examinations and Derived Results .................................................... 13 8. Measurement Uncertainty .............................................................................................. 18 Appendix 1. Test Equipment Used .................................................................................... 21 Appendix 2. Measurement Methods .................................................................................. 24 Appendix 3. Measurement Methods .................................................................................. 25 Appendix 4. SAR Distribution Scans ................................................................................ 27 Appendix 5. Photographs .................................................................................................. 40 Appendix 6. System Check ................................................................................................ 66 Appendix 7. Simulated Tissues ......................................................................................... 67 Appendix 8. DASY4 System Details .................................................................................. 68 Test Report Serial No: RFI-SAR-RP89460JD03A V3.0 Version 3.0 Issue Date: 07 September 2012 Page: 4 of 70 RFI Global Services Ltd. 1. Customer Information Company Name: Panasonic Mobile Comms Dev of Europe Ltd Address: Panasonic House Willoughby Road Bracknell Berkshire RG12 8FP United Kingdom Test Report Serial No: RFI-SAR-RP89460JD03A V3.0 Version 3.0 Issue Date: 07 September 2012 Page: 5 of 70 RFI Global Services Ltd. 2. Equipment Under Test (EUT) 2.1. Identification of Equipment Under Test (EUT) Description: Single Mode UMTS Mobile Phone Brand Name: NTT docomo Model Name or Number: D22CS1 Serial Number: None Stated IMEI Number: 353008050015094 Hardware Version Number: Rev C Software Version Number: ACPU: B-D22CS1-01.02.001 CCPU: D22CS1_Cv18102002 Hardware Revision of GSM Module: Not Applicable Software Revision of GSM Module: Not Applicable FCC ID Number: UCE112056A Country of Manufacture: Japan Date of Receipt: 05 August 2012 Note(s): This sample was used to perform WWAN 3G SAR evaluation only. Description: Single Mode UMTS Mobile Phone Brand Name: NTT docomo Model Name or Number: D22CS1 Serial Number: None Stated IMEI Number: 353008050015102 Hardware Version Number: Rev C Software Version Number: ACPU: B-D22CS1-01.02.001 CCPU: D22CS1_Cv18102002 Hardware Revision of GSM Module: Not Applicable Software Revision of GSM Module: Not Applicable FCC ID Number: UCE112056A Country of Manufacture: Japan Date of Receipt: 05 August 2012 Note(s): This Sample was used to perform WWAN 3G conducted power measurements only. The build of the sample is identical to the sample used for SAR testing. 2.2. Description of EUT The equipment under test is a single mode mobile handset operating in the UMTS FDD 850 with HSDPA release 5 and HSUPA release 6 support capabilities. 2.3. Modifications Incorporated in the EUT EUT (IMEI: 353008050015094) was setup for WWAN 3G SAR test only EUT (IMEI: 353008050015102) was used for WWAN 3G conducted power measurements only Test Report Serial No: RFI-SAR-RP89460JD03A V3.0 Version 3.0 Issue Date: 07 September 2012 Page: 6 of 70 RFI Global Services Ltd. 2.4. Accessories The following accessories were supplied with the EUT during testing: Description: Battery Brand Name: NTT docomo Model Name or Number: P23 Serial Number: None Stated Cable Length and Type: Not Applicable Country of Manufacture: None Stated Connected to Port 3 point contact Description: Stereo Personal Hands-Free (PHF Kit) Brand Name: NTT docomo Model Name or Number: P01 Serial Number: None Stated Cable Length and Type: ~1.5m / multi-core Country of Manufacture: None Stated Connected to Port AV Out Port Unique to Manufacturer Description: 2GB Micro-SD Memory Card Brand Name: Generic Model Name or Number: None Stated Serial Number: None Stated Cable Length and Type: Not applicable Country of Manufacture: None Stated C…

Text truncated - open the document above for the full version.

Test Report Serial No: RFI-SAR-RP89460JD03A V3.0 Version 3.0 Issue Date: 07 September 2012 Page: 66 of 70 RFI Global Services Ltd. Appendix 6. System Check Prior to the assessment, the system was verified in the flat region of the phantom. A 900 MHz dipole was used. A forward power of 250 mW was applied to the dipole and the system was verified to a tolerance of ±5% for the 900 MHz dipole. The applicable verification normalised to 1 Watt. Date: 08/08/2012 Validation Dipole and Serial Number: D900V2; SN: 124 Simulant Frequency (MHz) Room Temp Liquid Temp Parameters Target Value Measured Value Deviation (%) Limit (%) Head 900 24.0 ºC 23.5 ºC ε r 41.50 40.98 -1.24 5.00 σ 0.97 0.97 0.45 5.00 1g SAR 11.00 10.96 -0.36 5.00 10g SAR 7.01 7.12 1.57 5.00 Date: 10/08/2012 Validation Dipole and Serial Number: D900V2; SN: 124 Simulant Frequency (MHz) Room Temp Liquid Temp Parameters Target Value Measured Value Deviation (%) Limit (%) Head 900 24.0 ºC 23.1 ºC ε r 41.50 41.36 -0.35 5.00 σ 0.97 0.94 -2.60 5.00 1g SAR 11.00 11.16 1.45 5.00 10g SAR 7.01 7.32 4.42 5.00 Date: 08/08/2012 Validation Dipole and Serial Number: D900V2; SN: 124 Simulant Frequency (MHz) Room Temp Liquid Temp Parameters Target Value Measured Value Deviation (%) Limit (%) Body 900 24.0 ºC 23.4 ºC ε r 55.00 53.16 -3.34 5.00 σ 1.05 1.04 -1.05 5.00 1g SAR 11.10 11.24 1.26 5.00 10g SAR 7.14 7.36 3.08 5.00 Test Report Serial No: RFI-SAR-RP89460JD03A V3.0 Version 3.0 Issue Date: 07 September 2012 Page: 67 of 70 RFI Global Services Ltd. Appendix 7. Simulated Tissues The body mixture consists of de-ionised water, Polysorbate 20 and salt. Visual inspection is made to ensure air bubbles are not trapped during the mixing process. The mixture is calibrated to obtain proper dielectric constant (permittivity) and conductivity of the tissue. ingredient Frequency 835/850/900 MHz Head De-Ionized Water 52.87 Polysorbate 20 (Tween 20) 46.10 Salt 1.03 Ingredient Frequency 835/850/900 MHz Body De-Ionized Water 71.30 Polysorbate 20 (Tween 20) 28.00 Salt 0.70 Test Report Serial No: RFI-SAR-RP89460JD03A V3.0 Version 3.0 Issue Date: 07 September 2012 Page: 68 of 70 RFI Global Services Ltd. Appendix 8. DASY4 System Details A.8.1. DASY4 SAR Measurement System RFI Global Services Ltd, SAR measurement facility utilises the Dosimetric Assessment System (DASY™) manufactured by Schmid & Partner Engineering AG (SPEAG™) of Zurich, Switzerland. The DASY4 system is comprised of the robot controller, computer, near-field probe, probe alignment sensor, and the SAM phantom containing brain or muscle equivalent material. The robot is a six-axis industrial robot performing precise movements to position the probe to the location (points) of maximum electromagnetic field (EMF). A cell controller system contains the power supply, robot controller; teach pendant (Joystick), and remote control. This is used to drive the robot motors. The Staubli robot is connected to the cell controller to allow software manipulation of the robot. The data acquisition electronics (DAE) performs signal amplification, signal multiplexing, AD-conversion, offset measurements, mechanical surface detection, collision detection etc. The DAE is connected to the Electro-optical coupler (EOC). The EOC performs the conversion from the optical into digital electric signal of the DAE and transfers data to the PC plug-in card. The DAE3 utilises a highly sensitive electrometer-grade preamplifier with auto-zeroing, a channel and gain-switching mulitplexer, a fast 16- bit AD-converter and a command decoder and control logic unit. Transmission to the PC-card is accomplished through an optical downlink for data and status information and an optical uplink for commands and clock lines. The mechanical probe-mounting device includes two different sensor systems for frontal and sidewise probe contacts. They are also used for mechanical surface detection and probe collision detection. The robot uses its own controller with a built in VME-bus computer. Test Report Serial No: RFI-SAR-RP89460JD03A V3.0 Version 3.0 Issue Date: 07 September 2012 Page: 69 of 70 RFI Global Services Ltd. A.8.2. DASY4 SAR System Specifications Robot System Positioner: Stäubli Unimation Corp. Robot Model: RX90L Repeatability: 0.025 mm No. of Axis: 6 Serial Number: F00/SD89A1/A/01 Reach: 1185 mm Payload: 3.5 kg Control Unit: CS7 Programming Language: V+ Data Acquisition Electronic (DAE) System Serial Number: DAE3 SN:432 PC Controller PC: Dell Precision 340 Operating System: Windows 2000 Data Card: DASY4 Measurement Server Serial Number: 1080 Data Converter Features: Signal Amplifier, multiplexer, A/D converted and control logic. Software: DASY4 Software Connecting Lines: Optical downlink for data and status info. Optical uplink for commands and clock. PC Interface Card Function: 24 bit (64 MHz) DSP for real time processing Link to DAE3 16 nit A/D converter for surface detection system serial link to robot direct emergency stop output for robot. Test Report Serial No: RFI-SAR-RP89460JD03A V3.0 Version 3.0 Issue Date: 07 September 2012 Page: 70 of 70 RFI Global Services Ltd. DASY4 SAR System Specifications (Continued) E-Field Probe Model: EX3DV4 Serial No: 3814 Construction: Triangular core Frequency: 10 MHz to >6 GHz Linearity: ±0.2 dB (30 MHz to 6 GHz) Probe Length (mm): 330 Probe Diameter (mm): 12 Tip Length (mm): 20 Tip Diameter (mm): 2.5 Sensor X Offset (mm): 1 Sensor Y Offset (mm): 1 Sensor Z Offset (mm): 1 E- Phantom Phantom: SAM Phantom Shell Material: Fibreglass Thickness: 2.0 ±0.1 mm

TEST REPORT FROM RFI GLOBAL SERVICES LTD Test of: NTT docomo EB-4059 FCC ID: UCE 112056A To: FCC Part 22: 2011 Subpart H Test Report Serial No.: RFI-RPT-RP89460JD02A This Test Report Is Issued Under The Authority Of John Newell, Group Quality Manager: Checked By: Ian Watch Signature: Date of Issue: 28 August 2012 This report is issued in Adobe Acrobat portable document format (PDF). It is only a valid copy of the report if it is being viewed in PDF format with the following security options not allowed: Changing the document, selecting text and graphics, adding or changing notes and form fields. This report may not be reproduced other than in full, except with the prior written approval of RFI Global Services Ltd. The results in this report apply only to the sample(s) tested. TEST REPORT SERIAL NO: RFI-RPT-RP89460JD02A VERSION 1.0 ISSUE DATE: 28 AUGUST 2012 Page 2 of 45 RFI Global Services Ltd This page has been left intentionally blank. TEST REPORT SERIAL NO: RFI-RPT-RP89460JD02A VERSION 1.0 ISSUE DATE: 28 AUGUST 2012 RFI Global Services Ltd Page 3 of 45 Table of Contents 1. Customer Information .................................................................................................................. 4 2. Summary of Testing ..................................................................................................................... 5 2.1. General Information 5 2.2. Summary of Test Results 5 2.3. Methods and Procedures 5 2.4. Deviations from the Test Specification 5 3. Equipment Under Test (EUT) ....................................................................................................... 6 3.1. Identification of Equipment Under Test (EUT) 6 3.2. Description of EUT 6 3.3. Modifications Incorporated in the EUT 7 3.4. Additional Information Related to Testing 7 3.5. Support Equipment 7 4. Operation and Monitoring of the EUT during Testing ............................................................... 8 4.1. Operating Modes 8 4.2. Configuration and Peripherals 8 5. Measurements, Examinations and Derived Results .................................................................. 9 5.1. General Comments 9 5.2. Test Results 10 5.2.1. Receiver/Idle Mode AC Conducted Spurious Emissions 10 5.2.2. Receiver/Idle Mode Radiated Spurious Emissions 13 5.2.3. Transmitter Effective Radiated Power (ERP) 17 5.2.4. Transmitter Frequency Stability (Temperature Variation) 19 5.2.5. Transmitter Frequency Stability (Voltage Variation) 20 5.2.6. Transmitter Occupied Bandwidth 21 5.2.7. Transmitter Out of Band Radiated Emissions 31 5.2.8. Transmitter Radiated Emissions at Band Edges 34 6. Measurement Uncertainty .......................................................................................................... 44 Appendix 1. Test Equipment Used ................................................................................................ 45 TEST REPORT SERIAL NO: RFI-RPT-RP89460JD02A VERSION 1.0 ISSUE DATE: 28 AUGUST 2012 Page 4 of 45 RFI Global Services Ltd 1. Customer Information Company Name: Panasonic Mobile Communications Development of Europe Ltd. Address: Panasonic House Willoughby Road Bracknell Berkshire RG12 8FP United Kingdom TEST REPORT SERIAL NO: RFI-RPT-RP89460JD02A VERSION 1.0 ISSUE DATE: 28 AUGUST 2012 RFI Global Services Ltd Page 5 of 45 2. Summary of Testing 2.1. General Information Specification Reference: 47CFR22 Specification Title: Code of Federal Regulations Volume 47 (Telecommunications) 2011: Part 22 Subpart H (Public Mobile Services) Specification Reference: 47CFR15.107 and 47CFR15.109 Specification Title: Code of Federal Regulations Volume 47 (Telecommunications) 2011: Part 15 Subpart B (Unintentional Radiators) - Sections 15.107 and 15.109 Site Registration: 209735 Location of Testing: RFI Global Services Ltd, Wade Road, Basingstoke, Hampshire, RG24 8AH. Test Dates: 13 August 2012 to 15 August 2012 2.2. Summary of Test Results FCC Reference (47CFR) Measurement Result Part 15.107(a) Receiver/Idle Mode AC Conducted Spurious Emissions Part 15.109 Receiver/Idle Mode Radiated Spurious Emissions Part 22.913(a) Transmitter Effective Radiated Power (ERP) Part 2.1055/22.355 Transmitter Frequency Stability (Temperature and Voltage Variation) Part 2.1049 Transmitter Occupied Bandwidth Part 2.1053/22.917 Transmitter Out of Band Radiated Emissions Part 2.1053/22.917 Transmitter Band Edge Radiated Emissions Key to Results = Complied = Did not comply 2.3. Methods and Procedures Reference: ANSI/TIA-603-C-2004 Title: Land Mobile Communications Equipment, Measurements and performance Standards Reference: ANSI C63.4 (2009) Title: American National Standard for Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz. 2.4. Deviations from the Test Specification For the measurements contained within this test report, there were no deviations from, additions to, or exclusions from the test specification identified above. TEST REPORT SERIAL NO: RFI-RPT-RP89460JD02A VERSION 1.0 ISSUE DATE: 28 AUGUST 2012 Page 6 of 45 RFI Global Services Ltd 3. Equipment Under Test (EUT) 3.1. Identification of Equipment Under Test (EUT) Brand Name: NTT docomo Model Name or Number: EB-4059 IMEI: 353008050015078 (Radiated sample #1) Hardware Version Number: Rev C Software Version Number: ACPU: B-D22CS1-01.02.001 CCPU: D22CS1_Cv18102002 FCC ID: UCE112056A Brand Name: NTT docomo Model Name or Number: EB-4059 IMEI: 353008050015086 (Conducted RF port sample #1) Hardware Version Number: Rev C Software Version Number: ACPU: B-D22CS1-01.02.001 CCPU: D22CS1_Cv18102002 FCC ID: UCE112056A Brand Name: NTT docomo Description: AC Charger Model Name or Number: AC 01 Brand Name: NTT docomo Description: Charge/USB Data cable Model Name or Number: Not marked or stated Brand Name: NTT docomo Description: Cradle Model Name or Number: P51 Brand Name: NTT docomo Description: Stereo PHF Model Name or Number: P01 3.2. Description of EUT The eq…

Text truncated - open the document above for the full version.

Radiated Emissions Conducted Emissions

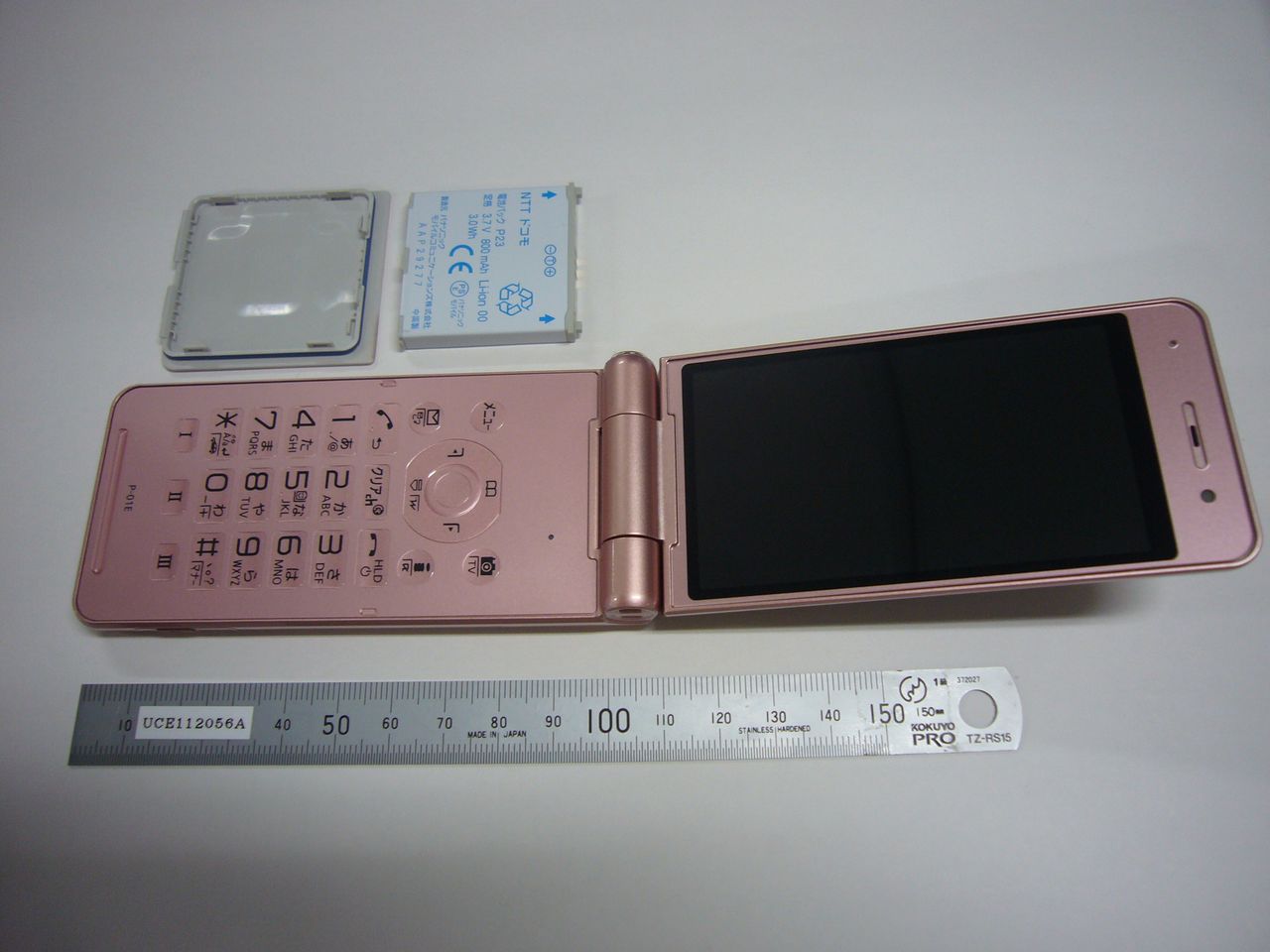

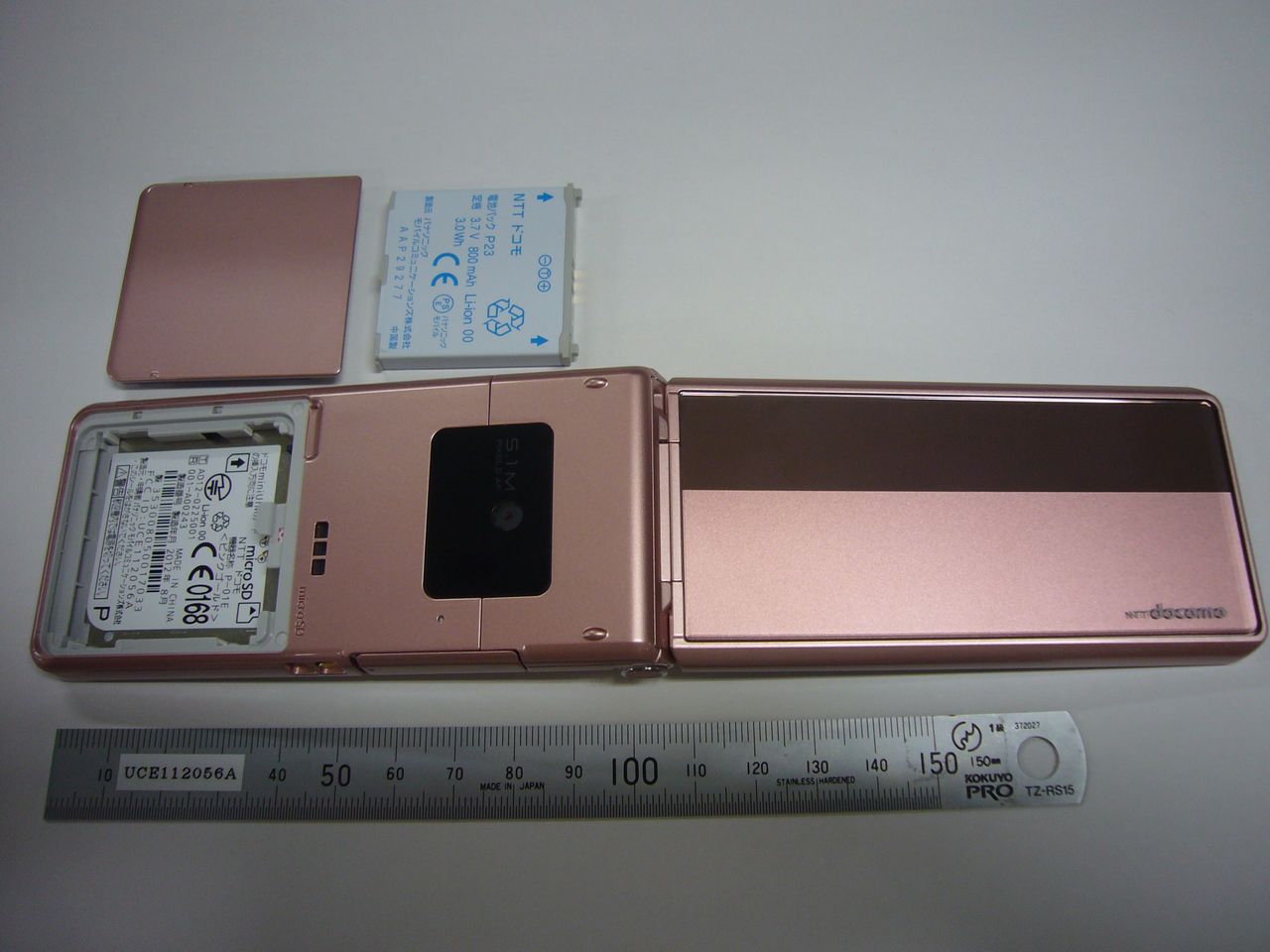

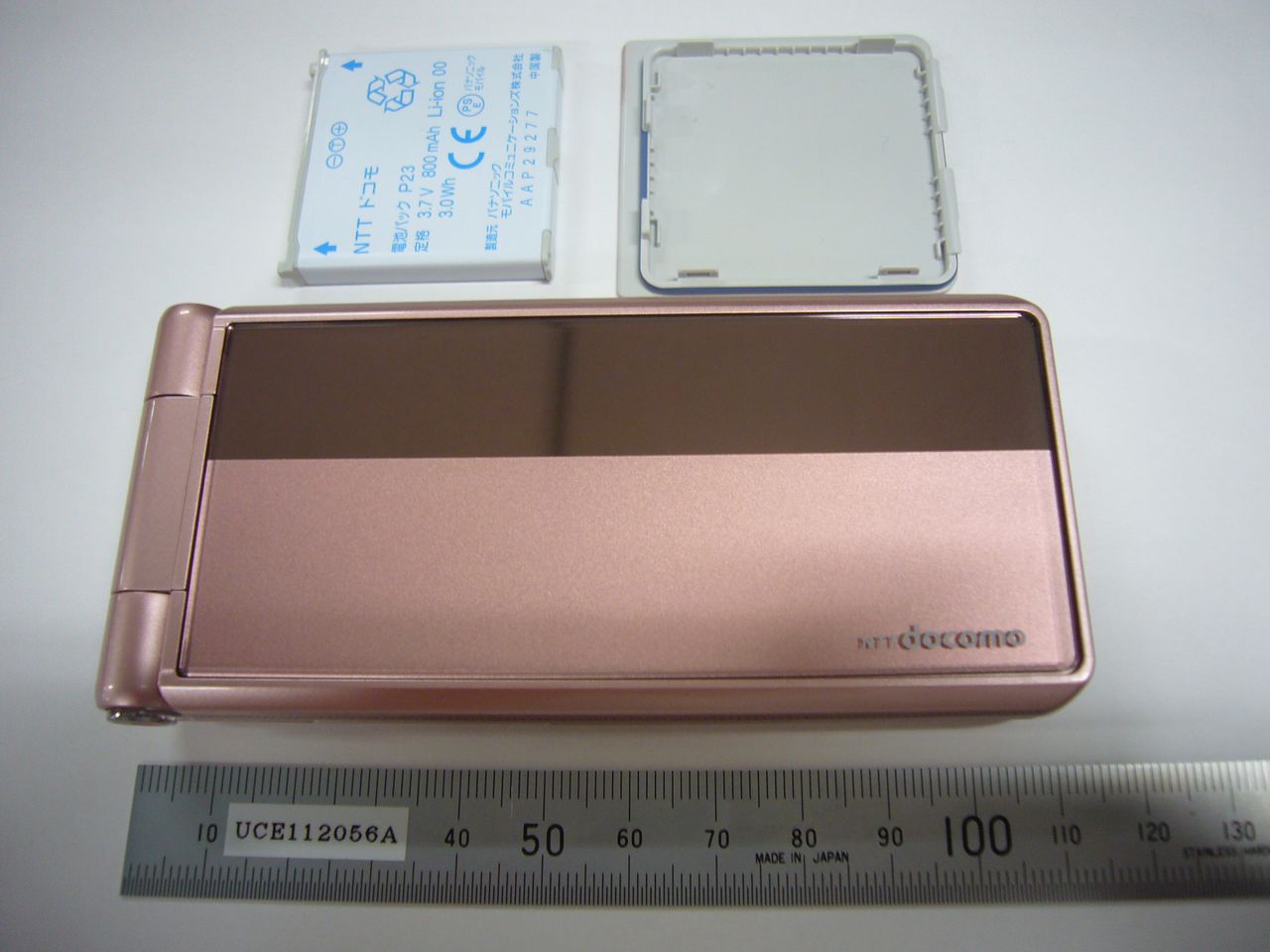

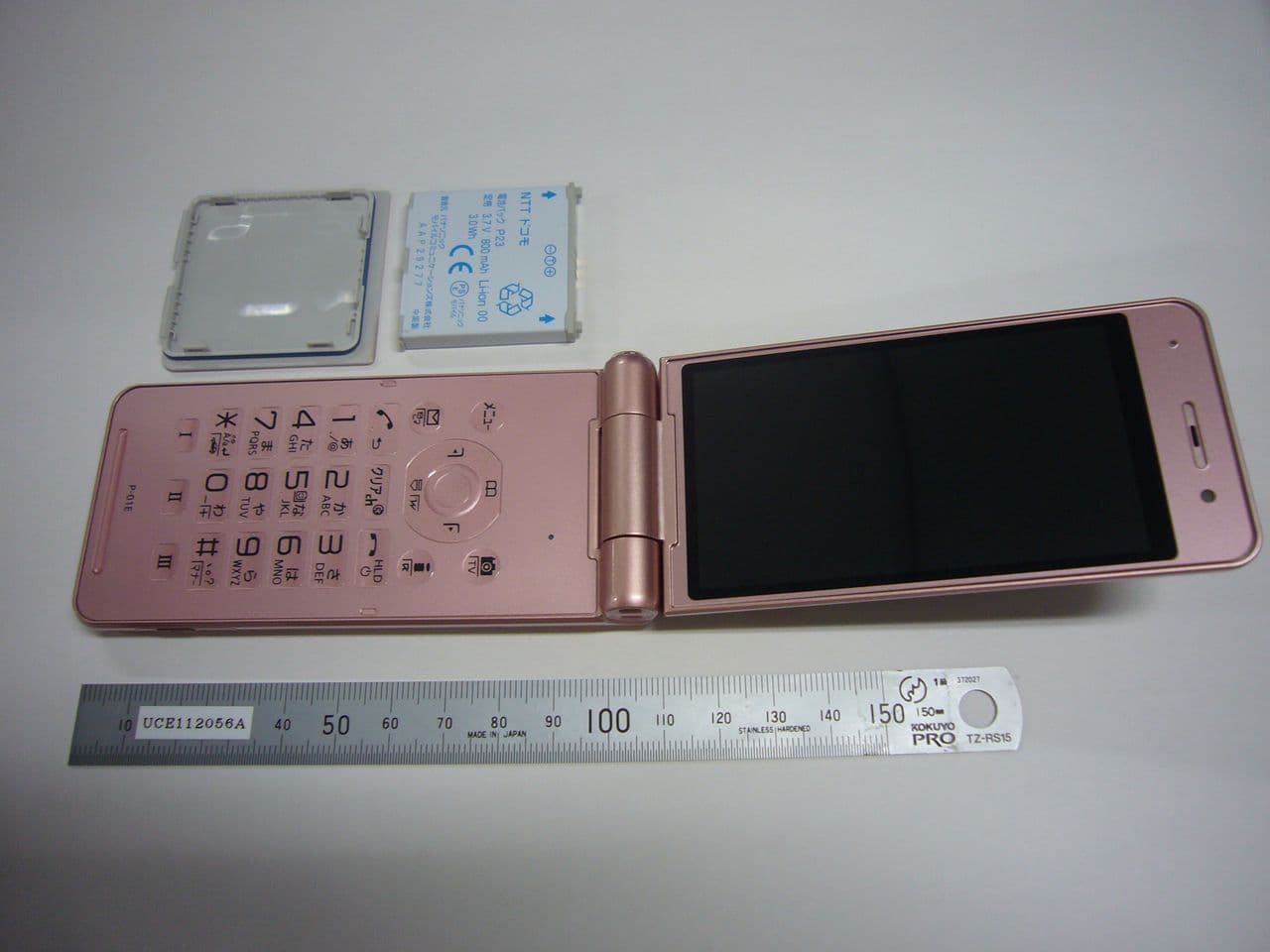

Test Report Serial No: RFI-SAR-RP89460JD03A V3.0 Version 3.0 Issue Date: 07 September 2012 Page: 40 of 70 RFI Global Services Ltd. Appendix 5. Photographs This appendix contains the following photographs: Photo Reference Number Title PHT/89460/001 Test configuration for the measurement of Specific Absorption Rate (SAR) PHT/89460/002 Touch Left PHT/89460/003 Tilt Left PHT/89460/004 Touch Right PHT/89460/005 Touch Right (Jaw View) PHT/89460/006 Touch Right (Mouth View) PHT/89460/007 Touch Right on Flat Section PHT/89460/008 Touch Right on Flat Section (Jaw View) PHT/89460/009 Touch Right on Flat Section (Mouth View) PHT/89460/010 Tilt right PHT/89460/011 Front of EUT Open Facing Phantom PHT/89460/012 Rear of EUT Open Facing Phantom PHT/89460/013 Front of EUT Closed Facing Phantom PHT/89460/014 Rear of EUT Closed Facing Phantom PHT/89460/015 General Setup of EUT with PHF PHT/89460/016 Front of EUT Open View PHT/89460/017 Rear of EUT Open View PHT/89460/018 Front of EUT Closed View PHT/89460/019 Rear of EUT Closed View PHT/89460/020 Internal View of Radiated Sample PHT/89460/021 Internal View of Conducted Sample PHT/89460/022 Battery View PHT/89460/023 PHF View PHT/89460/024 900 MHz Head Fluid Level PHT/89460/025 900 MHz Body Fluid Level Test Report Serial No: RFI-SAR-RP89460JD03A V3.0 Version 3.0 Issue Date: 07 September 2012 Page: 41 of 70 RFI Global Services Ltd. PHT/89460/001: Test configuration for the measurement of Specific Absorption Rate (SAR) Test Report Serial No: RFI-SAR-RP89460JD03A V3.0 Version 3.0 Issue Date: 07 September 2012 Page: 42 of 70 RFI Global Services Ltd. PHT/89460/002: Touch Left Test Report Serial No: RFI-SAR-RP89460JD03A V3.0 Version 3.0 Issue Date: 07 September 2012 Page: 43 of 70 RFI Global Services Ltd. PHT/89460/003: Tilt Left Test Report Serial No: RFI-SAR-RP89460JD03A V3.0 Version 3.0 Issue Date: 07 September 2012 Page: 44 of 70 RFI Global Services Ltd. PHT/89460/004: Touch Right Test Report Serial No: RFI-SAR-RP89460JD03A V3.0 Version 3.0 Issue Date: 07 September 2012 Page: 45 of 70 RFI Global Services Ltd. PHT/89460/005: Touch Right (Jaw View) Note: Some points in the ‘Touch Right’ position could not be fully evaluated therefore the zoom scan was unable to fully enclose the peak SAR location as required by IEEE 1528 and OET Bulletin 65 Supplement C. This scan is repeated in the Mouth/Jaw configuration on the flat section of the ‘SAM’ phantom. The phone was positioned with the hinge against a smooth edge of the flat phantom where the upper half of the phone was unfolded and extended beyond the phantom side wall. The lower half of the phone was secured in the test device holder at a fixed distance. Test Report Serial No: RFI-SAR-RP89460JD03A V3.0 Version 3.0 Issue Date: 07 September 2012 Page: 46 of 70 RFI Global Services Ltd. PHT/89460/006: Touch Right (Mouth View) Note: Some points in the ‘Touch Right’ position could not be fully evaluated therefore the zoom scan was unable to fully enclose the peak SAR location as required by IEEE 1528 and OET Bulletin 65 Supplement C. This scan is repeated in the Mouth/Jaw configuration on the flat section of the ‘SAM’ phantom. The phone was positioned with the hinge against a smooth edge of the flat phantom where the upper half of the phone was unfolded and extended beyond the phantom side wall. The lower half of the phone was secured in the test device holder at a fixed distance. Test Report Serial No: RFI-SAR-RP89460JD03A V3.0 Version 3.0 Issue Date: 07 September 2012 Page: 47 of 70 RFI Global Services Ltd. PHT/89460/007: Touch Right on Flat Section Note: Some points in the ‘Touch Right’ position could not be fully evaluated therefore the zoom scan was unable to fully enclose the peak SAR location as required by IEEE 1528 and OET Bulletin 65 Supplement C. This scan is repeated in the Mouth/Jaw configuration on the flat section of the ‘SAM’ phantom. The phone was positioned with the hinge against a smooth edge of the flat phantom where the upper half of the phone was unfolded and extended beyond the phantom side wall. The lower half of the phone was secured in the test device holder at a fixed distance. Test Report Serial No: RFI-SAR-RP89460JD03A V3.0 Version 3.0 Issue Date: 07 September 2012 Page: 48 of 70 RFI Global Services Ltd. PHT/89460/008: Touch Right on Flat Section (Jaw View) Note: Some points in the ‘Touch Right’ position could not be fully evaluated therefore the zoom scan was unable to fully enclose the peak SAR location as required by IEEE 1528 and OET Bulletin 65 Supplement C. This scan is repeated in the Mouth/Jaw configuration on the flat section of the ‘SAM’ phantom. The phone was positioned with the hinge against a smooth edge of the flat phantom where the upper half of the phone was unfolded and extended beyond the phantom side wall. The lower half of the phone was secured in the test device holder at a fixed distance. Test Report Serial No: RFI-SAR-RP89460JD03A V3.0 Version 3.0 Issue Date: 07 September 2012 Page: 49 of 70 RFI Global Services Ltd. PHT/89460/009: Touch Right on Flat Section (Mouth View) Note: Some points in the ‘Touch Right’ position could not be fully evaluated therefore the zoom scan was unable to fully enclose the peak SAR location as required by IEEE 1528 and OET Bulletin 65 Supplement C. This scan is repeated in the Mouth/Jaw configuration on the flat section of the ‘SAM’ phantom. The phone was positioned with the hinge against a smooth edge of the flat phantom where the upper half of the phone was unfolded and extended beyond the phantom side wall. The lower half of the phone was secured in the test device holder at a fixed distance. Test Report Serial No: RFI-SAR-RP89460JD03A V3.0 Version 3.0 Issue Date: 07 September 2012 Page: 50 of 70 RFI Global Services Ltd. PHT/89460/010: Tilt right Test Report Serial No: RFI-SAR-RP89460JD03A V3.0 Version 3.0 Issue Date: 07 September 2012 Page: 51 of 70 RFI Global Services Ltd. PHT/89460/011: Front of EUT Open Facing Phantom Test Report Se…

Text truncated - open the document above for the full version.
