UCE113059ASingle Mode UMTS Phone with Bluetooth

P-01F INSTRUCTION MANUAL ’13.10 Thank you for selecting the “P-01F”. Read this manual before use to correctly operate your P-01F. For Using This Manual Note that “P-01F” is referred to as “FOMA terminal” in this manual. Most operating procedures and displays in this manual are shown with the default settings of the “White” handset. Further, displays and illustrations shown in this manual are for reference. The actual ones might differ. P-01F Handset (With Warranty) Battery Pack P23 Instruction Manual (Japanese version) See page 73 for optional items that support this FOMA terminal. About manual of P-01F The operating procedures for the P-01F are also published as in “ (Guide)” on - screen manual installed onto your FOMA terminal, and “Instruction Manual (Detailed Version)” as a PDF. (In Japanese only) “Instruction Manual” (this manual) Description of the displayed content and operating procedures for basic functions “ (Guide)” (installed onto your FOMA terminal) Description of the outline and operations of frequently used functions From the P-01F m (Tool) (Guide) This function is available in Japanese mode only. “Instruction Manual (Detailed Version)” (PDF) From a PC, download detailed information about all the functions and the operating procedures. (In Japanese only) ( http://www.nttdocomo.co.jp/support/trouble/manual/ download/index.html ) Note that the URL and published contents may be modified without notice. Basic Package Desktop Holder P54 Back Cover P61 For Loss, Theft, Malfunction, and Inquiries while Overseas (24 - hour Reception) From DOCOMO mobile phones International call access code for the country you stay (toll free) * You are charged a call fee to Japan when calling from a land - line phone, etc. If you use P-01F, you should dial the number +81 - 3 - 6832 - 6600 (to enter ‘+ ’ , press and hold the ‘0 ’ key for at least one second). From land-line phones Universal number Universal number international prefix * You might be charged a domestic call fee according to the call rate for the country you stay. For international call access codes for major countries and universal number international prefix, refer to the DOCOMO International Services website. If you lose your FOMA terminal or have it stolen, immediately take the steps necessary for suspending the use of the FOMA terminal. If the FOMA terminal you purchased is damaged, bring your FOMA terminal to a repair counter specified by DOCOMO after returning to Japan. General Inquiries <docomo Information Center> Repairs (toll free) * Service available in English, Portuguese, Chinese, Spanish. * Unavailable from part of IP phones. (Business hours: 9:00 a.m. to 8:00 p.m.) From DOCOMO mobile phones (In Japanese only) (No prefix) (toll free) * Unavailable from land-line phones, etc. From land-line phones (In Japanese only) (toll free) * Unavailable from part of IP phones. From DOCOMO mobile phones (In Japanese only) (No prefix) (toll free) * Unavailable from land - line phones, etc. From land-line phones (In Japanese only) (toll free) * Unavailable from part of IP phones. (Business hours: 24 hours (open all year round)) (Business hours: 9:00 a.m. to 8:00 p.m. (open all year round)) Please confirm the phone number before you dial. For Applications or Repairs and After - Sales Service, please contact the above - mentioned information center or the docomo Shop etc. near you on the NTT DOCOMO website or the i - mode site. NTT DOCOMO website (http://www.nttdocomo.co.jp/english/) i-mode site Menu (User support) (docomo Shop) (In Japanese only) Don’t forget your mobile phone ... or your manners! When using your mobile phone in a public place, don’t forget to show common courtesy and consideration for others around you. Sales: Manufacturer: October ’ 13 (1st Edition) PXQP1011ZA/J1 F0913 - 0 1 It is prohibited to copy all or part of this manual without permission. The instructions contained in this manual may be changed without notice. Contents Introduction FOMA Terminal ······························ 2 Part Names and Functions ············ 3 Precautions ···································· 5 Handling Precautions ·················· 12 Waterproof/Dust - proof Performance ··· 16 Basic Operation Before Using ················································· 20 Screen Explanation ······································ 23 Character Entry ············································ 30 Sound/Screen Setting ·································· 31 Lock/Security ················································ 34 Connect Call Telephone ·············································· 38 Mail ································································ 44 Phonebook ··················································· 47 Search i - mode/Full Browser ····································· 48i - channel ······················································· 50 Enjoy Camera ·························································· 51 1Seg ······························································ 53 Music ····························································· 55 i - αppli/i - Widget ············································· 57 i - motion ························································· 58 More Convenient i - concier ························································ 59 Convenient Tools ·········································· 59 Data Management ········································ 63 Others Support ························································· 67 Appendix ······················································· 74 Index ····························································· 87 2 Introduction FOMA Terminal This FOMA terminal supports W - CDMA system. Because the FOMA terminal uses radio waves, you cannot use it in places where the radio waves do not reach, where they are weak even outdoors, such as inside tunnels, basements, or buildings, or out - of - service area. You might not be able to operate…

Text truncated - open the document above for the full version.

⑦ ① Operater Name②Model Mame③ ID for JATE④ ID for TELEC⑤ Production Year & Month Code⑥Bar Code of IMEI⑦ IMEI(Production Serial Number) ② ③ ⑤ ⑥ ① ④

TEST REPORT Test of: D32CS1 To: KDB 865664 D01 SAR Measurement 100MHz to 6GHz IEEE1528: 2003 FCC ID: UCE113059A Test Report Serial No: UL-SAR-RPA10036246JD05 V2.0 Version 2.0 supersedes previous report versions This Test Report Is Issued Under The Authority Of Richelieu Quoi, SAR Technology Consultant: (APPROVED SIGNATORY) Checked By: Naseer Mirza (APPROVED SIGNATORY) Issue Date: 23 August 2013 Test Dates: 14 August 2013 to 20 August 2013 This report is issued in portable document format (PDF). It is only a valid copy of the report if it is being viewed in PDF format with the following security options not allowed: Changing the document, Selecting text and graphics, Adding or changing notes and form fields. This report may not be reproduced other than in full, except with the prior written approval of UL. The results in this report apply only to the sample(s) tested. The Bluetooth® word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by UL. is under license. Other trademarks and trade names are those of their respective owners. Test Report Serial No: UL-SAR-RPA10036246JD05 V2.0 Version 2.0 Issue Date: 23 August 2013 Page: 2 of 75 UL This page has been left intentionally blank. Test Report Serial No: UL-SAR-RPA10036246JD05 V2.0 Version 2.0 Issue Date: 23 August 2013 Page: 3 of 75 UL TABLE OF CONTENTS 1. Customer Information ..................................................................................................... 4 2. Summary of Test Results ............................................................................................... 5 3. Test Specification, Methods and Procedures ............................................................... 8 4. Equipment Under Test (EUT) .......................................................................................... 9 5. Deviations from the Test Specification ....................................................................... 11 6. Operation and Configuration of the EUT during Testing ........................................... 12 7. Measurements, Examinations and Derived Results ................................................... 15 8. Measurement Uncertainty ............................................................................................ 19 Appendix 1. Test Equipment Used .................................................................................. 20 Appendix 2. Measurement Methods ................................................................................ 22 Appendix 3. SAR Distribution Scans ............................................................................... 26 Appendix 4. Photographs ................................................................................................. 43 Appendix 5. Validation of System .................................................................................... 63 Appendix 6. Simulated Tissues........................................................................................ 64 Appendix 7. DASY4 System Details ................................................................................. 65 Appendix 8. 3G Test set-up .............................................................................................. 68 Appendix 9. Antenna Schematics .................................................................................... 75 Test Report Serial No: UL-SAR-RPA10036246JD05 V2.0 Version 2.0 Issue Date: 23 August 2013 Page: 4 of 75 UL 1. Customer Information Company Name: Panasonic Mobile Comms Dev of Europe Ltd Address: Panasonic House Willoughby Road Bracknell Berkshire RG12 8FP United Kingdom Test Report Serial No: UL-SAR-RPA10036246JD05 V2.0 Version 2.0 Issue Date: 23 August 2013 Page: 5 of 75 UL 2. Summary of Test Results Test Name Specification Reference Result Specific Absorption Rate - UMTS FDD 5 KDB 865664 D01 SAR Measurement 100MHz to 6 GHz ANSI C95.1-1992 Key to Results = Complied = Did not comply Test Report Serial No: UL-SAR-RPA10036246JD05 V2.0 Version 2.0 Issue Date: 23 August 2013 Page: 6 of 75 UL 2.1. Highest Standalone Reported SAR Individual Transmitter Evaluation per Band: Exposure Configuration Technology Band Mode Highest Reported 1g -SAR (W/kg) Equipment Class Max Rated Source base Avg Power + Max Tolerance [dBm] Highest Reported 1g-SAR (W/kg) HEAD (Separation Distance 0mm) UMTS FDD 5 RMC 0.700 PCE 24.5 0.700 BODY-WORN (Separation Distance 15mm) UMTS FDD 5 RMC 0.915 PCE 24.5 0.915 Note(s): As per FCC KDB 447498 D01, Bluetooth maximum source based time average power was below the allowed threshold for both 10 and 15mm separation distances. For the estimated SAR level calculation, the Maximum Target power + Upper tolerance for Bluetooth = 0.0+1.2 dBm (~1.32 mW) is considered.  15mm Bluetooth estimated SAR level: Estimated Bluetooth SAR = (1.32mW/15mm)*(√2.4 / 7.5) = 0.018 W/kg 2.2. Highest Reported Simultaneous Transmission SAR: Simultaneous transmission SAR test exclusion is determined for each operating configuration and exposure condition according to the reported standalone SAR of each applicable simultaneous transmitting antenna. Simultaneous Transmitter Evaluation: Exposure Configuration Technology Band Highest Reported 1g SAR (W/kg) Equipment Class Max Rated Source base Avg Power + Max Tolerance [dBm] Highest Reported Sum-SAR 1g-SAR (W/kg) SPLSR Ratio BODY-WORN (Separation Distance 15mm) UMTS FDD 5 0.915 PCE 24.5 0.933 N/A Bluetooth 0.018 DSS 1.2 Note(s): 1. As per FCC KDB publication 447498 SAR peak location separation ratio (SPLSR) was not required as the sum of the combination of WWAN+WPAN <1.6 w/kg. 2. Bluetooth estimated SAR level calculation is shown in section 2.1 in this report Test Report Serial No: UL-SAR-RPA10036246JD05 V2.0 Version 2.0 Issue Date: 23 August 2013 Page: 7 of 75 UL 2.3. SAR measurement variability and measurement uncertainty analysis: The SAR measurement variability and measurement uncertainty analysis was not required as the maximum measured SAR is < 0.8 …

Text truncated - open the document above for the full version.

Test Report Serial No: UL-SAR-RPA10036246JD05 V2.0 Version 2.0 Issue Date: 23 August 2013 Page: 26 of 75 UL Appendix 3. SAR Distribution Scans Scan Reference Number Title 001 Touch Left UMTS FDD 5 CH4183 002 Tilt Left UMTS FDD 5 CH4183 003 Touch Right UMTS FDD 5 CH4183 004 Tilt Right UMTS FDD 5 CH4183 005 Touch Left UMTS FDD 5 CH4132 006 Touch Left UMTS FDD 5 CH4233 007 Front of EUT Open Facing Phantom UMTS FDD 5 CH4183 008 Back of EUT Open Facing Phantom UMTS FDD 5 CH4183 009 Front of EUT Closed Facing Phantom UMTS FDD 5 CH4183 010 Back of EUT Closed Facing Phantom UMTS FDD 5 CH4183 011 Back of EUT Closed Facing Phantom UMTS FDD 5 CH4132 012 Back of EUT Closed Facing Phantom UMTS FDD 5 CH4233 013 System Performance Check 900MHz Head 14 08 13 014 System Performance Check 900MHz Body 14 08 13 015 System Performance Check 900MHz Body 19 08 13 016 System Performance Check 900MHz Body 20 08 13 Test Report Serial No: UL-SAR-RPA10036246JD05 V2.0 Version 2.0 Issue Date: 23 August 2013 Page: 27 of 75 UL 001: Touch Left UMTS FDD 5 CH4183 Date 14/08/2013 DUT: Panasonic D32CS1; Type: Panasonic; Serial: C9 0 dB = 0.531mW/g Communication System: UMTS-FDD 5; Frequency: 836.6 MHz;Duty Cycle: 1:1 Medium: 900 MHz HSL Medium parameters used (interpolated): f = 836.6 MHz; σ = 0.929 mho/m; ε r = 41.2; ρ = 1000 kg/m 3 Phantom section: Left Section DASY4 Configuration: - Probe: ET3DV6 - SN1529; ConvF(6.24, 6.24, 6.24); - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn450; Calibrated: 22/01/2013 - Phantom: SAM 12b (Site 57); Type: SAM 4.0; Serial: TP:1031 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Touch Left - Middle/Area Scan (71x131x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.540 mW/g Touch Left - Middle/Zoom Scan (5x5x7) (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 7.09 V/m; Power Drift = -0.138 dB Peak SAR (extrapolated) = 0.665 W/kg SAR(1 g) = 0.499 mW/g; SAR(10 g) = 0.349 mW/g Maximum value of SAR (measured) = 0.531 mW/g Test Report Serial No: UL-SAR-RPA10036246JD05 V2.0 Version 2.0 Issue Date: 23 August 2013 Page: 28 of 75 UL 002: Tilt Left UMTS FDD 5 CH4183 Date 14/08/2013 DUT: Panasonic D32CS1; Type: Panasonic; Serial: C9 0 dB = 0.217mW/g Communication System: UMTS-FDD 5; Frequency: 836.6 MHz;Duty Cycle: 1:1 Medium: 900 MHz HSL Medium parameters used (interpolated): f = 836.6 MHz; σ = 0.929 mho/m; ε r = 41.2; ρ = 1000 kg/m 3 Phantom section: Left Section DASY4 Configuration: - Probe: ET3DV6 - SN1529; ConvF(6.24, 6.24, 6.24); - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn450; Calibrated: 22/01/2013 - Phantom: SAM 12b (Site 57); Type: SAM 4.0; Serial: TP:1031 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Tilt Left - Middle/Area Scan (71x131x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.220 mW/g Tilt Left - Middle/Zoom Scan (5x5x7) (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 10.3 V/m; Power Drift = 0.054 dB Peak SAR (extrapolated) = 0.252 W/kg SAR(1 g) = 0.207 mW/g; SAR(10 g) = 0.157 mW/g Maximum value of SAR (measured) = 0.217 mW/g Test Report Serial No: UL-SAR-RPA10036246JD05 V2.0 Version 2.0 Issue Date: 23 August 2013 Page: 29 of 75 UL 003: Touch Right UMTS FDD 5 CH4183 Date 14/08/2013 DUT: Panasonic D32CS1; Type: Panasonic; Serial: C9 0 dB = 0.471mW/g Communication System: UMTS-FDD 5; Frequency: 836.6 MHz;Duty Cycle: 1:1 Medium: 900 MHz HSL Medium parameters used (interpolated): f = 836.6 MHz; σ = 0.929 mho/m; ε r = 41.2; ρ = 1000 kg/m 3 Phantom section: Right Section DASY4 Configuration: - Probe: ET3DV6 - SN1529; ConvF(6.24, 6.24, 6.24); - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn450; Calibrated: 22/01/2013 - Phantom: SAM 12b (Site 57); Type: SAM 4.0; Serial: TP:1031 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Touch Right - Middle/Area Scan (71x131x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.458 mW/g Touch Right - Middle/Zoom Scan (5x5x7) (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 6.67 V/m; Power Drift = -0.010 dB Peak SAR (extrapolated) = 0.577 W/kg SAR(1 g) = 0.444 mW/g; SAR(10 g) = 0.325 mW/g Maximum value of SAR (measured) = 0.471 mW/g Test Report Serial No: UL-SAR-RPA10036246JD05 V2.0 Version 2.0 Issue Date: 23 August 2013 Page: 30 of 75 UL 004: Tilt Right UMTS FDD 5 CH4183 Date 14/08/2013 DUT: Panasonic D32CS1; Type: Panasonic; Serial: C9 0 dB = 0.212mW/g Communication System: UMTS-FDD 5; Frequency: 836.6 MHz;Duty Cycle: 1:1 Medium: 900 MHz HSL Medium parameters used (interpolated): f = 836.6 MHz; σ = 0.929 mho/m; ε r = 41.2; ρ = 1000 kg/m 3 Phantom section: Right Section DASY4 Configuration: - Probe: ET3DV6 - SN1529; ConvF(6.24, 6.24, 6.24); - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn450; Calibrated: 22/01/2013 - Phantom: SAM 12b (Site 57); Type: SAM 4.0; Serial: TP:1031 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Tilt Right - Middle/Area Scan (71x131x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.216 mW/g Tilt Right - Middle/Zoom Scan (5x5x7) (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 9.83 V/m; Power Drift = -0.046 dB Peak SAR (extrapolated) = 0.251 W/kg SAR(1 g) = 0.203 mW/g; SAR(10 g) = 0.153 mW/g Maximum value of SAR (measured) = 0.212 mW/g Test Report Serial No: UL-SAR-RPA10036246JD05 V2.0 Version 2.0 Issue Date: 23 August 2013 Page: 31 of 75 UL 005: Touch Left UMTS FDD 5 CH4132 Date 14/08/2013 DUT: Panasonic D32CS1; Type: Panasonic; Serial: C9 0 dB = 0.534mW/g Communication System: UMTS-FDD 5; Frequency: 826.4 MHz;Duty Cycle: 1:1 Medium: 900 MHz HSL Medium parameters used (interpolated): f = 826.4 MHz; σ = 0.92 mho/m; ε r = 41.3; ρ = 1000 kg/m 3 Phantom section: Left…

Text truncated - open the document above for the full version.

UL VS LTD Pavilion A, Ashwood Park, Ashwood Way, Basingstoke, Hampshire, RG23 8BG, UK Telephone: +44 (0)1256 312000 Facsimile: +44 (0)1256 312001 TEST REPORT Test Report No. : UL-RPT-RP10036246JD04A V2.0 Manufacturer : Panasonic Mobile Communications Development of Europe Ltd Model No. : NTT docomo D32CS1 FCC ID : UCE113059A Technology : Bluetooth – Basic Rate & EDR Test Standard(s) : FCC Parts 15.107(a), 15.109, 15.207, 15.209(a) & 15.247 1. This test report shall not be reproduced in full or partial, without the written approval of UL VS LTD. 2. The results in this report apply only to the sample(s) tested. 3. The sample tested is in compliance with the above standard(s). 4. The test results in this report are traceable to the national or international standards. 5. Version 2.0 supersedes all previous versions. Date of Issue: 20 August 2013 Checked by: Sarah Williams WiSE Engineer Issued by : pp John Newell Group Quality Manager, WiSE Basingstoke, UL VS LTD This laboratory is accredited by UKAS. The tests reported herein have been performed in accordance with its’ terms of accreditation. The Bluetooth ® word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by UL VS LTD is under licence. Other trademarks and trade names are those of their respective owners. TEST REPORT SERIAL NO: UL-RPT-RP10036246JD04A VERSION NO. 2.0 ISSUE DATE: 20 AUGUST 2013 Page 2 of 53 UL VS LTD This page has been left intentionally blank. TEST REPORT SERIAL NO: UL-RPT-RP10036246JD04A VERSION NO. 2.0 ISSUE DATE: 20 AUGUST 2013 UL VS LTD Page 3 of 53 Table of Contents 1. Customer Information .................................................................................................................4 2. Summary of Testing ....................................................................................................................5 2.1. General Information 5 2.2. Summary of Test Results 5 2.3. Methods and Procedures 6 2.4. Deviations from the Test Specification 6 3. Equipment Under Test (EUT) .....................................................................................................7 3.1. Identification of Equipment Under Test (EUT) 7 3.2. Description of EUT 7 3.3. Modifications Incorporated in the EUT 8 3.4. Additional Information Related to Testing 8 3.5. Support Equipment 8 4. Operation and Monitoring of the EUT during Testing ..............................................................9 4.1. Operating Modes 9 4.2. Configuration and Peripherals 9 5. Measurements, Examinations and Derived Results ...............................................................10 5.1. General Comments 10 5.2. Test Results 11 5.2.1. Receiver/Idle Mode AC Conducted Spurious Emissions 11 5.2.2. Receiver/Idle Mode Radiated Spurious Emissions 14 5.2.3. Transmitter AC Conducted Spurious Emissions 18 5.2.4. Transmitter 20 dB Bandwidth 21 5.2.5. Transmitter Carrier Frequency Separation 26 5.2.6. Transmitter Number of Hopping Frequencies and Average Time of Occupancy 29 5.2.7. Transmitter Maximum Peak Output Power 31 5.2.8. Transmitter Radiated Emissions 39 5.2.9. Transmitter Band Edge Radiated Emissions 44 6. Measurement Uncertainty ........................................................................................................52 7. Report Revision History ...........................................................................................................53 TEST REPORT SERIAL NO: UL-RPT-RP10036246JD04A VERSION NO. 2.0 ISSUE DATE: 20 AUGUST 2013 Page 4 of 53 UL VS LTD 1. Customer Information Company Name: Panasonic Mobile Communications Development of Europe Ltd Address: Panasonic House Willoughby Road Bracknell Berkshire RG12 8FP United Kingdom TEST REPORT SERIAL NO: UL-RPT-RP10036246JD04A VERSION NO. 2.0 ISSUE DATE: 20 AUGUST 2013 UL VS LTD Page 5 of 53 2. Summary of Testing 2.1. General Information Specification Reference: 47CFR15.247 Specification Title: Code of Federal Regulations Volume 47 (Telecommunications): Part 15 Subpart C (Intentional Radiators) - Section 15.247 Specification Reference: 47CFR15.107 and 47CFR15.109 Specification Title: Code of Federal Regulations Volume 47 (Telecommunications): Part 15 Subpart C (Intentional Radiators) - Sections 15.107 and 15.109 Specification Reference: 47CFR15.207 and 47CFR15.209 Specification Title: Code of Federal Regulations Volume 47 (Telecommunications): Part 15 Subpart C (Intentional Radiators) - Sections 15.207 and 15.209 Site Registration: FCC: 209735 Location of Testing: UL VS LTD, Unit 3 Horizon, Wade Road, Kingsland Business Park, Basingstoke, Hampshire, RG24 8AH, United Kingdom Test Dates: 09 August 2013 to 15 August 2013 2.2. Summary of Test Results FCC Reference (47CFR) Measurement Result Part 15.107(a) Receiver/Idle Mode AC Conducted Emissions Part 15.109 Receiver/Idle Mode Radiated Spurious Emissions Part 15.207 Transmitter AC Conducted Emissions Part 15.247(a)(1) Transmitter 20 dB Bandwidth Part 15.247(a)(1) Transmitter Carrier Frequency Separation Part 15.247(a)(1)(iii) Transmitter Number of Hopping Frequencies and Average Time of Occupancy Part 15.247(b)(1) Transmitter Maximum Peak Output Power Part 15.247(d) & 15.209(a) Transmitter Radiated Emissions Part 15.247(d) & 15.209(a) Transmitter Band Edge Radiated Emissions Key to Results = Complied = Did not comply TEST REPORT SERIAL NO: UL-RPT-RP10036246JD04A VERSION NO. 2.0 ISSUE DATE: 20 AUGUST 2013 Page 6 of 53 UL VS LTD 2.3. Methods and Procedures Reference: ANSI C63.4 (2009) Title: American National Standard for Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz Reference: ANSI C63.10 (2009) Title: American National Standard for Testing Unlicensed Wireless Devices 2.4. Deviations from the Test Specification For the measurements contained within this test report, there were no deviations from, additions to, or exclusions from the test specification identified above. TEST REPORT S…

Text truncated - open the document above for the full version.

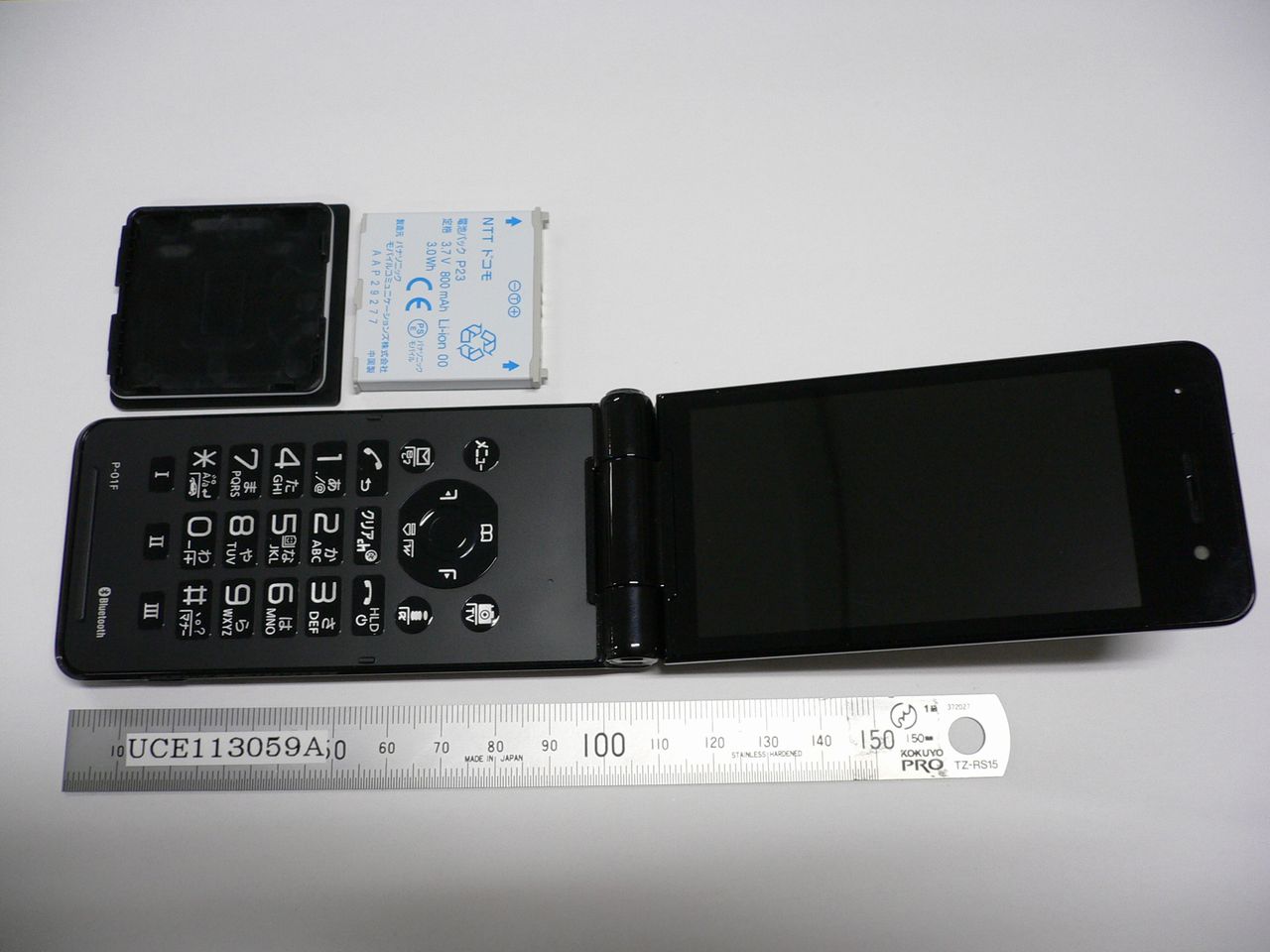

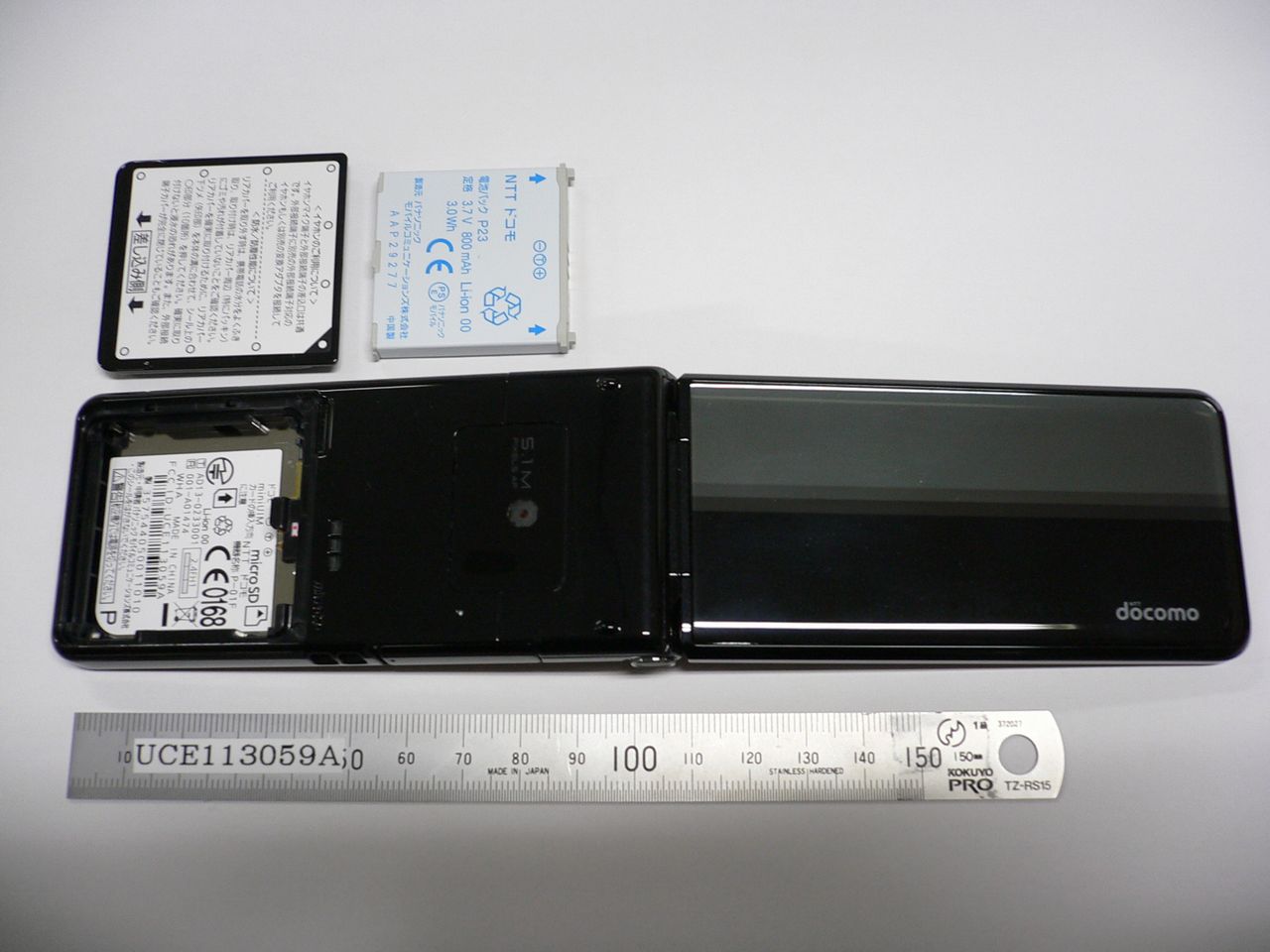

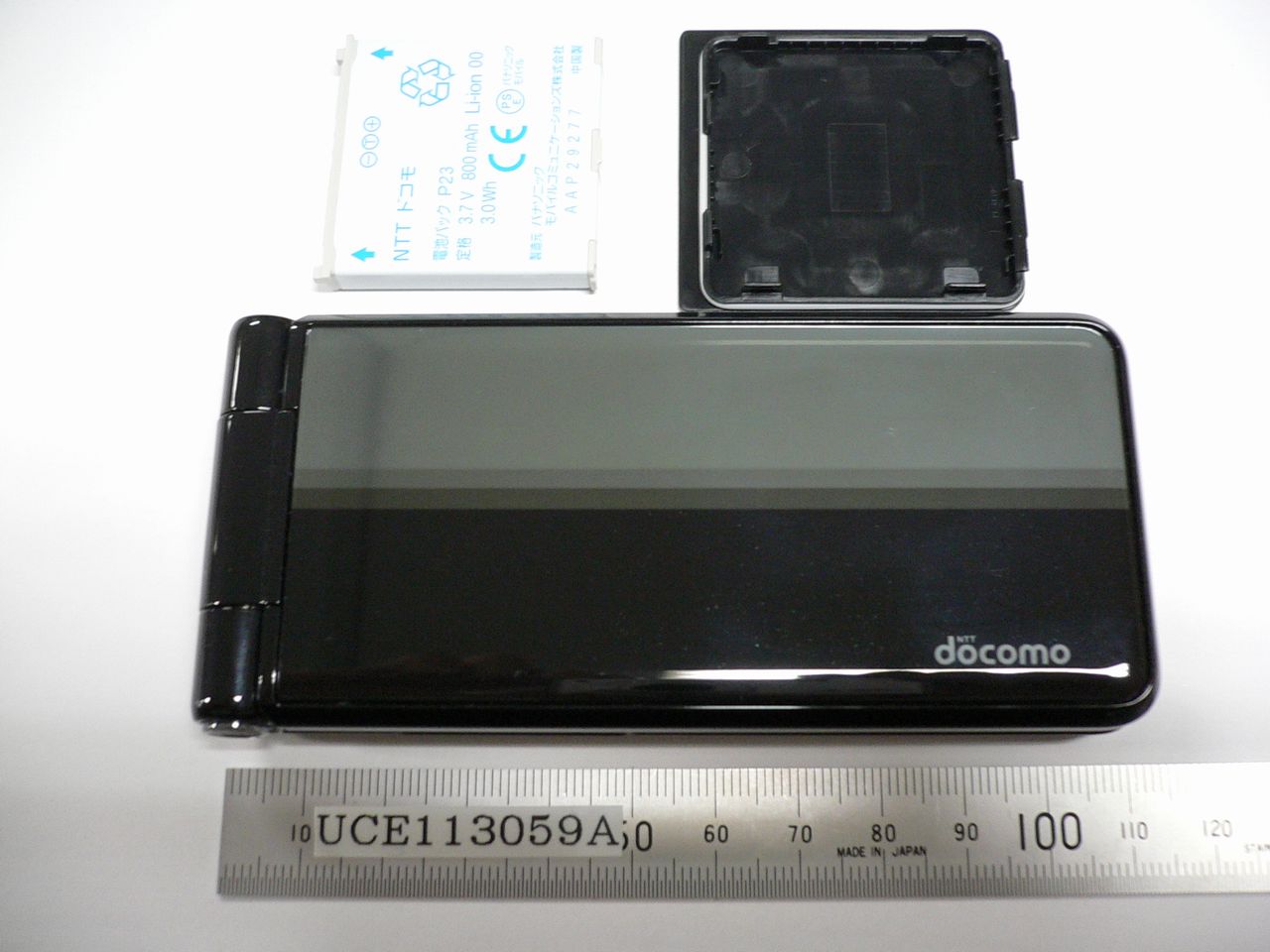

Test Report Serial No: UL-SAR-RPA10036246JD05 V2.0 Version 2.0 Issue Date: 23 August 2013 Page: 43 of 75 UL Appendix 4. Photographs This appendix contains the following photographs: Photo Reference Number Title PHT/10036246JD05/001 Test configuration for the measurement of Specific Absorption Rate (SAR) PHT/10036246JD05/002 Touch Left PHT/10036246JD05/003 Tilt Left PHT/10036246JD05/004 Touch Right PHT/10036246JD05/005 Tilt Right PHT/10036246JD05/006 Front of EUT Open Facing Phantom PHT/10036246JD05/007 Back of EUT Open Facing Phantom PHT/10036246JD05/008 Front of EUT Closed Facing Phantom PHT/10036246JD05/009 Back of EUT Closed Facing Phantom PHT/10036246JD05/010 Front View of EUT Closed PHT/10036246JD05/011 Back View of EUT Closed PHT/10036246JD05/012 Front View of EUT Open PHT/10036246JD05/013 Back View of EUT Open PHT/10036246JD05/014 Internal View of Radiated EUT PHT/10036246JD05/015 Internal View of Conducted EUT PHT/10036246JD05/016 Personal Hands Free (PHF) Kit View PHT/10036246JD05/017 Battery View PHT/10036246JD05/018 900 Head Fluid Level PHT/10036246JD05/019 900 Body Fluid Level Test Report Serial No: UL-SAR-RPA10036246JD05 V2.0 Version 2.0 Issue Date: 23 August 2013 Page: 44 of 75 UL PHT/10036246JD05/001: Test configuration for the measurement of Specific Absorption Rate (SAR) Test Report Serial No: UL-SAR-RPA10036246JD05 V2.0 Version 2.0 Issue Date: 23 August 2013 Page: 45 of 75 UL PHT/10036246JD05/002: Touch Left Test Report Serial No: UL-SAR-RPA10036246JD05 V2.0 Version 2.0 Issue Date: 23 August 2013 Page: 46 of 75 UL PHT/10036246JD05/003: Tilt Left Test Report Serial No: UL-SAR-RPA10036246JD05 V2.0 Version 2.0 Issue Date: 23 August 2013 Page: 47 of 75 UL PHT/10036246JD05/004: Touch Right Test Report Serial No: UL-SAR-RPA10036246JD05 V2.0 Version 2.0 Issue Date: 23 August 2013 Page: 48 of 75 UL PHT/10036246JD05/005: Tilt Right Test Report Serial No: UL-SAR-RPA10036246JD05 V2.0 Version 2.0 Issue Date: 23 August 2013 Page: 49 of 75 UL PHT/10036246JD05/006: Front of EUT Open Facing Phantom Test Report Serial No: UL-SAR-RPA10036246JD05 V2.0 Version 2.0 Issue Date: 23 August 2013 Page: 50 of 75 UL PHT/10036246JD05/007: Back of EUT Open Facing Phantom Test Report Serial No: UL-SAR-RPA10036246JD05 V2.0 Version 2.0 Issue Date: 23 August 2013 Page: 51 of 75 UL PHT/10036246JD05/008: Front of EUT Closed Facing Phantom Test Report Serial No: UL-SAR-RPA10036246JD05 V2.0 Version 2.0 Issue Date: 23 August 2013 Page: 52 of 75 UL PHT/10036246JD05/009: Back of EUT Closed Facing Phantom Test Report Serial No: UL-SAR-RPA10036246JD05 V2.0 Version 2.0 Issue Date: 23 August 2013 Page: 53 of 75 UL PHT/10036246JD05/010: Front View of EUT Closed Test Report Serial No: UL-SAR-RPA10036246JD05 V2.0 Version 2.0 Issue Date: 23 August 2013 Page: 54 of 75 UL PHT/10036246JD05/011: Back View of EUT Closed Test Report Serial No: UL-SAR-RPA10036246JD05 V2.0 Version 2.0 Issue Date: 23 August 2013 Page: 55 of 75 UL PHT/10036246JD05/012: Front View of EUT Open Test Report Serial No: UL-SAR-RPA10036246JD05 V2.0 Version 2.0 Issue Date: 23 August 2013 Page: 56 of 75 UL PHT/10036246JD05/013: Back View of EUT Open Test Report Serial No: UL-SAR-RPA10036246JD05 V2.0 Version 2.0 Issue Date: 23 August 2013 Page: 57 of 75 UL PHT/10036246JD05/014: Internal View of Radiated EUT Test Report Serial No: UL-SAR-RPA10036246JD05 V2.0 Version 2.0 Issue Date: 23 August 2013 Page: 58 of 75 UL PHT/10036246JD05/015: Internal View of Conducted EUT Test Report Serial No: UL-SAR-RPA10036246JD05 V2.0 Version 2.0 Issue Date: 23 August 2013 Page: 59 of 75 UL PHT/10036246JD05/016: Personal Hands Free (PHF) Kit View Test Report Serial No: UL-SAR-RPA10036246JD05 V2.0 Version 2.0 Issue Date: 23 August 2013 Page: 60 of 75 UL PHT/10036246JD05/017: Battery View Test Report Serial No: UL-SAR-RPA10036246JD05 V2.0 Version 2.0 Issue Date: 23 August 2013 Page: 61 of 75 UL PHT/10036246JD05/018: 900 Head Fluid Level Test Report Serial No: UL-SAR-RPA10036246JD05 V2.0 Version 2.0 Issue Date: 23 August 2013 Page: 62 of 75 UL PHT/10036246JD05/019: 900 Body Fluid Level

Test Report Serial No: UL-SAR-RPA10036246JD05 V2.0 Version 2.0 Issue Date: 23 August 2013 Page: 75 of 75 UL Appendix 9. Antenna Schematics Note: The following Antenna Schematics are shown below are with ‘Back of EUT Closed’.
