UCE206001ADual Mode UMTS / GSM Cellular Mobile Radio

Abridged English Manual Su b D i sp l ay In di cators Mute ActiveVibrator ActiveMute & Vibration ActiveUnread MessageUnsupported Memory CardUnusable Memory CardMemory Card InsertedSecret Mode ActiveAlarm SetSchedule SetBluetooth ® Device Connected 705P Visible User ModeDrive Mode Manner ModeOutdoor ModeRoamingCSD Connection Established on PCGPRS Connection Established on PCGPRS Connection EstablishedSecure Content Streaming/ Streaming PausedBGM Playing/ BGM Paused Answer Phone Active Answer Phone Full New Message Recorded Answer Phone FullVoice MessageCall Divert Active New Message Recorded Bluetooth ® Enabled Abridged English Manual Multi Selector & SoftkeysUse Multi Selector to select items, navigate menus, etc.Softkeys correspond to functions/commands appearing at the bottom of Display. Menu NavigationIn this manual, handset operations before steps are described as shown below. Example) Enter Main menu, then move through sub menus. " 4 " means "scroll through the menu and select the menu item, then press ". Manual Symbols Main menu 4 4 4 Language Abridged English Manual Security CodesPIN1&PIN2! PIN1 & PIN2 are 9999 by default. ! PIN1 & PIN2 can be changed. ! When PIN Entry is Enable , PIN1 (4-8 digits) is required every time handset is turned on (with USIM Card inserted). PIN Lock & Cancellation (PUK)PIN1 Lock or PIN 2 Lock is activated if PIN1 or PIN2 is incorrectly entered 3 times. Cancel PIN Lock by entering the Personal Unblocking Key (PUK).! For information on PUK, contact SoftBank Customer Centre, General Information ( Z P.18-50 ). Handset Code9999 or the 4-digit number sele cted at initial subscription. Handset Code is required to use/change some handset functions.! " appears when Handset Code is entered. Centre Access CodeThe 4-digit number in the contract; required to access optional service via landlines or subscribe to fee-based information. USIM PINs PIN1 Prevent unauthorised use of handset. PIN2 Required to clear Total Call Cost and to set Cost Limit. ! If PUK is incorrectly entered 10 times, USIM Card is locked and handset is disabled. Write down PUK. ! For procedures required to unlock USIM Card, contact SoftBank Customer Centre, General Information ( Z P.18-50). ! When PIN Entry is enabled , emergency calls are not available. Codes Abridged English Manual Network PasswordThe 4-digit number selected at initial subscription, required to restrict handset services. If Network Password is incorrectly entered 3 times, Call Barring settings are locked. To resolve, Network Password and Centre Access Code must be changed. For details, contact SoftBank Customer Centre, General Information ( Z P.18-50). Basic Operations 1 Press and hold for more than 2 seconds to turn power on 2 To turn power off, press and hold for more than 2 seconds 1 Select , English or 7 1 In Standby, ! Write down Handset Code, Centre Access Code and Network Password. If lo st, contact SoftBank Customer Centre, General Information ( Z P.18- 50). ! Do not reveal Handset Co de, Centre Access Code and Network Password. SoftBank is not liable for misuse or damages. Power On/OffLanguage ( ) Main menu 4 4 4 Language My Phone Number Abridged English Manual 1 Enter date 7 7 Enter time 7 1 Select Automatic , 3G or GSM 7 Making a Voice Call 1 In Standby:Standard diallingEnter a phone number and Calling from Phone Book 7 Select an entry 7 Select a phone number 7 Calling from Call Log 7 to switch to All Calls History , Outgoing , Missed Calls or Incoming 7 Select a record 7 International diallingEnter a phone number 7 [Menu] 7 International Call 7 7 Select the country 7 7 2 To end the call, Answering a Voice Call 1 When a call is received, 2 To end the call, Date & Time Main menu 4 Settings 4 Phone Settings 4 Date & Time 4 Home Clock 4 Date & Time Network Settings Main menu 4 Settings 4 Connectivity 4 Network Settings 4 Select Network Voice Calls Abridged English Manual Viewing Call Time 1 Select Total Call Time 2 to return to Call Settings menu Viewing Call Charges 1 Select Service Charges 7 7 Total Call Cost 2 to return to Service Charge menu Up to 8 voice messages can be recorded on 705P.! Unavailable when handset is off or out-of-range, or in Offline mode. ! Answer Phone is not available for incoming Video Calls. Setting Answer Phone 1 In Standby, press and hold ! To cancel, press and hold again. Playing a MessageWhen a new voice message is received, appears in Standby. 1 In information window, select Answer Phone 7 Answer Phone list appears. 2 Select a message 7 Playback starts.! To delete a message: Select a message 7 [Menu] 7 Delete 7 7 [YES] 1 In Standby, press and hold to activate Manner mode! To cancel, press and hold again. Call Time & Call Cost Main menu 4 Settings 4 Call Settings Answer Phone Manner Mode Abridged English Manual Text Entry Key Assignments Key Input Modes Alphanumerics Numbers . - @ _ / : ̃ 1 1 a b c A B C 2 2 d e f D E F 3 3 g h i G H I 4 4 j k l J K L 5 5 m n o M N O 6 6 p q r s P Q R S 7 7 t u v T U V 8 8 w x y z W X Y Z 9 9 0 / half pich space 0 Press and hold for + Display Symbol list/Pictograph list " Press and hold to see e-mail address/URL list , ! ? ¥ & ( ) " # “ ’ = ^ + ; # - , ! ? ¥ & ( ) “ ’ = ^ + ; Toggle input modesPress and hold to toggle half pitch and full pitch charactersLine break Line break Toggle upper and lower case charactersPress to delete one character after cursor(Delete one character before cursor when cursor is at the end of a sentence)Press and hold to delete all characters after cursor (Delete all characters before cursor when cursor is at the end of a sentence) Key Input Modes Alphanumerics Numbers Abridged English Manual 1 In a text entry window, to open Symbols ! to toggle Symbols and Pictographs. ! Log list may appear first. 2 to select a list 7 to select a symbol or pictograph 7 3 [Close] to close the list Character Input Modes Input Modes Character Count Character Type Press and hold to toggle full pitch and half pitch. Press to toggle input modes. Half pit…

Text truncated - open the document above for the full version.

TEST REPORT FROM RFI GLOBAL SERVICES LTD Test of: Panasonic Mobile Comms Dev of Europe Ltd. VS70 To: OET Bulletin 65 Supplement C: (2001-01) Test Report Serial No: RFI/SARE2/RP71978JD04A Supersedes Test Report Serial No: RFI/SARE1/RP71978JD04A This Test Report Is Issued Under The Authority Of Andrew Brown, Operations Manager: Tested By: Richelieu Quoi Checked By: Joe Lomako pp Report Copy No: PDF01 Issue Date: 12 September 2006 Test Dates: 27 June 2006 to 05 July 2006 It should be noted that the standard, OET Bulletin 65 Supplement C: (2001- 01) is not listed on RFI’s current UKAS schedule and is therefore “not UKAS accredited”. This report is issued in Adobe Acrobat portable document format (PDF). It is only a valid copy of the report if it is being viewed in PDF format with the following security options not allowed: Changing the document, Selecting text and graphics, Adding or changing notes and form fields. This report may be copied in full. The results in this report apply only to the sample(s) tested. RFI GLOBAL SERVICES LTD TEST REPORT S.No. RFI/SARE2/RP71978JD04A Page: 2 of 56 Issue Date: 12 September 2006 Test Of: Panasonic Mobile Comms Dev of Europe Ltd. VS70 To: OET Bulletin 65 Supplement C: (2001-01) This page has been left intentionally blank. RFI GLOBAL SERVICES LTD TEST REPORT S.No. RFI/SARE2/RP71978JD04A Page: 3 of 56 Issue Date: 12 September 2006 Test Of: Panasonic Mobile Comms Dev of Europe Ltd. VS70 To: OET Bulletin 65 Supplement C: (2001-01) Table of Contents 1. Client Information ............................................................................................................. 4 2. Equipment Under Test (EUT) ........................................................................................... 5 3. Test Specification, Methods and Procedures ................................................................ 8 4. Deviations from the Test Specification .......................................................................... 9 5. Operation of the EUT During Testing ........................................................................... 10 6. Summary of Test Results............................................................................................... 11 7. Measurements, Examinations and Derived Results.................................................... 12 8. SAR Measurement System ............................................................................................ 17 9. SAR Safety Limits...........................................................................................................18 10. Details of SAR Evaluation............................................................................................ 19 11. Evaluation Procedures................................................................................................. 20 12. System Validation......................................................................................................... 21 13. Simulated Tissues ........................................................................................................ 22 14. Tissue Parameters........................................................................................................ 23 15. DASY4 Systems Specifications................................................................................... 24 16. Validation Results – 1900 MHz Band (Body) .............................................................. 25 17. Validation Results – 1900 MHz Band (Head) .............................................................. 26 18. Measurement Uncertainty............................................................................................ 27 Appendix 1. Test Equipment Used.................................................................................... 30 Appendix 2. SAR Distribution Scans ................................................................................ 32 Appendix 3. Test Configuration Photograph ................................................................... 33 Appendix 4. Calibration Data ............................................................................................. 35 Appendix 5. Photographs of EUT...................................................................................... 37 RFI GLOBAL SERVICES LTD TEST REPORT S.No. RFI/SARE2/RP71978JD04A Page: 4 of 56 Issue Date: 12 September 2006 Test Of: Panasonic Mobile Comms Dev of Europe Ltd. VS70 To: OET Bulletin 65 Supplement C: (2001-01) 1. Client Information Company Name: Panasonic Mobile Comms Dev of Europe Ltd Address: 2 Gables Way Colthrop Thatcham Berkshire RG19 4ZB Contact Name: Mr M Hargreaves Test Laboratory Company Name: RFI Global Services Ltd Address: Ewhurst Park Ramsdell Basingstoke Hampshire RG26 5RQ. Contact Name: Mr A Brown RFI GLOBAL SERVICES LTD TEST REPORT S.No. RFI/SARE2/RP71978JD04A Page: 5 of 56 Issue Date: 12 September 2006 Test Of: Panasonic Mobile Comms Dev of Europe Ltd. VS70 To: OET Bulletin 65 Supplement C: (2001-01) 2. Equipment Under Test (EUT) The following information (with the exception of the date of receipt) has been supplied by the client: 2.1. Identification of Equipment Under Test (EUT) Brand Name: Panasonic (Mobile Station) Model Name or Number: VS70 Unique Type Identification: Sample C7 (Stated by Client) IMEI Number: 004401030022566 Software Version Number: V705PVA13 Hardware Rev. of GSM Module (if app.): D (Stated by Client) FCC Identification: UCE206001A Country of Manufacture: None Stated Date of Receipt: 27 June 2006 2.2. Description of EUT The equipment under test is a Dual mode Mobile Station, operating at PCS1900 MHz and GPRS1900 Class 10. 2.3. Modifications Incorporated in the EUT During the course of testing the EUT was not modified. RFI GLOBAL SERVICES LTD TEST REPORT S.No. RFI/SARE2/RP71978JD04A Page: 6 of 56 Issue Date: 12 September 2006 Test Of: Panasonic Mobile Comms Dev of Europe Ltd. VS70 To: OET Bulletin 65 Supplement C: (2001-01) 2.4. Additional…

Text truncated - open the document above for the full version.

RFI GLOBAL SERVICES LTD TEST REPORT S.No. RFI/SARE2/RP71978JD04A Page: 32 of 56 Issue Date: 12 September 2006 Test Of: Panasonic Mobile Comms Dev of Europe Ltd. VS70 To: OET Bulletin 65 Supplement C: (2001-01) Appendix 2. SAR Distribution Scans This appendix contains SAR distribution scans. Scan Reference Number Title SCN/71978/001 Rear of EUT Facing Phantom Open with PHF CH660 SCN/71978/002 Display of EUT Facing Phantom Open with PHF CH660 SCN/71978/003 Rear of EUT Facing Phantom Closed with PHF CH660 SCN/71978/004 Display of EUT Facing Phantom Closed with PHF CH660 SCN/71978/005 Rear of EUT Facing Phantom Closed with PHF CH512 SCN/71978/006 Rear of EUT Facing Phantom Closed with PHF CH810 SCN/71978/007 Touch Left CH660 SCN/71978/008 Tilt Left CH660 SCN/71978/009 Touch Right CH660 SCN/71978/010 Tilt Right CH660 SCN/71978/011 Touch Left CH512 SCN/71978/012 Touch Left CH810 SCN/71978/013 Rear of EUT Facing Phantom Closed with PHF CH512 GSM SCN/71978/014 Validation 001 SCN/71978/015 Validation 002 Page 1 of 2 file://C:\Doc...\71978_JD04_001_Rear_of_EUT_Facing_Phantom_Open_with_PHF_CH660-1.ht05/07/2006 Date: 27/06/2006 71978_JD04_001 Test Laboratory: RFI GLOBAL SERVICES LTD. 71978_JD04_001_Rear_of_EUT_Facing_Phantom_Open_with_PHF_CH660 DUT: Panasonic; Type: VS70 (Sample C7); IMEI: 004401030022566 Communication System: GPRS 1900; Frequency: 1879.8 MHz;Duty Cycle: 1:4 Medium: 1900 MHz MSL Medium parameters used (interpolated): f = 1879.8 MHz; σ = 1.57 mho/m; ε r = 51.1; ρ = 1000 kg/m 3 Phantom section: Flat Section 0 dB = 0.237mW/g Page 2 of 2 file://C:\Doc...\71978_JD04_001_Rear_of_EUT_Facing_Phantom_Open_with_PHF_CH660-1.ht05/07/2006 DASY4 Configuration: - Probe: ET3DV6 - SN1528; ConvF(4.49, 4.49, 4.49); Calibrated: 13/07/2005 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn394; Calibrated: 19/05/2006 - Phantom: SAM 12a; Type: SAM 4.0; Serial: TP:1193 - Measurement SW: DASY4, V4.6 Build 23; Postprocessing SW: SEMCAD, V1.8 Build 171 Rear of EUT Facing Phantom Open with PHF - Middle/Area Scan (61x171x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.254 mW/g Rear of EUT Facing Phantom Open with PHF - Middle/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 11.3 V/m; Power Drift = -0.061 dB Peak SAR (extrapolated) = 0.371 W/kg SAR(1 g) = 0.217 mW/g; SAR(10 g) = 0.126 mW/g Maximum value of SAR (measured) = 0.237 mW/g Page 1 of 2 file://C:\...\71978_JD04_002_Display_of_EUT_Facing_Phantom_Open_with_PHF_CH660-1.ht05/07/2006 Date: 27/06/2006 71978_JD04_002 Test Laboratory: RFI GLOBAL SERVICES LTD. 71978_JD04_002_Display_of_EUT_Facing_Phantom_Open_with_PHF_CH660 DUT: Panasonic; Type: VS70 (Sample C7); IMEI: 004401030022566 Communication System: GPRS 1900; Frequency: 1879.8 MHz;Duty Cycle: 1:4 Medium: 1900 MHz MSL Medium parameters used (interpolated): f = 1879.8 MHz; σ = 1.57 mho/m; ε r = 51.1; ρ = 1000 kg/m 3 Phantom section: Flat Section 0 dB = 0.211mW/g Page 2 of 2 file://C:\...\71978_JD04_002_Display_of_EUT_Facing_Phantom_Open_with_PHF_CH660-1.ht05/07/2006 DASY4 Configuration: - Probe: ET3DV6 - SN1528; ConvF(4.49, 4.49, 4.49); Calibrated: 13/07/2005 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn394; Calibrated: 19/05/2006 - Phantom: SAM 12a; Type: SAM 4.0; Serial: TP:1193 - Measurement SW: DASY4, V4.6 Build 23; Postprocessing SW: SEMCAD, V1.8 Build 171 Display of EUT Facing Phantom Open with PHF - Middle 2/Area Scan (61x171x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.220 mW/g Display of EUT Facing Phantom Open with PHF - Middle 2/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 7.35 V/m; Power Drift = -0.062 dB Peak SAR (extrapolated) = 0.289 W/kg SAR(1 g) = 0.197 mW/g; SAR(10 g) = 0.128 mW/g Maximum value of SAR (measured) = 0.211 mW/g Page 1 of 2 file://C:\Do...\71978_JD04_003_Rear_of_EUT_Facing_Phantom_Closed_with_PHF_CH660-1.ht05/07/2006 Date: 27/06/2006 71978_JD04_003 Test Laboratory: RFI GLOBAL SERVICES LTD. 71978_JD04_003_Rear_of_EUT_Facing_Phantom_Closed_with_PHF_CH660 DUT: Panasonic; Type: VS70 (Sample C7); IMEI: 004401030022566 Communication System: GPRS 1900; Frequency: 1879.8 MHz;Duty Cycle: 1:4 Medium: 1900 MHz MSL Medium parameters used (interpolated): f = 1879.8 MHz; σ = 1.57 mho/m; ε r = 51.1; ρ = 1000 kg/m 3 Phantom section: Flat Section 0 dB = 0.319mW/g Page 2 of 2 file://C:\Do...\71978_JD04_003_Rear_of_EUT_Facing_Phantom_Closed_with_PHF_CH660-1.ht05/07/2006 DASY4 Configuration: - Probe: ET3DV6 - SN1528; ConvF(4.49, 4.49, 4.49); Calibrated: 13/07/2005 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn394; Calibrated: 19/05/2006 - Phantom: SAM 12a; Type: SAM 4.0; Serial: TP:1193 - Measurement SW: DASY4, V4.6 Build 23; Postprocessing SW: SEMCAD, V1.8 Build 171 Rear of EUT Facing Phantom Closed with PHF - Middle/Area Scan (61x171x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.333 mW/g Rear of EUT Facing Phantom Closed with PHF - Middle/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 12.1 V/m; Power Drift = -0.149 dB Peak SAR (extrapolated) = 0.506 W/kg SAR(1 g) = 0.298 mW/g; SAR(10 g) = 0.183 mW/g Maximum value of SAR (measured) = 0.319 mW/g Page 1 of 2 file://C:\...\71978_JD04_004_Display_of_EUT_Facing_Phantom_Closed_with_PHF_CH660-1.ht05/07/2006 Date: 27/06/2006 71978_JD04_004 Test Laboratory: RFI GLOBAL SERVICES LTD. 71978_JD04_004_Display_of_EUT_Facing_Phantom_Closed_with_PHF_CH660 DUT: Panasonic; Type: VS70 (Sample C7); IMEI: 004401030022566 Communication System: GPRS 1900; Frequency: 1879.8 MHz;Duty Cycle: 1:4 Medium: 1900 MHz MSL Medium parameters used (interpolated): f = 1879.8 MHz; σ = 1.57 mho/m; ε r = 51.1; ρ = 1000 kg/m 3 Phantom section: Flat Section 0 dB = 0.161mW/g Page 2 of 2 file://C:\...\71978_JD04_004_Display_of_EUT_Facing_Phantom_Closed_with_PHF_CH660-1.ht05…

Text truncated - open the document above for the full version.

RFI GLOBAL SERVICES LTD TEST REPORT S.No. RFI/SARE2/RP71978JD04A Page: 35 of 56 Issue Date: 12 September 2006 Test Of: Panasonic Mobile Comms Dev of Europe Ltd. VS70 To: OET Bulletin 65 Supplement C: (2001-01) Appendix 4. Calibration Data This appendix contains the calibration data and certificates. Asset Number Title A1185 Calibration Procedure for domestic E-field probes. A1186 Calibration Procedure for domestic E-field probes. A1237 Calibration procedure for dipole validation kits. Note(s): 1. Dipole validation kits are calibrated on a two year basis.

RFI GLOBAL SERVICES LTD TEST REPORT S.No. RFI/SARE2/RP71978JD04A Page: 35 of 56 Issue Date: 12 September 2006 Test Of: Panasonic Mobile Comms Dev of Europe Ltd. VS70 To: OET Bulletin 65 Supplement C: (2001-01) Appendix 4. Calibration Data This appendix contains the calibration data and certificates. Asset Number Title A1185 Calibration Procedure for domestic E-field probes. A1186 Calibration Procedure for domestic E-field probes. A1237 Calibration procedure for dipole validation kits. Note(s): 1. Dipole validation kits are calibrated on a two year basis.

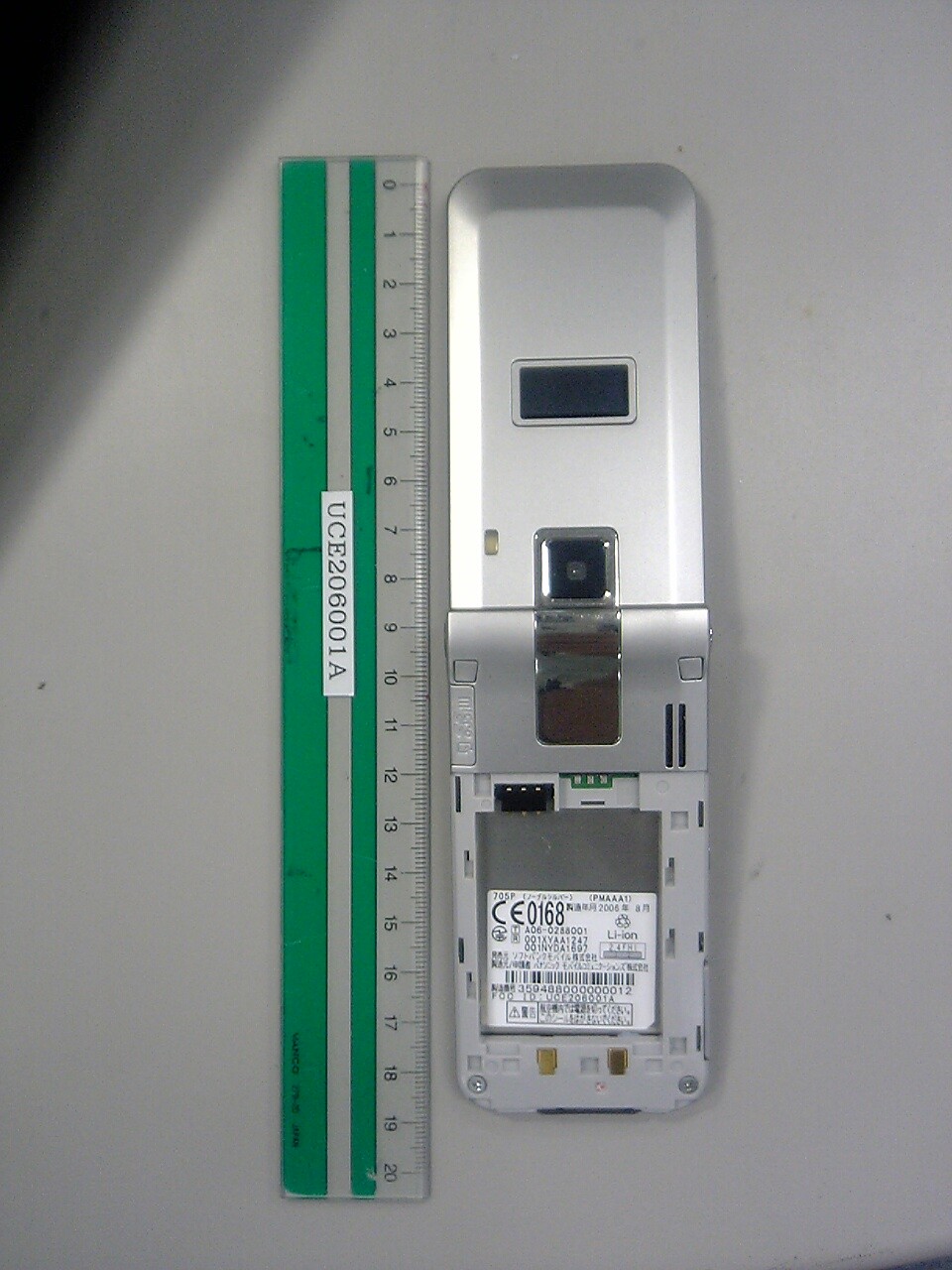

RFI GLOBAL SERVICES LTD TEST REPORT S.No. RFI/SARE2/RP71978JD04A Page: 37 of 56 Issue Date: 12 September 2006 Test Of: Panasonic Mobile Comms Dev of Europe Ltd. VS70 To: OET Bulletin 65 Supplement C: (2001-01) Appendix 5. Photographs of EUT This appendix contains the following photographs: Photo Reference Number Title PHT/71978/001 Touch Left PHT/71978/002 Tilt Left PHT/71978/003 Touch Right PHT/71978/004 Tilt Right PHT/71978/005 Overall View of Setup PHT/71978/006 EUT Open Display Facing Phantom With PHF 15mm Spacing PHT/71978/007 Open Rear Facing Phantom With PHF 15mm Spacing PHT/71978/008 Closed Display Facing Phantom With PHF 15mm Spacing PHT/71978/009 Closed Rear Facing Phantom With PHF 15mm Spacing PHT/71978/010 EUT Open Display View PHT/71978/011 EUT Open Rear View PHT/71978/012 EUT Closed Front View PHT/71978/013 EUT Closed Rear View PHT/71978/014 EUT Internal View PHT/71978/015 Battery View PHT/71978/016 PHF View PHT/71978/017 Fluid Level Head PHT/71978/018 Fluid Level Body RFI GLOBAL SERVICES LTD TEST REPORT S.No. RFI/SARE2/RP71978JD04A Page: 38 of 56 Issue Date: 12 September 2006 Test Of: Panasonic Mobile Comms Dev of Europe Ltd. VS70 To: OET Bulletin 65 Supplement C: (2001-01) PHT/71978/001: Touch Left RFI GLOBAL SERVICES LTD TEST REPORT S.No. RFI/SARE2/RP71978JD04A Page: 39 of 56 Issue Date: 12 September 2006 Test Of: Panasonic Mobile Comms Dev of Europe Ltd. VS70 To: OET Bulletin 65 Supplement C: (2001-01) PHT/71978/002: Tilt Left RFI GLOBAL SERVICES LTD TEST REPORT S.No. RFI/SARE2/RP71978JD04A Page: 40 of 56 Issue Date: 12 September 2006 Test Of: Panasonic Mobile Comms Dev of Europe Ltd. VS70 To: OET Bulletin 65 Supplement C: (2001-01) PHT/71978/003: Touch Right RFI GLOBAL SERVICES LTD TEST REPORT S.No. RFI/SARE2/RP71978JD04A Page: 41 of 56 Issue Date: 12 September 2006 Test Of: Panasonic Mobile Comms Dev of Europe Ltd. VS70 To: OET Bulletin 65 Supplement C: (2001-01) PHT/71978/004: Tilt Right RFI GLOBAL SERVICES LTD TEST REPORT S.No. RFI/SARE2/RP71978JD04A Page: 42 of 56 Issue Date: 12 September 2006 Test Of: Panasonic Mobile Comms Dev of Europe Ltd. VS70 To: OET Bulletin 65 Supplement C: (2001-01) PHT/71978/005: Overall View of Setup RFI GLOBAL SERVICES LTD TEST REPORT S.No. RFI/SARE2/RP71978JD04A Page: 43 of 56 Issue Date: 12 September 2006 Test Of: Panasonic Mobile Comms Dev of Europe Ltd. VS70 To: OET Bulletin 65 Supplement C: (2001-01) PHT/71978/006: EUT Open Display Facing Phantom With PHF 15mm Spacing RFI GLOBAL SERVICES LTD TEST REPORT S.No. RFI/SARE2/RP71978JD04A Page: 44 of 56 Issue Date: 12 September 2006 Test Of: Panasonic Mobile Comms Dev of Europe Ltd. VS70 To: OET Bulletin 65 Supplement C: (2001-01) PHT/71978/007: Open Rear Facing Phantom With PHF 15mm Spacing RFI GLOBAL SERVICES LTD TEST REPORT S.No. RFI/SARE2/RP71978JD04A Page: 45 of 56 Issue Date: 12 September 2006 Test Of: Panasonic Mobile Comms Dev of Europe Ltd. VS70 To: OET Bulletin 65 Supplement C: (2001-01) PHT/71978/008: Closed Display Facing Phantom With PHF 15mm Spacing RFI GLOBAL SERVICES LTD TEST REPORT S.No. RFI/SARE2/RP71978JD04A Page: 46 of 56 Issue Date: 12 September 2006 Test Of: Panasonic Mobile Comms Dev of Europe Ltd. VS70 To: OET Bulletin 65 Supplement C: (2001-01) PHT/71978/009: Closed Rear Facing Phantom With PHF 15mm Spacing RFI GLOBAL SERVICES LTD TEST REPORT S.No. RFI/SARE2/RP71978JD04A Page: 47 of 56 Issue Date: 12 September 2006 Test Of: Panasonic Mobile Comms Dev of Europe Ltd. VS70 To: OET Bulletin 65 Supplement C: (2001-01) PHT/71978/010: EUT Open Display View RFI GLOBAL SERVICES LTD TEST REPORT S.No. RFI/SARE2/RP71978JD04A Page: 48 of 56 Issue Date: 12 September 2006 Test Of: Panasonic Mobile Comms Dev of Europe Ltd. VS70 To: OET Bulletin 65 Supplement C: (2001-01) PHT/71978/011: EUT Open Rear View RFI GLOBAL SERVICES LTD TEST REPORT S.No. RFI/SARE2/RP71978JD04A Page: 49 of 56 Issue Date: 12 September 2006 Test Of: Panasonic Mobile Comms Dev of Europe Ltd. VS70 To: OET Bulletin 65 Supplement C: (2001-01) PHT/71978/012: EUT Closed Front View RFI GLOBAL SERVICES LTD TEST REPORT S.No. RFI/SARE2/RP71978JD04A Page: 50 of 56 Issue Date: 12 September 2006 Test Of: Panasonic Mobile Comms Dev of Europe Ltd. VS70 To: OET Bulletin 65 Supplement C: (2001-01) PHT/71978/013: EUT Closed Rear View RFI GLOBAL SERVICES LTD TEST REPORT S.No. RFI/SARE2/RP71978JD04A Page: 51 of 56 Issue Date: 12 September 2006 Test Of: Panasonic Mobile Comms Dev of Europe Ltd. VS70 To: OET Bulletin 65 Supplement C: (2001-01) PHT/71978/014: EUT Internal View RFI GLOBAL SERVICES LTD TEST REPORT S.No. RFI/SARE2/RP71978JD04A Page: 52 of 56 Issue Date: 12 September 2006 Test Of: Panasonic Mobile Comms Dev of Europe Ltd. VS70 To: OET Bulletin 65 Supplement C: (2001-01) PHT/71978/015: Battery View RFI GLOBAL SERVICES LTD TEST REPORT S.No. RFI/SARE2/RP71978JD04A Page: 53 of 56 Issue Date: 12 September 2006 Test Of: Panasonic Mobile Comms Dev of Europe Ltd. VS70 To: OET Bulletin 65 Supplement C: (2001-01) PHT/71978/016: PHF View RFI GLOBAL SERVICES LTD TEST REPORT S.No. RFI/SARE2/RP71978JD04A Page: 54 of 56 Issue Date: 12 September 2006 Test Of: Panasonic Mobile Comms Dev of Europe Ltd. VS70 To: OET Bulletin 65 Supplement C: (2001-01) PHT/71978/017: Fluid Level Head RFI GLOBAL SERVICES LTD TEST REPORT S.No. RFI/SARE2/RP71978JD04A Page: 55 of 56 Issue Date: 12 September 2006 Test Of: Panasonic Mobile Comms Dev of Europe Ltd. VS70 To: OET Bulletin 65 Supplement C: (2001-01) PHT/71978/017: Fluid Level Body RFI GLOBAL SERVICES LTD TEST REPORT S.No. RFI/SARE2/RP71978JD04A Page: 56 of 56 Issue Date: 12 September 2006 Test Of: Panasonic Mobile Comms Dev of Europe Ltd. VS70 To: OET Bulletin 65 Supplement C: (2001-01) This page has been left intentionally blank.

TEST REPORT FROM RFI GLOBAL SERVICES LTD Test of: Panasonic Mobile Comms Dev of Europe Ltd. VS70 Dual Mode (3G/GSM) Mobile Station To: FCC Part 24: 2005 Test Report Serial No: RFI/MPTE2/RP71978JD02A Supersedes Test Report Serial No: RFI/MPTE1/RP71978JD02A This Test Report Is Issued Under The Authority Of Andrew Brown, Operations Manager: Tested By: Steven Wong Checked By: Tony Henriques Report Copy No: PDF01 Issue Date: 14 August 2006 Test Dates: 21 June 2006 to 11 July 2006 The Bluetooth® word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by RFI Global Services Ltd. is under license. Other trademarks and trade names are those of their respective owners. This report is issued in Adobe Acrobat portable document format (PDF). It is only a valid copy of the report if it is being viewed in PDF format with the following security options not allowed: Changing the document, Selecting text and graphics, Adding or changing notes and form fields. This report may be copied in full. The results in this report apply only to the sample(s) tested. RFI GLOBAL SERVICES LTD TEST REPORT S.No. RFI/MPTE2/RP71978JD02A Page: 2 of 46 Issue Date: 14 August 2006 Test of: Panasonic Mobile Comms Dev of Europe Ltd. VS70 Dual Mode (3G/GSM) Mobile Station To: FCC Part 24: 2005 This page has been left intentionally blank. RFI GLOBAL SERVICES LTD TEST REPORT S.No. RFI/MPTE2/RP71978JD02A Page: 3 of 46 Issue Date: 14 August 2006 Test of: Panasonic Mobile Comms Dev of Europe Ltd. VS70 Dual Mode (3G/GSM) Mobile Station To: FCC Part 24: 2005 Table of Contents 1. Client Information ......................................................................................................... 4 2. Equipment Under Test (EUT) ....................................................................................... 5 3. Test Results .................................................................................................................. 9 4. Deviations from the Test Specification .................................................................... 10 5. Operation of the EUT During Testing ....................................................................... 11 6. Summary of Test Results........................................................................................... 12 7. Measurements, Examinations and Derived Results................................................ 13 8. Measurement Uncertainty.......................................................................................... 33 9. Measurement Methods............................................................................................... 34 Appendix 1. Test Equipment Used................................................................................ 42 Appendix 2. Test Configuration Drawings ................................................................... 43 Test Report Serial No: RFI/MPTE2/RP71978JD02A Supersedes Test Report Serial No: RFI/MPTE1/RP71978JD02A RFI GLOBAL SERVICES LTD TEST REPORT S.No. RFI/MPTE2/RP71978JD02A Page: 4 of 46 Issue Date: 14 August 2006 Test of: Panasonic Mobile Comms Dev of Europe Ltd. VS70 Dual Mode (3G/GSM) Mobile Station To: FCC Part 24: 2005 1. Client Information Company Name: Panasonic Mobile Comms Dev of Europe Ltd. Address: 2 Gables Way Colthrop Thatcham Berkshire RG19 4ZB Contact Name: Mr M Hargreaves RFI GLOBAL SERVICES LTD TEST REPORT S.No. RFI/MPTE2/RP71978JD02A Page: 5 of 46 Issue Date: 14 August 2006 Test of: Panasonic Mobile Comms Dev of Europe Ltd. VS70 Dual Mode (3G/GSM) Mobile Station To: FCC Part 24: 2005 2. Equipment Under Test (EUT) The following information (with the exception of the Date of Receipt) has been supplied by the client: 2.1. Identification of Equipment Under Test (EUT) Brand Name: Panasonic Model Name or Number: VS70 IMEI Number: 004401030025858 Hardware Revision: D Software Revision: V705PVA13 FCC ID Number: UCE206001A Country of Manufacture: Japan Date of Receipt: 21 June 2006 RFI GLOBAL SERVICES LTD TEST REPORT S.No. RFI/MPTE2/RP71978JD02A Page: 6 of 46 Issue Date: 14 August 2006 Test of: Panasonic Mobile Comms Dev of Europe Ltd. VS70 Dual Mode (3G/GSM) Mobile Station To: FCC Part 24: 2005 2.2. Accessories The following accessories were supplied with the EUT: Description: DC Charger Brand Name: Panasonic Model Name or Number: EB-CD001 Serial Number: None Stated Cable Length and Type: 2 metre twin core Connected to Port: Comms/Charger Description: DC Charger Brand Name: Panasonic Model Name or Number: EB-CD002 Serial Number: None Stated Cable Length and Type: 2 metre twin core Connected to Port: Comms/Charger Description: Personal Hands Free Brand Name: Panasonic Model Name or Number: EB-EM003 Serial Number: None Stated Cable Length and Type: 1.8 metre multi-core Connected to Port: Audio Description: Mains AC Charger Brand Name: Panasonic Model Name or Number: EB-CA001 Serial Number: None Stated Cable Length and Type: 1.5 metre twin core Connected to Port: Comms/Charger RFI GLOBAL SERVICES LTD TEST REPORT S.No. RFI/MPTE2/RP71978JD02A Page: 7 of 46 Issue Date: 14 August 2006 Test of: Panasonic Mobile Comms Dev of Europe Ltd.…

Text truncated - open the document above for the full version.
