Handling Precautions SoftBank is not liable for damages from accidental loss /alteration of handset/Memory Card information (Phone Book entries, images/sound files, etc.). Back-up important information.  Handset transmissions may be disrupted inside buildings, tunnels or underground, or when moving into/out of such places.  Use handset without disturbing others.  Handsets are radios as stipulated by the Radio Law. Under the Radio Law, handsets must be submitted for inspection upon request.  Handset use near landlines, TVs or radios may cause interference.  Read Memory card manual beforehand for proper use.  Beware of eavesdropping.Digital signals reduce interception, however transmissions may be overheard. Deliberate/accidental interception of communications constitutes eavesdropping."eavesdropping" means radio communication is received by another receiver deliberately or accidentally.  For body worn operation, this mobile phone has been tested and meets RF exposure guidelines when used with an accessory containing no metal and positioning the handset a minimum 15 mm from the body. Use of other accessories may not ensure compliance with RF exposure guidelines.  This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:(1) This device may not cause harmful interference, and(2) this device must accept any interference received, including interference that may cause undesired operation.  Changes or modifications not expressly approved by the manufacturer responsible for compliance could void the user's authority to operate the equipment. Your handset is a radio transmitter and receiver. It is designed and manufactured not to exceed the emission limits for exposure to radio frequency (RF) energy set by the Federal Communications Commission of the U.S. Government.The guidelines are based on standards that were developed by independent scientific organisations through periodic and thorough evaluation of scientific studies. The standards include a substantial safety margin designed to assure the safety of all persons, regardless of age and health.The exposure standard for wireless handsets employs a unit of measurement known as the Specific Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6 W/kg. The tests are performed in positions and locations (e.g. at the ear and worn on the body) as required by the FCC for each model.The highest SAR value for this model handset when tested for use at the ear is 0.905 W/kg and when worn on the body, as described in this user guide, is 0.546 W/kg.Body-worn Operation; This device was tested for typical body-worn operations with the back of the handset kept 1.5 cm from the body. To maintain compliance with FCC RF exposure requirements, use accessories that maintain a 1.5 cm separation distance between the user's body and the back of the handset. The use of beltclips, holsters and similar accessories should not contain metallic components in its assembly. General NotesElectromagnetic Waves FCC NoticeFCC RF Exposure Information
            The use of accessories that do not satisfy these requirements may not comply with FCC RF exposure requirements, and should be avoided. The FCC has granted an Equipment Authorisation for this model handset with all reported SAR levels evaluated as in compliance with the FCC RF emission guidelines. SAR information on this model handset is on file with the FCC and can be found under the Display Grant section of http://www.fcc.gov/oet/fccid after searching on FCC ID UCE207003A. Additional information on Specific Absorption Rates (SAR) can be found on the Cellular Telecommunications & Internet Association (CTIA) website at http://ww w.phonefacts.net. Your mobile device is a radio transmitter and receiver. It is designed not to exceed the limits for exposure to radio waves recommended by international guidelines. These guidelines were developed by the independent scientific organization ICNIRP and include safety margins designed to assure the protection of all persons, regardless of age and health.The guidelines use a unit of measurement known as the Specific Absorption Rate, or SAR. The SAR limit for mobile devices is 2 W/kg and the highest SAR value for this device when tested at the ear was 0.791 W/kg*. As mobile devices offer a range of functions, they can be used in other positions, such as on the body as described in this user guide**. In this case, the highest tested SAR value is 0.467 W/kg. As SAR is measured utilizing the devices highest transmitting power the actual SAR of this device while operating is typically below that indicated above. This is due to automatic changes to the power level of the device to ensure it only uses the minimum level required to reach the network.The World Health Organization has stated that present scientific information does not indicate the need for any special precautions for the use of mobile devic es. They note that if you want to reduce your exposure then you can do so by limiting the length of calls or using a hands-free device to keep the mobile phone away from the head and body. *The tests are carried out in accordance with international guidelines for testing.** Please see Electromagnetic Waves on page xxxii for important notes regarding body worn operation. We, Panasonic Mobile Communications Development of Europe Ltd., declare that SoftBank 820P conforms with the essential and other relevant requirements of the directive 1999/5/EC.A declaration of conformity to this effect can be found athttp://panasonic.co.jp/pmc/products/en/support/index.html If handset is left with no battery or an exhausted one, data may be altered/lost. SoftBank is not liable for any resulting damages.  Use handset within temperatures of 5°C to 35°C and humidity 35% to 85%. Avoid extreme temperatures/direct sunlight.  Handset may become warm during use or charging. This is not malfunction.  Exposing lens…

Text truncated - open the document above for the full version.

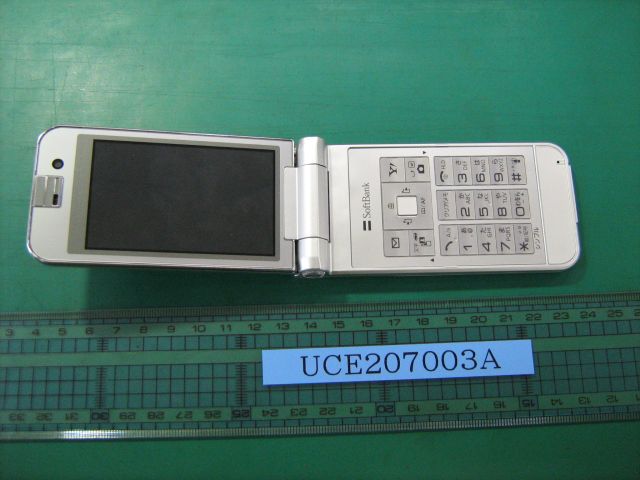

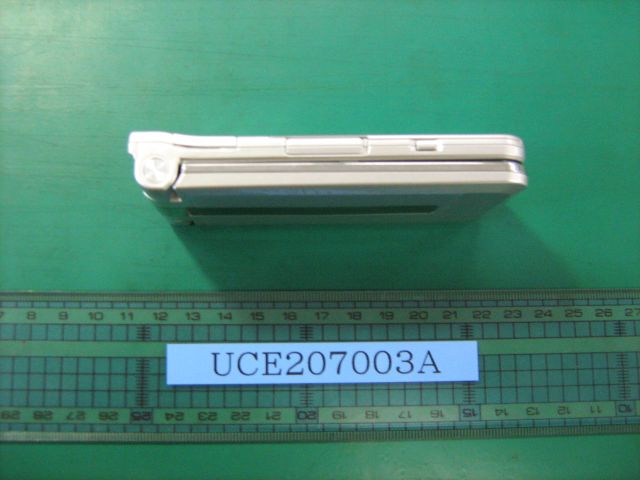

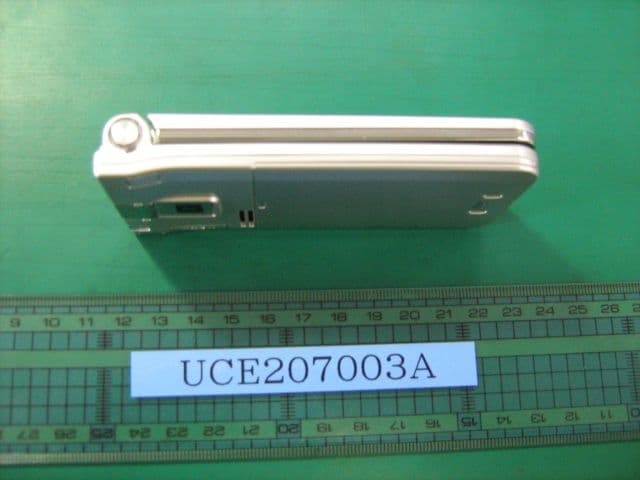

Panasonic Panasonic Mobile Communications Development of Europe Limited 2 Gables Way, Colthrop, Thatcham, Berkshire RG19 4ZB Tel: +44 (0) 1635 871466 Fax: +44 (0) 1635 871345 VAT Reg No. GB765338211 Web: www.panasonicmobile.com Registered in England No. 4188880 Panasonic Mobile Communications Development of Europe Limited 25 th October 2007 Telecommunication Certification Body Radio Frequency Investigation Ltd. Ewhurst Park Ramsdell Basingstoke Hampshire RG26 5RQ England Subject: Certification Application FCC ID: UCE207003A It is requested that the following information is held Confidential on behalf of Panasonic Mobile Communications Development of Europe Ltd., on the confidentiality basis outlined below: 1. Permanent Confidentiality (FCC Rules Part 0.459 refers). Exhibit Category Exhibit Filenames Schematic Diagrams EF80310BA Lower FPC Schematic.pdf EF80311B Receiver FPC Schematic.pdf EG81081C Upper (Main) PCB Schematic.pdf Parts list (BOM) EF80310B Lower FPC BOM.pdf EF80311B Receiver FPC BOM.pdf EG81081C Upper (Main) PCB BOM.pdf Block Diagrams BT Block Diagram.pdf GSM_UMTS Block Diagram.pdf Operational Descriptions ** Bluetooth Operational Description.pdf GSM RF Spec.pdf Internal photographs * Internal Photo.pdf Tune up Information RF Cal Spec.pdf

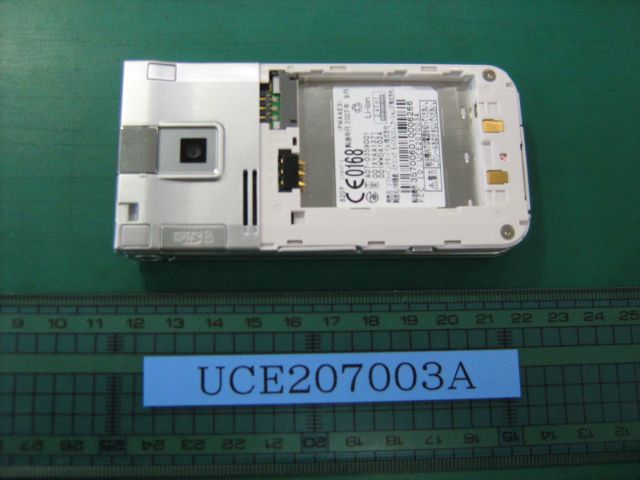

FCC ID Label and Location -FCC ID label -Label location FCC ID： UCE207003A ① Production code② Color③ Bar Code of IMEI④ IMEI(Production Serial Number)⑤ Production Year & Month ① ② ③ ④ ⑤ The above outline drawing shows the label in position within the battery compartment. This is visible to the user prior to fitting the battery pack and cover.

TEST REPORT FROM RFI GLOBAL SERVICES LTD Test of: Panasonic Mobile Comms Dev of Europe Ltd VS7a To: OET Bulletin 65 Supplement C: (2001-01) Test Report Serial No: RFI/SARE1/RP72749JD05A This Test Report Is Issued Under The Authority Of Michael Derby, Wireless Radio Performance Group Leader: Checked By: Richelieu Quoi Report Copy No: PDF01 Issue Date: 14 September 2007 Test Dates: 05 September 2007 This report is issued in Adobe Acrobat portable document format (PDF). It is only a valid copy of the report if it is being viewed in PDF format with the following security options not allowed: Changing the document, Selecting text and graphics, Adding or changing notes and form fields. This report may be copied in full. The results in this report apply only to the sample(s) tested. RFI GLOBAL SERVICES LTD Test Report Serial No: RFI/SARE1/RP72749JD05A Page: 2 of 62 Issue Date: 14 September 2007 Test of: Panasonic Mobile Comms Dev of Europe Ltd VS7a To: OET Bulletin 65 Supplement C: (2001-01) This page has been left intentionally blank. RFI GLOBAL SERVICES LTD Test Report Serial No: RFI/SARE1/RP72749JD05A Page: 3 of 62 Issue Date: 14 September 2007 Test of: Panasonic Mobile Comms Dev of Europe Ltd VS7a To: OET Bulletin 65 Supplement C: (2001-01) Table of Contents 1. Customer Information ...................................................................................................... 4 2. Equipment Under Test (EUT) ........................................................................................... 5 3. Test Specification, Methods and Procedures ................................................................ 8 4. Deviations from the Test Specification .......................................................................... 8 5. Operation and Configuration of the EUT during Testing .............................................. 9 6. Summary of Test Results............................................................................................... 11 7. Measurements, Examinations and Derived Results.................................................... 12 8. Measurement Uncertainty.............................................................................................. 16 Appendix 1. Test Equipment Used.................................................................................... 20 Appendix 2. Measurement Methods ................................................................................. 23 Appendix 3. SAR Distribution Scans ................................................................................ 25 Appendix 4. Photographs .................................................................................................. 38 Appendix 5. Validation of System ..................................................................................... 58 Appendix 6. Simulated Tissues......................................................................................... 59 Appendix 7. DASY4 System Details .................................................................................. 60 RFI GLOBAL SERVICES LTD Test Report Serial No: RFI/SARE1/RP72749JD05A Page: 4 of 62 Issue Date: 14 September 2007 Test of: Panasonic Mobile Comms Dev of Europe Ltd VS7a To: OET Bulletin 65 Supplement C: (2001-01) 1. Customer Information Company Name: Panasonic Mobile Comms Dev of Europe Ltd Address: 2 Gables Way Colthrop Thatcham Berkshire RG19 4ZB United Kingdom Contact Name: Mr M Hargreaves RFI GLOBAL SERVICES LTD Test Report Serial No: RFI/SARE1/RP72749JD05A Page: 5 of 62 Issue Date: 14 September 2007 Test of: Panasonic Mobile Comms Dev of Europe Ltd VS7a To: OET Bulletin 65 Supplement C: (2001-01) 2. Equipment Under Test (EUT) The following information (with the exception of the date of receipt) has been supplied by the customer: 2.1. Description of EUT The equipment under test is a Dual mode (W-CDMA/GSM) mobile telephone handset. 2.2. Identification of Equipment Under Test (EUT) Description: Mobile Handset Brand Name: Panasonic Model Name or Number: VS7a IMEI Number: 004401220316554 Hardware Version Number: Rev B Software Version Number: 820PVA11 FCC ID Number: UCE207003A Country of Manufacture: Japan Date of Receipt: 05 September 2007 Description: Battery Brand Name: Sanyo Model Name or Number: None Stated Country of Manufacture: None Stated Date of Receipt: 05 September 2007 2.3. Modifications Incorporated in the EUT During the course of testing the EUT was not modified. RFI GLOBAL SERVICES LTD Test Report Serial No: RFI/SARE1/RP72749JD05A Page: 6 of 62 Issue Date: 14 September 2007 Test of: Panasonic Mobile Comms Dev of Europe Ltd VS7a To: OET Bulletin 65 Supplement C: (2001-01) 2.4. Accessories The following accessories were supplied with the EUT during testing: Description: Personal hands free (Stereo) Brand Name: Panasonic Model Name or Number: None Stated Cable Length and Type: 1.8m / multi core Connected to Port Audio port unique to manufacturer Description: Micro SD Memory Card Brand Name: Panasonic Connected to Port Dedicated micro SD 2.5. Support Equipment The following support equipment was used to exercise the EUT during testing: Description: Radio Communication Analyser Brand Name: Anritsu Model Name or Number: MT8820A Serial Number: 6K00000647 Cable Length and Type: 1.5m Utiflex Connected to Port: RF (Input/Output) Air Link Description: Communication Test Set Brand Name: Will’tek Model Name or Number: 4202S Serial Number: 0513018 Cable Length and Type: 1.5m Utiflex Connected to Port: RF (Input/Output) Air Link RFI GLOBAL SERVICES LTD Test Report Serial No: RFI/SARE1/RP72749JD05A Page: 7 of 62 Issue Date: 14 September 2007 Test of: Panasonic Mobile Comms Dev of Europe Ltd VS7a To: OET Bulletin 65 Supplement C: (2001-01) 2.6. Additional Information Related to Testing Equipment Category Bluetooth / PCS1900 Type of Unit Portable Transceiver Intended Operating Environment: Within GSM and Bluetooth Coverage Transmitter Maximum Output Power Characteristics: 30 dBm Trans…

Text truncated - open the document above for the full version.

RFI GLOBAL SERVICES LTD Test Report Serial No: RFI/SARE1/RP72749JD05A Page: 20 of 62 Issue Date: 14 September 2007 Test of: Panasonic Mobile Comms Dev of Europe Ltd VS7a To: OET Bulletin 65 Supplement C: (2001-01) Appendix 1. Test Equipment Used RFI No. Instrument Manufacturer Type No. Serial No. Date Last Calibrated Cal. Interval (Months) A034 Narda 20W Termination Narda 374BNM 8706 Calibrated as part of system - A1094 Digital Camera Sony MVC - FD81 125805 None - A1097 SMA Directional Coupler MiDISCO MDC6223- 30 None Calibrated as part of system - A1137 3dB Attenuator Narda 779 04690 Calibrated as part of system - A1174 Dielectric Probe Kit Agilent Technologies 85070C Us9936007 2 Calibrate Before Use - A1184 Data Acquisition Electronics Schmid & Partner DAE3 394 24 May 2007 12 Months A1185 Probe Schmid & Partner ET3 DV6 1528 06 Jul 2007 12 A1237 1900MHz Validation Dipole for SAR Schmid & Partners D1900V2 540 11 Jun 2007 24 Months A1328 DASY4 Handset Positioner Schmid & Partner Modification SD 000 H01 DA - - A1410 DC-4.0GHz 3dB Omni Spectra FSC 16179 20510-3 Calibrated as part of system - A1497 Amplifier Mini-Circuits zhl-42w (sma) e020105 Calibrated as part of system - A1566 SAM Phantom Schmid & Partners 002 002 Calibrate Before Use - A215 20 dB Attenuator to 4GHz 20W Narda 766-20 9402 Calibrated as part of system - C1144 155 mm UTIFLEX Cable Rosenberger MICRO-COAX FA147AF00 1503030 41842-1 Calibrated as part of system - C1145 300 mm UTIFLEX Cable Rosenberger MICRO-COAX FA147AF00 3003030 41843-1 Calibrated as part of system - RFI GLOBAL SERVICES LTD Test Report Serial No: RFI/SARE1/RP72749JD05A Page: 21 of 62 Issue Date: 14 September 2007 Test of: Panasonic Mobile Comms Dev of Europe Ltd VS7a To: OET Bulletin 65 Supplement C: (2001-01) Test Equipment Used (Continued) RFI No. Instrument Manufacturer Type No. Serial No. Date Last Calibrated Cal. Interval (Months) C1146 3000 mm UTIFLEX Cable Rosenberger MICRO-COAX FA147AF03 0003030 41752-1 Calibrated as part of system - G051 10 MHz to 20.1 GHz Gigatronics 7100/.01-20 749472 06 Nov 2006 12 Months G0528 Robot Power Supply Schmid & Partner DASY None Calibrate Before Use - G087 PSI Dual 35V 10A Thurlby Thandar CPX200 100701 Calibrated as part of system - M509 High Accuracy Digital Thermometer Testo 110 403788004 33 20 Apr 2007 12 M1015 Network Analyser Agilent Technologies 8753ES US391724 06 19 Sep 2006 12 Months M1047 Robot Arm Staubli RX908 L F00/SD89 A1/A/01 Calibrate Before Use - M1069 Power Head Rohde & Schwarz NRV-Z2 838824/01 0 19 Apr 2007 12 Months M1140 Radio Communications Analyser Anritsu MT8820A 6K0000647 - - M1150 Compact Data Logger with Interface and Probe Testo 175-T2 37503417 / 301 Calibrate Before Use - M136 Temperature/ Humidity/ Pressure Meter RS Components - - Internal Calibration 12 Months M1144 Thermometer Testo 110 03100047 23 Feb 2007 12 Months S256 SAR Test Lab RFI Site 56 Site 56 Calibrate Before Use - NB In accordance with UKAS requirements, all the measurement equipment is on a calibration schedule. RFI GLOBAL SERVICES LTD Test Report Serial No: RFI/SARE1/RP72749JD05A Page: 22 of 62 Issue Date: 14 September 2007 Test of: Panasonic Mobile Comms Dev of Europe Ltd VS7a To: OET Bulletin 65 Supplement C: (2001-01) A.1.1. Calibration Certificates This section contains the calibration certificates and data for the Probe(s) and Dipole(s) used, which are not included in the total number of pages for this report.

RFI GLOBAL SERVICES LTD Test Report Serial No: RFI/SARE1/RP72749JD05A Page: 23 of 62 Issue Date: 14 September 2007 Test of: Panasonic Mobile Comms Dev of Europe Ltd VS7a To: OET Bulletin 65 Supplement C: (2001-01) Appendix 2. Measurement Methods A.2.1. Evaluation Procedure The Specific Absorption Rate (SAR) evaluation was performed in the following manner: a) (i) The evaluation was performed in an applicable area of the phantom depending on the type of device being tested. For devices worn about the ear during normal operation, both the left and right ear positions were evaluated at the centre frequency of the band at maximum power. The side, which produced the greatest SAR, determined which side of the phantom would be used for the entire evaluation. The positioning of the head worn device relative to the phantom was dictated by the test specification identified in section 3.1 of this report. (ii) For body worn devices or devices which can be operated within 20 cm of the body, the flat section of the phantom was used. The type of device being evaluated dictated the distance of the EUT to the outer surface of the phantom flat section. b) The SAR was determined by a pre-defined procedure within the DASY4 software. The exposed region of the phantom was scanned near the inner surface with a grid spacing of 20mm x 20mm or appropriate resolution. c) A 7x7x7 matrix was performed around the greatest spatial SAR distribution found during the area scan of the applicable exposed region. SAR values were then calculated using a 3-D spline interpolation algorithm and averaged over spatial volumes of 1 and 10 grams. d) If the EUT had any appreciable drift over the course of the evaluation, then the EUT was re-evaluated. Any unusual anomalies over the course of the test also warranted a re-evaluation. RFI GLOBAL SERVICES LTD Test Report Serial No: RFI/SARE1/RP72749JD05A Page: 24 of 62 Issue Date: 14 September 2007 Test of: Panasonic Mobile Comms Dev of Europe Ltd VS7a To: OET Bulletin 65 Supplement C: (2001-01) A.2.2. Specific Absorption Rate (SAR) Measurements to OET Bulletin 65 Supplement C: (2001-01) Evaluating Compliance with FCC Guidelines for Human Exposure to Radio Frequency Electromagnetic Fields SAR measurements were performed in accordance with Appendix D of the standard FCC OET Bulletin 65 Supplement C: 2001, against appropriate limits for each measurement position in accordance with the standard. The test was performed in a shielded enclosure with the temperature controlled to remain between +18.0ºC and +25.0ºC. The tissue equivalent material fluid temperature was controlled to give a maximum variation of ± 2.0ºC Prior to any SAR measurements on the EUT, system validation and material dielectric property measurements were conducted. In the absence of a detailed procedure within the specification, system validation and material dielectric property measurements were performed in accordance with Appendix C and Appendix D of FCC OET Bulletin 65 Supplement C: 2001. Following the successful system validation and material dielectric property measurements, a SAR versus time sweep shall be performed within 10 mm of the phantom inner surface. If the EUT power output is stable after three minutes then the measurement probe will perform a coarse surface level scan at each test position in order to ascertain the location of the maximum local SAR level. Once this area had been established, a 7x7x7 cube of 343 points (5 mm spacing in each axis ≈ 27g) will be centred at the area of concern. Extrapolation and interpolation will then be carried out on the 27g of tissue and the highest averaged SAR over a 10g cube determined. Once the maximum interpolated SAR measurement is complete; the coarse scan is visually assessed to check for secondary peaks within 50% of the maximum SAR level. If there are any further SAR measurements required, extra 7x7x7 cubes shall be centred on each of these extra local SAR maxima. At the end of each position test case a second time sweep shall be performed to check whether the EUT has remained stable throughout the test. RFI GLOBAL SERVICES LTD Test Report Serial No: RFI/SARE1/RP72749JD05A Page: 25 of 62 Issue Date: 14 September 2007 Test of: Panasonic Mobile Comms Dev of Europe Ltd VS7a To: OET Bulletin 65 Supplement C: (2001-01) Appendix 3. SAR Distribution Scans This appendix contains SAR distribution scans which are not included in the total number of pages for this report. Scan Reference Number Title SCN/72749JD05/001 Touch Left CH660 SCN/72749JD05/002 Tilt Left CH660 SCN/72749JD05/003 Touch Right CH660 SCN/72749JD05/004 Tilt Right CH660 SCN/72749JD05/005 Touch Right CH810 SCN/72749JD05/006 Touch Right CH512 SCN/72749JD05/007 Front Of EUT Facing Phantom 15mm GSM CH660 SCN/72749JD05/008 Front Of EUT Facing Phantom 15mm GPRS CH660 SCN/72749JD05/009 Rear Of EUT Open Facing Phantom 15mm GPRS CH660 SCN/72749JD05/010 Rear Of EUT Closed Facing Phantom with PHF 15mm GPRS CH660 SCN/72749JD05/011 System Performance Check 1900MHz Head 05 09 07 SCN/72749JD05/012 System Performance Check 1900MHz Body 05 09 07 RFI GLOBAL SERVICES LTD Test Report Serial No: RFI/SARE1/RP72749JD05A Page: 26 of 62 Issue Date: 14 September 2007 Test of: Panasonic Mobile Comms Dev of Europe Ltd VS7a To: OET Bulletin 65 Supplement C: (2001-01) 001 Touch Left CH660 DUT: Panasonic; Type: VS7a (Sample C13); Serial: 004401220316554 0 dB = 0.678mW/g Communication System: PCS 1900; Frequency: 1879.8 MHz;Duty Cycle: 1:8.3 Medium: 1900 MHz HSL Medium parameters used (interpolated): f = 1879.8 MHz; σ = 1.42 mho/m; ε r = 40.8; ρ = 1000 kg/m 3 Phantom section: Left Section DASY4 Configuration: - Probe: ET3DV6 - SN1528; ConvF(4.98, 4.98, 4.98); Calibrated: 06/07/2007 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn394; Calibrated: 19/05/2006 - Phantom: SAM 12b; Type: SAM 4.0; Serial: TP:1207 - Measurement SW: DASY4, V4.7 Build 55; Postprocessing SW: SEMCAD, V1.8 Build 176 Touch Left - Middle/Area …

Text truncated - open the document above for the full version.

RFI GLOBAL SERVICES LTD Test Report Serial No: RFI/SARE1/RP72749JD05A Page: 58 of 62 Issue Date: 14 September 2007 Test of: Panasonic Mobile Comms Dev of Europe Ltd VS7a To: OET Bulletin 65 Supplement C: (2001-01) Appendix 5. Validation of System Prior to the assessment, the system was verified in the flat region of the phantom. A 1900 MHz dipole was used. A forward power of 250 mW was applied to the dipole and the system was verified to a tolerance of ±5% for the 1900 MHz dipole. The applicable verification (normalised to 1 Watt). Date: 05 September 2007 Validation Dipole and Serial Number: D1900V2 SN: 540 Simulant Frequency (MHz) Room Temperature Liquid Temperature ParametersTarget Value Measured Value Deviation (%) Limit (%) ε r 40.00 40.70 1.76 ±5 σ 1.40 1.45 3.25 ±5 Head 1900 25ºC 24.2 ºC 1g SAR 36.1 36.60 1.39 ±5 Date: 05 September 2007 Validation Dipole and Serial Number: D1900V2 SN: 540 Simulant Frequency (MHz) Room Temperature Liquid Temperature ParametersTarget Value Measured Value Deviation (%) Limit (%) ε r 53.30 52.69 -1.14 ±5 σ 1.52 1.56 2.62 ±5 Body 1900 25ºC 25.0 ºC 1g SAR 38.0 39.04 2.74 ±5 RFI GLOBAL SERVICES LTD Test Report Serial No: RFI/SARE1/RP72749JD05A Page: 59 of 62 Issue Date: 14 September 2007 Test of: Panasonic Mobile Comms Dev of Europe Ltd VS7a To: OET Bulletin 65 Supplement C: (2001-01) Appendix 6. Simulated Tissues The body mixture consists of water and glycol. Visual inspection is made to ensure air bubbles are not trapped during the mixing process. The mixture is calibrated to obtain proper dielectric constant (permittivity) and conductivity of the tissue. Frequency Ingredient 1800/1900 MHz Head De-Ionised Water 55.41% Diglycol Butyl Ether (DGBE) 44.51% Salt 0.08% Frequency Ingredient 1800/1900 MHz Body De-Ionised Water 69.79% Diglycol Butyl Ether (DGBE) 30.00% Salt 0.20% RFI GLOBAL SERVICES LTD Test Report Serial No: RFI/SARE1/RP72749JD05A Page: 60 of 62 Issue Date: 14 September 2007 Test of: Panasonic Mobile Comms Dev of Europe Ltd VS7a To: OET Bulletin 65 Supplement C: (2001-01) Appendix 7. DASY4 System Details A.7.1. DASY4 SAR Measurement System RFI Global Services Ltd, SAR measurement facility utilises the Dosimetric Assessment System (DASY™) manufactured by Schmid & Partner Engineering AG (SPEAG™) of Zurich, Switzerland. The DASY4 system is comprised of the robot controller, computer, near-field probe, probe alignment sensor, and the SAM phantom containing brain or muscle equivalent material. The robot is a six-axis industrial robot performing precise movements to position the probe to the location (points) of maximum electromagnetic field (EMF). A cell controller system contains the power supply, robot controller; teach pendant (Joystick), and remote control. This is used to drive the robot motors. The Staubli robot is connected to the cell controller to allow software manipulation of the robot. The data acquisition electronics (DAE) performs signal amplification, signal multiplexing, AD-conversion, offset measurements, mechanical surface detection, collision detection etc. The DAE is connected to the Electro-optical coupler (EOC). The EOC performs the conversion from the optical into digital electric signal of the DAE and transfers data to the PC plug-in card. The DAE3 utilises a highly sensitive electrometer-grade preamplifier with auto-zeroing, a channel and gain-switching mulitplexer, a fast 16-bit AD-converter and a command decoder and control logic unit. Transmission to the PC-card is accomplished through an optical downlink for data and status information and an optical uplink for commands and clock lines. The mechanical probe-mounting device includes two different sensor systems for frontal and sidewise probe contacts. They are also used for mechanical surface detection and probe collision detection. The robot uses its own controller with a built in VME-bus computer. RFI GLOBAL SERVICES LTD Test Report Serial No: RFI/SARE1/RP72749JD05A Page: 61 of 62 Issue Date: 14 September 2007 Test of: Panasonic Mobile Comms Dev of Europe Ltd VS7a To: OET Bulletin 65 Supplement C: (2001-01) A.7.2. DASY4 SAR System Specifications Robot System Positioner: Stäubli Unimation Corp. Robot Model: RX90L Repeatability: 0.025 mm No. of Axis: 6 Serial Number: F00/SD89A1/A/01 Reach: 1185 mm Payload: 3.5 kg Control Unit: CS7 Programming Language: V+ Data Acquisition Electronic (DAE) System DAE: DAE3 394 Cell Controller PC: Dell Precision 340 Operating System: Windows 2000 Data Card: DASY4 Measurement Server Serial Number: 1080 Data Converter Features: Signal Amplifier, multiplexer, A/D converted and control logic. Software: DASY4 Software Connecting Lines: Optical downlink for data and status info. Optical uplink for commands and clock. PC Interface Card Function: 24 bit (64 MHz) DSP for real time processing Link to DAE3 16 nit A/D converter for surface detection system serial link to robot direct emergency stop output for robot. RFI GLOBAL SERVICES LTD Test Report Serial No: RFI/SARE1/RP72749JD05A Page: 62 of 62 Issue Date: 14 September 2007 Test of: Panasonic Mobile Comms Dev of Europe Ltd VS7a To: OET Bulletin 65 Supplement C: (2001-01) DASY4 SAR System Specifications (Continued) E-Field Probe Model: ET3DV6 Serial No: 1528 Construction: Triangular core fibre optic detection system Frequency: 10 MHz to 3 GHz Linearity: ±0.2 dB (30 MHz to 3 GHz) Probe Length (mm): 337 Probe Diameter (mm): 12 Tip Length (mm): 10 Tip Diameter (mm): 6.8 Sensor X Offset (mm): 2.7 Sensor Y Offset (mm): 2.7 Sensor Z Offset (mm): 2.7 Phantom Phantom: SAM Phantom Shell Material: Fibreglass Thickness: 2.0 ±0.1 mm

TEST REPORT FROM RFI GLOBAL SERVICES LTD Test of: Panasonic Mobile Comms. Dev. of Europe Ltd. VS7a Mobile Handset To: FCC Part 24: 2006 (Subpart E) Test Report Serial No: RFI/RPTE2/RP72749JD03A Supersedes Test Report Serial No: RFI/RPTE1/RP72749JD03A This Test Report Is Issued Under The Authority Of Michael Derby, Radio Performance Service Leader: pp Checked By: Brian Watson pp Report Copy No: PDF01 Issue Date: 24 October 2007 Test Dates: 29 August 2007 to 07 September 2007 "The Bluetooth® word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by RFI Global Services Ltd. is under license. Other trademarks and trade names are those of their respective owners." This report is issued in Adobe Acrobat portable document format (PDF). It is only a valid copy of the report if it is being viewed in PDF format with the following security options not allowed: Changing the document, Selecting text and graphics, Adding or changing notes and form fields. This report may be copied in full. The results in this report apply only to the sample(s) tested. RFI GLOBAL SERVICES LTD TEST REPORT S.No. RFI/RPTE2/RP72749JD03A Page: 2 of 44 Issue Date: 24 October 2007 Test of: Panasonic Mobile Comms. Dev. of Europe Ltd. VS7a Mobile Handset To: FCC Part 24: 2006 (Subpart E) This page has been left intentionally …
