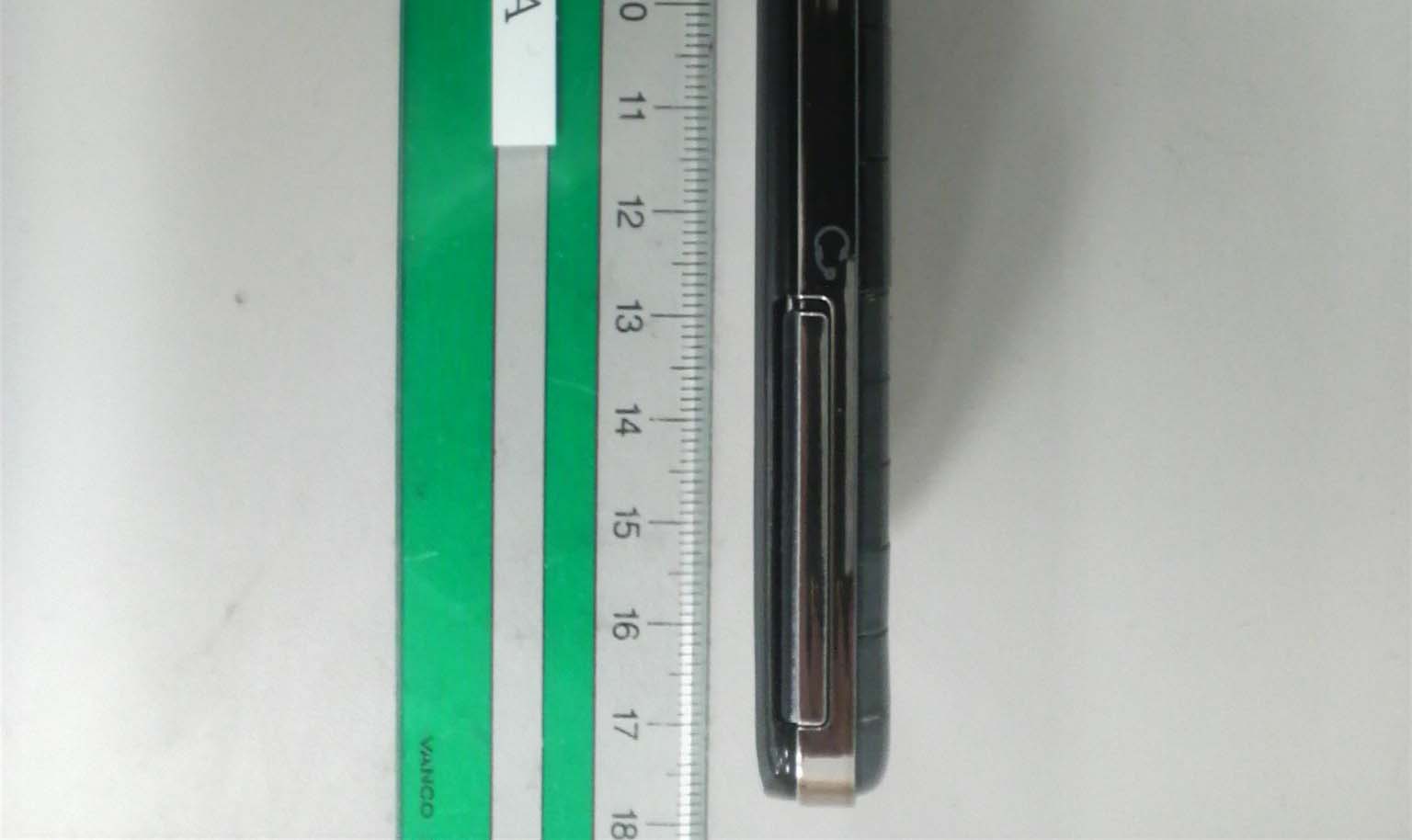

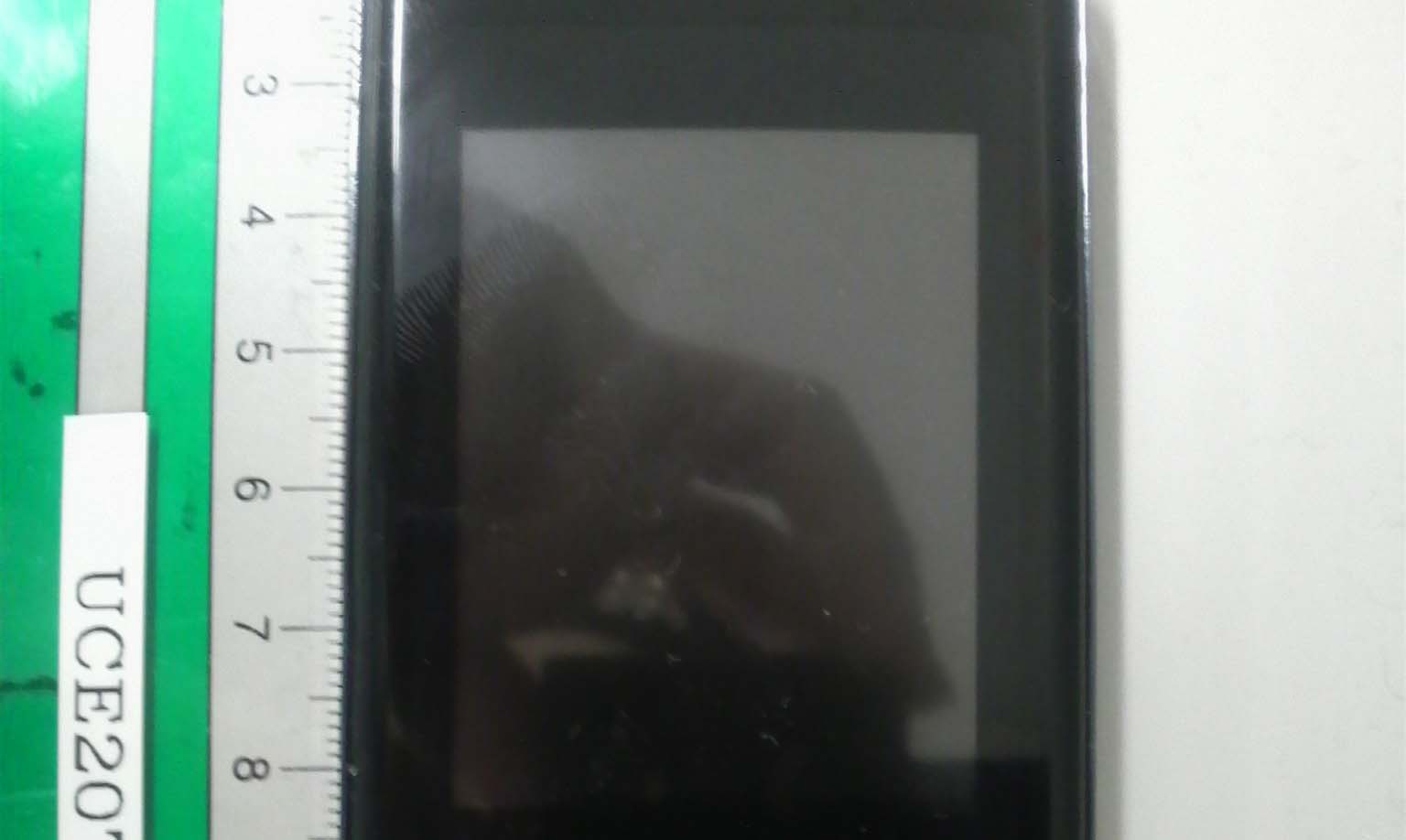

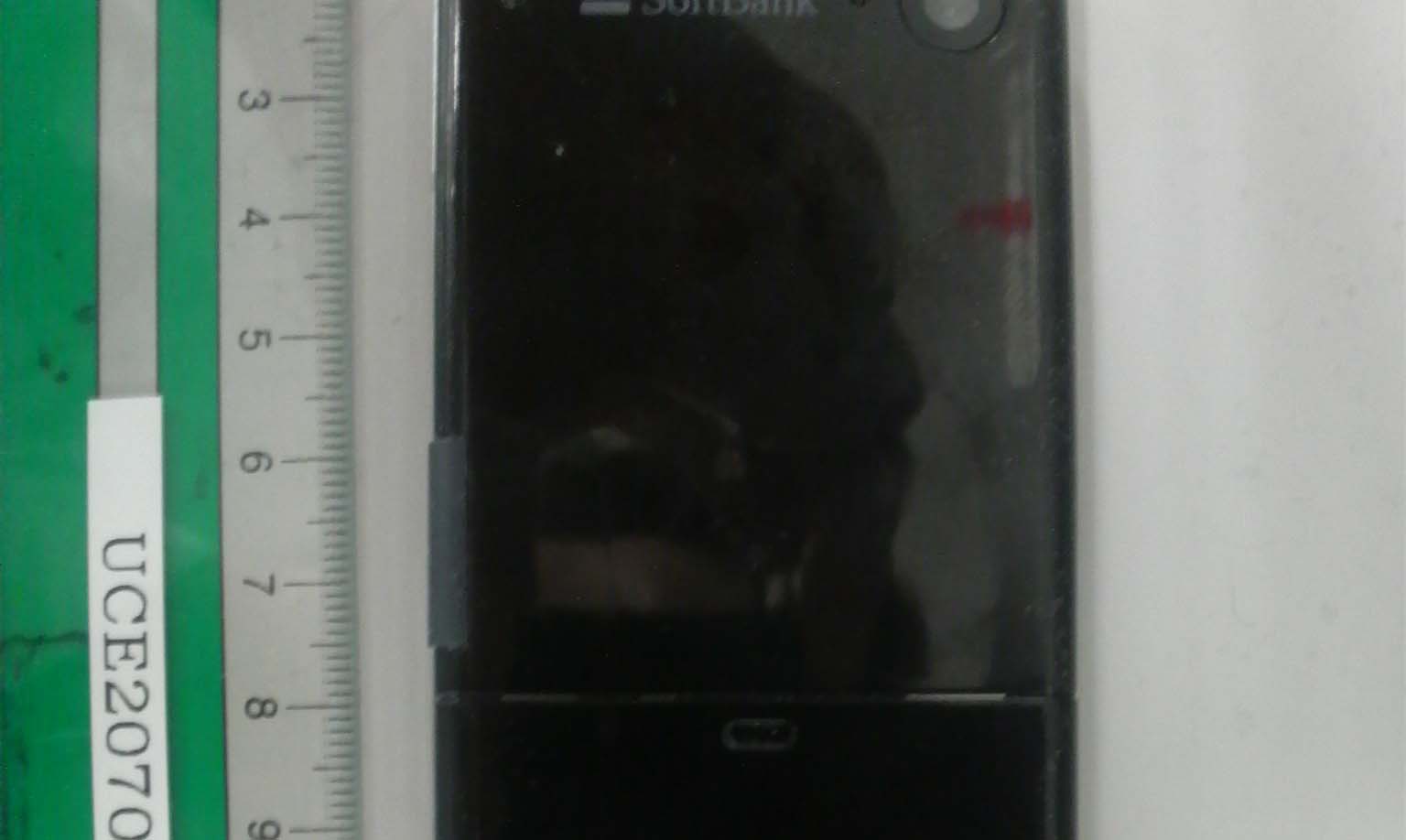

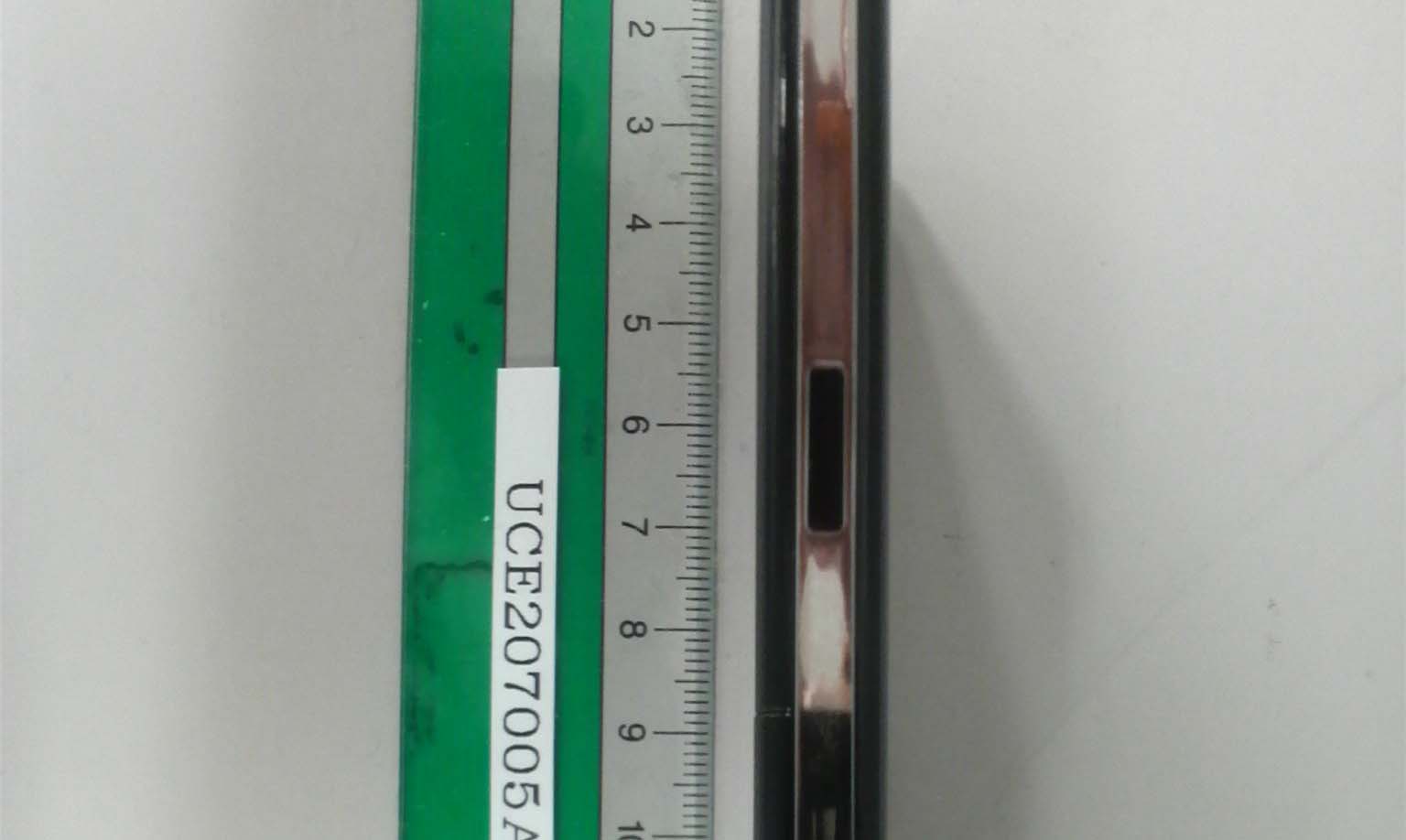

UCE207005AUMTS/ GSM Cellular Mobile Radio with Bluetooth�

First Step Guide Handling Precautions General Notes !SoftBank is not liable for damages from accidental loss/ alteration of handset/Memory Card information (Phone Book entries, image/sound files, etc.). Back-up important information. !Handset transmissions may be disrupted inside buildings, tunnels or underground, or when moving into/out of such places. !Use handset without disturbing others. !If handset is left with no battery or an exhausted one, data may be altered/lost. SoftBank is not liable for any resulting damages. !Handset use near landlines, TVs or radios may cause interference. !Beware of eavesdropping. Digital signals reduce interception, however transmissions may be overheard. Deliberate/accidental interception of communications constitutes eavesdropping. "eavesdropping" means radio communication is received by another receiver deliberately or accidentally. !For body worn operation, this mobile phone has been tested and meets RF exposure guidelines when used with an accessory containing no metal and positioning the handset a minimum 15 mm from the body. Use of other accessories may not ensure compliance with RF exposure guidelines. For more information, see "Handling Precautions" in User Guide (Japanese). Electromagnetic Waves SoftBank Global Call Center From outside Japan, dial +81-3-5351-3491* (International charges will apply.) SoftBank Customer Centers From a SoftBank handset, dial toll free at 157 (General Information) 113 (Customer Assistance) Call these numbers toll free from landlines. Subscription AreaService CenterToll Free Number Hokkaido, Aomori, Akita, Iwate, Yamagata, Miyagi, Fukushima, Niigata, Tokyo, Kanagawa, Chiba, Saitama, Ibaraki, Tochigi, Gunma, Yamanashi, Nagano, Toyama, Ishikawa, Fukui General Information 0088-240-157 Customer Assistance 0088-240-113 Aichi, Gifu, Mie, Shizuoka General Information 0088-241-157 Customer Assistance 0088-241-113 Osaka, Hyogo, Kyoto, Nara, Shiga, Wakayama General Information 0088-242-157 Customer Assistance 0088-242-113 Hiroshima, Okayama, Yamaguchi, Tottori, Shimane, Tokushima, Kagawa, Ehime, Kochi, Fukuoka, Saga, Nagasaki, Oita, Kumamoto, Miyazaki, Kagoshima, Okinawa General Information 0088-250-157 Customer Assistance 0088-250-113 Support More Information Customer Service !Handset User Support Via Yahoo! Keitai Main Menu: From above search field, select 7 English 7 User Support. !Online English Manual http://www.softbank.jp/mb/r/support/822p/ May be unavailable at purchase. Call Customer Service or try later. This manual is printed using an ink based on soy bean oil. 3TR100031AAA !Police............................ 110 !Fire & Ambulance ......... 119 !Coast Guard ................. 118 Emergency Numbers *Call immediately if handset/USIM is lost or stolen while outside Japan. Before Using Handset Package Contents !Handset (822P)!Battery (PMBAE1)!User Guide (Japanese) !First Step Guide !Raku Raku Start Book (Japanese) !Utility Software (CD-ROM)* *Utility Software updates/upgrades may be released on SOFTBANK MOBILE Corp. Website (http://www.softbank.jp) without prior notification. Please check for the newest versions of utility applications and download as required. USIM Card Installation 1Open USIM Holder 2Insert USIM Card (gold IC facing down) as shown 3Close USIM Holder USIM Card must be inserted to use this handset. Turn handset off and remove battery before inserting/removing USIM Card. Notch 12 3 USIM PINs !PIN1 4 to 8-digit code used to prevent unauthorized 822P use. • PIN1 can be changed. • When PIN Entry is ON, PIN1 entry is required each time handset is turned on (with USIM Card inserted). !PIN2 Required to clear All Calls or set Cost Limit and Currency Setting. • PIN2 can be changed. !PIN Lock & Cancellation (PUK) PIN1 Lock or PIN2 Lock is activated if PIN1 or PIN2 is incorrectly entered three times. Cancel PIN1 Lock or PIN2 Lock by entering the PIN Unblocking Key (PUK1/PUK2). • If PUK is incorrectly entered ten times, USIM Card is locked and handset is disabled. Write down PUK. • For procedures required to unlock USIM Card, contact SoftBank Customer Center, General Information. Passwords !Handset Code Required to use/change some handset functions. • e appears for each digit entered. • Handset Code ( 9999 by default) can be changed on handset. !Center Access Code 4-digit number specified at initial subscription; required to access Voice Mail via landlines or subscribe to fee-based information. !Call Barring Password 4-digit number specified at initial subscription, required to restrict handset services. • If entered incorrectly three times, Call Barring settings lock; Call Barring Password & Center Access Code must be changed. Reach SoftBank Customer Center, General Information for details. Charging Use only specified AC Charger (sold separately). 1Connect AC Charger to handset 2Plug AC Charger into AC Outlet • Charging Indicator illuminates and charging starts; may take up to approximately 130 minutes. • When charging is complete, Charging Indicator goes out. 3Unplug AC Charger, then disconnect handset Charging Indicator Release Tabs Port Cover Charger Connector AC Charger AC Outlet External Port Arrows Up Charger Blades 1 2 3 Battery Installation 2Insert battery3Replace battery cover1Press and slide to remove cover Specifications * Approximate value !Values were calculated with battery installed. Weight (including battery) 96 g* Dimensions51 x 127 x 8.9 mm* Talk Time 3G: 200 minutes* Video Call: 90 minutes* GSM: 200 minutes* Standby Time 3G: 400 hours* GSM: 300 hours* Charging Time AC Charger: 130 minutes* In-Car Charger: 130 minutes* Maximum Output 3G: 0.25 W GSM: 2.0 W Manner Mode !Minding Mobile Manners Please use your handset responsibly. Inappropriate handset use can be both dangerous and bothersome. Please take care not to disturb others when using your handset. Adjust handset use according to your surroundings. Activating/Canceling Manner Mode !In Standby, press and hold H. Emergency Numbers Customer Serv…

Text truncated - open the document above for the full version.

Safety Precautions Before use, read these safety pr ecautions carefully and use your handset properly. Keep this manual in a safe place for future reference. These safety precautions contain information intended to prevent bodily injury to the user and to surrounding people, as well as damage to property, and must be observed at all times. These symbols indicate exposure levels to bodily harm from failure to observe cautions or improper usage: Symbol Explanations Danger Great risk of death or serious injury from improper use Warning Risk of death or serious injury from improper use Caution Risk of injury or damage to property from improper use Prohibited Action Avoid Moisture Disassembly Prohibited Always Dry Hands First Compulsory Action Disconnect Power Source Handset, Battery & Charger (not included) Use specified battery, charger and holder.The use of devices other than those specified may result in malfunction of handset or battery. Leaking, overheating, explosion or fire may occur.Do not get handset, battery and charger wet.If liquids such as water or pet ur ine get into battery and charger, they may cause overheating, el ectric shock or malfunction. Do not use handset in damp places like bathrooms.Do not disassemble or modify handset. May cause accidents such as fire, bodily injury, electric shock or equipment malfunction.Do not place handset, batter y or charger inside cooking appliances, such as microwave ovens or high-pressure containers.Battery may leak, overheat, explode or catch fire, and handset and charger may overheat, emit smoke or catch fire. The internal circuit may also be damaged.Do not throw or otherwise subject to strong force or impacts.Battery may leak, overheat, explode, catch fire, or cause damage to handset.Keep handset off and charger disconnected in filling stations or places where flammable gas is generated.Handset use in such areas may lead to fire. Danger Warning 822P.book Page xxvi Tuesday, January 8, 2008 9:40 AM If battery does not charge after specified time, stop charging.Battery may leak, overheat, explode or catch fire.Do not use or leave handset, battery or charger in locations subject to high temperature, such as near an open flame, in sunlight or inside a car on an extremely hot day.Battery may leak, overheat, expl ode, catch fire, or deform handset and cause damage. Part of the casing may also become hot and cause burns.Do not use handset in dusty places.May hinder heat release, or cause burnout or fire.Keep handset out of the reach of young children.May result in electric shock or bodily injury.If for use by child, guardian should teach properhandling and ensure handset is used as directed.May result in bodily injury. Caution Battery See battery label to confirm battery type. Do not throw battery into fire.Battery may leak, overheat, explode or catch fire.Do not pierce battery with a nail or other sharp object, hit it with a hammer, or step on it.Battery may leak, overheat, explode or catch fire.Do not use excessive force to at tach battery to handset even when you cannot attach it successfully. Battery may be the wrong way around.Battery may leak, overheat, explode or catch fire.Do not touch terminals with metallic objects or carry/store battery with metal jewelry, etc.Battery may leak, overheat, explode or catch fire.If battery fluid gets into eyes , do not rub; flush with clean water and see a doctor immediately.Failure to do so may cause blindness. Danger Label Battery Type Li-ion Lithium-ion 822P.book Page xxvii Tuesday, January 8, 2008 9:40 AM If battery leaks or emits an unusual odor, immediately stop use and move it away as far as possible from any flame or fire.Battery fluid is flammable and could ignite, causing fire or explosion.If battery leaks or emits an unusual odor, immediately remove it away from handset.Battery may leak, overheat, explode or catch fire.If battery fluid comes into contact with your skin or clothing, stop using handset immediately and rinse it off with clean water.Battery fluid is harmful to your skin.Do not dispose of battery with ordinary refuse.May cause fire and environmenta l damage. Place tape over the terminals to insulate battery, and take it to a SoftBank retailer or institution that handles used batteries in your area. Handset Do not use handset while driving a vehicle.Doing so may interfere with safe driving and cause an accident. Stop your vehicle to park in a safe place before using handset. Drivers using handsets while driv ing are subject to prosecution. Warning Caution Warning Turn off handset near high-pre cision electronic devices or devices using weak electronic signals.Handset may possibly cause these devices to malfunction.*Electronic devices that may be affected: Hearing aids, implantable cardiac pacemakers, implantable cardioverter defibrillators, other medical electronic devices, fire alarms, automatic doors and other auto matically controlled devices. Persons using an implantable card iac pacemaker or cardioverter defibrillator, or other electronic medical devices, should consult the device manufacturer or vend or for advice on possible radio wave effects.Turn off handset where use is prohibited, such as aboard aircraft or in hospitals.Handset may interfere with the operation of sensitive devices and electronic medical equipment.Follow the instructions given by the respective medical facilities regarding the use of mobile phones on their premises. In addition, actions such as speaking on a mobile phone aboard aircraft are prohibited and may be punishable by law.If you are using electronic me dical equipment, do not put handset in your breast pocket or in the inside pocket of your jacket.Using handset in close proximity to electronic medical equipment may cause the eq uipment to malfunction. If you have a weak heart, take extra precautions when setting functions such as Vibration or Ringer Volume for incoming transmissions.Do not aim the infrared port at eyes when using infrared communic…

Text truncated - open the document above for the full version.

Panasonic Panasonic Mobile Communications Development of Europe Limited 2 Gables Way, Colthrop, Thatcham, Berkshire RG19 4ZB Tel: +44 (0) 1635 871466 Fax: +44 (0) 1635 871345 VAT Reg No. GB765338211 Web: www.panasonicmobile.com Registered in England No. 4188880 Panasonic Mobile Communications Development of Europe Limited 18 th January 2008 Telecommunication Certification Body Radio Frequency Investigation Ltd. Ewhurst Park Ramsdell Basingstoke Hampshire RG26 5RQ England Subject: Certification Application FCC ID: UCE207005A It is requested that the following information is held Confidential on behalf of Panasonic Mobile Communications Development of Europe Ltd., on the confidentiality basis outlined below: 1. Permanent Confidentiality (FCC Rules Part 0.459 refers). Exhibit Category Exhibit Filenames Schematic Diagrams EF80317B Key FPC Schematic.pdf EF80327B Flex PCB Schematic.pdf EG81096C Main PCB Schematic.pdf Parts list (BOM) EF80317B Key FPC BOM.pdf EF80327B Flex PCB BOM.pdf EG81096C Main PCB BOM.pdf Block Diagrams VS7x BT Block Diagram.pdf VS7x GSM_UMTS Block Diagram.pdf Operational Descriptions ** VS7x Bluetooth Operational Description.pdf VS7x GSM RF Product Spec.pdf Internal photographs * VS7x Internal Photos.pdf Tune up Information RF Cal Spec.pdf

05 March 2008 Request to Supersede Test Set Up Photo Exhibit FCCID: UCE207005A Can you please supersede Exhibit “Test Set Up Photos” for this Grant. This will be replaced with “Test Set Up Photos v2” This is requested because of misleading information contained within the original exhibit. It is confirmed that the new exhibit is a clearer indication of the test set up employed. John Bellairs Senior Engineer and TCB

FCC ID Label and Location -FCC ID label -Label location FCC ID： UCE207005A ① Production code② Color③ Bar Code of IMEI④ IMEI(Production Serial Number)⑤ Production Year & Month ① ② ⑤ The above outline drawing shows the label in position within the battery compartment. This is visible to the user at the point of sale. ③ ④

TEST REPORT FROM RFI GLOBAL SERVICES LTD Test of: Panasonic Mobile Comms Dev of Europe Ltd VS7x To: OET Bulletin 65 Supplement C: (2001-01) Test Report Serial No: RFI/SARE1/RP72912JD01A This Test Report Is Issued Under The Authority Of Steve Flooks, Service Leader RPG: pp Checked By: Joe Lomako Report Copy No: PDF01 Issue Date: 17 December 2007 Test Dates: 10 December 2007 This report is issued in Adobe Acrobat portable document format (PDF). It is only a valid copy of the report if it is being viewed in PDF format with the following security options not allowed: Changing the document, Selecting text and graphics, Adding or changing notes and form fields. This report may be copied in full. The results in this report apply only to the sample(s) tested. RFI GLOBAL SERVICES LTD Test Report Serial No: RFI/SARE1/RP72912JD01A Page: 2 of 60 Issue Date: 17 December 2007 Test of: Panasonic Mobile Comms Dev of Europe Ltd VS7x To: OET Bulletin 65 Supplement C: (2001-01) This page has been left intentionally blank. RFI GLOBAL SERVICES LTD Test Report Serial No: RFI/SARE1/RP72912JD01A Page: 3 of 60 Issue Date: 17 December 2007 Test of: Panasonic Mobile Comms Dev of Europe Ltd VS7x To: OET Bulletin 65 Supplement C: (2001-01) Table of Contents 1. Customer Information ...................................................................................................... 4 2. Equipment Under Test (EUT) ........................................................................................... 5 3. Test Specification, Methods and Procedures ................................................................ 9 4. Deviations from the Test Specification ........................................................................ 10 5. Operation and Configuration of the EUT during Testing ............................................ 11 6. Summary of Test Results............................................................................................... 13 7. Measurements, Examinations and Derived Results.................................................... 14 Appendix 1. Test Equipment Used.................................................................................... 23 Test Equipment Used (Continued) .................................................................................... 24 Appendix 2. Measurement Methods ................................................................................. 26 Appendix 3. SAR Distribution Scans ................................................................................ 28 Appendix 4. Photographs .................................................................................................. 39 Appendix 5. Validation of System ..................................................................................... 56 Appendix 6. Simulated Tissues......................................................................................... 57 Appendix 7. DASY4 System Details .................................................................................. 58 RFI GLOBAL SERVICES LTD Test Report Serial No: RFI/SARE1/RP72912JD01A Page: 4 of 60 Issue Date: 17 December 2007 Test of: Panasonic Mobile Comms Dev of Europe Ltd VS7x To: OET Bulletin 65 Supplement C: (2001-01) 1. Customer Information Company Name: Panasonic Mobile Comms Dev of Europe Ltd Address: 2 Gables Way Colthrop Thatcham Berkshire RG19 4ZB Contact Name: Mr. M Hargreaves RFI GLOBAL SERVICES LTD Test Report Serial No: RFI/SARE1/RP72912JD01A Page: 5 of 60 Issue Date: 17 December 2007 Test of: Panasonic Mobile Comms Dev of Europe Ltd VS7x To: OET Bulletin 65 Supplement C: (2001-01) 2. Equipment Under Test (EUT) The following information (with the exception of the date of receipt) has been supplied by the customer: 2.1. Description of EUT The equipment under test is a Tri-Band Dual Mode (W-CDMA/GSM) mobile telephone handset. 2.2. Identification of Equipment Under Test (EUT) Description: Mobile Handset Brand Name: Panasonic Model Name or Number: VS7x Serial Number: Sample C8 IMEI Number: 00 4401220367144 Hardware Version Number: Rev A Software Version Number: 822PVA07 Hardware Revision of GSM Module: Not Applicable Software Revision of GSM Module: Not Applicable FCC ID Number: UCE207005A Country of Manufacture: Japan Date of Receipt: 10th December 2007 2.3. Modifications Incorporated in the EUT During the course of testing the EUT was not modified. RFI GLOBAL SERVICES LTD Test Report Serial No: RFI/SARE1/RP72912JD01A Page: 6 of 60 Issue Date: 17 December 2007 Test of: Panasonic Mobile Comms Dev of Europe Ltd VS7x To: OET Bulletin 65 Supplement C: (2001-01) 2.4. Accessories The following accessories were supplied with the EUT during testing: Description: Battery Brand Name: SANYO Model Name or Number: VS7a Serial Number: None Stated Cable Length and Type: Not Applicable Country of Manufacture: Japan Connected to Port 10th December 2007 Description: Battery Brand Name: SANYO Model Name or Number: VS7a Serial Number: None Stated Cable Length and Type: Not Applicable Country of Manufacture: Japan Connected to Port 10th December 2007 RFI GLOBAL SERVICES LTD Test Report Serial No: RFI/SARE1/RP72912JD01A Page: 7 of 60 Issue Date: 17 December 2007 Test of: Panasonic Mobile Comms Dev of Europe Ltd VS7x To: OET Bulletin 65 Supplement C: (2001-01) 2.5. Support Equipment The following support equipment was used to exercise the EUT during testing: Description: Universal Radio Communication Test Set Brand Name: Rohde & Schwarz Model Name or Number: CMU200 Serial Number: 1100.0008.02 Cable Length and Type: 1.5 Utiflex Connected to Port: RF (Input/Output) Air Link Description: Radio Communication Analyser Brand Name: Anritsu Model Name or Number: MT8820A Serial Number: 6K00000647 Cable Length and Type: 1.5m Utiflex Connected to Port: RF (Input/Output) Air Link Description: Radio Communication Analyser Brand Name: Anritsu Model Name or Number: MT8820A Serial Number: 6K00000647 Cable Length and Type: 1.5m Utiflex Connected to Port…

Text truncated - open the document above for the full version.

RFI GLOBAL SERVICES LTD Test Report Serial No: RFI/SARE1/RP72912JD01A Page: 34 of 60 Issue Date: 17 December 2007 Test of: Panasonic Mobile Comms Dev of Europe Ltd VS7x To: OET Bulletin 65 Supplement C: (2001-01) SCN/72912JD01/006: Tilt Left PCS CH660 Date: 10/12/2007 DUT: Panasonic VS7x; Type: VS7x (Sample C8); Serial: 004401220367144 0 dB = 0.605mW/g Communication System: PCS 1900; Frequency: 1879.8 MHz;Duty Cycle: 1:8.3 Medium: 1900 MHz HSL Medium parameters used (interpolated): f = 1879.8 MHz; σ = 1.46 mho/m; ε r = 41.6; ρ = 1000 kg/m 3 Phantom section: Left Section DASY4 Configuration: - Probe: ET3DV6 - SN1528; ConvF(4.98, 4.98, 4.98); Calibrated: 06/07/2007 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn394; Calibrated: 24/05/2007 - Phantom: SAM 12b; Type: SAM 4.0; Serial: TP:1197 - Measurement SW: DASY4, V4.7 Build 55; Postprocessing SW: SEMCAD, V1.8 Build 176 Tilt Left - Middle/Area Scan (71x111x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.671 mW/g Tilt Left - Middle/Zoom Scan (5x5x7) (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 21.2 V/m; Power Drift = -0.019 dB Peak SAR (extrapolated) = 1.04 W/kg SAR(1 g) = 0.553 mW/g; SAR(10 g) = 0.302 mW/g Maximum value of SAR (measured) = 0.605 mW/g RFI GLOBAL SERVICES LTD Test Report Serial No: RFI/SARE1/RP72912JD01A Page: 35 of 60 Issue Date: 17 December 2007 Test of: Panasonic Mobile Comms Dev of Europe Ltd VS7x To: OET Bulletin 65 Supplement C: (2001-01) SCN/72912JD01/007: Touch Right PCS CH660 Date: 10/12/2007 DUT: Panasonic VS7x; Type: VS7x (Sample C8); Serial: 004401220367144 0 dB = 0.447mW/g Communication System: PCS 1900; Frequency: 1879.8 MHz;Duty Cycle: 1:8.3 Medium: 1900 MHz HSL Medium parameters used (interpolated): f = 1879.8 MHz; σ = 1.46 mho/m; ε r = 41.6; ρ = 1000 kg/m 3 Phantom section: Right Section DASY4 Configuration: - Probe: ET3DV6 - SN1528; ConvF(4.98, 4.98, 4.98); Calibrated: 06/07/2007 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn394; Calibrated: 24/05/2007 - Phantom: SAM 12b; Type: SAM 4.0; Serial: TP:1197 - Measurement SW: DASY4, V4.7 Build 55; Postprocessing SW: SEMCAD, V1.8 Build 176 Touch Right - Middle/Area Scan (71x111x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.462 mW/g Touch Right - Middle/Zoom Scan (5x5x7) (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 18.3 V/m; Power Drift = 0.064 dB Peak SAR (extrapolated) = 0.688 W/kg SAR(1 g) = 0.412 mW/g; SAR(10 g) = 0.238 mW/g Maximum value of SAR (measured) = 0.447 mW/g RFI GLOBAL SERVICES LTD Test Report Serial No: RFI/SARE1/RP72912JD01A Page: 36 of 60 Issue Date: 17 December 2007 Test of: Panasonic Mobile Comms Dev of Europe Ltd VS7x To: OET Bulletin 65 Supplement C: (2001-01) SCN/72912JD01/008: Tilt Right PCS CH660 Date: 10/12/2007 DUT: Panasonic VS7x; Type: VS7x (Sample C8); Serial: 004401220367144 0 dB = 0.689mW/g Communication System: PCS 1900; Frequency: 1879.8 MHz;Duty Cycle: 1:8.3 Medium: 1900 MHz HSL Medium parameters used (interpolated): f = 1879.8 MHz; σ = 1.46 mho/m; ε r = 41.6; ρ = 1000 kg/m 3 Phantom section: Right Section DASY4 Configuration: - Probe: ET3DV6 - SN1528; ConvF(4.98, 4.98, 4.98); Calibrated: 06/07/2007 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn394; Calibrated: 24/05/2007 - Phantom: SAM 12b; Type: SAM 4.0; Serial: TP:1197 - Measurement SW: DASY4, V4.7 Build 55; Postprocessing SW: SEMCAD, V1.8 Build 176 Tilt Right - Middle/Area Scan (71x111x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.803 mW/g Tilt Right - Middle/Zoom Scan (5x5x7) (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 23.1 V/m; Power Drift = 0.048 dB Peak SAR (extrapolated) = 1.08 W/kg SAR(1 g) = 0.643 mW/g; SAR(10 g) = 0.354 mW/g Maximum value of SAR (measured) = 0.689 mW/g RFI GLOBAL SERVICES LTD Test Report Serial No: RFI/SARE1/RP72912JD01A Page: 37 of 60 Issue Date: 17 December 2007 Test of: Panasonic Mobile Comms Dev of Europe Ltd VS7x To: OET Bulletin 65 Supplement C: (2001-01) SCN/72912JD01/009: System Performance Check 1900MHz Head 10 12 07 Date: 10/12/2007 DUT: Dipole 1900 MHz; Type: D1900V2; Serial: SN540 0 dB = 10.4mW/g Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: 1900 MHz HSL Medium parameters used: f = 1900 MHz; σ = 1.47 mho/m; ε r = 41.6; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: - Probe: ET3DV6 - SN1528; ConvF(4.98, 4.98, 4.98); Calibrated: 06/07/2007 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn394; Calibrated: 24/05/2007 - Phantom: SAM 12b; Type: SAM 4.0; Serial: TP:1197 - Measurement SW: DASY4, V4.7 Build 55; Postprocessing SW: SEMCAD, V1.8 Build 176 d=15mm, Pin=250mW/Area Scan (51x51x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 13.8 mW/g d=15mm, Pin=250mW/Zoom Scan (5x5x7) (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 87.6 V/m; Power Drift = -0.011 dB Peak SAR (extrapolated) = 17.4 W/kg SAR(1 g) = 9.32 mW/g; SAR(10 g) = 4.67 mW/g Maximum value of SAR (measured) = 10.4 mW/g RFI GLOBAL SERVICES LTD Test Report Serial No: RFI/SARE1/RP72912JD01A Page: 38 of 60 Issue Date: 17 December 2007 Test of: Panasonic Mobile Comms Dev of Europe Ltd VS7x To: OET Bulletin 65 Supplement C: (2001-01) SCN/72912JD01/010: System Performance Check 1900MHz Body 10 12 07 Date: 10/12/2007 DUT: Dipole 1900 MHz; Type: D1900V2; Serial: SN540 0 dB = 11.0mW/g Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: 1900 MHz MSL Medium parameters used: f = 1900 MHz; σ = 1.49 mho/m; ε r = 52.4; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: - Probe: ET3DV6 - SN1528; ConvF(4.57, 4.57, 4.57); Calibrated: 06/07/2007 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn394; Calibrated: 24/05/2007 - Phantom: SAM 12a; Type: SAM 4.0; S…

Text truncated - open the document above for the full version.

TEST REPORT FROM RFI GLOBAL SERVICES LTD Test of: Panasonic Mobile Comms Dev of Europe Ltd VS7x To: FCC Part 24: 2007 (Subpart E) Test Report Serial No: RFI/RPTE3/RP72923JD05A Supersedes Test Report Serial No: RFI/RPTE2/RP72923JD05A This Test Report Is Issued Under The Authority Of Steve Flooks, Service Leader RPG: pp Brian Watson Checked By: Brian Watson Report Copy No: PDF01 Issue Date: 22 January 2008 Test Dates: 03 January 2008 to 11 January 2008 This report is issued in Adobe Acrobat portable document format (PDF). It is only a valid copy of the report if it is being viewed in PDF format with the following security options not allowed: Changing the document, Selecting text and graphics, Adding or changing notes and form fields. This report may be copied in full. The results in this report apply only to the sample(s) tested. RFI GLOBAL SERVICES LTD TEST REPORT S.No. RFI/RPTE3/RP72923JD05A Page: 2 of 44 Issue Date: 22 January 2008 Test of: Panasonic Mobile Comms Dev of Europe Ltd VS7x To: FCC Part 24: 2007 (Subpart E) This page has been left intentionally blank. RFI GLOBAL SERVICES LTD TEST REPORT S.No. RFI/RPTE3/RP72923JD05A Page: 3 of 44 Issue Date: 22 January 2008 Test of: Panasonic Mobile Comms Dev of Europe Ltd VS7x To: FCC Part 24: 2007 (Subpart E) Table of Contents 1. Client Information ......................................................................................................... 4 2. Equipment Under Test (EUT) ....................................................................................... 5 3. Test Specifications, Methods and Procedures .......................................................... 9 3. Deviations from the Test Specification .................................................................... 10 4. Operation of the EUT during Testing ........................................................................ 11 5. Summary of Test Results........................................................................................... 12 6. Measurements, Examinations and Derived Results................................................ 13 7. Measurement Uncertainty.......................................................................................... 30 8. Measurement Methods............................................................................................... 31 Appendix 1. Test Equipment Used................................................................................ 40 Appendix 2. Test Configuration Drawings ................................................................... 42 RFI GLOBAL SERVICES LTD TEST REPORT S.No. RFI/RPTE3/RP72923JD05A Page: 4 of 44 Issue Date: 22 January 2008 Test of: Panasonic Mobile Comms Dev of Europe Ltd VS7x To: FCC Part 24: 2007 (Subpart E) 1. Client Information Company Name: Panasonic Mobile Comms Dev of Europe Ltd Address: 2 Gables Way Colthrop Thatcham Berkshire RG19 4ZB Contact Name: Mr M Hargreaves RFI GLOBAL SERVICES LTD TEST REPORT S.No. RFI/RPTE3/RP72923JD05A Page: 5 of 44 Issue Date: 22 January 2008 Test of: Panasonic Mobile Comms Dev of Europe Ltd VS7x To: FCC Part 24: 2007 (Subpart E) 2. Equipment Under Test (EUT) The following information (with the exception of the Date of Receipt) has been supplied by the client: 2.1. Identification of Equipment Under Test (EUT) Description: Mobile Handset Brand Name: Panasonic Model Name or Number: VS7x Serial Number: None Stated IMEI Number: 004401220367144 Hardware Version Number: Rev A Software Version Number: 822VA07 FCC ID Number: UCE207005A Country of Manufacture: Japan Date of Receipt: 01 January 2008 Note: Non modified sample used for radiated tests. Description: Mobile Handset Brand Name: Panasonic Model Name or Number: VS7x Serial Number: None Stated IMEI Number: 004401220364455 Hardware Version Number: Rev A Software Version Number: 822PVA07 FCC ID Number: UCE207005A Country of Manufacture: Japan Date of Receipt: 01 January 2008 Note: Modified sample with temporary antenna port …

Text truncated - open the document above for the full version.
