UCE208006AUMTS/ GSM Cellular Mobile with Bluetooth� and RFID

FOMA ® P906i ISSUE DATE:NAME:PHONE NUMBER:MAIL ADDRESS: INSTRUCTION MANUAL Easy Search/Contents/Precautions Before Using the Handset Voice/Videophone Calls PushTalk Phonebook Sound/Screen/Light Settings Security Settings Camera i-mode/i-motion/i-Channel Mail i- α ppli Osaifu-Keitai/ToruCa GPS Function 1Seg Full Browser/PC Movie Data Display/Edit/Management Music&Video Channel/Music Playback Convenient Functions Character Entry Network Services PC Connection Overseas Use Appendix/External Devices Troubleshooting Index/Quick Manual ‘08.4 DoCoMo W-CDMA ･ GSM/GPRS system Thank you for selecting the “FOMA P906i”.Before or during use of the FOMA P906i , make sure that you read this manual and the separate manuals for other optional devices thoroughly so that you can use the FOMA P906i correctly. If you feel any inconvenience in reading the manual, contact the DoCoMo Information Center listed on the back page of this manual.The FOMA P906i is designed to be your close partner. Treat it carefully at all times to ensure long-term performance. Because the FOMA phones use radio waves, they cannot be used in places where radio waves do not reach, such as inside tunnels, underground, or in buildings; or the outside where radio waves are weak or out of the FOMA service area. They may not be used in the high-rise buildings even when the antennas are unobstructed. You may also experience interruption of calls even when using without moving while the radio waves are strong enough for the three antennas to appear on the display. Use the FOMA phone carefully to avoid disturbing other people when in public, or in crowded or quiet places. Since the FOMA phones use radio waves as the medium of telecommunication, calls may be tapped by the third party. However, the W-CDMA ･ GSM/GPRS system automatically supports tapping prevention, so your conversation will be incomprehensible to the third party. The FOMA phones change your voice into digital signals and send them to the other party. In places where the radio waves are weak, the digital signals may not be converted correctly, and in such a case, the voice may sound different from the actual original voice. The user hereby agrees that the user shall be solely responsible for the result of the use of SSL. Neither DoCoMo nor the certifiers as listed herein make any representation and warranty as for the security in the use of SSL. In the event that the user shall sustain damage or loss due to the use of SSL, neither DoCoMo nor the certifiers shall be responsible for any such damage or loss.Certifiers: VeriSign Japan K.K., Cybertrust, Inc., GlobalSign K.K., RSA Security Inc., and SECOM Trust Systems Co., Ltd. This FOMA phone supports FOMA Plus-Area and FOMA High-Speed Area. The FOMA terminal can be used only via the FOMA network provided by DoCoMo and in DoCoMo’s roaming area. It is recommended that you make separate notes of the information (such as Phonebook entries, schedule events, text memos, record messages, voice memos, movie memos) stored in the FOMA phone and keep them in a safe place. Note that we cannot be held responsible for the unlikely event of loss of the stored contents due to a malfunction, repair, change of your model, or other mishandling of the FOMA phone. You are advised to save your important data files to the microSD card. If you have a personal computer, you can transfer and save the information such as Phonebook entries, mail messages, schedule events, and others to the personal computer by using DoCoMo keitai datalink. For Using This Manual This FOMA phone supports Kisekae Tool (page 121). If you use Kisekae Tool to change the design of the Menu display, some menu configurations change according to the usage frequency depending on the type of the menu. Further, some menu numbers that are assigned to the menu items do not apply. In that case, you cannot operate as described in this manual, so you are advised to switch to the basic structure menu (page 121), or reset menu settings (page 121). You can download the latest information about this manual from the following DoCoMo web site: User’s Manual (PDF file) Download ( http://www.nttdocomo.co.jp/english/support/manual/index.html ) The URL and the content of the web site might be modified without notice. Before using your FOMA phone 1 Easy Search/Conten ts/Precautions Easy Search/Contents/Precautions In this manual, illustrations and symbols are used in the explanations so that you can correctly and easily use the FOMA phone. The operating procedures and displays in this manual are described with the default settings of the “White” handset mainly. However, the following settings are changed. “Display setting” “Stand-by display”: OFF “Display setting” “Standby disp. Wide”: OFF “Display setting” “Clock” “Position”: Pattern 2 “Menu icon setting”: Metal Unless otherwise specified, the descriptions of the operating procedures in this manual start from the Stand-by display. Operations are described in the method of “Scroll Selection” (see page 33). Displays and illustrations described in this manual are for reference. The actual ones might differ. In this manual, “Osaifu-Keitai compatible i-αppli which supports the IC card function” is described as “Osaifu-Keitai compatible i-αppli”. Note that “FOMA P906i” is referred to as “FOMA phone” in this manual. In the operating procedures of this manual, key operations are described with simplified key icons. The functions which use a microSD card are described in this manual; however, you need to obtain a microSD card separately to make these functions available. See page 355 for the microSD card. How to Read/Refer to This Manual By the following search methods, you can find pages where your desired functions and services are described: How to Refer to This Manual Search from the index when you know the names of functions or services. Search from keywords for the functions you frequently use or the functions that are convenient if you can know an…

Text truncated - open the document above for the full version.

200 Mail Operate receiver (Change rcv. type) Change rcv. typeSelect a type of address. To . . . . . This is the direct destination address. “To” recipients are displayed at the receiving ends. Cc . . . . . Specify to let parties know the mail contents in addition to the direct recipients. “Cc” recipients are displayed at the receiving ends. Bcc . . . . Specify to hide the recipients from others. “Bcc” recipients are not displayed at the receiving ends. They might not be displayed depending on the mobile phone, device, or mail software of the receiving end. Operate att. file (Activate camera) You can shoot and attach an image or i-motion movie. Activate cameraSelect a shooting mode. See page 155 and page 158 for how to shoot. Operate att. file (Attach file) See page 210. Operate att. file (Delete att. file) See page 212. Template (Load template) You can read in a Deco-mail template and compose a Deco-mail message. Load template When the text has already been entered, the confirmation display appears asking whether to delete the text. Select a template. The contents of the template are entered into the text. While selecting a template, press l() to check the contents of the template. See page 202 for composing Deco-mail. Template (Save template) You can save the Deco-mail you are composing as a template. Save templateYES See page 186 when templates are stored to the maximum. See page 208 for how to check the stored template. Function menuOperation/Explanation Add header/sig.You can paste a header/signature at the beginning or ending of the text of the i-mode mail message. Add header or Add signature You need to store the header/signature beforehand. (See page 235) Function menuOperation/Explanation Information <Operate receiver> You cannot add any addresses if the address field for “To”, “Cc”, and “Bcc” already contains five addresses in total or contains no addresses. You cannot send i-mode mail if the “To” field is blank. <Template (Save template)> The subject of i-mode mail you are composing will be the title of the template. If no subject is entered, the title takes the name of “YYYY/MM/DD hh:mm”. (Y: year, M: month, D: date, h: hour, m: minute) <Add header/sig.> You cannot paste a header/signature if the text, including the header/signature, would exceed 5,000 full-pitch or 10,000 half-pitch characters. If the decoration such as font color or character size is set for the top or end of text, the header or signature will be decorated as well. Function Menu of the Message Entry Display Function menuOperation/Explanation Decorate mailSee page 203. Template (Load template) See page 200. Template (Save template) See page 200. Full pitch/Half pitchSee page 439. CopySee page 442. CutSee page 442. PasteSee page 442. 201 Mail UndoAfter entering or deleting characters, pasting data, or operating on a decoration, you can undo your most recent operation. You can do it up to twice. You can undo the operation also by pressing m(). Pictograph/ symbols (Pictograph) See page 439. Pictograph/ symbols (Symbols) See page 439. Pictograph/ symbols (Space) See page 440. Phrase/code/quote (Common phrases) See page 440. Phrase/code/quote (Kuten code) See page 440. Phrase/code/quote (Input time) See page 440. Phrase/code/quote (Quote phonebook) See page 440. Phrase/code/quote (Quote own data) See page 440. Phrase/code/quote (By position loc.) You can obtain the current location information by using the GPS function, convert that information into the URL, and then paste it to the i-mode mail text. Paste locationBy position loc.Oo()YES Phrase/code/quote (From loc. history) You can convert the location information retained in Location History of the GPS function into the URL, and paste it to the i-mode mail text. Paste locationFrom loc. history Select a location recordYES Phrase/code/quote (From phonebook) You can convert the location information stored in the Phonebook into the URL, and paste it to the i-mode mail text. Paste locationFrom phonebook Select a Phonebook entryOo()YES Function menuOperation/Explanation Phrase/code/quote (Bar code reader) See page 165. Char. input/dict. (Own dictionary) See page 442. Char. input/dict. (Learned words) See page 443. Char. input/dict. (Change input mode) See page 440. Char. input/dict. (Candid. disp. size) See “Character input (Candid. disp. size)” on page 129. Char. input/dict. (Predict) See page 439. Char. input/dict. (Candidate display) See page 440. Char. input/dict. (Character set time) See page 440. Char. input/dict. (2/NIKO-touch guide) See page 440. HelpSee page 440. JUMPSee page 441. PreviewYou can check the contents of the text before sending. You can preview also by pressing p. Function menuOperation/Explanation 202 Mail When editing an i-mode mail message, you can change the size of the font and the color of the background as well as inserting images, thus composing your own original mail. You can compose Deco-mail also using the templates (patterns). (See page 208) 1 Perform the operations in step 1 through step 3 on page 198. Information <Undo> Once you use “Undo” to return to the previous status, you cannot cancel this by using “Undo” again. If you close the Message Entry display, you cannot return to the previous status by using “Undo” when you re-open it. (However, after you have exited “Preview”, you can return to the previous status by “Undo”.) <Phrase/code/quote> You can paste up to 512 half-pitch characters by Paste Location, and the pasted URL is counted as the number of characters in the mail text. “” is inserted before the URL pasted by Paste Location. However, you can delete it while editing. Composing Deco-mail to Send Entering characters Activated decoration Previewing Font color Font size Swing Moving font effect Word alignment Deco-mail pictogram Ticker Blink Background color Insert line Insert image 2 Select the text fieldDecorate the text using Palette. See page 203 for how to use Palette. dSelect …

Text truncated - open the document above for the full version.

400 Music&Video Channel/Music Playback Sound effect (Listening) You can set sound effect for listening. ListeningSelect an item. Surround . . . . Makes the sound natural and stereophonic. Natur 1/2. . . . . Complements the cooped-up feeling specific to earphones and plays back natural sound. Select 1 or 2 according to your taste. OFF. . . . . . . . . Sets Listening to “OFF”. “Natur 1/2” is effective for the sound from an earphone or Bluetooth device. Sound effect (Equalizer) You can change the sound quality of an earphone or Bluetooth device. EqualizerSelect an item. Normal . . . Reproduces normal sound quality. S-XBS1. . . Enhances bass sound. S-XBS2. . . Enhances bass sound more deeply than S-XBS1. Train. . . . . Minimizes abnormal sound that causes sound leakage. Music infoSee page 398. Connect to URLSee page 399. Display image/ Display lyric/Player You can change the display of playback display. Display image. . .Display jacket image on full size display. Display lyric. . . . .Display lyric image on full size display. Player. . . . . . . . . .Display playback display. Previous image/ Previous lyric You can display a previous jacket image or lyric image. Next image/ Next lyric You can display a next jacket image or lyric image. Function menuOperation/Explanation Information <Sound effect> Even if an earphone or Bluetooth device is not connected, the respective setting contents are displayed on the display. You can create the list of music files you want to listen to, and play them back in the order you like. You can play back using the playlists created by the FOMA phone or Windows Media Player, or the SD-Audio playlists created by SD-Jukebox. The maximum number of playlists that can be created and the number of music files that can be stored per playlist are as follows: When you create a playlist on the FOMA phone, you can store the Chaku-uta Full ® music files saved on the FOMA phone or microSD card, the WMA files saved by Windows Media Player, and the SD-Audio files saved by SD-Jukebox into the same playlist. <Display image/Display lyric/Player> <Previous image/Previous lyric> <Next image/Next lyric> For Chaku-uta Full ® music files, you can display up to 3 jacket images and up to 7 lyric images. For SD-Audio files saved by SD-Jukebox, you can display up to 20 jacket images, and for WMA file, you can display up to 2 image buried in a file. When you use the Napster ® application program, you can display 1 image stored as a jacket image. There are no lyric images for them. Using Playlist Creating sourceNumber of playlist Number of music files that can be stored per playlist Playlists created by FOMA phone Maximum 30 (Except “All tracks”) 100 Playlists created by Windows Media Player Maximum 100250 SD-Audio playlists created by SD-Jukebox Maximum 99 (Except “All tracks”) 99 Information 401 Music&Video Channel/Music Playback Icons on the Playlist list 1 Player Menu display Playlist/SD-Audio 2 i()Create playlist Select a type and display the Music list Put a check mark for music files to be stored l() The music files are stored in the displayed order. 3 Enter a playlist name. You can enter up to 18 full-pitch/36 half-pitch characters. IconType All tracks All tracks for SD-Audio FOMA playlist SD-Audio playlist WMA playlist Create Playlist Playlist list Information In a playlist, you cannot store partially saved Chaku-uta Full ® music files or files with playback restrictions expired. 1 Playlist listSelect a playlist Select a music file. Press l() from the Playlist list to play back the music files from the top one in the selected playlist. You cannot play back a playlist from “MUSIC” of Data Box. Play Back Playlist Music list of a Playlist Function Menu of the Playlist List Function menuOperation/Explanation Player menuYou can show the Player Menu display. Play mode settingSee page 397. Create playlistSee page 401. Copy playlistEnter a playlist name. You can enter up to 18 full-pitch/36 half-pitch characters. When you copy the SD-Audio playlist or WMA playlist, it is copied to the FOMA phone as the FOMA playlist. Edit playlist nameYou can edit the name of the FOMA playlist. Edit the playlist name. You can enter up to 18 full-pitch/36 half-pitch characters. AddYou can add the music files to the FOMA playlist. Select a type and display the Music list Put a check mark for the music files to be added l() The music files are stored at the end of the list in the displayed order. 402 Music&Video Channel/Music Playback Delete playlistYou can delete the FOMA playlist. Select a deleting method. Delete this . . . . . . . You can delete the playlist. Delete selected. . . Select the playlists to be deleted, and press l(). Delete all . . . . . . . . Enter your Terminal Security Code. YES Function menuOperation/Explanation Information <Copy playlist> You cannot copy the WMA playlist with no music file stored in. Function Menu of the Music List of a Playlist Function menuOperation/Explanation Player menuYou can display the Player Menu display. Playback state continues even when you show the Player Menu display. Play mode settingSee page 397. Music infoSee page 398. AddSee page 401. DEL from playlistYou can release the music files from the FOMA playlist. Select a deleting method. DEL one from list . . . . . . You can release the music file. DEL some from list. . . . . Select the music files to be released, and press l(). DEL all from list . . . . . . . You can delete the whole playlist. YES Order to playYou can change the order of playlist created on the FOMA phone. Select a fileUse Bo to change the order to play Oo() To change the order in succession, repeat the above steps. l() Add to playlistSee page 398. Display imageSee page 399. Display lyricSee page 399. Function menuOperation/Explanation Information <DEL from playlist> You cannot release music files from the playlists created on a personal computer. 403 Convenient Functions Multiaccess . . . . . . . . . .…

Text truncated - open the document above for the full version.

Panasonic Panasonic Mobile Communications Development of Europe Limited 2 Gables Way, Colthrop, Thatcham, Berkshire RG19 4ZB Tel: +44 (0) 1635 871466 Fax: +44 (0) 1635 871345 VAT Reg No. GB765338211 Web: www.panasonicmobile.com Registered in England No. 4188880 Panasonic Mobile Communications Development of Europe Limited 20 th March 2008 Telecommunication Certification Body Radio Frequency Investigation Ltd. Ewhurst Park Ramsdell Basingstoke Hampshire RG26 5RQ England Subject: Certification Application FCC ID: UCE208006A It is requested that the following information is held Confidential on behalf of Panasonic Mobile Communications Development of Europe Ltd., on the confidentiality basis outlined below: 1. Permanent Confidentiality (FCC Rules Part 0.459 refers). Exhibit Category Exhibit Filenames Schematic Diagrams EF80352C - Key FPC Schematic.pdf EF80353E - IrDA_Rec FPC Schematic.pdf EF80360B - Hinge FPC Schematic.pdf EG81120E - Upper PCB Schematic.pdf EG81128D - Main PCB Schematic.pdf EG81133D - Sub PCB Schematic.pdf Parts list (BOM) EF80352C Key FPC BOM.pdf EF80353E IrDA_Rec FPC BOM.pdf EF80360B Hinge FPC BOM.pdf EG81120E UpperPCB BOM.pdf EG81128D Main PCB BOM.pdf EG81133D Sub PCB BOM.pdf Block Diagrams P906i BT Block Diagram.pdf P906i W-CDMA_GSM RF Block Diagram.pdf P906i Block Diagram - RFID(FeliCa).pdf Operational Descriptions ** P906i Bluetooth Operational Description.pdf P906i GSM RF Product Spec.pdf P906i FeliCa (RF-ID) Operational Description.pdf Internal photographs * Internal Photo.pdf Tune up Information RF Cal Spec.pdf

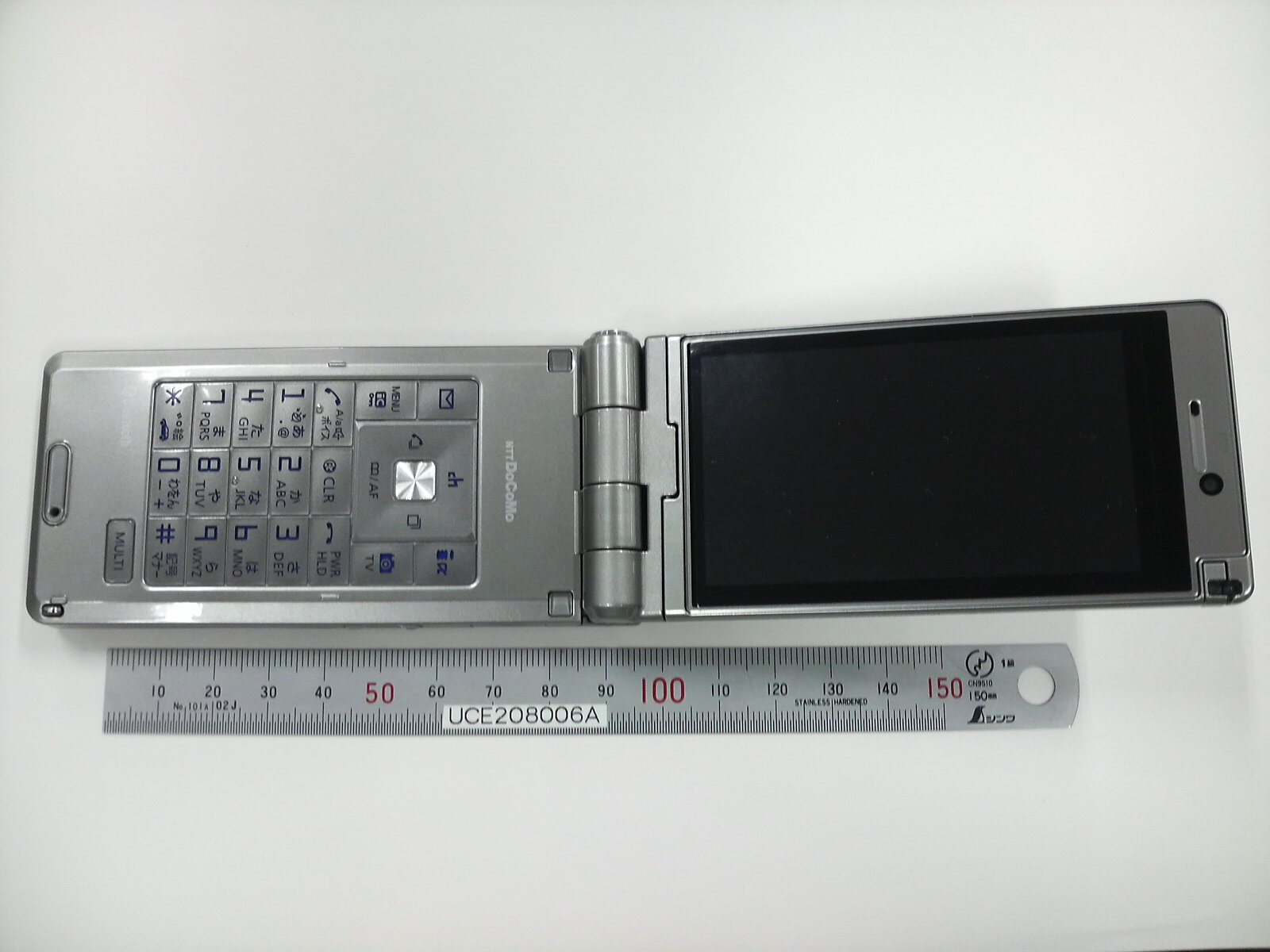

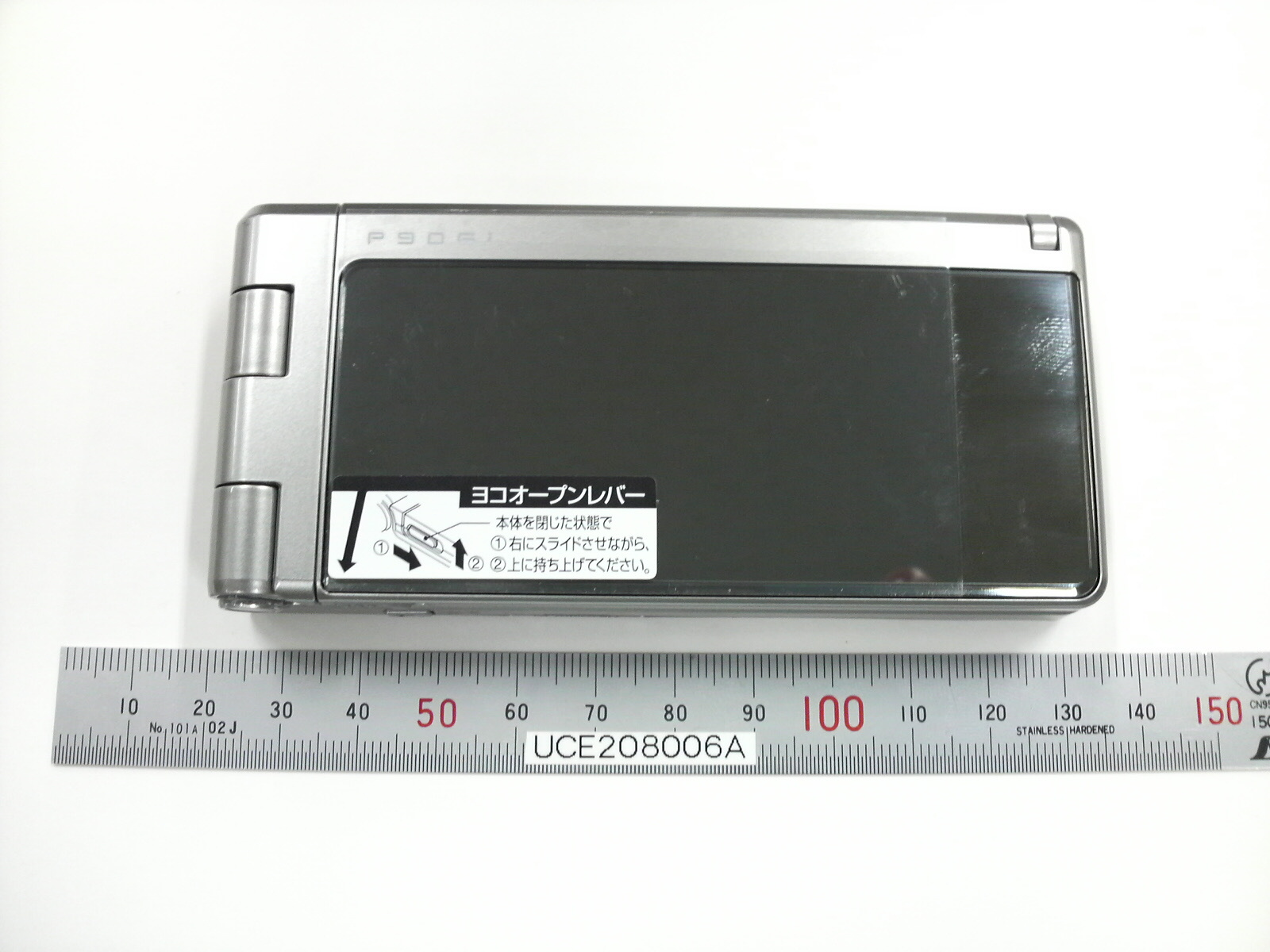

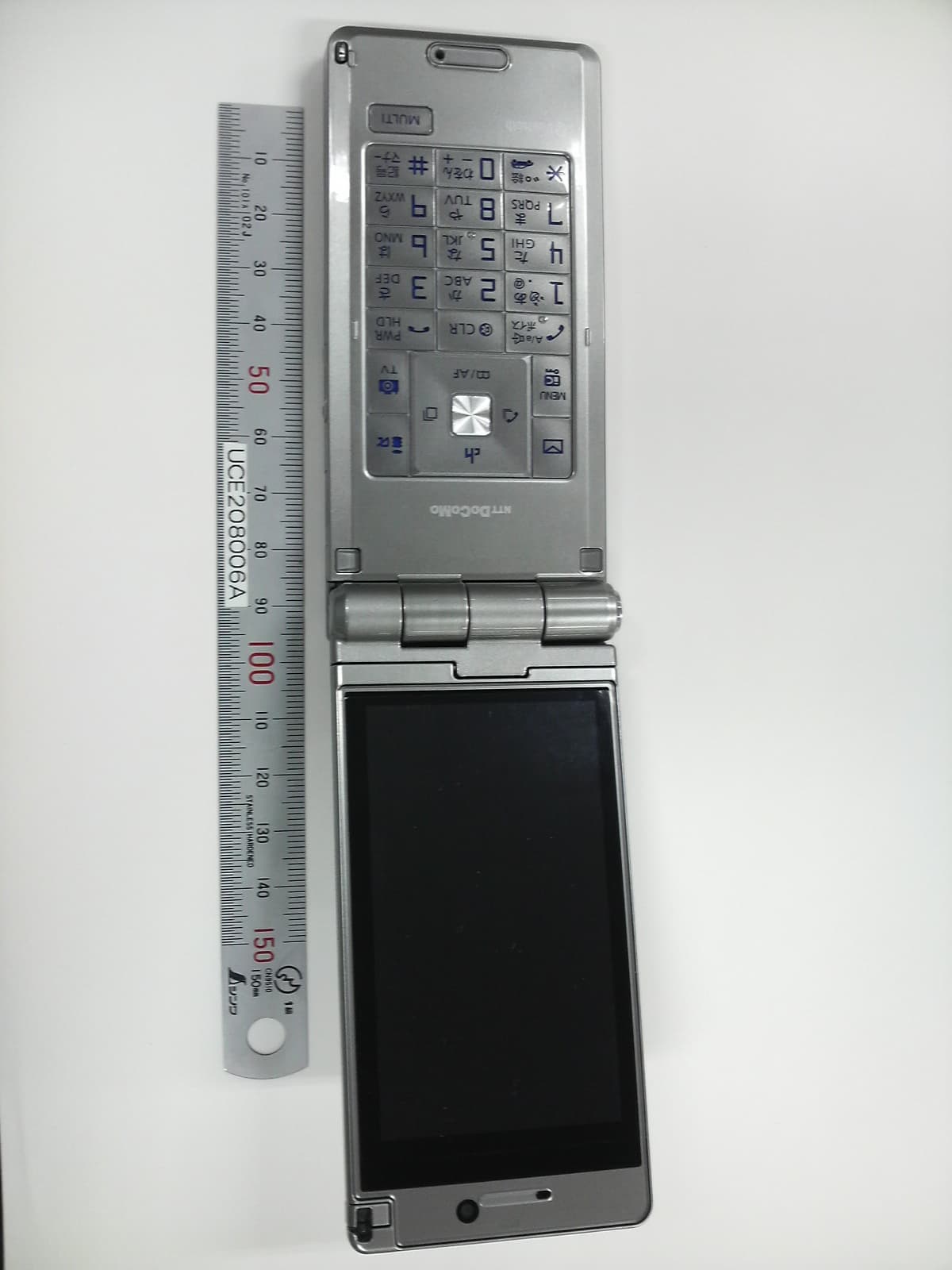

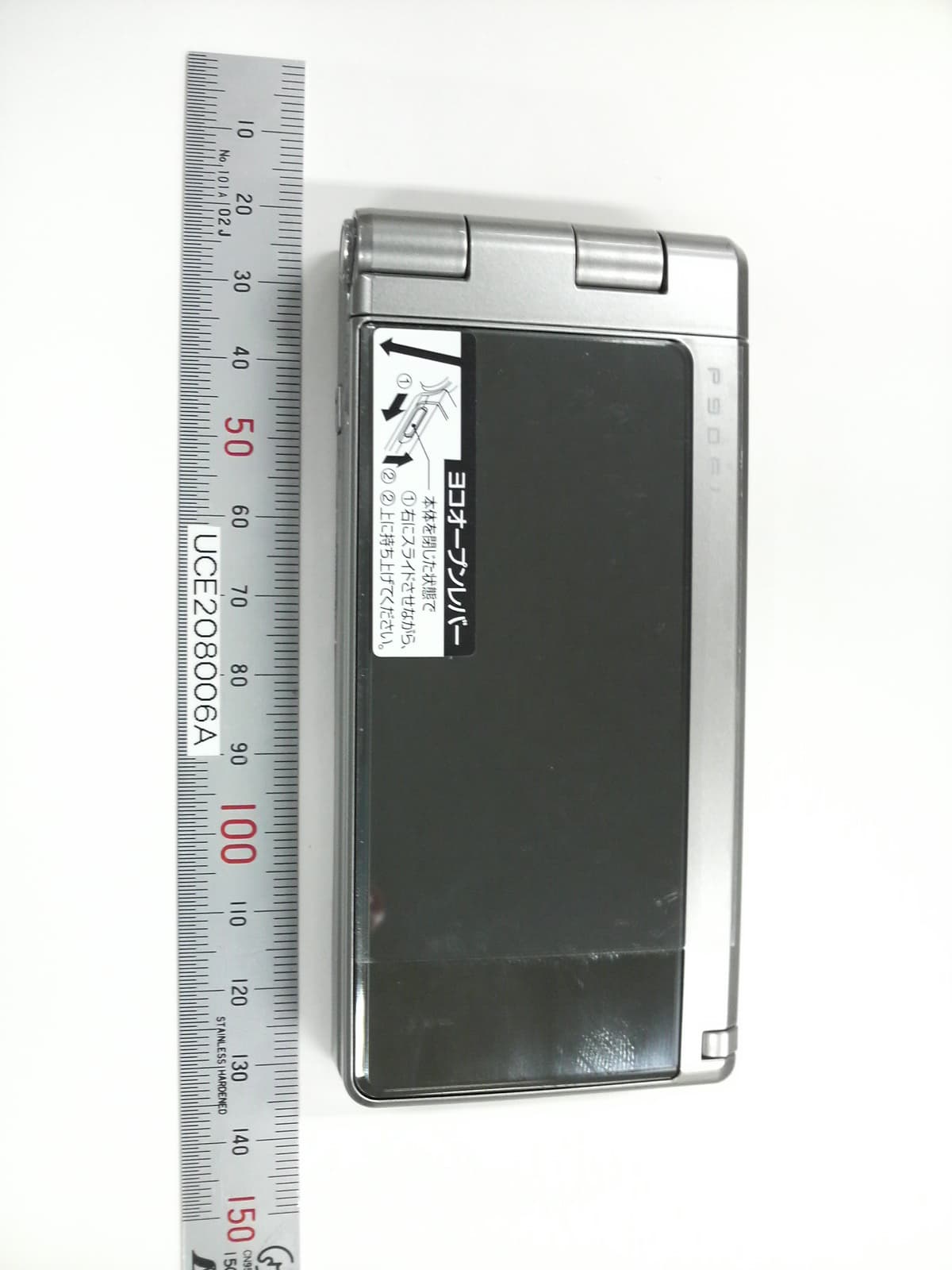

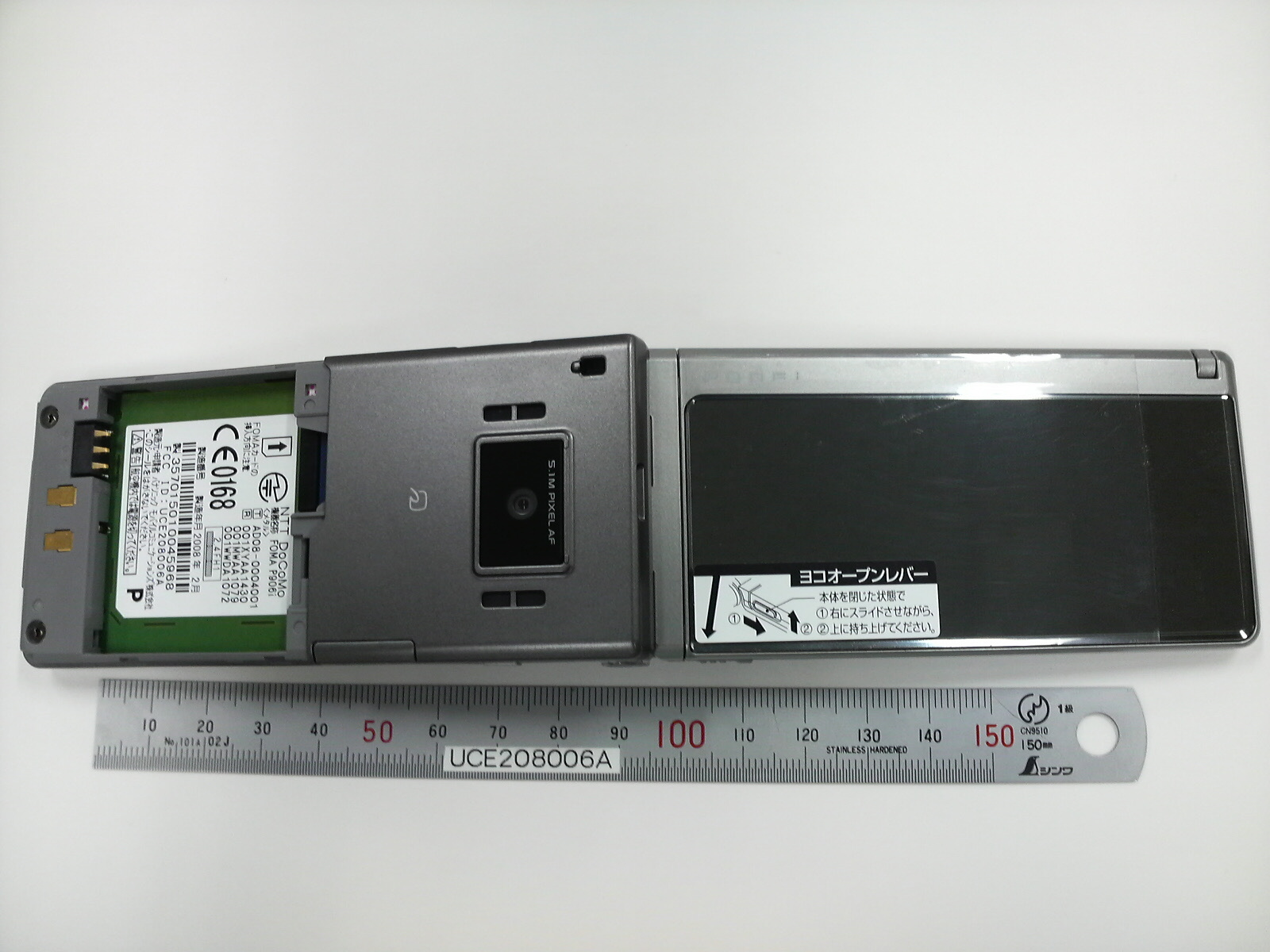

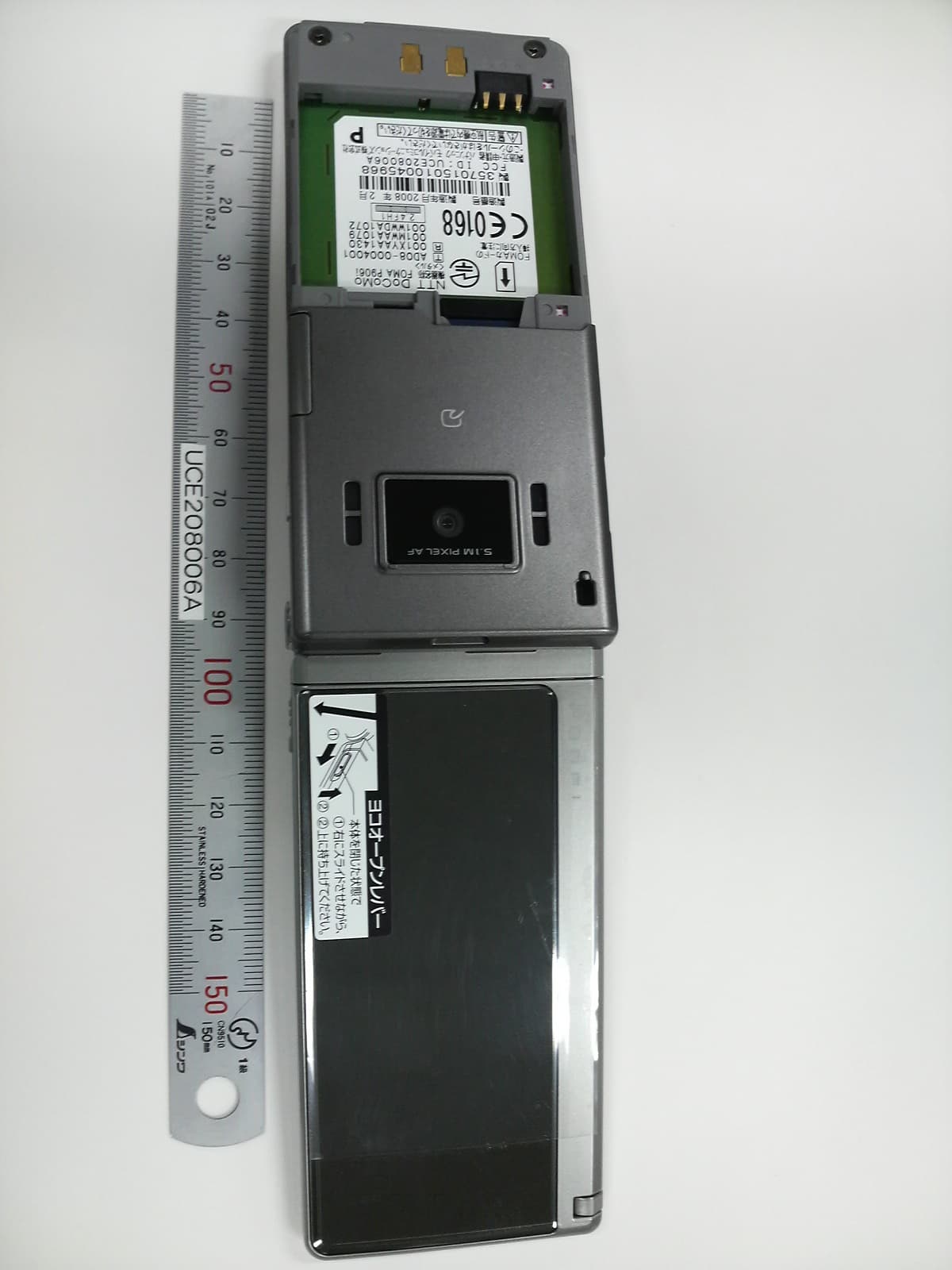

FCC ID Label and Location - FCC ID label - Label location ① Operator Name ② Model Name ③ Color ④ ID for JATE ⑤ ID for TELEC ⑥ Production Year & Month ⑦ Bar Code of IMEI ⑧ IMEI (Production Serial Number) FCC ID: UCE208006A ① ①①① ② ②②② ③ ③③③ ④ ④④④ ⑤ ⑤⑤⑤ ⑥ ⑥⑥⑥ ⑦ ⑦⑦⑦ ⑧ ⑧⑧⑧ (Rear View) Battery Area :Battery is placed inrear side of the phone. Label Area :This outline drawing showsthe label in position withinthe battery compartment.The label is visible to theuser at the point of saleprior to fitting the USIM(FOMA Card), battery packand cover.

TEST REPORT FROM RFI GLOBAL SERVICES LTD Test of: Panasonic Mobile Comms Dev of Europe Ltd P906i To: FCC Part 15 Subpart B: 2007 (Sections 15.225) Test Report Serial No: RFI/RPTE2/RP73067JD05A Supersedes Test Report Serial No: RFI/RPTE1/RP73067JD05A This Test Report Is Issued Under The Authority Of Steve Flooks, Service Leader RPG: pp Brian Watson Checked By: Brian Watson Report Copy No: PDF01 Issue Date: 27 March 2008 Test Dates: 13 February 2008 to 03 March 2008 This report is issued in Adobe Acrobat portable document format (PDF). It is only a valid copy of the report if it is being viewed in PDF format with the following security options not allowed: Changing the document, Selecting text and graphics, Adding or changing notes and form fields. This report may be copied in full. The results in this report apply only to the sample(s) tested. RFI GLOBAL SERVICES LTD TEST REPORT S.No. RFI/RPTE2/RP73067JD05A Page: 2 of 29 Issue Date: 27 March 2008 Test of: Panasonic Mobile Comms Dev of Europe Ltd P906i To: FCC Part 15 Subpart B: 2007 (Sections 15.225) This page has been left intentionally blank. RFI GLOBAL SERVICES LTD TEST REPORT S.No. RFI/RPTE2/RP73067JD05A Page: 3 of 29 Issue Date: 27 March 2008 Test of: Panasonic Mobile Comms Dev of Europe Ltd P906i To: FCC Part 15 Subpart B: 2007 (Sections 15.225) Table of Contents 1. Client Information............................................................................................................................ 4 2. Equipment Under Test (EUT)......................................................................................................... 5 3. Test Specification, Methods and Procedures............................................................................... 8 4. Deviations from the Test Specification......................................................................................... 9 5. Operation of the EUT During Testing.......................................................................................... 10 6. Summary of Test Results............................................................................................................. 11 7. Measurements, Examinations and Derived Results.................................................................. 12 8. Measurement Uncertainty............................................................................................................ 22 9. Measurement Methods................................................................................................................. 23 Appendix 1. Test Equipment Used.................................................................................................. 26 Appendix 2. Test Configuration Drawings...................................................................................... 28 RFI GLOBAL SERVICES LTD TEST REPORT S.No. RFI/RPTE2/RP73067JD05A Page: 4 of 29 Issue Date: 27 March 2008 Test of: Panasonic Mobile Comms Dev of Europe Ltd P906i To: FCC Part 15 Subpart B: 2007 (Sections 15.225) 1. Client Information Company Name: Panasonic Mobile Communications Development of Europe Ltd Address: 2 Gables Way Colthrop Thatcham Berkshire RG19 4ZB Contact Name: Mr M Hargreaves RFI GLOBAL SERVICES LTD TEST REPORT S.No. RFI/RPTE2/RP73067JD05A Page: 5 of 29 Issue Date: 27 March 2008 Test of: Panasonic Mobile Comms Dev of Europe Ltd P906i To: FCC Part 15 Subpart B: 2007 (Sections 15.225) 2. Equipment Under Test (EUT) The following information (with the exception of the Date of Receipt) has been supplied by the client: 2.1. Identification of Equipment Under Test (EUT) Description: Mobile Handset Brand Name: DoCoMo Model Name or Number: P906i Serial Number: None Stated IMEI Number: 357015010018932 Hardware Version Number: Rev C Software Version Number: B-WN905S-01.03.001 P7isCv05.01.02.00 FCC ID: UCE208006A Country of Manufacture: Japan Date of Receipt: 12 February 2008 Description: Battery Brand Name: DoCoMo Model Name or Number: P16 Serial Number: None Stated Country of Manufacture: Japan Date of Receipt: 12 February 2008 2.2. Description of EUT The equipment under test is a dual mode (W-CDMA/GSM) Cellular Mobile Telephone with Bluetooth & RFID. 2.3. Modifications Incorporated in the EUT During the course of testing the EUT was not modified. RFI GLOBAL SERVICES LTD TEST REPORT S.No. RFI/RPTE2/RP73067JD05A Page: 6 of 29 Issue Date: 27 March 2008 Test of: Panasonic Mobile Comms Dev of Europe Ltd P906i To: FCC Part 15 Subpart B: 2007 (Sections 15.225) 2.4. Additional Information Related to Testing Power Supply Requirement: Internal battery supply of 3.7 V (nominal) Intended Operating Environment: Within GSM coverage UTMS Coverage Area Equipment Category: Bluetooth, GSM/GPRS, Shot Range Device, UMTS FDD I Type of Unit: Portable (standalone battery powered device) Transceiver Transmitter Output Power: 3.64 dBμV/m Transmit Frequency: 13.56 MHz (Single Channel) 2.5. Port Identification Port Description Type/Length 1 Charge/Data port Not Applicable 2 AV Out 1.8m multi-core 3 USIM Not Applicable 4 Micro-SD Dedicated micro-SD card port 2.6. Accessories The following accessories were supplied with the EUT during testing: Description: AC Charger Brand Name: DoCoMo Model Name or Number: FOMA AC Adapter 01 for Global use MAS-BH0008-A 002 Serial Number: None Stated Cable Length and Type: 1.5m round twin core Connected to Port: Charge/Data port Description: DC Charger Brand Name: DoCoMo Model Name or Number: FOMA DC Adapter 02 Serial Number: None Stated Cable Length and Type: 2.0m approx / 2 core curl-cord Connected to Port: Charge/Data port RFI GLOBAL SERVICES LTD TEST REPORT S.No. RFI/RPTE2/RP73067JD05A Page: 7 of 29 Issue Date: 27 March 2008 Test of: Panasonic Mobile Comms Dev of Europe Ltd P906i To: FCC Part 15 Subpart B: 2007 (Sections 15.225) Accessories (continued) Description: Personal Hands Free (Stereo) Brand Name: DoCoMo Model Name or Number: Flat-plug Stereo Earphone Set P01 Serial Number: None Stated Cable Length and Type…
