UCE209022AUMTS/ GSM Cellular Mobile with Bluetooth� and RFID

P-02B INSTRUCTION MANUAL ’10.2 DOCOMO W-CDMA ・ GSM/GPRS System Thank you for selecting the “docomo STYLE series P-02B”. Read this manual before use to correctly operate your P-02B. About operation explanation of P-02B The operating procedures for the P-02B are also published in electronic form as in “ 使いかたナビ (Guide)” that is installed onto your FOMA terminal, and “Instruction Manual (Detailed Version)” as a PDF. (In Japanese only) ◆ “Instruction Manual” (this volume) ◆ Description of displayed content and operating procedures for basic functions ◆ “ 使いかたナビ (Guide)” (installed onto your FOMA terminal) ◆ Description of the outline of frequently used functions and of operations From the P-02B +m ▶ LifeKit ▶ 使いかたナビ (Guide) ※ This function is available in Japanese mode only. ◆ “Instruction Manual (Detailed Version)” (PDF) ◆ Use your personal computer to visit the following, and download detailed information about all the functions and their operating procedures. (In Japanese only) http://www.nttdocomo.co.jp/support/trouble/manual/ download/index.html ※ Note that the URL and published contents may be modified without notice. Basic Package ⿠ P-02B Handset (With Warranty and Back Cover P40) ⿠ Battery Pack P20 ⿠ Instruction Manual ⿠ P-02B CD-ROM ⿠ See page 89 for optional items that support this FOMA terminal. For Using This Manual ⿠ Note that “P-02B” is referred to as “FOMA terminal” in this manual. ⿠ Most operating procedures and displays in this manual are described with the default settings of the “Black” handset. Further, displays and illustrations described in this manual are for reference. The actual ones might differ. 1 FOMA Terminal ····································2 What You can Do with P-02B ···············3 Part Names and Functions ··················4 Precautions ··········································6 Handling Precautions ························14 Introduction ▶ P.1 ～ Before Using ·····························18 Charging, Power ON/OFF, etc. Screen Explanation ··················22 Viewing Display, etc. Character Entry·························28 Sound/Screen Setting ··············30 Select Ring Tone, Display Setting, etc. Lock/Security ····························35 Security Codes, Various Lock Functions, Reset to Default, etc. Basic Operation ▶ P.18 ～ Call Telephone···························40 Making a Call/Videophone Call, Receiving a Call/Videophone Call, Network Services, WORLD WING, etc. Mail ·············································48 Send i-mode Mail, Deco-mail, Decome-Anime, Receive i-mode Mail, etc. Phonebook ································52 Store Phonebook, Edit Phonebook, Delete Phonebook Connect ▶ P.40 ～ i-mode/Full Browser ·················54 Access Sites, Full Browser, Viewing and Operating Sites i-Channel ···································57Map/GPS ····································57 Check Your Location, Map Application, AUTO-GPS Function, etc. Search ▶ P.54 ～ Camera ······································60 Shoot Still Images/Moving Pictures, Camera-Touch, etc. 1Seg ···········································63 Watch 1Seg, etc. Music ·········································67 Music&Video Channel, Music Player, etc. i- α ppli ·········································69 i- α ppli/i-Widget, etc. i-motion/Movie ··························71 Play i-motion/Movie, etc. Enjoy ▶ P.60 ～ Osaifu-Keitai ·····························72 Osaifu-Keitai/ToruCa i-concier ·····································73 Convenient Tools ······················74 Schedule, Alarm, Bar Code Reader, Pedometer Data Management ·····················77 microSD Card, Bluetooth, Infrared Communication, iC Communication More Convenient ▶ P.72 ～ Support ······································82 Troubleshooting, Warranty and After-Sales Service, i-mode Fault Diagnosis Site, Updating Software, etc. Appendix ···································90 Function List, Main Specifications, SAR, Export Administration Regulations, Intellectual Property Right Index ········································103 Others ▶ P.82 ～ ※ It is prohibited to copy all or part of this manual without permission. ※ The instructions contained in this manual may be changed without notice. Contents Introduction 2 ⿠ Because the FOMA terminal uses a radio wave, you cannot use it in places where the radio wave do not reach, where it is weak even outdoors, or where are out-of-service area, such as inside tunnels, basements, or buildings. You might be not able to operate the FOMA terminal even when you are in a place with a fi ne view such as in a high-rise building or apartment. Note that you may experience interruption of calls even if the three antennas respond to a strong radio wave, and you remain without moving to use the FOMA terminal. ⿠ Use the FOMA terminal carefully to avoid disturbing other people when in public, or in crowded or quiet places. ⿠ Since the FOMA terminal uses radio waves as the medium of telecommunication, calls may be tapped by a third party. However, the W-CDMA·GSM/GPRS system automatically supports tapping prevention, so your conversation will be incomprehensible to the third party, because it is recognized as mere noise. ⿠ The FOMA terminals change your voice into digital signals and send them to the other party. In places where the radio waves are weak, the digital signals may not be converted correctly, and in such a case, the voice may sound different from the actual original one. ⿠ The user hereby agrees that the user shall be solely responsible for the result of the use of SSL/TLS. Neither DOCOMO nor the certifi ers as listed herein make any representation and warranty as for the security in the use of SSL/TLS. In the event that the user shall sustain damage or loss due to the use of SSL/TLS, neither DOCOMO nor the certifi ers shall be responsible for any such damage or loss. Certifi ers: VeriSign Japan K.K., Cybertrust Japan Co., Ltd., GlobalSign K.K., RSA Security Japan Ltd., SECOM Trust Systems C…

Text truncated - open the document above for the full version.

Panasonic Mobile Communications Development of Europe limited Willoughby Road, Bracknell, Berkshire, RG12 8FP Tel: +44 (0) 1344 862444 Fax: +44 (0) 1344 706796 VAT Reg No. GB787451290 Web: http:Panasonic.net/pmc Registered in England No. 4188880 Panasonic Mobile Communications Development of Europe Limited 12 th January 2010 Telecommunication Certification Body RFI Global Services Ltd. Pavilion A Ashwood Park Basingstoke Hampshire RG23 8BG United Kingdom Subject: Certification Application FCC ID: UCE209022A It is requested that the following information is held Confidential on behalf of Panasonic Mobile Communications Development of Europe Ltd., on the confidentiality basis outlined below: 1. Permanent Confidentiality (FCC Rules Part 0.459 refers). Exhibit Category Exhibit Filenames Schematic Diagrams P-02B Schematics.pdf Parts list (BOM) P-02B BOM.pdf Block Diagrams P-02B GSM_UMTS RF Block Diagram.pdf P01B RFID Block Diagram.pdf P-02B BT Block Diagram.pdf Operational Descriptions * P-02B GSM_UMTS RF Product Specification.pdf P-02B RFID Operational Description.pdf P-02B Bluetooth Operational Description.pdf Tune up Information P-02B RF Calibration Spec.pdf The above information contains trade secrets and proprietary information not customarily released to the public. The public disclosure of this information might be harmful to the applicant and provide unjust benefits to its competitors. The applicant understands that pursuant to rule 0.457d, disclosure of this application and all accompanying documentation will not be made before the date of the grant for this application. * The Operational Descriptions contain proprietary information relating to the device implementation used. This information is not customarily released to the public. continued........

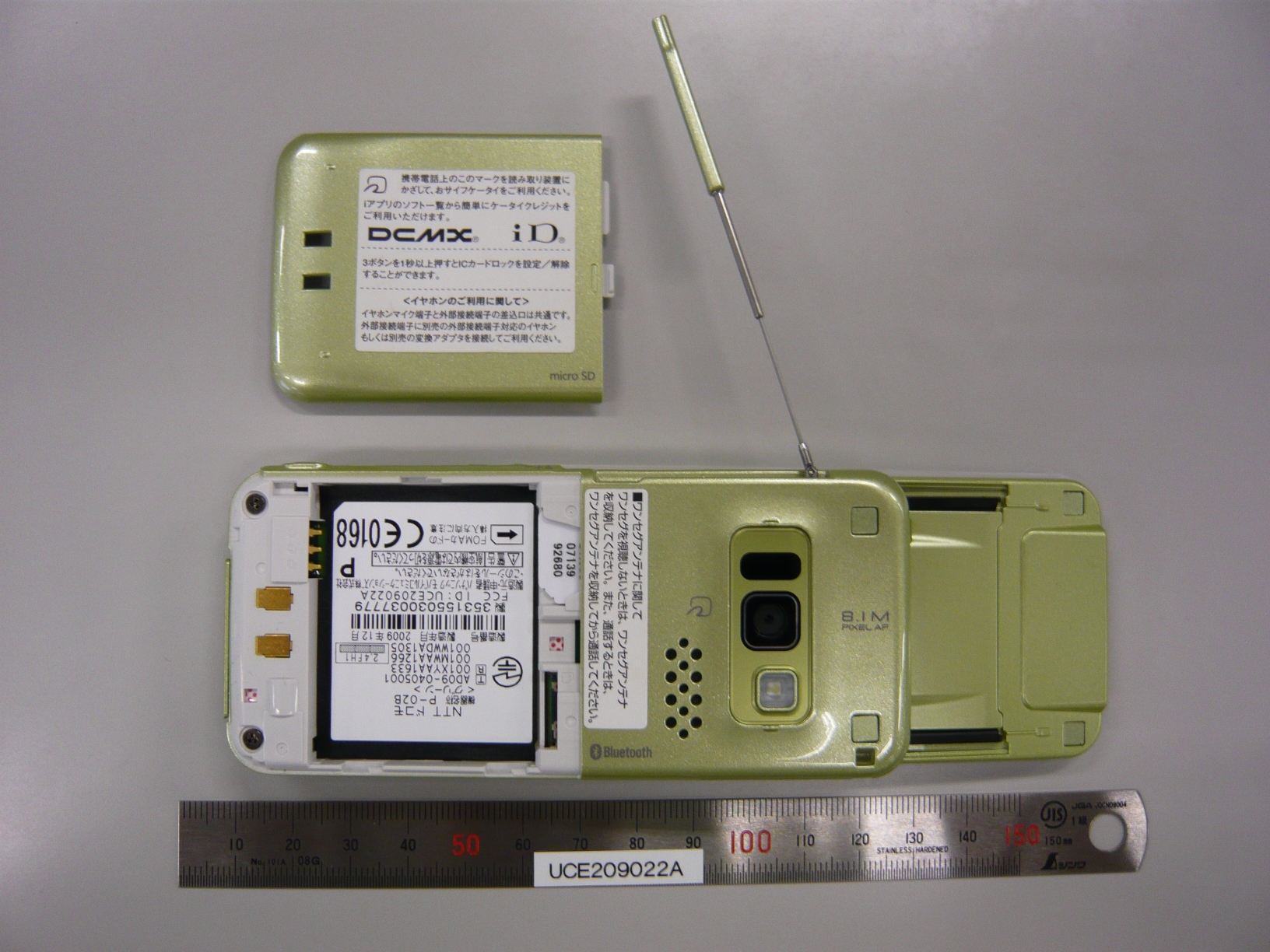

① Operator Name② Model Name③ Color④ ID for JATE⑤ ID for TELEC⑥ Production Year & Month⑦ Bar Code of IMEI⑧ IMEI(Production Serial Number) ① ② ④ ⑤ ⑥ ⑦ ⑧ ③

TEST REPORT FROM RFI GLOBAL SERVICES LTD Test of: NTT docomo P-02B To: OET Bulletin 65 Supplement C: (2001-01) Test Report Serial No: RFI/SAR2/RP76606JD09A Supersedes Test Report Serial No: RFI/SAR1/RP76606JD09A This Test Report Is Issued Under The Authority Of Brian Watson, COO Payments and Consultancy: pp Checked By: Richelieu Quoi Report Copy No: PDF01 Issue Date: 18 December 2009 Test Dates: 27 November 2009 to 02 December 2009 This report is issued in Adobe Acrobat portable document format (PDF). It is only a valid copy of the report if it is being viewed in PDF format with the following security options not allowed: Changing the document, Selecting text and graphics, Adding or changing notes and form fields. This report may be copied in full. The results in this report apply only to the sample(s) tested. RFI GLOBAL SERVICES LTD Test Report Serial No: RFI/SAR2/RP76606JD09A Page: 2 of 146 Issue Date: 18 December 2009 Test of: NTT docomo P-02B To: OET Bulletin 65 Supplement C: (2001-01) This page has been left intentionally blank. RFI GLOBAL SERVICES LTD Test Report Serial No: RFI/SAR2/RP76606JD09A Page: 3 of 146 Issue Date: 18 December 2009 Test of: NTT docomo P-02B To: OET Bulletin 65 Supplement C: (2001-01) Table of Contents 1. Customer Information ...................................................................................................... 4 2. Equipment Under Test (EUT) ........................................................................................... 5 3. Test Specification, Methods and Procedures ................................................................ 8 4. Deviations from the Test Specification .......................................................................... 9 5. Operation and Configuration of the EUT during Testing ............................................ 10 6. Summary of Test Results............................................................................................... 12 7. Measurements, Examinations and Derived Results.................................................... 13 8. Measurement Uncertainty.............................................................................................. 25 Appendix 1. Test Equipment Used.................................................................................... 30 Appendix 2. Measurement Methods ................................................................................. 33 Appendix 3. SAR Distribution Scans ................................................................................ 35 Appendix 4. Photographs .................................................................................................. 95 Appendix 5. Validation of System ................................................................................... 141 Appendix 6. Simulated Tissues....................................................................................... 143 Appendix 7. DASY4 System Details ................................................................................ 144 RFI GLOBAL SERVICES LTD Test Report Serial No: RFI/SAR2/RP76606JD09A Page: 4 of 146 Issue Date: 18 December 2009 Test of: NTT docomo P-02B To: OET Bulletin 65 Supplement C: (2001-01) 1. Customer Information Company Name: Panasonic Mobile Comms Dev of Europe Ltd Address: Panasonic House Willoughby Road Bracknell Berkshire RG12 8FP United Kingdom RFI GLOBAL SERVICES LTD Test Report Serial No: RFI/SAR2/RP76606JD09A Page: 5 of 146 Issue Date: 18 December 2009 Test of: NTT docomo P-02B To: OET Bulletin 65 Supplement C: (2001-01) 2. Equipment Under Test (EUT) 2.1. Identification of Equipment Under Test (EUT) Description: Mobile Handset Brand Name: NTT docomo Model Name or Number: P-02B Serial Number: None Stated (Sample C6) IMEI Number: 353155030017714 Hardware Version Number: Rev C Software Version Number: A: 01.01.003 C:18.18.19.11 FCC ID Number: UCE209022A Country of Manufacture: None Stated Date of Receipt: 26 November 2009 2.2. Description of EUT The equipment under test was a dual mode cellular mobile telephone with PCS, UMTS FDD V with UMTS Release 5 HSDPA capabilities, incorporating Bluetooth and RFID. The Cellular Mobile Telephone also operates on RFID 13.5 MHz Band. 2.3. Modifications Incorporated in the EUT There were no modifications incorporated in the EUT during testing. RFI GLOBAL SERVICES LTD Test Report Serial No: RFI/SAR2/RP76606JD09A Page: 6 of 146 Issue Date: 18 December 2009 Test of: NTT docomo P-02B To: OET Bulletin 65 Supplement C: (2001-01) 2.4. Accessories The following accessories were supplied with the EUT during testing: Description: Micro-SD Memory Card Brand Name: None Stated Model Name or Number: None Stated Serial Number: None Stated Cable Length and Type: Not applicable Country of Manufacture: None Stated Connected to Port Dedicated micro-SD card port Description: Personal Hands-Free Brand Name: NTT Docomo Model Name or Number: Earphone Set 01 (Stereo) Serial Number: None Stated Cable Length and Type: 1.8m / multi-core Country of Manufacture: None Stated Connected to Port AV Out Port Unique to Manufacturer 2.5. Support Equipment The following support equipment was used to exercise the EUT during testing: Description: Communication Test Set Brand Name: R&S Model Name or Number: CMU200 Serial Number: 101376 Cable Length and Type: ~2.0 m Utiflex RF cable Connected to Port: RF Input/ Output Port Description: GSM Communication Test Set Brand Name: Will'tek Model Name or Number: 4202S Serial Number: 513018 Cable Length and Type: ~2.0 m Utiflex RF cable Connected to Port: RF Input/ Output Port RFI GLOBAL SERVICES LTD Test Report Serial No: RFI/SAR2/RP76606JD09A Page: 7 of 146 Issue Date: 18 December 2009 Test of: NTT docomo P-02B To: OET Bulletin 65 Supplement C: (2001-01) 2.6. Additional Information Related to Testing Equipment Category PCS1900 / UMTS Band V / Bluetooth / RFID Type of Unit Portable Transceiver Intended Operating Environment: Within GSM, UMTS, RFID and Bluetooth Coverage UMT…

Text truncated - open the document above for the full version.

RFI GLOBAL SERVICES LTD Test Report Serial No: RFI/SAR2/RP76606JD09A Page: 35 of 146 Issue Date: 18 December 2009 Test of: NTT docomo P-02B To: OET Bulletin 65 Supplement C: (2001-01) Appendix 3. SAR Distribution Scans This appendix contains SAR distribution scans which are not included in the total number of pages for this report. Scan Reference Number Title SCN/76606JD09/001 Touch Left EUT Slide Closed With Antenna Retracted PCS CH660 SCN/76606JD09/002 Touch Left EUT Slide Closed With Antenna Extended PCS CH660 SCN/76606JD09/003 Touch Left EUT Slide Open With Antenna Retracted PCS CH660 SCN/76606JD09/004 Touch Left EUT Slide Open With Antenna Extended PCS CH660 SCN/76606JD09/005 Tilt Left EUT Slide Closed With Antenna Retracted PCS CH660 SCN/76606JD09/006 Tilt Left EUT Slide Closed With Antenna Extended PCS CH660 SCN/76606JD09/007 Tilt Left EUT Slide Open With Antenna Retracted PCS CH660 SCN/76606JD09/008 Tilt Left EUT Slide Open With Antenna Extended PCS CH660 SCN/76606JD09/009 Touch Right EUT Slide Closed With Antenna Retracted PCS CH660 SCN/76606JD09/010 Touch Right EUT Slide Closed With Antenna Extended PCS CH660 SCN/76606JD09/011 Touch Right EUT Slide Open With Antenna Retracted PCS CH660 SCN/76606JD09/012 Touch Right EUT Slide Open With Antenna Extended PCS CH660 SCN/76606JD09/013 Tilt Right EUT Slide Closed With Antenna Retracted PCS CH660 SCN/76606JD09/014 Tilt Right EUT Slide Closed With Antenna Extended PCS CH660 SCN/76606JD09/015 Tilt Right EUT Slide Open With Antenna Retracted PCS CH660 SCN/76606JD09/016 Tilt Right EUT Slide Open With Antenna Extended PCS CH660 SCN/76606JD09/017 Touch Left EUT Slide Closed With Antenna Retracted FDD V CH4183 SCN/76606JD09/018 Touch Left EUT Slide Closed With Antenna Extended FDD V CH4183 SCN/76606JD09/019 Touch Left EUT Slide Open With Antenna Retracted FDD V CH4183 SCN/76606JD09/020 Touch Left EUT Slide Open With Antenna Extended FDD V CH4183 SCN/76606JD09/021 Tilt Left EUT Slide Closed With Antenna Retracted FDD V CH4183 SCN/76606JD09/022 Tilt Left EUT Slide Closed With Antenna Extended FDD V CH4183 SCN/76606JD09/023 Tilt Left EUT Slide Open With Antenna Retracted FDD V CH4183 SCN/76606JD09/024 Tilt Left EUT Slide Open With Antenna Extended FDD V CH4183 SCN/76606JD09/025 Touch Right EUT Slide Closed With Antenna Retracted FDD V CH4183 SCN/76606JD09/026 Touch Right EUT Slide Closed With Antenna Extended FDD V CH4183 SCN/76606JD09/027 Touch Right EUT Slide Open With Antenna Retracted FDD V CH4183 SCN/76606JD09/028 Touch Right EUT Slide Open With Antenna Extended FDD V CH4183 SCN/76606JD09/029 Tilt Right EUT Slide Closed With Antenna Retracted FDD V CH4183 SCN/76606JD09/030 Tilt Right EUT Slide Closed With Antenna Extended FDD V CH4183 RFI GLOBAL SERVICES LTD Test Report Serial No: RFI/SAR2/RP76606JD09A Page: 36 of 146 Issue Date: 18 December 2009 Test of: NTT docomo P-02B To: OET Bulletin 65 Supplement C: (2001-01) Scan Reference Number Title SCN/76606JD09/031 Tilt Right EUT Slide Open With Antenna Retracted FDD V CH4183 SCN/76606JD09/032 Tilt Right EUT Slide Open With Antenna Extended FDD V CH4183 SCN/76606JD09/033 Front of EUT Facing Phantom With Slide Closed Antenna Retracted FDD V CH4183 SCN/76606JD09/034 Front of EUT Facing Phantom With Slide Closed Antenna Extended FDD V CH4183 SCN/76606JD09/035 Front of EUT Facing Phantom With Slide Open Antenna Retracted FDD V CH4183 SCN/76606JD09/036 Front of EUT Facing Phantom With Slide Open Antenna Extended FDD V CH4183 SCN/76606JD09/037 Rear of EUT Facing Phantom With Slide Closed Antenna Retracted FDD V CH4183 SCN/76606JD09/038 Rear of EUT Facing Phantom With Slide Closed Antenna Extended FDD V CH4183 SCN/76606JD09/039 Rear of EUT Facing Phantom With Slide Open Antenna Retracted FDD V CH4183 SCN/76606JD09/040 Rear of EUT Facing Phantom With Slide Open Antenna Extended FDD V CH4183 SCN/76606JD09/041 Rear of EUT Facing Phantom With Slide Open Antenna Retracted FDD V + HSDPA CH4183 SCN/76606JD09/042 Rear of EUT Facing Phantom With Slide Open Antenna Retracted With PHF FDD V CH4183 SCN/76606JD09/043 Front of EUT Facing Phantom With Slide Closed Antenna Retracted GPRS CH660 SCN/76606JD09/044 Front of EUT Facing Phantom With Slide Closed Antenna Extended GPRS CH660 SCN/76606JD09/045 Front of EUT Facing Phantom With Slide Open Antenna Retracted GPRS CH660 SCN/76606JD09/046 Front of EUT Facing Phantom With Slide Open Antenna Extended GPRS CH660 SCN/76606JD09/047 Rear of EUT Facing Phantom With Slide Closed Antenna Retracted GPRS CH660 SCN/76606JD09/048 Rear of EUT Facing Phantom With Slide Closed Antenna Extended GPRS CH660 SCN/76606JD09/049 Rear of EUT Facing Phantom With Slide Open Antenna Retracted GPRS CH660 SCN/76606JD09/050 Rear of EUT Facing Phantom With Slide Open Antenna Extended GPRS CH660 SCN/76606JD09/051 Rear of EUT Facing Phantom With Slide Closed Antenna Retracted With PHF GPRS CH660 SCN/76606JD09/052 Rear of EUT Facing Phantom With Slide Closed Antenna Retracted PCS CH660 SCN/76606JD09/053 System Performance Check 1900MHz Head 27 11 09 SCN/76606JD09/054 System Performance Check 1900MHz Head 30 11 09 SCN/76606JD09/055 System Performance Check 900MHz Head 30 11 09 SCN/76606JD09/056 System Performance Check 900MHz Head 01 12 09 SCN/76606JD09/057 System Performance Check 1900MHz Body 02 12 09 SCN/76606JD09/058 System Performance Check 900MHz Body 02 12 09 RFI GLOBAL SERVICES LTD Test Report Serial No: RFI/SAR2/RP76606JD09A Page: 37 of 146 Issue Date: 18 December 2009 Test of: NTT docomo P-02B To: OET Bulletin 65 Supplement C: (2001-01) SCN/76606JD09/001: Touch Left EUT Slide Closed With Antenna Retracted PCS CH660 Date 27/11/2009 DUT: Panasonic P-02B; Type: P-02B (Sample C6); Serial: 353155030017714 0 dB = 0.269mW/g Communication System: PCS 1900; Frequency: 1879.8 MHz;Duty Cycle: 1:8.3 Medium: 1900 MHz HSL Medium parameters used (interpolated): f = 1879.8 MHz; σ = 1.43 mho/m; ε r = 39.8; ρ = 1000 kg/m 3 Phantom section: Left Section DASY4 Configuration: - Probe: EX3DV3 - SN3508; ConvF(8.5…

Text truncated - open the document above for the full version.

RFI GLOBAL SERVICES LTD Test Report Serial No: RFI/SAR2/RP76606JD09A Page: 54 of 146 Issue Date: 18 December 2009 Test of: NTT docomo P-02B To: OET Bulletin 65 Supplement C: (2001-01) SCN/76606JD09/018: Touch Left EUT Slide Closed With Antenna Extended FDD V CH4183 Date 01/12/2009 DUT: Panasonic P-02B; Type: P-02B (Sample C6); Serial: 353155030017714 0 dB = 0.107mW/g Communication System: UMTS-FDD V; Frequency: 836.6 MHz;Duty Cycle: 1:1 Medium: 900 MHz HSL Medium parameters used (interpolated): f = 836.6 MHz; σ = 0.93 mho/m; ε r = 40.5; ρ = 1000 kg/m 3 Phantom section: Left Section DASY4 Configuration: - Probe: EX3DV3 - SN3508; ConvF(10.14, 10.14, 10.14); Calibrated: 24/06/2008 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn450; Calibrated: 30/04/2009 - Phantom: SAM 12b; Type: SAM 4.0; Serial: TP:1207 - Measurement SW: DASY4, V4.7 Build 55; Postprocessing SW: SEMCAD, V1.8 Build 176 Touch Left - Middle /Area Scan (61x131x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.108 mW/g Touch Left - Middle /Zoom Scan (5x5x7) (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 8.26 V/m; Power Drift = 0.002 dB Peak SAR (extrapolated) = 0.129 W/kg SAR(1 g) = 0.101 mW/g; SAR(10 g) = 0.077 mW/g Maximum value of SAR (measured) = 0.107 mW/g RFI GLOBAL SERVICES LTD Test Report Serial No: RFI/SAR2/RP76606JD09A Page: 55 of 146 Issue Date: 18 December 2009 Test of: NTT docomo P-02B To: OET Bulletin 65 Supplement C: (2001-01) SCN/76606JD09/019: Touch Left EUT Slide Open With Antenna Retracted FDD V CH4183 Date 30/11/2009 DUT: Panasonic P-02B; Type: P-02B (Sample C6); Serial: 353155030017714 0 dB = 0.431mW/g Communication System: UMTS-FDD V; Frequency: 836.6 MHz;Duty Cycle: 1:1 Medium: 900 MHz HSL Medium parameters used (interpolated): f = 836.6 MHz; σ = 0.93 mho/m; ε r = 40.5; ρ = 1000 kg/m 3 Phantom section: Left Section DASY4 Configuration: - Probe: EX3DV3 - SN3508; ConvF(10.14, 10.14, 10.14); Calibrated: 24/06/2008 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn450; Calibrated: 30/04/2009 - Phantom: SAM 12b; Type: SAM 4.0; Serial: TP:1207 - Measurement SW: DASY4, V4.7 Build 55; Postprocessing SW: SEMCAD, V1.8 Build 176 Touch Left - Middle/Area Scan (61x131x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.433 mW/g Touch Left - Middle/Zoom Scan (5x5x7) (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 6.48 V/m; Power Drift = -0.002 dB Peak SAR (extrapolated) = 0.578 W/kg SAR(1 g) = 0.399 mW/g; SAR(10 g) = 0.263 mW/g Maximum value of SAR (measured) = 0.431 mW/g RFI GLOBAL SERVICES LTD Test Report Serial No: RFI/SAR2/RP76606JD09A Page: 56 of 146 Issue Date: 18 December 2009 Test of: NTT docomo P-02B To: OET Bulletin 65 Supplement C: (2001-01) SCN/76606JD09/020: Touch Left EUT Slide Open With Antenna Extended FDD V CH4183 Date 01/12/2009 DUT: Panasonic P-02B; Type: P-02B (Sample C6); Serial: 353155030017714 0 dB = 0.156mW/g Communication System: UMTS-FDD V; Frequency: 836.6 MHz;Duty Cycle: 1:1 Medium: 900 MHz HSL Medium parameters used (interpolated): f = 836.6 MHz; σ = 0.93 mho/m; ε r = 40.5; ρ = 1000 kg/m 3 Phantom section: Left Section DASY4 Configuration: - Probe: EX3DV3 - SN3508; ConvF(10.14, 10.14, 10.14); Calibrated: 24/06/2008 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn450; Calibrated: 30/04/2009 - Phantom: SAM 12b; Type: SAM 4.0; Serial: TP:1207 - Measurement SW: DASY4, V4.7 Build 55; Postprocessing SW: SEMCAD, V1.8 Build 176 Touch Left - Middle/Area Scan (61x131x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.160 mW/g Touch Left - Middle/Zoom Scan (5x5x7) (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 6.33 V/m; Power Drift = -0.098 dB Peak SAR (extrapolated) = 0.210 W/kg SAR(1 g) = 0.146 mW/g; SAR(10 g) = 0.096 mW/g Maximum value of SAR (measured) = 0.156 mW/g RFI GLOBAL SERVICES LTD Test Report Serial No: RFI/SAR2/RP76606JD09A Page: 57 of 146 Issue Date: 18 December 2009 Test of: NTT docomo P-02B To: OET Bulletin 65 Supplement C: (2001-01) SCN/76606JD09/021: Tilt Left EUT Slide Closed With Antenna Retracted FDD V CH4183 Date 30/11/2009 DUT: Panasonic P-02B; Type: P-02B (Sample C6); Serial: 353155030017714 0 dB = 0.171mW/g Communication System: UMTS-FDD V; Frequency: 836.6 MHz;Duty Cycle: 1:1 Medium: 900 MHz HSL Medium parameters used (interpolated): f = 836.6 MHz; σ = 0.93 mho/m; ε r = 40.5; ρ = 1000 kg/m 3 Phantom section: Left Section DASY4 Configuration: - Probe: EX3DV3 - SN3508; ConvF(10.14, 10.14, 10.14); Calibrated: 24/06/2008 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn450; Calibrated: 30/04/2009 - Phantom: SAM 12b; Type: SAM 4.0; Serial: TP:1207 - Measurement SW: DASY4, V4.7 Build 55; Postprocessing SW: SEMCAD, V1.8 Build 176 Tilt Left - Middle/Area Scan (61x101x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.170 mW/g Tilt Left - Middle/Zoom Scan (5x5x7) (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 11.8 V/m; Power Drift = -0.022 dB Peak SAR (extrapolated) = 0.213 W/kg SAR(1 g) = 0.162 mW/g; SAR(10 g) = 0.118 mW/g Maximum value of SAR (measured) = 0.171 mW/g RFI GLOBAL SERVICES LTD Test Report Serial No: RFI/SAR2/RP76606JD09A Page: 58 of 146 Issue Date: 18 December 2009 Test of: NTT docomo P-02B To: OET Bulletin 65 Supplement C: (2001-01) SCN/76606JD09/022: Tilt Left EUT Slide Closed With Antenna Extended FDD V CH4183 Date 01/12/2009 DUT: Panasonic P-02B; Type: P-02B (Sample C6); Serial: 353155030017714 0 dB = 0.094mW/g Communication System: UMTS-FDD V; Frequency: 836.6 MHz;Duty Cycle: 1:1 Medium: 900 MHz HSL Medium parameters used (interpolated): f = 836.6 MHz; σ = 0.93 mho/m; ε r = 40.5; ρ = 1000 kg/m 3 Phantom section: Left Section DASY4 Configuration: - Probe: EX3DV3 - SN3508; ConvF(10.14, 10.14, 10.14); Calibrated: 24/06/2008 - Sensor-Surface: 4mm …

Text truncated - open the document above for the full version.

RFI GLOBAL SERVICES LTD Test Report Serial No: RFI/SAR2/RP76606JD09A Page: 141 of 146 Issue Date: 18 December 2009 Test of: NTT docomo P-02B To: OET Bulletin 65 Supplement C: (2001-01) Appendix 5. Validation of System Prior to the assessment, the system was verified in the flat region of the phantom. A 900 MHz and 1900 MHz dipole was used. A forward power of 250 mW was applied to the dipole and the system was verified to a tolerance of ±5% for the 900 MHz and 1900 MHz dipole. The applicable verification (normalised to 1 Watt). Date: 30/11/2009 Validation Dipole and Serial Number: D900V2 SN:124 Simulant Frequency (MHz) Room Temperature Liquid Temperature Parameters Target Value Measured Value Deviation (%) Limit (%) ε r 41.50 39.76 -4.20 5.00 σ 0.97 1.00 3.03 5.00 1g SAR 11.00 11.08 0.73 5.00 Head 900 24.0 ºC 23.2 ºC 10g SAR 7.06 7.04 -0.28 5.00 Date: 01/12/2009 Validation Dipole and Serial Number: D900V2 SN:124 Simulant Frequency (MHz) Room Temperature Liquid Temperature Parameters Target Value Measured Value Deviation (%) Limit (%) ε r 41.50 39.76 -4.20 5.00 σ 0.97 1.00 3.03 5.00 1g SAR 11.00 11.16 1.45 5.00 Head 900 24.0 ºC 23.2 ºC 10g SAR 7.06 7.08 0.28 5.00 Simulant Frequency (MHz) Room Temperature Liquid Temperature Parameters Target Value Measured Value Deviation (%) Limit (%) ε r 55.00 54.00 -1.81 5.00 Body 900 24.0 ºC 24.0 ºC σ 1.05 1.02 -2.83 5.00 RFI GLOBAL SERVICES LTD Test Report Serial No: RFI/SAR2/RP76606JD09A Page: 142 of 146 Issue Date: 18 December 2009 Test of: NTT docomo P-02B To: OET Bulletin 65 Supplement C: (2001-01) Date: 02/12/2009 Validation Dipole and Serial Number: D900V2 SN:124 Simulant Frequency (MHz) Room Temperature Liquid Temperature Parameters Target Value Measured Value Deviation (%) Limit (%) ε r 55.00 54.00 -1.81 5.00 σ 1.05 1.02 -2.83 5.00 1g SAR 11.00 10.88 -1.09 5.00 Body 900 24.0 ºC 23.7 ºC 10g SAR 7.16 7.04 -1.68 5.00 Date: 27/11/2009 Validation Dipole and Serial Number: D1900V2:SN:540 Simulant Frequency (MHz) Room Temperature Liquid Temperature Parameters Target Value Measured Value Deviation (%) Limit (%) ε r 40.00 39.70 -0.76 5.00 σ 1.40 1.44 3.10 5.00 1g SAR 40.30 41.20 2.23 5.00 Head 1900 24.0 ºC 23.1 ºC 10g SAR 21.10 21.12 0.09 5.00 Date: 30/11/2009 Validation Dipole and Serial Number: D1900V2:SN:540 Simulant Frequency (MHz) Room Temperature Liquid Temperature Parameters Target Value Measured Value Deviation (%) Limit (%) ε r 40.00 38.40 -3.99 5.00 σ 1.40 1.39 -0.85 5.00 1g SAR 40.30 39.68 -1.54 5.00 Head 1900 24.0 ºC 23.3 ºC 10g SAR 21.10 20.40 -3.32 5.00 Date: 02/12/2009 Validation Dipole and Serial Number: Simulant Frequency (MHz) Room Temperature Liquid Temperature Parameters Target Value Measured Value Deviation (%) Limit (%) ε r 53.30 51.03 -4.26 5.00 σ 1.52 1.52 0.23 5.00 1g SAR 40.90 42.40 3.67 5.00 Body 1900 25.0 ºC 24.0 ºC 10g SAR 21.50 21.84 1.58 5.00 RFI GLOBAL SERVICES LTD Test Report Serial No: RFI/SAR2/RP76606JD09A Page: 143 of 146 Issue Date: 18 December 2009 Test of: NTT docomo P-02B To: OET Bulletin 65 Supplement C: (2001-01) Appendix 6. Simulated Tissues The body mixture consists of water and glycol. Visual inspection is made to ensure air bubbles are not trapped during the mixing process. The mixture is calibrated to obtain proper dielectric constant (permittivity) and conductivity of the tissue. Frequency Ingredient 1800/1900 MHz Body De-Ionised Water 69.79% Diglycol Butyl Ether (DGBE) 30.00% Salt 0.20% Frequency Ingredient 1800/1900 MHz Head De-Ionised Water 55.41% Diglycol Butyl Ether (DGBE) 44.51% Salt 0.08% Frequency Ingredient 835/850/900 MHz Body De-Ionised Water 50.75% Sugar 48.21% Salt 0.94% Kathon 0.10% Frequency Ingredient 835/850/900 MHz Head Propanediol 64.81% De-Ionised Water 34.40% Salt 0.79% RFI GLOBAL SERVICES LTD Test Report Serial No: RFI/SAR2/RP76606JD09A Page: 144 of 146 Issue Date: 18 December 2009 Test of: NTT docomo P-02B To: OET Bulletin 65 Supplement C: (2001-01) Appendix 7. DASY4 System Details A.7.1. DASY4 SAR Measurement System RFI Global Services Ltd, SAR measurement facility utilises the Dosi…

Text truncated - open the document above for the full version.
