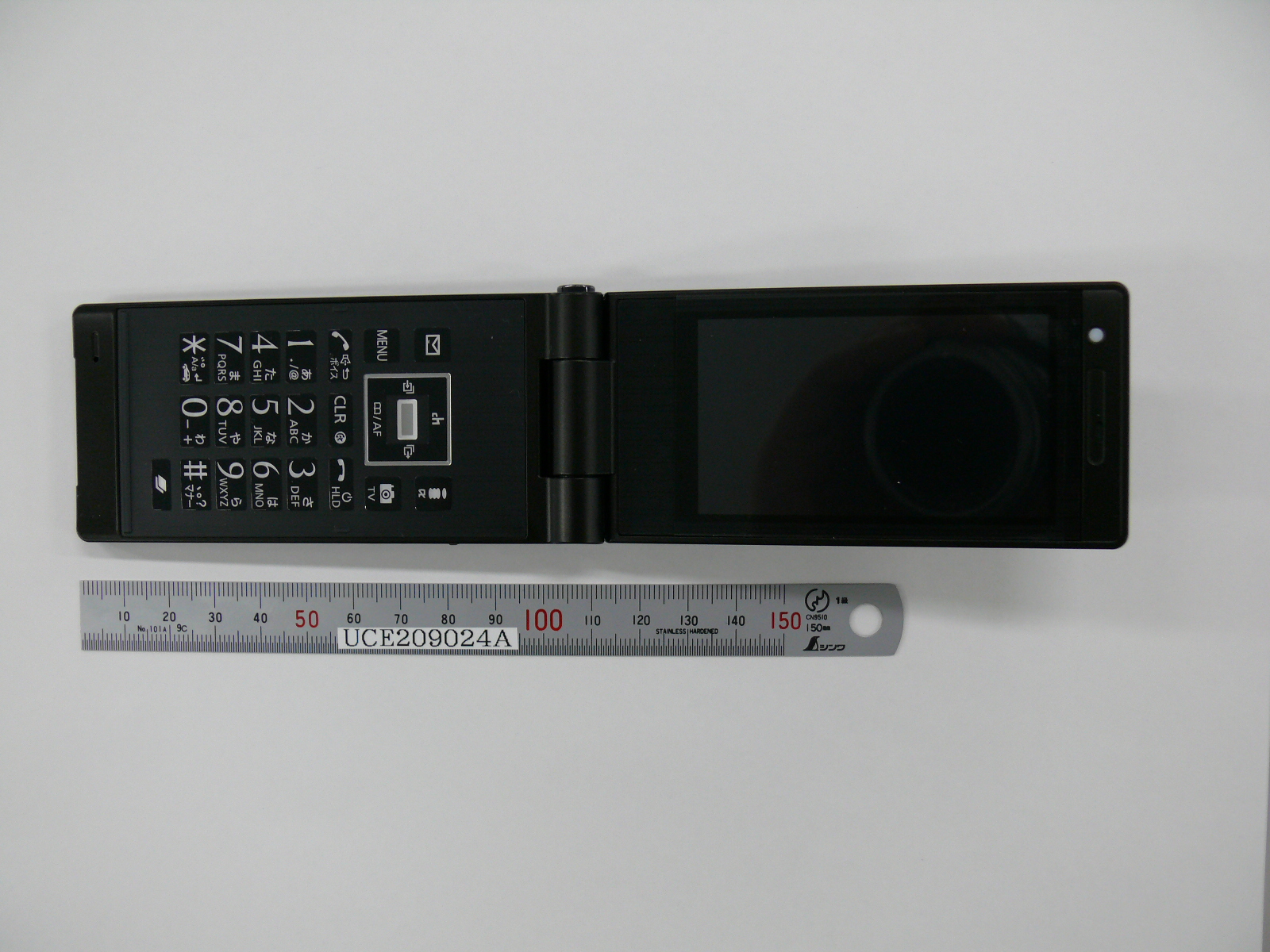

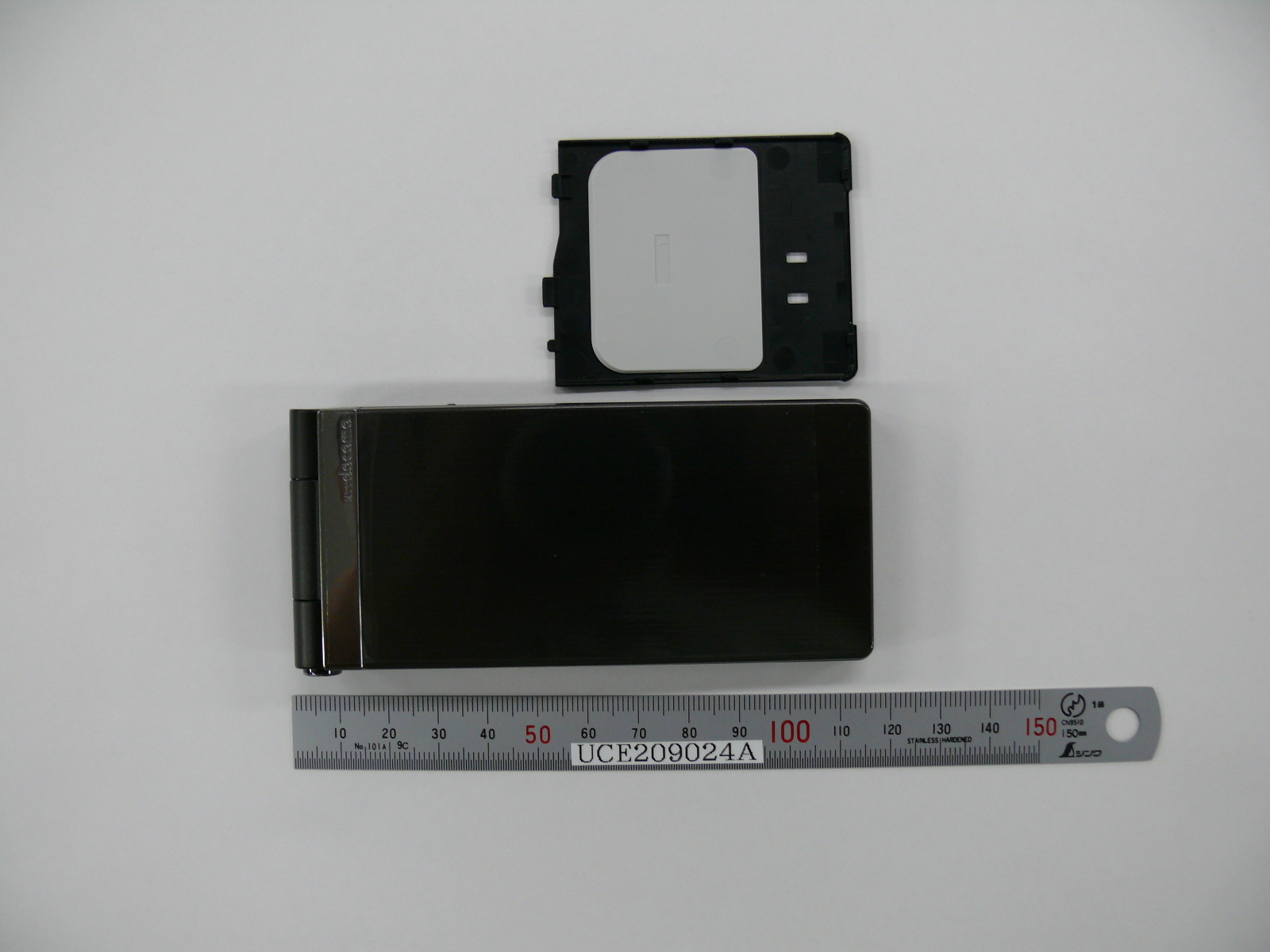

UCE209024ADual mode UMTS / GSM Cellular Mobile Radio with RFID

P-03B INSTRUCTION MANUAL ’10.1 DOCOMO W-CDMA ・ GSM/GPRS System Thank you for selecting the “docomo SMART series P-03B”. Read this manual before use to correctly operate your P-03B. About operation explanation of P-03B The operating procedures for the P-03B are also published in electronic form as in “ 使いかたナビ (Guide)” that is installed onto your FOMA terminal, and “Instruction Manual (Detailed Version)” as a PDF. (In Japanese only) ◆ “Instruction Manual” (this volume) ◆ Description of displayed content and operating procedures for basic functions ◆ “ 使いかたナビ (Guide)” (installed onto your FOMA terminal) ◆ Description of the outline of frequently used functions and of operations From the P-03B +m ▶ LifeKit ▶ 使いかたナビ (Guide) ※ This function is available in Japanese mode only. ◆ “Instruction Manual (Detailed Version)” (PDF) ◆ Use your personal computer to visit the following, and download detailed information about all the functions and their operating procedures. (In Japanese only) http://www.nttdocomo.co.jp/support/trouble/manual/ download/index.html ※ Note that the URL and published contents may be modified without notice. Basic Package ⿠ P-03B Handset (With Warranty and Back Cover P41) ⿠ Battery Pack P21 ⿠ Instruction Manual ⿠ P-03B CD-ROM ⿠ See page 81 for optional items that support this FOMA terminal. For Using This Manual ⿠ Note that “P-03B” is referred to as “FOMA terminal” in this manual. ⿠ Most operating procedures and displays in this manual are described with the default settings of the “SILVER” handset. Further, displays and illustrations described in this manual are for reference. The actual ones might differ. 1 FOMA Terminal ····································2 What You can Do With P-03B ··············3 Part Names and Functions ··················4 Precautions ··········································6 Handling Precautions ························13 Introduction ▶ P.1 ～ Before Using ·····························16 Charging, Power ON/OFF, etc. Screen Explanation ··················20 Viewing Display, etc. Character Entry·························25 Sound/Screen Setting ··············27 Select Ring Tone, Display Setting, etc. Lock/Security ····························32 Security Codes, Various Lock Functions, Reset to Default, etc. Basic Operation ▶ P.16 ～ Call Telephone···························36 Making a Call/Videophone Call, Receiving a Call/Videophone Call, Network Services, WORLD WING, etc. Mail ·············································44 Send i-mode Mail, Deco-mail, Decome-Anime, Receive i-mode Mail, etc. Phonebook ································48 Store Phonebook, Edit Phonebook, Delete Phonebook Connect ▶ P.36 ～ i-mode/Full Browser ·················50 Access Sites, Full Browser, Viewing and Operating Sites i-Channel ···································53 Search ▶ P.50 ～ Camera ······································54 Shoot Still Images/Moving Pictures, etc. 1Seg ···········································56 Watch 1Seg, etc. Music ·········································60 Music&Video Channel, Music Player, etc. i- α ppli ·········································62 Start i- α ppli, etc. i-motion/Movie ··························63 Play i-motion/Movie, etc. Enjoy ▶ P.54 ～ Osaifu-Keitai ·····························64 Osaifu-Keitai/ToruCa i-concier ·····································65 Convenient Tools ······················66 Schedule, Alarm, Bar Code Reader Data Management ·····················68 microSD Card, Infrared Communication, iC Communication More Convenient ▶ P.64 ～ Support ······································74 Troubleshooting, Warranty and After-Sales Service, i-mode Fault Diagnosis Site, Updating Software, etc. Appendix ···································82 Function List, Main Specifications, SAR, Export Administration Regulations, Intellectual Property Right Index ··········································95 Others ▶ P.74 ～ ※ It is prohibited to copy all or part of this manual without permission. ※ The instructions contained in this manual may be changed without notice. Contents Introduction 2 ⿠ Because the FOMA terminal uses a radio wave, you cannot use it in places where the radio wave do not reach, where it is weak even outdoors, or where are out-of-service area, such as inside tunnels, basements, or buildings. You might not able to operate the FOMA terminal even when you are in a place with a fi ne view such as in a high-rise building or apartment. Note that you may experience interruption of calls even if the three antennas respond to a strong radio wave, and you remain without moving to use the FOMA terminal. ⿠ Use the FOMA terminal carefully to avoid disturbing other people when in public, or in crowded or quiet places. ⿠ Since the FOMA terminal uses radio waves as the medium of telecommunication, calls may be tapped by a third party. However, the W-CDMA·GSM/GPRS system automatically supports tapping prevention, so your conversation will be incomprehensible to the third party, because it is recognized as mere noise. ⿠ The FOMA terminals change your voice into digital signals and send them to the other party. In places where the radio waves are weak, the digital signals may not be converted correctly, and in such a case, the voice may sound different from the actual original one. ⿠ The user hereby agrees that the user shall be solely responsible for the result of the use of SSL/TLS. Neither DOCOMO nor the certifi ers as listed herein make any representation and warranty as for the security in the use of SSL/TLS. In the event that the user shall sustain damage or loss due to the use of SSL/TLS, neither DOCOMO nor the certifi ers shall be responsible for any such damage or loss. Certifi ers: VeriSign Japan K.K., Cybertrust Japan Co., Ltd., GlobalSign K.K., RSA Security Japan Ltd., SECOM Trust Systems Co., Ltd., Comodo CA Ltd, and Entrust, Inc. ⿠ This FOMA terminal supports FOMA Plus-Area and FOMA High-Speed Area. ⿠ The FOMA terminal can be used onl…

Text truncated - open the document above for the full version.

Panasonic Mobile Communications Development of Europe limited Willoughby Road, Bracknell, Berkshire, RG12 8FP Tel: +44 (0) 1344 862444 Fax: +44 (0) 1344 706796 VAT Reg No. GB787451290 Web: http:Panasonic.net/pmc Registered in England No. 4188880 Panasonic Mobile Communications Development of Europe Limited 11 th December 2009 Telecommunication Certification Body RFI Global Services Ltd. Pavilion A Ashwood Park Basingstoke Hampshire RG23 8BG United Kingdom Subject: Certification Application FCC ID: UCE209024A It is requested that the following information is held Confidential on behalf of Panasonic Mobile Communications Development of Europe Ltd., on the confidentiality basis outlined below: 1. Permanent Confidentiality (FCC Rules Part 0.459 refers). Exhibit Category Exhibit Filenames Schematic Diagrams P-03B Schematics.pdf Parts list (BOM) P-03B BOM.pdf Block Diagrams P-03B UMTS_GSM RF Block Diagram.pdf P03B RFID Block Diagram.pdf Operational Descriptions * P-03B GSM_UMTS RF Production Spec v1.0.pdf P-03B RF-ID Operational Description.pdf Tune up Information P-03B RF Calibration Spec.pdf The above information contains trade secrets and proprietary information not customarily released to the public. The public disclosure of this information might be harmful to the applicant and provide unjust benefits to its competitors. The applicant understands that pursuant to rule 0.457d, disclosure of this application and all accompanying documentation will not be made before the date of the grant for this application. * The Operational Descriptions contain proprietary information relating to the device implementation used. This information is not customarily released to the public. continued........

RFI Global Services Ltd Pavilion A, Ashwood Park, Ashwood Way, Basingstoke, Hampshire, RG23 8BG Tel: +44 (0) 1256 312000 Fax: +44 (0) 1256 312001 Email: [email protected] Website: www.rfi-global.com Registered in England and Wales Company number: 2117901 Re FCC ID UCE209024A Test Set Up 1 exhibit has been set to short term confidential as per the Confidentiality Request exhibit. This was necessary due to an error in filing the application. The Test Set Up 1 exhibit was available as non confidential for less than one day on 14 December 2009. RFI Global Services TCB 14 December 2009

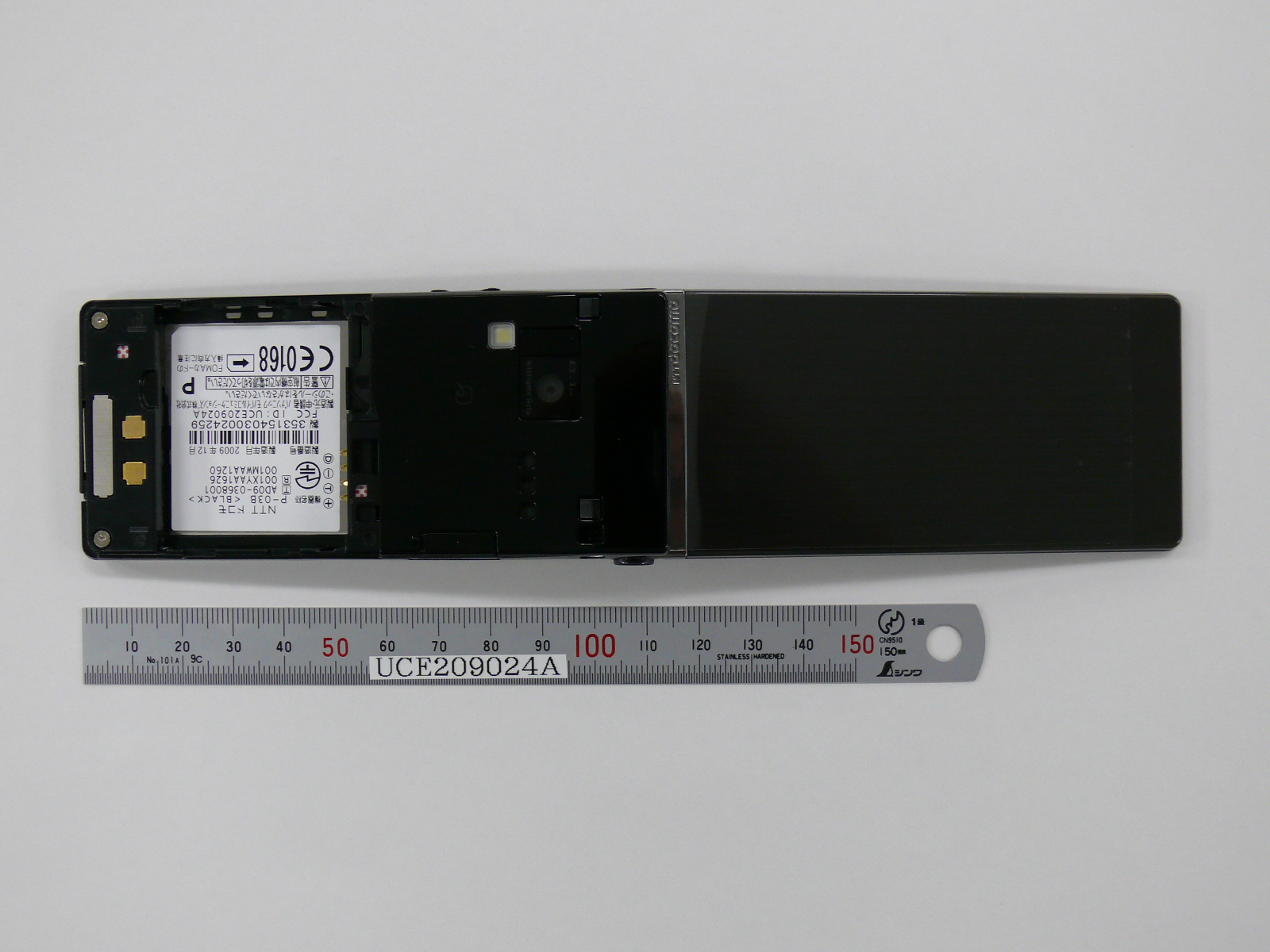

■ ■ P P - - 03B_FCCID Label and Location FCCID 03B_FCCID Label and Location FCCID ： ： UCE20902 UCE20902 4 4 A A ① ①①① Operator Name ② ②②② Model Name ③ ③③③ Color ④ ④④④ ID for JATE ⑤ ⑤⑤⑤ ID for TELEC ⑥ ⑥⑥⑥ Production Year & Month ⑦ ⑦⑦⑦ Bar Code of IMEI ⑧ ⑧⑧⑧ IMEI (Production Serial Number) ① ①①① ② ②②② ③ ③③③ ④ ④④④ ⑤ ⑤⑤⑤ ⑥ ⑥⑥⑥ ⑦ ⑦⑦⑦ ⑧ ⑧⑧⑧ -FCC ID label -Label location Battery Area : Battery is placed in rear side of the phone. Label Area : This outline drawing shows the label in position within the battery compartment.The label is visible to the user at the point of sale prior to fitting the USIM (FOMA Card), battery pack and cover. (Rear View)

TEST REPORT FROM RFI GLOBAL SERVICES LTD Test of: NTT docomo P-03B To: FCC Part 15.225: 2008 Subpart C Test Report Serial No: RFI/RPT2/RP76408JD01A Supercedes Test Report Serial No: RFI/RPT1/RP76408JD01A This Test Report Is Issued Under The Authority Of Brian Watson, Operations Director: Checked By: A. Henriques Signature: Date of Issue: 14 December 2009 This report is issued in Adobe Acrobat portable document format (PDF). It is only a valid copy of the report if it is being viewed in PDF format with the following security options not allowed: Changing the document, Selecting text and graphics, Adding or changing notes and form fields. This report may not be reproduced other than in full, except with the prior written approval of RFI Global Services Ltd. The results in this report apply only to the sample(s) tested. TEST REPORT SERIAL NO: RFI/RPT2/RP76408JD01A ISSUE DATE: 14 DECEMBER 2009 Page 2 of 22 RFI Global Services Ltd This page has been left intentionally blank. TEST REPORT SERIAL NO: RFI/RPT2/RP76408JD01A ISSUE DATE: 14 DECEMBER 2009 RFI Global Services Ltd Page 3 of 22 Table of Contents 1. Customer Information................................................................................................................ 4 2. Summary of Testing................................................................................................................... 5 3. Equipment Under Test (EUT) .................................................................................................... 7 4. Operation and Monitoring of the EUT during Testing ............................................................. 9 5. Measurements, Examinations and Derived Results ...............................................................10 6. Measurement Uncertainty ........................................................................................................21 Appendix 1. Test Equipment Used ..............................................................................................22 TEST REPORT SERIAL NO: RFI/RPT2/RP76408JD01A ISSUE DATE: 14 DECEMBER 2009 Page 4 of 22 RFI Global Services Ltd 1. Customer Information Company Name: Panasonic Mobile Communications Development of Europe Ltd Address: Panasonic House Willoughby Road Bracknell Berkshire RG12 8FP United Kingdom TEST REPORT SERIAL NO: RFI/RPT2/RP76408JD01A ISSUE DATE: 14 DECEMBER 2009 RFI Global Services Ltd Page 5 of 22 2. Summary of Testing 2.1. General Information Specification Reference: 47CFR15.225 Specification Title: Code of Federal Regulations Volume 47 (Telecommunications) 2008: Part 15 Subpart C (Radio Frequency Devices) - Section 15.225 Specification Reference: 47CFR15.107 and 47CFR15.109 Specification Title: Code of Federal Regulations Volume 47 (Telecommunications) 2008: Part 15 Subpart B (Radio Frequency Devices) - Sections 15.107 and 15.109 Site Registration: FCC: 209735 Location of Testing: RFI Global Services Ltd, Wade Road, Basingstoke, Hampshire, RG24 8AH. Test Dates: 24 November to 10 December 2009 TEST REPORT SERIAL NO: RFI/RPT2/RP76408JD01A ISSUE DATE: 14 DECEMBER 2009 Page 6 of 22 RFI Global Services Ltd 2.2. Summary of Test Results FCC Reference (47CFR) Measurement Port Type Result Part 15.107(a) Receiver / Idle Mode AC Conducted Spurious Emissions AC Mains Part 15.109(a) 15.225(d) Receiver / Idle Mode Radiated Spurious Emissions Enclosure Part 15.225(a)(b)(c)(d) Transmitter Fundamental Field Strength Antenna Part 15.209(a), 15.225(d) Transmitter Radiated Spurious Emissions Antenna Part 15.209(a) 15.225(c)(d) Transmitter Band Edge Radiated Emissions Antenna Part 2.1049 Transmitter 20 dB Bandwidth Antenna Part 15.225(e) Transmitter Frequency Stability (Temperature & Voltage Variation) Antenna Key to Results = Complied = Did not comply 2.3. Methods and Procedures Reference: ANSI C63.4 (2003) Title: American National Standard Methods of Measurement of Electromagnetic Emissions from Low Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz. 2.4. Deviations from the Test Specification For the measurements contained within this test report, there were no deviations from, additions to, or exclusions from the test specification identified above. TEST REPORT SERIAL NO: RFI/RPT2/RP76408JD01A ISSUE DATE: 14 DECEMBER 2009 RFI Global Services Ltd Page 7 of 22 3. Equipment Under Test (EUT) 3.1. Identification of Equipment Under Test (EUT) Brand Name: NTT docomo Model Name or Number: P-03B IMEI Number: 353154030008237 Hardware Version Number: Rev D Software Version Number: B-D92CS1-001.02.003 D92CS1-Cv38161807 FCC ID Number: UCE209024A Description: AC Charger Brand Name: NTT docomo Model Name or Number: FOMA AC Adapter 01 for Global use / MAS-BH0008-A 002 Description: DC Charger Brand Name: NTT docomo Model Name or Number: FOMA DC Adapter 02 Description: Charge/USB Data cable Brand Name: NTT docomo Model Name or Number: FOMA USB Cable with Charge Function 02 Description: Personal Hands-Free Brand Name: NTT docomo Model Name or Number: Stereo Earphone Set 01 Description: Battery Brand Name: NTT docomo Model Name or Number: P21 Description: Micro SD memory card Brand Name: Not Stated Model Name or Number: Not Stated 3.2. Description of EUT The equipment under test was a dual mode UMTS/GSM cellular handset with RFID TEST REPORT SERIAL NO: RFI/RPT2/RP76408JD01A ISSUE DATE: 14 DECEMBER 2009 Page 8 of 22 RFI Global Services Ltd 3.3. Modifications Incorporated in the EUT No modifications were applied to the EUT during testing. 3.4. Additional Information Related to Testing Technology Tested: RFID Channel Spacing: Single channel device Transmit Frequency: 13.56 MHz Receive Frequency: 13.56 MHz Minimum (V) 3.4 Nominal (V) 3.7 Power Supply Requirement(s): Maximum (V) 4.2 Minimum (Temp): -20 Tested Temperature (° °° °C): Maximum (Temp) +50 3.5. Support Equipment The following support equipment was used to exercise the EUT during testing: Description: Dummy battery Model Name or Number: Not stated Serial Numb…
