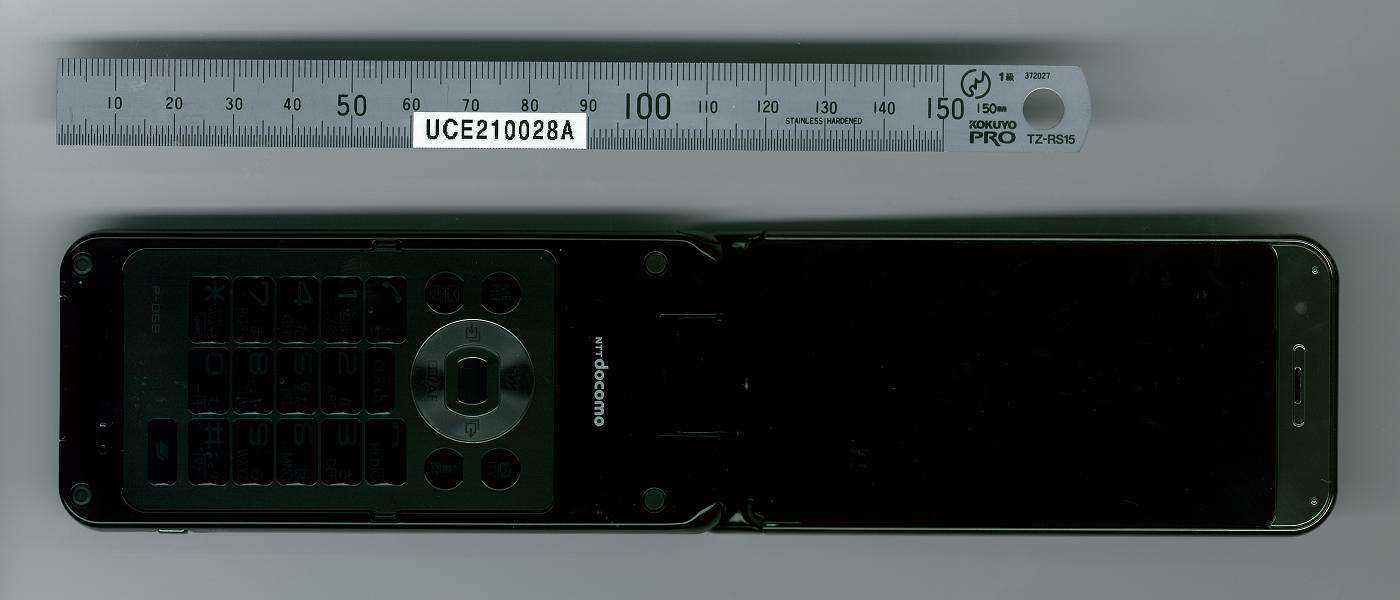

UCE210028AUMTS/ GSM Cellular Mobile with Bluetooth� and RFID

P-06B INSTRUCTION MANUAL ’10.7 DOCOMO W-CDMA ・ GSM/GPRS System Thank you for selecting the “docomo STYLE series P-06B”. Read this manual before use to correctly operate your P-06B. About operation explanation of P-06B The operating procedures for the P-06B are also published in electronic form as in “ 使いかたガイド (Guide)” that is installed onto your FOMA terminal, and “Instruction Manual (Detailed Version)” as a PDF. (In Japanese only) ◆ “Instruction Manual” (this volume) ◆ Description of displayed content and operating procedures for basic functions ◆ “ 使いかたガイド (Guide)” (installed onto your FOMA terminal) ◆ Description of the outline of frequently used functions and of operations From the P-06B +m ▶ 便利ツール (Tool) ▶ 使いかたガイド (Guide) ※ This function is available in Japanese mode only. ◆ “Instruction Manual (Detailed Version)” (PDF) ◆ Use your personal computer to visit the following, and download detailed information about all the functions and their operating procedures. (In Japanese only) http://www.nttdocomo.co.jp/support/trouble/manual/ download/index.html ※ Note that the URL and published contents may be modified without notice. Basic Package ⿠ P-06B Handset (With Warranty and Back Cover P44) ⿠ See page 99 for optional items that support this FOMA terminal. For Using This Manual ⿠ Note that “P-06B” is referred to as “FOMA terminal” in this manual. ⿠ Most operating procedures and displays in this manual are described with the default settings of the “Black” handset. Further, displays and illustrations described in this manual are for reference. The actual ones might differ. ⿠ Most operating procedures and displays in this manual are described when the FOMA terminal is in Normal Style. See page 32 for the operations in VIewer Style (Touch panel). ⿠ Instruction Manual (Japanese version) ⿠ P-06B CD-ROM ⿠ Touch Pen P01 ⿠ Battery Pack P22 ⿠ Desktop Holder P40 1 FOMA Terminal ····································2 What You can Do with P-06B ···············3 Part Names and Functions ··················4 Styles ···················································6 Precautions ··········································7 Handling Precautions ························15 Waterproof Performance ···················18 Introduction ▶ P.1 ～ Precautions for UIM ··················13 Charging, Power ON/OFF, etc. Screen Explanation ··················27 Viewing Display/Icon, etc. Character Entry·························36 Sound/Screen Setting ··············38 Select Ring Tone, Changing Displays, etc. List of materials used ···············14 Various Security Codes, Various Lock Functions, Reset to Default, etc. Basic Operation ▶ P.23 ～ Call Telephone···························48 Making a Call/Videophone Call, Receiving a Call/Videophone Call, Network Services, WORLD WING, etc. Mail ·············································56 Send i-mode Mail, Deco-mail, Decome-Anime, Receive i-mode Mail, Area Mail, etc. Phonebook ································61 Store Phonebook, Edit Phonebook, Delete Phonebook Connect ▶ P.48 ～ i-mode/Full Browser ·················63 Access Sites, Full Browser, Viewing and Operating Sites, Add Bookmark, Screen Memo, etc. i-Channel ···································66Map/GPS ····································66 Using Auto-GPS Search ▶ P.63 ～ Camera ······································69 Shoot Still Images/Moving Pictures, etc. 1Seg ···········································72 Watch 1Seg, etc. Music ·········································76 Music&Video Channel, Music Player, etc. i- α ppli/i-Widget ·························78 Starting i- α ppli, etc. i-motion/Movie ··························80 Play i-motion/Movie, etc. Enjoy ▶ P.69 ～ Osaifu-Keitai ·····························81 Osaifu-Keitai/ToruCa i-concier ·····································82 Displaying i-concier Screen, etc. Convenient Tools ······················83 Schedule, Alarm, Bar Code Reader, Bluetooth Data Management ·····················87 microSD Card, Infrared Communication, iC Communication, PC Connection More Convenient ▶ P.81 ～ Support ······································92 Troubleshooting, Warranty and After-sales Service, i-mode Fault Diagnosis Site, Updating Software, etc. Appendix ·································100 Function List, Main Specifications, SAR, Export Administration Regulations, Intellectual Property Right Index ········································113 Others ▶ P.92 ～ ※ It is prohibited to copy all or part of this manual without permission. ※ The instructions contained in this manual may be changed without notice. Contents Introduction 2 ⿠ Because the FOMA terminal uses a radio wave, you cannot use it in places where the radio wave do not reach, where it is weak even outdoors, or where are out-of-service area, such as inside tunnels, basements, or buildings. You might not be able to operate the FOMA terminal even when you are in a place with a fi ne view such as in a high-rise building or apartment. Note that you may experience interruption of calls even if the three antennas respond to a strong radio wave, and you remain without moving to use the FOMA terminal. ⿠ Use the FOMA terminal carefully to avoid disturbing other people when in public, or in crowded or quiet places. ⿠ Since the FOMA terminal uses radio waves as the medium of telecommunication, calls may be tapped by a third party. However, the W-CDMA·GSM/GPRS system automatically supports tapping prevention, so your conversation will be incomprehensible to the third party, because it is recognized as mere noise. ⿠ The FOMA terminals change your voice into digital signals and send them to the other party. In places where the radio waves are weak, the digital signals may not be converted correctly, and in such a case, the voice may sound different from the actual original one. ⿠ The user hereby agrees that the user shall be solely responsible for the result of the use of SSL/TLS. Neither DOCOMO nor the certifi ers as listed herein make any …

Text truncated - open the document above for the full version.

Panasonic Mobile Communications Development of Europe limited Willoughby Road, Bracknell, Berkshire, RG12 8FP Tel: +44 (0) 1344 862444 Fax: +44 (0) 1344 706796 VAT Reg No. GB787451290 Web: http:Panasonic.net/pmc Registered in England No. 4188880 Panasonic Mobile Communications Development of Europe Limited 28 th May 2010 Telecommunication Certification Body RFI Global Services Ltd. Pavilion A Ashwood Park Basingstoke Hampshire RG23 8BG United Kingdom Subject: Certification Application FCC ID: UCE210028A It is requested that the following information is held Confidential on behalf of Panasonic Mobile Communications Development of Europe Ltd., on the confidentiality basis outlined below: 1. Permanent Confidentiality (FCC Rules Part 0.459 refers). Exhibit Category Exhibit Filenames Schematic Diagrams P-06B Schematics.pdf Parts list (BOM) P-06B BOM.pdf Block Diagrams P-06B GSM_UMTS RF Block Diagram.pdf P-06B RFID Block Diagram.pdf P-06B BT Block Diagram.pdf Operational Descriptions * P-06B GSM_UMTS RF Product Specification.pdf P-06B RFID Operational Description.pdf P-06B Bluetooth Operational Description.pdf Tune up Information P-06B RF Calibration Spec.pdf The above information contains trade secrets and proprietary information not customarily released to the public. The public disclosure of this information might be harmful to the applicant and provide unjust benefits to its competitors. The applicant understands that pursuant to rule 0.457d, disclosure of this application and all accompanying documentation will not be made before the date of the grant for this application. * The Operational Descriptions contain proprietary information relating to the device implementation used. This information is not customarily released to the public. continued........

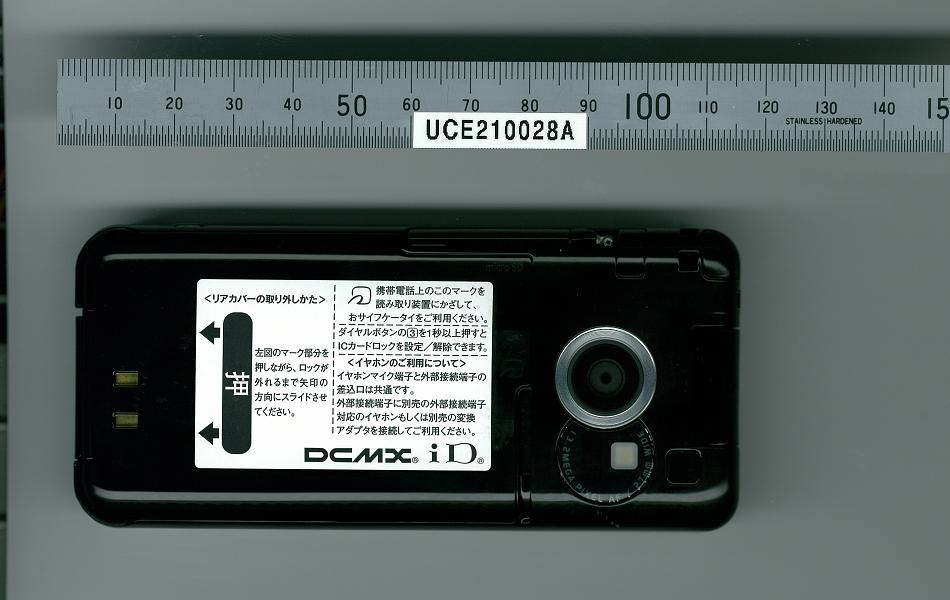

This outline drawing showsthe label in position withinthe battery compartment.The label is visible to theuser at the point of saleprior to fitting the USIM,battery pack and cover.Battery is placed inrear side of the phoneLabel Area :Battery Area : ① Operator Name ② Model Name ③ Color ④ ID for JATE ⑤ ID for TELEC ⑥ Production Year & Month ⑦ Bar Code of IMEI ⑧ IMEI (Production Serial Number) P-06B FCC ID Label and Location FCC ID:UCE210028A FCC ID label Label location (Rear View) ① ② ③ ④ ⑤ ⑥ ⑦ ⑧

TEST REPORT FROM RFI GLOBAL SERVICES LTD Test of: P-06B To: OET Bulletin 65 Supplement C: (2001-01) Test Report Serial No: RFI/SAR1/RP77775JD09A This Test Report Is Issued Under The Authority Of Scott D’Adamo, Operations Manager Global Approvals: Checked By: Richelieu Quoi Report Copy No: PDF01 Issue Date: 26 May 2010 Test Dates: 13 May 2010 to 18 May 2010 The Bluetooth® word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by RFI Global Services Ltd. is under license. Other trademarks and trade names are those of their respective owners. This report is issued in Adobe Acrobat portable document format (PDF). It is only a valid copy of the report if it is being viewed in PDF format with the following security options not allowed: Changing the document, Selecting text and graphics, Adding or changing notes and form fields. This report may be copied in full. The results in this report apply only to the sample(s) tested. RFI GLOBAL SERVICES LTD Test Report Serial No: RFI/SAR1/RP77775JD09A Page: 2 of 129 Issue Date: 26 May 2010 Test of: P-06B To: OET Bulletin 65 Supplement C: (2001-01) This page has been left intentionally blank. RFI GLOBAL SERVICES LTD Test Report Serial No: RFI/SAR1/RP77775JD09A Page: 3 of 129 Issue Date: 26 May 2010 Test of: P-06B To: OET Bulletin 65 Supplement C: (2001-01) Table of Contents 1. Customer Information ...................................................................................................... 4 2. Equipment Under Test (EUT) ........................................................................................... 5 3. Test Specification, Methods and Procedures ................................................................ 9 4. Deviations from the Test Specification ........................................................................ 10 5. Operation and Configuration of the EUT during Testing ............................................ 11 6. Summary of Test Results............................................................................................... 13 7. Measurements, Examinations and Derived Results.................................................... 14 8. Measurement Uncertainty.............................................................................................. 26 Appendix 1. Test Equipment Used.................................................................................... 31 Appendix 2. Measurement Methods ................................................................................. 34 Appendix 3. SAR Distribution Scans ................................................................................ 36 Appendix 4. Photographs .................................................................................................. 80 Appendix 5. Validation of System ................................................................................... 124 Appendix 6. Simulated Tissues....................................................................................... 126 Appendix 7. DASY4 System Details ................................................................................ 127 RFI GLOBAL SERVICES LTD Test Report Serial No: RFI/SAR1/RP77775JD09A Page: 4 of 129 Issue Date: 26 May 2010 Test of: P-06B To: OET Bulletin 65 Supplement C: (2001-01) 1. Customer Information Company Name: Panasonic Mobile Comms Dev of Europe Ltd. Address: Panasonic House Willoughby Road Bracknell Berkshire RG12 8FP United Kingdom RFI GLOBAL SERVICES LTD Test Report Serial No: RFI/SAR1/RP77775JD09A Page: 5 of 129 Issue Date: 26 May 2010 Test of: P-06B To: OET Bulletin 65 Supplement C: (2001-01) 2. Equipment Under Test (EUT) 2.1. Identification of Equipment Under Test (EUT) Description: Mobile Handset Brand Name: NTT docomo Model Name or Number: P-06B Serial Number: None Stated (Sample C6) IMEI Number: 358864030023375 Hardware Version Number: Rev C Software Version Number: B-D01SW1-01.04.001 D01SW1_Cv60.05.24.02 Hardware Revision of GSM Module: Not applicable Software Revision of GSM Module: Not applicable FCC ID Number: UCE210028A Country of Manufacture: None Stated Date of Receipt: 12 May 2010 2.2. Description of EUT The equipment under test was a dual mode cellular mobile telephone with PCS, UMTS FDD V and UMTS Release 5 HSDPA capabilities, incorporating Bluetooth and RFID. The Cellular Mobile Telephone operates on PCS / GPRS Class 10 1900 MHz Band, UMTS/UMTS Release 5 HSDPA 850 MHz Band, Bluetooth 2400 MHz Band and RFID 13.5 MHz Band. 2.3. Modifications Incorporated in the EUT There were no modifications incorporated in the EUT during testing. RFI GLOBAL SERVICES LTD Test Report Serial No: RFI/SAR1/RP77775JD09A Page: 6 of 129 Issue Date: 26 May 2010 Test of: P-06B To: OET Bulletin 65 Supplement C: (2001-01) 2.4. Accessories The following accessories were supplied with the EUT during testing: Description: Battery Brand Name: NTT Model Name or Number: P22 Serial Number: None Stated Cable Length and Type: Not Applicable Country of Manufacture: None Stated Connected to Port 3 point contact Description: Personal Hands-Free Brand Name: NTT docomo Model Name or Number: Stereo Earphone Set 01 Serial Number: None Stated Cable Length and Type: ~1.8m / multi-core Country of Manufacture: None Stated Connected to Port AV Out Port Unique to Manufacturer Description: Micro-SD Memory Card Brand Name: None Stated Model Name or Number: None Stated Serial Number: None Stated Cable Length and Type: Not applicable Country of Manufacture: None Stated Connected to Port Dedicated micro-SD card port RFI GLOBAL SERVICES LTD Test Report Serial No: RFI/SAR1/RP77775JD09A Page: 7 of 129 Issue Date: 26 May 2010 Test of: P-06B To: OET Bulletin 65 Supplement C: (2001-01) 2.5. Support Equipment The following support equipment was used to exercise the EUT during testing: Description: Wireless Communication Test Set Brand Name: Agilent Model Name or Number: 8960 Series 10 Serial Number: GB46311280 Cable Length and Type: ~2.0 m Utiflex RF cab…

Text truncated - open the document above for the full version.

RFI GLOBAL SERVICES LTD Test Report Serial No: RFI/SAR1/RP77775JD09A Page: 36 of 129 Issue Date: 26 May 2010 Test of: P-06B To: OET Bulletin 65 Supplement C: (2001-01) Appendix 3. SAR Distribution Scans This appendix contains SAR distribution scans which are not included in the total number of pages for this report. Scan Reference Number Title SCN/77775JD09/001 Touch Left With Antenna Retracted FDD V CH4183 SCN/77775JD09/002 Touch Left With Antenna Extended FDD V CH4183 SCN/77775JD09/003 Tilt Left With Antenna Retracted FDD V CH4183 SCN/77775JD09/004 Tilt Left With Antenna Extended FDD V CH4183 SCN/77775JD09/005 Touch Right Using Flat Section With Antenna Retracted FDD V CH4183 SCN/77775JD09/006 Touch Right Using Flat Section With Antenna Extended FDD V CH4183 SCN/77775JD09/007 Tilt Right With Antenna Retracted FDD V CH4183 SCN/77775JD09/008 Tilt Right With Antenna Extended FDD V CH4183 SCN/77775JD09/009 Front of EUT Facing Phantom With Antenna Retracted FDD V CH4183 SCN/77775JD09/010 Front of EUT Facing Phantom With Antenna Extended FDD V CH4183 SCN/77775JD09/011 Rear of EUT Facing Phantom With Antenna Retracted FDD V CH4183 SCN/77775JD09/012 Rear of EUT Facing Phantom With Antenna Extended FDD V CH4183 SCN/77775JD09/013 EUT Screen Swivel Closed & Display Facing Phantom With Antenna Retracted FDD V CH4183 SCN/77775JD09/014 EUT Screen Swivel Closed & Display Facing Phantom With Antenna Extended FDD V CH4183 SCN/77775JD09/015 EUT Screen Swivel Closed & Rear Facing Phantom With Antenna Retracted FDD V CH4183 SCN/77775JD09/016 EUT Screen Swivel Closed & Rear Facing Phantom With Antenna Extended FDD V CH4183 SCN/77775JD09/017 EUT Screen Swivel Closed & Rear Facing Phantom Antenna Retracted With PHF FDD V CH4183 SCN/77775JD09/018 EUT Screen Swivel Closed & Rear Facing Phantom With Antenna Retracted FDD V + HSDPA CH4183 SCN/77775JD09/019 Touch Left With Antenna Retracted PCS CH660 SCN/77775JD09/020 Touch Left With Antenna Extended PCS CH660 SCN/77775JD09/021 Tilt Left With Antenna Retracted PCS CH660 SCN/77775JD09/022 Tilt Left With Antenna Extended PCS CH660 SCN/77775JD09/023 Touch Right Using Flat Section With Antenna Retracted PCS CH660 SCN/77775JD09/024 Touch Right Using Flat Section With Antenna Extended PCS CH660 SCN/77775JD09/025 Tilt Right With Antenna Retracted PCS CH660 SCN/77775JD09/026 Tilt Right With Antenna Extended PCS CH660 RFI GLOBAL SERVICES LTD Test Report Serial No: RFI/SAR1/RP77775JD09A Page: 37 of 129 Issue Date: 26 May 2010 Test of: P-06B To: OET Bulletin 65 Supplement C: (2001-01) Scan Reference Number Title SCN/77775JD09/027 Front of EUT Facing Phantom With Antenna Retracted GPRS CH660 SCN/77775JD09/028 Front of EUT Facing Phantom With Antenna Extended GPRS CH660 SCN/77775JD09/029 Rear of EUT Facing Phantom With Antenna Retracted GPRS CH660 SCN/77775JD09/030 Rear of EUT Facing Phantom With Antenna Extended GPRS CH660 SCN/77775JD09/031 EUT Screen Swivel Closed & Display Facing Phantom With Antenna Retracted GPRS CH660 SCN/77775JD09/032 EUT Screen Swivel Closed & Display Facing Phantom With Antenna Extended GPRS CH660 SCN/77775JD09/033 EUT Screen Swivel Closed & Rear Facing Phantom With Antenna Retracted GPRS CH660 SCN/77775JD09/034 EUT Screen Swivel Closed & Rear Facing Phantom With Antenna Extended GPRS CH660 SCN/77775JD09/035 Rear of EUT Facing Phantom Antenna Extended With PHF GPRS CH660 SCN/77775JD09/036 Rear of EUT Facing Phantom With Antenna Extended PCS CH660 SCN/77775JD09/037 System Performance Check 900MHz Head 18 05 10 SCN/77775JD09/038 System Performance Check 900MHz Body 17 05 10 SCN/77775JD09/039 System Performance Check 900MHz Body 18 05 10 SCN/77775JD09/040 System Performance Check 1900MHz Head 13 05 10 SCN/77775JD09/041 System Performance Check 1900MHz Head 14 05 10 SCN/77775JD09/042 System Performance Check 1900MHz Body 13 05 10 RFI GLOBAL SERVICES LTD Test Report Serial No: RFI/SAR1/RP77775JD09A Page: 38 of 129 Issue Date: 26 May 2010 Test of: P-06B To: OET Bulletin 65 Supplement C: (2001-01) SCN/77775JD09/001: Touch Left With Antenna Retracted FDD V CH4183 Date 18/05/2010 DUT: Panasonic P-06B; Type: P-06B (Sample C6); Serial: 358864030023375 0 dB = 0.678mW/g Communication System: UMTS-FDD V; Frequency: 836.6 MHz;Duty Cycle: 1:1 Medium: 900 MHz HSL Medium parameters used (interpolated): f = 836.6 MHz; σ = 0.93 mho/m; ε r = 40.4; ρ = 1000 kg/m 3 Phantom section: Left Section DASY4 Configuration: - Probe: EX3DV3 - SN3508; ConvF(9.76, 9.76, 9.76); Calibrated: 26/06/2009 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn394; Calibrated: 19/04/2010 - Phantom: SAM 12a; Type: SAM 4.0; Serial: TP:1193 - Measurement SW: DASY4, V4.7 Build 55; Postprocessing SW: SEMCAD, V1.8 Build 176 Touch Left - Middle/Area Scan (81x181x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.760 mW/g Touch Left - Middle/Zoom Scan (5x5x7) (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 3.55 V/m; Power Drift = -0.409 dB Peak SAR (extrapolated) = 1.38 W/kg SAR(1 g) = 0.638 mW/g; SAR(10 g) = 0.346 mW/g Maximum value of SAR (measured) = 0.678 mW/g RFI GLOBAL SERVICES LTD Test Report Serial No: RFI/SAR1/RP77775JD09A Page: 39 of 129 Issue Date: 26 May 2010 Test of: P-06B To: OET Bulletin 65 Supplement C: (2001-01) SCN/77775JD09/002: Touch Left With Antenna Extended FDD V CH4183 Date 18/05/2010 DUT: Panasonic P-06B; Type: P-06B (Sample C6); Serial: 358864030023375 0 dB = 0.728mW/g Communication System: UMTS-FDD V; Frequency: 836.6 MHz;Duty Cycle: 1:1 Medium: 900 MHz HSL Medium parameters used (interpolated): f = 836.6 MHz; σ = 0.93 mho/m; ε r = 40.4; ρ = 1000 kg/m 3 Phantom section: Left Section DASY4 Configuration: - Probe: EX3DV3 - SN3508; ConvF(9.76, 9.76, 9.76); Calibrated: 26/06/2009 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn394; Calibrated: 19/04/2010 - Phantom: SAM 12a; Type: SAM 4.0; Serial: TP:1193 - Measurement SW: DASY4, V4.7 Build 55; Postprocessing SW: SEMCAD, V1.8 B…

Text truncated - open the document above for the full version.

RFI GLOBAL SERVICES LTD Test Report Serial No: RFI/SAR1/RP77775JD09A Page: 124 of 129 Issue Date: 26 May 2010 Test of: P-06B To: OET Bulletin 65 Supplement C: (2001-01) Appendix 5. Validation of System Prior to the assessment, the system was verified in the flat region of the phantom. A 900 & 1900 MHz dipole was used. A forward power of 250 mW was applied to the dipole and the system was verified to a tolerance of ±5% for the 900 & 1900 MHz dipole. The applicable verification (normalised to 1 Watt). Date: 18/05/2010 Validation Dipole and Serial Number: D900V2 SN:124 Simulant Frequency (MHz) Room Temperature Liquid Temperature Parameters Target Value Measured Value Deviation (%) Limit (%) ε r 41.50 39.67 -4.40 5.00 σ 0.97 1.00 3.36 5.00 1g SAR 11.00 11.28 2.55 5.00 Head 900 24.0 ºC 23.8 ºC 10g SAR 7.06 7.16 1.42 5.00 Date: 17/05/2010 Validation Dipole and Serial Number: D900V2 SN:124 Simulant Frequency (MHz) Room Temperature Liquid Temperature Parameters Target Value Measured Value Deviation (%) Limit (%) ε r 55.00 54.73 -0.50 5.00 σ 1.05 1.06 0.91 5.00 1g SAR 11.00 11.36 3.27 5.00 Body 900 24.0 ºC 23.7 ºC 10g SAR 7.16 7.32 2.23 5.00 Date: 18/05/2010 Validation Dipole and Serial Number: D900V2 SN:124 Simulant Frequency (MHz) Room Temperature Liquid Temperature Parameters Target Value Measured Value Deviation (%) Limit (%) ε r 55.00 54.73 -0.50 5.00 σ 1.05 1.06 0.91 5.00 1g SAR 11.00 11.40 3.64 5.00 Body 900 24.0 ºC 23.7 ºC 10g SAR 7.16 7.36 2.79 5.00 RFI GLOBAL SERVICES LTD Test Report Serial No: RFI/SAR1/RP77775JD09A Page: 125 of 129 Issue Date: 26 May 2010 Test of: P-06B To: OET Bulletin 65 Supplement C: (2001-01) Date: 13/05/2010 Validation Dipole and Serial Number: D1900V2:SN:540 Simulant Frequency (MHz) Room Temperature Liquid Temperature Parameters Target Value Measured Value Deviation (%) Limit (%) ε r 40.00 40.39 0.98 5.00 σ 1.40 1.46 3.95 5.00 1g SAR 40.30 41.20 2.23 5.00 Head 1900 24.0 ºC 23.2 ºC 10g SAR 21.10 21.32 1.04 5.00 Date: 14/05/2010 Validation Dipole and Serial Number: D1900V2:SN:540 Simulant Frequency (MHz) Room Temperature Liquid Temperature Parameters Target Value Measured Value Deviation (%) Limit (%) ε r 40.00 40.39 0.98 5.00 σ 1.40 1.46 3.95 5.00 1g SAR 40.30 41.60 3.23 5.00 Head 1900 24.0 ºC 23.2 ºC 10g SAR 21.10 21.40 1.42 5.00 Date: 13/05/2010 Validation Dipole and Serial Number: D1900V2:SN:540 Simulant Frequency (MHz) Room Temperature Liquid Temperature Parameters Target Value Measured Value Deviation (%) Limit (%) ε r 53.30 50.85 -4.61 5.00 σ 1.52 1.54 1.42 5.00 1g SAR 40.90 40.40 -1.22 5.00 Body 1900 24.0 ºC 24.0 ºC 10g SAR 21.50 20.76 -3.44 5.00 RFI GLOBAL SERVICES LTD Test Report Serial No: RFI/SAR1/RP77775JD09A Page: 126 of 129 Issue Date: 26 May 2010 Test of: P-06B To: OET Bulletin 65 Supplement C: (2001-01) Appendix 6. Simulated Tissues The body mixture consists of water and glycol. Visual inspection is made to ensure air bubbles are not trapped during the mixing process. The mixture is calibrated to obtain proper dielectric constant (permittivity) and conductivity of the tissue. Frequency Ingredient 835/850/900 MHz Head Propanediol 64.81% De-Ionised Water 34.40% Salt 0.79% Frequency Ingredient 835/850/900 MHz Body De-Ionised Water 50.75% Sugar 48.21% Salt 0.94% Kathon 0.10% Frequency Ingredient 1800/1900 MHz Head De-Ionised Water 55.41% Diglycol Butyl Ether (DGBE) 44.51% Salt 0.08% Frequency Ingredient 1800/1900 MHz Body De-Ionised Water 69.79% Diglycol Butyl Ether (DGBE) 30.00% Salt 0.20% RFI GLOBAL SERVICES LTD Test Report Serial No: RFI/SAR1/RP77775JD09A Page: 127 of 129 Issue Date: 26 May 2010 Test of: P-06B To: OET Bulletin 65 Supplement C: (2001-01) Appendix 7. DASY4 System Details A.7.1. DASY4 SAR Measurement System RFI Global Services Ltd, SAR measurement facility utilises the Dosimetric Assessment System (DASY™) manufactured by Schmid & Partner Engineering AG (SPEAG™) of Zurich, Switzerland. The DASY4 system is comprised of the robot controller, computer, near-field probe, probe alignment sensor, and the SAM phantom containing brain or muscle equivalent material. The robot is a six-axis industrial robot performing precise movements to position the probe to the location (points) of maximum electromagnetic field (EMF). A cell controller system contains the power supply, robot controller; teach pendant (Joystick), and remote control. This is used to drive the robot motors. The Staubli robot is connected to the cell controller to allow software manipulation of the robot. The data acquisition electronics (DAE) performs signal amplification, signal multiplexing, AD-conversion, offset measurements, mechanical surface detection, collision detection etc. The DAE is connected to the Electro-optical coupler (EOC). The EOC performs the conversion from the optical into digital electric signal of the DAE and transfers data to the PC plug-in card. The DAE3 utilises a highly sensitive electrometer-grade preamplifier with auto-zeroing, a channel and gain-switching mulitplexer, a fast 16-bit AD-converter and a command decoder and control logic unit. Transmission to the PC-card is accomplished through an optical downlink for data and status information and an optical uplink for commands and clock lines. The mechanical probe-mounting device includes two different sensor systems for frontal and sidewise probe contacts. They are also used for mechanical surface detection and probe collision detection. The robot uses its own controller with a built in VME-bus computer. RFI GLOBAL SERVICES LTD Test Report Serial No: RFI/SAR1/RP77775JD09A Page: 128 of 129 Issue Date: 26 May 2010 Test of: P-06B To: OET Bulletin 65 Supplement C: (2001-01) A.7.2. DASY4 SAR System Specifications Robot System Positioner: Stäubli Unimation Corp. Robot Model: RX90L Repeatability: 0.025 mm No. of Axis: 6 Serial Number: F00/SD89A1/A/01 Reach: 1185 mm Payload: 3.5 kg Control Unit: CS7 Programming Language: V+ Data Acquisition Electronic (DAE) System Serial Number: DAE3 SN:394 PC Controller PC:…

Text truncated - open the document above for the full version.

RFI Global Services Ltd Pavilion A, Ashwood Park, Ashwood Way, Basingstoke, Hampshire, RG23 8BG Tel: +44 (0) 1256 312000 Fax: +44 (0) 1256 312001 Email: [email protected] Website: www.rfi-global.com Registered in England and Wales Company number: 2117901 Re: FCC ID UCE210028A SAR Report RFI-SAR1-RP77775JD09A Additional explanation of EUT test orientations and SAR scans All required SAR test orientations are shown in “SAR Report Part 3 Test Set Up” confidential exhibit contained in the “Test Set Up Photos” exhibit folder of this filing. (Ref. SAR Report Part 3 Appendix 4). SAR results for all orientations are detailed in SAR Report Part 1 contained in “RF Exposure Info” exhibit folder of this filing . The SAR Distribution Scans are detailed in SAR Report Part2 Appendix 3. The DASY system generates the scans and provides a full cube for only the highest SAR point identified for each scan. Other hot spot zoom scans shown on the area scan are not measured by the DASY system as they are not within 2dB of the highest SAR level. This is standard characteristic of the DASY system. (Ref. SAR Report Part 2). RFI Global Services Ltd 13 May 2010

TEST REPORT FROM RFI GLOBAL SERVICES LTD Test of: NTT docomo P-06B To: FCC Part 22: 2009 Subpart H Test Report Serial No: RFI-RPT-RP77775JD03A This Test Report Is Issued Under The Authority Of Scott D’Adamo, Operations Manager Global Approvals: Checked By: Ian Watch Signature: Date of Issue: 04 June 2010 This report is issued in Adobe Acrobat portable document format (PDF). It is only a valid copy of the report if it is being viewed in PDF format with the following security options not allowed: Changing the document, Selecting text and graphics, Adding or changing notes and form fields. This report may not be reproduced other than in full, except with the prior written approval of RFI Global Services Ltd. The results in this report apply only to the sample(s) tested. TEST REPORT SERIAL NO: RFI-RPT-RP77775JD03A VERSION 1.0 ISSUE DATE: 04 JUNE 2010 Page 2 of 32 RFI Global Services Ltd This page has been left intentionally blank. TEST REPORT SERIAL NO: RFI-RPT-RP77775JD03A VERSION 1.0 ISSUE DATE: 04 JUNE 2010 RFI Global Services Ltd Page 3 of 32 Table of Contents 1. Customer Information .................................................................................................................. 4 2. Summary of Testing ..................................................................................................................... 5 3. Equipment Under Test (EUT) ....................................................................................................... 6 4. Operation and Monitoring of the EUT during Testing ............................................................... 9 5. Measurements, Examinations and Derived Results ................................................................ 10 6. Measurement Uncertainty .......................................................................................................... 31 Appendix 1. Test Equipment Used ................................................................................................32 TEST REPORT SERIAL NO: RFI-RPT-RP77775JD03A VERSION 1.0 ISSUE DATE: 04 JUNE 2010 Page 4 of 32 RFI Global Services Ltd 1. Customer Information Company Name: Panasonic Mobile Communications Development of Europe Ltd Address: Panasonic House Willoughby Road Bracknell Berkshire RG12 8FP United Kingdom TEST REPORT SERIAL NO: RFI-RPT-RP77775JD03A VERSION 1.0 ISSUE DATE: 04 JUNE 2010 RFI Global Services Ltd Page 5 of 32 2. Summary of Testing 2.1. General Information Specification Reference: 47CFR22 Specification Title: Code of Federal Regulations Volume 47 (Telecom…
